NL10AC - Lamp ANSMANN - Free user manual and instructions

Product type	LED bedside lamp with dusk sensor
Brand	Ansmann
Model	NL10AC
Input voltage	220V-240V~50-60Hz
Light source	SMD LED 0.45W (non-replaceable)
Luminous flux	Approx. 5 lm
Color temperature	3000 K (warm white)
Sensor	CSD light sensor (automatically turns on/off based on brightness)
Connector type	EU plug (European)
Weight	53.9 g
Operating temperature	0°C to 40°C
Intended use	Dry indoor, enclosed rooms, private use (accent/orientation light)
Automatic function	Turns on in darkness and turns off in daylight
Cleaning	Unplug; allow to cool; dry lint-free cloth; no abrasive products
Maintenance	Unplug if not used for extended period
Safety	Do not open/modify; do not cover while in use; avoid moisture; do not use outdoors
Lifespan	Integrated LED source; replace entire lamp at end of life
Warranty	See www.ansmann.de
Standards	Compliant with European directives (CE, WEEE)
Disposal	Do not dispose of with household waste; take to recycling center or collection point

Frequently Asked Questions - NL10AC ANSMANN

How does the automatic switching of the NL10AC lamp work?

The lamp is equipped with a dusk sensor (CSD) that detects ambient brightness. It automatically turns on in darkness and turns off when daylight returns. Simply plug it into a mains socket.

Can I replace the lamp's LED?

No, the LED light source is permanently integrated and non-replaceable. At the end of the LED's life, the entire lamp must be replaced.

Does the lamp work outdoors?

No, the NL10AC lamp is designed only for indoor use in dry rooms. Do not use it in humid rooms, in rain, or outdoors.

What should I do if the lamp does not turn on automatically?

First check that the lamp is properly plugged into a functional socket (220-240V). Make sure the sensor is not obstructed by dust or an object. If the problem persists, contact customer service.

How do I clean the bedside lamp?

Always unplug the lamp before cleaning. Let it cool completely. Use a dry lint-free cloth. Never use abrasive products, solvents, metal brushes, or rough sponges.

Is the lamp safe for children?

This product is not intended for children. It is not designed for use by persons (including children) with reduced physical, sensory, or mental capabilities. Keep the product and its packaging out of reach of children.

What is the required supply voltage?

The lamp operates on a mains voltage of 220V-240V~50-60Hz. Plug it only into a standard European wall socket matching this voltage.

Can I cover the lamp or use it with a dimmer?

No, never cover the lamp while it is in use. It is not designed for use with a dimmer. Use it only directly plugged into the mains.

How do I dispose of the lamp at end of life?

Do not dispose of the lamp with household waste. Due to the WEEE directive, take it to a municipal collection point or your retailer. The packaging (paper, film) must be sorted according to local regulations.

What are the warranty conditions?

Warranty conditions are available on www.ansmann.de. No warranty is given for damage caused by failure to follow the instruction manual. Your statutory rights remain unaffected.

USER MANUAL NL10AC ANSMANN

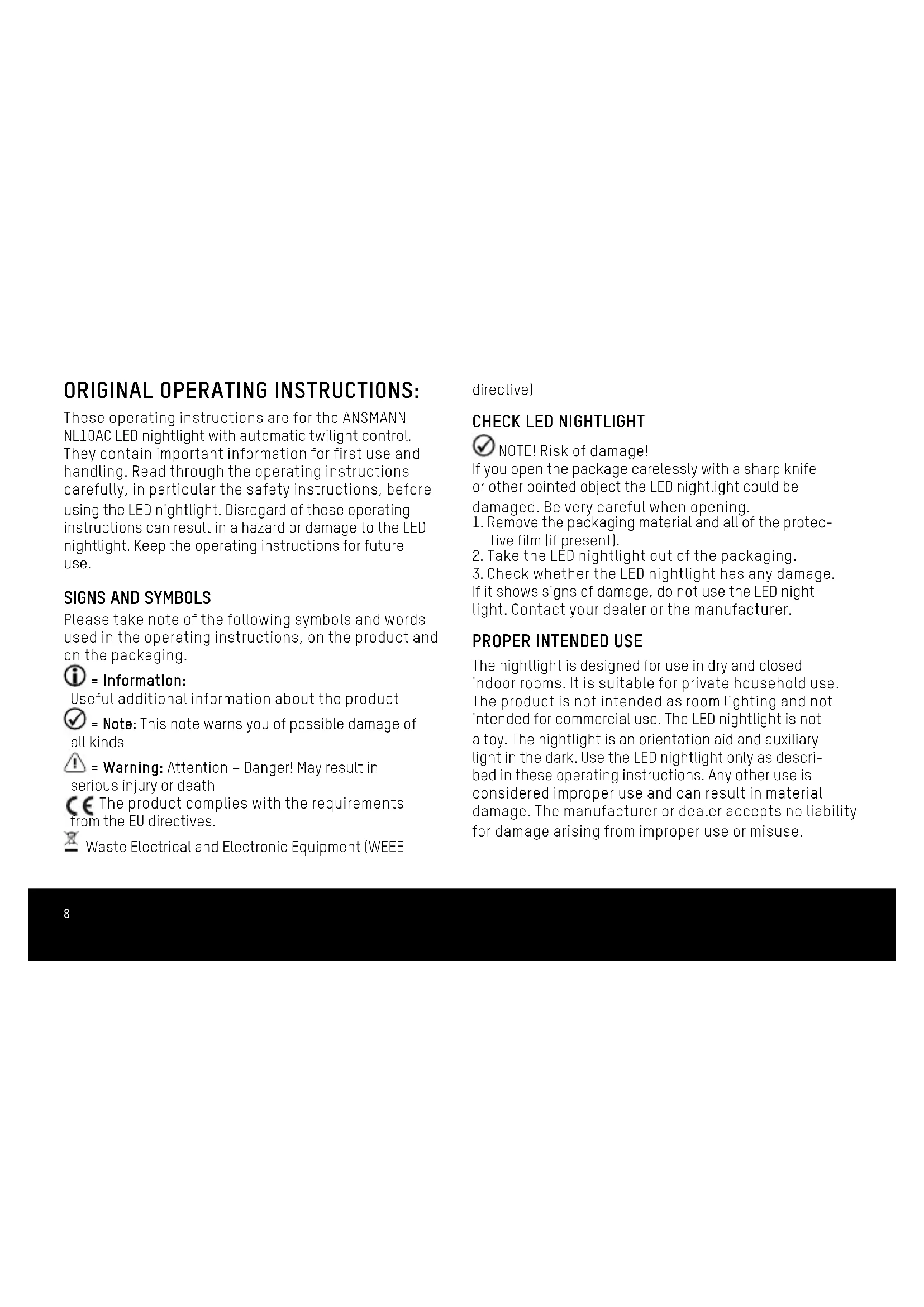

These operating instructions are for the ANSMANN NL10AC LED nightlight with automatic twilight control. They contain important information for first use and handling. Read through the operating instructions carefully, in particular the safety instructions, before using the LED nightlight. Disregard of these operating instructions can result in a hazard or damage to the LED nightlight. Keep the operating instructions for future use.

SIGNS AND SYMBOLS

Please take note of the following symbols and words used in the operating instructions, on the product and on the packaging.

i = Information:

Useful additional information about the product

√ = Note: This note warns you of possible damage of all kinds

⚠ = Warning: Attention – Danger! May result in serious injury or death

CE The product complies with the requirements from the EU directives.

Waste Electrical and Electronic Equipment (WEEE

directive)

CHECK LED NIGHTLIGHT

NOTE! Risk of damage!

If you open the package carelessly with a sharp knife or other pointed object the LED nightlight could be damaged. Be very careful when opening.

1. Remove the packaging material and all of the protective film (if present).
2. Take the LED nightlight out of the packaging.
3. Check whether the LED nightlight has any damage. If it shows signs of damage, do not use the LED nightlight. Contact your dealer or the manufacturer.

PROPER INTENDED USE

The nightlight is designed for use in dry and closed indoor rooms. It is suitable for private household use. The product is not intended as room lighting and not intended for commercial use. The LED nightlight is not a toy. The nightlight is an orientation aid and auxiliary light in the dark. Use the LED nightlight only as described in these operating instructions. Any other use is considered improper use and can result in material damage. The manufacturer or dealer accepts no liability for damage arising from improper use or misuse.

SAFETY INSTRUCTIONS

WARNING!

Risk of electric shock! Faulty electrical installations or mains voltage that is too high can result in an electric shock.

■Only connect the LED night-light if the mains voltage at the socket matches the required operating voltage for the light and use an easily accessible mains socket so that you can disconnect the light from the mains quickly in the event of a fault.

■Do not use the product if there is damage to the housing or plug. There is a risk of electric shock in the event of damage to the housing! Risk of death!

■Do not open or modify the product!

■Never cover the LED night-light when it is operating.

■Never touch the mains plug with wet hands.

■Never submerge the product in water or other liquids. Avoid dripping water. Always keep the product dry.

■Use the LED nightlight only

indoors. Never operate it in damp rooms or in the rain.

■If you are not using the LED nightlight or if a fault arises, always switch off the LED nightlight and disconnect it from the power source.

■The LED light source cannot be replaced. When the LED comes to the end of its service life, the complete lamp must be replaced.

■Failure to observe the safety instructions can result in dangerous injuries to persons or damage to the device!

■This product is not to be used by persons (including children) who have restricted physical, sensory or mental capabilities or who do not have adequate experience and knowledge in handling this product.

- Keep the product and the packaging away from children.

■Do not allow children to play with the packaging film. They could become caught in it while playing and suffocate.

Risk of damage!

■Improper handling of the LED nightlight can result in damage.
■Do not continue to use the LED nightlight if the plastic components of the LED nightlight are cracked, torn or deformed.
■Do not expose the LED nightlight to extreme temperatures or severe mechanical loads. Otherwise, this can result in deformation of the LED nightlight.

i TECHNICAL DATA

Input voltage:	220V-240V~50-60Hz
Illuminant:	SMD LED 0.45W, permanently installed
Luminous flux:	ca. 5lm
Colour temperature:	ca. 3000K
Sensor:	CSD light sensor
Protection class:	II
Plug type:	EU plug
Operating temperature:	0°C to 40°C
Weight:	53.9g
Dimensions:	60 x 60 x 54.5mm

USE

The nightlight has an automatic twilight sensor. Insert the mains plug of the nightlight into a properly installed mains wall socket.

Thanks to the twilight sensor, the LED nightlight switches on automatically when darkness falls and switches off automatically during daylight.

CLEANING AND CARE

Risk of electric shock!

Incorrect handling of the LED nightlight can result in an electric shock.

CLEANING

• Carry out cleaning tasks only when the mains plug is removed from the mains power.
• Let the LED nightlight cool down completely before cleaning.
  ■ Use only a dry, lint-free cloth for cleaning.
• Do not use scratching, hard objects or cleaning utensils such as wire brushes or sponges for cleaning.
• Do not use abrasive agents or solvents for cleaning.

CARE

Disconnect the device from the mains before cleaning or before storing for an extended period of time.

DISPOSAL

Dispose of packaging after sorting by material type.

Cardboard and cardboard to the waste paper, film to the recycling collection.

Dispose of the device in accordance with legal provisions. The "waste bin" symbol indicates that, in the EU, it is not permitted to dispose of electrical equipment in household waste. Use the return and collection

systems in your area or contact the dealer from whom you purchased the product. In this way you will fulfil your legal obligations and contribute to environmental protection.

LIMITATION OF LIABILITY

The information contained within these operating instructions can be changed without prior notification. We accept no liability for direct, indirect, incidental or other damage or consequential damage arising though improper handling or through disregard of the information contained within these operating instructions. We accept no liability or warranty claims or guarantee claims in the event of incorrect use of the product.

WARRANTY INFORMATION

You can find our warranty terms online at www.ansmann.de. The guarantee does not apply to damage to the device arising through a failure to comply with the operating instructions. Your statutory warranty rights are not affected by this.

Subject to technical changes. We assume no liability for printing errors.

Dimensions: 60 x 60 x 54.5mm

MISE EN SERVICE

Tunnistin: CSD-valotunnistin

Suojaluokka: II

Kundenservice | Customer service:

ANSMANN AG

Industriestrasse 10

97959 Assamstadt

Germany

Hotline: [phone]

E-Mail: [e-mail]

MA-1600-0406/V1/07-2020
