010008W - Slicer Weston - Free user manual and instructions
Find the device manual for free 010008W Weston in PDF.
| Product Type | Manual Slicer (Mandoline) |
| Brand | Weston |
| Model | 010008W |
| Material | Food-grade plastic, stainless steel for blades |
| Dimensions (approx.) | Approx. 35 x 12 x 10 cm (folded) |
| Weight (approx.) | Approx. 0.5 kg |
| Power Source | Manual, no electricity |
| Main Functions | Straight slicing, julienne cut, thickness adjustment (3 levels) |
| Number of Blades | 2 interchangeable blades (for slices and julienne) |
| Thickness Adjustment | By sliding selector with 3 positions (thin to thick) |
| Safety | Blade lock in inactive position, mandatory food pusher, blade trigger |
| Maintenance and Cleaning | Hand wash with warm soapy water or dishwasher (top rack), immediate drying |
| Spare Parts and Repairability | Parts available (pusher, blades, etc.); 1-year warranty on material defects; Weston customer service |
| Storage Support | Foldable back support for compact storage |
| Included Accessories | Food pusher with spikes |
| General Information | Use on stable surface, with plate or bowl under blades; suitable for fruits, vegetables, and non-frozen meats |
Frequently Asked Questions - 010008W Weston
User questions about 010008W Weston
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Slicer in PDF format for free! Find your manual 010008W - Weston and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 010008W by Weston.

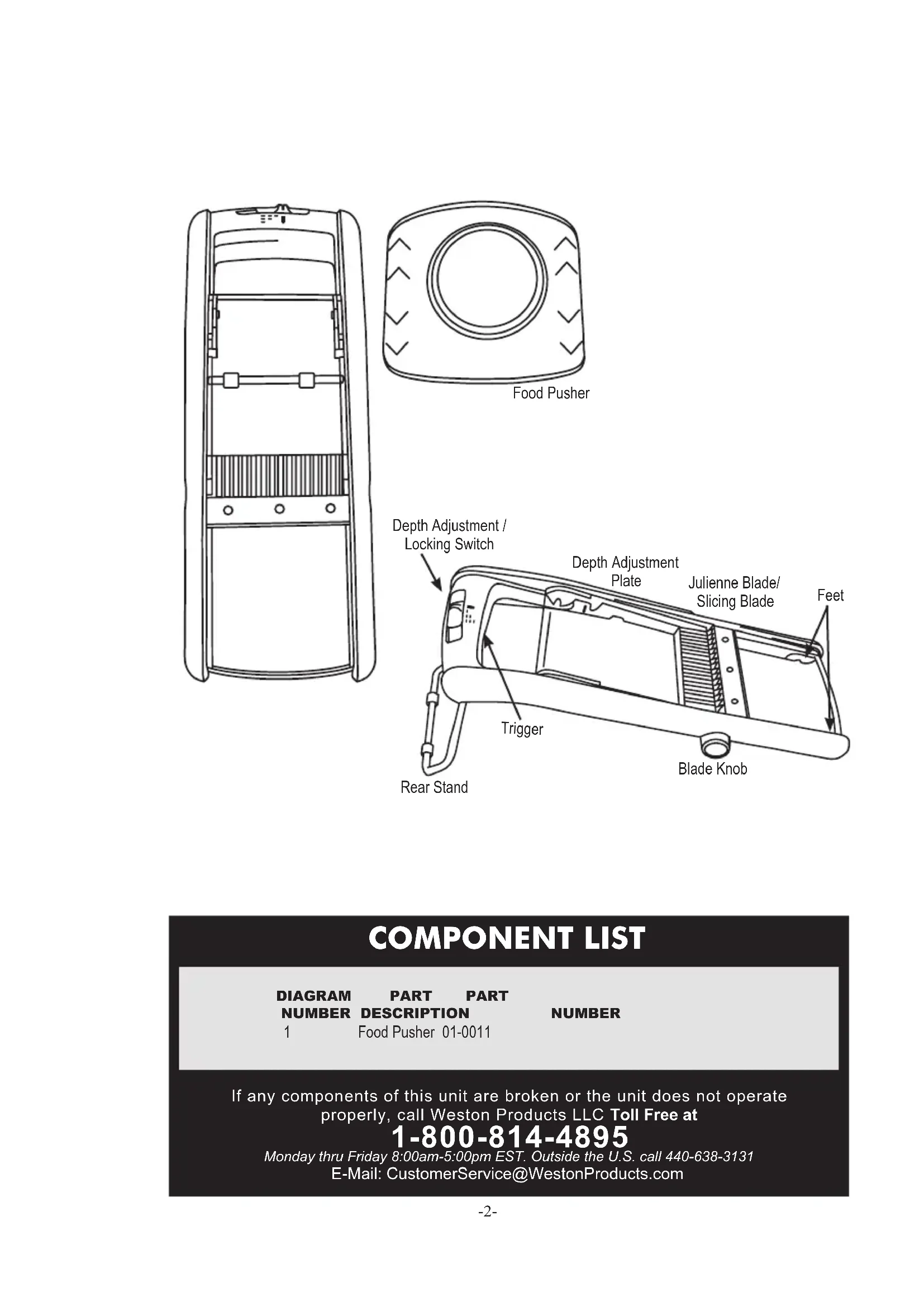

USER MANUAL 010008W Weston


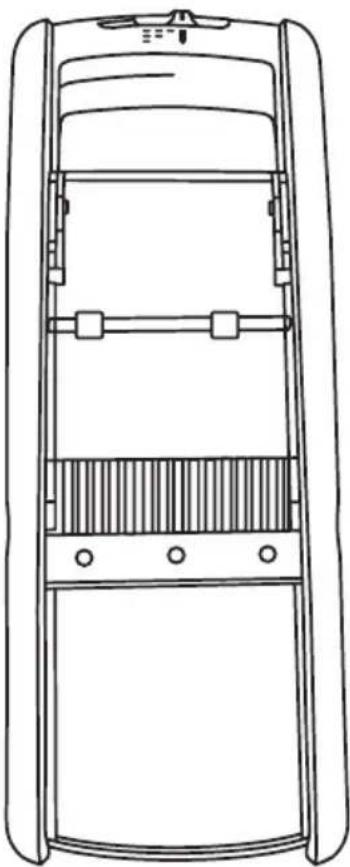

Top-down line drawing of a car interior frame with no text or symbols


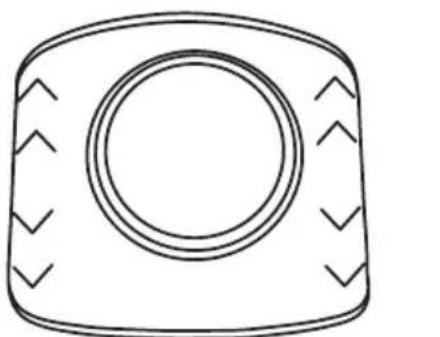

Simple line drawing of a rounded rectangular object with a central circular hole and side chevron patterns (no text or symbols)Food Pusher

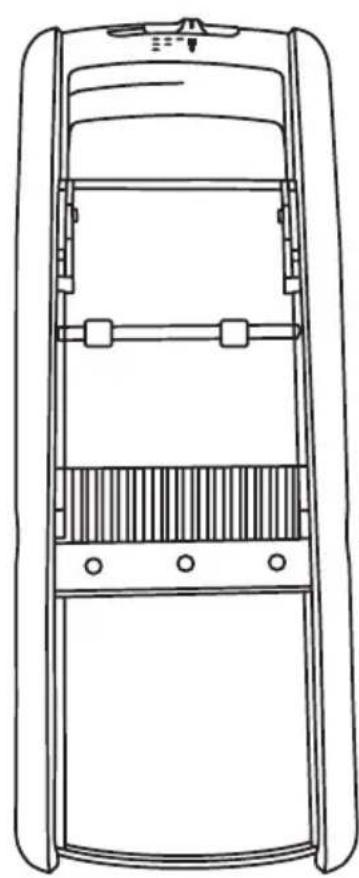

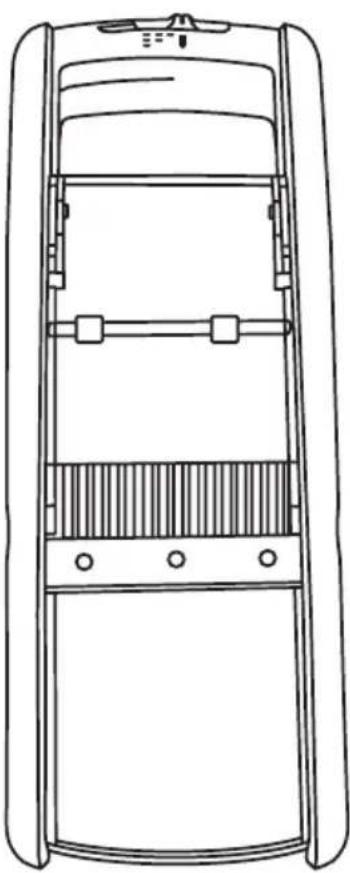

Depth Adjustment / Locking Switch


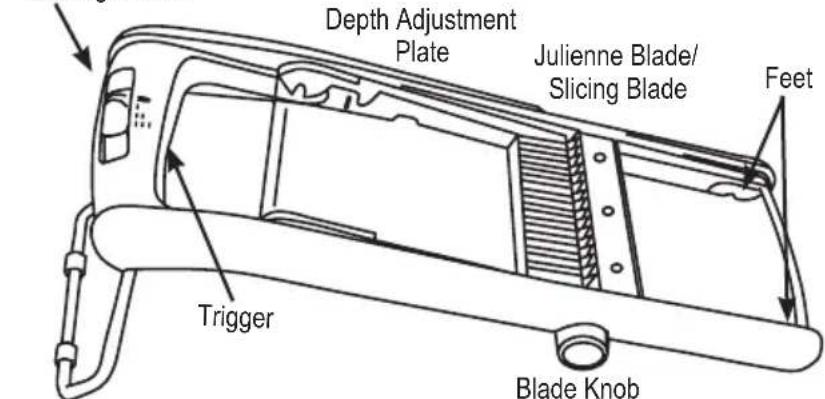

Depth Adjustment Plate Julienne Blade/ Slicing Blade Feet Trigger Blade KnobRear Stand
COMPONENT LIST
DIAGRAM
NUMBER
1
PART
DESCRIPTION

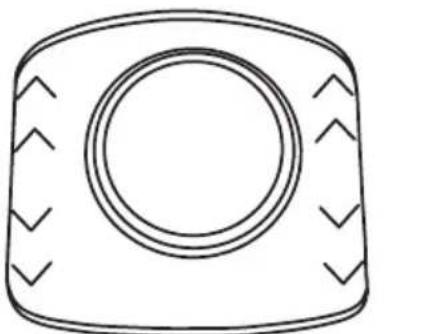

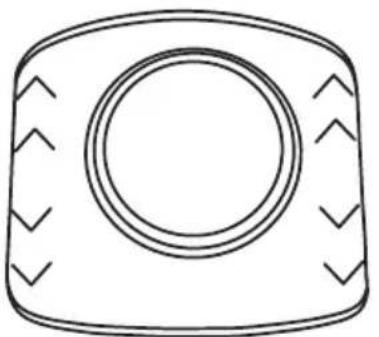

Food Pusher 01-0011
PART
NUMBER
If any components of this unit are broken or the unit does not operate
properly, call Weston Products LLC Toll Free at
1-800-814-4895
Monday thru Friday 8:00am-5:00pm EST. Outside the U.S. call 440-638-3131
E-Mail: CustomerService@WestonProducts.com
GENERAL SAFETY RULES
WARNING!
READ AND FULLY UNDERSTAND ALL INSTRUCTIONS AND WARNINGS PRIOR TO USING THIS UNIT. YOUR SAFETY IS MOST IMPORTANT! FAILURE TO COMPLY WITH PROCEDURES AND SAFE GUARDS MAY RESULT IN SERIOUS INJURY OR PROPERTY DAMAGE. REMEMBER: YOUR PERSONAL SAFETY IS YOUR RESPONSIBILITY!
- KEEP FINGERS CLEAR of the Blade at all times. NEVER push the food product with your hands in line of the Blade when slicing. ALWAYS use the Food Pusher.
- NEVER use fingers to scrape food away from the Blade. SEVERE INJURY MAY RESULT.
- NEVER LEAVE THE MANDOLINE SLICER UNATTENDED. Close supervision is necessary when used near children. ALWAYS lock the Blade when not in use. The Mandoline Slicer is NOT to be used by children.
- CHECK FOR DAMAGED PARTS. Before using the Slicer, check that all parts are operating properly and perform the intended functions.
-
The manufacturer declines any responsibility in the case of improper use of this unit.
-
NEVER use any accessories or parts from other manufacturers. Doing so will VOID YOUR WARRANTY and may cause injury.
- Be sure the Mandoline Slicer is stable during use.
- When not in use or in storage, make sure the Depth Adjustment / Locking Switch is in the lock position to lock the Trigger.
- DO NOT use this Mandoline Slicer for frozen foods or anything other than food stuffs.
- DO NOT use the Mandoline Slicer while under the influence of drugs or alcohol.
SAVE THESE INSTRUCTIONS!
Refer to them often and use them to instruct others.
WARNING!
Protective/cut-resistant
Kevlar Gloves are
recommended
whenever handling the
Blade assembly!
CLEANING
Clean the Mandoline Slicer immediately after use to prevent food from drying on the parts.
Wash the Mandoline Slicer Base and the Food Pusher by hand in hot soapy water, rinse with clean water, then dry immediately.
CAUTION: If hand washing the Mandoline Slicer, always wipe AWAY from the Blade edges and use running water to remove blockages.
The Mandoline Slicer Base and the Food Pusher can be washed in the top rack of a dishwasher. Carefully position the Mandoline Slicer so it cannot cut or damage other utensils - make sure the Depth Adjustment / Locking Switch is in the lock position ( 🔍 ) to lock the Trigger.
When not in use or in storage, make sure the Depth Adjustment / Locking Switch is in the lock position ( 🔍 ) to lock the Trigger.
Stand collapses for easy storage.
Store in a cool, dry location.
USING THE SAFE SLICE MANDOLINE

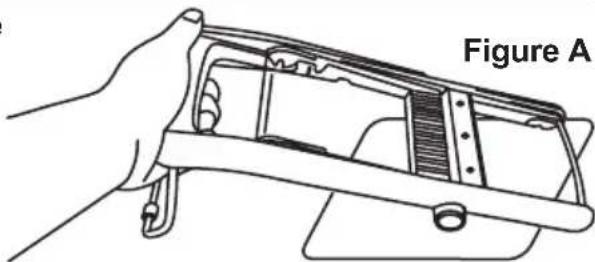

- Fold out the Rear Stand of the Mandoline Slicer (figure A) and position the Mandoline Slicer on a steady, flat working surface, with a plate or bowl under the Blades to catch the food as it is sliced.

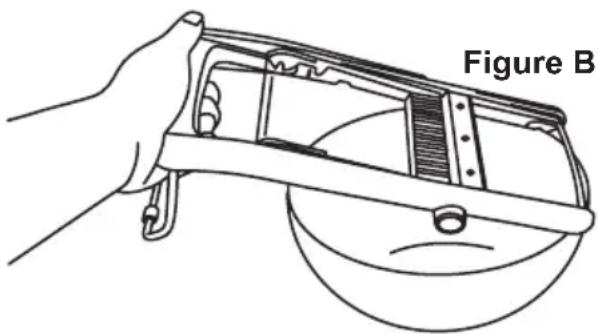

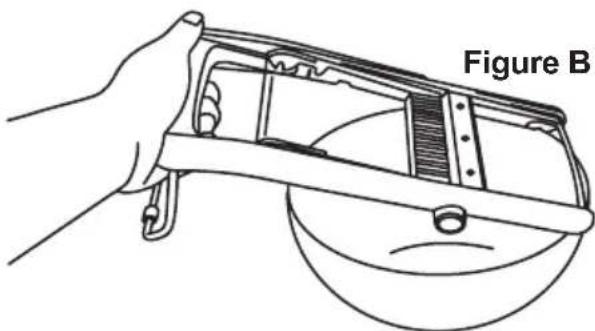

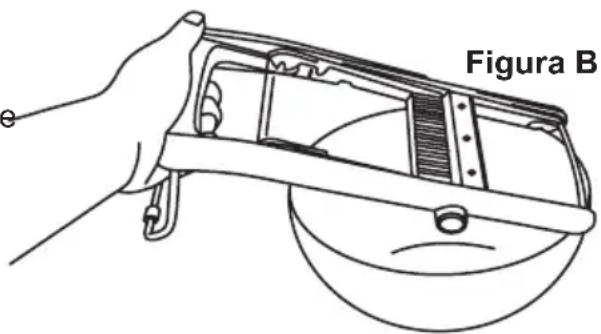

OR Place the notches in the Feet of the Mandoline Slicer onto the edge of a bowl (figure B).
-

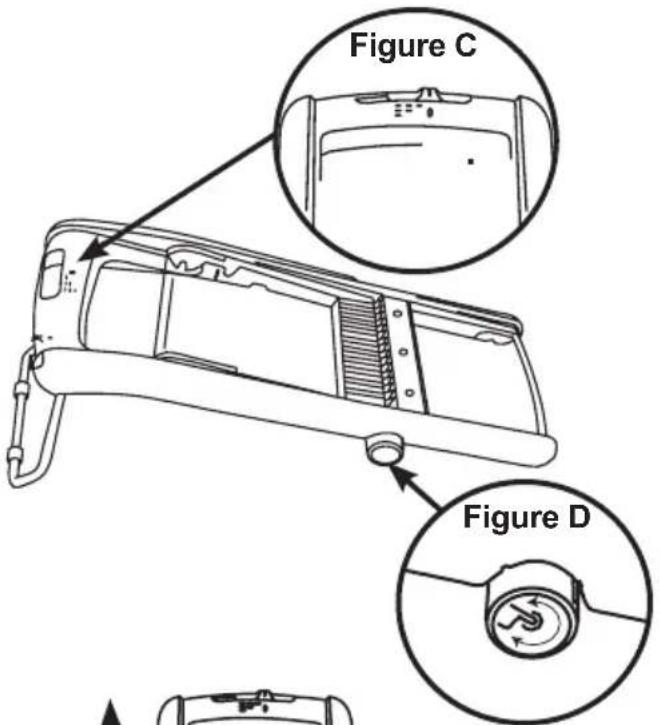

Select the cutting thickness by sliding the Depth Adjustment/Locking Switch out of the locked position into level one, two or three (figure C).
-
Select either julienne cuts or straight edge cuts by pushing in and turning the Blade Knob to the right for for Julienne Blades and to the left for Straight Blade (figure D).

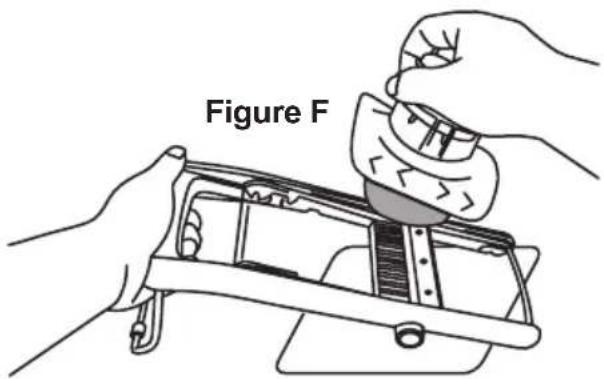

CAUTION! ALWAYS use the Food Pusher. NEVER use your fingers, hands or other objects to push food on the Mandoline Slicer! The Food Pusher is designed so that it will not touch the blade as you slide it up and down the face of the Mandoline Slicer.

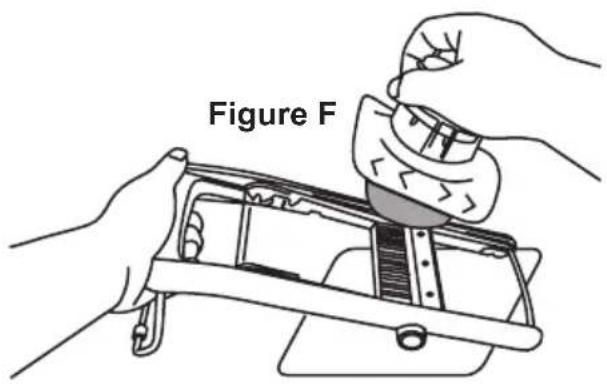

- Push the prongs of the Food Pusher into the food being sliced. A flat edge may need to be cut into the food to keep the food steady onto the Food Pusher.


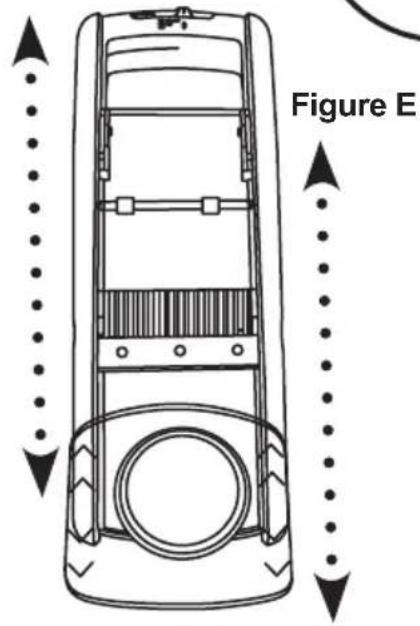

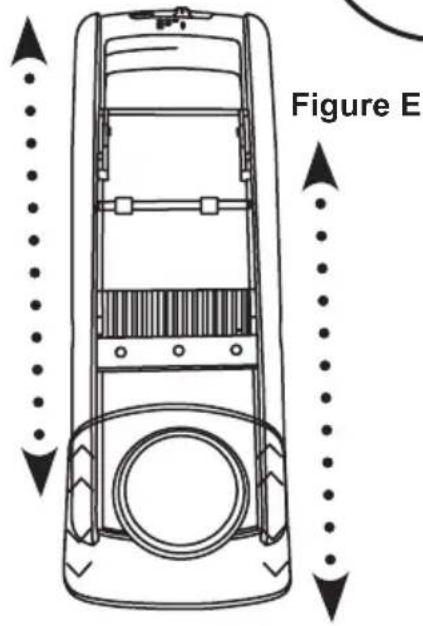

Move the Food Pusher in a steady and controlled motion in the direction of the arrows on the face of the Food Pusher (figure E & F). - Check regularly that the Depth Adjustment Plate covers the Blades when the Trigger is released.
- When not in use or in storage, make sure the Depth Adjustment / Locking Switch is in the lock position ( 🔍 ) to lock the Trigger.
There are basic rules to follow when handling food. They are COOK, SEPARATE, CLEAN, and CHILL.
COOK
It's crucial to cook food to a safe internal temperature to destroy bacteria that is present. The safety of hamburgers and other foods made with ground meat has been receiving a lot of attention lately, and with good reason. When meat is ground, the bacteria present on the surface is mixed throughout the ground mixture. If this ground meat is not cooked to at least 160^ to 165^ (71°C to 74°C), bacteria will not be destroyed and there's a good chance you will get sick.
Solid pieces of meat like steaks and chops don't have dangerous bacteria like E. coli on the inside, so they can be served more rare. Still, any beef cut should be cooked to an internal temperature of at least 145^ F ( 63^ C) (medium rare). The safe temperature for poultry is 180^ F ( 82^ C) and solid cuts of pork should be cooked to 160^ F ( 71^ C). Eggs should be thoroughly cooked too. If you are making a meringue or other recipe that uses uncooked eggs, buy specially pasteurized eggs or use prepared meringue powder.
SEPARATE
Foods that will be eaten uncooked and foods that will be cooked before eating MUST ALWAYS be separated. Cross-contamination occurs when raw meats or eggs come in contact with foods that will be eaten uncooked. This is a major source of food poisoning. Always double-wrap raw meats and place them on the lowest shelf in the refrigerator so there is no way juices can drip onto fresh produce. Then use the raw meats within 1-2 days of purchase, or freeze for longer storage. Defrost frozen meats in the refrigerator, not on the counter.
When grilling or cooking raw meats or fish, make sure to place the cooked meat on a clean platter. Don't use the same platter you used to carry the food out to the grill. Wash the utensils used in grilling after the food is turned for the last time on the grill, as well as spatulas and spoons used for stir-frying or turning meat as it cooks.
Make sure to wash your hands after handling raw meats or raw eggs. Washing hands with soap and water, or using a pre-moistened antibacterial towelette is absolutely necessary after you have touched raw meat or raw eggs. Not washing hands and surfaces while cooking is a major cause of cross-contamination.
CLEAN
Wash your hands and work surfaces frequently when you are cooking. Washing with soap and warm water for at least 15 seconds, then dry with a paper towel.
CHILL
Chilling food is very important. The danger zone where bacteria multiply is between 40^ F and 140^ F ( 4^ C and 6^ C). Your refrigerator should be set to 40^ F ( 4^ C) or below; your freezer should be 0^ F (- 17^ C) or below. Simple rule: serve hot foods hot, cold foods cold. Use chafing dishes or hot plates to keep food hot while serving. Use ice water baths to keep cold foods cold. Never let any food sit at room temperature for more than 2 hours - 1 hour if the ambient temperature is 90^ F ( 32^ C) or above. When packing for a picnic, make sure the foods are already chilled when they go into the insulated hamper. The hamper won't chill food - it just keeps food cold when properly packed with ice. Hot cooked foods should be placed in shallow containers and immediately refrigerated so they cool rapidly. Make sure to cover foods after they are cool.
NOTE: Special considerations must be made when using venison or other wild game, since it can become heavily contaminated during field dressing. Venison is often held at temperatures that could potentially allow bacteria to grow, such as when it is being transported. Refer to the USDA Meat and Poultry Department for further questions or information on meat and food safety.
CAUTION! It is important to follow the "Food Safety" guidelines outlined in this manual. For the most up to date instruction visit the USDA website.
WESTON WARRANTY INFORMATION
SAVE THIS WARRANTY INFORMATION FOR YOUR RECORDS!
Weston Products LLC warrants to the ORIGINAL RETAIL PURCHASER of this product that if operated in accordance with the printed instruction accompanying it, then for a period of 1 year from the date of purchase, the product shall be free from defects in material and workmanship.
The Warranty Card, along with a copy of the original receipt, must be received by Weston Products LLC within 30 days from purchase date for the warranty to apply. Failure to send the completely filled out Warranty Card, along with a copy of the original receipt, will void the warranty.
The product must be delivered to or shipped freight prepaid to Weston Products LLC for warranty services, in either its original packaging or similar packaging affording an equal degree of protection. Damage due to shipping is not the responsibility of the company. Weston Products LLC charges a \$35.00 per hour bench charge. NOTE: No repairs will be started without the authorization of the customer. The return shipping cost to the customer will be added to the repair invoice.
Weston Products LLC will repair (or at its discretion, replace) the product free of charge, if in the judgment of the company, it has been proven to be defective as to seller's labor and material, within the warranty period.
New or rebuilt replacements for factory defective parts will be supplied for one (1) year from the date of purchase. Replacement parts are warranted for the remainder of the original warranty period.
For non-warranty repairs, contact Weston Products LLC's Customer Service at 1-800-814-4895 M-F 8am-5pm EST (outside of the United States 440-638-3131) to obtain a Return Merchandise Authorization Number (RMA Number). Weston Products LLC will refuse all returns that do not contain this number. DO NOT RETURN THE UNIT WITHOUT PROPER AUTHORIZATION FROM WESTON PRODUCTS LLC.
LIMITATIONS: The warranty is void if the product is used for any purpose other than that for which it is designed. The product must not have been previously altered, repaired, or serviced by anyone else other than Weston Products LLC. If applicable, the serial number must not have been altered or removed. The product must not have been subjected to accident in transit or while in the customer's possession, misused, abused, or operated contrary to the instructions contained in the instruction manual. This includes failure caused by neglect of reasonable and necessary maintenance, improper line voltage and acts of nature. This warranty is not transferable and applies only to U.S. and Canadian sales.
Except to the extent prohibited by applicable law, no other warranties whether expressed or implied, including warranty merchantability and fitness for a particular purpose, shall apply to this product. Under no circumstances shall Weston Products LLC be liable for consequential damages sustained in connection with said product and Weston Products LLC neither assumes nor authorizes any representative or other person to assume for it any obligation or liability other than such as is expressly set forth herein. Any applicable implied warranties are also limited to the one (1) year period of the limited warranty.
This warranty covers only the product and its specific parts, not the food or other products processed in it.
CUT ALONG THE DOTTED LINE AND SEND THE WARRANTY CARD ALONG WITH A COPY OF YOUR ORIGINAL PURCHASE RECEIPT TO:
Weston Products LLC
20365 Progress Drive, Strongsville, OH 44149
WESTON WARRANTY CARD
SEND THIS CARD ALONG WITH A COPY OF YOUR ORIGINAL PURCHASE RECEIPT TO: WESTON WARRANTY, WESTON PRODUCTS LLC, 20365 PROGRESS DRIVE, STRONGSVILLE, OH 44149
Customer Name:
Address:
City/State/Zip:
Telephone Number: (____)
E-Mail Address:
Original Date of Purchase: ____/____/
Product Model #:
Serial # (if applicable):
WESTON®
Top-down schematic of a vehicle showing front, side, and top views with directional arrows indicating movement or force (no text labels)Figura E
TARJETA DE GARANTÍA WESTON
ENVÍE ESTA TARJETA JUNTO CON UNA COPIA DE SU RECIBO DE COMPRA ORIGINAL A: WESTON PRODUCTS LLC/WARRANTY, 20365 PROGRESSS DRIVE. STRONGSVILLE, OH 44149 U.S.A
Figure C Figure DINSTRUCTIONS EN FRANCIALS
Weston Products LLC / WARRANTY
20365 Progress Drive, Strongsville, OH 44149 U.S.A.
CARTE DE GARANTIE
ENVOYEZ CETTE CARTE DE GARANTIE AVEC UNE COPIE DE VOTRE REÇU D'ACHAT ORIGINAL À : WESTON PRODUCTS LLC / WARRANTY, 20365 PROGRESS DRIVE, STRONGSVILLE, OH 44149 U.S.A.
Nom du Client:
Adresse:
Province/Codepostal/Région:
If any components of this unit are broken, do not operate properly, or for product returns, please contact Weston Products LLC
Phone: 1-800-814-4895 (Outside the U.S. 440-638-3131)
Mail: 20365 Progress Drive, Strongsville, Ohio 44149
E-Mail: CustomerService@WestonProducts.com
Web Site: WestonProducts.com
All Trademarks and Registered Trademarks are property of the respective companies.
SAVE THESE INSTRUCTIONS!
Refer to them often and use them to instruct others.
¡ATENCIÓN!
Weston Products LLC, 20365 Progress Drive, Strongsville, Ohio 44149
WestonProducts.com
