USER MANUAL Cat & Animal Free 300 SILVERLINE

Digital silver line instrument with a circular warning symbol containing a deer silhouette (no text or symbols on the device itself)

www.silverline.se

Pest Control gardenSystem®

SE

SÄKERHETSANVISNINGAR

Close-up of a black electronic device with a circular display and ventilation grille (no visible text or symbols)

Close-up of a black and gray electronic device with a circular lens and control buttons (no visible text or symbols)

Close-up of a black industrial device with circular transparent overlay and central ventilation grille (no visible text or symbols)

Close-up of a black and gray electronic device with a circular lens and control buttons (no visible text or symbols)

Close-up of a black electronic device with visible internal components and a circular light pattern overlay (no text or symbols)

ChaseLight™ - Karkotinlamppu.

Close-up of a gray electronic device with a circular port and a small button, no visible text or symbols.

.Karkotinlampun katkaisin, ChaseLight™

Paristokotelo. 6 kpl 1,5 voltin LR14-paristolle (hankittava erikseen).

FI

SILVER INE

Close-up of a gray electronic device with a circular lens and control buttons (no visible text or symbols)

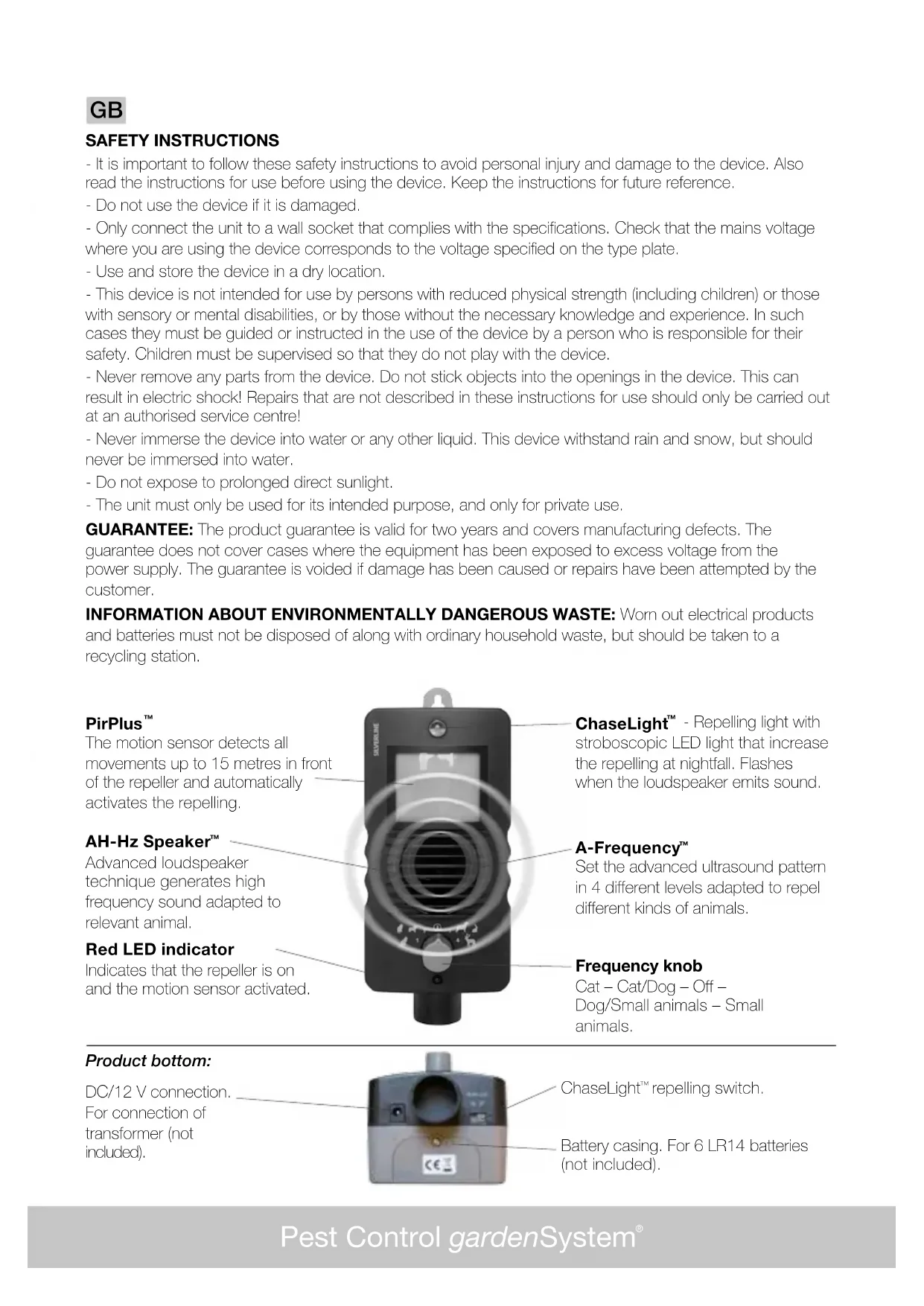

• It is important to follow these safety instructions to avoid personal injury and damage to the device. Also read the instructions for use before using the device. Keep the instructions for future reference.
• Do not use the device if it is damaged.
• Only connect the unit to a wall socket that complies with the specifications. Check that the mains voltage where you are using the device corresponds to the voltage specified on the type plate.
• Use and store the device in a dry location.
• This device is not intended for use by persons with reduced physical strength (including children) or those with sensory or mental disabilities, or by those without the necessary knowledge and experience. In such cases they must be guided or instructed in the use of the device by a person who is responsible for their safety. Children must be supervised so that they do not play with the device.
• Never remove any parts from the device. Do not stick objects into the openings in the device. This can result in electric shock! Repairs that are not described in these instructions for use should only be carried out at an authorised service centre!
• Never immerse the device into water or any other liquid. This device withstand rain and snow, but should never be immersed into water.
• Do not expose to prolonged direct sunlight.
• The unit must only be used for its intended purpose, and only for private use.

GUARANTEE: The product guarantee is valid for two years and covers manufacturing defects. The guarantee does not cover cases where the equipment has been exposed to excess voltage from the power supply. The guarantee is voided if damage has been caused or repairs have been attempted by the customer.

INFORMATION ABOUT ENVIRONMENTALLY DANGEROUS WASTE: Worn out electrical products and batteries must not be disposed of along with ordinary household waste, but should be taken to a recycling station.

PirPlus™

The motion sensor detects all movements up to 15 metres in front of the repeller and automatically activates the repelling.

Close-up of a black electronic device with a circular transparent overlay and a central ventilation grille (no visible text or symbols)

ChaseLight™ - Repelling light with stroboscopic LED light that increase the repelling at nightfall. Flashes when the loudspeaker emits sound.

AH-Hz Speaker™

Advanced loudspeaker technique generates high frequency sound adapted to relevant animal.

A-Frequency™

Set the advanced ultrasound pattern in 4 different levels adapted to repel different kinds of animals.

Red LED indicator

Indicates that the repeller is on and the motion sensor activated.

Frequency knob

Cat – Cat/Dog – Off – Dog/Small animals – Small animals.

Product bottom:

DC/12 V connection.

For connection of transformer (not included).

Close-up of a gray industrial device with a circular vent and control buttons (no visible text or symbols)

ChaseLight ^™ repelling switch.

Battery casing. For 6 LR14 batteries (not included).

GB

How does Cat & Animal Free 300 ^™ work? Cat & Animal Free 300 ^™ uses a high-tech high frequency sound pattern to efficiently scare cats, dogs and small animals from the garden and is controlled by a motion sensor. Any movement within the guarded area will trigger the repeller to emit high frequency sound embarrassing to cats, dogs and small animals. The repelling method makes the animals change their movement pattern so that they will seek for other areas to stay in. The high frequency sound is completely harmless for all animals and humans.

How far does Cat & Animal Free 300™ reach? The motion sensor detects all movements up to 15 metres in front of the repeller and automatically activates the repelling.

How should Cat & Animal Free 300 ^™ be placed? Place it at the same level as the animals' height, appr. 20-50 cm above the ground, as free as possible directed at the area where the animals stay. Cat & Animal Free 300 ^™ should be moved now and then in order to achieve full effect. This creates surprise effects to the intruder. NOTE! Never direct the repeller against neighbouring lots. For more information see later section.

How should Cat & Animal Free 300 ^™ be mounted? Anchor the repeller with the included pole. You can also hang the repeller on a wall or a fence using the top suspension.

How are the batteries inserted? Unscrew the lid at the bottom of the repeller and insert 6 LR14 batteries (not included).

How often should the batteries be checked? Normally the batteries would last for at least 4 months. However they should be checked now and then. Cat & Animal Free 300^TM can also be connected to a transformer (not included) specified 12V/DC 500 mA.

How can you tell that Cat & Animal Free 300 ^™ is working? When the selection knob is in desired position the red LED indicator lights up. This means that the repeller is activated and the motion sensor on. When the motion sensor detects movements and a sound is sent out, the white repelling lamp is also activated. The sound is on for appr. 10 seconds. The motion sensor is then reset after 5 seconds more.

When can I expect a result? The animals respond immediately. However a change in their behaviour can take appr. 2 weeks more. Under certain circumstances it could take more than 2 weeks. During this period it is wise to move Cat & Animal Free 300^TM in order to increase the moments of surprise.

What is the function of the white repelling lamp? Cat & Animal Free 300 ^™ is equipped with a stroboscopic LED light to increase the repelling at nightfall. If the flashing light irritates people, it can be shut off using the switch located at the bottom of the repeller.

Is Cat & Animal Free 300™ harmful to animals? The high frequency repelling sound is completely harmless to animals.

Does the sound from Cat & Animal Free 300 ^™ bother the human ear? When the selection knob is in one of the positions for small animals, a high frequency sound is emitted which can be audible to humans. Some people are extra sensible to high frequency sound, and if this is experienced as irritating the selection knob should be set in another position. You can also change direction of the repeller of Cat & Animal Free 300 ^™ .NOTE! Never direct the repeller against neighbour lots.

Does Cat & Animal Free 300 ^™ affect other animals? Some influence can occur to other animals.

Please carefully read the following instructions to get the most out of Silverline® Cat & Animal Free 300™:

• Never direct the unit against neighbour gardens or public areas. The repeller is for private use only, and to keep wild animals and small animals away from the garden.
• When the selection knob is in position small animals the sound might be perceived by humans. If this is experienced as irritating, change the position of the selection knob or move the repeller to another place.
• Some influence can occur to other animals. If there are pets in the garden it is recommended to try how they react before the repeller is set for operation.
• This device withstand rain and snow, but should not be immersed into water.
• Avoid exposing the motion sensor to direct sunlight, since this could shorten the lifetime.

GB

Location

Place the repeller 20-50 cm above the ground. Use the included pole or mount the repeller on a fence or wall. The motion sensor and sound work best horizontally levelled. Therefore the repeller should be placed at the same height as the actual animal to be repelled. Do not direct the repeller against the ground. Place the repeller so it will cover the area that should be guarded. Be sure to keep the area free from obstacles since the sound does not penetrate solid materials. Select appropriate frequency using the selection knob. If no immediate effect is noticed, a first recommendation is to change frequency and secondly to move the repeller.

To increase the effect when repelling cats it is recommended to move the unit each week in the beginning. Direct against the same area but from different places. The cats will change their behaviour after some weeks and the intervals between moving the repeller can be extended.

Large gardens might need more than one repeller to cover the areas.

Cover area for the motion sensor

This assignment is a reference. Weather conditions and obstacles may affect the guarded area. Avoid exposing the motion sensor to direct sunlight, since this could shorten the lifetime.

Frequency selector

Turn the knob to set the desired frequency.

1. Cat
2. Cat/Dog
   ① Off
3. Dog/Small animals
4. Small animals

1 2 ① 3 4

Power supply

Battery operated

1. Unscrew the lid at the bottom of Cat & Animal Free 300 ^™ .
2. Insert 6 LR14 batteries (not included), with correct polarity according to the guidance in the battery casing.
3. Mount the protection lid back on.
4. Turn the frequency selection knob to any position and test the function. The red LED indicator should now light up. When the motion sensor detects a movement the white repelling light and the repelling sound should be activated.

Transformer (not included) 12V DC 500 mA 6 VA contact device type V:

1. Connect the transformer contact to the DC/12V connection.
2. Plug the transformer into a 230V wall socket.
3. Turn the frequency selection knob to any position and test the function. The red LED indicator should now light up. When the motion sensor detects a movement the white repelling light and the repelling sound should be activated.

Cat & Animal Free 300™

Art.nr 25151

Manufacturer: Miljöcenter AB, Sweden

www.silverline.se

For optimum use, visit www.silverline.se for advice and tip.

FR

CONSIGNES DE SÉCURITÉ

Black and white illustration of a digital device with circular light patterns and a central screen (no text or symbols)

Close-up of a gray industrial device with a circular vent and control buttons (no visible text or symbols)

Close-up of a black electronic device with visible internal components and a digital display (no readable text or symbols)

Close-up of a gray industrial device with a circular vent and control buttons (no visible text or symbols)

EC Declaration of conformity

Enligt EG-direktiv According to EC directives

Electromagnetic Compatibility (EMC) 2004/108/EC

Produkt

Ultraljudsavskräckare, batteridriven

Product

Ultrasonic repeller, battery powered

Fabrikat

Silverline

Brand name

Modell

25151 Katt & Viltfritt

Model

Tillverkare

Miljöcenter AB

Manufacturer

We hereby declare that the product conforms to above mentioned directives and is designed according to the following standards:

EN61000-3-2:2006 + A1:2009 + A2:2009

EN61000-3-3: 2008

EN61000-6-1:2007

EN61000-6-3:2007

The product is CE-marked

2012-04-05

Thomas Mårtensson
