Product Type	Color LCD Monitor
Brand	NEC
Model	LCD1701
Screen Size	17 inches (43 cm)
Native Resolution	1280 x 1024 pixels
Panel Type	TFT LCD
Video Input Connector	D-SUB 15-pin (VGA)
Power Supply	220-240 V AC, 50/60 Hz
Weight (with stand)	4.6 kg maximum
VESA Compatibility	100 x 100 mm (M4 screws, max depth 8.5 mm)
Tilt	Yes, adjustable forward and backward
OSM Adjustment Functions	Brightness, contrast, horizontal/vertical position, width, fineness, colors (R,G,B, sRGB, Native), languages (7 languages), lock
Automatic Adjustment	Yes (Auto adjustment and Auto contrast)
Compliance Standards	FCC, C-UL, CE, Energy Star
Recommended Cleaning	Soft lint-free cloth, without cleaning solution or glass cleaner
Safety	Do not open the casing, use appropriate power cord, unplug if abnormality occurs
Image Persistence	Avoid prolonged display of fixed images; use a screen saver

Frequently Asked Questions - LCD1701 NEC

How to connect the LCD1701 monitor to my computer?

Turn off the computer. Connect the D-SUB 15-pin video cable to the video card connector, then to the back of the monitor. Connect the power cord. Set the vacation switch to ON (right side), then turn on the monitor using the front power button.

What is the optimal resolution for the LCD1701?

The optimal resolution is 1280 x 1024. The monitor will display an error message if another resolution is used.

How to adjust brightness and contrast?

Use the + and - buttons on the front. When the OSM menu is off, these buttons directly adjust contrast. For brightness, activate the OSM menu with a control button, then select BRIGHTNESS.

What to do if the screen displays 'No Signal'?

Check that the video cable is properly connected to the computer and monitor. Make sure the computer is on and the resolution is supported. Press EXIT to clear the message.

How to clean the LCD screen without damaging it?

Use a soft lint-free cloth and dry. Never use liquid cleaning solution or glass cleaner, as they may damage the surface.

Can I mount the LCD1701 on an articulating arm?

Yes, the monitor is VESA compatible (100 x 100 mm). Remove the four screws at the back of the stand to detach it, then use the provided M4 screws to attach the monitor to an approved arm (GS mark recommended).

How to restore factory settings?

In the OSM menu, go to TOOLS > FACTORY PRESET. Hold the RESET button for several seconds. For an individual setting, highlight it and press RESET.

What does the 'OUT OF RANGE' message mean?

This message appears if the input signal has an unsupported resolution or refresh rate. The monitor indicates the optimal resolution (1280 x 1024) and recommended frequency. Correct your computer's video settings.

How to lock the OSM menu to prevent accidental changes?

Press SELECT and hold the + button to activate OSM LOCK. Only brightness and contrast remain adjustable. To unlock, repeat the same operation.

What to do in case of image persistence (burn-in)?

Image persistence on LCDs is not permanent. Turn off the monitor for a period equal to the duration of the previous fixed image display. For example, one hour of fixed image requires one hour of power off. Use a screen saver to avoid it.

USER MANUAL LCD1701 NEC

For the Customer to use in U.S.A. or Canada

Canadian Department of Communications Compliance Statement

DOC: This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to CSA C22.2 No. 950.

1. Use the attached specified cables with the LCD1701 colour monitor so as not to interfere with radio and television reception.

(1) The power supply cord you use must have been approved by and comply with the safety standards of U.S.A., and meet the following condition.

Power supply cord Non Length 2.0 m Plug shape

shield type, 3-conductor U.S.A

(2) Shielded video signal cable. Use of other cables and adapters may cause interference with radio and television reception.

1. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

2. Reorient or relocate the receiving antenna.

3. Increase the separation between the equipment and receiver.
4. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
5. Consult your dealer or an experienced radio/TV technician for help.

If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet, prepared by the Federal Communications Commission, helpful: "How to Identify and Resolve Radio-TV Interference Problems." This booklet is available from the U.S. Government Printing Office, Washington, D.C., 20402, Stock No. 004-000-00345-4.

Declaration of Conformity

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

U.S. Responsible Party: NEC-Mitsubishi Electronics Display of America, Inc. Address: 1250 N. Arlington Heights Road Itasca, Illinois 60143-1248

Tel. No.: [phone]

Type of Product: Display Monitor

Equipment Classification: Class B Peripheral

Model:

LCD1701

We hereby declare that the equipment specified above conforms to the technical standards as specified in the FCC Rules.

TCO'99

Congratulations! You have just purchased a TCO'99 approved and labeled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during the manufacturing. Since it has not been possible for the majority of electronics equipment to be recycled in a satisfactory way, most of these potentially damaging substances sooner or later enter Nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (Internal) and natural (external) environments. Since all methods of conventional electricity generation have a negative effect on the environment (acidic and climate-influencing emissions, radioactive waste, etc.), it is vital to conserve energy. Electronics equipment in offices consume an enormous amount of energy since they are often left running continuously.

What does labelling involve?

This product meets the requirements for the TCO'99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimyndighet (The Swedish National Energy Administration).

The requirements cover a wide range of issues: environment, ergonomics, usability, emission of electrical and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands concern restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental plan which must be adhered to in each country where the company implements its operational policy. The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

Environmental Requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. In turn, they delay the spread of fire. Up to thirty percent of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride and these are related to another group of environmental toxins, PCBs, which are suspected to give rise to severe health effects, including reproductive damage in fisheating birds and mammals, due to the bioaccumulative* processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

TCO'99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically bound chlorine and bromine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Lead\*\*

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning.

TCO'99 requirement permits the inclusion of lead since no replacement has yet been developed.

Cadmium\*\*

Cadmium is present in rechargeable batteries and in the colour generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses.

TCO'99 requirement states that batteries, the colourgenerating layers of display screens and the electrical or electronics components must not contain any cadmium.

Mercury\*\*

Mercury is sometimes found in batteries, relays and switches, Mercury damages the nervous system and is toxic in high doses.

TCO'99 requirement states that batteries may not contain any Mercury. It also demands that no mercury is present in any of the electrical or electronics components associated with the display unit.

CFCs (freons)

CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on Earth of ultraviolet light with consequent increased risks of skin cancer (malignant melanoma).

The relevant TCO'99 requirement; Neither CFCs nor HCFCs may be used during the manufacturing and assembly of the product or its packaging.

*Bio-accumulative is defined as substances which accumulate within living organisms.

**Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.

To obtain complete information on the environmental criteria document, order from:

TCO Development Unit

SE-114 94 Stockholm

SWEDEN

FAX Number: [phone]

E-mail (Internet): [e-mail]

You may also obtain current information on TCO'99 approved and labelled products by visiting their website at: http://www.tcodevelopment.com

Index

Warning, Caution ...... English-1

Declaration ...... English-1

Contents..... English-2

Quick Start ...... English-2

Controls ...... English-6

Recommended use ...... English-9

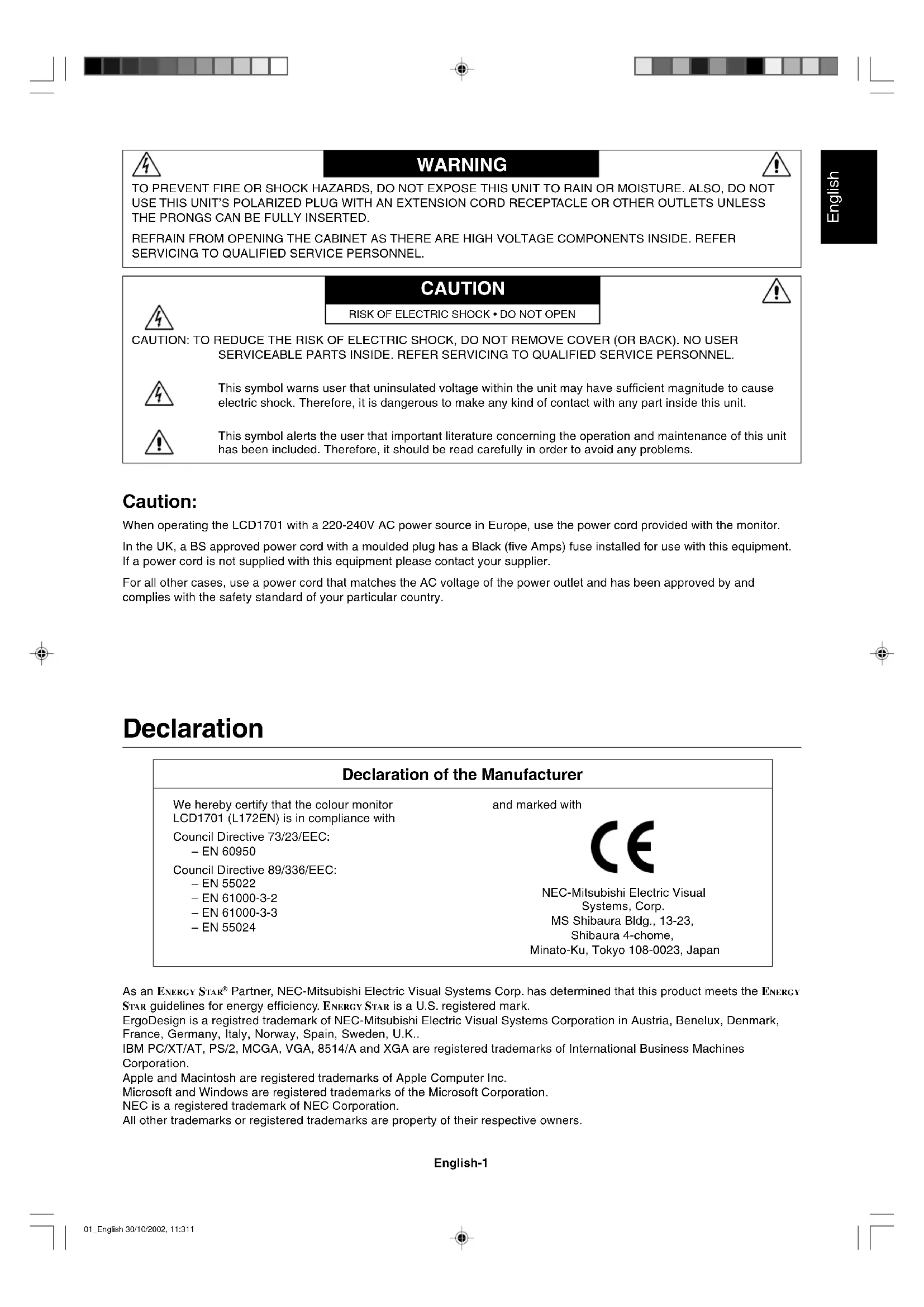

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT'S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED.

REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK • DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

Caution:

When operating the LCD1701 with a 220-240V AC power source in Europe, use the power cord provided with the monitor.

In the UK, a BS approved power cord with a moulded plug has a Black (five Amps) fuse installed for use with this equipment. If a power cord is not supplied with this equipment please contact your supplier.

For all other cases, use a power cord that matches the AC voltage of the power outlet and has been approved by and complies with the safety standard of your particular country.

Declaration

Declaration of the Manufacturer

We hereby certify that the colour monitor LCD1701 (L172EN) is in compliance with

Council Directive 73/23/EEC: -EN 60950

Council Directive 89/336/EEC:

- EN 55022

- EN 61000-3-2

- EN 61000-3-3

- EN 55024

and marked with

NEC-Mitsubishi Electric Visual Systems, Corp.

MS Shibaura Bldg., 13-23, Shibaura 4-chome,

Minato-Ku, Tokyo 108-0023, Japan

As an ENERGY STAR ^46 Partner, NEC-Mitsubishi Electric Visual Systems Corp. has determined that this product meets the ENERGY STAR guidelines for energy efficiency. ENERGY STAR is a U.S. registered mark.

ErgoDesign is a registered trademark of NEC-Mitsubishi Electric Visual Systems Corporation in Austria, Benelux, Denmark, France, Germany, Italy, Norway, Spain, Sweden, U.K..

IBM PC/XT/AT, PS/2, MCGA, VGA, 8514/A and XGA are registered trademarks of International Business Machines Corporation.

Apple and Macintosh are registered trademarks of Apple Computer Inc.

Microsoft and Windows are registered trademarks of the Microsoft Corporation.

NEC is a registered trademark of NEC Corporation.

All other trademarks or registered trademarks are property of their respective owners.

Contents

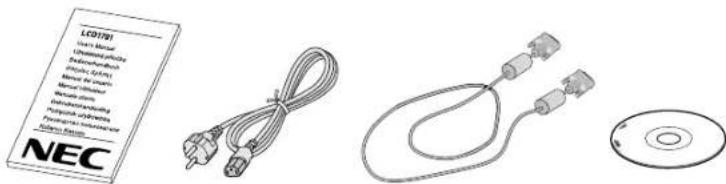

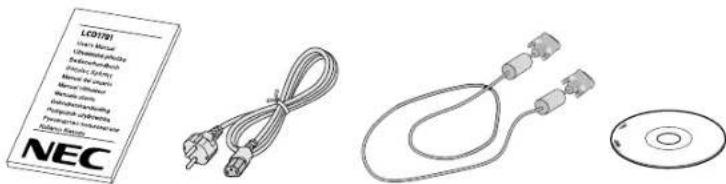

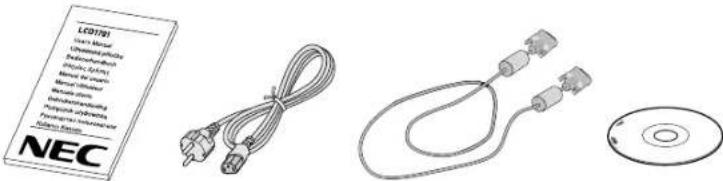

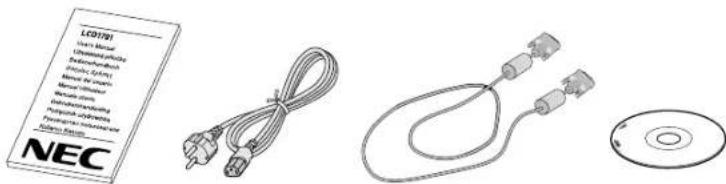

Your new NEC LCD monitor box* should contain the following:

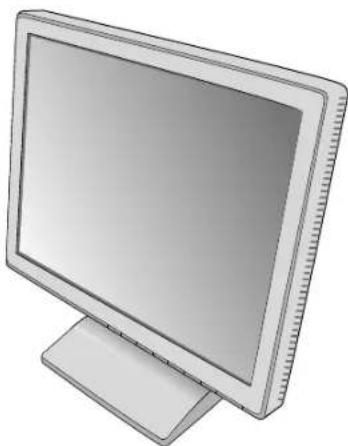

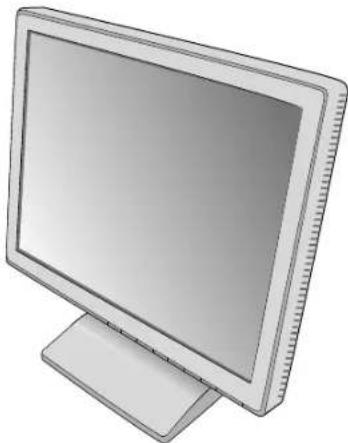

• LCD1701 monitor with tilt base
- Power Cord
• Video Signal Cable
- User's Manual
- CD ROM (includes complete User's Manual in PDF format). To see the User's Manual, Acrobat Reader 4.0 must be installed on your PC.

LED1701 Nec NEC Electrical Control Dialysis/Control Resistors (24/19) Material of the Nec Nec Electrical Control Resistors (24/19) Material of the Nec DC

Illustration of a computer monitor with a blank screen and stand (no text or symbols)

* Remember to save your original box and packing material to transport or ship the monitor.

Quick Start

To attach the LCD monitor to your system, follow these instructions:

1. Turn off the power to your computer.
2. Remove cable cover.

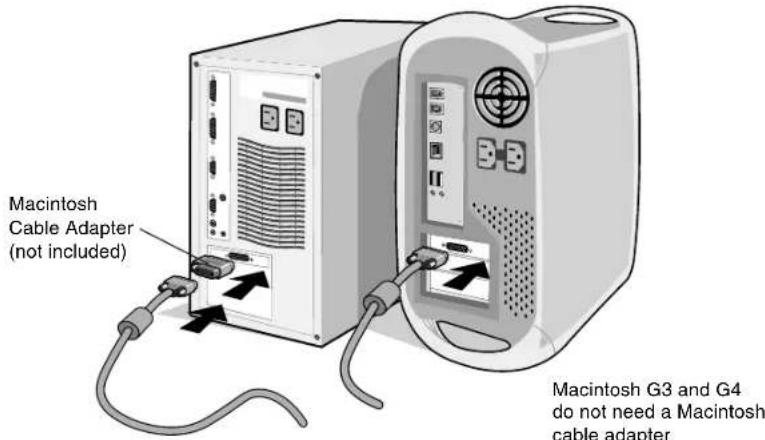

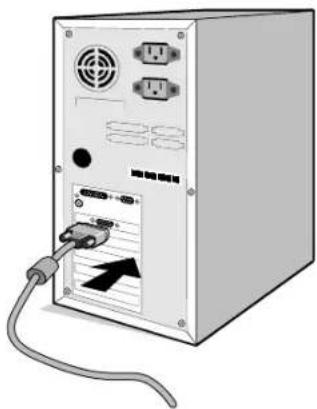

3. For PC: Connect the 15-pin mini D-SUB of the appropriate signal cable to the connector for the display card in your system (Figure A.1). Tighten all screws.

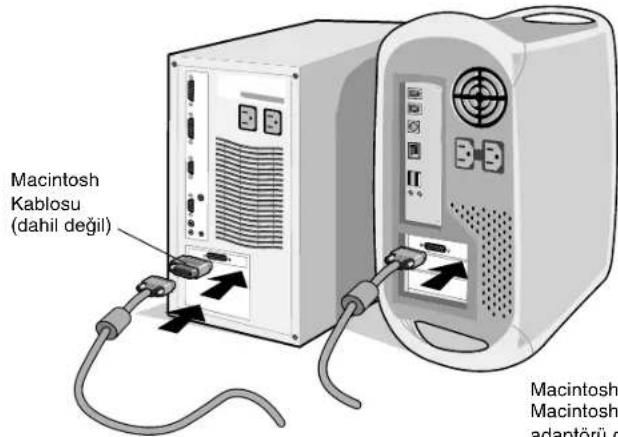

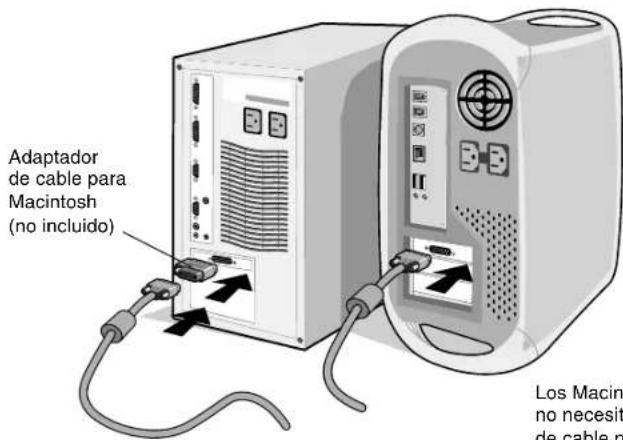

For Mac: Connect the LCD1701 Macintosh cable adapter to the computer (Figure B.1). Attach the 15-pin mini D-SUB end of the appropriate signal cable to the LCD1701 Macintosh cable adapter (Figure B.1). Tighten all screws.

Front view of a computer tower drive with cable and ventilation slots (no visible text or labels)

Figure A.1

Macintosh Cable Adapter (not included) Macintosh G3 and G4 do not need a Macintosh cable adapter

Figure B.1

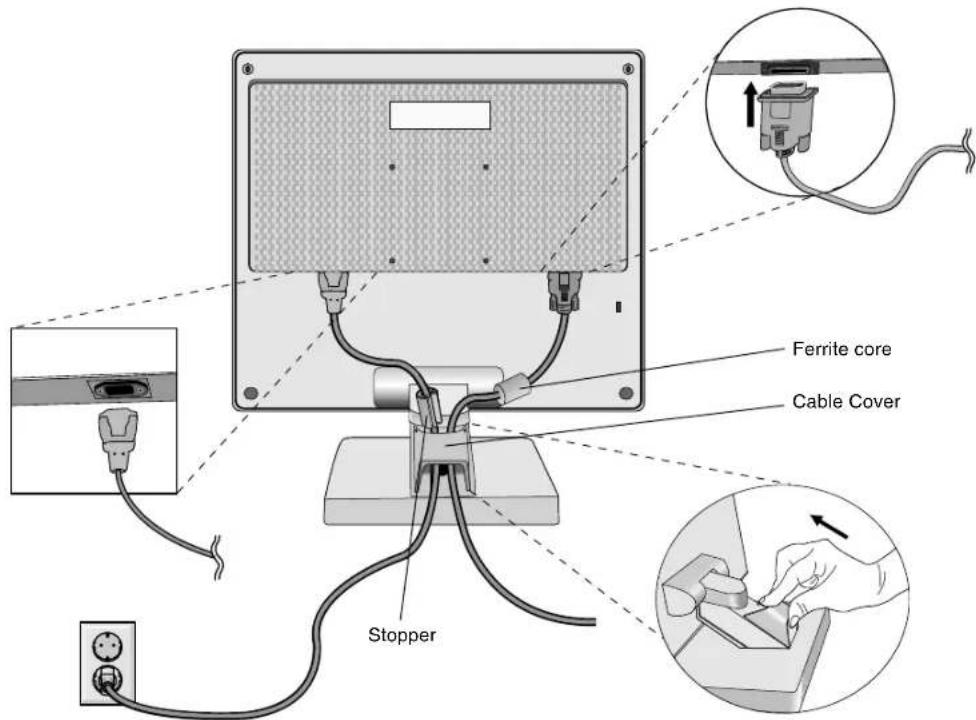

1. Connect the 15-pin mini D-SUB of the video signal cable to the appropriate connector on the back of the monitor (Figure C.1).
2. Connect one end of the power cord to the LCD1701 monitor and the other end to the power outlet. Place the video signal cable and AC power cord under the cable cover (Figure C.1). Replace cable cover.

NOTE: Adjust the position of the cable under the cable cover to avoid damage for cable or monitor.

As indicated (Figure C.1) please adjust the cables to place the ferrite core and stopper above the cubic cover.

NOTE: Please refer to Caution section of this manual for proper selection of AC power cord.

Ferrite core Cable Cover Stopper

Figure C.1

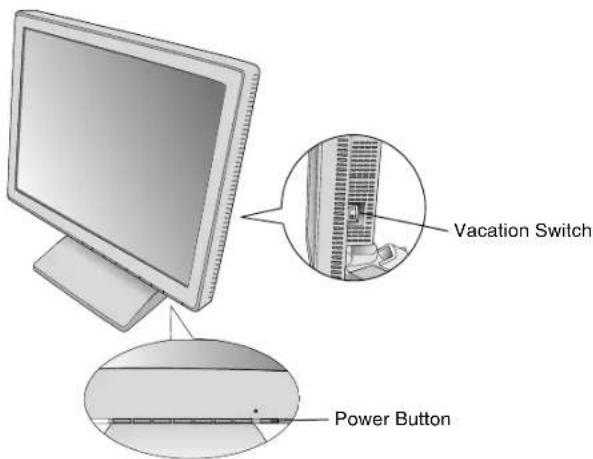

1. The Vacation Switch on the right side of the monitor must be turned on (Figure D.1). Turn on the monitor with the Power Button and the computer.

NOTE: The Vacation Switch is a true on/off switch. If this switch is on the OFF position, the monitor cannot be turned on using the front button DO NOT switch on/off repeatedly.

Vacation Switch Power Button

Figure D.1

1. No-touch auto adjust automatically adjusts the monitor to optimal settings upon initial setup for most timings. For further adjustments, use the following OSM controls:

• Auto Adjust Contrast
• Auto Adjust

Refer to the Controls section of this User's Manual for a full description of these OSM controls.

NOTE: If you have any problems, please refer to the Troubleshooting section of this User's Manual.

English-3

Tilt and Swivel

Grasp both sides of the monitor screen with your hands and adjust the tilt and swivel as desired (Figure TS.1).

Remove Monitor Stand for Mounting

To prepare the monitor for alternate mounting purposes:

1. Disconnect all cables.

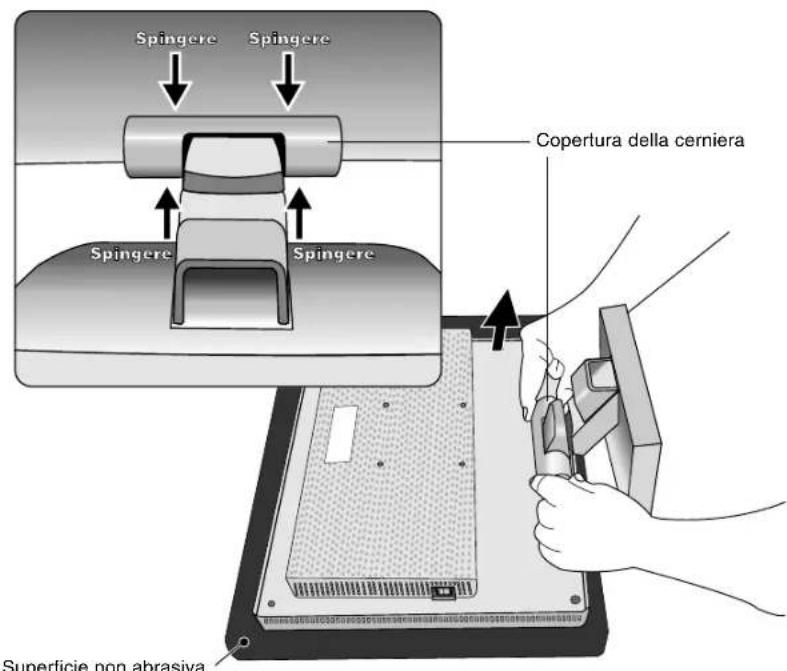

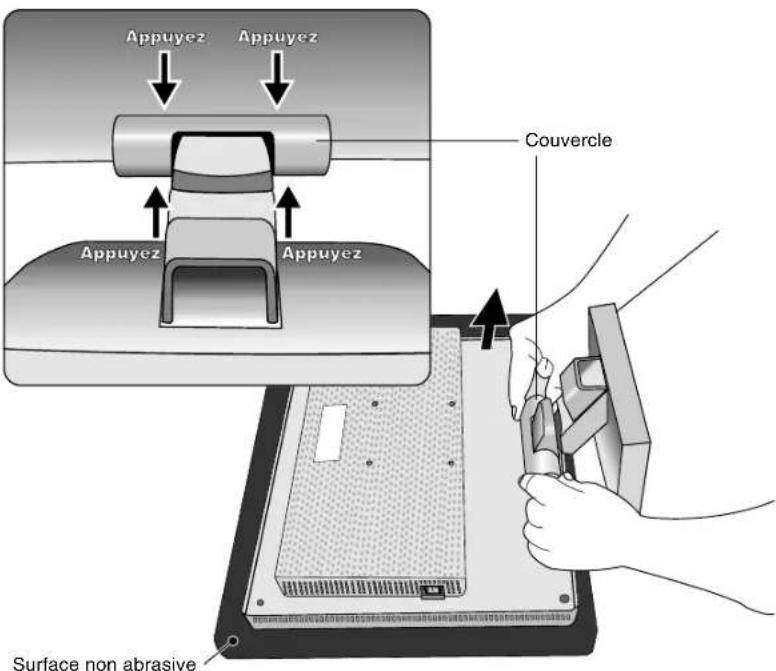

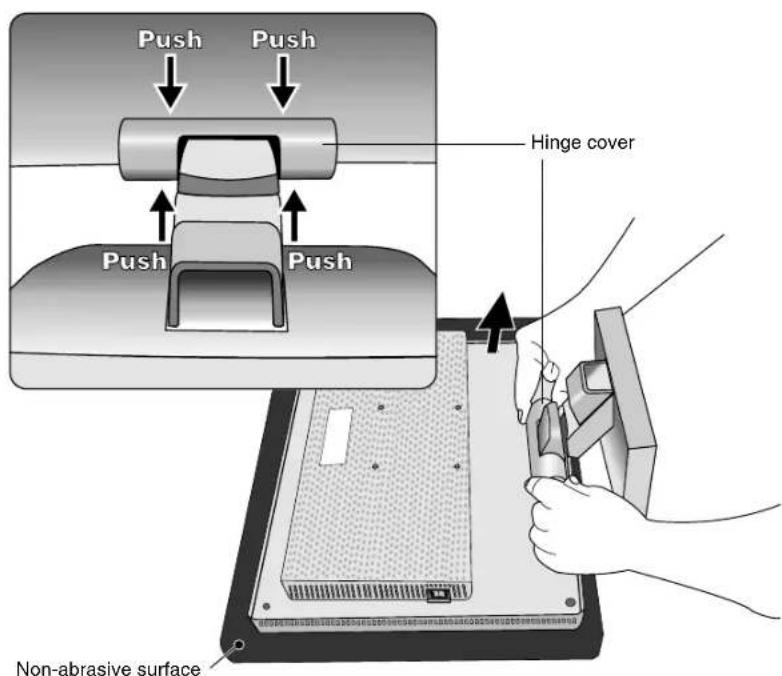

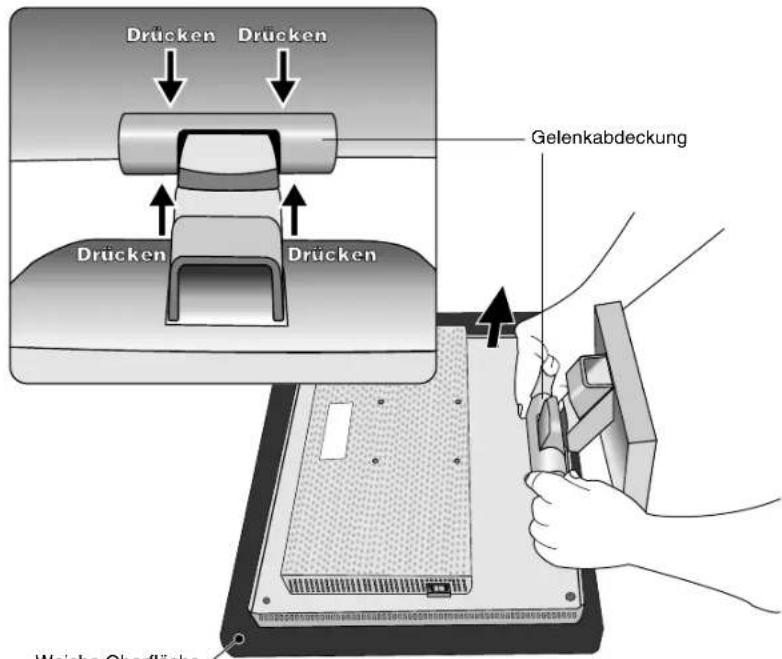

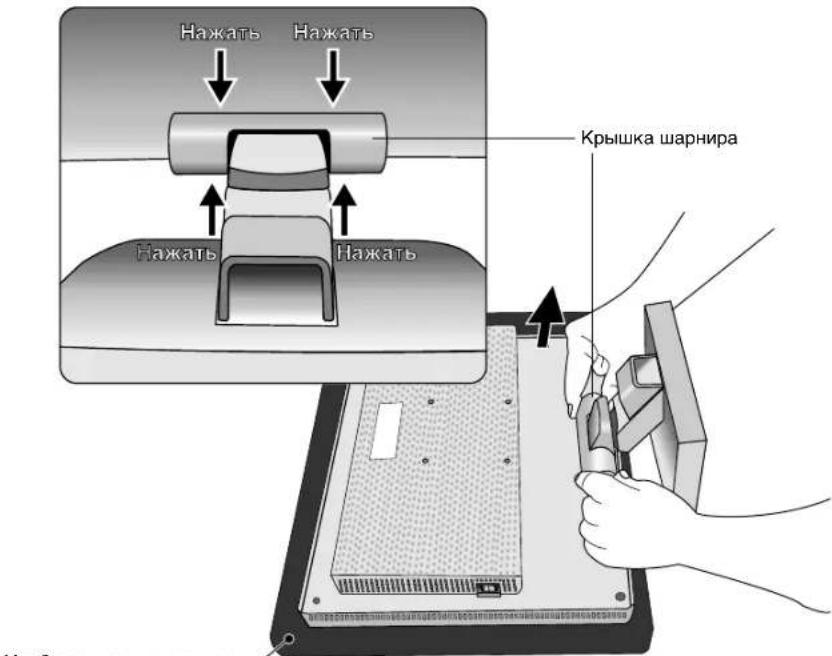

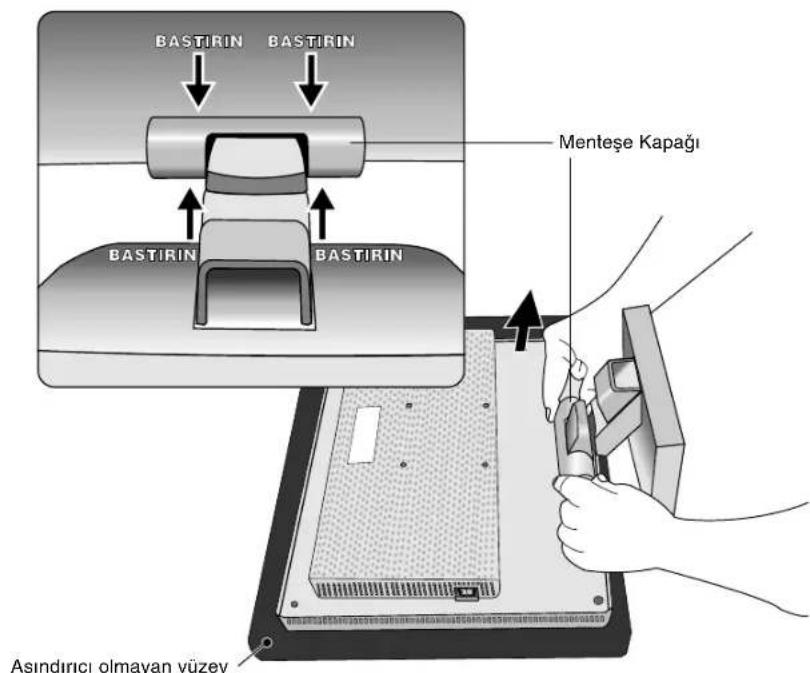

2. Place monitor face down on a non-abrasive surface (Figure R.1).

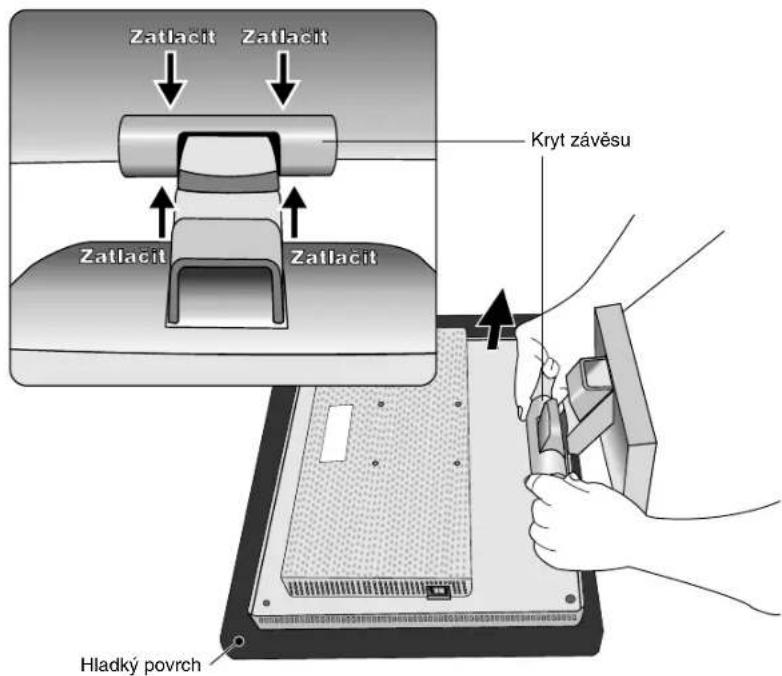

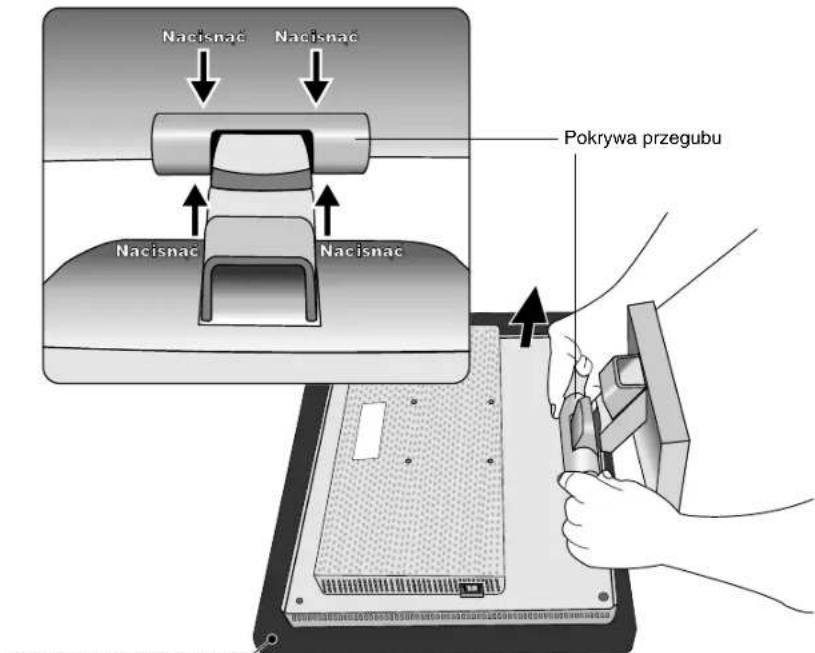

3. Remove the hinge cover (Figure R.1).

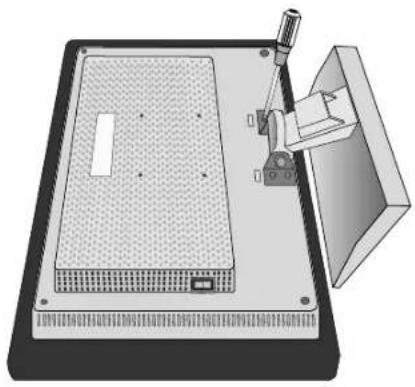

4. Remove the 4 screws connecting the monitor to the stand and lift off the stand assembly (Figure R.2) the monitor is now ready for mounting in an alternate manner.

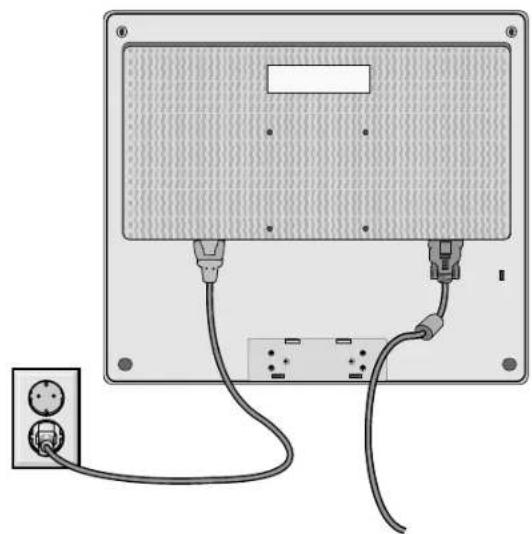

5. Connect the AC cord and signal cable to the back of the monitor (Figure R.3).
6. Reverse this process to reattach stand.

NOTE: Use only VESA-compatible alternative mounting method. Handle with care when removing monitor stand.

Illustration of hands holding a tablet with a speech bubble icon, surrounded by curved arrows indicating rotation (no text or symbols)

Figure TS.1

Push Push Push Push Hinge cover Non-abrasive surface

Figure R.1

English-4

Diagram of a mechanical device with a lever and base plate (no text or symbols)

Figure R.2

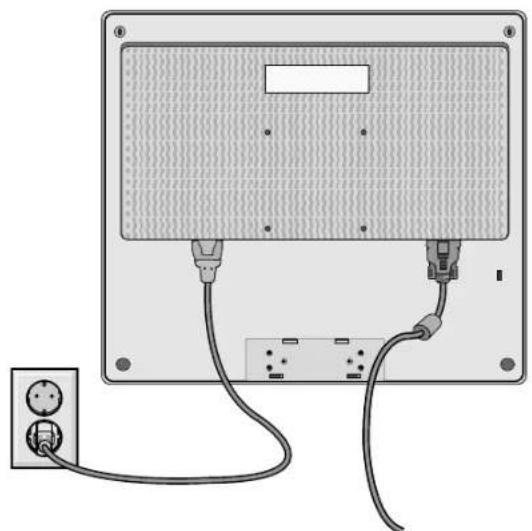

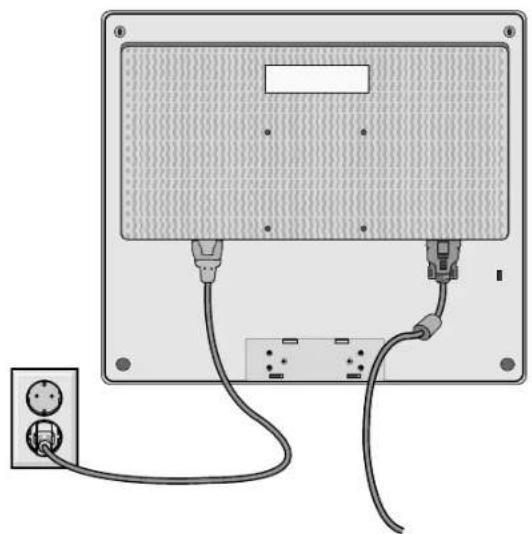

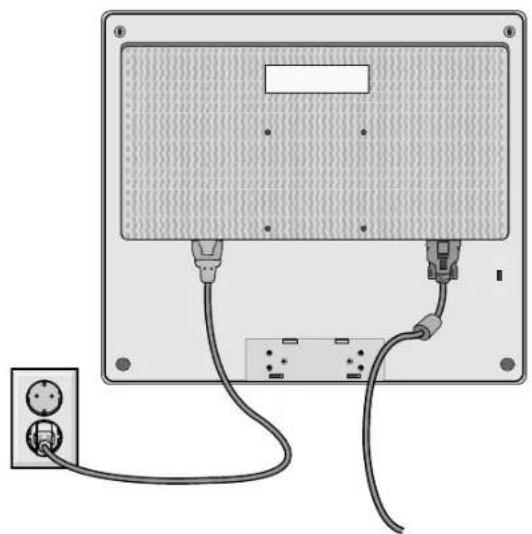

Diagram of a computer monitor with two cables and a power outlet, no text or symbols present

Figure R.3

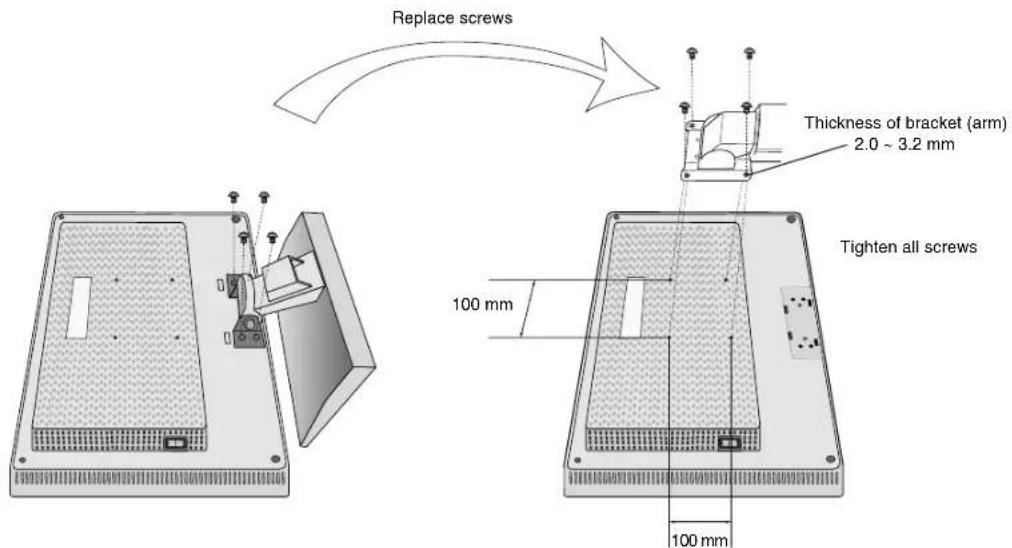

1. This LCD monitor is designed for use with a flexible arm. Please use the attached screws (4pcs) when mounting. To meet the safety requirements the monitor must be mounted to an arm which guarantees the necessary stability under consideration of the weight of the monitor. The LCD monitor shall only be used with an approved arm (e.g. GS mark).

Replace screws Thickness of bracket (arm) 2.0 ~ 3.2 mm Tighten all screws 100 mm 100 mm

Specifications

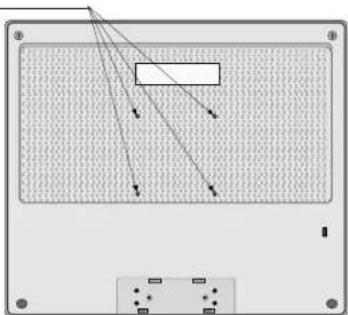

4 SCREWS (M4)

(MAX depth: 8.5 mm)

If use other

screw, check

depth of hole.

Diagram showing light rays reflecting off a textured surface, with no visible text or symbols

Weight of LCD assembly: 4.6kg (MAX)
English-5

Controls

OSM (On-Screen-Manager) Controls

The OSM controls on the front of the monitor function as follows:

To access OSM press any of the control buttons (<, >, -, +, EXIT).

Control Menu

EXIT Exits the OSM controls.

Exits to the OSM main menu.

</> Moves the highlighted area left/right to select control menus.

Moves the highlighted area up/down to select one of the controls.

- / + Moves the bar left/right to increase or decrease the adjustment.

SELECT Active Auto Adjust function. Enter the OSM controls.

Enter the OSM sub menu.

RESET Resets the highlighted control menu to the factory setting.

NOTE: When RESET is pressed in the main and sub-menu, a warning window will appear allowing you to cancel the RESET function by pressing the EXIT button.

Brightness/Contrast Controls

BRIGHTNESS

Adjusts the overall image and background screen brightness.

CONTRAST

Adjusts the image brightness in relation to the background.

AUTO

AUTO ADJUST

Adjusts the image displayed for non-standard video inputs.

AUTO Auto Adjust

Automatically adjusts the Image Position, the H. Size and Fine setting.

Position Controls

LEFT/RIGHT

Controls Horizontal Image Position within the display area of the LCD.

DOWN/UP

Controls Vertical Image Position within the display area of the LCD.

H. SIZE

Adjusts the horizontal size by increasing or decreasing this setting.

Should the "AUTO Adjust function" do not give you a satisfactory picture setting, a further tuning can be performed using the "H.Size" function (dot clock). For this a Moiré test pattern could be used. This function may alter the width of the picture. Use Left/Right Menu to center the image on the screen. If the H.Size is wrongly calibrated, the result would look like on the left drawing. The image should be homogeneous.

When H.SIZE value is wrong.

When H.SIZE value is improved.

When H.SIZE value is correct.

English-6

FINE

Improves focus, clarity and image stability by increasing or decreasing this setting.

Should the "Auto Adjust function" and the "H.Size" function do not give you a satisfactory picture setting, a fine tuning can be performed using the "Fine" function. It improves focus, clarity and image stability by increasing or decreasing this setting.

For this a Moiré test pattern could be used. If the Fine value is wrongly calibrated, the result would look like on the left drawing. The image should be homogeneous.

When FINE value is wrong. When FINE value is correct.

Colour Control Systems

Six colour presets select the desired colour setting (sRGB and NATIVE colour presets are standard and cannot be changed).

R, G, B

Increases or decreases Red, Green or Blue colour depending upon which is selected. The change in colour will appear on screen and the direction (increase or decrease) will be shown by the bars.

sRGB

sRGB mode dramatically improves the colour fidelity in the desktop environment by a single standard RGB colour space. With this colour supported environment, the operator could easily and confidently communicate colours without further colour management overhead in the most common situations.

NATIVE

Original colour presented by the LCD panel that is unadjustable.

Tools

LANGUAGE

OSM control menus are available in seven languages.

OSM POSITION

You can choose where you would like the OSM control image to appear on your screen. Selecting OSM Location allows you to manually adjust the position of the OSM control menu left, right, down or up.

OSM TURN OFF

The OSM control menu will stay on as long as it is use. In the OSM Turn Off submenu, you can select how long the monitor waits after the last touch of a button to shut off the OSM control menu. The preset choices are 10, 20, 30, 45, 60 and 120 seconds.

OSM LOCK OUT

This control completely locks out access to all OSM control functions without Brightness and Contrast. When attempting to activate OSM controls while in the Lock Out mode, a screen will appear indicating the OSM controls are locked out. To activate the OSM Lock Out function, press SELECT, then “+” key and hold down simultaneously. To de-activate the OSM Lock Out, press SELECT, then “+” key and hold down simultaneously.

RESOLUTION NOTIFIER

This optimal resolution is 1280 x 1024. If ON is selected, a message will appear on the screen after 30 seconds, notifying you that the resolution is not at 1280 x 1024.

HOT KEY

You can adjust the brightness and contrast directly. When this function is set to ON, you can adjust the contrast with + or -, brightness with < or > key, while the OSM menu is off. The standard OSM menu can be accessed with the EXIT button.

OFF TIMER

Monitor will automatically power-down when the end user has selected a pre-determined amount of time.

FACTORY PRESET

Selecting Factory Preset allows you to reset all OSM control settings back to the factory settings. The RESET button will need to be held down for several seconds to take effect. Individual settings can be reset by highlighting the control to be reset and pressing the RESET button.

Information

MODE

DISPLAY MODE

Indicates the current display resolution and frequency setting of the monitor.

MONITOR INFO.

Indicates the model and serial numbers of your monitor.

OSM Warning

OSM Warning menus disappear with Exit button.

NO SIGNAL: This function gives a warning when there is no signal present. After power is turned on or when there is a change of input signal or video is inactive, the No Signal window will appear.

RESOLUTION NOTIFIER: This function gives a warning of use with optimized resolution. After power is turned on or when there is a change of input signal or the video signal doesn't have proper resolution, the Resolution Notifier window will open. This function can be disabled in the TOOL menu.

OUT OF RANGE: This function gives a recommendation of the optimized resolution and refresh rate. After the power is turned on or there is a change of input signal or the video signal doesn't have proper timing, the Out Of Range menu will appear.

Recommended use

Safety Precautions and Maintenance

FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE FOLLOWING WHEN SETTING UP AND USING THE LCD COLOUR MONITOR:

• DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to qualified service personnel.
• Do not spill any liquids into the cabinet or use your monitor near water.
• Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltage points, which can be harmful or fatal or may cause electric shock, fire or equipment failure.
• Do not place any heavy objects on the power cord. Damage to the cord may cause shock or fire.
• Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall, causing serious damage to the monitor.
• Do not place any objects onto the monitor and do not use the monitor outdoors.
• The inside of the fluorescent tube located within the LCD monitor contains mercury. Please follow the bylaws or rules of your municipality to dispose of the tube properly.

Immediately unplug your monitor from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power supply cord or plug is damaged.
• If liquid has been spilled, or objects have fallen into the monitor.
• If the monitor has been exposed to rain or water.
• If the monitor has been dropped or the cabinet damaged.
• If the monitor does not operate normally by following operating instructions.
• Do not bend power cord.
• Do not use monitor in high temperatured, humid, dusty, or oily areas.
• Do not cover vent on monitor.
• If monitor is broken, do not come in contact with the liquid crystal.
• If glass is broken. Handle with care.

CAUTION

• Allow adequate ventilation around the monitor so that heat can properly dissipate. Do not block ventilated openings or place the monitor near a radiator or other heat sources. Do not put anything on top of monitor.
• The power cable connector is the primary means of detaching the system from the power supply. The monitor should be installed close to a power outlet which is easily accessible.
• Handle with care when transporting. Save packaging for transporting.

- Image Persistence: Image persistence is when a residual or “ghost” image of a previous image remains visible on the screen. Unlike CRT monitors, LCD monitors’ image persistence is not permanent, but constant images being displayed for a long period of time should be avoided.

To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image was on the monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image.

NOTE: As with all personal display devices, NEC-Mitsubishi Electronics Display-Europe recommends using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.

CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE FOLLOWING WHEN YOU POSITION THE MONITOR:

• For optimum performance, allow 20 minutes for warm-up.
• Adjust the monitor height so that the top of the screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen.
• Position your monitor no closer than 40 cm and no further away than 70 cm from your eyes. The optimal distance is 50 cm.
• Rest your eyes periodically by focusing on an object at least 6 m away. Blink often.
• Position the monitor at a 90° angle to windows and other light sources to minimize glare and reflections. Adjust the monitor tilt so that ceiling lights do not reflect on your screen.
• If reflected light makes it hard for you to see your screen, use an antiglare filter.
• Clean the LCD monitor surface with a lint-free, non-abrasive cloth. Avoid using any cleaning solution or glass cleaner!
• Adjust the monitor's brightness and contrast controls to enhance readability.
• Use a document holder placed close to the screen.

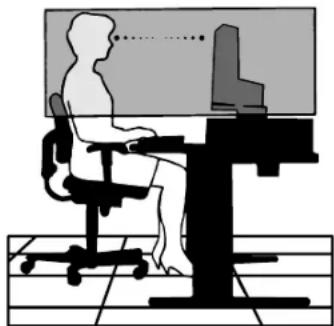

Silhouette of a person sitting at a desk with a computer, no text or symbols visible

English-9

• Position whatever you are looking at most of the time (the screen or reference material) directly in front of you to minimize turning your head while you are typing.
• Get regular eye checkups.

Ergonomics

To realize the maximum ergonomics benefits, we recommend the following:

• Use the preset Size and Position controls with standard signals.
• Use the preset Colour Setting.
• Use non-interlaced signals with a vertical refresh rate between 60-75 Hz.
• Do not use primary colour blue on a dark background, as it is difficult to see and may produce eye fatigue to insufficient contrast.

VAROVÁNÍ

CHRAŃTE ZAŘÍZENÍ PŘED DEŠTĚM A VLHKEM. ZABRÁNÍTE TAK NEBEZPEČÍ POŽÁRU NEBO ÚRAZU ELEKTRICKÝM PROUDEM. POLARIZOVANOU ZÁSTRČKU JEDNOTKY NEPOUŽÍVEJTE VE SPOJENÍ SE ZÁSUVKOU PRODLUŽOVACÍ ŠNŮRY NEBO JINÝMI ZÁSUVKAMI, POKUD KOLÍKY NELZE ZCELA ZASUNOUT.

UVNITŘ ZAŘÍZENÍ SE NACHÁZÍ VYSOKONAPĚTOVÉ KOMPONENTY, PROTO SKŘÍŇ NEOTEVÍREJTE. SERVIS SVĚRTE KVALIFIKOVANÉ OSOBĚ.

UPOZORNĚNÍ

RIZIKO ÚRAZU ELEKTRICKÝM PROUDEM • NEOTVÍRAT

UPOZORNĚNÍ: VZHLEDEM K RIZIKU ÚRAZU ELEKTRICKÝM PROUDEM NEODNÍMEJTE KRYT (NEBO ZADNÍ ČÁST). UVNITŘ SE NENACHÁZEJÍ DÍLY, DO KTERÝCH UŽIVATEL MŮŽE ZASAHOVAT. SERVIS SVĚRTE KVALIFIKOVANÉ OSOBĚ.

MS Shibaura Bldg., 13-23,

Shibaura 4-chome,

Minato-Ku, Tokyo 108-0023, JAPAN

LED1701 Nec NEC Electrical Control Dialysis/Control Resistors (24/19) Material of the Nec Nec Electrical Control Resistors (24/19) Material of the Nec DC

Illustration of a computer monitor with a blank screen and stand (no text or symbols)

Illustration of hands holding a tablet with a speech bubble icon, surrounded by curved arrows indicating rotation (no text or symbols)

Obrázek TS.1

Diagram of a computer monitor with a clamping tool inserted, showing no text or symbols

Diagram of a mounted electronic device with two cables and a power outlet, no text or symbols present

Diagram showing light rays reflecting off a textured surface with no text or symbols

Silhouette of a person sitting at a desk using a computer, with no visible text or symbols

Česky-9

Ergonomika

MS Shibaura Bldg., 13-23,

Shibaura 4-chome,

Minato-Ku, Tokyo 108-0023, JAPAN

LED1701 Nec NEC Electrical Control Dialysis/Control Resistors (24/19) Material of the Nec Nec Electrical Control Resistors (24/19) Material of the Nec DC

Illustration of a flat-screen computer monitor with a stand (no text or symbols visible)

Illustration of a person holding a tablet with a speech bubble, surrounded by curved arrows indicating rotation (no text or symbols)

Abbildung TS.1

Diagram of a computer monitor with a clamping tool inserted, showing no text or symbols

Diagram of a computer monitor with two cables and a power outlet, no text or symbols present

Diagram of a device with a screen and two connectors, showing light rays from a central screen (no text or symbols)

Silhouette of a person sitting at a desk with a computer, viewed from behind (no text or symbols)

Deutsch-9

MS Shibaura Bldg., 13-23, Shibaura 4-chome,

Minato-Ku, Tokyo 108-0023, JAPAN

Illustration of a flat-screen computer monitor with a stand (no text or symbols visible)

LED1701 Nec NEC Nec Nec Nec Nec Nec Nec Nec Nec Nec Nec Nec Nec Nec Nec Nec Nec Nec Nec Nec Nec Nec Nec Nec Nec Nec Nec Nec Nec Nec Nec Nec Nec Nec Nec

Illustration of hands holding a tablet with a speech bubble icon, surrounded by curved arrows indicating rotation (no text or symbols)

Σχήμα ΤΣ.1

Diagram of a computer monitor with a clamping tool inserted, showing no text or symbols

Diagram of a mounted electronic device with two cables and a power outlet, no text or symbols present

Σχήμα P.3Σχήμα P.2

Diagram of a device with a rectangular panel and multiple indicator lights, no text or symbols present

H. SIZE (OPIZONTIO MEGEOΣ)

Diagram showing computer monitor image transformation from left to right, indicating a change in visual resolution.

Silhouette of a person sitting at a desk with a computer, no text or symbols present

Ελληνικά-9

Directiva 89/336/CEE:

- EN 55022

- EN 61000-3-2

- EN 61000-3-3

- EN 55024

y lleva la marca

NEC-Mitsubishi Electric Visual Systems, Corp.

MS Shibaura Bldg., 13-23, Shibaura 4-chome,

Minato-Ku, Tokyo 108-0023, JAPÓN

LED1701 Nec NEC Electrical Control Dialysis/Control Resistors (24/19) Material of the Nec Nec Electrical Control Resistors (24/19) Material of the Nec DC

Illustration of a computer monitor with a blank screen and stand (no text or symbols)

Front view of a computer tower drive with cable and ventilation slots (no visible text or labels)

Figura A.1

Illustration of hands holding a tablet with a speech bubble icon, surrounded by curved arrows indicating rotation (no text or symbols)

Figura TS.1

Empujar Empujar Empujar Empujar Cubierta de goznes

Diagram of a computer monitor with a clip and stand, showing no text or symbols

Diagram of a computer monitor with two cables and a power outlet, no text or symbols present

Figura R.3 Figura R.2

Diagram showing a rectangular object with diagonal lines and dots inside a textured rectangular area, no text or symbols present.

APROXIMADO incorrecto APROXIMADO corregido APROXIMADO correcto

Español-6

FINO

Diagram showing computer monitor transformation from left to right, indicating a change in size or resolution.

FINO incorrecto FINO correcto

Silhouette of a person sitting at a desk with a computer, no text or symbols visible

Español-9

MS Shibaura Bldg., 13-23,

Shibaura 4-chome,

Minato-Ku, Tokyo 108-0023, JAPON

Illustration of a flat-screen computer monitor with a stand (no text or symbols visible)

LED1701 Nec Optimum power switch Sediment/heat pump Protonics (Gelc) Manual oil pump Manual oil pump Wheat pump Electricity/heat pump Power supply / electricity pump Dialysis device NEC

Illustration of hands holding a tablet with a speech bubble icon, surrounded by curved arrows indicating rotation (no text or symbols)

Figure TS.1

Diagram of a computer monitor with a clamping tool inserted, showing no text or symbols

Diagram of a TV cable with two connectors and a power outlet, no text or symbols present

Figure R.3 Figure R.2

Diagram of a device with a rectangular panel and connecting lines, no visible text or symbols

Diagram showing computer monitor transformation from left to right, indicating change in image quality or resolution.

Silhouette of a person sitting at a desk with a computer, no text or symbols visible

Français-9

MS Shibaura Bldg., 13-23,

Shibaura 4-chome,

Minato-Ku, Tokyo 108-0023, Japan

LED1701 User's Manual Optimum power switch Seduction/Power switch Dialysis (C25V) Manual for power Manual for power Magnetic drive Electrical circuit Phytochrome-selenoxide Pulsification transistor Nec NEC

Illustration of a computer monitor with a blank screen and stand (no text or symbols)

Illustration of hands holding a tablet with a speech bubble icon, surrounded by curved arrows indicating rotation (no text or symbols)

Figura TS.1

Diagram of a computer monitor with a clamping tool inserted, showing no text or symbols

Diagram of a computer monitor with two cables and a power outlet, no text or symbols present

Figura R.3 Figura R.2

Diagram showing light rays reflecting off a screen with a rectangular object on the left (no text or symbols)

Diagram showing computer monitor transformation from left to right, indicating a change in image quality or display.

Silhouette of a person sitting at a desk with a computer, viewed from behind (no text or symbols)

Italiano-9

LCD1701 (L172EN) in overeenstemming is met

MS Shibaura Bldg., 13-23, Shibaura 4-chome,

Minato-Ku, Tokyo 108-0023, Japan

LED1701 Nec NEC Laser: Manual Optimum/photograph Sediment/hotograph Photo: 24.0V Manual: 3.0V Manual: 1.0V Wireless sensor Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuittry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitery Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuitry Electrical circuit cry

Illustration of a flat-screen computer monitor with a stand (no text or symbols visible)

Illustration of hands holding a tablet with a speech bubble, surrounded by curved arrows indicating rotation (no text or symbols)

Illustratie TS.1

Diagram of a computer monitor with a stand and cable attachment (no text or symbols)

Diagram of a device rear panel with cable and socket, no text or symbols present

Diagram showing light rays reflecting off a textured surface with no text or symbols

Silhouette of a person sitting at a desk with a computer, no text or symbols present

MS Shibaura Bldg., 13-23, Shibaura 4-chome,

Minato-Ku, Tokyo 108-0023, Japan

Illustration of a computer monitor with a blank screen and stand (no text or symbols)

LED1501 Necis Manual Dialysis/effekte Dialysis/Splatin Manual / Dialysis Mechan / 30000 Mechan / 30000 Mechan / 30000 Mechan / 30000 Mechan / 30000 Mechan / 30000 Mechan / 30000 Mechan / 30000 Mechan / 30000 Mechan / 30000 Mechan / 3000 Mechan / 3000 Mechan / 3000 Mechan / 3000 Mechan / 3000 Mechan / 3000 Mechan / 3000 Mechan / 3000 Mechan / 3000 Mechan / 3000 Mechan / 3000 Mechan / 325 Mechan / 325 Mechan / 325 Mechan / 325 Mechan / 325 Mechan / 325 Mechan / 325 Mechan / 325 Mechan / 325 Mechan / 325 Mechan / 325 Mechan / 325 Mechan / 325 Mechan / Mechan / Mechan / Mechan / Mechan / Mechan / Mechan / Mechan / Mechan / Mechan / Mechan / Mechan / Mechan / Mechan / Mechan / Mechan / Mechan / Mechan / Mechan / Mechan / Mechan / Mechan / Mechan / Mechan / Mechan / Mechan / Mechan / Mechan / Mechan / Mechan / Mechan / Mechan / Mechan / Mechan / MENC

Illustration of hands holding a tablet with a speech bubble icon, surrounded by curved arrows indicating rotation (no text or symbols)

Rysunek TS.1

Diagram of a computer monitor with a stand and tool, no text or symbols present

Diagram of a computer monitor with cable and power outlet, no text or symbols present

Diagram showing light rays reflecting off a textured surface, with no visible text or symbols

DOWN/UP (POZYCJA/PIONOWA)

DISPLAY MODE (TRYB PRACY)

Silhouette of a person sitting at a desk using a computer, with no visible text or symbols

Ergonomia

MS Shibaura Bldg., 13-23,

Shibaura 4-chome,

Minato-Ku, Tokyo 108-0023, Japan

BZ 02

Illustration of a computer monitor with a blank screen and stand (no text or symbols)

LED1701 Nec NEC Electrical Control Dialysis/Control Electrical Control Electrical Control Electrical Control Electrical Control Electrical Control Electrical Control Electrical Control Electrical Control Electrical Control Electrical Control Electrical Control Electrical Control Electrical Control Electrical Control Electrical Control Electrical Control Electrical Control Electrical Control Electrical Control Electrical Control Electrical Control Electrical Control Electrical Control Electrical Control Electrical Control Electrical Controls Electrical Controls Electrical Controls Electrical Controls Electrical Controls Electrical Controls Electrical Controls Electrical Controls Electrical Controls Electrical Controls Electrical Controls Electrical Controls Electrical Controls Electrical Controls Electrical Controls Electrical Controls Electrical Controls Electrical Controls Electrical Controls Electrical Controls Electrical Controls Electrical Controls Electrical Controls Electrical Controls Electrical Controls Electrical Control

Illustration of hands holding a tablet with a speech bubble icon, surrounded by curved arrows indicating rotation (no text or symbols)

Рисунок TS.1

Diagram of a computer monitor with a stand and cable attachment (no text or symbols)

Diagram of a computer monitor with cable and power outlet, no text or symbols present

Diagram of a device with a rectangular panel and two labeled ports, showing light rays from a central screen (no text or symbols present)

Silhouette of a person sitting at a desk with a computer, no text or symbols visible

Русский

Русский-9

MS Shibaura Bldg., 13-23, Shibaura 4-chome,

Minato-Ku, Tokyo 108-0023, JAPONYA

Illustration of a computer monitor with a blank screen and stand (no text or symbols)

LCD1991 Laser Manual Dialysis electrical Electrical System Electrical system Magnetic circuitry Magnetic circuitry Neural circuitry NEC Neural circuitry Neural circuitry Neural circuitry Neural circuitry Neural circuitry Neural circuitry Neural circuitry Neural circuitry Neural circuitry Neural circuitry Neural circuitry Neural circuitry Neural circuitry Neural circuitry Neural circuitry Neural circuitry Neural circuitry Neural circuitry Neural circuitry Neural circuitry Neural circuittry Neural circuittry Neural circuittry Neural circuittry Neural circuittry Neural circuittry Neural circuittry Neural circuittry Neural circuittry Neural circuittry Neural circuittry Neural circuittry Neural circuittry Neural circuittry Neural circuittry Neural circuittry Neural circuittry Neural circuittry Neural circuittry Neural circuittry Neural circuit try Neural circuittry Neural circuittry Neural circuittry Neural circuittry Neural circuittry Neural circuittry Neural circuittry Neural circuittry Neural circuittry Neural circuittry Neural circuittry Neural circuittry Neural circuittry Neural circuittry Neural circuittry Neural circuittry Neural circuittry Neural circuittry Neural circuittry Neural circuitcry

Illustration of a computer tower with ventilation fans and USB port, connected to a cable (no text or symbols visible)

Şekil A.1

Illustration of a person using a tablet with a speech bubble icon, surrounded by curved arrows indicating rotation (no text or symbols)

Şekil TS.1

Illustration of a computer monitor with a stand and cable attachment (no text or symbols)

Diagram of a computer monitor with cable and power outlet, no text or symbols present

Şekil R.3Şekil R.2

Diagram showing light rays reflecting off a textured surface with a rectangular object inside (no text or symbols)

Silhouette of a person sitting at a desk using a computer, no text or symbols visible
