USER MANUAL KHM7210ACS KITCHENAID

Black and white photo of a kitchen electric mixer with whisk (no text or symbols visible)

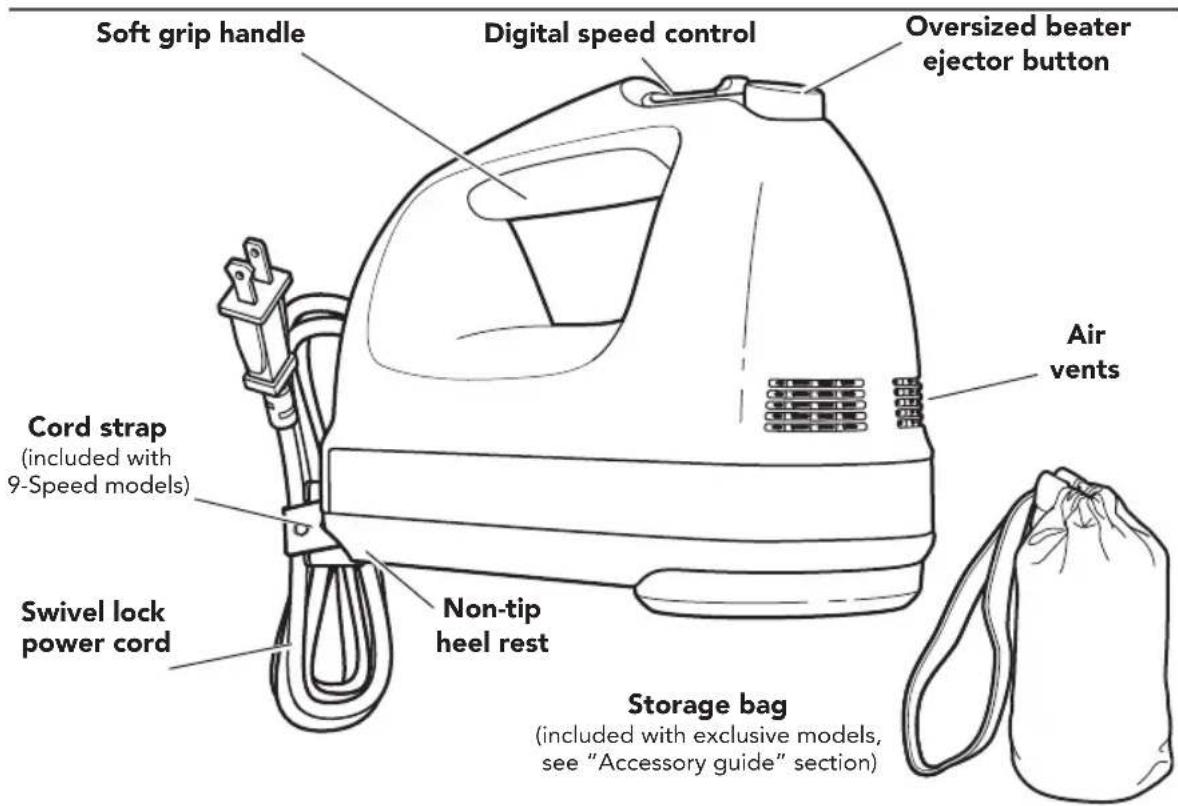

PARTS AND FEATURES

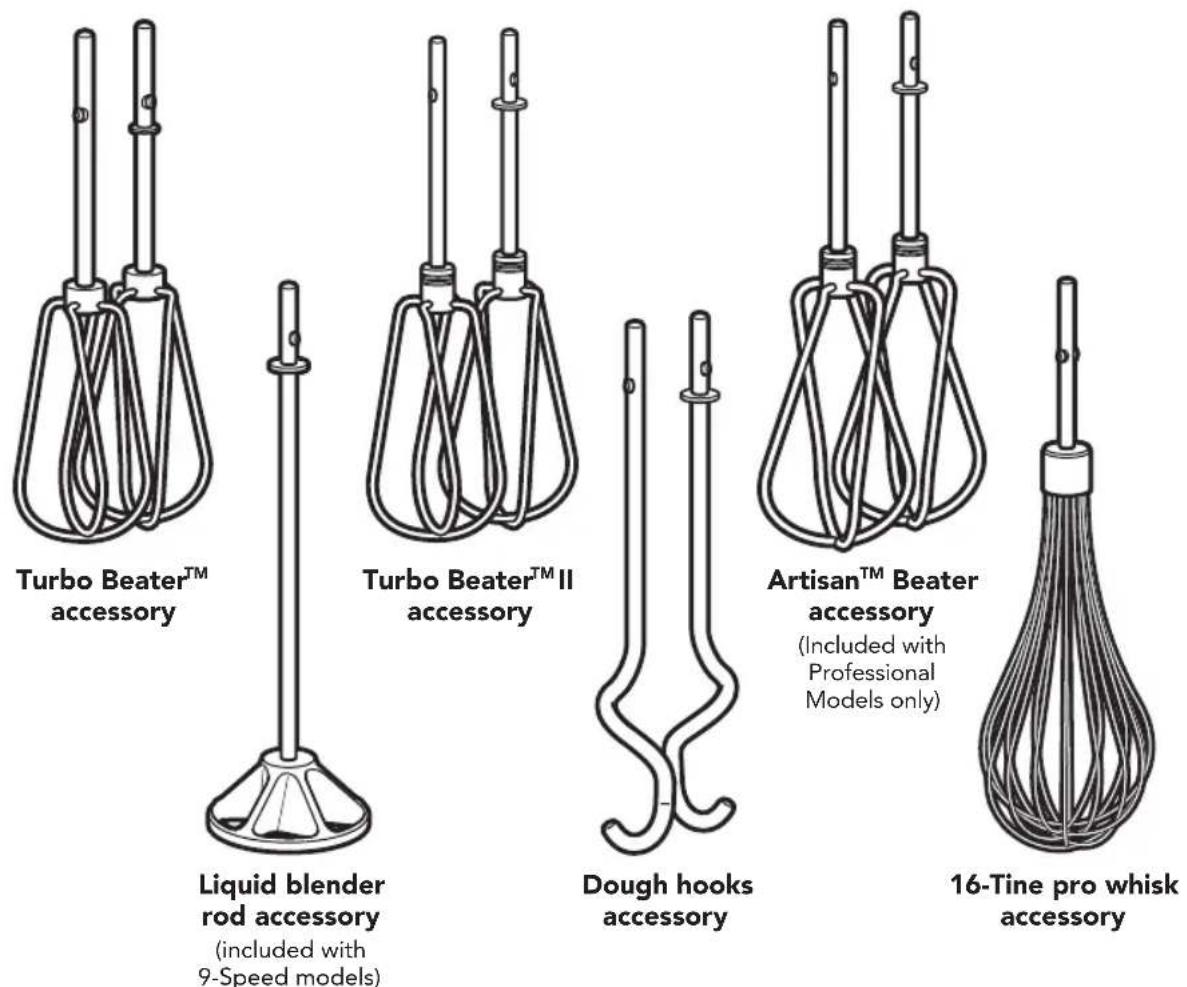

PARTS AND ACCESSORIES

Soft grip handle Digital speed control Oversized beater ejector button Cord strap (included with 9-Speed models) Swivel lock power cord Non-tip heel rest Storage bag (included with exclusive models, see "Accessory guide" section) Air vents

Turbo Beater™ accessory Turbo Beater™ II accessory Liquid blender rod accessory (included with 9-Speed models) Dough hooks accessory Artisan™ Beater accessory (Included with Professional Models only) 16-Tine pro whisk accessory

2 | PARTS AND FEATURES

PARTS AND FEATURES

ACCESSORY GUIDE

Accessory Uses		Included with Model
		KHM7210	KHM7211	KHM926	KHM929	KHM9212
Turbo BeaterTM cookie	dough cake batter		●		●
Turbo BeaterTM II cookie	dough cake batter	●		●
ArtisanTM Beater † cookie	dough cake batter					●
Liquid blender rods smoothies	diet drink mixes chocolate milk iced tea milkshakes soups sauces			●●	●
Dough hooks yeast bread	doughs		●●	●●
16-Tine pro whisk	whipped cream whipped egg whites sauces puddings	●●	●●
Storage bag†	to store accessories		●	††		●

† Not sold as an accessory.
†† Please note, the storage bag referenced is not included with model KHM926Q.

To order these accessories

In USA: visit www.shopkitchenaid.com, or call 1-800-541-6390.

In Canada: call 1-800-807-6777

HAND MIXER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

! DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

I. Read all instructions.
2. To protect against risk of electrical shock, do not put the Hand Mixer in water or other liquid.
3. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
4. Turn the appliance OFF, then unplug from the outlet when not in use, before assembling or disassembling parts and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
5. Avoid contacting moving parts. Keep hands, hair, clothing, as well as spatulas and other utensils away from all accessories during operation to reduce the risk of injury to persons and/or damage to the Hand Mixer.

HAND MIXER SAFETY

1. Do not operate the Hand Mixer with a damaged cord or plug, or after the Hand Mixer malfunctions, or is dropped or damaged in any manner. Return the Hand Mixer to the nearest Authorized Service Center for examination, repair, or electrical or mechanical adjustment.
2. The use of attachments not recommended or sold by KitchenAid may cause fire, electric shock, or injury.
3. Do not use the Hand Mixer outdoors.
4. Do not let cord hang over edge of table or counter.
5. Do not let cord contact hot surface, including the stove.
   II. Remove any accessories from the Hand Mixer before washing.

SAVE THESE INSTRUCTIONS

This product is designed for household use only.

ELECTRICAL REQUIREMENTS

Volts: 120 A.C. only.

Hertz: 60 Hz

NOTE: This Hand Mixer has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the plug in any way. This product is designed for household use only.

The 7-Speed Hand Mixer always starts on the lowest speed (Speed 1). Move to higher speeds as needed, the speed setting indicator control will light up with the corresponding number for each speed.

Speed Attachment Description
1 For slow stirring, combining, and starting		all mixing procedures. Use this speed to stir in nuts, chocolate chips, shredded cheese, onions, olives, and other chunky ingredients. Mix flour and other dry ingredients with liquids or other moist mixtures. Helps prevent ingredients from splashing out of bowl.
2 Mix p.
3 Comb		such as cookie dough. Mix light cream cheese spreads. Stir batters and gelatin mixtures.
4 Comb		cheese mixtures. Mash potatoes or squash.
5 Mix	muffins, quick breads,	batter breads, cake batters, and frostings. Blend butter and sugar.
6 Whip heavy cream and mousse mixtures.
7 Beat egg		meringue mixtures.

NOTE: Beater accessories are not designed for mixing and kneading bread dough. Special dough hook attachments are available. See "Accessories" section for details and ordering information.

The 9-Speed Hand Mixer always starts on the lowest speed (Speed 1). Move to higher speeds as needed, the speed setting indicator control will light up with the corresponding number for each speed.

Speed Attachment Description
1 For slow stirring, combining		all mixing procedures. Use this speed to stir in nuts, chocolate chips, shredded cheese, onions, olives, and other chunky ingredients. Helps prevent ingredients from splashing out of bowl.
2 Mix fl		ingredients with liquids or other moist mixtures.
3 Mix pi
4 Combine heavy mixtures		such as cookie dough. Mix light cream cheese spreads. Stir batters and gelatin mixtures.
5 Mix muffins and quick breads. Combine heavy cream cheese mixtures. Mash potatoes or squash.
6 Mix batter breads. Blend butter and sugar. Mix frostings.
7 Finish		other batters. Whip heavy cream and mousse mixtures.
8 Beat egg whites. whip heavy cream and mousse mixtures.
9 Beat r

NOTE: Beater accessories are not designed for mixing and kneading bread dough. Special dough hook attachments are available. See "Accessories" section for details and ordering information.

This KitchenAid® Hand Mixer will beat faster and more thoroughly than most other electric hand mixers. Therefore, the beating time in most recipes must be adjusted to avoid over beating. Beating time is faster due to larger beater sizes.

To help determine the ideal beating time, observe the batter or dough and beat only until it has the desired appearance described in your recipe, such as "smooth and creamy". To select the best beating speeds, use the "Speed control guide" section.

WARNING

Injury Hazard

Unplug mixer before touching beaters.

Failure to do so can result in broken bones, cuts, or bruises.

Line drawing of a plug inserted into an electrical outlet with two outlets (no text or symbols)

1

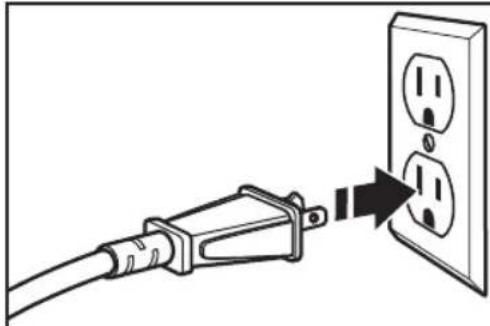

Plug the Hand Mixer into an electrical outlet.

1 - 3 - 5 - 7 ← 0

2

Slide the Power switch to the "1" (ON) position. The motor will automatically start at Speed 1, and the "1" on the speed indicator control will light up.

1 3 5 7 5 7

3

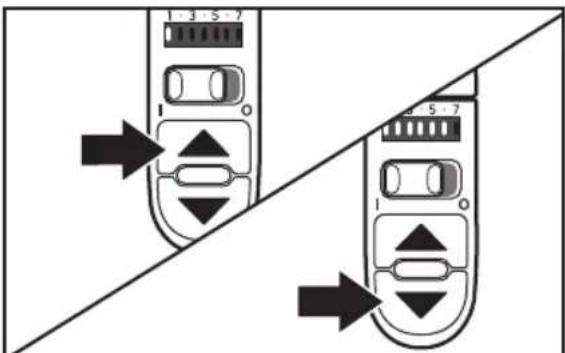

Touch the "UP (arrow)" button to increase the mixing speed to the desired setting. If necessary, touch the "DOWN (arrow)" button to decrease the mixing speed. See the "Speed control guide" for more information.

1 - 3 - 5 - 7 1

4

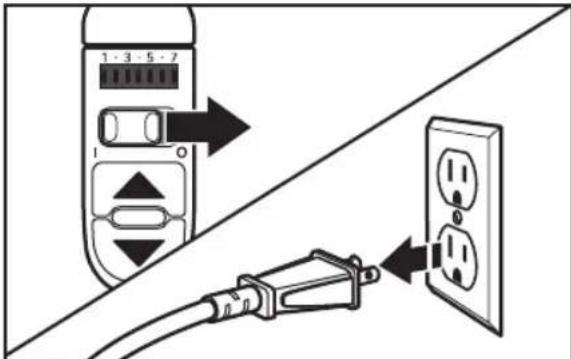

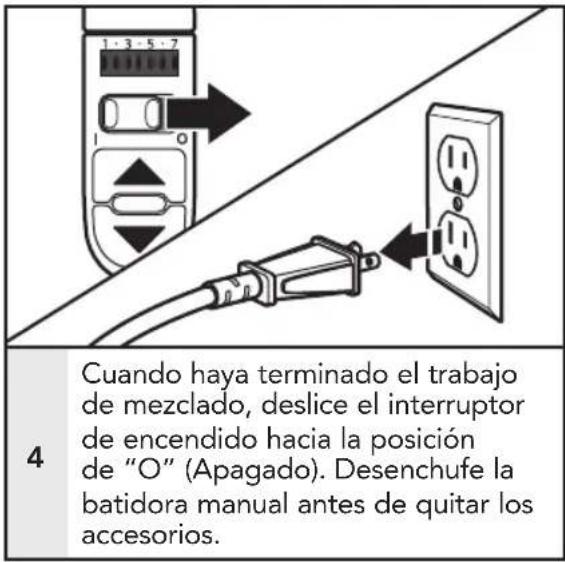

When mixing job is finished, slide the Power switch to the "O" (Off) position. Unplug the Hand Mixer before removing accessories.

NOTE: The Hand Mixer automatically starts at Speed 1 every time it is turned on, regardless of the Speed setting at the time the Hand Mixer is shut off.

SETTING UP THE HAND MIXER

ATTACHING THE ACCESSORIES

WARNING

Injury Hazard

Unplug mixer before touching beaters.

Failure to do so can result in broken bones, cuts, or bruises.

IMPORTANT: Be sure to read and follow the specific instructions in this manual for proper use of the Hand Mixer.

Diagram of a cable being inserted into an electrical outlet (no text or symbols)

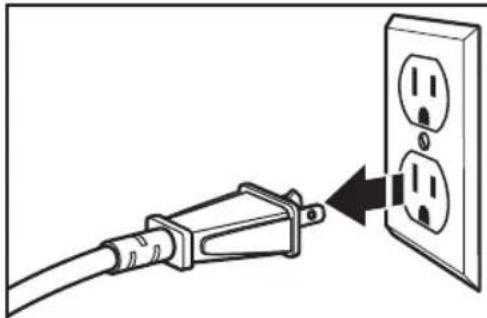

1 Unplug the Hand Mixer from the electrical outlet.

Simple line drawing of two vertical cylindrical objects labeled C and D, with no text or symbols present.

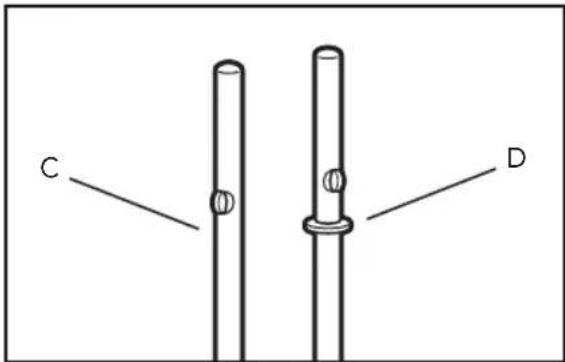

Paired accessories (beaters, optional dough hooks) include one accessory with a collar (D), and one without (C). Single accessories come with a collar (D) (liquid blending rod) or without (C) (whisk).

Technical diagram showing a mechanical component with labeled parts B and D, including a directional arrow indicating movement or force.

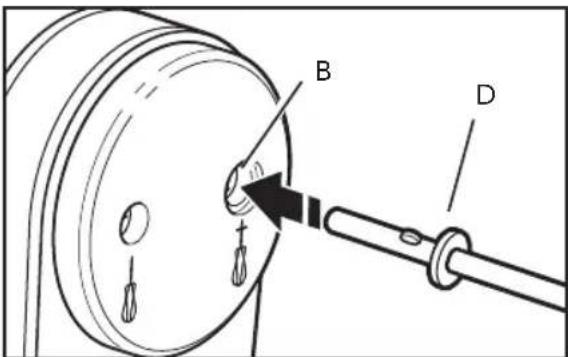

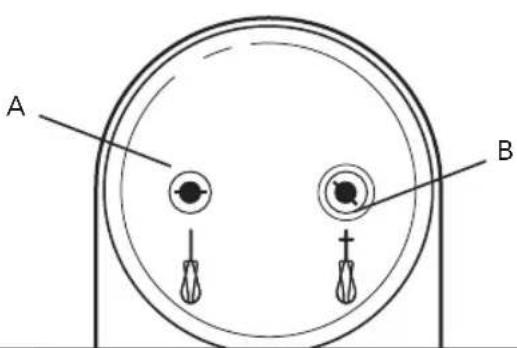

2 Insert the accessory shaft with the collar (D) into the larger opening (B) of the Hand Mixer. Align the flanges on the shaft with the slots in the opening. Push to lock into place.

A B

Insert the accessory without a collar (C) into the smaller opening (A). 3 Align and push to lock into place.

NOTE: An accessory shaft without a collar may be used in either opening (A or B).

Those with a collar may only be used in the larger opening (B).

SETTING UP THE HAND MIXER

REMOVING THE ACCESSORIES

1 - 3 - 5 - 7

If the Hand Mixer is running, stop the Hand Mixer by sliding the Power switch to the "O" (Off) position.

Illustration of a cable being inserted into an electrical outlet (no text or symbols)

2 Unplug the Hand Mixer from the electrical outlet.

Line drawing of a handheld device with a hand holding it, showing internal components and an arrow indicating direction (no text or symbols)

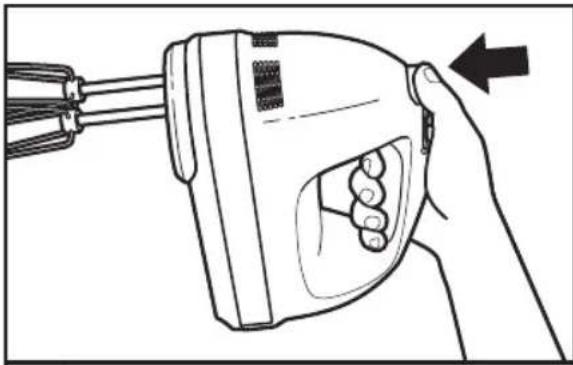

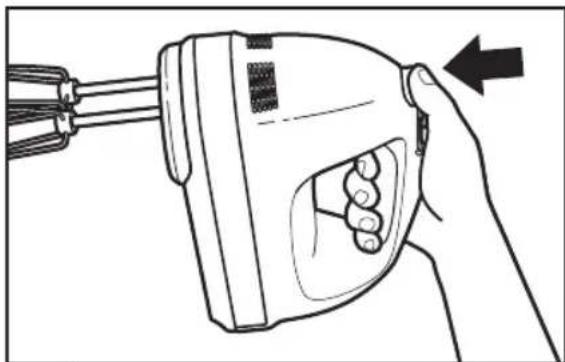

Press the Ejector Button to release the accessories from the Hand Mixer, then remove them.

CARE AND CLEANING

Electrical Shock Hazard

Do not put in water.

Doing so can result in death or electrical shock.

WARNING

Injury Hazard

Unplug mixer before touching beaters.

Failure to do so can result in broken bones, cuts, or bruises.

NOTE: Do not immerse Hand Mixer in water.

CARE AND CLEANING

Line drawing of a hand holding a pen and a tool, no text or symbols present

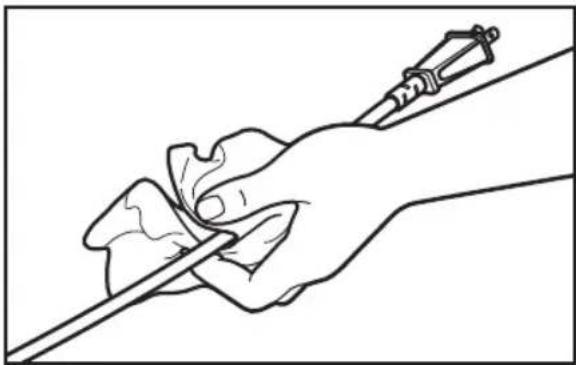

1 Always unplug Hand Mixer before cleaning. Wipe power cord and cord strap with damp cloth. Dry with a soft cloth.

Line drawing of a hand using a power tool to clean or brush the power of an electric shaver (no text or symbols)

2

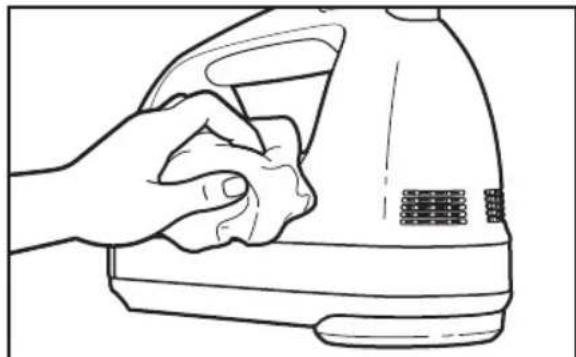

Wipe Hand Mixer with a damp cloth. Dry with a soft cloth.

CLEANING THE ACCESSORIES

Always remove accessories from Hand Mixer before cleaning. Wash in dishwasher, or by hand in warm, soapy water. Rinse and wipe dry.

CLEANING THE ACCESSORIES

Machine wash warm, tumble dry low. Or wipe clean with a warm soapy cloth.

TROUBLESHOOTING

IF HAND MIXER MALFUNCTIONS OR FAILS TO OPERATE

First try the solutions suggested here and possibly avoid the cost of service.

I. Is the Hand Mixer plugged in?
2. Is the fuse in the circuit to the Hand Mixer in working order? If you have a circuit breaker box, make sure the circuit is closed.
3. Try unplugging the Hand Mixer, then plug it back in.

If the problem cannot be fixed with the steps provided in this section, then contact KitchenAid or an Authorized Service Center.

USA/Puerto Rico: 1-800-541-6390,

Canada: 1-800-807-6777,

Mexico: 01-800-024-17-17

(JV Distribuciones)

or

01-800-902-31-00

(Industrias Birtman)

See the "Warranty" section for additional details. Do not return the Hand Mixer to the retailer – they do not provide service.

WARRANTY AND SERVICES

KitchenAid® Hand Mixer Warranty for the 50 United States, the District of Columbia, Puerto Rico, and Canada

This warranty extends to the purchaser and any succeeding owner for Hand Mixers operated in the 50 United States, the District of Columbia, Puerto Rico, and Canada.

Length of Warranty: One Year Full Warranty from date of purchase.

KitchenAid Will Pay Hassle-Free Replacement of your Toaster. for Your Choice of: See the next page for details on how to arrange for service, or call the Customer Satisfaction Center

toll-free at

service or call the oll-free at HASSLE-FREE REPLACEMENT WARRANTY the replacement p effects in material

1-800-541-6390.

OR

The replacement parts and repair labor costs to correct defects in materials and workmanship. Service must be provided by an Authorized KitchenAid Service Center.

KitchenAid Will

A. Repairs when Toaster is used in other than normal

Not Pay for: single family home use.

B. Damage resulting from accident, alteration, misuse or abuse.

C. Any shipping or handling costs to deliver your

D. Replacement parts or repair labor costs for Toasters operated outside the 50 United States, District of Columbia, Puerto Rico, and Canada.

Toaster to an Authorized Service Center.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

IMPLIED WARRANTIES, INCLUDING TO THE EXTENT APPLICABLE WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDED TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR THE SHORTEST PERIOD ALLOWED BY LAW. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS OR EXCLUSIONS ON HOW LONG AN IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.

IF THIS PRODUCT FAILS TO WORK AS WARRANTED, CUSTOMER'S SOLE AND EXCLUSIVE REMEDY SHALL BE REPAIR OR REPLACEMENT ACCORDING TO THE TERMS OF THIS LIMITED WARRANTY. KITCHENAID AND KITCHENAID CANADA DO NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or province to province.

WARRANTY AND SERVICES

Hassle-Free Replacement Warranty – 50 United States, District of Columbia, and Puerto Rico

We're so confident the quality of our products meets the exacting standards of KitchenAid that, if your Hand Mixer should fail within the first year of ownership, KitchenAid will arrange to deliver an identical or comparable replacement to your door free of charge and arrange to have your original Hand Mixer returned to us. Your replacement unit will also be covered by our one year limited warranty. If your Hand Mixer should fail within the first year of ownership, simply call our

toll-free Customer Satisfaction Center at 1-800-541-6390 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address. (No P.O. Box numbers, please.)

When you receive your replacement Hand Mixer, use the carton, packing materials, and prepaid shipping label to pack up your original Hand Mixer and send it back to KitchenAid..

Hassle-Free Replacement Warranty – Canada

We're so confident the quality of our products meets the exacting standards of the KitchenAid brand that, if your Hand Mixer should fail within the first year of ownership, we will replace your Hand Mixer with an identical or comparable replacement. Your replacement unit will also be covered by our one year limited warranty.

If your Hand Mixer should fail within the first year of ownership, simply call our toll-free Customer eXperience Center

at 1-800-807-6777 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address.

When you receive your replacement Hand Mixer, use the carton, packing materials, and prepaid shipping label to pack up your original Hand Mixer and send it back to KitchenAid.

Arranging for Service after the Warranty Expires, or Ordering Accessories and Replacement Parts

In the United States and Puerto Rico:

For service information, or to order accessories or replacement parts, call toll-free at 1-800-541-6390 or write to:

Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

Outside the United States and Puerto Rico:

Consult your local KitchenAid dealer or the store where you purchased the Hand Mixer for information on how to obtain service.

For service information in Canada:

Call toll-free 1-800-807-6777.

For service information in Mexico:

Call toll-free 01-800-0022-767.

®/™ ©2018 KitchenAid. All rights reserved. KITCHENAID and the design of the stand mixer are trademarks in the U.S. and elsewhere.

PIÈCES ET CARACTÉRISTIQUES

Diagram of a device control panel with labeled buttons and indicators

2

Diagram showing connection between a power adapter and a wall socket with two outlets, labeled with pin numbers and directional arrows.

4

Diagram showing a cable being inserted into an electrical outlet with two outlets (no text or symbols present)

1

Simple line drawing of two vertical cylindrical objects labeled C and D, with no text or symbols beyond labels

Technical diagram showing a mechanical assembly with labeled parts B and D, likely illustrating a turning or mounting process.

2

Line drawing of a hand holding a pen, no text or symbols present

Line drawing of a hand using a power tool to press or install a component (no text or symbols present)

2

Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

Line drawing of a coiled device with two vertical rods (no text or symbols)

Simple line drawing of a vertical stand with a flared base and a small protrusion, no text or symbols present.

Line drawing of two coiled industrial tools with no text or symbols

Line drawing of two curved metal tools with handles and hooks (no text or symbols)

Line drawing of two vertical poles tied together with coiled ropes (no text or symbols)

Line drawing of a whisk with multiple strands, no text or symbols present

CÓMO USAR LA BATIDORA MANUAL

CÓMO USAR LA BATIDORA MANUAL

CÓMO USAR LA BATIDORA MANUAL

CÓMO FUNCIONA EL CONTROL DE VELOCIDADES

Diagram of a plug inserted into an electrical outlet with two outlets, showing power connection (no text or symbols)

1

Diagram showing two computer monitors with directional arrows indicating movement or navigation, overlaid on a diagonal line.

3

CÓMO USAR LA BATIDORA MANUAL

CÓMO PREPARAR LA BATIDORA MANUAL

CÓMO SUJETAR LOS ACCESORIOS

ADVERTENCIA

Peligro de Lesiones

CÓMO PREPARAR LA BATIDORA MANUAL

C D

Technical diagram showing a mechanical assembly with labeled parts B and D, likely illustrating a turning or mounting process.

Diagram showing a cable being inserted into an electrical outlet with two outlets (no text or symbols present)

2

CÓMO PREPARAR LA BATIDORA MANUAL

Line drawing of a handheld device with three leads and a hand holding the top (no text or symbols)

Line drawing of a hand holding a tool with a pen, no text or symbols present

Line drawing of a hand using a power tool to clean or install a small appliance (no text or symbols)

2

Red background with a white telephone handset icon (no text or symbols)

PRODUCT QUESTIONS OR RETURNS

QUESTIONS SUR LE PRODUIT OU LES RETOURS

PREGUNTAS SOBRE EL PRODUCTO O DEVOLUCIONES

USA: 1.800.541.6390 | KitchenAid.com

CANADA: 1.800.807.6777 | KitchenAid.ca

Silhouette of a kitchen mixer on a bowl (no text or symbols)

KitchenAid®

®/™ ©2018 KitchenAid. All rights reserved. KITCHENAID and the design of the stand mixer are trademarks in the U.S. and elsewhere.
