Product Type	Ceramic Bowl for Stand Mixer
Brand	KitchenAid
Model	KSM2CB5PTF
Material	Ceramic
Capacity	5 pints (approx. 4.7 L)
Compatibility	Tilt-head stand mixers of 4.5 and 5 pints (except model KN15E1X)
Maximum Oven Temperature	482°F (250°C)
Microwave Safe	Yes
Dishwasher Safe	Yes (top or bottom rack)
Stain Resistant	Yes
Handle	Yes
Pour Spout	Yes
Warranty	5 years (hassle-free replacement)
Approximate Weight	2 kg
Approximate Dimensions	20 cm diameter, 15 cm height
Care Instructions	Dishwasher safe or wash with warm soapy water
Safety	Do not use on stovetop, grill, rotisserie, or direct flame
Storage	Can be stored in freezer

Frequently Asked Questions - KSM2CB5PTF KITCHENAID

Is this ceramic bowl compatible with my KitchenAid mixer?

It is compatible with all tilt-head stand mixers of 4.5 and 5 pints, except model KN15E1X.

How do I attach the ceramic bowl to the mixer?

Set the speed control to 0 and unplug the appliance. Tilt the motor head back, place the bowl on the locking plate, and gently turn it clockwise to lock.

Can I use this bowl in the oven?

Yes, up to 482°F (250°C). Do not place it directly under the broiler.

Can I use this bowl in the microwave?

Yes, it can be used for cooking or reheating in the microwave.

How do I clean the ceramic bowl?

It is dishwasher safe (top or bottom rack). You can also wash it with warm soapy water. For stubborn residue, soak for 15-20 minutes.

Is the ceramic bowl impact resistant?

It is stain, chip, crack, and fissure resistant, but remains fragile: avoid thermal shock.

Are marks appearing on the bowl after use normal?

Yes, marks may appear where the bowl locks onto the base. They can be removed with an abrasive cleaner and sponge.

Can I use the bowl on a stovetop?

No, it should not be used on a stovetop, grill, rotisserie, or direct flame.

How to store the ceramic bowl?

Dry it completely before storing. It can be stored in the freezer without absorbing odors.

What does the warranty for this bowl cover?

A full 5-year warranty from the date of purchase. In case of defect, KitchenAid replaces the bowl at no cost.

USER MANUAL KSM2CB5PTF KITCHENAID

Close-up of a Kitchen AI stand mixer with white ceramic bowl and mesh coating (no visible text or symbols)

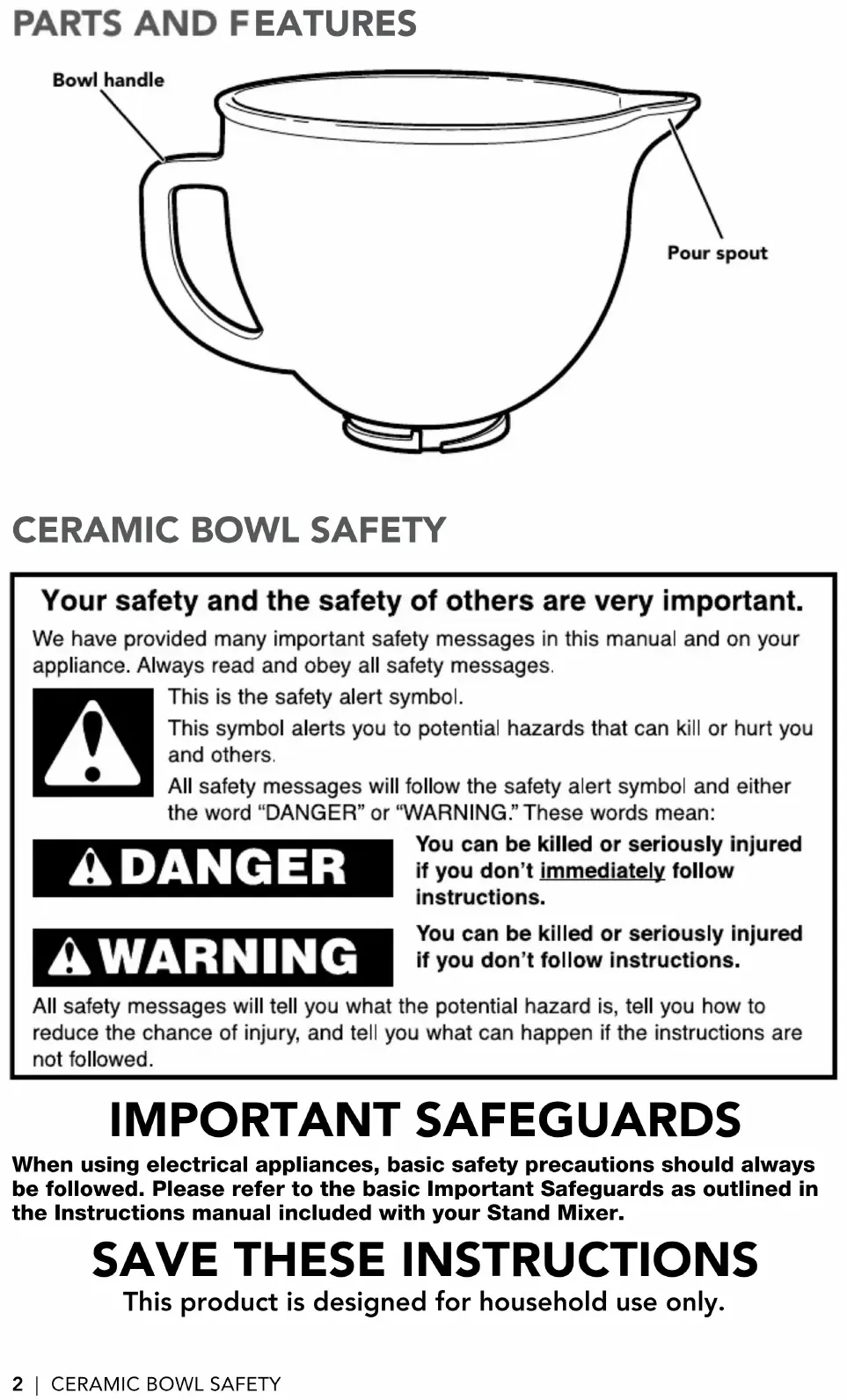

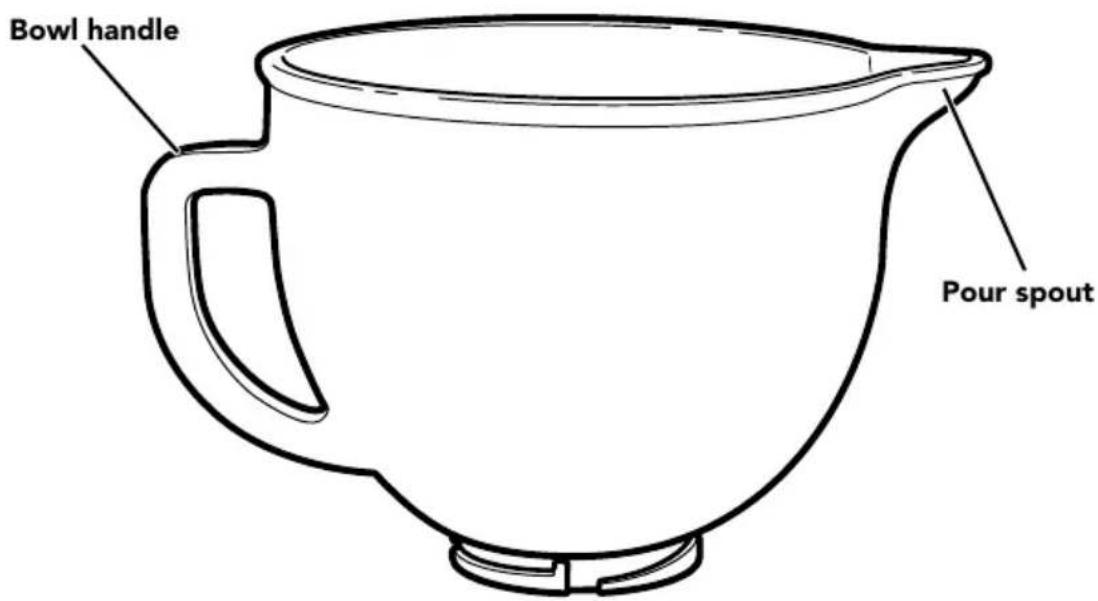

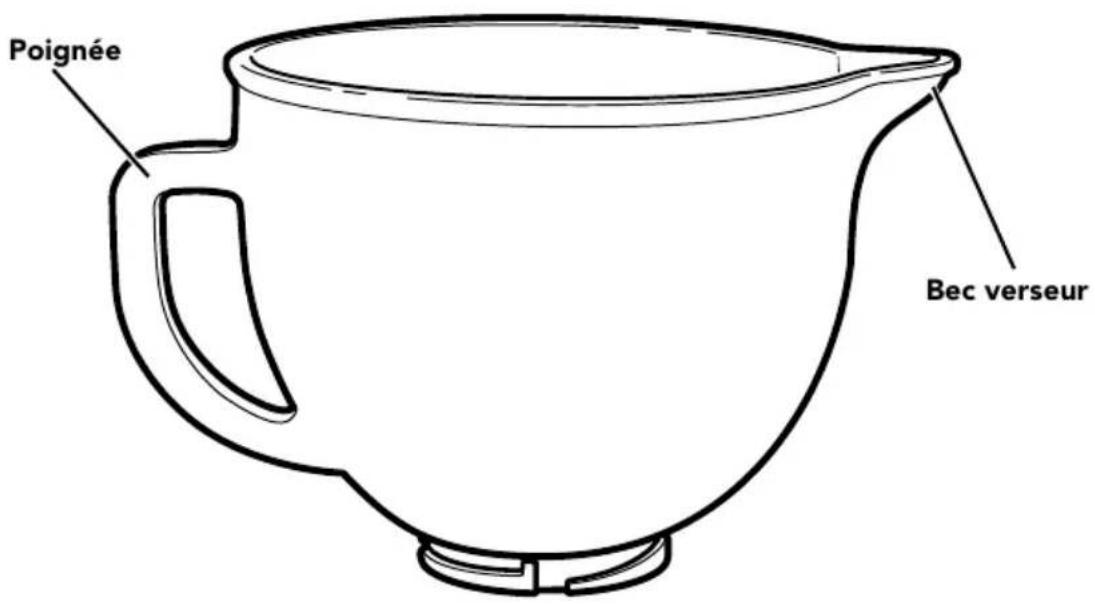

PARTS AND FEATURES

CERAMIC BOWL SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

! DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed. Please refer to the basic Important Safeguards as outlined in the Instructions manual included with your Stand Mixer.

SAVE THESE INSTRUCTIONS

This product is designed for household use only.

USING THE CERAMIC BOWL

ATTACHING THE CERAMIC BOWL TO THE STAND MIXER

Before First Use

Your Stand Mixer is individually adjusted at the factory for optimal performance. When using the Ceramic Bowl, it may be necessary to readjust the beater-to-bowl clearance. When correctly positioned, the handle and pour spout should not touch the pedestal of the Stand Mixer. Please refer to the Stand Mixer Instructions manual for complete information on adjusting the beater-to-bowl clearance, or call 1-800-541-6390 Monday through Friday 8-8 EST and we would be happy to assist you in making this adjustment.

IMPORTANT: Before use, wash with hot, soapy water; rinse and dry thoroughly. It is not necessary to season the Ceramic Bowl before use.

NOTE: This Ceramic Bowl is designed to fit all 4.5 and 5 quart Tilt Head Stand Mixer models except model KN15E1X. Follow these instructions to attach the Ceramic Bowl to your Stand Mixer.

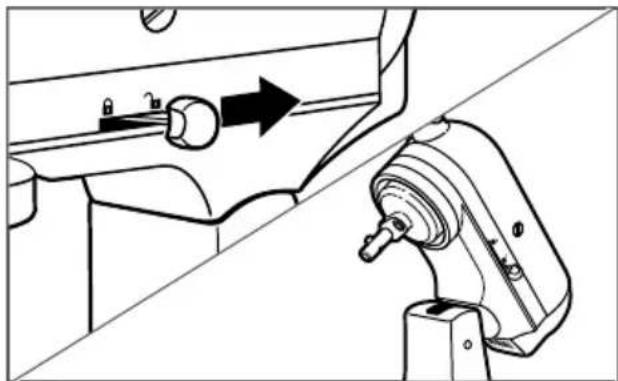

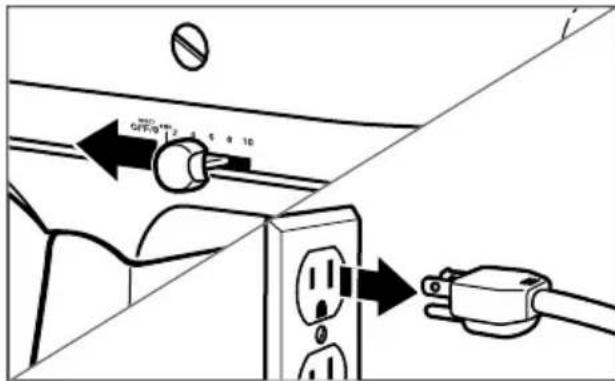

1 Be sure the speed control is set to 0 (off) and the Stand Mixer is unplugged. Tilt the motor head back.

Line drawing of a kitchen mixer with a hand operating the cup (no text or symbols)

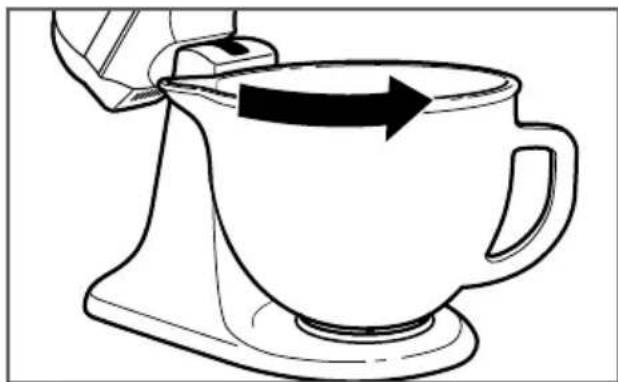

2 Place the Ceramic Bowl on the clamping plate, and attach by turning gently in a clockwise direction.

Line drawing of a kitchen mixer with an arrow indicating the mixing process (no text or symbols present)

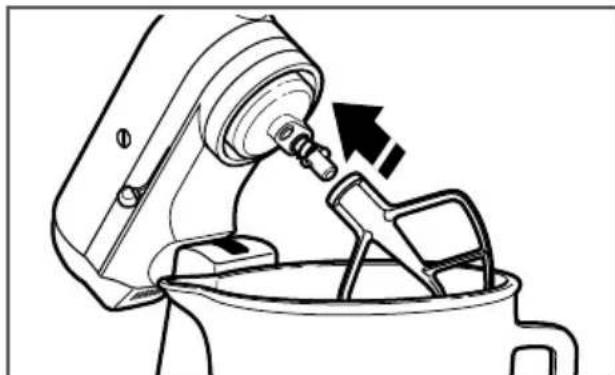

Attach the appropriate accessory for your recipe, using the directions in the Stand Mixer Instructions manual. Then place the motor head back in the down position and lock into place.

USING THE CERAMIC BOWL

REMOVING THE CERAMIC BOWL FROM THE STAND MIXER

Technical line drawing of a mechanical assembly with directional arrow indicating motion (no text or symbols)

Raise the motor head: Check to be sure that the Stand Mixer is unplugged, and the speed control is turned to "0"; then, slide the locking lever to the unlock position and lift the motor head.

Line drawing of a kitchen mixer with rotating wheel (no text or symbols)

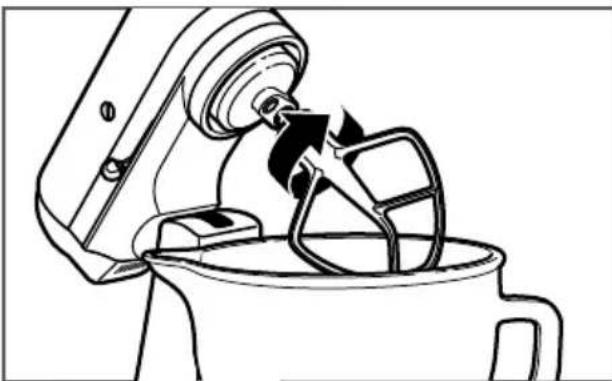

2 Remove the accessory: Press the accessory upward as far as possible, then turn the accessory clockwise and pull it away from the beater shaft.

Line drawing of a kitchen mixer blending a cup with an arrow indicating rotation (no text or symbols)

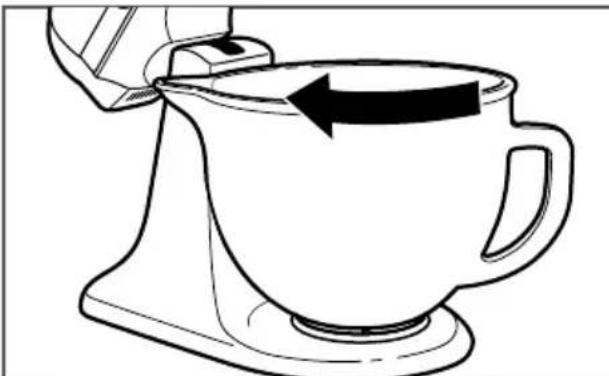

Remove the ceramic bowl: Gently turn the ceramic bowl counterclockwise to release it from the bowl clamping plate.

TIPS FOR GREAT RESULTS

• The Ceramic Bowl is safe for cooking or reheating in the microwave.
• The Ceramic Bowl is oven safe to 482°F (250°C); however, it is not recommended to place the Ceramic Bowl directly under the broiler.
• IMPORTANT: To avoid damaging the Ceramic Bowl, do not use on stovetop or with any other direct heat, such as broiler, grill, toaster oven, or direct flame.

• Baking time can vary when using ceramic bakeware. Monitor and adjust the cooking time as needed.

• Use a hot pad before placing the hot Ceramic Bowl on an unprotected surface.
  • To avoid possible damage, do not set the hot Ceramic Bowl on a cold or wet surface. Do not place a frozen Ceramic Bowl in a hot oven.
  • After removal from the oven, the Ceramic Bowl will retain heat longer than standard bakeware.

CARE AND CLEANING

CLEANING THE CERAMIC BOWL

Line drawing of a kitchen sink with an open oven and a cup pouring liquid, no text or symbols present

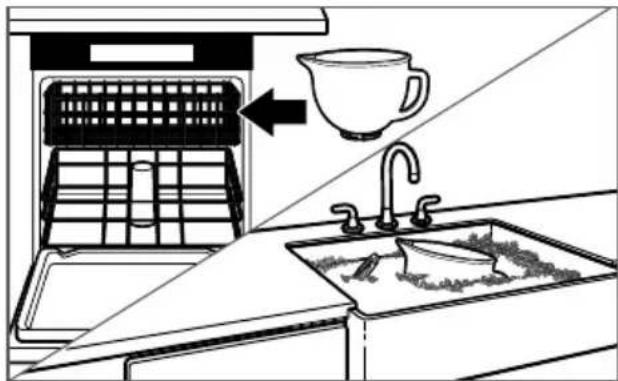

The Ceramic Bowl may be washed in an automatic dishwasher on the top or bottom rack; or, clean thoroughly in hot sudsy water and rinse completely before drying.

• To remove baked-on food, soak the Ceramic Bowl in hot, soapy water for 15-20 minutes or as needed before placing it in the dishwasher.
• The Ceramic Bowl can be stored in the freezer. The non-porous Ceramic Bowl will not absorb odors, flavors, or bacteria from food.
  • Always dry the Ceramic Bowl thoroughly before storing.

Line drawing of a person sitting inside a metal cage (no text or symbols)

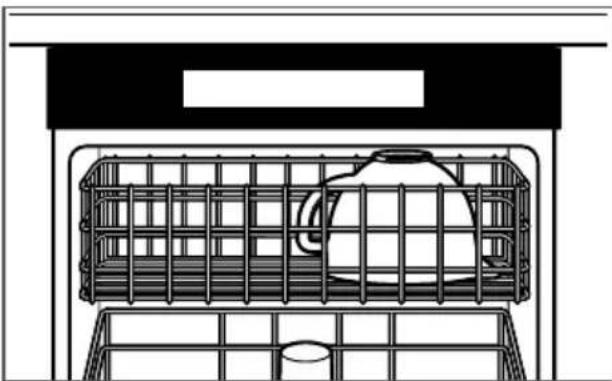

2 The Ceramic Bowl should be placed upside down if washing in an automatic dishwasher.

• Resists staining, chipping, and cracking or crazing.
• After using the Ceramic Bowl with the Stand Mixer, some marks may appear where the bowl locks in to the base of the Stand Mixer. The marks are normal and can be removed by cleaning with an abrasive cleaner and sponge.

WARRANTY AND SERVICE

KITCHENAID CERAMIC BOWL WARRANTY FOR

THE 50 UNITED STATES, THE DISTRICT OF COLUMBIA,

PUERTO RICO, AND CANADA

This warranty extends to the purchaser and any succeeding owner for Ceramic Bowls operated in the 50 United States, the District of Columbia, Puerto Rico, and Canada.

Length of Warranty: Five Years Full Warranty from date of purchase.
KitchenAid Will Pay for Your Choice of:	Hassle-Free Replacement of your Ceramic Bowl. See the next page for details on how to arrange for service, or call the Customer eXperience Center toll-free at 1-800-541-6390.ORThe replacement parts and repair labor costs to correct defects in materials and workmanship.Service must be provided by an Authorized KitchenAid Service Center.
KitchenAid Will Not Pay for:	A. Repairs when your Ceramic Bowl is used in other than normal single family home use.B. Damage resulting from accident, alteration, misuse or abuse.C. Any shipping or handling costs to deliver your Ceramic Bowl to an Authorized Service Center.D. Replacement parts or repair labor costs for Ceramic Bowls operated outside the 50 United States, District of Columbia, Puerto Rico, and Canada.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIESIMPLIED WARRANTIES, INCLUDING TO THE EXTENT APPLICABLE WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDED TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO FIVE YEARS, OR THE SHORTEST PERIOD ALLOWED BY LAW. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS OR EXCLUSIONS ON HOW LONG AN IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.IF THIS PRODUCT FAILS TO WORK AS WARRANTED, CUSTOMER'S SOLE AND EXCLUSIVE REMEDY SHALL BE REPAIR OR REPLACEMENT ACCORDING TO THE TERMS OF THIS LIMITED WARRANTY. KITCHENAID AND KITCHENAID CANADA DO NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or province to province.

WARRANTY AND SERVICE

HASSLE-FREE REPLACEMENT WARRANTY – 50 UNITED STATES, DISTRICT OF COLUMBIA, AND PUERTO RICO

We're so confident the quality of our products meets the exacting standards of KitchenAid that, if your Ceramic Bowl should fail within the first five years of ownership, KitchenAid will arrange to deliver an identical or comparable replacement to your door free of charge and arrange to have your original Ceramic Bowl returned to us. Your replacement unit will also be covered by our five-year limited warranty.

If your Ceramic Bowl should fail within the first five years of ownership, simply call our toll-free Customer eXperience Center at 1-800-541-6390 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address (no P.O. Box numbers, please).

When you receive your replacement Ceramic Bowl, use the carton, packing materials, and prepaid shipping label to pack up your original Ceramic Bowl and send it back to KitchenAid.

HASSLE-FREE REPLACEMENT WARRANTY – CANADA

We're so confident the quality of our products meets the exacting standards of the KitchenAid brand that, if your Ceramic Bowl should fail within the first five years of ownership, we will replace your Ceramic Bowl with an identical or comparable replacement. Your replacement unit will also be covered by our five-year limited warranty.

If your Ceramic Bowl should fail within the first five years of ownership, simply call our toll-free Customer eXperience Center at

1-800-807-6777 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address.

When you receive your replacement Ceramic Bowl, use the carton, packing materials, and prepaid shipping label to pack up your original Ceramic Bowl and send it back to KitchenAid.

ARRANGING FOR SERVICE AFTER THE WARRANTY EXPIRES, OR ORDERING ACCESSORIES AND REPLACEMENT PARTS

In the United States and Puerto Rico:

For service information, or to order accessories or replacement parts, call toll-free at 1-800-541-6390 or write to:

Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

Outside the United States and Puerto Rico:

Consult your local KitchenAid dealer or the store where you purchased the Ceramic Bowl for information on how to obtain service.

For service information in Canada:

Call toll-free 1-800-807-6777.

For service information in Mexico:

Call toll-free 01-800-0022-767.
