USER MANUAL KHM312 KITCHENAID

KHM31, KHM51 and KHM61

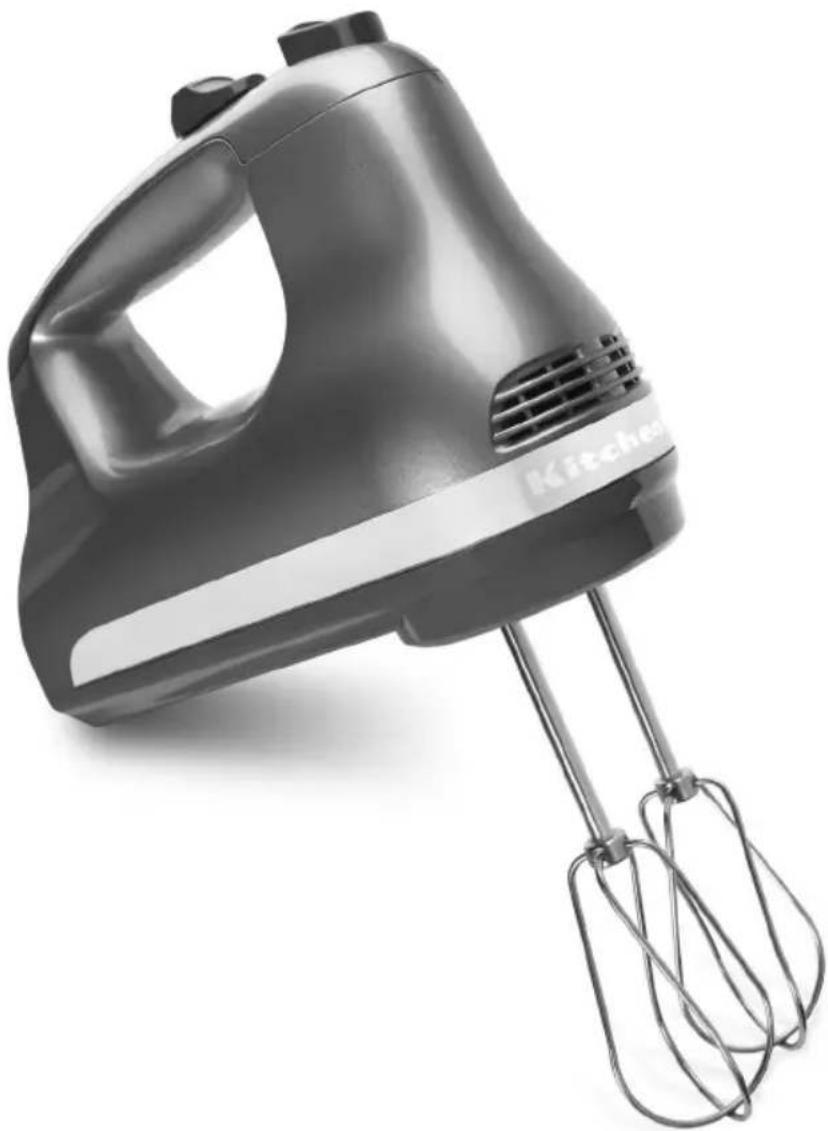

Gray kitchen hand mixer with whisk, no visible text or symbols on the device itself

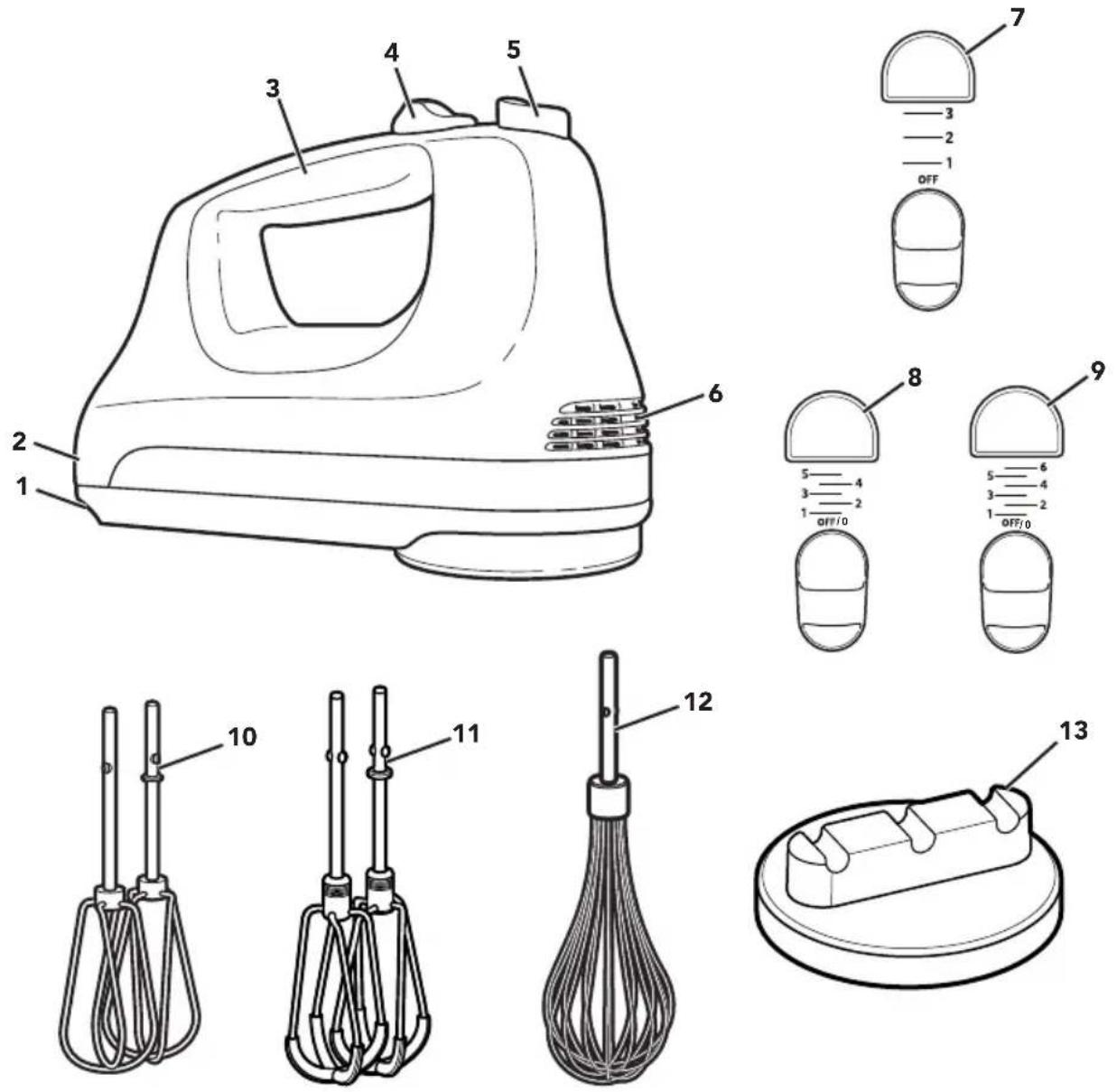

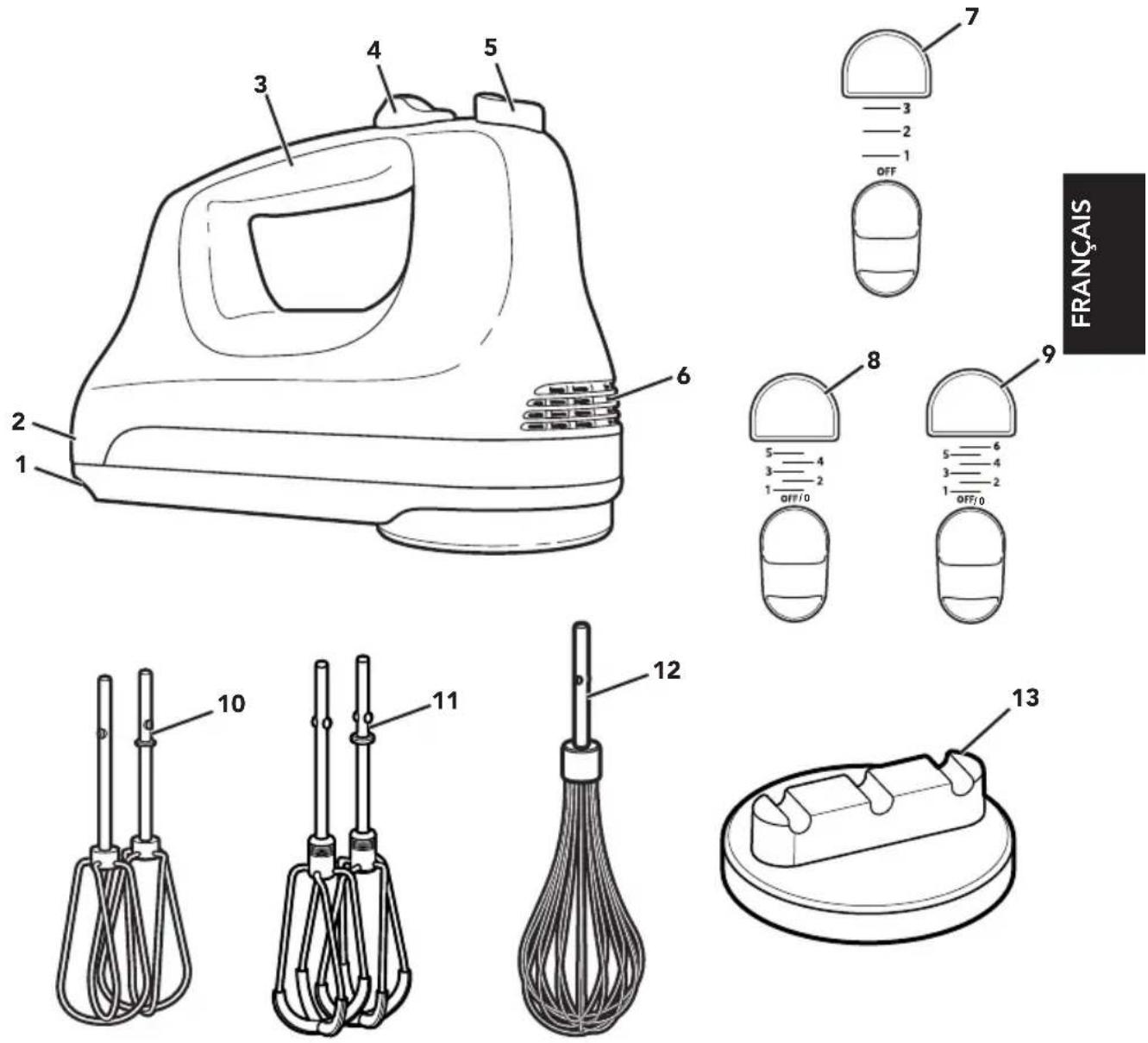

PARTS AND FEATURES

1 Swivel Lock Power Cord
2 Non-Tip Heel Rest
3 Comfort Designed Handle
4 Easy-to-Use Speed Control
5 Oversized Beater Ejector Button
6 Air Vents
7 3-Speed Control

8 5-Speed Control
9 6-Speed Control
10 Stainless Steel Turbo Beater™ Accessory
11 Flex Edge Beaters*
12 Stainless Steel 16-Tine Pro Whisk*
13 Integrated Storage Clip*

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

! DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.
2. To protect against the risk of electrical shock do not put Hand Mixer in water or other liquid.

3. This appliance is not intended for use by children or by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do not play with the appliance.

4. Turn the appliance OFF/0, then unplug from the outlet when not in use, before assembling or disassembling parts and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.

5. Avoid contacting moving parts. Keep hands, hair, and clothing, as well as spatulas and other utensils, away from Beater during operation to reduce the risk of injury to persons and/or damage to the Hand Mixer.

6. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest Authorized Service Facility for examination, repair, or electrical or mechanical adjustment.

7. The use of accessories or attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.

8. Never leave the appliance unattended while it is in operation.

9. Do not use the appliance outdoors.

10. Do not let the cord hang over the edge of table or counter.

PRODUCT SAFETY

1. Do not let the cord contact hot surface, including the stove.
2. Remove any accessories from the Hand Mixer before washing.

SAVE THESE INSTRUCTIONS

This product is designed for household use only.

ELECTRICAL REQUIREMENTS

Voltage: 120 V

Frequency: 60 Hz

NOTE: This Hand Mixer has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the plug in any way.

ACCESSORY GUIDE

Accessory Uses		Included with Model
		KHM31 K	HM51 KHM	61
Turbo BeaterTM	Cookie dough, Cake batter	● ● ●
Flex Edge Beaters*	Cake batter, Pancake batter, Cookie dough, Cheese spreads, Frosting, Mashed potatoes, Brownie mixes			●
16-Tine Pro Whisk*	Whipped cream, Puddings, Whipped egg whites, Sauces			●
Storage Clip*	To store accessories			●

To order these accessories

In USA: visit www.shopkitchenaid.com, or call 1-800-541-6390.

In Canada: call 1-800-807-6777.

*Accessories available with select models.

SPEED CONTROL GUIDE

First, clean all parts and accessories (see "Care and Cleaning" section).

IMPORTANT: Hand Mixer should always be set on the lowest speed to start mixing. Move to higher speeds as needed.

3-Speed Hand Mixer	5-Speed Hand Mixer	6-Speed Hand Mixer	Attachment Uses
1	1	1	Turbo BeaterTM, Flex Edge Beater	For slow stirring, combining, and starting all mixing procedures. Use this speed to stir in nuts, chocolate chips, shredded cheese, onions, olives, and other chunky ingredients. Helps prevent ingredients from splashing out of bowl.
	2	2	Turbo BeaterTM, Flex Edge Beater	Mix flour and other dry ingredients with liquids or other moist mixtures.
			Turbo BeaterTM, Flex Edge Beater	Mix pancake batter.
2	3	3	Turbo BeaterTM, Flex Edge Beater	Combine heavy mixtures, such as cookie dough. Mix light cream cheese spreads. Stir batters and gelatin mixtures.
			Turbo BeaterTM, Flex Edge Beater	Mix muffins and quick breads. Combine heavy cream cheese mixtures. Mash potatoes or squash.
	4	4	Turbo BeaterTM, Flex Edge Beater	Mix batter breads. Blend butter and sugar. Mix frostings.
3		5	Turbo BeaterTM, Flex Edge Beater	Finish mixing cake and other batters. Whip heavy cream and mousse mixtures.
	5	6	Turbo BeaterTM, 16-Tine Pro Whisk	Beat egg whites. Whip heavy cream and mousse mixtures.
			Turbo BeaterTM, 16-Tine Pro Whisk	Beat meringue mixtures.

NOTE: The Turbo Beater™ accessories are not designed for mixing and kneading bread dough.

WARNING

Injury Hazard

Unplug mixer before touching beaters.

Failure to do so can result in broken bones, cuts, or bruises.

IMPORTANT: Be sure to read and follow the specific instructions in this manual for proper use of the Hand Mixer.

1

Diagram of a plug inserted into an electrical outlet with two outlets (no text or symbols)

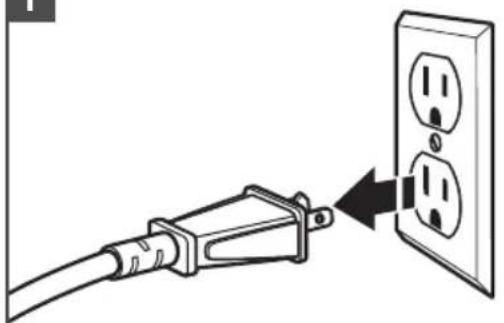

Before attaching an Accessory, make sure the Hand Mixer is unplugged from the electrical outlet.

2

Simple line drawing of two vertical cylindrical objects labeled C and D, with no text or symbols beyond labels

Paired accessories (Beaters, optional Dough Hooks) include one accessory with a collar (D) and one without (C). The single accessory comes with a collar (D) (Liquid Blending Rod) or without (C) (Whisk).

3 B D

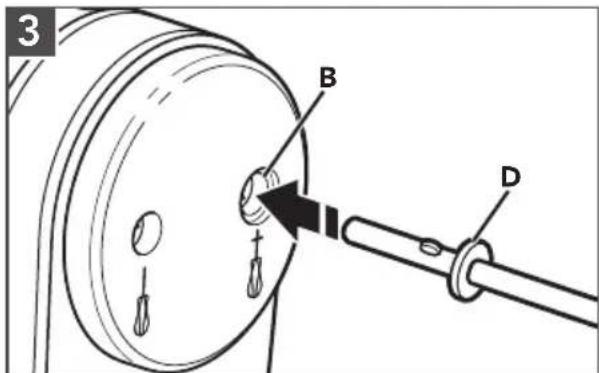

Insert the accessory shaft with the collar (D) into the larger opening (B) of the Hand Mixer. Align the flanges on the shaft with the slots in the opening. Push to lock into place.

4

A B

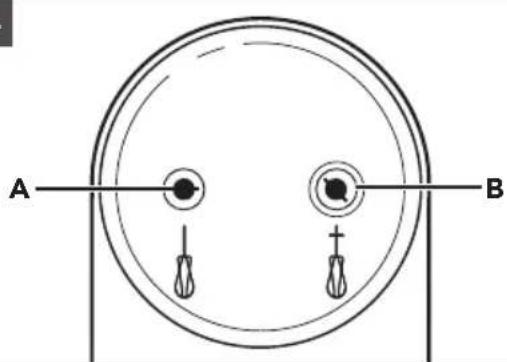

Insert the Accessory without a collar (C) into the smaller opening (A). Align and push to lock into place.

NOTE: An accessory shaft without a collar maybe used in either opening (A or B). Those with a collar may only be used in the larger opening (B).

PRODUCT DISASSEMBLY

REMOVING THE ACCESSORIES

1 5 4 3 2 1 OUT/0 ↓

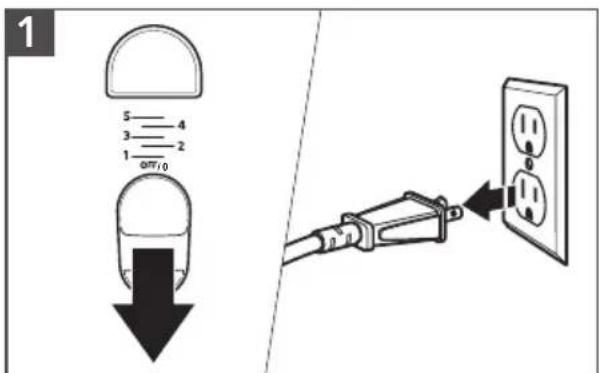

First, stop the Hand Mixer by sliding the Speed Control to the "OFF/0" position. Then unplug from the electrical outlet.

Line drawing of a hand holding a handheld device with three tubes and a label '2' (no text or symbols on the device itself)

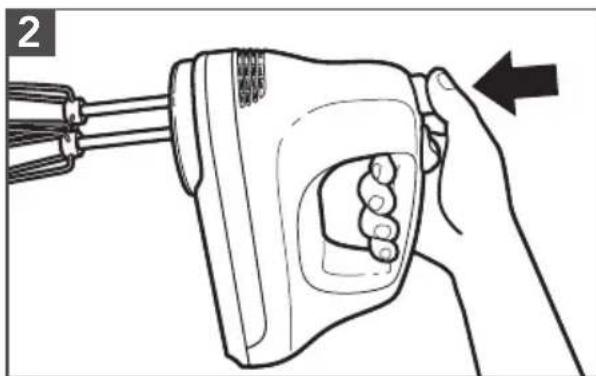

Press the Ejector Button to release the accessories from the Hand Mixer, then remove them.

PRODUCT USAGE

WARNING Injury Hazard Unplug mixer before touching beaters. Failure to do so can result in broken bones, cuts, or bruises.

This KitchenAid® Hand Mixer will beat faster and more thoroughly than most other electric Hand Mixers. Therefore, the beating time in most recipes must be adjusted to avoid over beating. Beating time is faster due to larger Beater sizes.

To help determine the ideal beating time, observe the batter or dough and beat only until it has the desired appearance described in your recipe, such as "smooth and creamy". To select the best beating speeds, see the "Speed Control Guide" section.

1 5 4 3 2 1 OFF 0 ↓

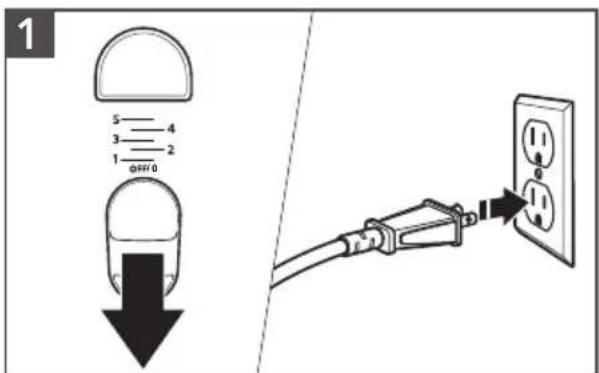

First, turn the Hand Mixer to the "OFF/0" position. Then plug into an electrical outlet.

2 5 4 3 2 1 ↑

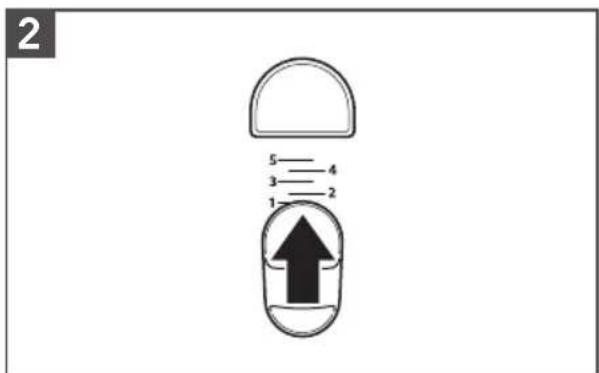

Always start mixing at the lowest speed, which is Speed 1.

PRODUCT USAGE

3

5 4 7

5 4 3 2 1

To increase the speed, slide the Speed Control forward.

To decrease the speed, slide the Speed Control backward.

4

Diagram of a cable inserted into an electrical outlet with two outlets (no text or symbols)

When finished, turn the Hand Mixer to the "OFF/0" position. Then unplug from the electrical outlet.

CARE AND CLEANING

IMPORTANT: Do not immerse the Hand Mixer body in water or other liquids. Do not use abrasive cleansers or scouring pads to avoid scratching.

WARNING

Electrical Shock Hazard Do not put in water. Doing so can result in death or electrical shock.

WARNING

Injury Hazard

Unplug mixer before touching beaters.

Failure to do so can result in broken bones, cuts, or bruises.

1

5 3 1 4 2 OFF 10

Diagram showing a cable inserted into an electrical outlet with three outlets (no text or symbols present)

Turn the Hand Mixer to the "OFF/0" position. Then unplug from an electrical outlet.

2

Line drawing of a hand using a power tool to clean or brush the iron on a small appliance (no text or symbols)

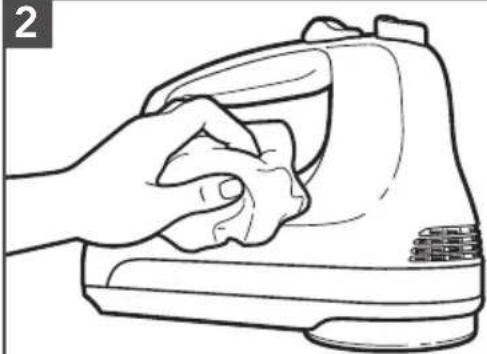

Wipe the Hand Mixer body with a soft, damp cloth.

CARE AND CLEANING

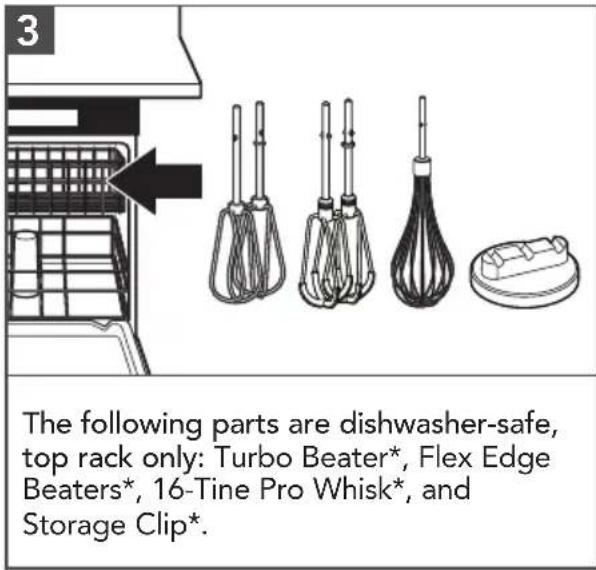

The following parts are dishwasher-safe, top rack only: Turbo Beater*, Flex Edge Beaters*, 16-Tine Pro Whisk*, and Storage Clip*.

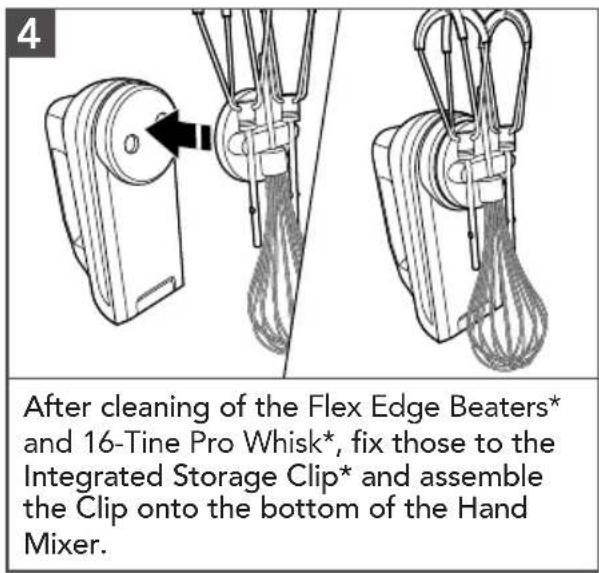

After cleaning of the Flex Edge Beaters* and 16-Tine Pro Whisk*, fix those to the Integrated Storage Clip* and assemble the Clip onto the bottom of the Hand Mixer.

TROUBLESHOOTING GUIDE

Problem Solution
If the Hand Mixer fails to start:	Check if the Hand Mixer is securely plugged into an outlet.
	If you have a circuit breaker box, make sure the circuit is closed.
If the problem cannot be corrected:	Contact KitchenAid or an Authorized Service Center**. See the “Warranty and Service” section.Do not return the Hand Mixer to the retailer; retailers do not provide service.

*These parts can also be washed by hand in warm, soapy water and dry thoroughly.

** USA/Puerto Rico: 1-800-541-6390,

Canada: 1-800-807-6777,

Mexico: 01-800-024-17-17

(JV Distribuciones)

or

01-800-902-31-00

(Industrias Birtman)

WARRANTY AND SERVICE

KITCHENAID® HAND MIXER WARRANTY FOR THE 50 UNITED STATES, THE DISTRICT OF COLUMBIA, PUERTO RICO, AND CANADA

This warranty extends to the purchaser and any succeeding owner for Hand Mixer operated in the 50 United States, the District of Columbia, Puerto Rico, and Canada.

Length of Warranty: One Year Full Warranty from date of purchase.
KitchenAid Will Pay for Your Choice of:	Hassle-Free Replacement of your Hand Mixer. See the next page for details on how to arrange for service, or call the Customer eXperience Center toll-free at 1-800-541-6390.ORThe replacement parts and repair labor costs to correct defects in materials and workmanship. Service must be provided by an Authorized KitchenAid Service Center.
KitchenAid Will Not Pay for:	A. Repairs when your Hand Mixer is used in other than normal single family home use.B. Damage resulting from accident, alteration, misuse or abuse.C. Any shipping or handling costs to deliver your Hand Mixer to an Authorized Service Center.D. Replacement parts or repair labor costs for Hand Mixer attachments operated outside the 50 United States, District of Columbia, Puerto Rico, and Canada.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIESIMPLIED WARRANTIES, INCLUDING TO THE EXTENT APPLICABLE WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDED TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR THE SHORTEST PERIOD ALLOWED BY LAW. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS OR EXCLUSIONS ON HOW LONG AN IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.IF THIS PRODUCT FAILS TO WORK AS WARRANTED, CUSTOMER'S SOLE AND EXCLUSIVE REMEDY SHALL BE REPAIR OR REPLACEMENT ACCORDING TO THE TERMS OF THIS LIMITED WARRANTY. KITCHENAID AND KITCHENAID CANADA DO NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or province to province.

WARRANTY AND SERVICE

HASSLE-FREE REPLACEMENT WARRANTY – 50 UNITED STATES, DISTRICT OF COLUMBIA, AND PUERTO RICO

We're so confident the quality of our products meets the exacting standards of KitchenAid brand that, if your Hand Mixer should fail within the first year of ownership, KitchenAid will arrange to deliver an identical or comparable replacement to your door free of charge and arrange to have your original Hand Mixer returned to us. Your replacement unit will also be covered by our one year limited warranty.

If your Hand Mixer should fail within the first year of ownership, simply call our

toll-free Customer eXperience Center at 1-800-541-6390 Monday through Friday

Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address. (No P.O. Box numbers, please.)

When you receive your replacement Hand Mixer, use the carton, packing materials, and prepaid shipping label to pack up your original Hand Mixer and send it back to KitchenAid.

HASSLE-FREE REPLACEMENT WARRANTY – CANADA

We're so confident the quality of our products meets the exacting standards of the KitchenAid brand that, if your Hand Mixer should fail within the first year of ownership, we will replace your Hand Mixer with an identical or comparable replacement. Your replacement unit will also be covered by our one year limited warranty.

If your Hand Mixer should fail within the first year of ownership, simply call our

toll-free Customer eXperience Center at 1-800-807-6777 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address.

When you receive your replacement Hand Mixer, use the carton, packing materials, and prepaid shipping label to pack up your original Hand Mixer and send it back to KitchenAid.

ARRANGING FOR SERVICE AFTER THE WARRANTY EXPIRES, OR ORDERING ACCESSORIES AND REPLACEMENT PARTS

In the United States and Puerto Rico:

For service information, or to order accessories or replacement parts, call toll-free at 1-800-541-6390 or write to:

Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

Outside the United States and Puerto Rico:

Consult your local KitchenAid dealer or the store where you purchased the Hand Mixer for information on how to obtain service.

For service information in Canada:

Call toll-free 1-800-807-6777.

For service information in Mexico:

Call toll-free 01-800-0022-767.
