Product Type	Hawaiian Shaved Ice Attachment (immersion blender)
Brand	KitchenAid
Model	KSMSIA
Compatibility	All domestic KitchenAid stand mixers
Power	Powered by stand mixer (no separate power)
Main functions	Fine or coarse ice shaving, making Hawaiian shaved ice, slushies, shaved ice
Blades included	Fine shaving blade and coarse shaving blade
Number of ice molds	4 plastic molds with lids
Recommended speed	Speed 10 (highest)
Care and cleaning	Dishwasher safe parts (top rack): ice cup, blades, molds, pusher, sleeve, lids. Housing: wipe with damp cloth, do not immerse.
Safety	Sharp blades – handle with caution. Never leave unattended. Turn off and unplug before cleaning.
Spare parts and repairability	Replacement blades available, KitchenAid after-sales service
Tempering of ice	Let ice disc sit at room temperature for 10 minutes until glossy appearance
Warranty	1 year full warranty (hassle-free replacement or repair)
Country of origin	Made in USA (information not specified, estimate)

Frequently Asked Questions - KSMSIA KITCHENAID

How to temper ice discs?

Let the ice disc sit at room temperature for about 10 minutes until its exterior becomes glossy and moist. Tempering is essential to obtain light and fluffy shaved ice.

What speed to use for shaving ice?

Use the highest speed (speed 10) of your KitchenAid stand mixer for optimal shaving.

How to change the attachment blade?

Grasp the blade from the bottom and turn it to the right to unlock and remove it. To install, insert the blade aligning the locking tabs, then turn it to the left until you hear a click.

Can I use other liquids besides water for the ice molds?

Yes, you can use juices, coffee, flavored mixtures. Pay attention to sugar or alcohol content: do not exceed 8% alcohol to ensure proper freezing. Follow the provided recipes.

Is the attachment compatible with all KitchenAid stand mixers?

Yes, the KSMSIA Hawaiian Shaved Ice Attachment is compatible with all domestic KitchenAid stand mixers via the multifunction accessory hub.

How to clean the attachment parts?

The following parts are dishwasher safe in the top rack: removable ice cup, blades, ice molds, pusher, sleeve, and lids. The housing should not be immersed; wipe it with a damp cloth.

What to do if the ice is not shaving properly?

Check that the ice is properly tempered: if it's too cold, it will be hard to shave. Extend tempering time. Also ensure the blade is not damaged and you are using speed 10.

What is the warranty duration of the attachment?

The KitchenAid Hawaiian Shaved Ice Attachment comes with a full one-year warranty from the date of purchase, including hassle-free replacement or repair.

Can I use the attachment without a stand mixer?

No, this attachment is designed exclusively for use with a KitchenAid stand mixer. It does not operate independently.

How to assemble the attachment before use?

1. Attach the housing to the accessory hub of the mixer. 2. Turn the top lever to the left. 3. Insert the tempered ice disc into the ice cup with the sleeve. 4. Lock the ice cup onto the housing. 5. Release the lever so the pusher engages. Refer to the manual for more details.

USER MANUAL KSMSIA KITCHENAID

Shave Ice Attachment KSMSIA

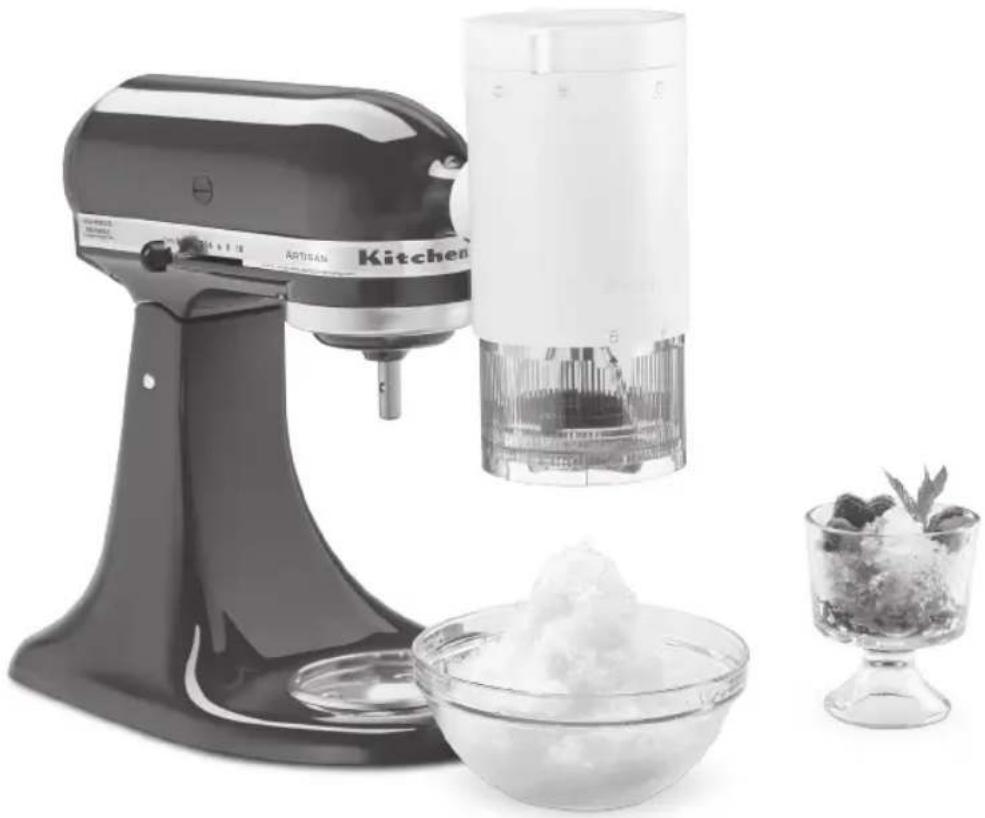

Exterior view of a kitchen stand mixer with a dessert bowl and side dish (no text or symbols visible)

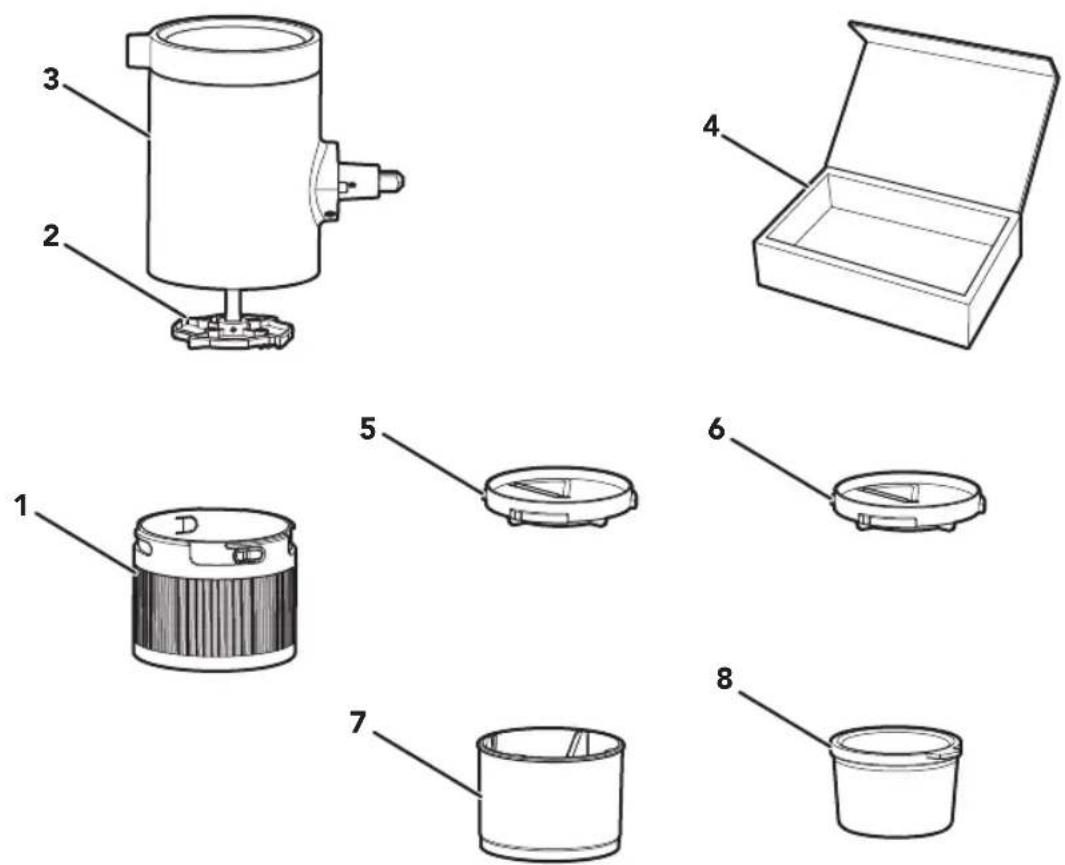

PARTS AND FEATURES

1 Detachable Ice Cup
2 Ice Cup Pusher
3 Main Upper Housing
4 Convenient Storage Box

5 Fine Shave Blade
6 Coarse Shave Blade
7 Ice Cup Sleeve
8 Plastic Ice Mold w/Lid (x4)

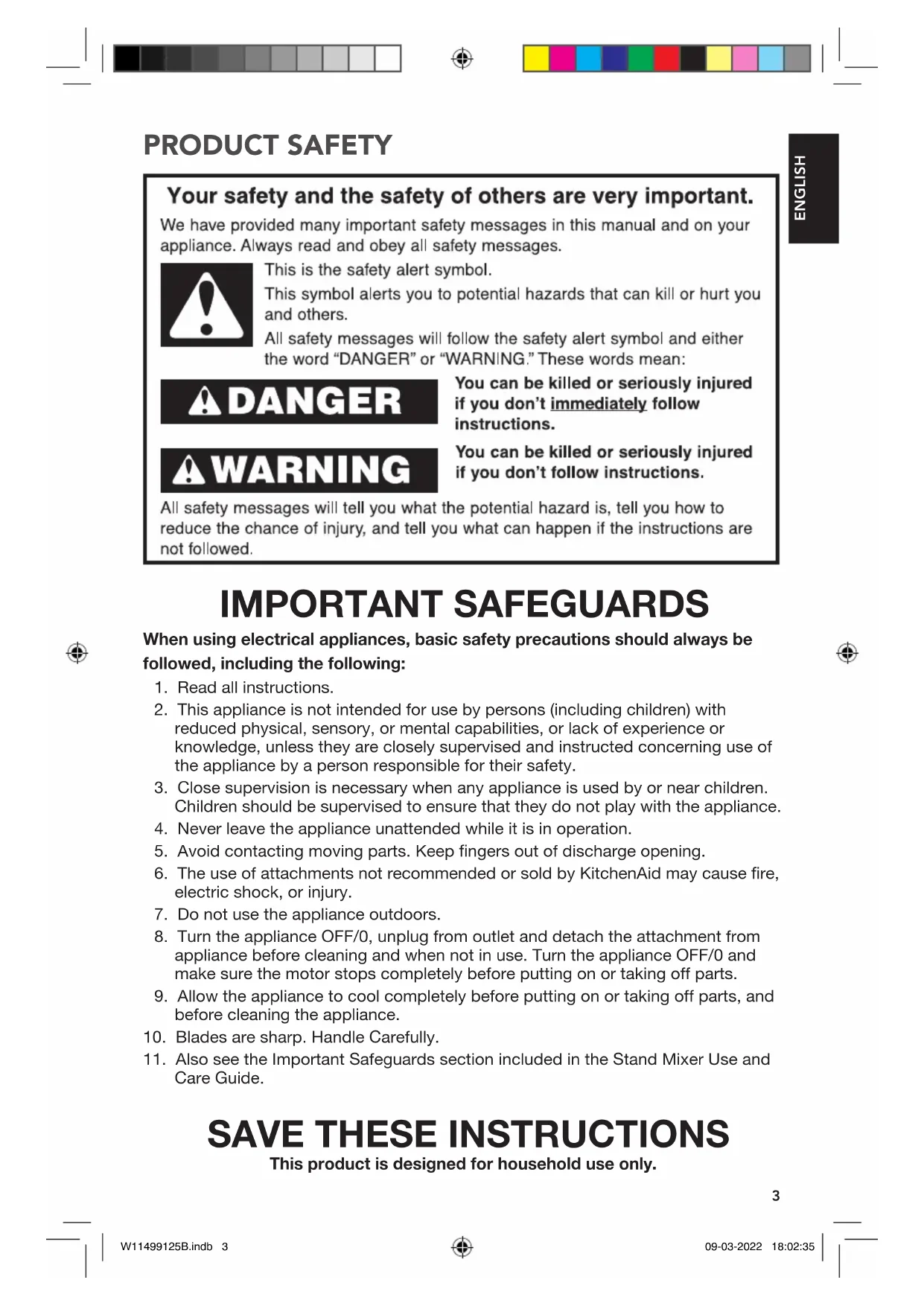

PRODUCT SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience or knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
4. Never leave the appliance unattended while it is in operation.
5. Avoid contacting moving parts. Keep fingers out of discharge opening.
6. The use of attachments not recommended or sold by KitchenAid may cause fire, electric shock, or injury.
7. Do not use the appliance outdoors.
8. Turn the appliance OFF/0, unplug from outlet and detach the attachment from appliance before cleaning and when not in use. Turn the appliance OFF/0 and make sure the motor stops completely before putting on or taking off parts.
9. Allow the appliance to cool completely before putting on or taking off parts, and before cleaning the appliance.
10. Blades are sharp. Handle Carefully.
11. Also see the Important Safeguards section included in the Stand Mixer Use and Care Guide.

SAVE THESE INSTRUCTIONS

This product is designed for household use only.

GETTING STARTED

The Shave Ice Attachment is compatible with all household KitchenAid Stand Mixers. Set the Blades to Shave Ice as per requirement.

Name Icon	Intended Use Speed
Coarse Shave Blade		For coarser ice shaving / ice chips.	10
Fine Shave Blade		For a fine, fluffy, snow-like ice shaving texture.	10

NOTE: For detailed instructions on swapping blades, please see "CHANGING THE BLADE" section.

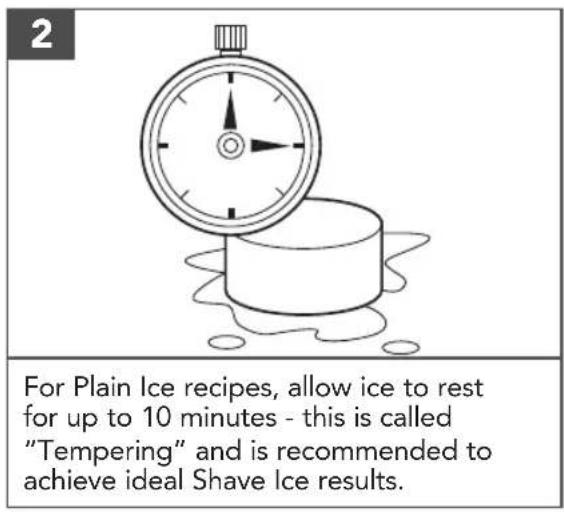

TEMPERING THE ICE PUCKS

Tempering Ice means allowing the ice to adjust at room temperature until it develops a glossy, wet look and is clear from all sides. Tempering is an important step for producing the lightest and fluffiest shave ice. Many factors determine the amount of time it takes to temper. In most cases, your ice puck should be ready to use in 10 minutes or less.

NOTE: Ice pucks made with plain water require tempering. For mixed base recipes, refer to the recipe details for tempering instructions.

The Ice Molds are used for best performance for both coarse and fine shaving. It's easy to get shave ice from tempered ice out of the molds.

TIP: For the fluffiest shave ice, we recommend tempering the ice puck for 10 minutes, and then using the Fine Shaving Blade.

PRODUCT USAGE

ICE PUCK PREPARATION

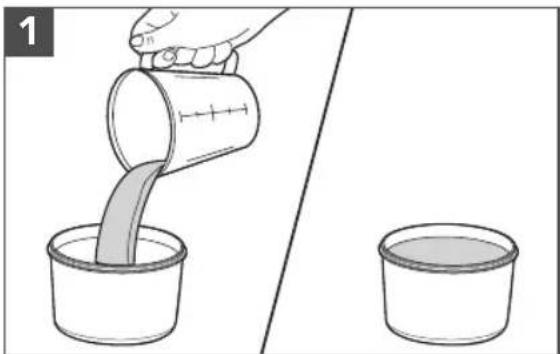

Illustration showing a hand pouring liquid from a container into two empty cups (no text or symbols)

Fill the ice mold with water or flavored ice base mixture of your choice.

NOTE: To keep the mold from overflowing while freezing, be sure not to fill past the fill line visible just below the rim of the mold.

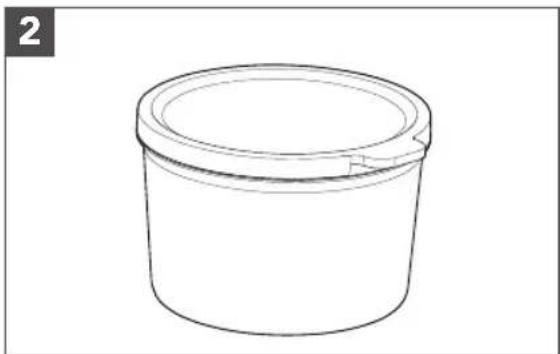

Simple line drawing of a cylindrical container with a lid (no text or symbols)

Affix the lid to the top of the mold and place it in the freezer for 12 to 24 hours. NOTE: Freezing time may vary and will depend both on the temperature of your freezer as well as the sugar or alcohol content of your mixture.

NOTE: See "Tips for Great Results" sections for more details on Ice Puck Preparation.

PRODUCT USAGE

SET UP & ASSEMBLY - PREPARING TO MAKE SHAVE ICE

Before using your Shave Ice Attachment, clean it by following the detailed instructions in "CARE & CLEANING" section.

PRODUCT USAGE

5

Illustration of a hand pouring liquid into a cylindrical container using a stand mixer (no text or symbols)

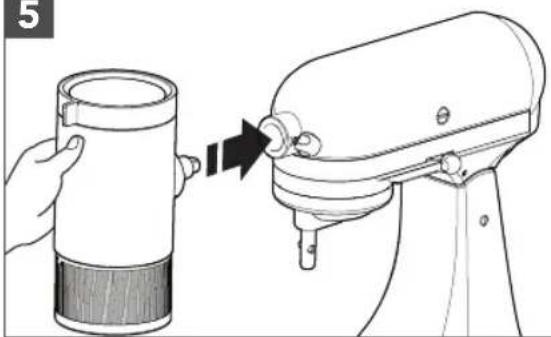

Insert the Main Housing into the attachment hub, make sure the power shaft fits into the square hub socket. If necessary, rotate the attachment back and forth for proper fitment. The pin on the attachment housing will fit into the notch of the hub rim when in the proper position.

Illustration of hands installing a mechanical component with a tool (no text or symbols visible)

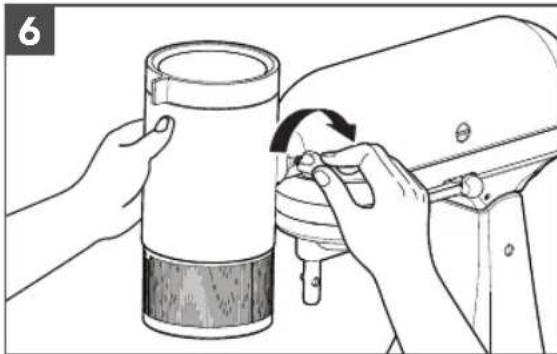

Tighten the Stand Mixer attachment hub knob clockwise until the attachment is completely secured into the Stand Mixer.

Illustration of hands operating a mechanical device with a rotating component (no text or symbols)

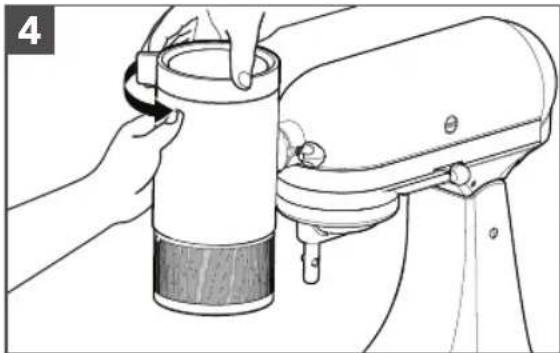

Ensure that the upper lever of the housing is rotated all the way to left. If not, rotate it to the left until it clicks into place. This will ready the attachment for use and must be completed before loading the Ice Puck into the Ice Cup and attaching it to the housing.

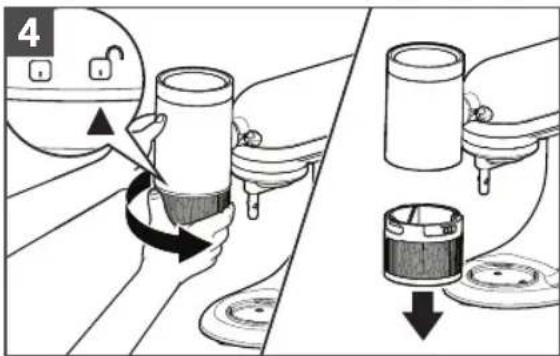

Remove the Ice Cup from the housing by rotating it to the right and pulling downward. Take note of the small indicator arrow which must line up with the Lock and Unlock symbols on the housing.

Illustration of a hand holding a cylindrical device with a circular base, showing a rotating arrow indicating rotation (no text or symbols present)

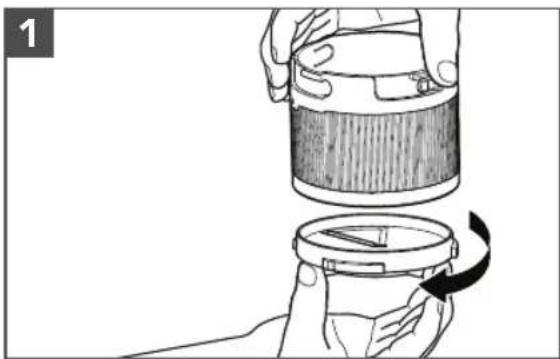

OPTIONAL : If you wish to change the blade, grip the blade from the bottom and rotate it to right to unlock and remove.

PRODUCT USAGE

ASSEMBLY

Illustration of hands holding a cylindrical device with a rotating arrow indicating rotation (no text or symbols)

Grip the blade from the bottom and slowly insert it into the bottom of the Ice Cup by aligning the interlocking tabs. Once inserted, rotate the blade to the left until you hear a "Click", to properly lock the blade in place.

NOTE: Each of the interlocking tabs is unique size, ensuring the blade can only be installed in the correct position.

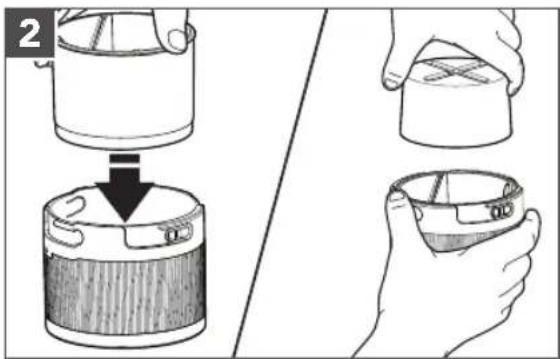

Insert the Ice Cup Sleeve into the Detachable Ice Cup, then insert a prepared Ice Puck. Be sure to insert the ice puck with the cross hatches facing upward.

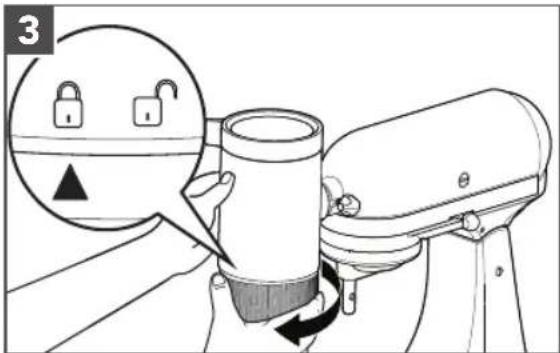

Attach the Detachable Ice Cup to the bottom side of the main housing, rotating it to the left to lock it in place.

NOTE: The small indicator arrow on the Detachable Ice Cup that should line up with the Lock and Unlock symbols on the main housing.

Illustration of a hand holding a cylindrical container being handled by a stand mixer (no text or symbols visible)

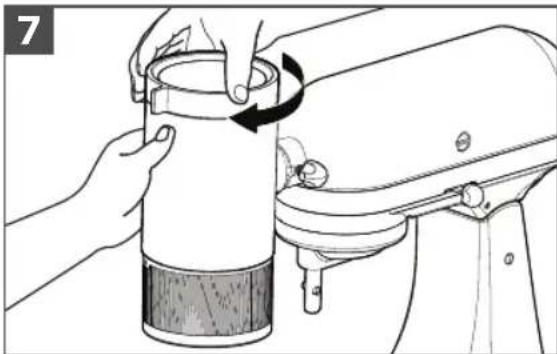

Release the top lever by gently rotating it to the right. The spring will engage as the Ice Pusher clamps down on the ice puck. The Shave Ice Attachment is properly loaded and ready to use.

PRODUCT USAGE

SHAVING ICE

1

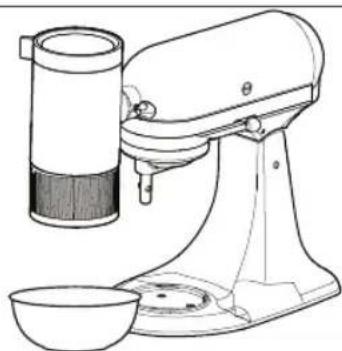

Line drawing of a kitchen mixer with a cylindrical lid and bowl (no text or symbols)

Place a serving dish of your choice beneath the Shave Ice Attachment. Do this before starting the mixer.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

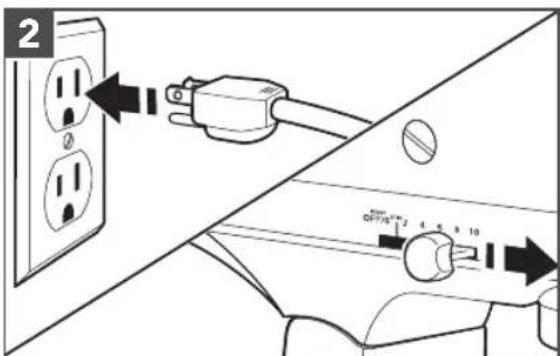

Plug the Stand Mixer into a grounded outlet Set the mixer to the highest speed to begin shaving.

NOTE: For best results, consider rotating the dish as the ice shaves to create a more even, cone-shaped mound of ice.

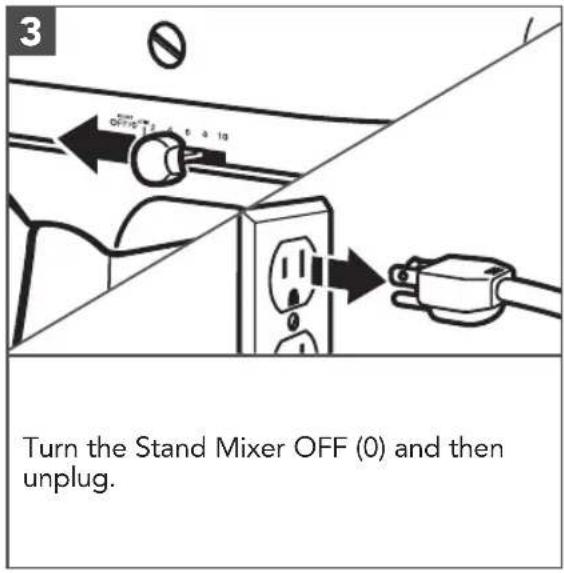

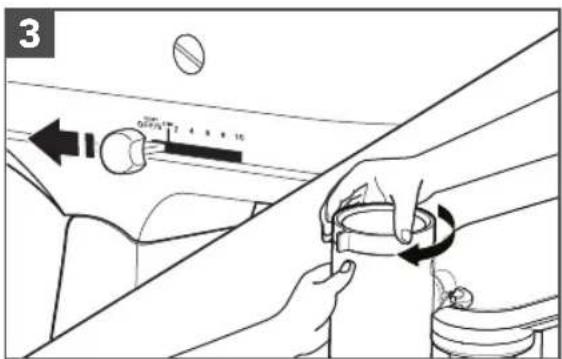

Once shaving is complete, turn off the mixer and return the upper lever to the leftmost locked position.

PRODUCT USAGE

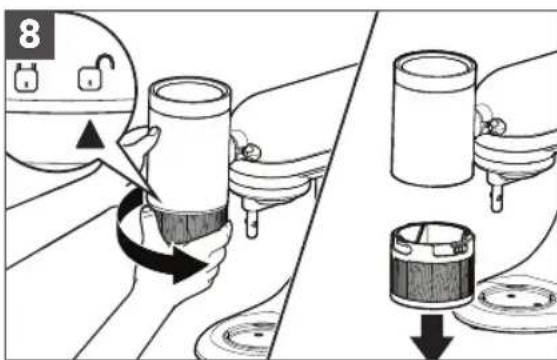

Remove the Ice Cup from the housing by rotating it to the right and pulling downward. Discard any remaining ice.

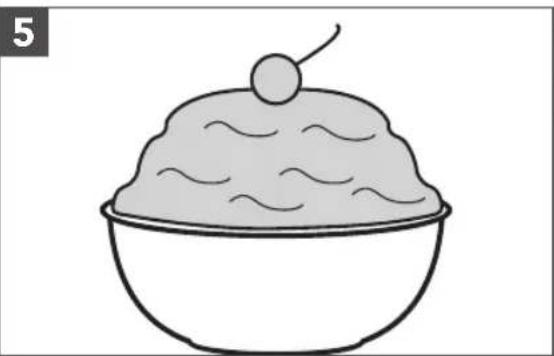

Simple line drawing of a bowl with ice cream and a cherry on top (no text or symbols)

Finish your Shave Ice dessert with a variety of flavorings or toppings of your choice.

See below for additional tips, tricks and recipes to help make the most of your Shave Ice experience.

For even more recipes and inspiration, visit KitchenAid.com

CHANGING THE BLADE

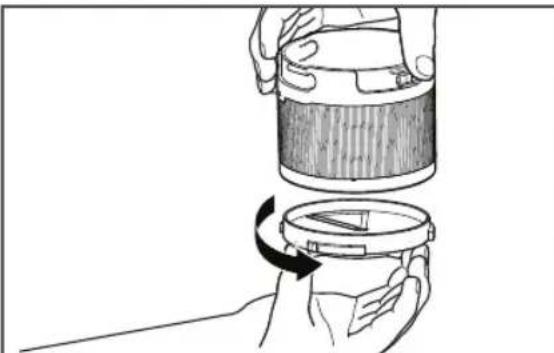

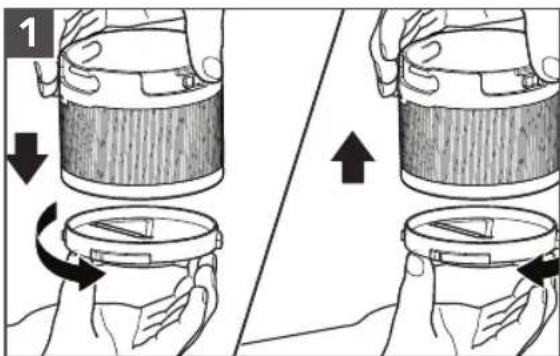

Grip the blade from the bottom and rotate to the right to remove, or to the left to install.

Once inserted, rotate the blade to the left until you hear a "Click", to properly lock the blade in place.

Technical illustration of a cylindrical device with internal components, showing two views: top view and side view (no text or symbols)

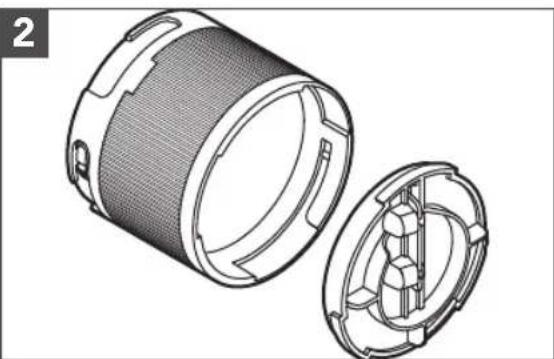

Each of the interlocking tabs is unique size, ensuring the blade can only be installed in the correct position.

CARE AND CLEANING

IMPORTANT: Allow the appliance to cool completely before putting on or taking off parts, and before cleaning the appliance.

NOTE: Disassemble the unit properly before cleaning. For instructions, refer to the SET UP & ASSEMBLY section steps 7, 8, and optional.

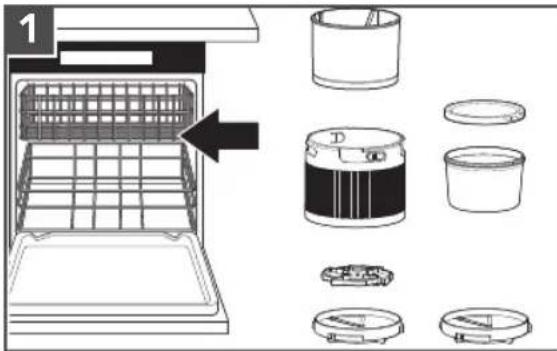

The following parts are dishwasher-safe, top rack only: Detachable Ice Cup, Fine and Coarse Blades, Plastic Ice Molds, Ice Cup Pusher, Ice Cup Sleeve and Lids.

Line drawing of a hand holding a cylindrical device with a small protrusion (no text or symbols)

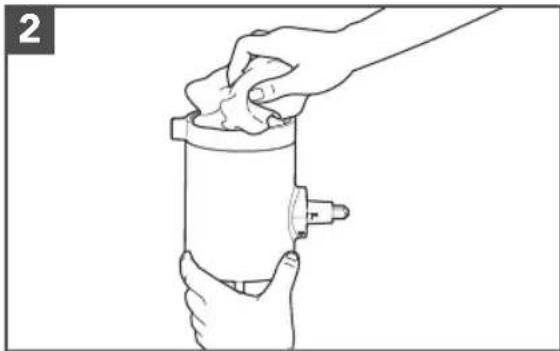

Do not immerse Housing in water or other liquid. Wipe clean with a warm, damp cloth, and dry thoroughly with a soft cloth before re-use or storing.

TIPS FOR GREAT RESULTS

Setting Up Your Shave Ice Attachment

• It is recommended that you install your Shave Ice Attachment on the Stand Mixer first, before completing any other set up step.
  • To more easily install the clear plastic Ice Cup into the Upper Housing, look for the small black indicator arrow. This arrow must line up with the Lock/Unlock icons on the Upper Housing.
• When switching blades, please note that the blades feature 3 uniquely sized tabs that must line up with their corresponding slots in the bottom of the ice cup. If the tabs are lined up incorrectly, the blade will not install.

Making Shave Ice

• Tempering is an important part of making great Shave Ice since an ice puck straight out of the freezer is actually TOO COLD to shave. Tempering means allowing your ice puck(s) to warm slightly at room temperature, until the outside of the puck has a nice glossy sheen to it. This typically takes about 10 minutes.

NOTE: Ice pucks made with plain water require tempering. For mixed base recipes, refer to the recipe details for tempering instructions.

• Some Shave Ice recipes, particularly those with ingredients frozen into the ice puck, may shave better with either the Fine or Coarse blade. It is recommended that you try out recipes with each blade to see which produces your desired result.

TIPS FOR GREAT RESULTS

Preparing Your Ice Molds

• It is important to note the subtle fill line just below the top rim of the Ice Molds. Please do not fill the molds beyond this line as it may negatively affect freezing.
• Allow ice molds to freeze for a minimum of 12 hours. Note that some mixed base recipes may require more time to freeze due to a variety of ingredients.
• For recipes with sugar, there is a delicate balance between a mixture that is sweet to the taste but still capable of freezing hard enough to shave. Please follow recipes as closely as possible to ensure great results.
• For recipes with Alcohol, you should not exceed an above over 8% within the mixture. This will help ensure the mixture freezes hard enough to shave.
• Consider removing frozen ice pucks from the molds and storing them in another container inside your freezer. This is referred to as "Ice Harvesting" and will help ensure you always have ice on hand when the occasion calls for Shave Ice.

Shave Ice Troubleshooting Tips

• Fine Blade Creates Coarse Ice - This can occur if the ice is still too cold. Consider extending the tempering time. Alternatively, check the blade for any possible damage as this can affect shave performance.
• Puck Does Not Shave - This can occur when a recipe mixture is too soft or too hard. If the mixture is too soft, it may contain too much sugar or alcohol to freeze properly. Consider revisiting the recipe. If the mixture is too hard, the puck may need to temper for longer. See "Making Shave Ice".
• If issues persist, please contact KitchenAid customer service. Visit www.KitchenAid.com for contact information specific to your region.

FOR DETAILED INFORMATION ON USING THE SHAVE ICE ATTACHMENT

Visit www.kitchenaid.com or additional instructions, videos, inspiring recipes, and tips on how to use your Shave Ice Attachment.

SHAVE ICE RECIPES

Make it Your Own!

EVERYDAY SHAVE ICE

Make the pucks. Pour water into the Plastic Ice Molds and freeze for 12-24 hours.

Ingredients:

• 1 frozen ice puck
• Shave ice syrup of choice

Allow the ice puck to rest at room temperature (temper) until the outside of the puck has a nice glossy sheen. Place the ice puck into KitchenAid Shave Ice Attachment. Place a bowl under the attachment, turn speed to 10, and shave the ice. Pack the ice into a small bowl or cup (a 4" wide x 2" tall bowl is ideal) as firm as possible, then drizzle with desired amount of syrups. Enjoy.

For a creamier shave ice version:

Place a small scoop of vanilla ice cream in your bowl (a 4" x 2" tall bowl is ideal) and then pack the shave ice around and on top of it. Top with syrups of choice, and then top with a drizzle of sweetened condensed milk.

CREATIVE NOTE: Add additional toppings like a sprinkle of matcha, fresh diced fruit, caramel sauce, gummy candies, whipped cream.

Customize it More!

SHAVE ICE COFFEE 'N CREAM

Ingredients:

• 1 puck of frozen coffee
• 1 cup of milk of choice, cold
• 1 scoop of vanilla ice cream

Instructions:

Make the ice pucks. Pour leftover coffee into the plastic ice molds and freeze for 12-24 hours. This recipe DOES NOT require tempering. Place the coffee puck into KitchenAid Shave Ice Attachment. Place a bowl under the attachment, turn speed to 10, and shave the coffee. Evenly distribute the shave coffee between two cups. Add 1 cup of milk to each cup and whisk briskly with a fork. Add a scoop of vanilla ice cream and serve with a spoon.

CREATIVE NOTE: You can also make this with no milk for more of a traditional shave ice treat. Just place your scoop of ice cream into the bowl first. Shave the coffee then pack the shave coffee around and over the ice cream. Top with a drizzle of heavy cream or sweetened condensed milk. (1 Puck = 1 Coffee Shave Ice)

SHAVE ICE RECIPES

Get Creative!

JUICY SLUSHEES

1 frozen puck = 1-10 ounce slushee

Ingredients:

• 1 puck of frozen juice (apple, orange, cranberry - no pulp)
- Sparkling water, chilled

Instructions:

Make the ice pucks. Pour juice into the Plastic Ice Molds and freeze for 12-24 hours. This recipe DOES NOT require tempering.

Place the frozen juice puck into KitchenAid Shave Ice Attachment. Align the arrow on the canister with the unlocked symbol then twist counter clockwise to lock in place. Place a bowl under the attachment, turn speed to 10, and shave the juice.

Place the shave juice into a glass, add 34 cup of sparkling water, and whisk briskly with a fork. Enjoy.

Try Something New!

FRUITY LEMONADE FREEZE

Frozen fruit pucks (Makes 2):

• 8 Ounces Fruit of choice (frozen or fresh)
- 1 cup of water
• 1 tablespoon honey

Instructions:

For Frozen Pucks: Blend 8 ounces of fruit of choice with 1 cup of water and 1 tablespoon of honey. Pour the mixture through a fine mesh sieve to remove any pulp or seeds. Then, pour into the plastic ice molds and freeze for 12-24 hours. This recipe DOES NOT require tempering.

For Lemonade:

1 frozen fruit puck Lemonade of choice, cold

Place the fruit puck into KitchenAid Shave Ice Attachment. Align the arrow on the canister with the unlocked symbol then twist counter clockwise to lock in place. Place a bowl under the attachment, turn speed to 10, and shave the fruit puree.

Add the shave puree into a glass of choice. Add 34 cup of lemonade and whisk briskly with a fork. Enjoy!

CREATIVE NOTE: You can replace the lemonade with your favorite iced tea.

WARRANTY AND SERVICE

KITCHENAID® SHAVE ICE ATTACHMENT WARRANTY FOR THE 50 UNITED STATES, THE DISTRICT OF COLUMBIA, PUERTO RICO, AND CANADA

This warranty extends to the purchaser and any succeeding owner for Shave Ice operated in the 50 United States, the District of Columbia, Puerto Rico, and Canada.

Length of Warranty: One Year Full Warranty from date of purchase.

KitchenAid Will Pay for Your Choice of:

Hassle-Free Replacement of your Shave Ice. See the next page for details on how to arrange for service, or call the Customer eXperience Center toll-free at 1-800-541-6390.

OR

The replacement parts and repair labor costs to correct defects in materials and workmanship. Service must be provided by an Authorized KitchenAid Service Center.

KitchenAid Will Not Pay for:

A. Repairs when your Shave Ice is used in other than normal single family home use.

B. Damage resulting from accident, alteration, misuse or abuse.

C. Any shipping or handling costs to deliver your Shave Ice to an Authorized Service Center.

D. Replacement parts or repair labor costs for Shave Ice attachments operated outside the 50 United States, District of Columbia, Puerto Rico, and Canada.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

IMPLIED WARRANTIES, INCLUDING TO THE EXTENT APPLICABLE WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDED TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR THE SHORTEST PERIOD ALLOWED BY LAW. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS OR EXCLUSIONS ON HOW LONG AN IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.

IF THIS PRODUCT FAILS TO WORK AS WARRANTED, CUSTOMER'S SOLE AND EXCLUSIVE REMEDY SHALL BE REPAIR OR REPLACEMENT ACCORDING TO THE TERMS OF THIS LIMITED WARRANTY. KITCHENAID AND KITCHENAID CANADA DO NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or province to province.

WARRANTY AND SERVICE

HASSLE-FREE REPLACEMENT WARRANTY—50 UNITED STATES, DISTRICT OF COLUMBIA, AND PUERTO RICO

We're so confident the quality of our products meets the exacting standards of KitchenAid that, if your Shave Ice should fail within the first year of ownership, KitchenAid will arrange to deliver an identical or comparable replacement to your door free of charge and arrange to have your original Shave Ice returned to us. Your replacement unit will also be covered by our one year limited warranty.

If your Shave Ice should fail within the first year of ownership, simply call our toll-free Customer eXperience Center at

1-800-541-6390 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address (no P.O. Box numbers, please).

When you receive your replacement Shave Ice, use the carton, packing materials, and prepaid shipping label to pack up your original Shave Ice and send it back to KitchenAid.

HASSLE-FREE REPLACEMENT WARRANTY—CANADA

We're so confident the quality of our products meets the exacting standards of the KitchenAid brand that, if your Shave Ice should fail within the first year of ownership, we will replace your Shave Ice with an identical or comparable replacement. Your replacement unit will also be covered by our one year limited warranty.

If your Shave Ice should fail within the first year of ownership, simply call our toll-free Customer eXperience Center at

1-800-807-6777 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address.

When you receive your replacement Shave Ice, use the carton, packing materials, and prepaid shipping label to pack up your original Shave Ice and send it back to KitchenAid.

ARRANGING FOR SERVICE AFTER THE WARRANTY EXPIRES, OR ORDERING ACCESSORIES AND REPLACEMENT PARTS

In the United States and Puerto Rico:

For service information, or to order accessories or replacement parts, call toll-free at 1-800-541-6390 or write to:

Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

Outside the United States and Puerto Rico:

Consult your local KitchenAid dealer or the store where you purchased the Shave Ice for information on how to obtain service.

For service information in Canada:

Call toll-free 1-800-807-6777.

For service information in Mexico:

Call toll-free 01-800-0022-767.

®/TM ©2022 KitchenAid. All rights reserved. The design of the stand mixer is a trademark in the U.S. and elsewhere. Used under license in Canada.

PIÈCES ET CARACTÉRISTIQUES

Illustration showing a hand pouring liquid from a container into two empty containers (no text or symbols)

Simple line drawing of a cylindrical container with a lid (no text or symbols)

Line drawing of two hands holding a cylindrical object with a cross mark on the top (no text or symbols)

Simple line drawing of a stopwatch and a cylindrical object with motion lines (no text or symbols)

Diagram showing a device with rotating components and a hand adjusting its parts (no text or symbols present)

Illustration of a hand pouring liquid into a cylindrical container using a stand mixer (no text or symbols)

Illustration of hands installing or adjusting a cylindrical component with a tool, no text or symbols present

Illustration of hands operating a mechanical device with a rotating component (no text or symbols)

Illustration of a hand holding a cylindrical device with a compass below, showing a rotating mechanism (no text or symbols)

Illustration of hands holding a cylindrical container with a rotating arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cup and pouring liquid from a stand mixer (no text or symbols)

Line drawing of a kitchen stand mixer with a cylindrical tank and bowl (no text or symbols)

Simple line drawing of a bowl with ice cream and a cherry on top (no text or symbols)

Technical illustration of a cylindrical mechanical component with internal cavities and a separate open section (no text or symbols)

Line drawing of a hand holding a cylindrical device with a small attached component (no text or symbols)

Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

Illustration showing a hand pouring liquid from a container into two empty containers (no text or symbols)

Simple line drawing of a cylindrical container with a lid (no text or symbols)

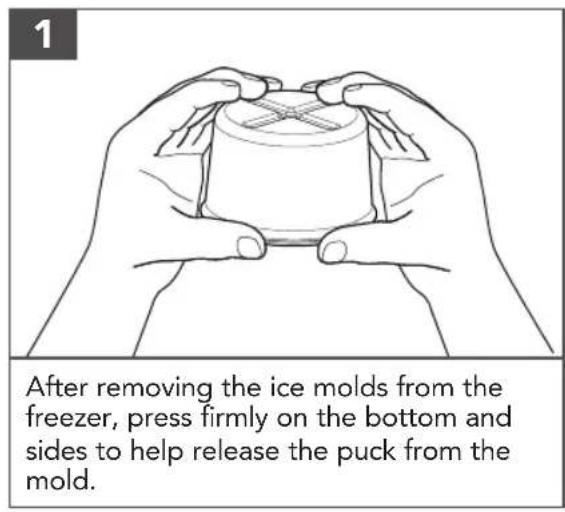

Line drawing of two hands holding a cylindrical object with a cross mark on the top (no text or symbols)

Simple line drawing of a stopwatch resting on a cylindrical object with motion lines (no text or symbols)

Illustration of a hand holding a cylindrical container connected to a kitchen mixer (no text or symbols present)

Illustration of hands installing or adjusting a cylindrical component with a valve (no text or symbols present)

Illustration of hands operating a mechanical device with a rotating component (no text or symbols)

Illustration of a hand holding a cylindrical device with a circular base, showing a rotating arrow (no text or symbols)

Illustration of a hand holding a cylindrical device with a rotating arrow indicating rotation (no text or symbols)

Line drawing of a hand holding a cup and using a stand mixer (no text or symbols)

Line drawing of a kitchen mixer with a cylindrical brush and bowl (no text or symbols)

Simple line drawing of a bowl with ice cream and a cherry on top (no text or symbols)

Technical illustration of a cylindrical device with internal components, showing external and internal views (no text or symbols)

Line drawing of a hand holding a cylindrical object with a small protrusion, no text or symbols present

Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

Two horizontal color bar segments with grayscale shades and a central crosshair symbol (no text or labels)

NOTES

Two horizontal color bar segments with grayscale shades and a central crosshair symbol (no text or labels)

NOTES

Two horizontal color bar segments with grayscale shades and a central crosshair symbol (no text or labels)

NOTES

DISCOVER MORE. DÉCOUVREZ PLUS. DESCUBRA MÁS.

KITCHENAID.COM/QUICKSTART

White silhouette of a telephone handset on black background (no text or symbols)

PRODUCT QUESTIONS OR RETURNS

QUESTIONS SUR LE PRODUIT OU LES RETOURS

MEXICO: KitchenAid.com.mx

LATIN AMERICA: KitchenAid-Latam.com

Silhouette of a kitchen mixer and bowl (no text or symbols)

KitchenAid®

®/TM ©2022 KitchenAid. All rights reserved. The design of the stand mixer is a trademark in the U.S. and elsewhere. Used under license in Canada.
