DH 1041 - Dehumidifier Orbegozo - Free user manual and instructions

Brand	Orbegozo
Model	DH 1041
Type	Dehumidifier
Dehumidification capacity	10 L/day (at 30°C, 80% RH)
Power	210 W
Power supply	220-240 V ~ 50 Hz
Dimensions (W x H x D)	236 x 437 x 224 mm
Net weight	7.9 kg
Operating temperature range	5°C - 32°C
Water tank	With full tank indicator
Continuous drainage	Yes, via 14 mm diameter hose
Air filter	Washable, cleaning recommended every two weeks
Refrigerant	Flammable (type not specified)
Wheels	4 removable wheels included
Safety	Child lock, auto shut-off when tank full, overheat protection
Maintenance	Clean casing with soft cloth and filter with vacuum or water
Warranty	Compliant with legislation, after-sales service via orbegozo.com
Use	Household use only

Frequently Asked Questions - DH 1041 Orbegozo

How to install the dehumidifier wheels?

Lay the appliance on its side, locate the arrow at the bottom and insert each wheel in the direction of the arrow until it clicks. Repeat for all four wheels.

What to do if the full tank indicator lights up right after first use?

Remove the tank, check that the float lever moves freely, then put it back properly. The indicator should turn off.

How to clean the air filter?

Carefully remove the filter, clean it with a vacuum or clean water, wipe it dry with a cloth, then put it back. Clean every two weeks.

How to use the continuous drainage function?

Prepare a 14 mm diameter hose, remove the cap from the drainage outlet, connect the hose and place it below the drainage hole without bending it.

What are the important safety precautions?

Do not bend the cable, do not use a multi-socket, do not touch the appliance with wet hands, keep children away, and keep the appliance at least 20 cm from walls.

How to start the appliance?

Plug into a suitable outlet (220-240 V), ensure the tank is properly placed, then turn on the appliance. If the full tank indicator stays on, check the float.

What is the dehumidification capacity of the DH 1041?

The capacity is 10 liters per day at 30°C and 80% relative humidity.

What is the power consumption?

The power is 210 W, at 220-240 V ~ 50 Hz.

What are the weight and dimensions of the appliance?

It weighs 7.9 kg and measures 236 x 437 x 224 mm (W x H x D).

How to contact Orbegozo after-sales service?

Visit orbegozo.com to find the nearest service center or via the contact form.

USER MANUAL DH 1041 Orbegozo

Web: www.orbegozo.com

E-mail: [e-mail]

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

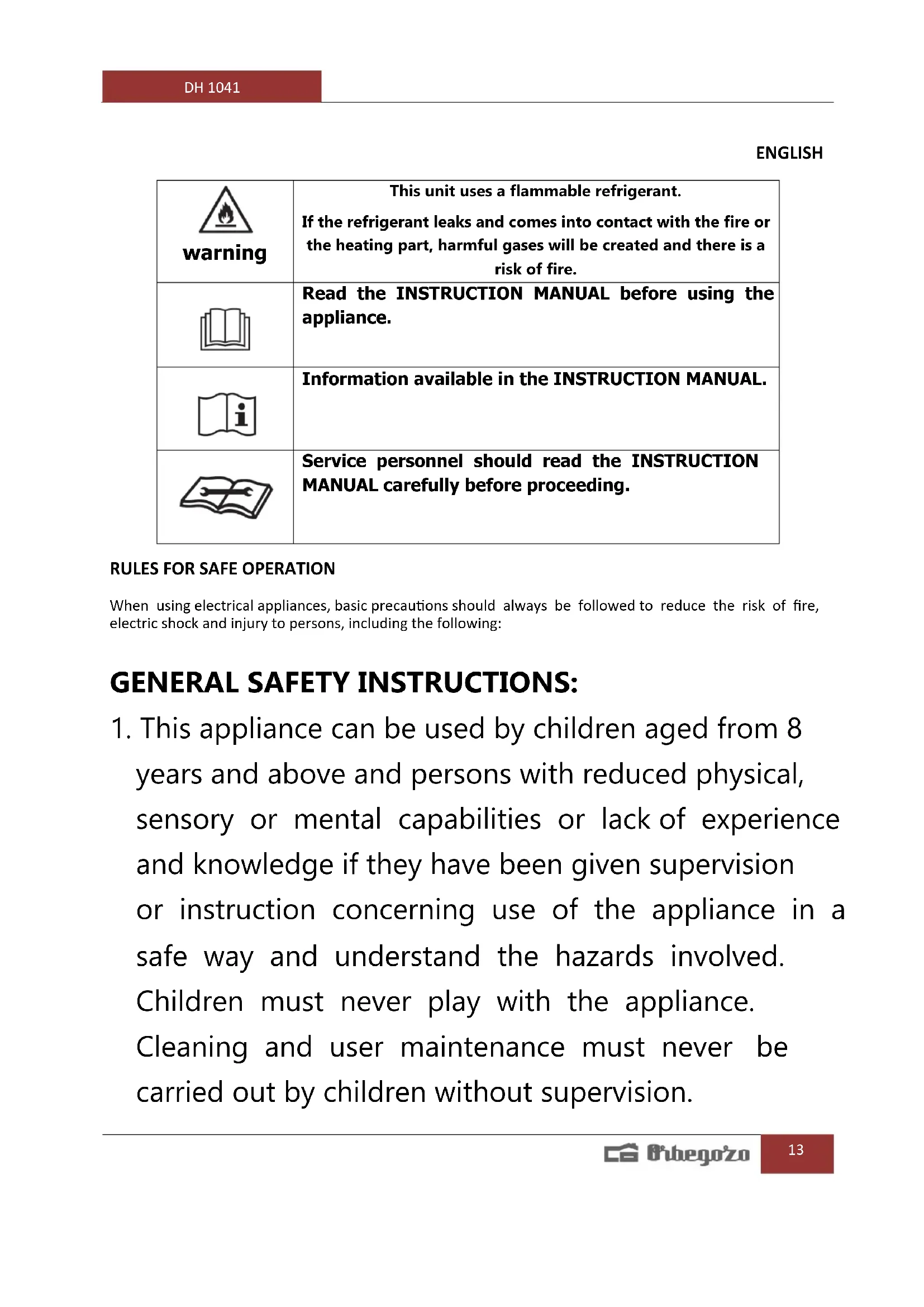

warning	This unit uses a flammable refrigerant. If the refrigerant leaks and comes into contact with the fire or the heating part, harmful gases will be created and there is a risk of fire.
	Read the INSTRUCTION MANUAL before using the appliance.
i	Information available in the INSTRUCTION MANUAL.
	Service personnel should read the INSTRUCTION MANUAL carefully before proceeding.

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

GENERAL SAFETY INSTRUCTIONS:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
8. Do not handle the appliance with wet hands.
9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com.

14. WARNING: In case of misuse, there is a risk of possible injury.

FAILURE TO COMPLY WITH THESE WARNINGSCOULD RESULT IN EXPLOSION, DEATH, INJURY, AND PROPERTY DAMAGE

WARNING

Do not fold the power cord as shown below!

Make sure the plug is placed fully & firm into the socket!

Do not use multiple socket as shown below!

Make sure the plug is clean!

After turning the unit off, please take plug out of the socket.

Do not have wet hands when connecting the power plug.

PRECAUTIONS

• Do not place anything on top of the control panel!

• Do not place anything on the entry or exit points

• Do not let children play with the unit or the control!

• Do not get the machine or the control panel wet!

• Keep flammable gas/oil away from the machine!

• Ask professionals to perform the service!

• Do not pull the power cord to prevent it from breaking, which may cause danger

• Do not use insecticides, oil or spray paint around the machine, as this may damage plastic parts or cause a fire.

• Do not place the machine on uneven ground, to avoid shaking, noise and water leakage.

• Always keep the unit 20cm from the wall to dissipate heat properly.

• It is dangerous to insert anything into the machine

• Close all windows to be as effective as possible in removing moisture.

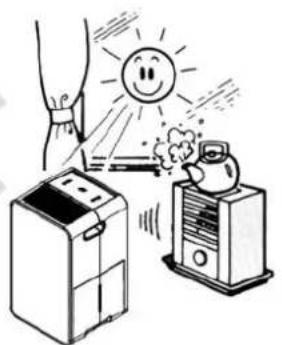

• Keep the machine away from any type of heat source.

• When moving or storing, do not place the dehumidifier on its side or upside down and avoid shaking it violently.

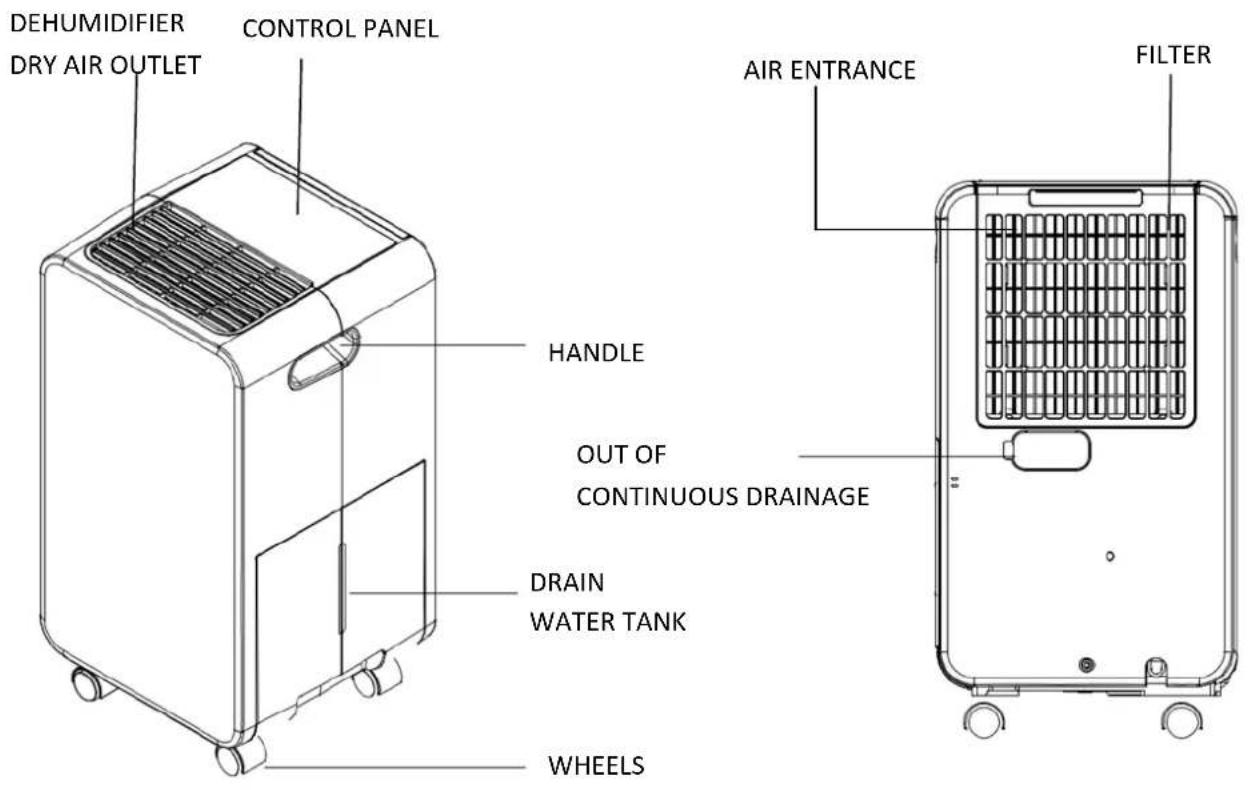

DESCRIPTION OF THE PARTS

OPERATING INSTRUCTIONS

function light

DEHUMIDIFICATION

When the dehumidification function is selected, the light will turn on

function light

DRYING

When the drying function is selected, the light will turn on

BUTTON mode

Buttons to select the appropriate humidity. The sequence is: 30% 40% 50% 60% dy 30% ... Selecting "dy", the drying function is activated, ideal for drying clothes.

function light

DEFROST

When the temperature drops, the defrost function will activate and the light will come on.

TANK FULL light

When the tank is full, the light will come on and the appliance will stop working.

Power button

power button and off

Led screen

FUNCTIONING

• The installation of wheels is recommended to avoid damage to the floor.

• Remove the bucket wheels from the dehumidifier.

• Lay the dehumidifier on its side.
• Locate the arrow on the bottom of the dehumidifier and insert the wheel according to the direction of the arrow.
• Slide the wheel in as far as it will go. The wheel will snap into place.
• Repeat steps 1-4 for the other 3 wheels.

• Start operation

1) Insert the plug into the outlet. The dehumidifier is suitable for operation on an electrical supply having the same voltage as that shown on its label.
2) Make sure the water tank is properly located. (After turning on the machine for the first time, if the "Tank Full" light comes on, simply pull out the water tank, check that the "float" lever can move freely, and then put it back in the correct position.)

管

品

• When the water tank full lamp is on

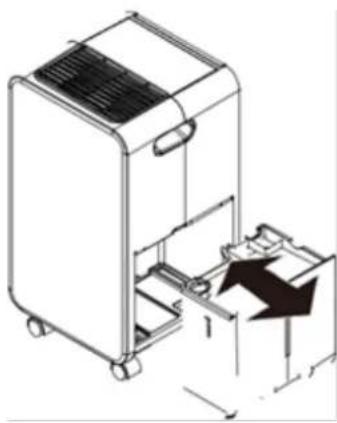

When the water tank is full, the appliance will stop and the "Tank Full" light will come on. The water tank must be carefully removed from the machine by sliding it out and emptied. When the empty tank is properly put back into the machine, the machine will work normally and the light will turn off

Note: Use both hands to empty the reservoir

CONTINUOUS DRAIN FUNCTION

• The continuous drain function can be started in the following steps:

• Prepare the hose to drain the water (14mm diameter).

• Remove the plug from the drain outlet.
• Connect the hose with the drain outlet.

Continuous drain outlet

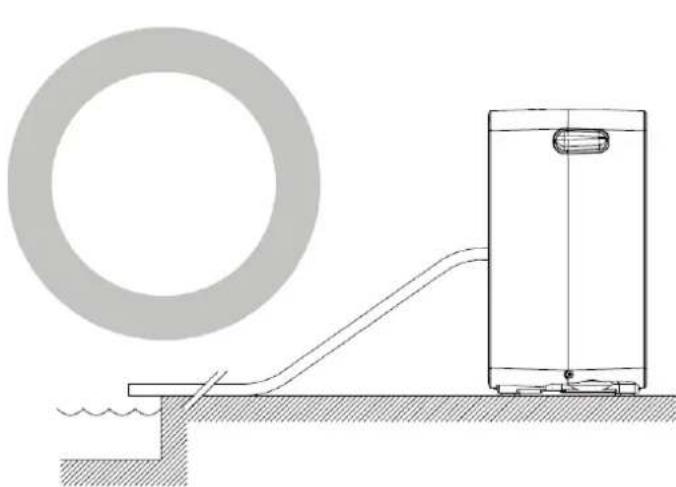

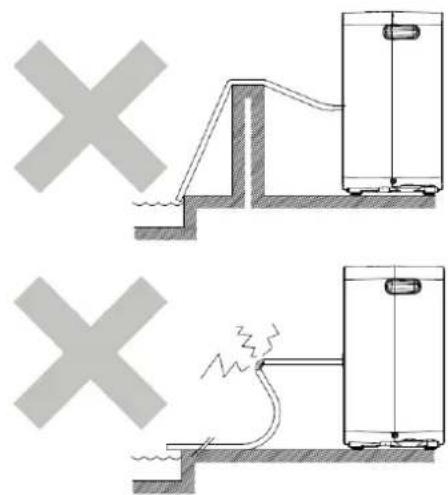

• The correct way to place the continuous drain hose

When using continuous drainage, the hose should be placed under the drainage hole. Avoid uneven surfaces and do not "kink" the hose.

MAINTENANCE

Before cleaning the dehumidifier, make sure it is disconnected from the power supply.

1.Clean the case

A. Wipe the case with a clean soft cloth
B. If the dehumidifier is very dirty, apply a mild detergent and then remove the detergent with a damp cloth
C. Do not clean the appliance with a hose as you may get an electric shock.

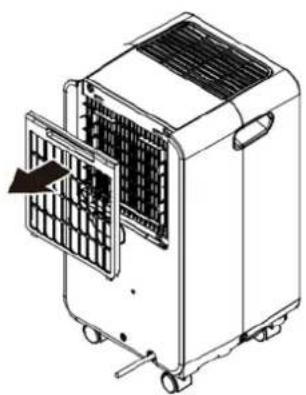

2.Clean the air filter

The air filter serves to filter the dust or dirty matter present in the air. If the filter is clogged with dust, the appliance will consume more electricity. To remove moisture more effectively, clean the filter once every two weeks.

• Cleaning process:

A. Pull out the filter carefully.

B. Clean the filter with a vacuum cleaner or clean water, and then wipe it with a dry cloth.

C. Put the filter back into the appliance.

EMERGENCY

Unplug the appliance if it malfunctions. Contact technical support immediately. Do not disassemble the dehumidifier yourself.

MODEL	DH 1041
STRAIN	220-240V~50Hz
ABILITY	10 L/D (30°C 80%RH)
POWER	210 W
APPLIANCE SIZE	236 X 437 X 224 mm
(W x H x D)	7,9 kg
NET WEIGHT	5°C-32°C

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation,

that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-technica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.
