Product Type	Dehumidifier
Brand	Orbegozo
Model	DH 1040
Refrigerant Type	R290 (flammable)
Operating Temperature Range	5°C to 32°C (41°F to 90°F)
Operating Humidity Range	30% to 80% RH
Dehumidification Settings	Continuous, 40%, 50%, 60% humidity levels
Auto Defrost	Yes
Auto Restart After Power Failure	Yes
Bucket Full Indicator	Yes
Auto Shut Off When Bucket Full	Yes
Continuous Drain Option	Yes (requires hose, not included)
Air Filter	Washable, clean every two weeks
Control Panel	Mode pad, Power pad
Power Cord	3-prong grounded plug
Certifications	Low Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU
Safety Features	Overheat protection, flame retardant components, child safety (for children 8+ with supervision)

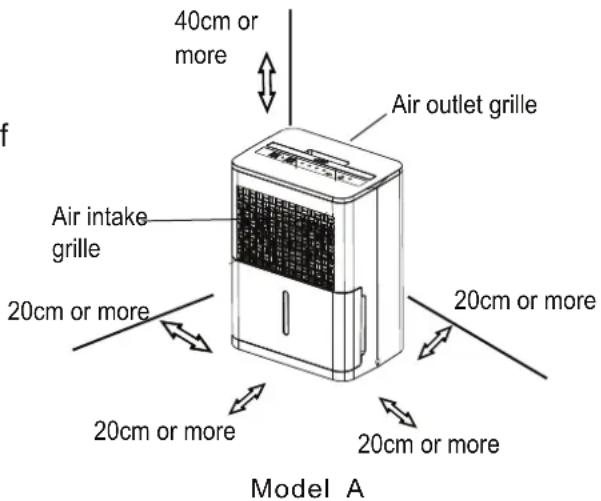

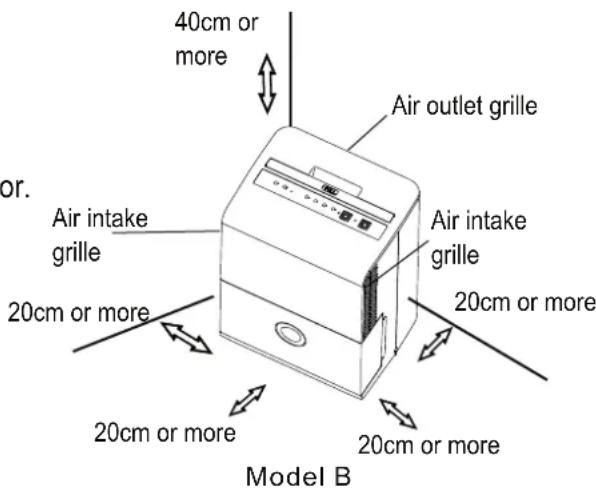

Placement Clearance	At least 20 cm on all sides, 40 cm above
Maintenance	Clean grille and case with mild detergent; clean bucket every few weeks; replace filter as needed

Frequently Asked Questions - DH 1040 Orbegozo

How do I set the humidity level on the Orbegozo DH 1040?

Press the Mode pad to cycle through settings: continuous dehumidification, 40%, 50%, or 60% humidity level. The corresponding indicator light will illuminate.

What does the bucket full indicator light mean?

The Bucket Full indicator light glows when the water bucket is full, removed, or not properly seated. The unit will automatically shut off until the bucket is emptied and correctly replaced.

How do I clean the air filter?

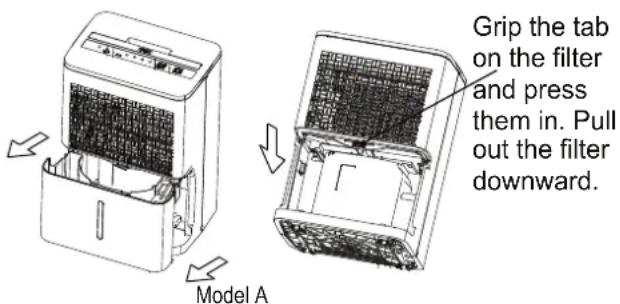

Turn off and unplug the unit. Remove the water bucket, then press the tab on the filter and pull it out. Wash the filter with warm soapy water, rinse, and let it dry completely before reinserting. Do not use a dishwasher.

What should I check if the unit does not start?

Ensure the plug is fully inserted into a working outlet. Check the house fuse or circuit breaker. Verify that the bucket is properly seated and not full. If the auto defrost indicator is flashing, unplug and replug the unit; if the error repeats, call for service.

Can I use an extension cord with the dehumidifier?

It is recommended not to use an extension cord. If necessary, use only an approved dehumidifier extension cord available at hardware stores. Avoid using adapter plugs.

How do I set up continuous drainage?

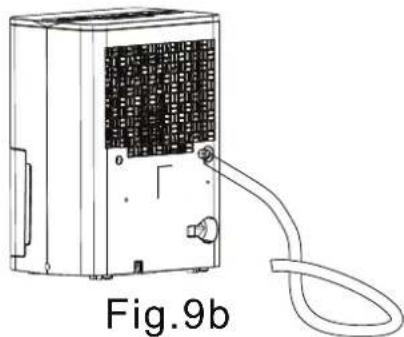

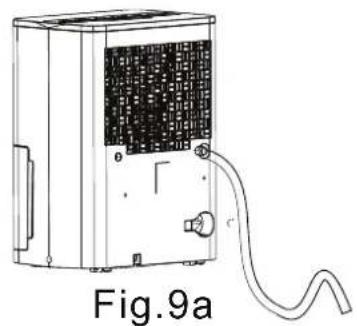

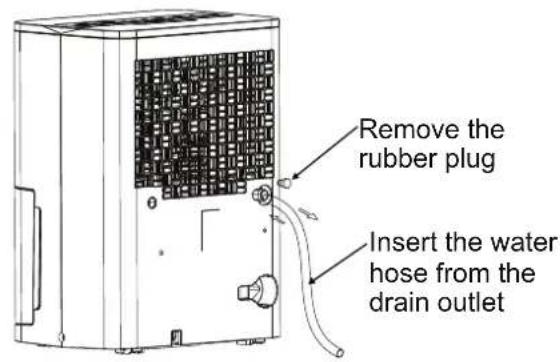

Remove the rubber plug from the back of the unit. Insert a water hose (16.5×13.5 mm, not included) into the drain outlet. Ensure the hose slopes downward to a floor drain. When not using continuous drain, replace the rubber plug securely.

What is the auto defrost feature?

When frost builds up on the evaporator coils, the compressor cycles off while the fan continues running until the frost disappears. The Auto Defrost indicator light illuminates during this process.

What safety precautions should I take regarding the refrigerant (R290)?

The unit uses flammable R290 refrigerant. Do not pierce or burn. Store in a room larger than 4 m² with no continuous ignition sources. Ventilation must be kept clear. Servicing must be done by certified technicians.

How often should I clean the water bucket?

Clean the bucket every few weeks with mild detergent and water to prevent mold and bacteria. Do not use a dishwasher. Ensure the bucket is dry before reinserting.

What is the operating temperature range for the Orbegozo DH 1040?

The dehumidifier operates effectively between 5°C (41°F) and 32°C (90°F). Below 5°C, frost may form and reduce performance.

USER MANUAL DH 1040 Orbegozo

White industrial device labeled 'Bibego' with a handle, showing no visible text or symbols beyond the brand name.

ESPAÑOL

Symbol of a trash bin crossed with no visible text or labels

Simple line drawing of an open book with no text or symbols visible

Panel de control (1)

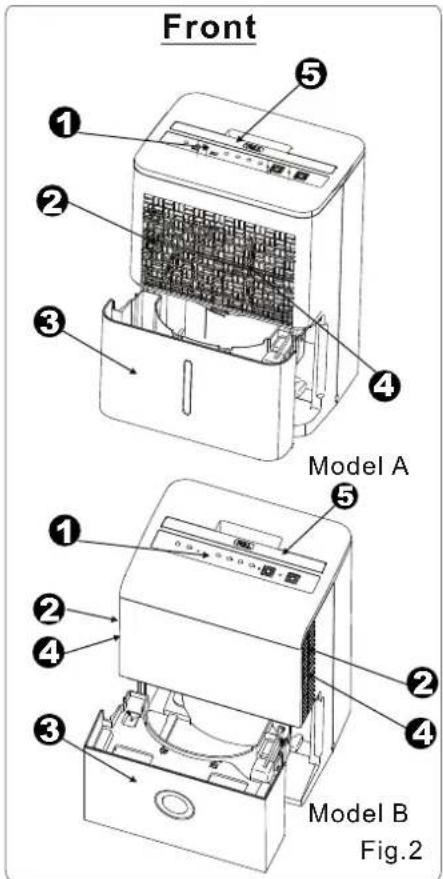

Fig. 1
Panel de control (2)

Line drawing of a portable air conditioner unit with cooling fins and ventilation slots (no text or symbols)

Fig. 5

Line drawing of a portable air conditioner unit with airflow direction indicated (no text or symbols)

Fig. 6

1. Tire el agua.

Line drawing of a portable electronic device with a coiled cable and ventilation grille (no text or symbols)

Line drawing of a portable electronic device with a coiled cable and labeled part (Fig. 9b), no text or symbols on the device itself.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

CONTENTS

SAFETY PRECAUTIONS

Warning 2

Caution 2

Electrical information 4

WARNINGS (for using R290/R32 refrigerant only) 5

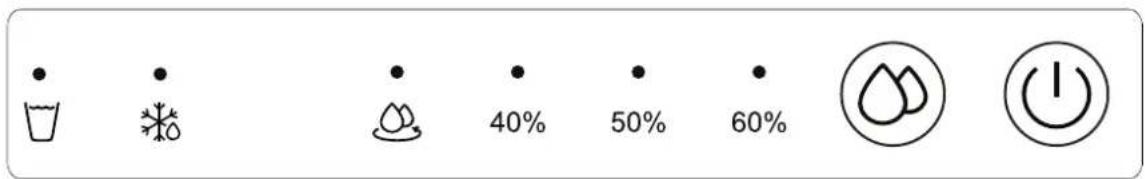

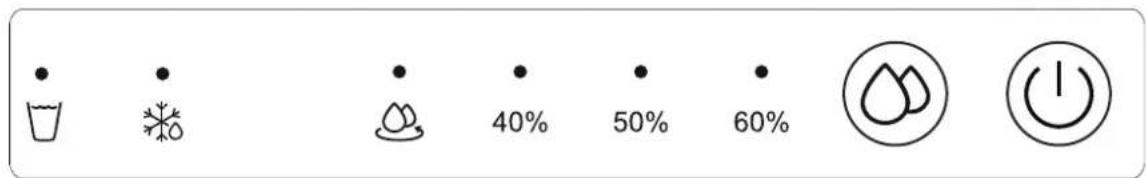

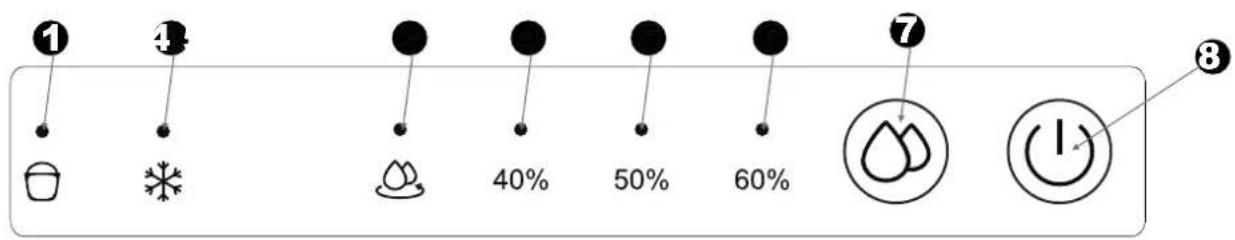

CONTROL PADS ON THE DEHUMIDIFIER

Control pads....11

Other features....12

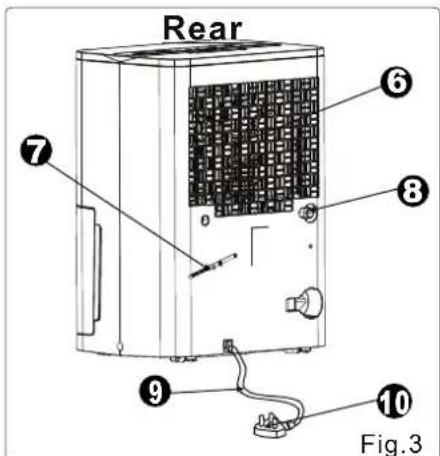

IDENTIFICATION OF PARTS

Identification of parts 12

Positioning the unit 13

OPERATING THE UNIT

When using the unit 13

Removing the collected water 14

CARE AND MAINTENANCE

Care and cleaning of the dehumidifier 16

TROUBLESHOOTING TIPS

Troubleshooting tips ....18

Read This Manual

Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your air conditioner. You'll find many answers to common problems in the chart of troubleshooting tips. If you review our chart of T roubleshooting Tips first, you may not need to call for service at all.

To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage.

The seriousness is classified by the following indications.

	WARNING	This symbol indicates the possibility of death or serious injury.
	CAUTION	This symbol indicates the possibility of injury or damage to property.

■ Meanings of symbols used in this manual are as shown below.

	Never do this.
	Always do this.

WARNING

Do not exceed the rating of the power outlet or connection device.

- Otherwise, it may cause electric shock or fire due to excess heat generation.

Do not modify power cord length or share the outlet with other appliances

- It may cause electric shock or fire due to heat generation.

① Disconnect the power if strange sounds, smell, or smoke comes from it.

- It may cause fire and electric shock.

Do not use the machine near flammable gas or combustibles, such as gasoline, benzene, thinner, etc.

- It may cause an explosion or fire.

Do not operate or stop the unit by switching on or off the power supply.

- It may cause electric shock or fire due to heat generation.

Do not insert or pull out plug with wet hands.

- It may cause electric shock.

You should never try to take apart or repair the unit by yourself.

- It may cause failure of machine or electric shock.

Do not drink or use the water drained from the unit.

- It contains contaminants and could make you sick.

Do not damage or use an unspecified power cord.

- It may cause electric shock or fire.

Do not place the unit near a heat source.

- Plastic parts may melt and cause a fire.

① Before cleaning, turn off the power and unplug the unit.

- It may cause electrical shock or injury.

Do not take the water bucket out during operation.

- It may cause bucket full protect of the unit and cause electric shock.

CAUTION

Do not use the unit in small spaces.

- Lack of ventilation can cause overheating and fire.

Do not put in places where water may splash onto the unit.

- Water may enter the unit and degrade the insulation. It may cause an electric shock or fire.

① Place the unit on a level, sturdy section of the floor.

- If the unit falls over, it may cause water to spill and damage belongings, or cause electrical shock or fire.

CAUTION

Do not cover the intake or exhaust openings with cloths or towels.

● A lack of air flow can lead to overheating and fire.

① Care should be taken when using the unit in a room with the following persons:

- Infants, children, elderly people, and people not sensitive to humidity.

Do not use in areas where chemicals are handled.

●This will cause the unit deterioration due to chemicals and solvents dissolved in the air.

Never insert your finger or other foreign objects into grills or openings. Take special care to warn children of these dangers.

- It may cause electric shock or failure of appliance.

Do not place heavy object on the power cord and take care so that the cord is not compressed.

- There is danger of fire or electric shock.

Do not climb up on or sit on the unit.

- You may be injured if you fall or if the unit falls over.

① Always insert the filters securely. Clean filter once every two weeks.

- Operation without filters may cause failure.

① If water enters the unit, turn the unit off and disconnect the power, contact a qualified service technician.

- It may cause failure of appliance or accident.

Do not place flower vases or other water container on top of the unit.

● Water may spill inside the unit, causing insulation failure and electrical shock or fire.

CAUTION

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. (be applicable for the European Countries)
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. (be applicable for other countries except the European Countries)
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The appliance shall be installed in accordance with national wiring regulations.
• The appliance with electric heater shall have at least 1 meter space to the combustible materials.
• Contact the authorised service technician for repair or maintenance of this unit.
• Do not use the socket if it is loose or damaged.
• Do not operate your air conditioner in a wet room such as a bathroom or laundry room.

• Do not use this product for functions other than those described in this instruction manual

• Contact the authorised installer for installation of this unit.

• If the air conditioner is knocked over during use, turn off the unit and unplug it from the main power supply immediately. Visually inspect the unit to ensure there is no damage. If you suspect the unit has been damaged, contact a technician or customer service for assistance.
• In a thunderstorm, the power must be cut off to avoid damage to the machine due to lightning.
• To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
• Do not open the unit during operation.
• When the air filter is to be removed, do not touch the metal parts of the unit.
• Hold the plug by the head of the power plug when taking it out.

Electrical Information

• The manufactures nameplate is located on the rear panel of the unit and contains electrical and other technical data specific to this unit.
• Be sure the unit is properly grounded. To minimize shock and fire hazards, proper grounding is important. The power cord is equipped with a three-prong grounding plug for protection against shock hazards.
• Your unit must be used in a properly grounded wall receptacle. If the wall receptacle you intend to use is not adequately grounded or protected by a time delay fuse or circuit breaker (the fuse or circuit breaker needed is determined by the maximum current of the unit. The maximum current is indicated on the nameplate located on unit), have a qualified electrician install the proper receptacle.
• Ensure the receptacle is accessible after the unit installation.
• Do not use extension cords or an adapter plugs with this unit. However, if it is necessary to use an extension cord, use an approved "Dehumidifier" extension cord only (available at most local hardware stores).
• To avoid the possibility of personal injury, always disconnect the power supply to the unit, before installing and/or servicing.
• All wiring must be performed strictly in accordance with the wiring diagram located on the middle baffle of the unit (behind of the water bucket).

Take note the fuse specifications

The unit's circuit board(PCB) is designed with a fuse to provide overcurrent protection. The specifications of the fuse are printed on the circuit board, such as: T 3.15A/250V (or 350V), etc.

NOTE: All the pictures in the manual are for explanation purposes only. The actual shape of the unit you purchased may be slightly different, but the operations and functions are the same.

Note About Fluorinated Gasses

- Fluorinated greenhouse gases are contained in hermetically sealed equipment. For specific information on the type, the amount and the CO_2 equivalent in tonnes of the fluorinated greenhouse gas (on some models), please refer to the relevant label on the unit itself.

-Installation, service, maintenance and repair of this unit must be performed by a certified technician.

-Product uninstallation and recycling must be performed by a certified technician.

WARNINGS (for using R290/R32 refrigerant only)

• Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
• The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater).
• Do not pierce or burn.
• Be aware that the refrigerants may not contain an odour.
• Appliance should be installed, operated and stored in a room with a floor area larger than 4 m ^2 .
• Compliance with national gas regulations shall be observed.
• Keep ventilation openings clear of obstruction.

The appliance shall be stored so as to prevent mechanical damage from occurring.

• A warning that the appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation.
• Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorises their competence to handle refrigerants safely in accordance with an industry recognised assessment specification.
• Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants.

Caution: Risk of fire/flammable materials
(Required for R32/R290 units only)

Simple line drawing of an open book with no text or symbols visible

IMPORTANT NOTE: Read this manual carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future reference.

Explanation of symbols displayed on the unit(For the unit adopts R32/R290 Refrigerant only):

	WARNING	This symbol shows that this appliance used a flammable refrigerant. If the refrigerant is leaked and exposed to an external ignition source, there is a risk of fire.
	CAUTION	This symbol shows that the operation manual should be read carefully.
	CAUTION	This symbol shows that a service personnel should be handling this equipment with reference to the installation manual.
	CAUTION	This symbol shows that information is available such as the operating manual or installation manual.

⚠️ WARNINGS (for using R290/R32 refrigerant only)

1. Transport of equipment containing flammable refrigerants

See transport regulations

2. Marking of equipment using signs

See local regulations

3.Disposal of equipment using flammable refrigerants

See national regulations.

4. Storage of equipment/appliances

The storage of equipment should be in accordance with the manufacturer's instructions.

5. Storage of packed (unsold) equipment

Storage package protection should be constructed such that mechanical damage to the equipment inside the package will not cause a leak of the refrigerant charge.

The maximum number of pieces of equipment permitted to be stored together will be determined by local regulations.

6.Information on servicing

1) Checks to the area

Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system.

2) Work procedure

Work shall be undertaken under a controlled procedure so as to minimise the risk of a flammable gas or vapour being present while the work is being performed.

3) General work area

All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out. Work in confined spaces shall be avoided. The area around the workspace shall be sectioned off. Ensure that the conditions within the area have been made safe by control of flammable material.

4) Checking for presence of refrigerant

The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially flammable atmospheres. Ensure that the leak detection equipment being used is suitable for use with flammable refrigerants, i.e. non-sparking, adequately sealed or intrinsically safe.

5) Presence of fire extinguisher

If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate fire extinguishing equipment shall be available to hand. Have a dry powder or CO2 fire extinguisher adjacent to the charging area.

6) No ignition sources

No person carrying out work in relation to a refrigeration system which involves exposing any pipe work that contains or has contained flammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources, including cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which flammable refrigerant can possibly be released to the surrounding space. Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no flammable hazards or ignition risks. No Smoking signs shall be displayed.

7) Ventilated area

Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere.

8) Checks to the refrigeration equipment

Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer's maintenance and service guidelines shall be followed. If in doubt consult the manufacturer's technical department for assistance.

The following checks shall be applied to installations using flammable refrigerants:

The charge size is in accordance with the room size within which the refrigerant containing parts are installed;

The ventilation machinery and outlets are operating adequately and are not obstructed; If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant;

Marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall be corrected;

Refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.

9) Checks to electrical devices

Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately but it is necessary to continue operation, an adequate temporary solution shall be used. This shall be reported to the owner of the equipment so all parties are advised.

Initial safety checks shall include:

That capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking;

That there no live electrical components and wiring are exposed while charging, recovering or purging the system;

That there is continuity of earth bonding.

7. Repairs to sealed components

1) During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to any removal of sealed covers, etc. If it is absolutely necessary to have an electrical supply to equipment during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation.

2) Particular attention shall be paid to the following to ensure that by working on electrical components, the casing is not altered in such a way that the level of protection is affected. This shall include damage to cables, excessive number of connections, terminals not made to original specification, damage to seals, incorrect fitting of glands, etc.

Ensure that apparatus is mounted securely.

Ensure that seals or sealing materials have not degraded such that they no longer serve the purpose of

preventing the ingress of flammable atmospheres. Replacement parts shall be in accordance with the manufacturer's specifications.

NOTE: The use of silicon sealant may inhibit the effectiveness of some types of leak detection equipment. Intrinsically safe components do not have to be isolated prior to working on them.

8. Repair to intrinsically safe components

Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use.

Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere. The test apparatus shall be at the correct rating.

Replace components only with parts specified by the manufacturer. Other parts may result in the ignition of refrigerant in the atmosphere from a leak.

9.Cabling

Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans.

10. Detection of flammable refrigerants

Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used.

11.Leak detection methods

The following leak detection methods are deemed acceptable for systems containing flammable refrigerants. Electronic leak detectors shall be used to detect flammable refrigerants, but the sensitivity may not be adequate, or may need re-calibration. (Detection equipment shall be calibrated in a refrigerant-free area.) Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used. Leak detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed and the appropriate percentage of gas (25 % maximum) is confirmed. Leak detection fluids are suitable for use with most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the copper pipe-work. If a leak is suspected, all naked flames shall be removed/ extinguished. If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of shut off valves) in a part of the system remote from the leak. Oxygen free nitrogen (OFN) shall then be purged through the system both before and during the brazing process.

12. Removal and evacuation

When breaking into the refrigerant circuit to make repairs or for any other purpose conventional procedures shall be used. However, it is important that best practice is followed since flammability is a consideration. The following procedure shall be adhered to:

Remove refrigerant;

Purge the circuit with inert gas;

Evacuate;

Purge again with inert gas;

Open the circuit by cutting or brazing.

The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be flushed with OFN to render the unit safe. This process may need to be repeated several times. Compressed air or oxygen shall not be used for this task.

Flushing shall be achieved by breaking the vacuum in the system with OFN and continuing to fill until the working pressure is achieved, then venting to atmosphere, and finally pulling down to a vacuum. This process shall be repeated until no refrigerant is within the system. When the final OFN charge is used, the system shall be vented down to atmospheric pressure to enable work to take place. This operation is absolutely vital if brazing operations on the pipe-work are to take place.

Ensure that the outlet for the vacuum pump is not close to any ignition sources and there is ventilation available.

13. Charging procedures

In addition to conventional charging procedures, the following requirements shall be followed. Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimise the amount of refrigerant contained in them.

Cylinders shall be kept upright.

Ensure that the refrigeration system is earthed prior to charging the system with refrigerant.

Label the system when charging is complete (if not already).

Extreme care shall be taken not to overfill the refrigeration system.

Prior to recharging the system it shall be pressure tested with OFN. The system shall be leak tested on completion of charging but prior to commissioning. A follow up leak test shall be carried out prior to leaving the site.

14. Decommissioning

Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available before the task is commenced.

a) Become familiar with the equipment and its operation.
b) Isolate system electrically.
c) Before attempting the procedure ensure that:

Mechanical handling equipment is available, if required, for handling refrigerant cylinders; All personal protective equipment is available and being used correctly;

The recovery process is supervised at all times by a competent person;

Recovery equipment and cylinders conform to the appropriate standards.

d) Pump down refrigerant system, if possible.
e) If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system.
f) Make sure that cylinder is situated on the scales before recovery takes place.
g) Start the recovery machine and operate in accordance with manufacturer's instructions.
h) Do not overfill cylinders. (No more than 80 % volume liquid charge).
i) Do not exceed the maximum working pressure of the cylinder, even temporarily.
j) When the cylinders have been filled correctly and the process completed, make sure that the cylinders and

the equipment are removed from site promptly and all isolation valves on the equipment are closed off.

k) Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked.

15.Labelling

Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. The label shall be dated and signed. Ensure that there are labels on the equipment stating the equipment contains flammable refrigerant.

16.Recovery

When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely.

When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that the correct number of cylinders for holding the total system charge is available. All cylinders to be used are designated for the recovered refrigerant and labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant). Cylinders shall be complete with pressure relief valve and associated shut-off valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs.

The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of flammable refrigerants. In addition, a set of calibrated weighing scales shall be available and in good working order. Hoses shall be complete with leak-free disconnect couplings and in good condition. Before using the recovery machine, check that it is in satisfactory working order, has been properly maintained and that any associated electrical components are sealed to prevent ignition in the event of a refrigerant release. Consult manufacturer if in doubt.

The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery units and especially not in cylinders. If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that flammable refrigerant does not remain within the lubricant. The evacuation process shall be carried out prior to returning the compressor to the suppliers. Only electric heating to the compressor body shall be employed to accelerate this process. When oil is drained from a system, it shall be carried out safely.

The control panel of the dehumidifier you purchased may be look like one of the followings:

Control panel(1)

Fig.1
Control panel(2)

Indicator lights

① Bucket full indicator light
② Auto defrost indicator light

• When auto defrost is operation on, the indicator light illuminates.
• The indicator light flashes at 5Hz under room temperature sensor error or evaporator temperature sensor error.

NOTE: If the auto defrost indicator light flashes, unplug the unit and plug it back in. If error repeats, call for service.

③ Continuous operation on indicator light
40% humidity level setted mode operation on indicator light
50% humidity level setted mode operation on indicator light
⑥ 60% humidity level setted mode operation on indicator light

Control pads

⑦ Mode Pad

Press to select the operation mode: continuously dehumidification → 40% humidity level → 50% humidity level → 60% humidity level → continuously dehumidification

⑧ POWER Pad

Press to turn the dehumidifier on and off.

Other features

Bucket Full Light

Glows when the bucket is ready to be emptied, or when the bucket is removed or not replaced in the proper position.

Auto Shut Off

The dehumidifier shuts off when the bucket is full, or when the bucket is removed or not replaced in the proper position. For some models, the fan motor will continue operating for 30 seconds.

Wait 3 minutes before resuming operation

After the unit has stopped, it can not be restart opertation in the first 3 minutes. This is to protect the unit. Operation will automatically start after 3 minutes.

Auto Defrost

When frost builds up on the evaporator coils, the compressor will cycle off and the fan will continue to run until the frost disappears.

Auto-Restart

If the unit breaks off unexpectedly due to the power cut, it will restart with the previous function setting automatically when the power resumes.

Identification of parts

1 Control panel
② Air intake grille
③ Water bucket
4 Air filter (behind the air intake grille)
5 Handle
⑥ Air Outlet grille
⑦ Power cord band (Used only when storing the unit.)
8 Drain hose outlet
9 Power Cord
Power Plug

NOTE: All the pictures in the manual are for explanation purposes only. Your unit may be slightly different. The actual shape shall prevail. The operations and functions are the same.

Positioning the unit

A dehumidifier operating in a basement will have little or no effect in drying an adjacent enclosed storage area, such as a closet, unless there is adequate circulation of air in and out of the area.

• Do not use outdoors.
• This dehumidifier is intended for indoor residential applications only. This dehumidifier should not be used for commercial or industrial applications.
• Place the dehumidifier on a smooth, level floor strong enough to support the unit with a full bucket of water.
• Allow at least 20cm of air space on all sides of the unit for good air circulation.
• Place the unit in an area where the temperature will not fall below 5^(41^) . The coils can become covered with frost at temperatures below 5^(41^) , which may reduce performance.
• Place the unit away from the clothes dryer, heater or radiator.
• Use the unit to prevent moisture damage anywhere books or valuables are stored.
• Use the dehumidifier in a basement to help prevent moisture damage.
• The dehumidifier must be operated in an enclosed area to be most effective.
• Close all doors, windows and other outside openings to the room.

When using the unit

• When first using the dehumidifier, operate the unit continuously 24 hours.
• This unit is designed to operate with a working environment between 5°C/41 F and 32 C/90 F, and between 30%(RH) and 80%(RH).
• If the unit has been switched off and needs to be switched on again quickly, allow approximately three minutes for the correct operation to resume.
• Do not connect the dehumidifier to a multiple socket outlet, which is also being used for other electrical appliances.
• Select a suitable location, making sure you have easy access to an electrical outlet.
• Plug the unit into a electrical socket-outlet with earth connection.
• Make sure the Water bucket is correctly fitted otherwise the unit will not operate properly.

NOTE: When the water in the bucket reaches to a certain level, please be careful to move the machine to avoid it falling down.

Fig.4

Casters(Install at four points on the bottom of unit)

- Do not force casters to move over carpet, nor move the unit with water in the bucket. (The unit may tip over and spill water.)

NOTE: Casters is optional, some models without.

Removing the collected water

There are two ways to remove collected water.

1. Use the bucket

• When the bucket is full, the Full indicator light will illuminate.
  Slowly pull out the bucket. Grip the left and right handles securely, and carefully pull out straight so water does not spill. Do not put the bucket on the floor because the bottom of the bucket is uneven. Otherwise the bucket will fall and cause the water to spill.
• Throw away the water and replace the bucket. The bucket must be in place and securely seated for the dehumidifier to operate.

• The machine will restore to its original state when the bucket is replaced in its correct position.

• Pull out the bucket a little.

Line drawing of a portable air conditioner unit with airflow arrows indicating internal components (no text or symbols)

Fig.5

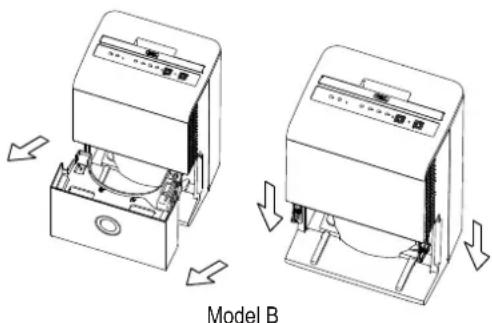

1. Hold both sides of the bucket with even strength, and pull it out from the unit.

Fig.6

NOTES:

• When you remove the bucket, do not touch any parts inside of the unit. Doing so may damage the product.
• Be sure to push the bucket gently all the way into the unit. Banging the bucket against anything or failing to push it in securely may cause the unit not to operate.

• When you remove the bucket, if there is some water in the unit you must dry it.

• Pour the water out.


Removing the collected water

2. Continuous draining

Water can be automatically emptied into a floor drain by attaching the unit with a water hose ( 16.5*13.5mm) (not included).

• Remove the rubber plug from the back of the unit and store it in a safe location.
• Insert the water hose into the unit from the drain outlet in the back of the unit as shown in Fig.8.
• Attach the water hose to the drain hose outlet of the unit.
• Make sure the connection of the water hose and the drain hose outlet of the unit is tight and do not let the water leak.
• Then lead the water hose to the floor drain or a suitable drainage facility. The drainage facility should be lower than the drain outlet of the unit. Be sure to run the water hose sloping downward and let the water to flow out smoothly. Do not install the water hose as shown Fig.9a and Fig.9b.
  • Make sure the water hose is lower than the drain hose outlet.

NOTE: When the continuous drain feature is not being used, remove the drain hose from the outlet and attach the rubber plug back to the drain outlet.

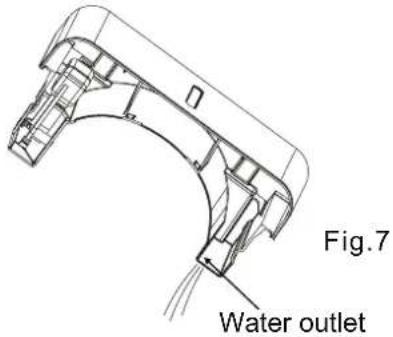

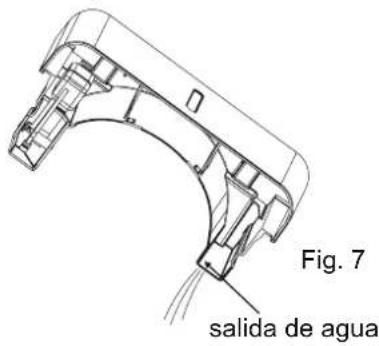

Fig.8

Line drawing of a portable electronic device labeled Fig.9a, showing internal components and wiring (no text or symbols on the device itself)

Do not block water flow by a rise.

Line drawing of a portable electronic device with a coiled cable and ventilation grille (no text or symbols)

Do not block water flow by a retortion.

Care and cleaning of the dehumidifier

Turn the dehumidifier off and remove the plug from the wall outlet before cleaning.

1. Clean the Grille and Case

• Use water and a mild detergent. Do not use bleach or abrasives.
• Do not splash water directly onto the main unit. Doing so may cause an electrical shock, cause the insulation to deteriorate, or cause the unit to rust.
• The air intake and outlet grilles get soiled easily, so use a vacuum attachment or brush to clean.

2. Clean the bucket

Every few weeks, clean the bucket to prevent growth of mold, mildew and bacteria. Partially fill the bucket with clean water and add a little mild detergent. Swish it around in the bucket, empty and rinse.

NOTE: Do not use a dishwasher to clean the bucket. After clean, the bucket must be in place and securely seated for the dehumidifier to operate.

3. Clean the air filter

The air filter behind the front grille should be checked and cleaned at least every two weeks or more often if necessary.

NOTE: DO NOT RINSE OR PUT THE FILTER IN AN AUTOMATIC DISHWASHER.

To remove:

• Pull the water bucket out as shown in Fig.10a or 11a.
• Grip the tab on the filter and press it in slightly to take it out from the filter holder, then pull out the filter downward for model A.(see Fig.10b). Take out the right and left filters for the model B. (see Fig.11b).
• Clean the filter with warm, soapy water. Rinse and let the filter dry before replacing it. Do not clean the filter in a dishwasher.

Fig. 10a Fig. 10b

Fig. 11a
Fig. 11b

To attach:

Insert the filter into the unit, then press the tab on the filter slightly and push the filter upward for model A. Insert the right and left filters into the unit for model B. Then reinstall the water bucket properly.

CAUTION:

DO NOT operate the dehumidifier without a filter because dirt and lint will clog it and reduce performance.

NOTE: The cabinet and front may be dusted with an oil-free cloth or washed with a cloth dampened in a solution of warm water and mild liquid dishwashing detergent. Rinse thoroughly and wipe dry. Never use harsh cleansers, wax or polish on the cabinet front. Be sure to wring excess water from the cloth before wiping around the controls. Excess water in or around the controls may cause damage to the unit.

4. When not using the unit for long time periods

• After turning off the unit, wait one day before emptying the bucket.
• Clean the main unit, bucket and air filter.

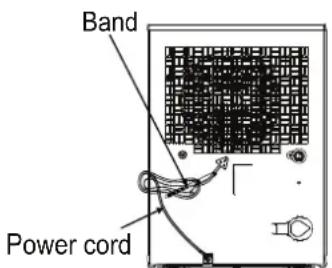

• Wrap the cord and bundle it with the band(see Fig.12).
• Cover the unit with a plastic bag.
• Store the unit upright in a dry, well-ventilated place. NOTE: You should loose the screw on the cover of the bucket before clean it and then install it back.

Fig. 12

Before calling for service, review the chart below first yourself.

Problem	What to check
Unit does not start	Make sure the dehumidifier s plug is pushed completely into the outlet.Check the house fuse/circuit breaker box.Dehumidifier has reached its preset level or bucket is full.Bucket is not in the proper position.
Dehumidifier does not dry the air as it should	Did not allow enough time to remove the moisture.Make sure there are no curtains, blinds or furniture blocking the front or back of the dehumidifier.The humidity selector may not be set low enough.Check that all doors, windows and other openings are securely closed.Room temperature is too low, below 5°C(41°F).There is a kerosene heater or something giving off water vapor in the room.
The unit makes a loud noise when operating	The air filter is clogged.The unit is tilted instead of upright as it should be.The floor surface is not level.
Frost appears on the coils	This is normal. The unit has Auto defrost feature.
Water on floor	Hose to connector or hose connection may be loose.Intend to use the bucket to collect water, but the back drain plug is removed.
Auto defrost indicator light flashes	See the CONTROL PADS ON THE DEHUMIDIFIER section.
