Product type	Dehumidifier
Brand	Orbegozo
Model	DH 1240
Refrigerant	R-290 (propane)
Operating modes	Automatic, Continuous, Night
Adjustable humidity range	30% to 80% RH
Timer	0 to 24 hours
Fan speed	High and low (adjustable in Auto mode)
Operating temperature	5°C to 38°C
Minimum installation area	Greater than 4 m²
Recommended clearance	30 cm around the appliance
LED humidity indicator	Blue (<45%), Green (≤65%), Red (>65%)
Drainage	Manual (tank) and continuous (PVC hose included)
Tank capacity	Not specified
Maintenance	Clean air filter every 2 weeks
Safety	Child lock, automatic shut-off when tank is full, flammable refrigerant
Power supply	Standard wall outlet (see manual)
Warranty	Legal warranty according to applicable law

Frequently Asked Questions - DH 1240 Orbegozo

How to set the desired humidity?

In Auto or Night mode, press the HUM button to increase humidity in 5% increments (from 30% to 80%).

What does the red light on the front panel mean?

The red light indicates ambient humidity above 65% RH. It turns green between 45% and 65%, and blue below 45%.

How to use the timer function?

Press the TIMER button to set a duration from 0 to 24 hours. If the appliance is on, it will turn off after the delay; if off, it will turn on.

What to do if error code E2 appears?

Code E2 indicates a humidity sensor problem (wet or defective). Clean the sensor or contact technical support.

How to clean the air filter?

Turn off and unplug the appliance. Remove the filter, rinse it with running water or vacuum the dust. Let it dry completely before reinstalling.

Can I use an extension cord?

No, using an extension cord or adapter is prohibited for safety reasons.

How to activate child lock?

Press and hold the LOCK button until the lock indicator lights up. All buttons will then be disabled.

What to do if the water tank is full?

The appliance beeps and the TANK FULL indicator lights up. Turn off the appliance, remove the tank, empty it, clean it, and replace it correctly.

The appliance does not turn on, what to check?

Check the power connection (plug firmly inserted), the tank full indicator (if on, empty the tank), and the ambient temperature (must be between 5°C and 38°C).

What refrigerant is used and what precautions?

The refrigerant is R-290 (propane), a flammable gas. In case of a leak, ventilate the room, evacuate people, and contact emergency services. Do not use open flames.

USER MANUAL DH 1240 Orbegozo

White portable air purifier with ventilation slots and brand logo (no visible text or symbols on body)

DH 1240

Sonifer, S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Warning sign depicting a flame inside a triangle (no text or symbols)

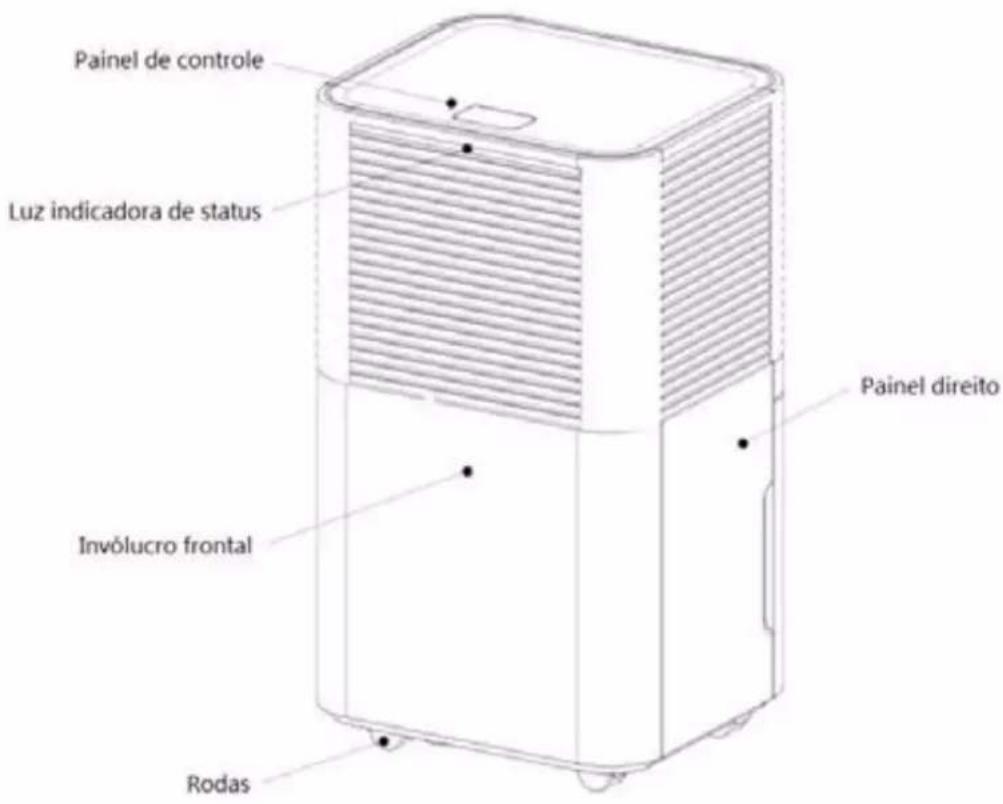

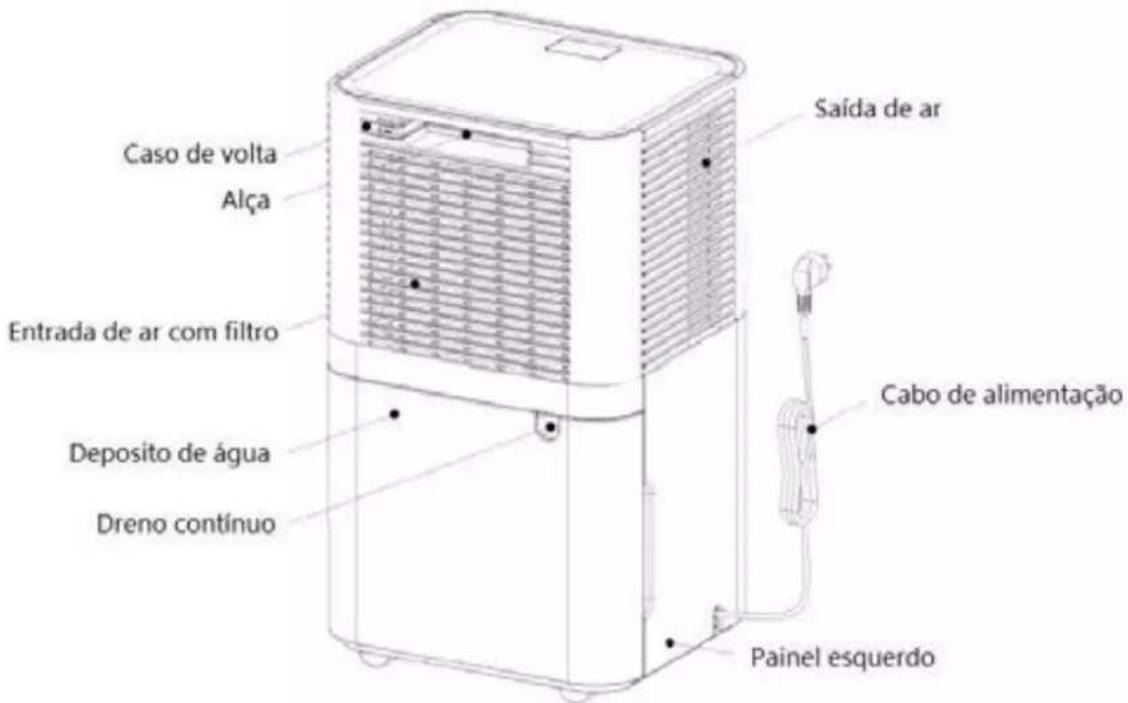

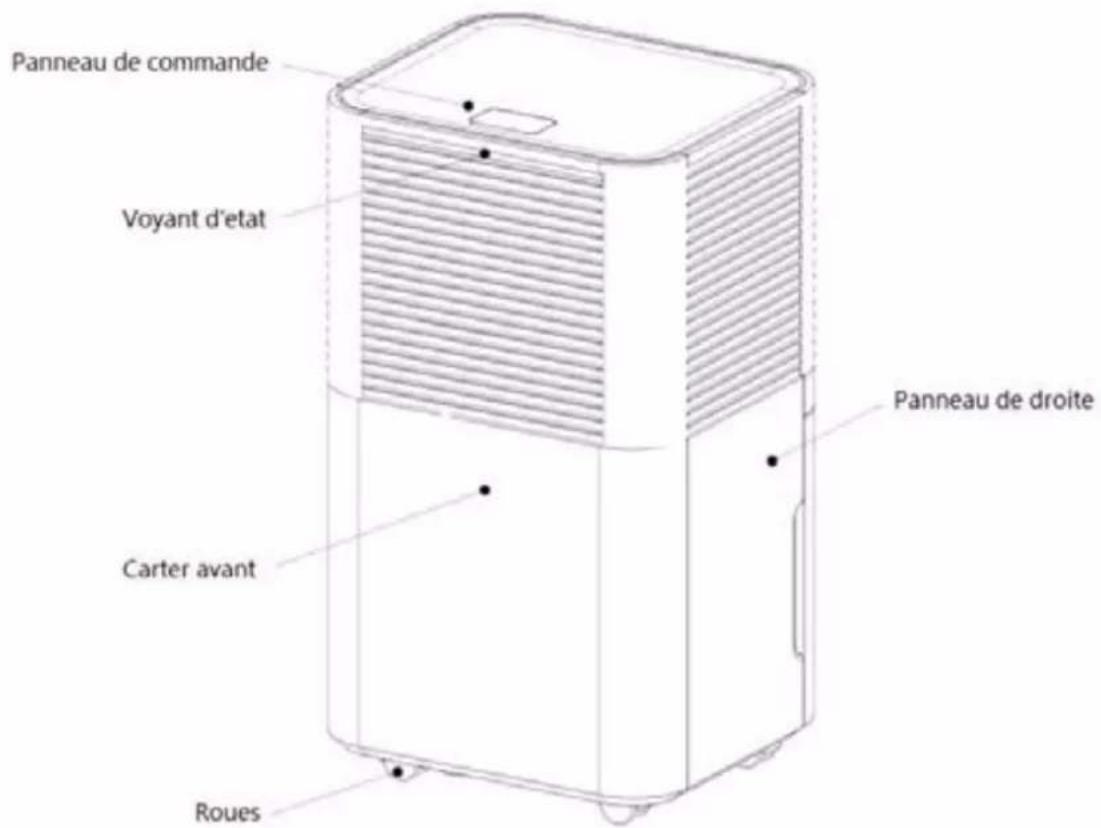

VISTA GENERAL

Diagram of a portable air purifier with internal components and a separate view showing the exterior panel (no text or symbols present)

Line drawing of a device with a box and adjacent to a multi-tiered air conditioner unit (no text or symbols)

Simple line drawing of a cube and a pin (no text or symbols)

Technical line drawing of a portable air purifier with internal components and a grid panel (no text or symbols)

Two diagrams showing a hand pouring liquid into a solar panel and another holding a wire, both on grid backgrounds (no text or symbols)

Technical line drawing of a portable air conditioner unit with internal components and housing (no text or symbols)

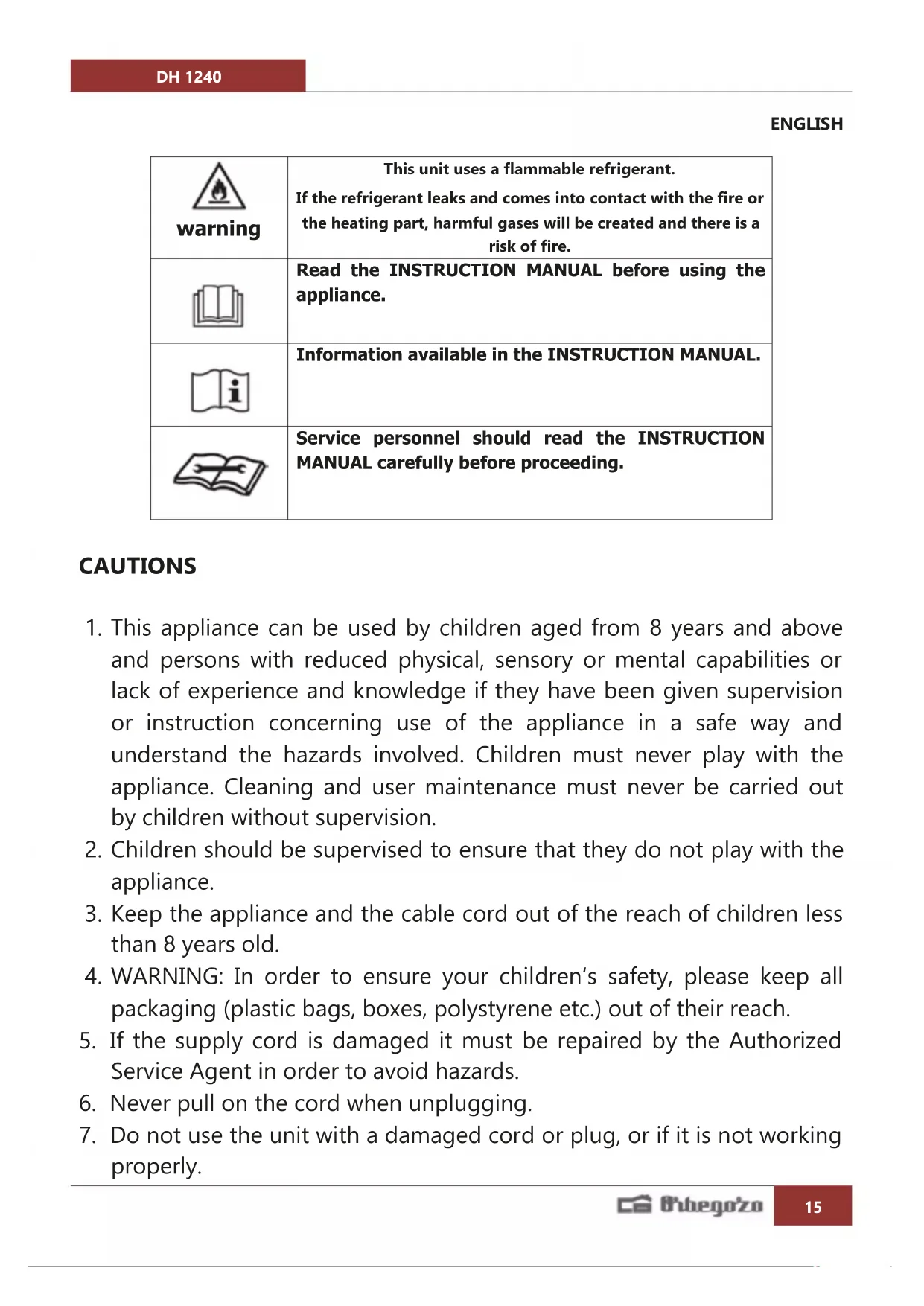

warning	This unit uses a flammable refrigerant. If the refrigerant leaks and comes into contact with the fire or the heating part, harmful gases will be created and there is a risk of fire.
	Read the INSTRUCTION MANUAL before using the appliance.
	Information available in the INSTRUCTION MANUAL.
	Service personnel should read the INSTRUCTION MANUAL carefully before proceeding.

CAUTIONS

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.

4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com

14. WARNING: In case of misuse, there is a risk of possible injury.

15. This appliance is designed to be used by skilled or trained users in shops, in light industry and on farms, or for commercial use by non-professionals.

16. The unit is designed for use only with R-290 gas (propane) as the designated refrigerant.
17. The refrigerant circuit is sealed. Only a qualified technician should attempt to open it!
18. R-290 (propane) is flammable and heavier than air. It accumulates first in low areas, but fans can circulate it.
19. If propane gas is present or even suspected, do not allow untrained personnel to try to find the cause.
20. The propane gas used in the unit is odorless. The lack of odor does not indicate a lack of gas leakage.
21. If a leak is detected, immediately evacuate everyone from the store, ventilate the room, and contact the local fire department to report a propane leak. Do not allow anyone to return to the room until the qualified service technician has arrived and advises you that it is safe to return to the store.

22. Open flames, cigarettes or other possible sources of ignition should not be used in or near the units.

23. Components are designed for propane and do not induce or produce sparks. Component parts should only be replaced with identical repair parts.

24. Do not use an extension cord or adapter plug.
25. Do not leave the unit running unattended. Do not tilt or turn the unit.
26. Do not stand on or sit on the unit.
27. Do not put your fingers or other objects in the air outlet.
28. Do not clean the appliance with any chemical product.
    • Make sure the unit is away from fire, flammable or explosive objects.
29. Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
30. The appliance should be stored in a room without sources of continuous operation (for example: open flames, a working gas appliance, or a working electric heater).
31. The appliance must be stored in such a way as to avoid mechanical damage.
32. Do not remove from mold or burn, even after use.
33. Be aware that refrigerants may be odorless.
34. Pipes must be protected against physical damage and must not be installed in a space without ventilation, if that space is less than 4m^2 .
35. Keep necessary ventilation openings free from obstructions.
    • Compliance with national gas regulations must be observed.
36. Keep necessary ventilation openings free from obstructions.
37. Inspect the device after unpacking it for damage or scratches.
38. Use this unit in an ambient temperature of 5 °C to 38 °C.
39. Do not use it outdoors. This dehumidifier is designed for indoor residential applications only.
40. Do not operate near walls, curtains or other objects that may block entry and exit.

41. Keep the air inlet and outlet free of obstacles.

42. If it is tilted more than 45 °, allow the unit to stand upright for at least 24 hours before turning it on.

43. Keep doors and windows closed for better energy savings.
44. Do not operate or store the unit in direct sunlight or in the rain.
45. It is normal for the air outlet to feel warm to the touch after continuous operation on hot days.
46. Empty the water tank before moving the device.
47. Make sure the water tank is installed correctly; otherwise, the unit will not work properly.
48. The dehumidifier turns on in the mode selected when the unit was last used.
49. The dehumidifier starts dehumidifying if the humidity in the room is 3% higher than the selected humidity.
50. There is a 3 minute compressor protection delay. Wait 3 minutes for the dehumidifier to resume dehumidification.

Anyone involved in the repair or interruption of a refrigeration circuit must hold a current valid certificate from an accredited assessment authority authorizing their competence to handle refrigerants safely.

Service should only be performed as recommended by the equipment manufacturer. Maintenance and repairs that require the assistance of other trained personnel should be carried out under the supervision of a person competent in the use of flammable refrigerants.

FAILURE TO COMPLY WITH THESE WARNINGS COULD RESULT IN EXPLOSION, DEATH, INJURY, AND PROPERTY DAMAGE

Warning sign depicting a flame inside a triangle (no text or symbols)

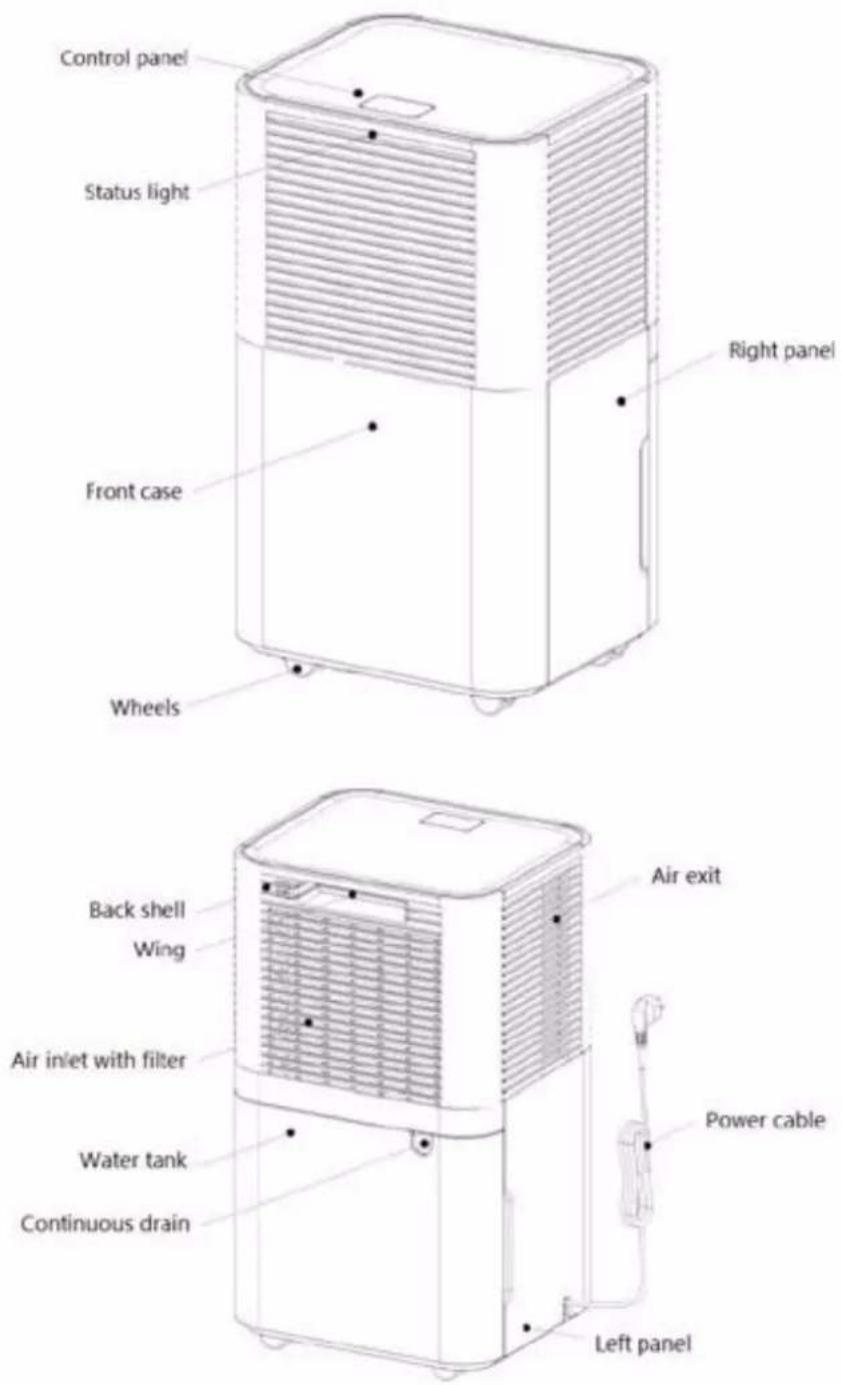

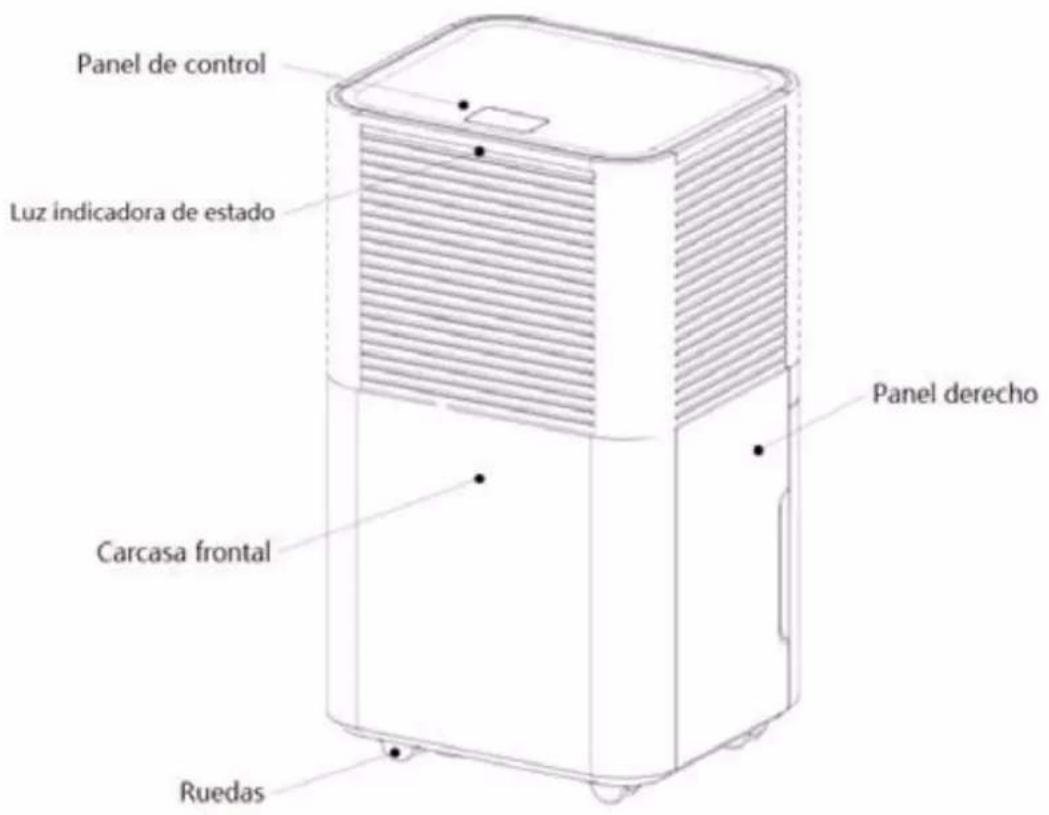

GENERAL VIEW

LOCATION

• Place the unit on a firm, level surface in an area with at least 30~cm of free space around it to allow adequate air circulation.
• Never install the unit where it may be exposed to:
• Heat sources such as radiators, heating registers, stoves or other products that generate heat.
• Oil or water splashes
• Direct sunlight
• Mechanical vibration or shock
• Excessive dust
• Poor ventilation, for example a closet or cupboard
• Uneven surface

WARNING

Install the unit in rooms larger than 4 m ^2 .

Do not install the unit in a place where flammable gas may leak.

NOTE

Manufacturing can provide another suitable example or can provide additional information on the odor of the refrigerant.

FUNCTIONING

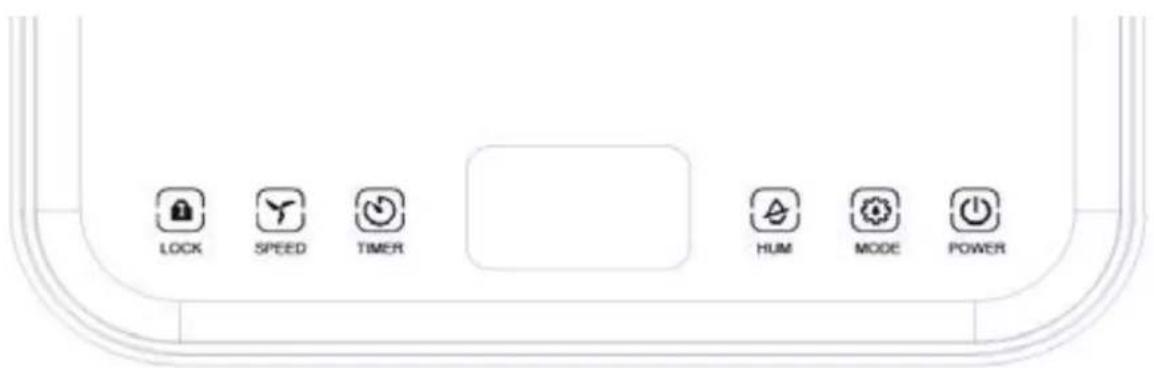

1. CONTROL PANEL

2. CONFIGURATION

POWER

Power button (POWER)

After connecting the appliance to the power, all the indicators and the display will turn on for 1 second and then turn off. There will be a beep, the power indicator will light, and the machine will be in standby mode. By pressing this button the machine will start to work. The initial humidity of the machine is 60% RH, default auto mode and high fan operation.

Press this key again, the machine will stop working and the fan will turn off.

MODE

MODE button

Press the button to switch from one mode to another. The light corresponding to each one will turn on.

Description of modes

• Automatic mode:

When the room humidity is higher than the selected humidity +3%, the fan and compressor will start to work after 3 minutes. When the room humidity is lower than the selected humidity minus 3%, the compressor will stop working after 30 seconds.

Both humidity and fan speed can be selected in AUTO mode.

- Continuous mode:

The device works continuously, regardless of the humidity of the environment. The fan runs at high speed.

In CONTINUOUS mode, neither fan speed nor humidity can be selected.

- Night mode:

Touch the Mode button, the indicator with a moon lights up and the night function starts. After 10 seconds, all indicators on the control panel gradually darken and the air speed automatically changes from high to low. Touch any button to activate the control panel. Touch the mode button again to exit night mode.

In this mode, error codes are not displayed and the air speed cannot be adjusted. The humidity is adjustable.

HUM

HUMIDITY SELECT button

HUM In auto mode or night mode, you can use this button to adjust the set humidity: each time you press, the set humidity is increased by 5%. It can be adjusted in a range of 30% to 80%.

Press and hold this button to check the current room temperature.

TIMER

TIMER button

Press the TIMER button to set the timing function from 0-24 hours. The interval is 1 hour, increase or decrease the time displayed on the screen. When setting the time, the indicator will light up. Set "00" to cancel the function. After setting and completing the timer, the timer LED lights up for the period of time. Once the time is up, the timer LED turns off automatically.

When the device is on, activate the timer to pay for it automatically.

When the device is off, activate the timer to turn it on automatically.

SPEED

SPEED button

The air speed can only be adjusted in automatic mode. Press this key to change the air speed between high and low.

LOCK

Lock button (LOCK)

Press and hold this key to open the child lock function. The lock indicator light will come on. All keys will be locked and cannot be used. Press this button again, the indicator light will turn off.

3. LED INDICATOR

The color of the front led will change according to the humidity of the environment:

• Ambient humidity < 45%. Blue light
• Ambient humidity ≤ 65% . Green light
  • Ambient humidity > 65%. Red light

SEWER SYSTEM

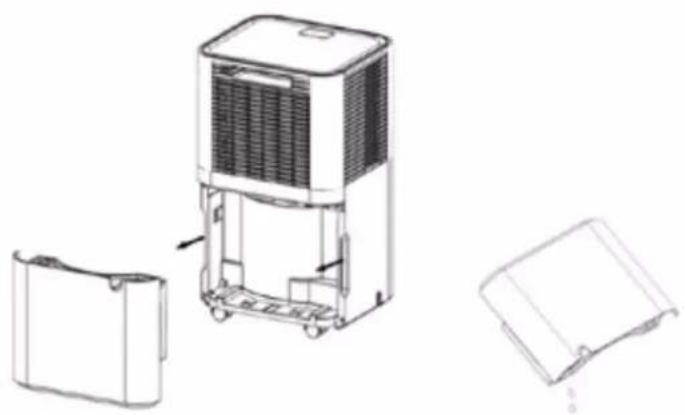

A. MANUAL DRAIN

The unit's built-in water tank will fill up and the unit will stop working. You will need to empty it and insert it correctly.

1. When the tank is full, the appliance will emit an intermittent beep, the TANK FULL indicator will light up and the front LED will light up red.
2. Turn off the dehumidifier (press the POWER button)
3. Pull and slide the bin away from the unit and empty it.

Technical line drawing of a portable air purifier with open lid and side compartments (no text or symbols)

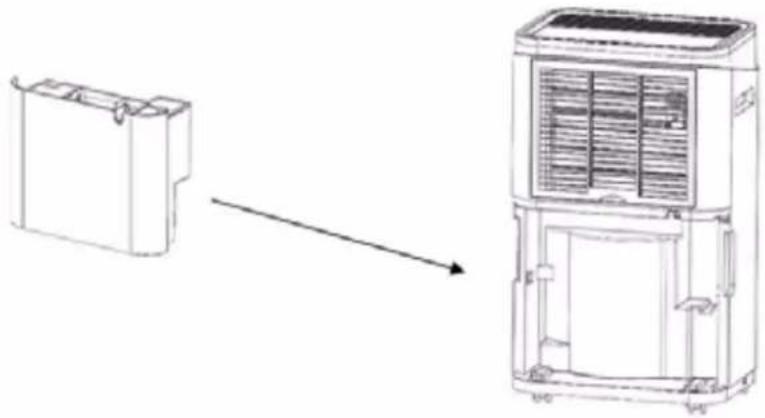

1. Clean the inside and outside of the tank

2. Place the reservoir inside the device

3. Clean the inside and outside of the tank

4. Place the reservoir inside the device

Line drawing of a device with a box and air conditioner unit, showing a transformation from an open to a closed container (no text or symbols)

1. Press the POWER button to make the device work again

2. If the TANK FULL light does not go off, check that the tank is correctly seated.

WARNING

Simple line drawing of a cube and a nail (no text or symbols)

1. Do not get rid of the magnets and plastic rivets in the tank, otherwise the dehumidifier will not turn on or stop working automatically when the water tank is full and will overflow.

2. Be sure to clean the condensed water in the tank and put it back in the original position.

3. If the tank is dirty, clean it with clean water. Do not use detergents, aluminum scourers, dust cleaners, diesel, benzene, or solvents. Doing so may damage the tank and cause leaks.

4. Put the water tank back to its original position. Otherwise, the indicator light will always be red, and the machine will not be able to work again.

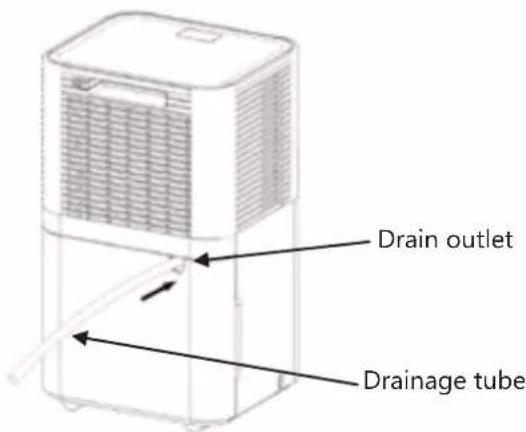

B. CONTINUOUS DRAINING

1. Connect the included PVC pipe to the drain outlet at the top of the tank.
2. Connect the other end of the tube to a bathroom, house drain, or a defined drainage area.

WARNING

1. Do not block the drain pipe, condensed water may flow into the tank.
2. Do not bend the drain tube.
3. The height of the tube should be less than the outlet.
4. The tube must be firmly connected to the outlet.
5. The reservoir must always be in place.

MAINTENANCE

NOTE: Before cleaning and maintaining the device, be sure to turn it off and unplug it to avoid electric shock.

AIR FILTER CLEANING (every two weeks):

Clean the air filter every two weeks. Restricted airflow reduces the efficiency of the system and, if blocked, can damage the unit. Proceed as follows:

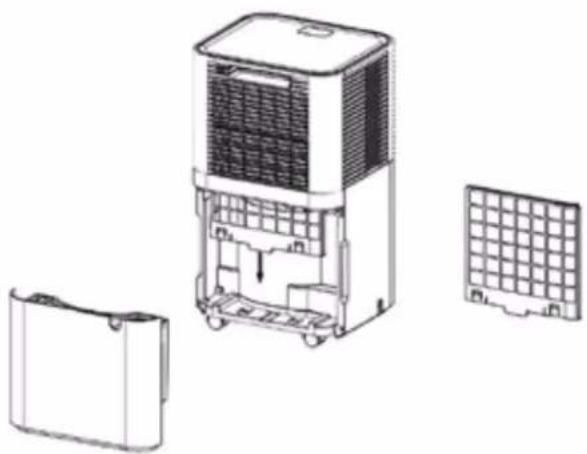

1. Turn off the device and remove the air filter

Exploded view diagram of a portable air purifier with internal components and mounting base (no text or labels)

1. Rinse under running water or vacuum to remove dust.

Two diagrams showing a hand pouring liquid into a solar panel and another with a plug, both on grid backgrounds (no text or symbols)

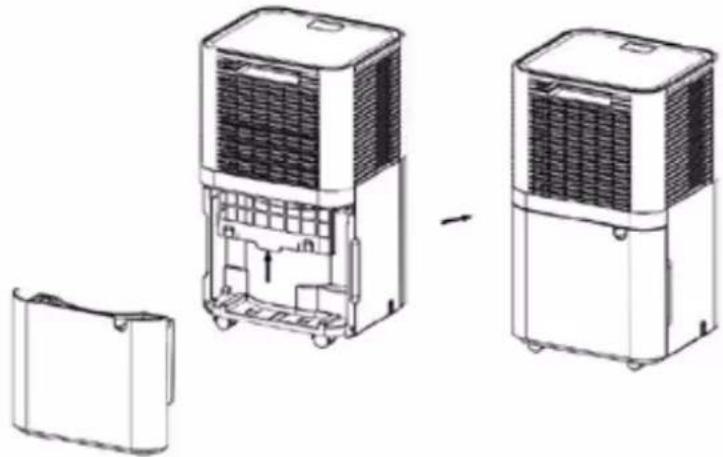

1. Once completely dry, reassemble the air filter

Technical line drawing of a portable air conditioner unit with internal components and housing (no text or symbols)

TROUBLESHOOTING

SYMPTOM INSPECTION SOLUTION
The unit does not work		✓ Check the power connection securely.	➢ Insert the power cord securely into the wall socket.
		✓ Check if the TANK FULL indicator is on.	➢ Empty the tank and reinstall it correctly.
		✓ Check the room temperature.	➢ The operating temperature range is 5-35°C.
Malfunction		✓ Is the air filter clogged?	➢ Clean the air filter as indicated
		✓ Is the air inlet or outlet grille obstructed?	➢ Remove obstruction from vents
No air enters		✓ Is the filter clogged?	➢ Wash the filter
Loud noise when running		✓ Is the machine placed on a platform?	➢ Place the machine on the ground
		✓ Is the filter clogged?	➢ Wash the filter
Error code	E2	✓ Humidity sensor damp or faulty.	➢ Clean or replace the humidity sensor.
	LO	✓ Displayed when the relative humidity is less than 20%RH.	➢ The dehumidifier turns off
	HI	✓ Displayed when the relative humidity is higher than 90%RH.
	CL	✓ Displayed when the ambient temperature is below 5°C.
	CH	✓ Displayed when the ambient temperature is higher than 38°C

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. (Check the legal conditions on our website).

FRANÇAIS

Warning sign depicting a flame inside a triangle (no text or symbols)

VUE GÉNÉRALE

Technical line drawing of a portable air purifier with three views: front, side, and side (no text or symbols)

Line drawing of a device with a box and adjacent to a multi-tiered air conditioner unit (no text or symbols)

Simple line drawing of a cube and a nail (no text or symbols)

Exploded view diagram of a portable air purifier with internal components and grid cover (no text or labels)

Two diagrams showing a hand pouring liquid into a solar panel, with no text or symbols present.

Technical line drawing of a portable air conditioner unit with internal components and housing (no text or symbols)

SOLUTION DE PROBLÈMES

Warning sign depicting a flame inside a triangle (no text or symbols)

VISÃO GLOBAL

Technical line drawing of a portable air purifier with open lid and side views (no text or symbols)

Line drawing of a device with a box and adjacent air conditioner unit, showing a transformation from a rectangular box to a multi-tiered air conditioner unit (no text or symbols present)

Simple line drawing of a cube and a mechanical component (no text or symbols)

Technical line drawing of a portable air purifier with internal components and external housing (no text or symbols)

Two diagrams showing a hand pouring liquid into a solar panel, and another with a magnified view of the same panel (no text or symbols)

Technical line drawing of a portable air conditioner unit with open lid and internal components (no text or symbols)
