USER MANUAL DH 2075 Orbegozo

White portable air purifier with black ventilation grille and 'Enbego' branding (no visible text beyond branding)

DH 2075, DH 3010

Sonifer,S.A.

Web: www.orbegozo.com

E-mail: [e-mail]

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Please read this manual carefully before using this appliance and retain it for future reference. Only in this way can you obtain the best results and maximum safety of use.

Warning symbol of a flame inside a triangle (no text or numbers)

ADVERTENCIAS

Simple line drawing of a cable tied with a plug, no text or symbols present

Hand holding an electrical outlet with a power symbol nearby (no text or labels)

Pure mechanical component diagram without any text, numbers, or symbols

Illustration of hands using a tool to clean or install a wall-mounted device (no text or symbols visible)

Line drawing of a hand inserting a plug into an electrical outlet (no text or symbols)

Hand inserting a plug into an electrical outlet (no text or symbols visible)

PRECAUCIONES

Line drawing of a portable water heater with a flower on top (no text or symbols)

Line drawing of a portable air conditioner unit with lid and handle (no text or symbols)

Illustration of a portable air conditioner with a cloth hanging from its side, emitting powder (no text or symbols)

Illustration of various cylindrical batteries and batteries (no text or symbols visible)

Illustration of a portable air conditioner next to a cartoon character holding a menu (no text or symbols present)

Diagram showing a hand holding a cable with a switch, indicating electrical hazard or resistance.

Illustration of a washing machine and a portable air purifier with smoke and exhaust (no text or symbols)

Line drawing of a portable air purifier with control panel and indicator lights (no text or symbols)

Illustration of a portable air purifier with a downward arrow indicating airflow or discharge (no text or symbols)

Line drawing of a kitchen appliance setup with a refrigerator, air purifier, and door (no text or symbols)

Illustration of a person using a smart air conditioner to smoke from a sun, with a kettle on a portable device nearby (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Hand inserting a cable into an electrical socket (no text or symbols visible)

Line drawing of a portable air purifier with a handle and ventilation grille (no text or symbols)

Technical line drawing of a mechanical device with a curved pipe and circular component, no text or symbols present

Pure technical line drawing of a mechanical or structural assembly without any text, numbers, or symbols

Diagram of a mechanical or electrical system with a vertical panel connected to a curved pipe and a stepped ground surface (no text or symbols)

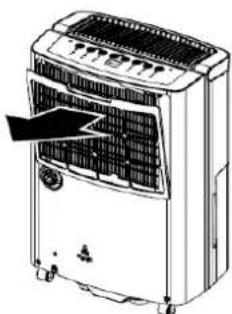

MANTENIMIENTO Y LIMPIEZA

Illustration of a portable air conditioner unit with a black arrow pointing to the grille (no text or symbols visible)

Illustration of a vacuum cleaner using a tool to clean or install a grid-patterned tray (no text or symbols)

warning	This unit uses a flammable refrigerant. If the refrigerant leaks and comes into contact with the fire or heating part, harmful gases will be created and there is a risk of fire.
	Read the INSTRUCTION MANUAL before using the appliance.
	Information available in the INSTRUCTION MANUAL.
	Service personnel must read the INSTRUCTION MANUAL carefully before proceeding.

IMPORTANT SAFETY MEASURES

When using electrical appliances, basic rules should always be followed to reduce the risk of fire, electric shock, and personal injury, including the following:

1. This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given appropriate supervision or training regarding use of the appliance in a safe manner. and they understand the dangers involved. Children should not play with the device. Cleaning and maintenance to be

carried out by the user should not be carried out by children without supervision.

1. Children should be supervised to ensure that they do not play with this appliance.
2. Keep the appliance and its cord out of the reach of children under 8 years of age.
3. CAUTION: For the safety of your children, do not leave packaging material (plastic bags, cardboard, polyethylene, etc.) within their reach.
4. If the power cord is damaged, it must be replaced by the manufacturer, service center or any other qualified professional in order to avoid a hazard.
5. Never disconnect by pulling on the cable.
6. Do not operate the appliance if the cord or plug is damaged or if you notice that the appliance is not working properly.
7. Do not handle the appliance with wet hands.
8. Do not submerge the device in water or any other liquid.
9. Before cleaning, make sure that the device is unplugged.
10. The appliance must be installed in accordance with national regulations for electrical installations.
11. This appliance is for domestic use only.
12. If you need a copy of the instruction manual, you can find it at www.orbegozo.com.
13. WARNING: In case of misuse, there is a risk of possible injuries.

- This appliance is intended for use by expert or trained users in shops, light industry and on farms, or for commercial use by non-professionals.

• The unit is designed for use only with R-290 (propane) gas as the designated refrigerant.
• The refrigerant circuit is sealed. Only a qualified technician should attempt to open it!
• R-290 (propane) is flammable and heavier than air. It accumulates first in low areas, but fans can circulate it.
• If propane gas is present or even suspected, do not allow untrained personnel to attempt to find the cause.
• The propane gas used in the unit is odorless. The lack of odor does not indicate a lack of gas leakage.
• If a leak is detected, immediately evacuate all persons from the store, ventilate the room, and contact the local fire department to inform them that a propane leak has occurred. Do not allow anyone to return to the room until a qualified service technician has arrived and has advised you that it is safe to return to the store.
• Open flames, cigarettes or other potential ignition sources should not be used in or near the units.
• Components are designed for propane and do not encourage or produce sparks. Component parts should only be replaced with identical repair parts.
• Do not use an extension cord or adapter plug.
• Do not leave the unit running unattended. Do not tilt or turn the unit.
• Do not climb or sit on the unit.
• Do not insert your fingers or other objects into the air outlet.
• Do not clean the device with any chemical products.
• Make sure the unit is away from fire, flammable or explosive objects.

- Do not use means to accelerate the defrosting process or to clean other than those recommended by the manufacturer.

- The appliance should be stored in a room without sources of continuous operation (for example: open flames, a gas appliance running, or an electric heater running).

- The appliance must be stored in a way that prevents mechanical damage.

- Do not unmold or burn, even after use.

- Please note that coolants may be odorless.

- Pipes must be protected from physical damage and must not be installed in an unventilated space, if that space is less than 4m^2 .

- Keep necessary ventilation openings free of obstructions.

- Compliance with national gas regulations must be observed.

- Keep necessary ventilation openings free of obstructions.

- Check the device after unpacking it for damage or scratches.

- Use this unit at an ambient temperature of 5^ to 38^ .

- Do not use it outdoors. This dehumidifier is designed for indoor residential applications only.

- Do not operate near walls, curtains or other objects that may block entry and exit.

- Keep the air inlet and outlet free of obstacles.

- If tilted more than 45^ , allow the unit to stand upright for at least 24 hours before turning it on.

- Keep doors and windows closed for better energy savings.

- Do not operate or store the unit in direct sunlight or rain.

- It is normal for the air outlet to feel warm to the touch after continuous operation on hot days.

- Empty the water tank before moving the device.

• Make sure the water tank is installed correctly; Otherwise, the unit will not operate properly.
• The dehumidifier turns on in the mode selected when the unit was last used.
• The dehumidifier starts dehumidifying if the room humidity is 3% higher than the selected humidity.
• There is a 3 minute compressor protection delay. Wait 3 minutes for the dehumidifier to resume dehumidification.

⚠️ Any person involved in the repair or interruption of a refrigeration circuit must hold a current valid certificate from an accredited testing authority authorizing their competence to handle refrigerants safely.

Service should only be performed as recommended by the equipment manufacturer. Maintenance and repairs requiring the assistance of other trained personnel shall be carried out under the supervision of a person competent in the use of flammable refrigerants.

FAILURE TO FOLLOW THESE WARNINGS COULD RESULT IN EXPLOSION, DEATH, INJURY AND PROPERTY DAMAGE.

Warning sign depicting a flame symbol in a triangular shape

ADVERTENCIAS

● Do not fold the power cord as shown below!

● Make sure the plug is clean!

Line drawing of hands holding a device with a screen showing a small display (no text or symbols)

● Make sure the plug is firmly plugged in properly!

Hand holding a power outlet plug with a switch, symbolizing electrical circuit (no text or labels)

● After turning off the power, please take off the plug.

Line drawing of a hand inserting a plug into an electrical outlet (no text or symbols)

- Do not use multiple socket as shown below!

Pure mechanical assembly diagram without any text, numbers, or symbols

● Do not plug in the power plug with wet hands!

Hand holding a power outlet with visible spray and dust (no text or symbols)

PRECAUTIONS

- Do not place anything on the control panel.

Illustration of a portable air conditioner unit with a person standing on top and a cross symbol indicating cancellation (no text or labels)

- Do not wet the machine or the control panel.

Illustration of a portable air purifier with a hand gesture and a cross symbol (no text or labels)

- Do not cover the air vents of the appliance.

Illustration of an air conditioner unit with a cloth cover and a circular label (no text or symbols)

- Keep flammable gas away from the machine.

Illustration of various batteries and a battery with a cross symbol (no text or labels)

Do not let children climb on the appliance.

Simple line drawing of a child standing on a suitcase with an 'X' symbol below (no text or labels)

Consult technical service.

Illustration of a person standing next to a large outdoor air purifier (no text or symbols visible)

- Do not pull on the cord to unplug it to prevent the cord from breaking and you will avoid dangerous situations.

Diagram showing a hand holding a cable with a switch, indicating electrical shock or resistance.

- Do not place the appliance on an uneven floor to avoid shaking, noise or water spillage.

Line drawing of a portable air purifier with control panel and indicator lights (no text or symbols)

• Do not place objects on the device.

Diagram of a portable air purifier with a downward arrow indicating airflow or cooling (no text or symbols)

- Keep the device away from any heat source. Avoid placing the device under an electricity outlet.

Illustration showing a hand washing clothes, a refrigerator with an air conditioner, and a device emitting exhaust (no text or symbols)

- Do not use insecticides, oil or spray paints near the appliance. It could damage plastic parts or cause a fire.

Illustration of a hand spraying mist next to an air purifier with a cross mark (no text or symbols)

- Always keep a distance of 50 cm above the device.

20 cm

- Close all doors and windows to collect as much humidity as possible.

Line drawing of a kitchen appliance with a door, air conditioner unit, and wall-mounted mirror (no text or symbols)

- When moving or storing the appliance, do not place the dehumidifier lying on its side or upright to avoid bumps.

Technical line drawing of a boat hull with side-mounted legs and hull, no text or symbols present

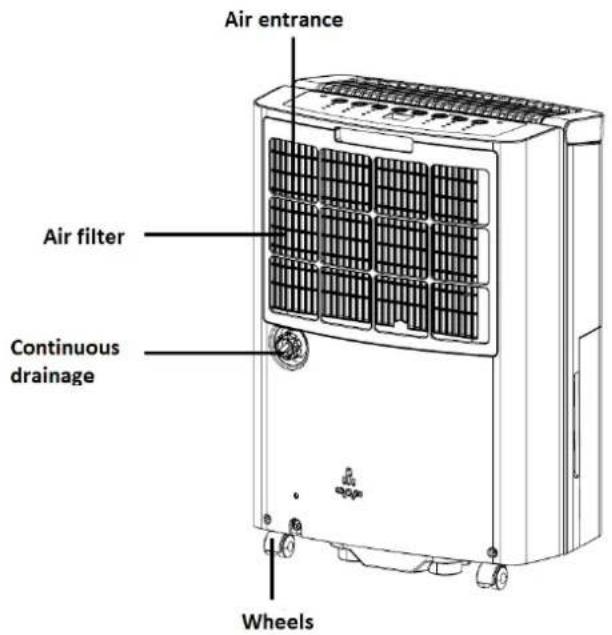

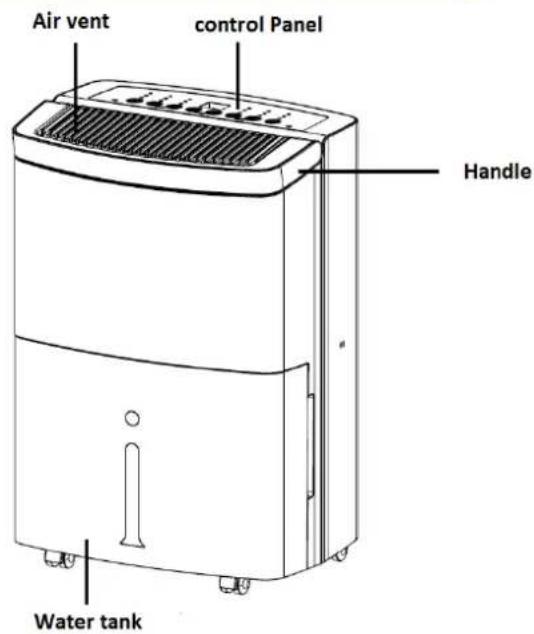

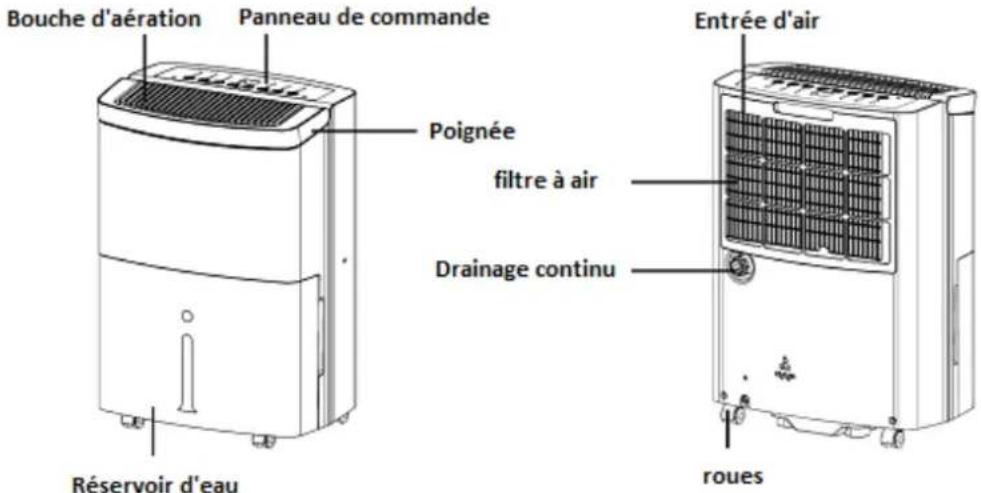

DESCRIPTION OF THE PARTS

Air vent control Panel Handle Water tank

Air entrance Air filter Continuous drainage Wheels

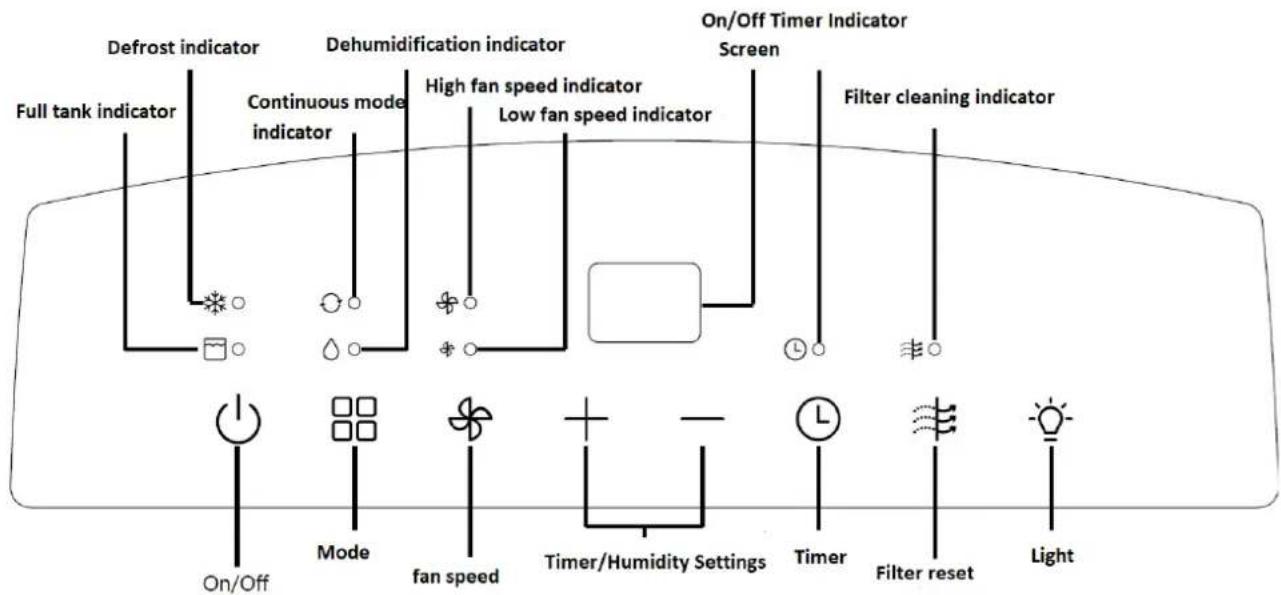

Defrost indicator Full tank indicator Continuous mode indicator Dehumidification indicator High fan speed indicator Low fan speed indicator On/Off Timer Indicator Screen Filter cleaning indicator On/Off Mode fan speed Timer/Humidity Settings Timer Filter reset Light

OPERATING INSTRUCTIONS

SCREEN

Shows the current humidity percentage of the room or the hours remaining in timer mode.

ON / OFF

Press the button to turn on the dehumidifier.

NOTE: Pressing this button does not disconnect the device from the power.

MODE

The device has two modes:

- Dehumidification

- Continuous dehumidification. Humidity cannot be set in this mode.

FAN SPEED

The fan has two speeds, high and low. Press the button to change the speed. The corresponding indicator will light.

TIMER

The dehumidifier can be programmed to turn off or on within a range of 1 to 24 hours. When the timer is set, the indicator light will illuminate.

- Auto off:

With the device working, press the indicated button and set the time by pressing "+" or "-" to select the number of hours you want to pass before turning off.

NOTE: after a few seconds the screen will show the humidity again.

- Auto start:

With the device off, press the indicated button and set the time by pressing "+" or "-" to select the number of hours you want to pass before it turns on.

NOTE: after a few seconds the screen will show the humidity again.

HUMIDITY/TIME ADJUSTMENT

Adjust humidity or time.

• To adjust the humidity level:

Humidity can be between 30 and 90% RH. It is increased or decreased in 5% increments.

FILTER RESET

After 250 hours of operation, the indicator will light to remind you to clean the filter. Press the button after to reset the alarm.

LIGHT SWITCH

Press the button to turn the panel light on and off.

FULL TANK

This light will come on when the tank is full to remind you to empty it to continue using the dehumidifier.

DEFROST MODE

When the room temperature is low, the dehumidifier enters defrosting mode and the indicator lights up.

ATTENTION: The dehumidifier will stop operating after 24 hours without interruption for one hour. During this time, the device can still be set up, but the mode lights will flash for 3 seconds. The unit will restart automatically after that time.

OPERATING INSTRUCTIONS

- Start up

1) Insert the plug into a power outlet. The voltage of your home installation must match that shown on the nameplate.
2) Make sure the water tank is inserted correctly. After turning on the dehumidifier for the first time, if the "Tank Full" light illuminates, remove the water tank, check that the "float" can move freely, and then insert the tank back into place.

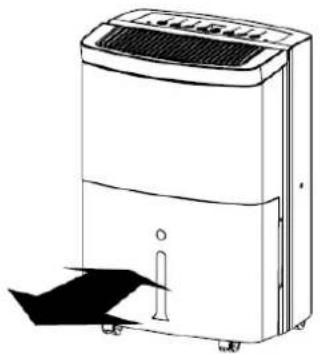

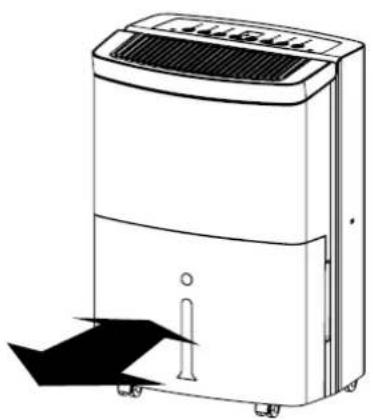

- Full tank light

When the water tank is full, the appliance will stop and the "Tank full" light will illuminate. The water tank must be carefully removed from the appliance by sliding it out from the front and emptied. When the empty tank is properly placed back into the dehumidifier, it will turn on again and operate normally.

- DEFROST MODE

When operating at low temperatures (less than 12^ C), the surface of the evaporator accumulates frost and affects the efficiency of the dehumidifier. When this happens, the machine will automatically enter defrosting mode. This is totally normal. The defrost lamp will turn on. The unit will operate at temperatures up to 5^ C. Defrosting time may vary. If the dehumidifier freezes, turn it off for a few hours and then restart it. It is not recommended to use the dehumidifier in temperatures below 5^ C.

Line drawing of a portable air purifier with a handle and ventilation grille (no text or symbols)

- Full tank light

When the water tank is full, the appliance will stop and the "Tank full" light will illuminate. The water tank must be carefully removed from the appliance by sliding it out from the front and emptied. When the empty tank is properly placed back into the dehumidifier, it will turn on again and operate normally.

- DEFROST MODE

When operating at low temperatures (less than 12^ C), the surface of the evaporator accumulates frost and affects the efficiency of the dehumidifier. When this happens, the machine will automatically enter defrosting mode. This is totally normal. The defrost lamp will turn on. The unit will operate at temperatures up to 5^ C. Defrosting time may vary. If the dehumidifier freezes, turn it off for a few hours and then restart it. It is not recommended to use the dehumidifier in temperatures below 5^ C.

CONTINUOUS DRAINAGE

- The continuous drain function can be started by following the steps below when there is good drainage near the unit.

1. Prepare the drain tube
2. Remove the drain cover from the drain outlet.3. Remove the rubber plug inside the drain cover and place it in the reservoir for storage.
4. Pass the hose through the drain cap.
5. Connect the hose to the drain port.
6. Screw the drain cap back onto the drain outlet.
7. Place the tank in its original location.

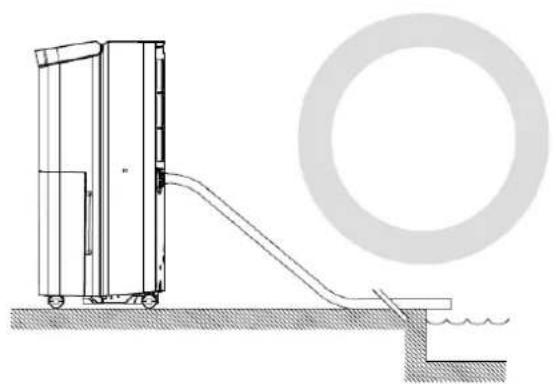

- Correct way to place the water drain hose.

When continuous drain is used, the hose should be placed below the drain hole. Avoid uneven surfaces and do not "kink" the hose.

Technical line drawing of a mechanical device with a curved pipe and a circular component, no text or symbols present.

Pure technical diagram of a mechanical or electrical assembly without any text, numbers, or symbols

Pure diagram of a mechanical or electrical component with no visible text, numbers, or symbols

MAINTENANCE AND CLEANING

Before cleaning the dehumidifier, make sure it is disconnected from the power supply.

1. Clean the case

A. Wipe the case with a soft, clean cloth.
B. If the dehumidifier is dirty, clean the body with a damp cloth and a little neutral detergent.
C. Do not clean the appliance directly with water as it may cause electric shock.

2. Clean the air filter

The air filter serves to filter dust present in the air. If the filter is clogged, the appliance will consume more electricity. To remove moisture more effectively, clean the filter once every two weeks.

CLEANING PROCESS

1. Remove the filter carefully

Line drawing of a portable air conditioner unit with ventilation grilles and control panel (no text or symbols)

1. Clean the filter with a vacuum cleaner or clean water and dry it with a dry cloth

Illustration of a hand using a vacuum cleaner to clean or brush on a grid-patterned surface (no text or symbols)

1. Put the filter back into the appliance

TECHNICAL SPECIFICATIONS

MODEL	DH 3010	DH 2075
STRAIN	220-240 V ~ 50 HZ.
CAPACITY	20L/DAY (80% HR 30°C)	30L/DAY (80% HR 30°C)
POWER	490 W	420 W
APPLIANCE SIZE(An x Alt x Pr)	34,5 X 50,4 X 24,3 CM
NET WEIGHT	13,7 Kg	12,7 Kg
WORK TEMPERATURE	5 – 32 °C

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the

environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.

FRANÇAIS

Warning sign depicting a flame symbol in a triangular shape, indicating hazard or caution.

AVERTISSEMEN

Simple line drawing of a cable being inserted into an electrical outlet, with no text or symbols present.

Illustration of hands using a handheld device to interact with a screen (no text or symbols visible)

Hand holding an electrical outlet with a power symbol nearby (no text or labels)

Hand holding a wall socket with a power plug (no text or symbols visible)

Pure electrical circuit lines without any symbols

Hand holding a wall socket with a power plug, no text or symbols visible

PRÉCAUTIONS

Illustration of a portable air conditioner unit with a warning symbol (no text or labels)

Illustration of a washing machine with a cloth cover and a circular label (no text or symbols)

Simple line drawing of a child standing beside a suitcase with an 'X' symbol (no text or labels)

Illustration of a portable air conditioner unit with a hand gesture and a gray X symbol (no text or labels)

Illustration of various batteries and a battery with a cross symbol (no text or labels)

- Consulter le service technique

Illustration of a person next to a portable air purifier (no text or symbols present)

Diagram showing a hand holding a cable with warning symbols and a magnifying glass, indicating electrical hazard or resistance.

Illustration of a portable air purifier with exhaust smoke and a cross symbol (no text or labels)

Line drawing of a portable air purifier with a lid and ventilation grille (no text or symbols)

Illustration of a portable air purifier with a downward arrow indicating airflow or cooling (no text or symbols)

Line drawing of a kitchen appliance setup with a handbar, front panel, and air purifier (no text or symbols)

Illustration showing a hand holding a device with a warning symbol, next to a portable air conditioner and a refrigerator (no text or symbols present)

Technical line drawing of a boat hull with no visible text or symbols

DESCRIPTION DES PARTIES

Hand holding a wall-mounted electrical socket with a black arrow indicating direction (no text or symbols)

Line drawing of a portable air purifier with a handle and ventilation grille (no text or symbols)

Technical line drawing of a mechanical device with a curved pipe and base, alongside a circular component (no text or symbols)

Cross-sectional diagram of a mechanical or hydraulic system with no visible text or symbols

Diagram of a mechanical or electrical component with a spring and wavy line, no visible text or symbols

MANTENIMIENTO Y LIMPIEZA

Line drawing of a portable air conditioner unit with ventilation grilles and control buttons (no text or symbols)

Illustration of a vacuum cleaner using a tool to clean or inspect the surface of a grid (no text or symbols)

Warning sign depicting a flame symbol in a triangular shape, indicating hazard or caution.

ADVERTÊNCIAS

Line drawing of hands holding a device with a screen showing two small icons (no text or symbols present)

Illustration of a hand holding an electrical outlet with a power symbol (no text or labels)

Line drawing of a hand holding an electrical outlet with wires (no text or symbols)

Hand holding a wall socket with a power plug, no text or symbols visible

PRECAUÇÕES

Line drawing of a portable air conditioner unit with a person standing on top and a cross symbol indicating cancellation (no text or labels)

Illustration of a portable air conditioner unit with a hand gesture and a gray X symbol (no text or labels)

Illustration of a portable air conditioner unit with a cloth cover and a cross symbol (no text or labels)

Illustration of various batteries and a cross symbol (no text or labels)

Illustration of a child standing on a suitcase with an 'X' symbol below (no text or symbols on the main subject)

Illustration of a person standing next to a large outdoor air purifier (no text or symbols visible)

Illustration of a hand connecting wires to an electrical socket with a cross symbol (no text or symbols present)

Line drawing of a portable air purifier with control panel and indicator lights (no text or symbols)

Illustration of a portable air purifier with a downward arrow indicating airflow or cooling (no text or symbols)

Illustration of a hand using a tool to clean air from a heater, with another device emitting exhaust smoke (no text or symbols)

Illustration of a spray gun emitting smoke next to an air purifier (no text or symbols)

Line drawing of a kitchen appliance with a handbag, a door, and a portable air conditioner unit (no text or symbols)

Top-down schematic of a boat hull with visible structural components and no text or labels

Hand holding a wall socket with an arrow indicating direction (no text or symbols)

POWER

Line drawing of a portable air purifier with ventilation grille and control panel (no text or symbols)

Technical line drawing of a mechanical device connected to a circular component, showing fluid flow and structural details (no text or symbols)

Cross-sectional diagram of a water pump system with no visible text or symbols

Pure technical diagram of a mechanical or electrical component without any text, numbers, or symbols

MANTENIMIENTO Y LIMPIEZA

Hand holding a wall socket with an arrow indicating direction (no text or symbols)

1. Limpe a caixa

Line drawing of a portable air conditioner unit with ventilation grilles and control panel (no text or symbols)

Illustration of a hand using a vacuum cleaner to clean or brush on a tray (no text or symbols)

Warning symbol of a flame inside a triangle (no text or numbers)

ADVERTIMENTS

Simple line drawing of a cable being inserted into an electrical outlet, with a gray 'X' symbol indicating no text or symbols.

Illustration of two hands holding a small object with a screen showing four small icons above them (no text or symbols present)

Hand holding an electrical outlet with a power symbol (no text or labels)

Hand holding a wall socket with a plug inserted (no text or symbols visible)

Pure mechanical component diagram without any text, numbers, or symbols

Hand holding a wall socket with water droplets, no text or symbols visible

PRECAUCIONS

Simple line drawing of a portable air conditioner unit with a person standing on top and a cross symbol above (no text or labels)

Illustration of a portable air conditioner unit with a hand gesture and a cross symbol (no text or labels)

Illustration of a washing machine with a cloth and a circular label (no text or symbols)

● Mantingui lluny de la maquina el gas inflamable.

Illustration of various batteries and a cross symbol (no text or labels)

Simple line drawing of a child standing beside a suitcase with an 'X' symbol (no text or labels)

Illustration of a person kneeling beside a large outdoor air purifier (no text or symbols visible)

Diagram showing a hand holding a cable with a plug, indicating electrical shock or resistance.

Line drawing of a portable air purifier with control panel and indicator lights (no text or symbols)

Illustration of a portable air purifier with a downward arrow indicating airflow or cooling (no text or symbols)

Illustration of a hand holding a smiling sun above an electric heater and a portable air conditioner (no text or symbols)

- No utilitzi insecticides, oli o pintura en esprais prop de l'aparell. Podria danyar les parts de plàstic o causar un incendi.

Illustration of a spray gun emitting smoke next to an air purifier (no text or symbols)

Line drawing of a kitchen appliance with a door, a refrigerator, and a wall-mounted door (no text or symbols)

Technical line drawing of a boat hull with no visible text or symbols

Hand holding a wall socket with an arrow indicating direction (no text or symbols)

Line drawing of a portable air purifier with ventilation grille and control panel (no text or symbols)

• Llum dipòsit ple

Technical line drawing of a mechanical device with a curved pipe and circular component, no text or symbols present

Diagram showing two structural cross-sections with a lightning bolt symbol indicating damage or explosion (no text or labels present)

MANTENIMENT I NETEJA

Line drawing of an air conditioner unit with cooling fan and ventilation slots (no text or symbols)

Illustration of a hand using a vacuum cleaner to brush a tool on a tray (no text or symbols)
