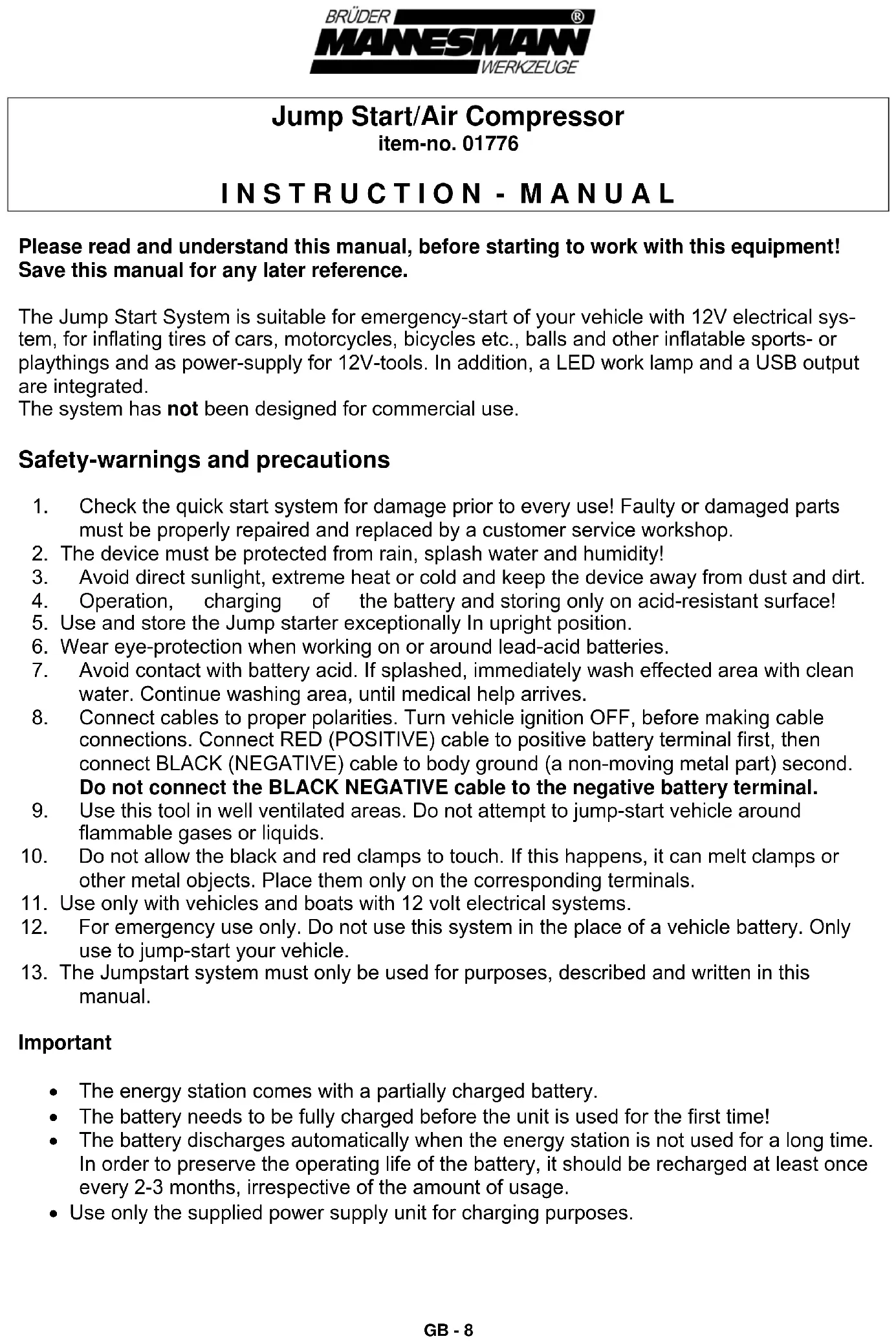

USER MANUAL M01776 Brüder Mannesmann

1. Check the quick start system for damage prior to every use! Faulty or damaged parts

must be properly repaired and replaced by a customer service workshop.

2. The device must be protected from rain, splash water and humidity!

3. Avoid direct sunlight, extreme heat or cold and keep the device away from dust and dirt.

4. Operation, charging of the battery and storing only on acid-resistant surface!

5. Use and store the Jump starter exceptionally In upright position.

6. Wear eye-protection when working on or around lead-acid batteries.

7. Avoid contact with battery acid. If splashed, immediately wash effected area with clean

water. Continue washing area, until medical help arrives.

8. Connect cables to proper polarities. Turn vehicle ignition OFF, before making cable

connections. Connect RED (POSITIVE) cable to positive battery terminal first, then connect BLACK (NEGATIVE) cable to body ground (a non-moving metal part) second. Do not connect the BLACK NEGATIVE cable to the negative battery terminal.

9. Use this tool in well ventilated areas. Do not attempt to jump-start vehicle around

flammable gases or liquids.

10. Do not allow the black and red clamps to touch. If this happens, it can melt clamps or

other metal objects. Place them only on the corresponding terminals.

11. Use only with vehicles and boats with 12 volt electrical systems.

12. For emergency use only. Do not use this system in the place of a vehicle battery. Only

use to jump-start your vehicle.

13. The Jumpstart system must only be used for purposes, described and written in this

manual. Important The energy station comes with a partially charged battery. The battery needs to be fully charged before the unit is used for the first time! The battery discharges automatically when the energy station is not used for a long time. In order to preserve the operating life of the battery, it should be recharged at least once every 2-3 months, irrespective of the amount of usage. Use only the supplied power supply unit for charging purposes.GB - 9 Technical details Battery Type: Sealed, lead-acid, rechargeable, 7 amp-hours Power Output: 12 VDC, 300 amps starting power (600 A peak) Cables: Rubber insulaled ( #4) copper; Compressor: 260 PSI (18 bar) maximum pressure Output Socket: 12 VDC cigarette lighter output Discription

2. LED working-light

8. On-/off-switch for working-light and USB-port

Features: - AC/DC power pack - inflating needle and air raft tips - LED working light Operation

Warning: Electrical shock can cause death or injury. Avoid touching exposed conductors of

electricity. The Jumpstart System is designed only for use with vehicles and boats with 12V-system. You can also use this system as a portable power supply of 12 VDC in remote areas or emergencies. To use the Jumpstart to start your vehicle

1. Make sure the vehicle or boat to be jump-started is not running and set the ignition „OFF“.

2. Do not allow the black and red clamps (5) to touch. If this happens, it can melt clamps or

other metal objects.

3. Connect the RED clamp to the POSITIVE (+) terminal on the vehicle’s battery.

4. Connect the BLACK clamp to a non-moving metal part of the engine, not to the negative

terminal of the battery.

5. In the event of improperly connected pole clamps, the LED (7) flashes red and a warning

signal is triggered.

6. Pay attention to the clamps being sufficiently fixed on the terminals.GB - 10

7. Switch on the quick start system by turning the main switch (1) and wait for 3 to 5 minutes.

8. Switch the vehicle ignition to the „ON“ position.

9. Switch the ignition to the start position for no more than 5 to 6 seconds.

10. If the vehicle or boat engine does not start, wait at least 3 minutes before re-trying.

11. When the engine is running, disconnect the black clamp first and return the cable to its

stored position on the jumpstart system.

12. Disconnect the red clamp and return the cable to its position on the system.

13. Recharge the Jump Start system as soon as possible. You can only perform an

emergency start if the quick start system is fully charged.

14. The quick start system is not suitable for starting completely discharged batteries!

To use your Jump Start System to power appliances:

1. Lift up the cover of the cigarette lighter receptacle (4).

2. Insert the cigarette lighter plug of the appliance into the cigarette lighter receptacle and

connect to your 12V-tool. USB output At the USB port (6), small loads with a USB plug may be operated. The USB port delivers 5 Volt with up to 1000 mA and is not a data port. With the switch (8), the voltage on the port can be switched on or off. The operating status is indicated by the green LED. Compressor Operation

1. If inflating a tire, place the hose connector on the tire valve stem and press the connector

lever down to lock in place.

2. If inflating a ball, air mattress or other item, place the inflation needle or plastic adapter (17)

into the hose connector end, press the connector lever down to lock in place.

3. Turn the compressor power switch (13) to the „ON“ position.

4. Note: Do not over-inflate item. Check pressure gauge (12) and stop inflating, when

adequate pressure is reached.

5. Only run the compressor for 10 minutes at a time. If more air is needed, wait 10 minutes for

cooling down, before using again. Recharging This unit is rechargeable by either the re-charging adapter or by use of a vehicle 12 VDC cigarette lighter output socket. It is recommended that the battery is kept fully charged at all times. (Caution! Put the main switch (1) in the “OFF” position.) If the battery is left in a low charge state, it could shorten battery life. The time required to recharge the battery depends on the number of previous battery jump starts .To check and see if the battery is low, press the red button (11). When the LED (10) flashes green, the quick start system is sufficiently charged.GB - 11 To re-charge using the adapter

1. Plug the adapter cord connector into the receptacle (9) on the front panel.

2. Put the charging-adaptor (15) into a 230 V~ outlet.

3. Allow the Jump Start System to recharge about 12 hours. Check the re-charge progress by

pressing the red button (11).

4. When the LED (10) flashes green, the quick start system is sufficiently charged.

To recharge using a 12 VDC supply: Note: Recharging with this method will not recharge the system to the same 14 to 15 VDC voltage level, as when using the AC-adapter.

1. Insert the cigarette lighter recharger cord plug (16) into the cigarette lighter receptacle on the

2. Insert the other end of the cigarette lighter recharger cord (small plug) into the receptacle (9)

on the front panel of the unit.

3. You should only charge the energy station when en route, as otherwise the unit will run
