Product type	Blender
Brand	Electrolux
Model	Create 4 E4SB14ST
Glass bowl capacity	0.6 L
Take-away bottle capacity (large)	600 ml
Take-away bottle capacity (small)	300 ml
Grinder capacity	80 g (nuts), 60 g (coffee), 20 g (dried chili)
Number of speeds	2 speeds + Pulse
Bowl material	Glass
Blade material	Stainless steel
Main functions	Mixing, grinding, pulse
Safety	Safety lock, very sharp blades
Cleaning	Dishwasher-safe accessories
Included accessories	Glass bowl, 600 ml bottle, 300 ml bottle, grinder, lids, blade sets
Intended use	Mixing fruits, vegetables, ice cubes, grinding dry grains
Maximum liquid temperature	60 °C
Maximum continuous operation time	2 minutes (full load)
Cool down time before reuse	10 minutes minimum
Power supply	According to rating plate (voltage/frequency)
Maintenance and repairability	Contact authorized after-sales service

Frequently Asked Questions - Create 4 E4SB14ST ELECTROLUX

How to use the Create 4 blender?

After preparing the ingredients, pour them into the container (glass bowl, bottle or grinder). Attach the blade set and place the container on the blender base by turning clockwise until it locks. Plug in the appliance, then turn the knob to the desired speed (1, 2 or Pulse). For Create 3 models, hold down the push button. When finished, set to 0 and unplug.

What is the maximum capacity of the glass bowl?

The glass bowl has a maximum capacity of 0.6 L for smoothies and other recipes. Do not exceed the level indicated on the container.

Can I blend hot liquids?

No, hot liquids must not exceed 60 °C in the glass bowl or the take-away bottle. The grinder is also not suitable for hot or wet ingredients.

How to clean the blender?

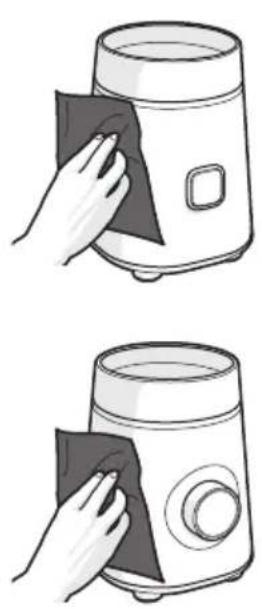

Always unplug the appliance before cleaning. The blender base is cleaned with a damp cloth, without immersion. The containers, blades and lids are dishwasher safe. Always detach the blade sets before washing and handle them with care.

What to do if the blender does not start?

Check that the appliance is plugged in and that the container is correctly locked on the base. The safety system prevents starting if the locking is not complete. Make sure the triangle and lock symbols are aligned.

Can I use the blender without the lid?

No, never use the appliance without the lid. This could cause splashing and injury.

What ingredients can I grind with the grinder?

The grinder is designed for hard, dry ingredients such as nuts, coffee beans, dried chili, sesame seeds, etc. Do not grind wet or hot ingredients.

How long can I run the blender continuously?

Do not exceed 2 minutes of continuous operation with maximum load. Then let the appliance cool down for at least 10 minutes before reuse.

How to use the Pulse function?

Turn the knob to the 'PULSE' position for short impulses. This allows you to quickly mix ingredients to reach the desired consistency, for example for crushing ice.

Can I remove the container while operating?

No, never remove the container while the blender is running. First stop the appliance (knob to 0) then unplug before removing the container.

USER MANUAL Create 4 E4SB14ST ELECTROLUX

Create 3 Sport Blender

Create 4 Sport Blender

Create 4 Compact Blender

User Manual

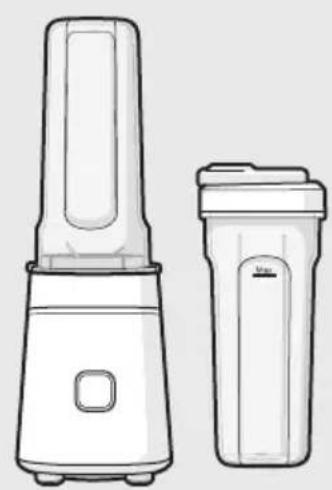

E3SB1-4ST

Line drawing of two kitchen appliances, one tall and one plain, with no text or symbols present.

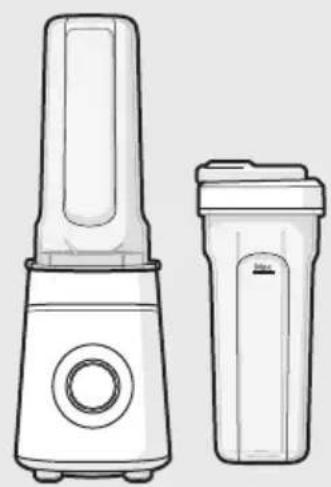

E4SB1-4ST

Line drawing of two kitchen appliances, one with a handle and circular vent, the other with a lid and handle (no text or symbols)

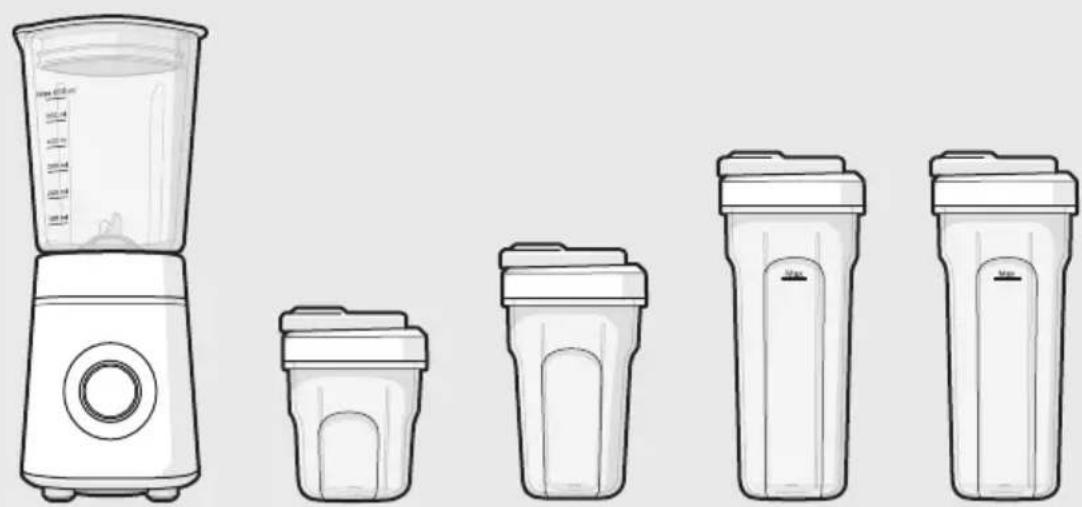

E4CB1-6ST

Line drawings of five different kitchen appliances, including a blender and four smaller containers (no text or symbols)

COMPONENT

HOW TO USE

Illustration of various kitchen cleaning and cleaning tools including a blender, water drop, and faucet (no text or symbols present)

Illustration of two hand cleaning a kitchen appliance (no text or symbols)

Illustration showing various kitchen cleaning and cleaning tools including a blender, water dispenser, and a blender with cleaning (no text or symbols)

2Glass jar Takeaway bottle Grinder
Smoothie	MAX0.6L	Max Speed90sec	Smoothie	600ml	300ml	Max Speed90sec	Caf fee bean	MAX60gr	Max Speed40sec
				MAX0.6L	MAX0.3L
			Ice crush	4-5pcs	4-5pcs	10x pulse	Nut	MAX80gr	Max Speed5sec
Ice crush	4-5pcs	10x pulse					Dried chili	MAX20g	Max SpeedON10sec3sec(x2)OFF
			Carrot Soup	Carrot240grWater360gr	Carrot120grWater180gr	Max Speed60sec	Fresh chili	MAX50g	Max SpeedON10sec3sec(x2)OFF
Carrot Soup	MAX0.6L	Max Speed60sec	Warm liquid(Max 60°C)	MAX0.4L	MAX0.2L	Max Speed60sec	Sesame seeds	MAX80g	Max SpeedON10sec3sec(x2)OFF

Illustrated guide showing a kitchen step with food preparation and food cuts, including a hand holding a knife and a bowl of chopped vegetables.

Simple line drawing of a kitchen sink with a pipe and two round objects on the ground (no text or symbols)

Illustration of hands holding a piece of bread with a ribbon (no text or symbols)

Illustration of a knife cutting a bowl with a knife, showing hands and food (no text or symbols)

Illustration of two piles of raw materials with a checkmark indicating selection (no text or symbols present)

4 Max 60°C

5 1 2

6 click

Illustration of an electrical plug with a screw and cable, showing a directional arrow (no text or symbols)

11 ↓ D

ON


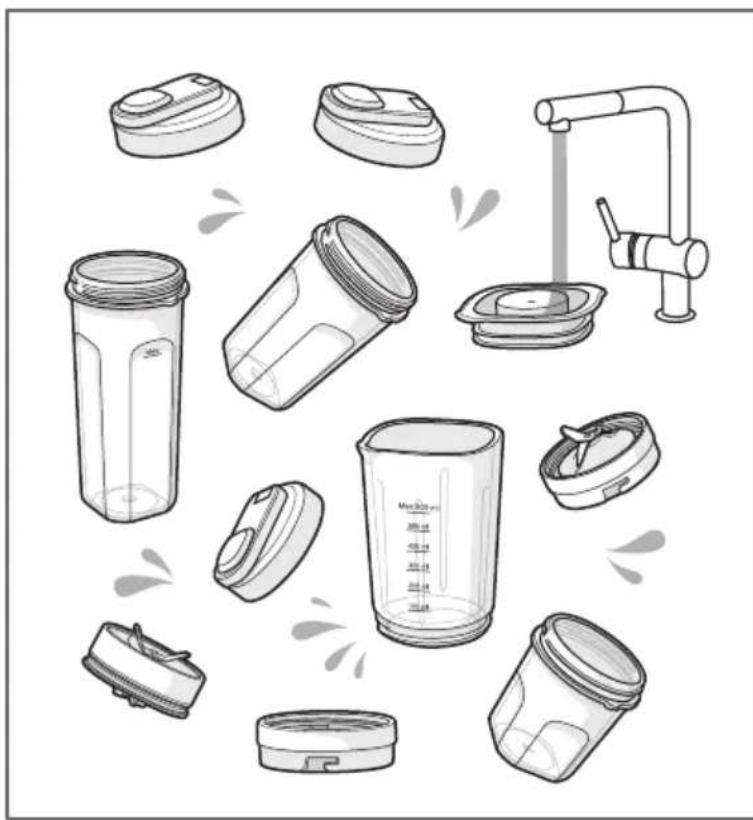

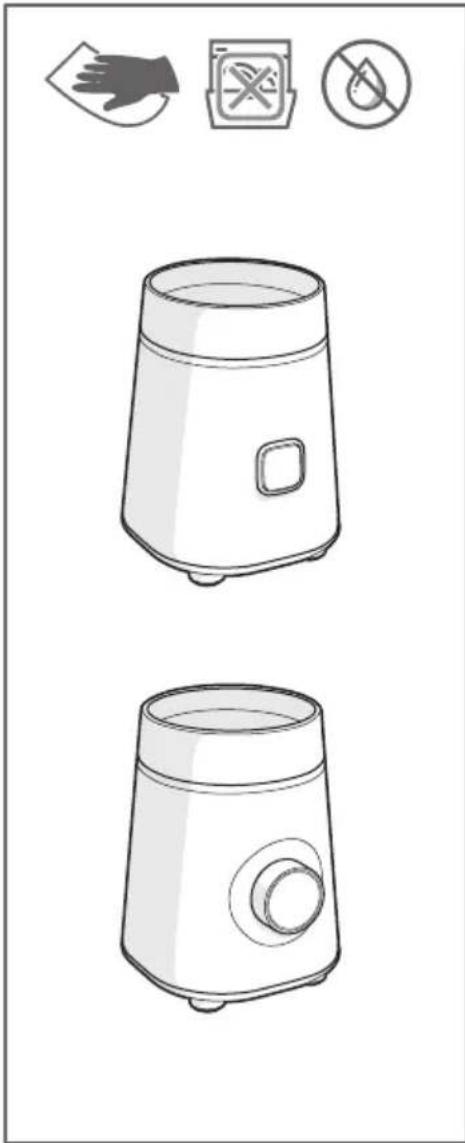

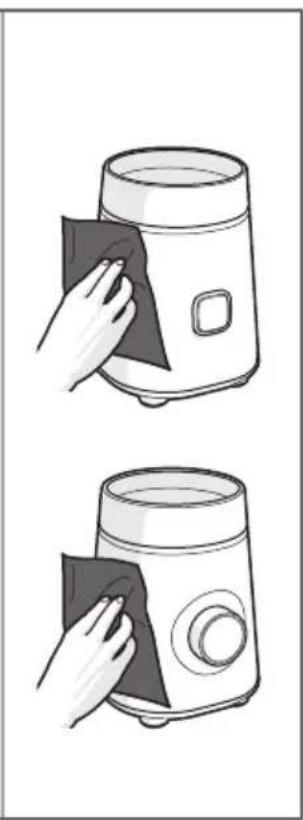

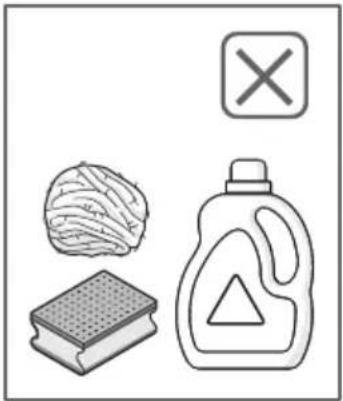

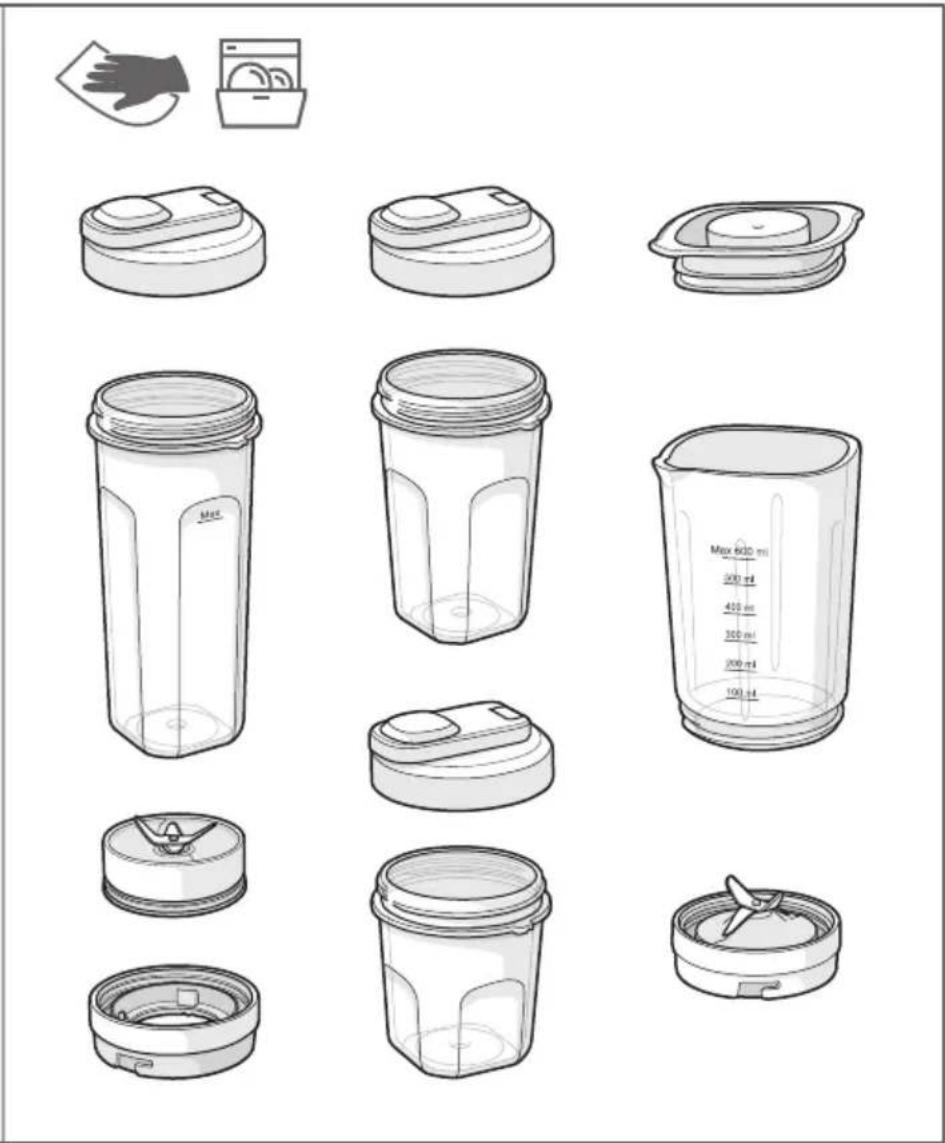

CLEANING AND CARE

Illustration of a plug inserted into a socket with a cable, showing a force direction (no text or symbols)

Illustration of various kitchen utensils including a blender, water dispenser, and kitchen sink (no text or symbols present)

Illustration of two hand-painted images showing a kitchen appliance with a cloth, no text or symbols present

Illustration of food items including bread, sponge cake, and a plastic bottle with a warning symbol (no text or labels)

Line drawings of two kitchen appliances with icons for gloves, a switch, and a leaf (no text or symbols on the devices themselves)

Illustration of various kitchen utensils and containers, including a hand holding a glove and a blender with Max 600 ml volume (no text or symbols on the objects themselves)

KORISNIČKI PRIRUČNIK

NÁVOD K POUŽITÍ

BRUGSANVISNING

INSTRUCTION BOOK

KASUTUSJUHEND

KÄYTTÖOHJE

NOTICE D'UTILISATION

BEDIENUNGSANLEITUNG

FELHASZNÁLÓI KÉZIKÖNYV

MANUALE D'USO

LIETOTĀJA ROKASGRĀMATA

NAUDOJIMO VADOVAS

BRUKERHÅNDBOK

INSTRUKCJA OBSŁUGI

MANUALUL UTILIZATORULUI

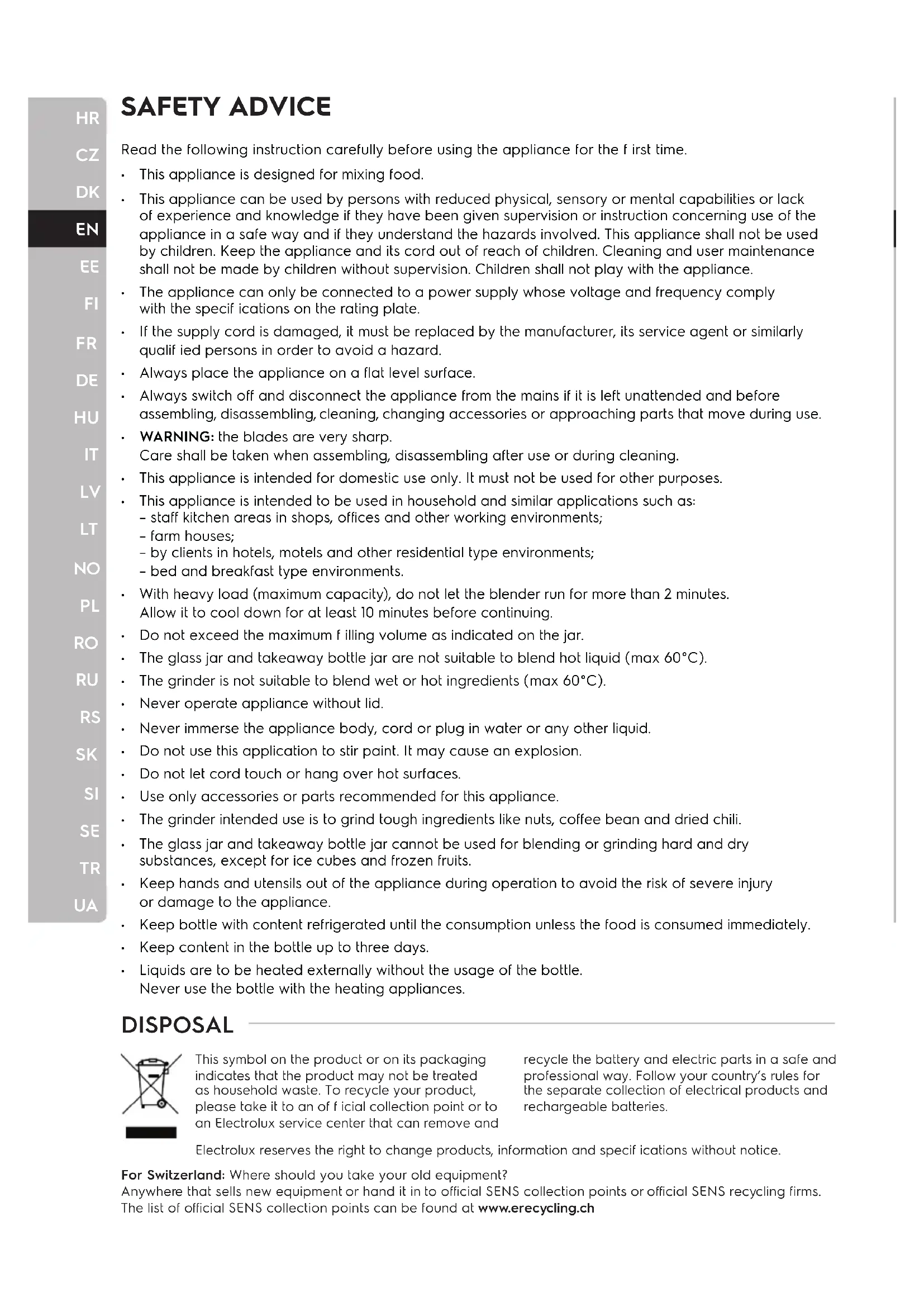

Read the following instruction carefully before using the appliance for the first time.

• This appliance is designed for mixing food.
- This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children. Cleaning and user maintenance shall not be made by children without supervision. Children shall not play with the appliance.
- The appliance can only be connected to a power supply whose voltage and frequency comply with the specifications on the rating plate.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Always place the appliance on a flat level surface.
• Always switch off and disconnect the appliance from the mains if it is left unattended and before assembling, disassembling, cleaning, changing accessories or approaching parts that move during use.
- WARNING: the blades are very sharp. Care shall be taken when assembling, disassembling after use or during cleaning.
- This appliance is intended for domestic use only. It must not be used for other purposes.
- This appliance is intended to be used in household and similar applications such as: - staff kitchen areas in shops, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.
- With heavy load (maximum capacity), do not let the blender run for more than 2 minutes. Allow it to cool down for at least 10 minutes before continuing.
- Do not exceed the maximum filling volume as indicated on the jar.
- The glass jar and takeaway bottle jar are not suitable to blend hot liquid (max 60°C).
- The grinder is not suitable to blend wet or hot ingredients (max 60°C).
- Never operate appliance without lid.
- Never immerse the appliance body, cord or plug in water or any other liquid.
- Do not use this application to stir paint. It may cause an explosion.
- Do not let cord touch or hang over hot surfaces.
- Use only accessories or parts recommended for this appliance.
• The grinder intended use is to grind tough ingredients like nuts, coffee bean and dried chili.
- The glass jar and takeaway bottle jar cannot be used for blending or grinding hard and dry substances, except for ice cubes and frozen fruits.
- Keep hands and utensils out of the appliance during operation to avoid the risk of severe injury or damage to the appliance.
- Keep bottle with content refrigerated until the consumption unless the food is consumed immediately.
- Keep content in the bottle up to three days.
- Liquids are to be heated externally without the usage of the bottle. Never use the bottle with the heating appliances.

DISPOSAL

This symbol on the product or on its packaging indicates that the product may not be treated as household waste. To recycle your product, please take it to an official collection point or to an Electrolux service center that can remove and

recycle the battery and electric parts in a safe and professional way. Follow your country's rules for the separate collection of electrical products and rechargeable batteries.

Electrolux reserves the right to change products, information and specifications without notice.

For Switzerland: Where should you take your old equipment?

Anywhere that sells new equipment or hand it in to official SENS collection points or official SENS recycling firms. The list of official SENS collection points can be found at www.erecycling.ch

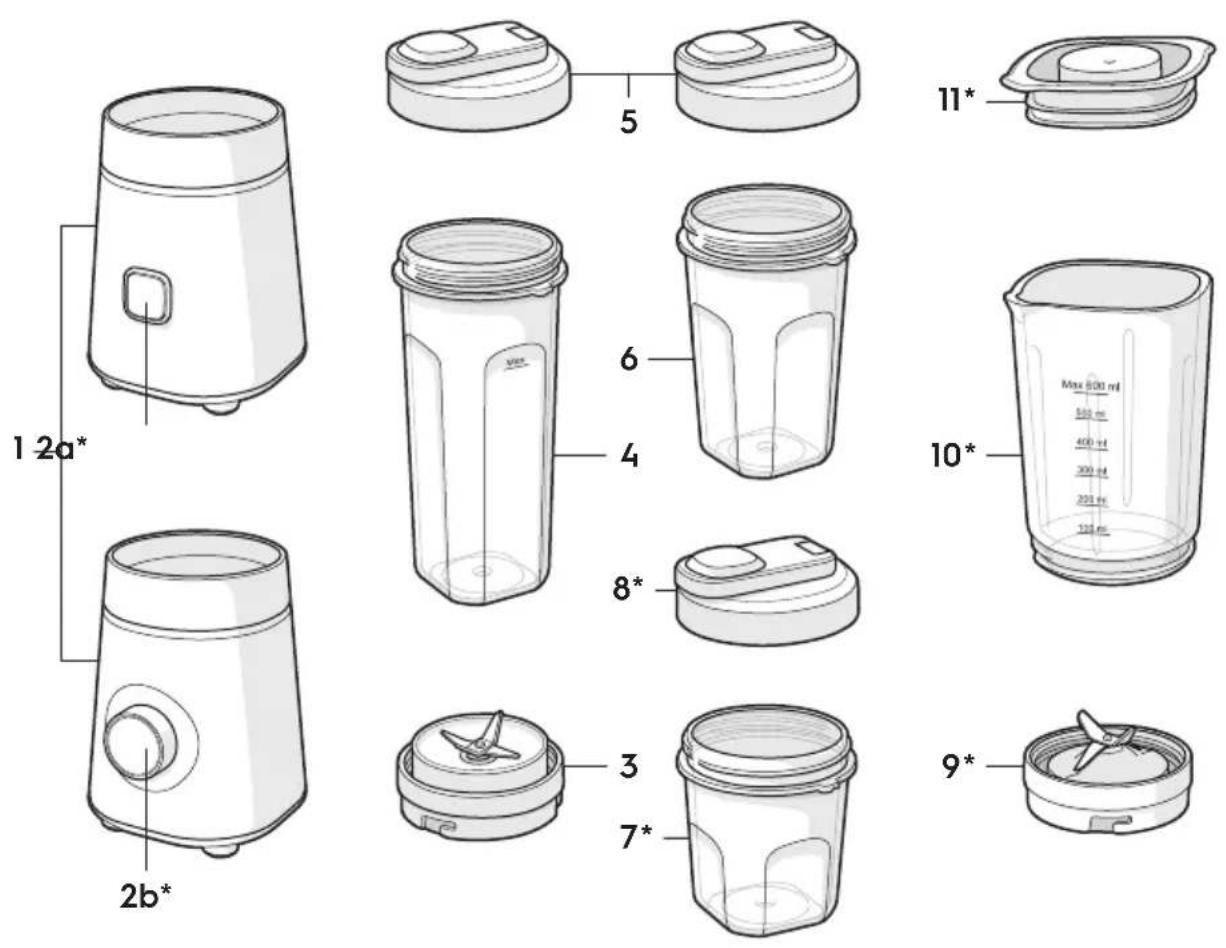

COMPONENT (picture page '2')

1 Blender base

6 Takeaway bottle jar (300ml) *

2a Easy Push Button*

7 Grinder jar *

2b Knob speed selector*

8 Grinder lid *

3 Takeaway bottle & grinder blade set

9 Glass jar blade set *

4 Takeaway bottle jar (600ml)

10 Glass jar*

5 Takeaway bottle lid

11 Glass jar lid*

* available in certain models only.

HOW TO USE (picture page '2-5')

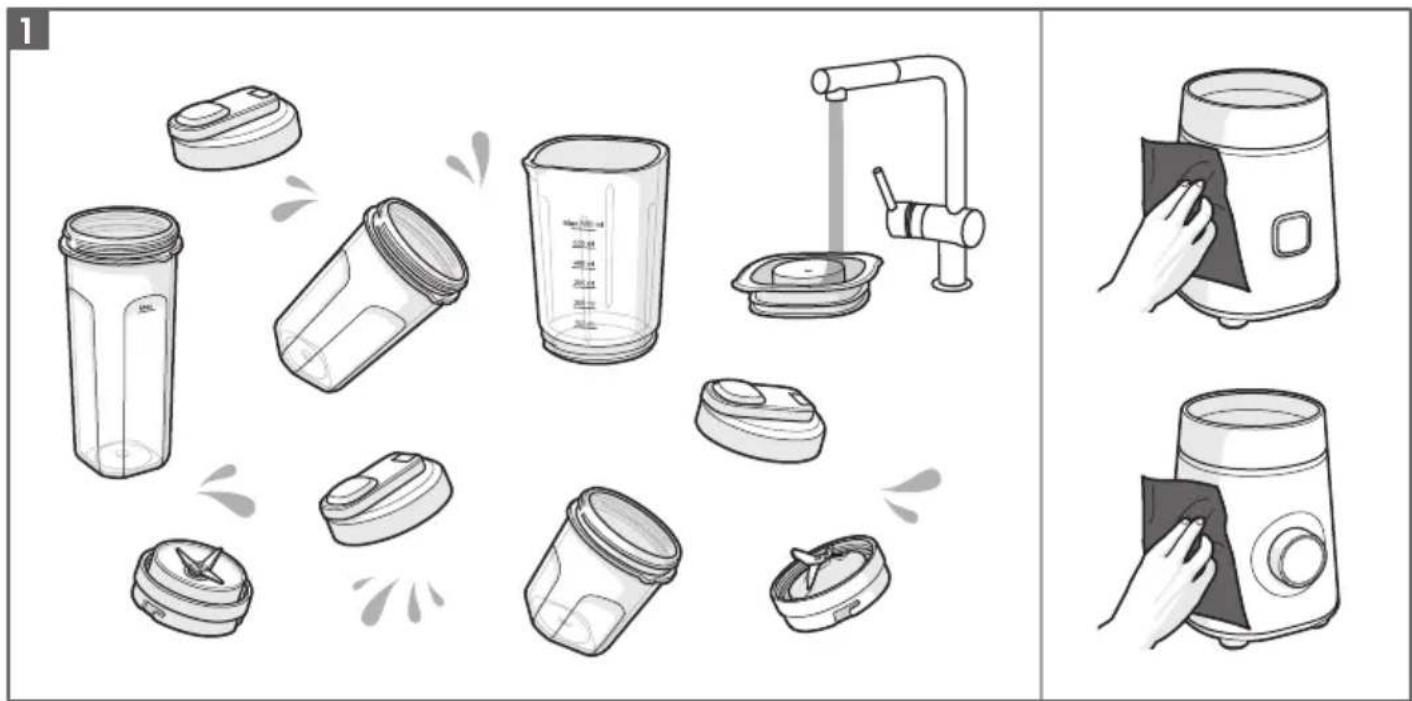

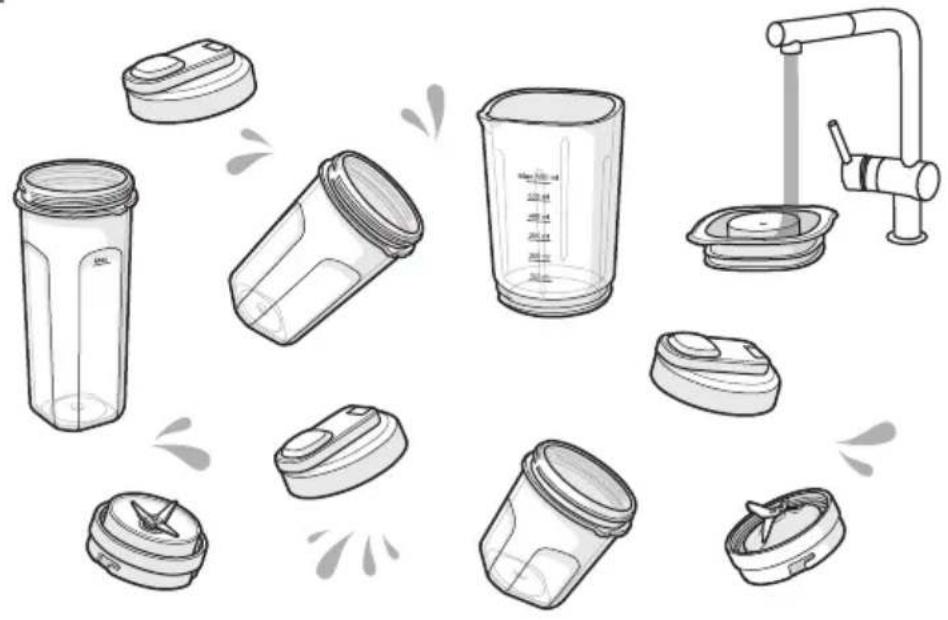

1 Cleaning-Make sure that you start with clean jar before use.

2 Maximum capacity and program/speed setting.

GLASS JAR

Recipes	Maximum capacity Recommended setting/program
Smoothie	0.6L Max speed for 90 sec
Ice crush	4-5 pcs 10x pulse
Carrot Soup	0.6L Max speed for 60 sec

TAKEAWAY BOTTLE

Recipes	Maximum capacity (600ml jar)	Maximum capacity (300ml jar)	Recommended setting/ program
Smoothie	0.6L	0.3L	Max speed for 90 sec
Ice crush	4-5 pcs	4-5 pcs	10x pulse
Carrot Soup	240gr carrot + 360gr water	120gr carrot + 180gr water	Max speed for 60 sec
Warm liquid (max 60°C)	0.4L	0.2L	Max speed for 60 sec

GRINDER

Recipes	Maximum capacity Recommended setting/program
Cof fee bean	60gr	Max speed for 40 sec
Nut	80gr	Max speed for 5 sec
Dried chili	20g	Max speed for 10 sec ON, 3 sec OFF (2 times)
Fresh chili	50g	Max speed for 10 sec ON, 3 sec OFF (2 times)
Sesame seeds	80g	Max speed for 10 sec ON, 3 sec OFF (2 times)

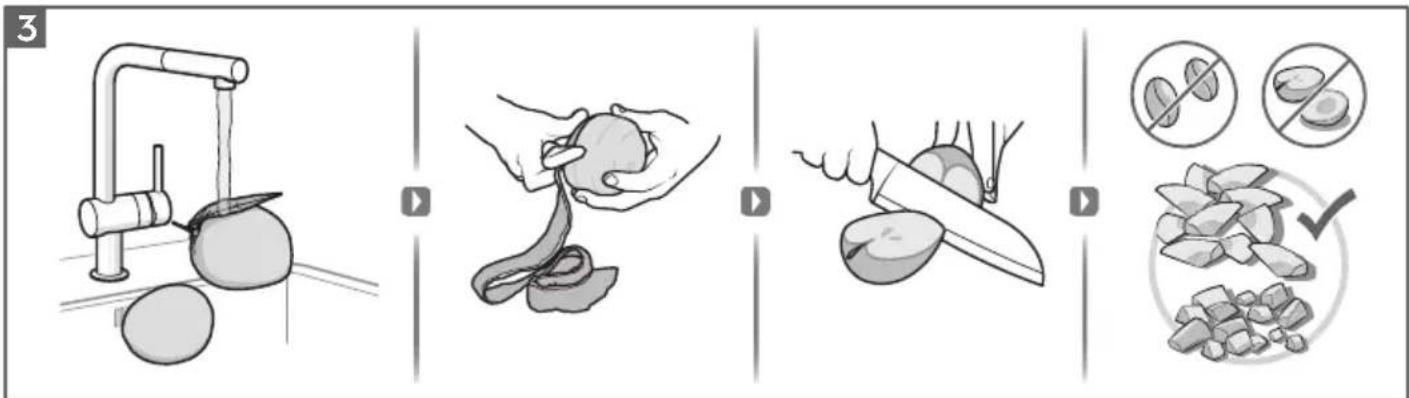

3 Prepare the ingredients by rinsing them thoroughly and cut them into 4 to 6 pieces and remove any hard or large seeds. Remove any thick peel from the fruit or vegetables.

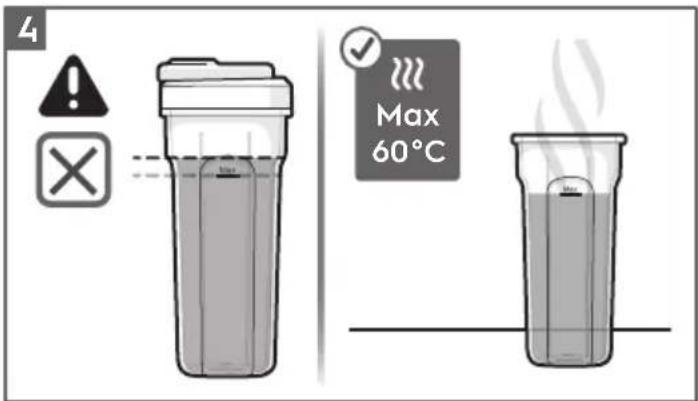

4 Fill in the ingredients in takeaway bottle jars (4,6).

WARNING! Do not exceed the maximum filling volume as indicated on the takeaway bottle jars (4,6).

WARNING! Takeaway bottle jars (4,6) are not suitable to blend hot liquid (max 60°C).

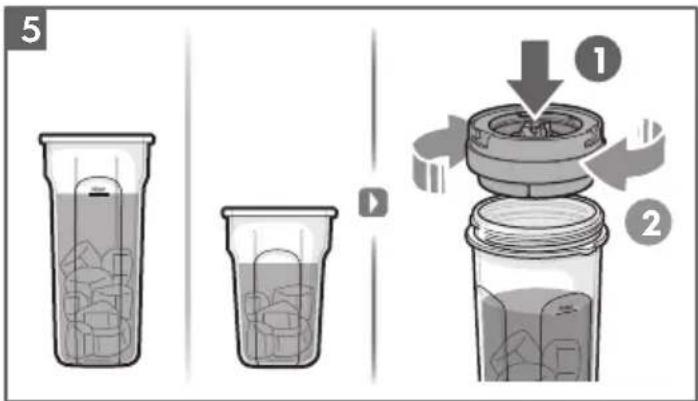

5 Fasten the blade set (3) on the open end of the bottle by turning it clockwise.

Turn the takeaway bottle jars with attached blade set upside down.

WARNING! The blades are very sharp!

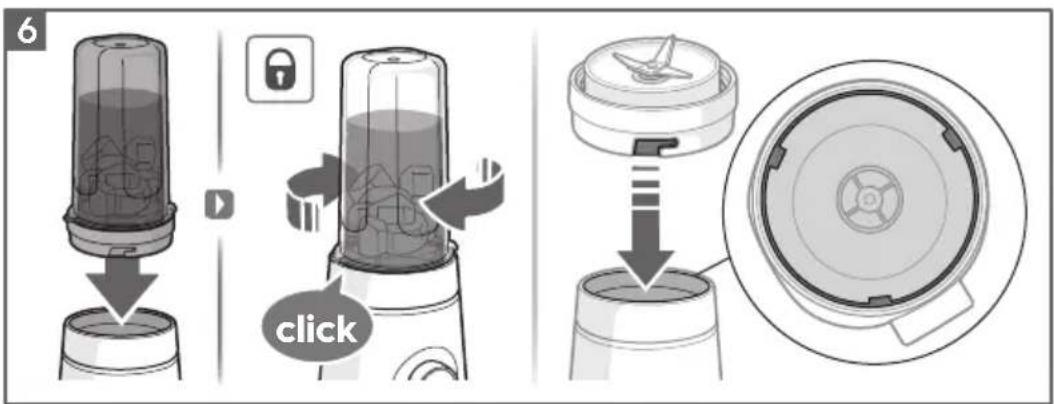

6 Push it down into the blender base (1) and rotate it clockwise until it locks into position.

WARNING! The appliance can't be turned on unless the jar is perfectly fitted on the blender base.

(The triangle symbol aligned with lock symbol on blender base)

WARNING! To reduce risk of injury, never place the blade set on the base without the bottle properly attached.

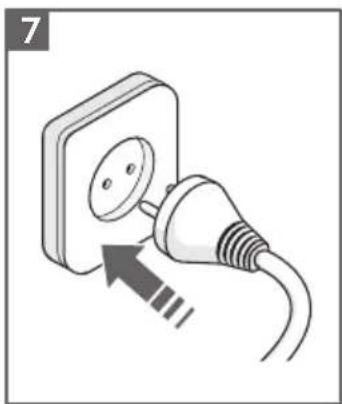

7 Plug into mains.

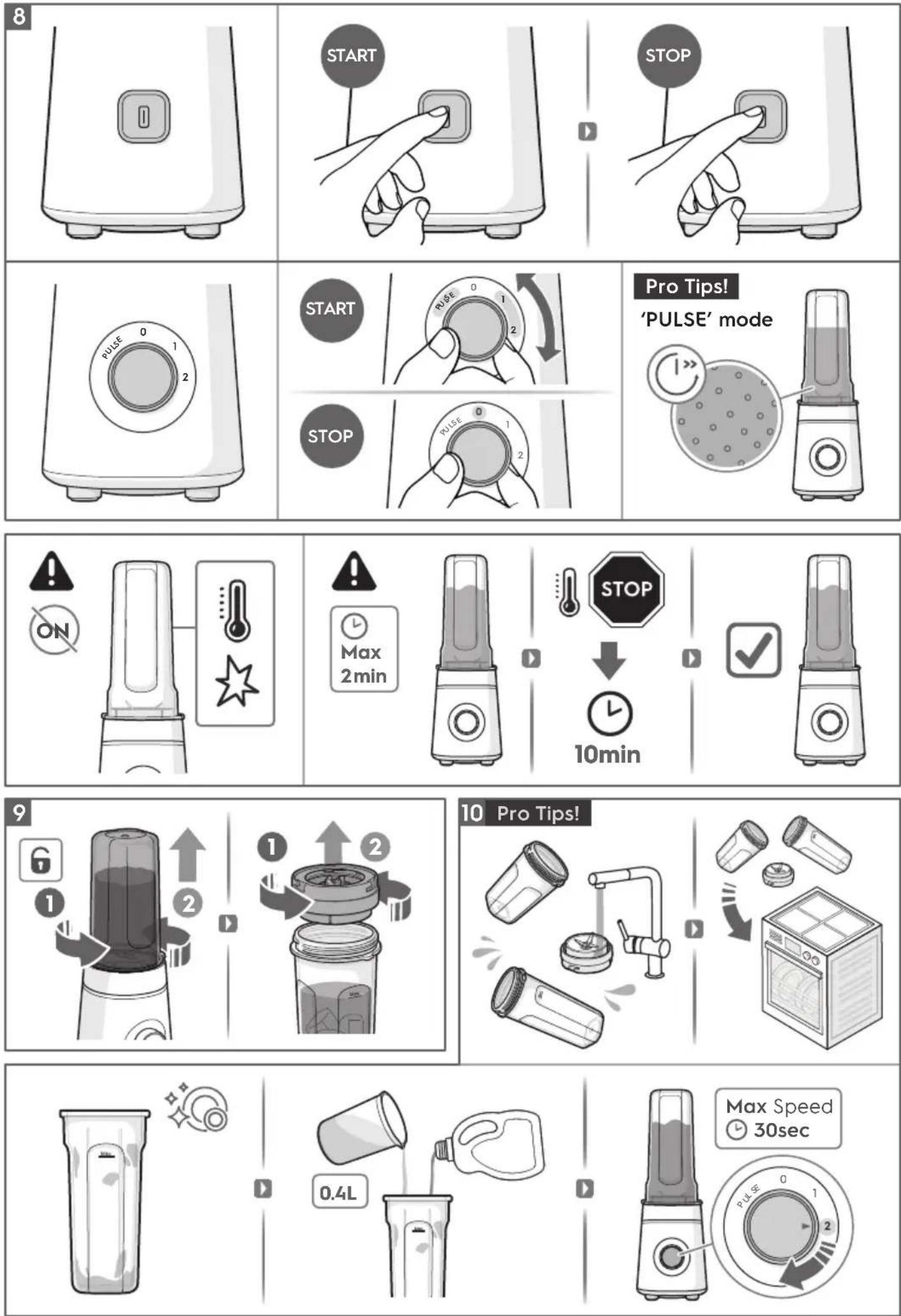

8 For Create 3 Blender (Easy Push button UI).

Push and hold the easy push button (2a) to start mixing. Once done, release the easy push button to stop mixing

For Create 4 Blender (Knob Speed selector UI).

Turn the knob (2b) to 1 or 2 according to recipe/preference (see no.2 speed setting). Turn the knob to "PULSE" for short burst of power. Once done, turn the knob to "0" to stop mixing. Pro Tips! With Pulse mode you can give the ingredients a quick mix to achieve your desired consistency.

WARNING! Never run the blender with heavy loading (max capacity) under setting 1 with takeaway bottle. Never run the blender empty and without any liquid.

Those can cause overheating and can damage the product.

WARNING! During operation, do not remove your jar from blender base. If it's necessary to remove the jar, please turn of f the appliance f irst then remove it.

WARNING! With heavy load (maximum capacity), do not let the blender run for more than 2 minutes. Allow it to cool down for at least 10 minutes before continuing.

9 Remove the jar (4,6) from blender base (1) by turning it counterclockwise and pull it of f. Take of f the blade set by turning it counterclockwise.

WARNING! Always take of f the blade set within 1 minute after blending to avoid hard disassemble afterwards.

10 Wash the components right after use in order to avoid drying of food residue on components.

Pro Tips! Always detach blade set from jar and rinse them clean even before placing it into the dishwasher. Fill the jar with 0.4L lukewarm water and dishwasher liquid then run MAX speed for 30 seconds for rinsing purpose.

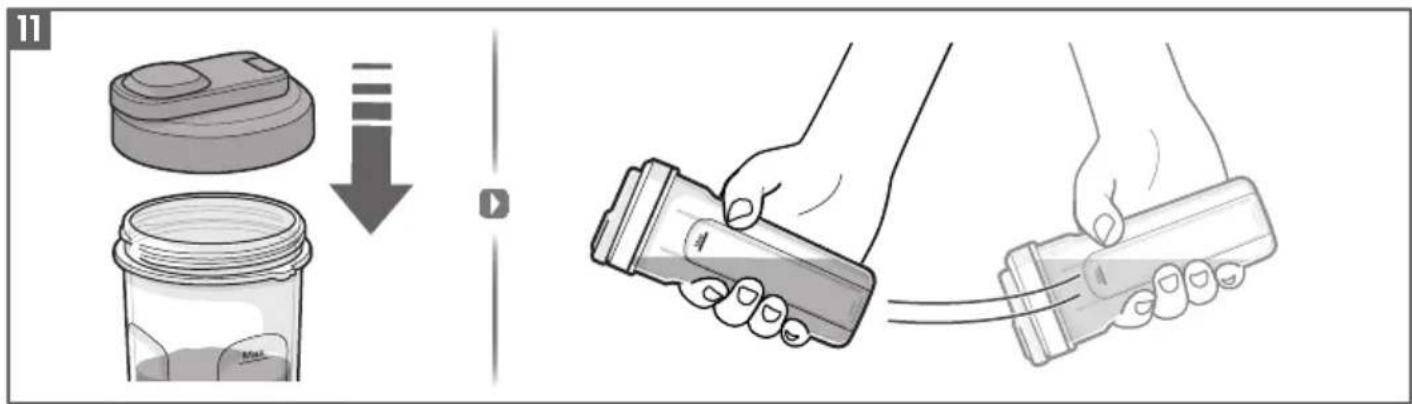

11 Attach the takeaway bottle lid (5) to enjoy your blending on-the-go.

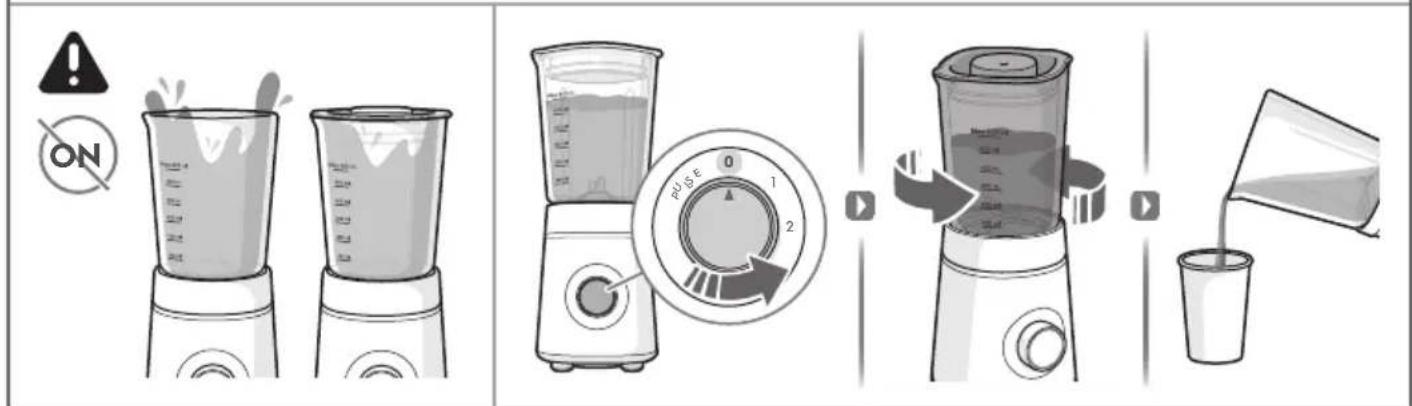

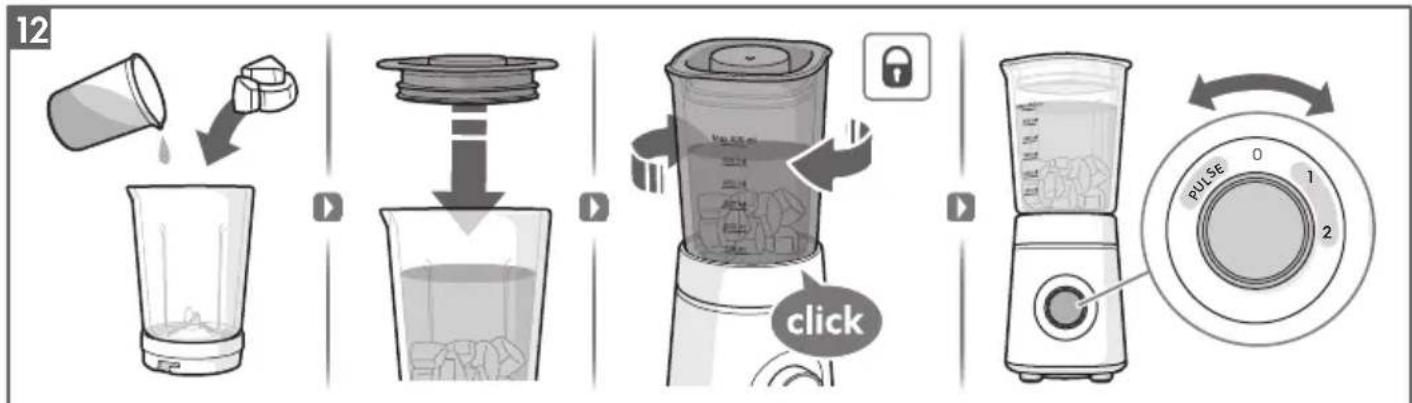

12 Using glass jar

a. Fill the ingredients in the glass jar (10).

b. Place the lid (11) on the glass jar (10).

c. Place the assembled glass jar on the blender base (1), Rotate it clockwise until it locks into position.

WARNING! The appliance can't be turned on unless the jar is perfectly fitted on the blender base.

d. Turn the knob (2b) to 1 or 2 according to recipe/preference (see no.2 speed setting).

Turn the knob to "PULSE" for short burst of power. Once done, turn the knob to "0" to stop mixing.

WARNING! Never operate appliance without lid (11).

Pro Tips! With Pulse mode you can give the ingredients a quick mix to achieve your desired consistency.

e. Remove the jar (10) from blender base (1) by turning it counterclockwise and pull it of f, then pour and serve.

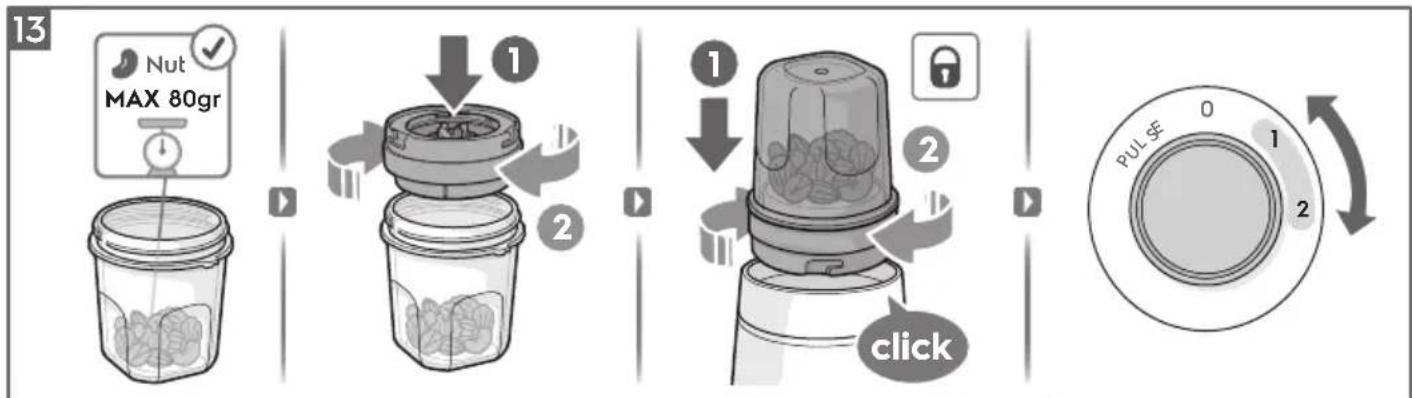

13 Using grinder

a. Fill the ingredients in the grinder jar (7).

b. Fasten the blade set (3) on the open end of the jar by turning it clockwise. Turn the grinder upside down.

WARNING! The blades are very sharp!

c. Push down the assembled grinder onto the blender base (1) and rotate it clockwise to lock until it clicks into position.

WARNING! The appliance can't be turned on unless the jar is perfectly fitted on the blender base.

(The triangle symbol aligned with lock symbol on blender base)

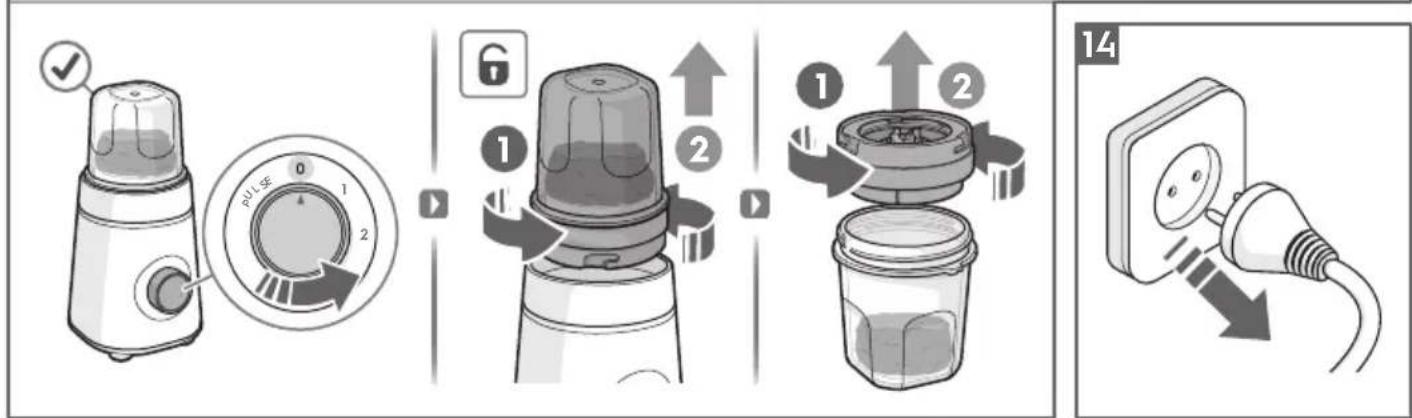

d. Turn the knob (2b) to 1 or 2 according to recipe/preference.

Once done, turn the knob to "0" to stop mixing.

e. Turn the assembled grinder counterclockwise to release it of f from blender base (1). Take of f the blade set (3) by turning it counterclockwise.

WARNING! Always take off the blade set within 1 minute after blending to avoid hard disassemble afterwards.

WARNING! Do not touch the sharp blade after grinding as it might be hot after several grinding cycles.

f. Attach the lid (8) to use the jar for storage.

14 Unplug the appliance.

CLEANING AND CARE (picture page '6')

Always unplug the appliance before cleaning.

1 Motor Housing. Never immerse the blender base in water! Clean it only with a damp cloth. Do not use abrasive cleaners, scouring pads or abrasive detergents while cleaning the appliance.
2 Jars* (4,7,10), blade sets * (3,9) and lids * (5,8,11) and measuring cup are dishwasher safe. If washing by hand, don't use wire brush, steel wool or bleach to avoid rust.

Notes: Always detach the blade sets (3,9) from jars for cleaning to ensure no leftover food stuck in between.

WARNING! the blades are very sharp. Handle carefully during cleaning.

* available in certain models only.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
You cannot activate or operate the blender.	Blender is not connected to electrical supply.	Check your home power supply and replug.
	The bottle and blade assembly are not installed correctly in the blender base. The safety interlock system prevents the machine to power on.	Make sure the blade set is fastened and the jar is perfectly fitted on the blender base. (The position symbol on jar base aligned with lock symbol on blender base)
	There is functional problem. Contact authorized service centre.
The blades stalls or machine stops during operation.	The motor is overheated. If the motor	stalls, turn the blender of f immediately, unplug the appliance and let it cool for at least 20 minutes.
	Ingredients are too large. Cut all firm	fruits and vegetables into pieces no large than 1.8cm^2 to 2.5cm^2 or reduce some food.
	Wrong ingredients. Glass jar and take away bottle intended use is production of beverages.Add fruits, vegetables or similar.Never mix ingredients such as dough, mashed potatoes, meat or similar.While grinder intended use is grinding tough ingredients like nuts, cof fee bean and dried chili.

OHUTUSTEAVE

RECOMANDARI PENTRU SIGURANTĂ

RECIPIENT DIN STICLĂ

Two identical plastic containers with lids and side cutouts, shown in line drawing style (no text or symbols)

2-in-1 Takeaway bottle 300ml (2 pcs)

Ref: ETBS1

PNC: 900 923 575

Line drawings of three different food containers: a microwave, a rectangular kitchen appliance, and a small cylindrical container (no text or symbols)

2containers

+vacuum pump

Ref: EVFK1

PNC: 900 923 309

Front view of a smartphone with control buttons and a small display (no text or symbols visible)

Bluetooth

Kitchen Scale

Ref: BKS1

PNC: 900 169 098
