USER MANUAL GXB2pro Schabus

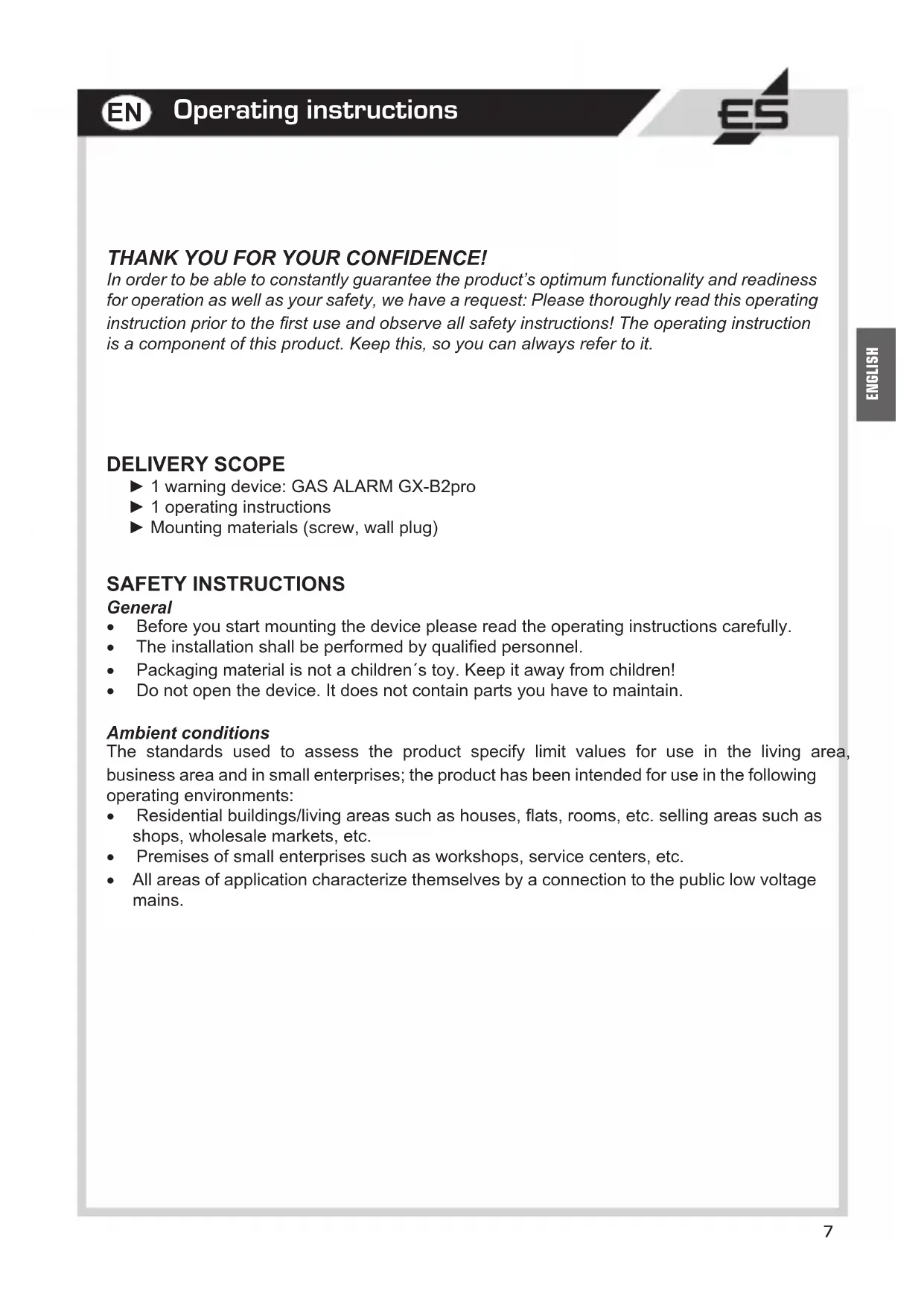

Operating instructions

GAS ALARM GX-B2pro - Item no. 300926 City, natural and liquid gas

In order to be able to constantly guarantee the product's optimum functionality and readiness for operation as well as your safety, we have a request: Please thoroughly read this operating instruction prior to the first use and observe all safety instructions! The operating instruction is a component of this product. Keep this, so you can always refer to it.

DELIVERY SCOPE

1 warning device: GAS ALARM GX-B2pro
1 operating instructions
Mounting materials (screw, wall plug)

SAFETY INSTRUCTIONS

General

Before you start mounting the device please read the operating instructions carefully.
The installation shall be performed by qualified personnel.
- Packaging material is not a children's toy. Keep it away from children!
- Do not open the device. It does not contain parts you have to maintain.

Ambient conditions

The standards used to assess the product specify limit values for use in the living area, business area and in small enterprises; the product has been intended for use in the following operating environments:

Residential buildings/living areas such as houses, flats, rooms, etc. selling areas such as shops, wholesale markets, etc.
- Premises of small enterprises such as workshops, service centers, etc.
- All areas of application characterize themselves by a connection to the public low voltage mains.

APPROPRIATE USE

The GAS ALARM GX-B2pro with external sensor is a gas warning device for city, natural and liquefied gases and can already deliver a warning at a gas concentration that lies well below life-threatening values. This monitoring system is, therefore, in line with its purpose, set to a very high sensitivity (see table TECHNICAL DATA). The alarm is signalled acoustically and optically. The unit is suitable for normal household use and may not be used in areas at risk of explosion.

Another use of the device as described above is not authorized.

TECHNICAL SPECIFICATIONS

Operating voltage: 230 (+/-10%) V AC / 50-60 Hz

Power consumption: approx. 3 W

Protection type: IP 20

Acoustic pressure sounder: 90 dB @ 10 cm

Type Sensor: catalytic

Operating temperature: 0^ / +40^

Storage temperaturer: -20 °C / +70 °C

Humidity (ambient): 5-90% RH (non-condensing)

Service life: 5 years

Cable length: 2.5 m

Cable 3,5 mm

Dimensions (HxWxD): 118x60x44 mm

Dimensions Sensor (HxWxD): 52x27x29 mm

Data diagram Sensor
Gas type Minimum concentration
CO no alarm triggered
Methane <5000 ppm (0,5%)
Propane (isobutane) <2000 ppm (0,2%)
Ethanol (acetone) <5000 ppm (0,5%)

INSTALLATION INSTRUCTIONS

The GAS ALARM GX-B2pro and the sensor may be installed only in dry, interior rooms and must be correctly placed according to the type of gas to ensure faultless operation of the alarm system.

It is essential to observe the prescribed sensor mounting height!

For your own safety and reassurance, please obtain information from your supplier regarding their gas type and its properties!

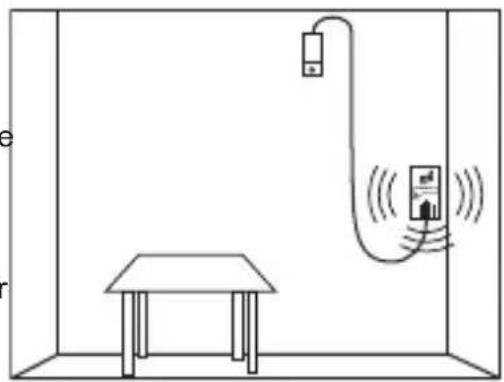

Placing of the sensor for city and natural gas (methane CH4):

Mount the external sensor at a height of 15-30 cm below the ceiling but no further than 4m from the gas appliance. Note that the sensor must be mounted above the highest door or window opening in the room.

City and natural gas (methane) are lighter than air and will therefore always rise.

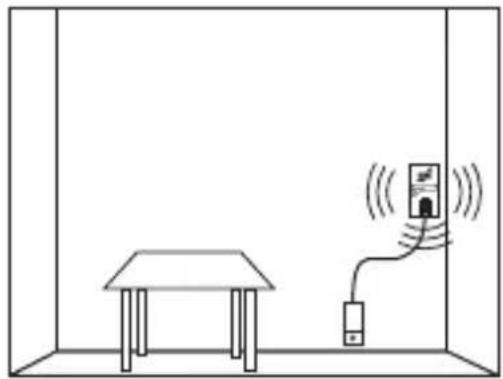

Placing of the sensor for liquefied gas (propane C3H8 / butane C4H10):

Mount the external sensor at a height of 15 - 30cm above the floor but no further than 4m from the gas appliance. Escaping liquefied gas is heavier than air and sinks to the floor. It spreads across the floor rather like water - but as a gas - and always seeks the lowest point.

The sensor may not be used in the following positions:

• places where the sensor is shielded from escaping gas (e.g. behind curtains or in cupboards)
  directly above hearths or points of combustion or over a wash basin or sink
• next to a door, windows, ventilator, fan, air conditioning unit etc.
  in areas where dust or dirt can prevent the sensor from working
  in areas at risk of explosion.

INSTALLATION

The GAS ALARM GX-B2pro is simply plugged into a 230V / 50Hz socket. The LED (Operate) flashes green. The sensor of the monitoring system needs a warm-up time of 3-5 minutes to achieve functionality. The LED (Operate) then lights up green and the GAS ALARM GX-B2pro is ready for operation.

TEST button

The test button is for checking the LEDs and the acoustic alarm and does not test the sensor itself. Please do not press the test button during the heating up period.

During the alarm, the alarm is muted with the TEST button and the LED (alarm) continues to flash red until no gas is detected.

FAULT

In the event of a fault, the LED (error) flashes yellow, e.g. in the event of a cable break or disconnected sensor. To rectify a fault, you must unplug the device, check the cable and sensor and plug the device in again. The preheating time starts over. If you cannot find the fault yourself, please contact Elektrotechnik Schabus.

ALARM

The device only triggers an alarm and the LED (Alarm) flashes red if the sensor has detected an elevated gas concentration for longer than 30 seconds.

WHAT TO DO IN CASE OF ALARM (or if you smell gas)

• Do not unplug the alarm unit
• Do not switch on any other electrical devices or appliances
• Do not ignite any open flame, turn off any open flame already lit
• Immediately open windows and doors and thoroughly ventilate the area or house
• Turn off the main gas feed and ensure that the cause of the gas escape is eliminated
• In the event of persistent/repeated alarm, contact your energy supply expert/adviser or the fire service.

FALSEALARM

The sensitive system sensor also responds to other gaseous media. The use of aerosols (gas propellant in hair, disinfectant, alcohol etc. sprays), as well as strong tobacco fumes (smoking card party) can lead to a false alarm.

FUNCTIONAL TEST

A simple functional test of the alarm unit can be carried out with butane gas from a cigarette lighter. A burst of gas (approx. 30 seconds), without igniting the lighter, triggers an alarm and the LED (function) flashes red. Disconnect the unit briefly from the supply and start the warm-up process again.

For your own safety and reassurance, we recommend that you carry out this test every month!

Regularly clean the sensor by blowing off any dust.

The date (month/year) is at the sensor for the next sensor examination. Please send the sensor to Elektrotechnik Schabus for the work examination.

GENERAL

Elektrotechnik Schabus GmbH & Co. KG is not liable for damages and/or losses of any kind such as individual damages or consequential damages brought about by the gas detector not issuing an alarm despite the presence of an elevated gas concentration.

CLEANING AND CARE

Avoid the effects of moisture (spray or rain water), dust as well as direct insolation on the device. Clean the device exclusively with a dry linen cloth; in case of heavy dirt accumulation, it may be slightly moistened. Do not use any detergents containing solvents.

DECLARATION OF CONFORMITY

The declaration of conformity can be obtained from our website: www.shop.elektrotechnik-schabus.de

WARRANTY

We grant an implied warranty on material and quality defects of your electronic product by Elektrotechnik Schabus from the date of purchase. Elektrotechnik Schabus will repair or replace your device free of charge on the following conditions:

• In case of implied warranty, the device has to be returned with the following documents: error description, proof of purchase as well as your address and delivery address (name, phone number, street, house number, postcode, city, country).
  Devices returned to Elektrotechnik Schabus shall be sufficiently packaged. Elektrotechnik Schabus will not take liability for any damage or loss during shipment.
• The device has to have been used in accordance with the operating instructions. Elektrotechnik Schabus will not take liability for any damage resulting from accident, abuse, modifications or carelessness.
• Elektrotechnik Schabus will not take liability for any loss, damage or costs resulting from the use of the devices or the accessory equipment.
  The warranty does not affect your statutory rights as consumer.

RETURN SHIPMENT

Should your device be defective, we offer you the following option:

Contact Elektrotechnik Schabus by

Phone [phone] / 67 49 79 - 0

Fax [phone] / 67 49 79 - 79

Email [e-mail]

ENVIRONMENTAL INFORMATION

For the production of the purchased product, natural raw materials had to be obtained and used. It may contain substances hazardous to health and the environment. In order to avoid the distribution of these substances in your environment and save natural resources, we ask you to use the appropriate take-back systems. Thanks to these systems, the materials of your product can be recycled in an environmentally friendly way, after its service life has expired. (WEEE-NO: 91394868)

The strike-through wastepaper basket symbol reminds you of the use of these systems.

Should you wish to obtain more information on collection, reuse and recycling systems, please refer to the waste advisory service in your city. You may also refer to us to obtain more information on the environmental compatibility of our products.
