Biky - Bike Berg - Free user manual and instructions

Product type	Balance bike
Brand	Berg
Model	Biky
Recommended age	2 to 5 years
Maximum user weight	30 kg
Frame material	Powder-coated or black zinc-plated steel
Tire type	Pneumatic (air)
Brakes	None
Steering adjustment	Two options: stability (A) or maneuverability (B)
Assembly	Adult required
Frame warranty	2 years (extendable by registration)
Warranty on other parts	2 years
Wear parts excluded	Tires, chain (if present)
Frame maintenance	Regular cleaning, treat damaged areas with paint
Lubrication	Moving parts, acid-free
Bolt inspection	Before each use
Tire pressure	Indicated on tire, check monthly
Compatible accessories	Original BERG accessories available at www.bergtoys.com
Serial number	On the product frame
Safety	Adult supervision required, do not use on public roads

Frequently Asked Questions - Biky Berg

How to adjust the steering of the Berg Biky bike?

The steering offers two settings: option A for more stability and option B for more maneuverability. Refer to the manual for detailed instructions.

What is the recommended tire pressure?

The correct pressure is indicated on the tire sidewall. Check it regularly, especially in summer as pressure increases with heat. Too low or too high pressure can be dangerous.

Can I use this bike on public roads?

No, this product is not suitable for public roads. It is designed for use on private property and under adult supervision.

What is the maximum user weight?

The maximum allowed weight is 30 kg. Do not exceed this limit to avoid risk of damage or injury.

How to maintain the frame to prevent rust?

Store the bike indoors, clean it regularly, and treat damaged areas with paint. Use only acid-free substances for lubrication.

What to do if a tire is punctured or damaged?

Replace the tire immediately with an original BERG tire. Check for cuts, cracks, or bulges regularly. Damaged tires can cause accidents.

How to assemble the Berg Biky bike?

Assembly must be done by an adult following the instructions in the manual. Ensure the seat post is inserted to the correct depth (safety mark) and all bolts are tightened.

What is the warranty period?

The warranty is 2 years on the frame and other parts from the date of purchase. Register your product at www.bergtoys.com to benefit from an extended frame warranty.

Where to find the serial number of the bike?

The serial number is on the frame of the product. It will be required for any warranty claims.

Can I add non-Berg accessories?

Only original BERG accessories are recommended. They are designed to ensure safety and performance. Visit www.bergtoys.com for the range of accessories.

USER MANUAL Biky Berg

Line drawing of a three-wheeled tricycle with visible wheels and seat (no text or symbols)

85 115cm

Line drawing of a three-wheeled bicycle with visible wheels and seat (no text or symbols)

2.5-5
90·120cm

⚠ WARNING

Choking hazard - Small parts in its unassembled state

Adult assembly required

Keep the user manual for future reference

⚠ WAARSCHUWING

Illustration of three devices: a smartphone, a tablet, and a mobile phone, each with a QR code on screen (no text or symbols)

Go to the BERG toys channel on

Gray rounded rectangle with a white play button symbol in the center (no text or numbers)

YouTube

for installation instruction video's www.youtube.com/bergtoys

BERG

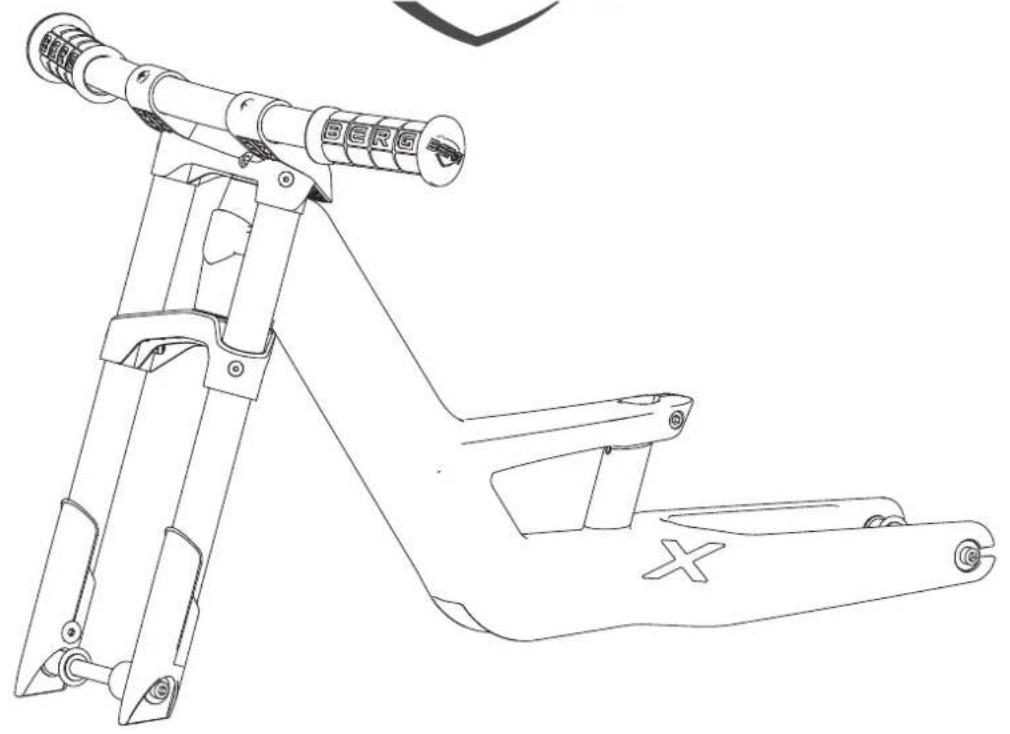

Line drawing of a mechanical device with a mounted cylindrical component and a triangular base (no text or symbols)

1

1x

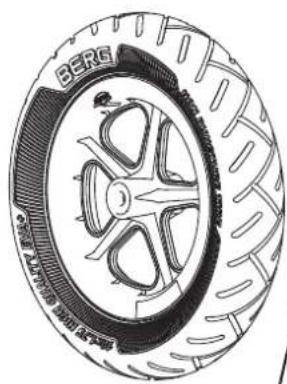

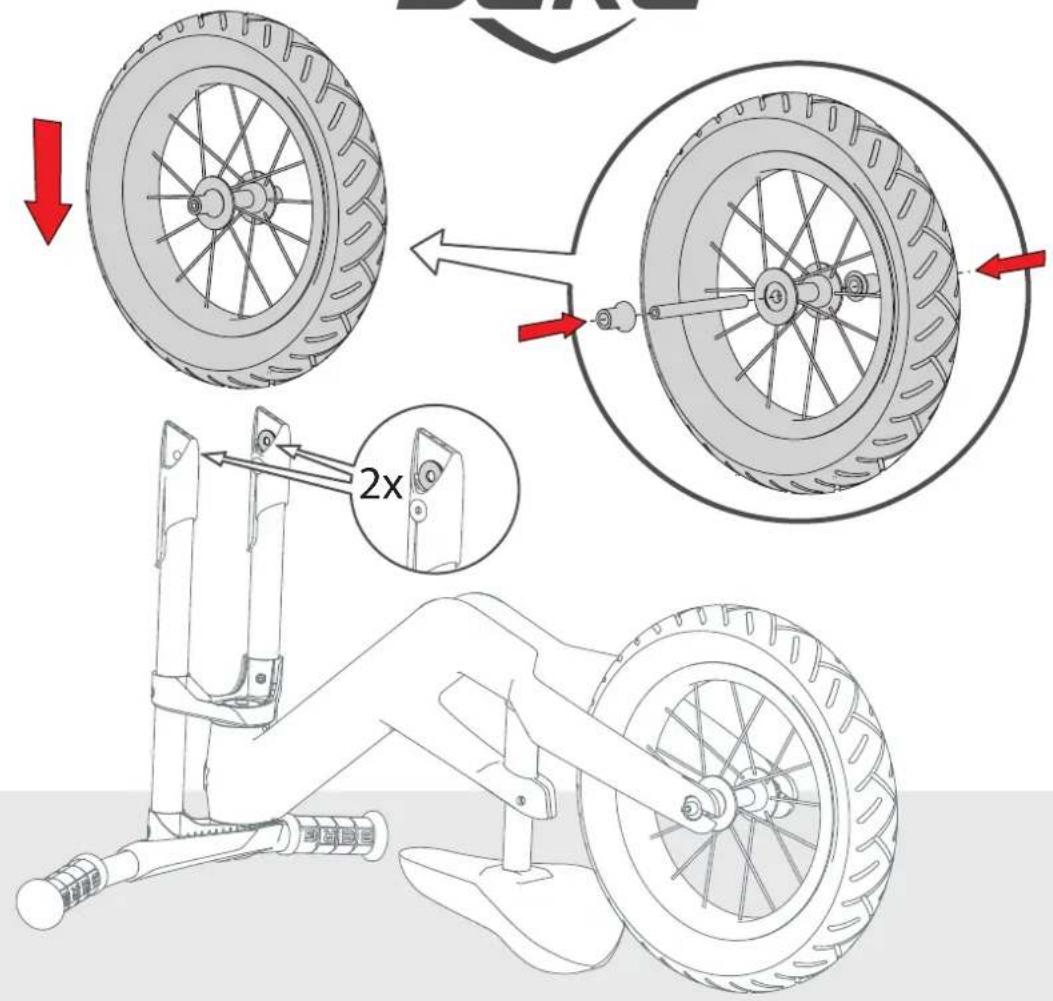

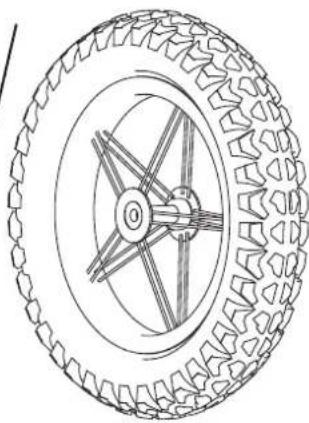

Technical line drawing of a tire with brand logo and tire tread pattern (no text or symbols)

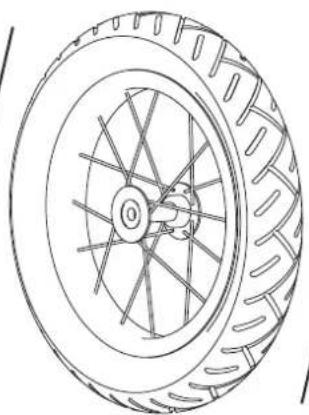

Line drawing of a bicycle tire with spokes and wheel rim (no text or symbols)

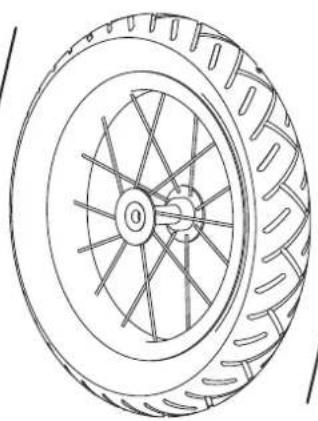

Line drawing of a bicycle tire with spokes and wheel rim (no text or symbols)

Technical line drawing of a tire with visible spokes and wheels (no text or symbols)

2

2x

Simple line drawing of a mushroom with a stem (no text or symbols)

1×3

1x52x4

BERG

BERG

5

6

BERG

7

BERG

8

9

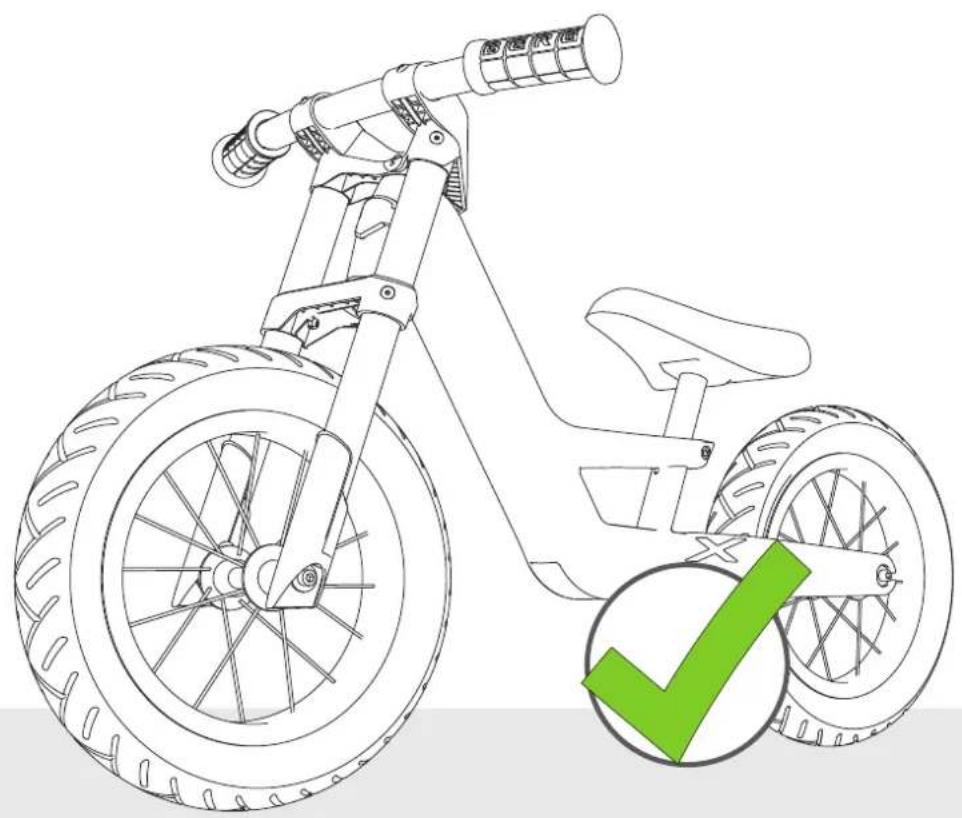

Line drawing of a tricycle with a green checkmark overlay (no text or symbols)

Introduction

Congratulations on your purchase of a BERG balance bike.

BERG strives to design and produce robust and safe products. Your choice for a BERG product means you have chosen a product that will give years of pleasure. Because of the continuous development of our products we retain the right to change product specifications without giving any notice.

Read the manual carefully for the required safety and maintenance instructions.

The BERG product has a long life span, but will need some maintenance from time to time. You will find the instructions for maintenance in this User's Manual. People who keep this in mind are guaranteed of a hardwearing toy that will last for many years.

Visit our homepage at www.bergtoys.com to find out more about BERG and see our products and accessories. You are warmly invited to send an e-mail to BERG, with your suggestions for improvement and other experiences. You can send these to [e-mail].

Content

1. Warnings!

2. User guidelines

2.1 Safety
2.2 User instructions
2.2.1 Before Use
2.2.2 During use
2.3 Restrictions for use

1. Maintenance

3.1 Maintenance scheme
3.2 Maintenance activities
3.2.1. Frame
3.2.2. Wheels / Tires
3.2.3. Steering
3.2.4. Plastic Parts

1. Warranty

4.1 Warranty period
4.2 Warranty regulation

1. Warranty

4.1 Warranty period
4.2 Warranty regulation

1. Warnings

• Adult supervision required.
  • This product may not be used on public roads.
  • This product has no brake.

- Be aware of loose hanging pieces of clothing such as scarves and shoelaces. These can become entangled in moving parts, which can lead to accidents.

- Never ride if you are under the influence of alcohol, drugs or medicines that can negatively affect your reaction time or powers of observation.

2. User guidelines

BERG or the dealer cannot be held responsible for improper use of this product. Read these guidelines before use to properly and safely use this product. BERG cannot be held responsible for any omissions in this manual.

2.1 Safety

Children (under 12) may only use the product under the guidance of an adult. Always pay attention to the highest possible safety measures. If you have questions or are not sure of something, then visit your local dealer or contact BERG.

2.2 User instructions

Only use your BERG product as instructed below. Any unauthorized use could result in serious injuries to the user and/or the product.

2.2.1 Before Use

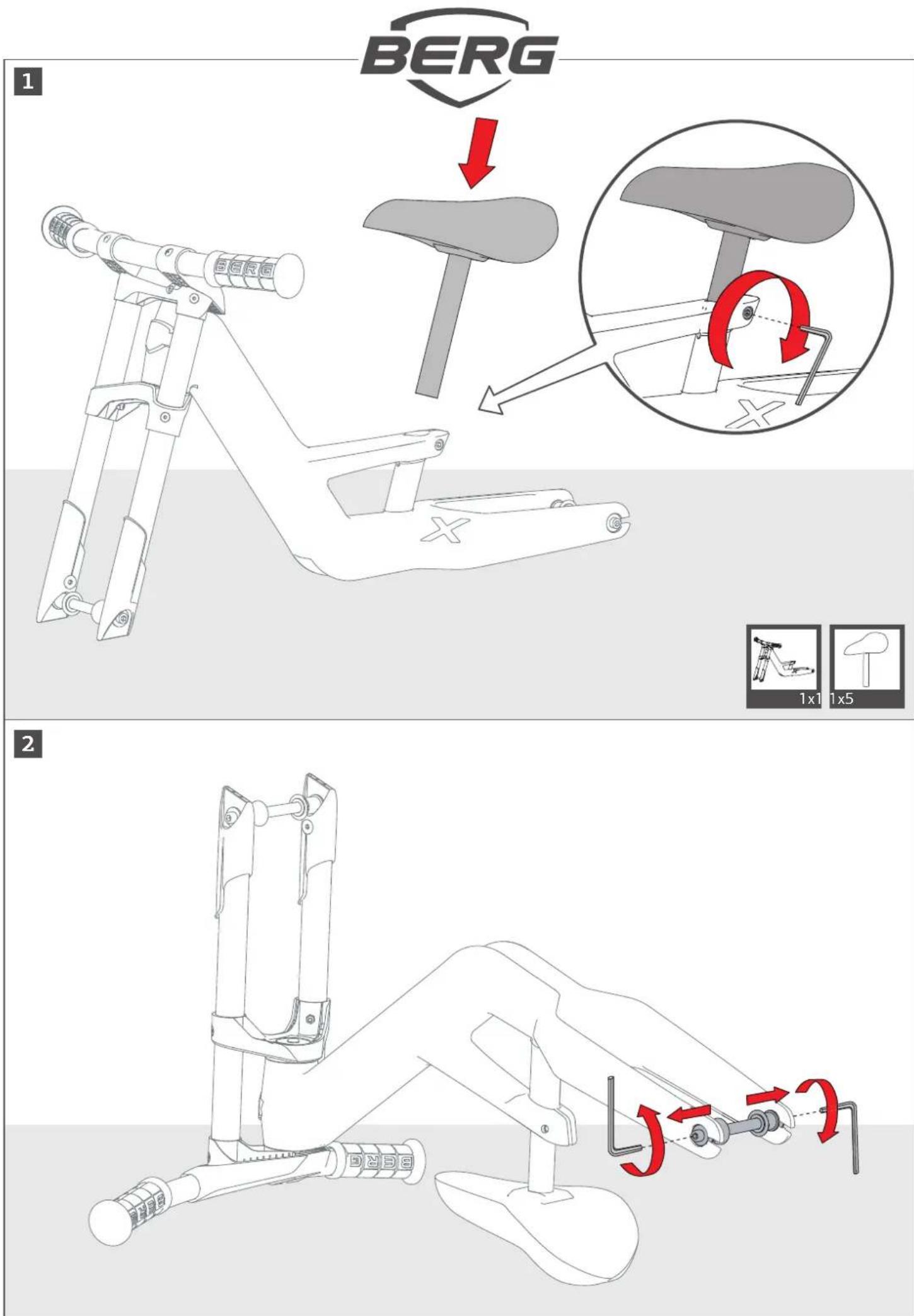

• Adjust the seat to the correct position, according to the size of the user.
• Make sure that the saddle pin is inserted deep enough. See marking saddle pin. Not doing this can lead to instability or coming off from the saddle.

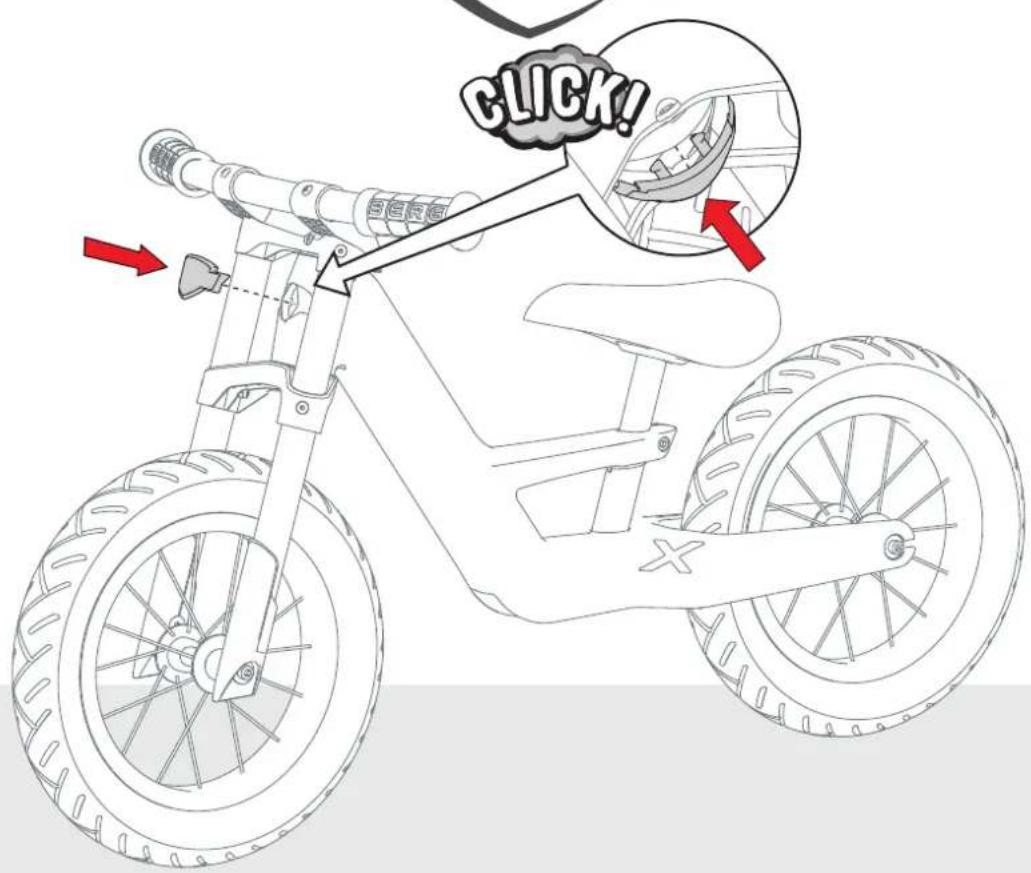

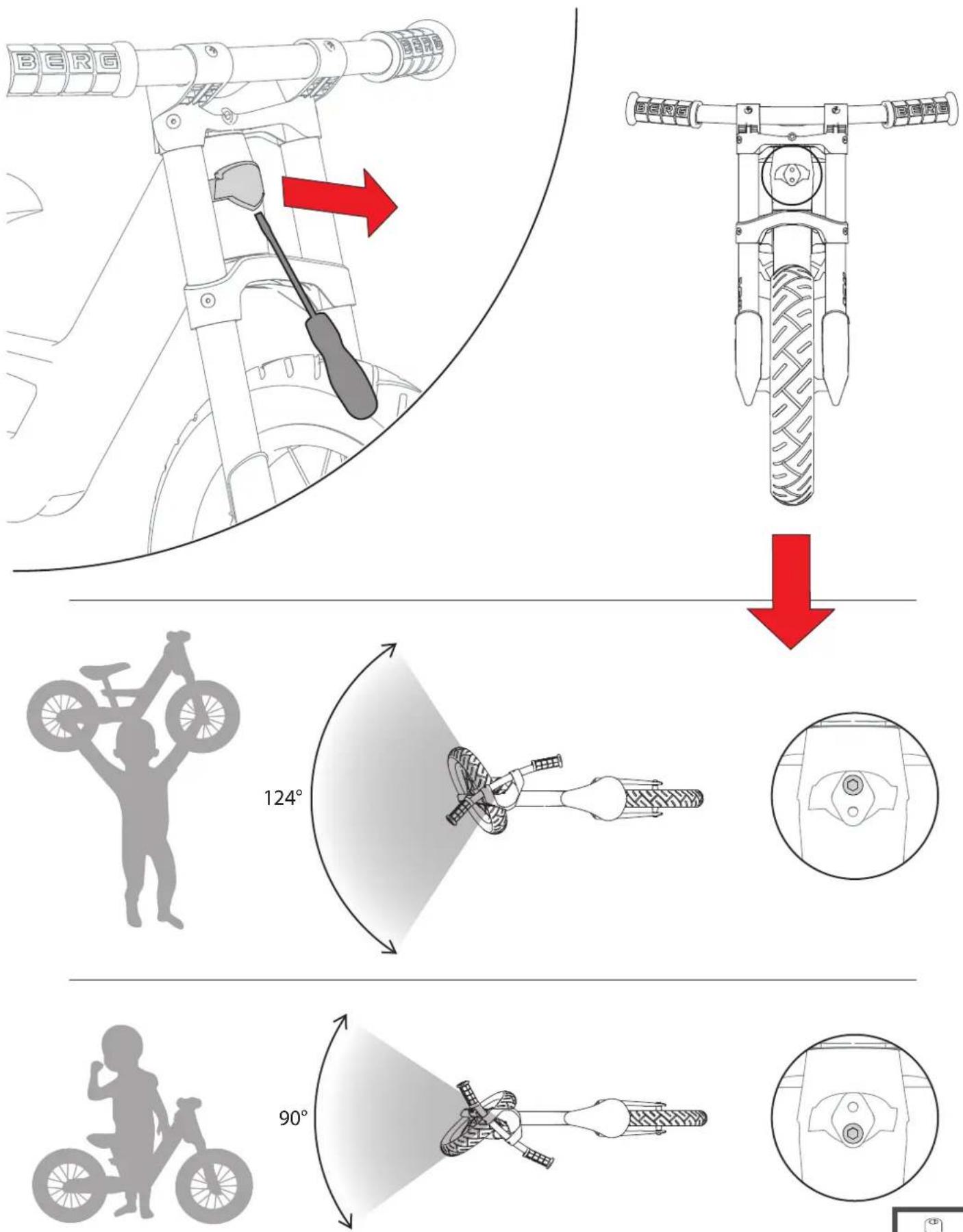

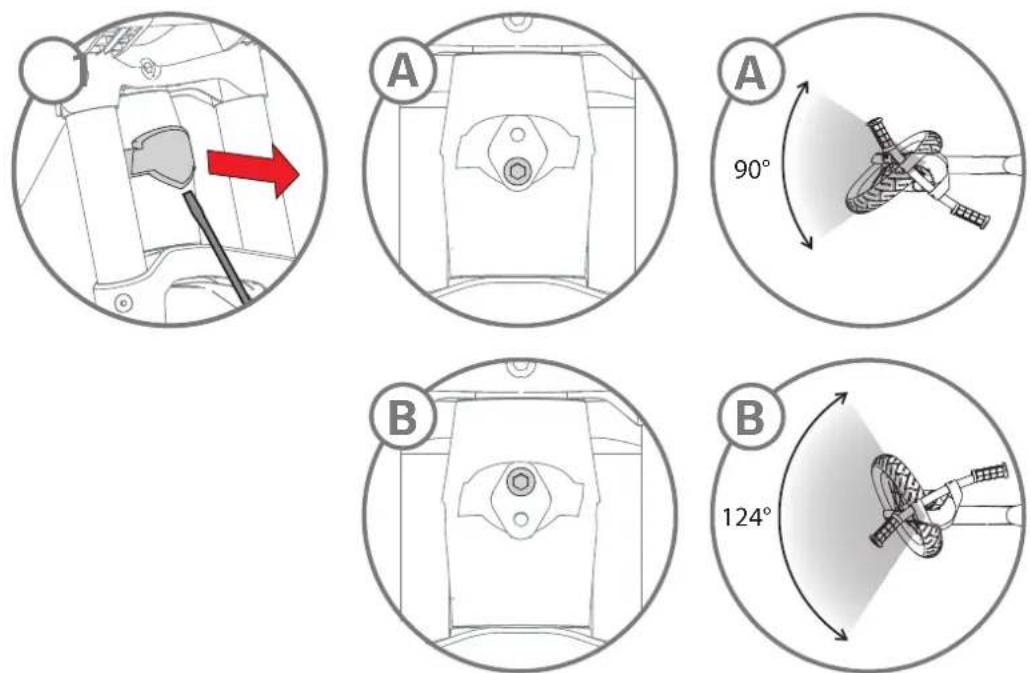

• The maneuverability of the BERG balance bike has two settings. This results in a different steering angle. See option A and B for this.

- Option A gives more stability, option B gives more maneuverability.

• Make sure the steering and tires are functioning correctly and the bolts and nuts are fixed.
• Protective covers, which have been removed for maintenance purposes, should always be put back in the original state before use.
• If your BERG balance bike has air tires, check if the tire pressures meet the safety standard as shown on the tire. The functioning of the steering depends on this.
• The adult is responsible for instructing the child how to operate this product.

2.2.2 During use

• The toy should be used with caution since skill is required to avoid falls or collisions causing injury to the user or third parties.
• Ride at an appropriate speed where you are in control.
• Going downhill considerably increases your speed and accidents can occur. The braking distance will also be longer! It is not allowed to use this product on hills or slopes (up and downhill), this could lead to a loss of control.
• Wearing protective gear is not mandatory but in the interest of safety it is advised.
• Do not place any unnecessary object on or against the steering wheel/bar. Make sure that the steering wheel/bar always functions properly.

2.3 Restrictions for use

• Do not ride backwards at great speeds. Doing this could make you lose control.
• Collisions or other stunts increase the chance of injury to both the user and the product and are not allowed.
• Avoid contact with moving parts while riding the product.
• Do not get on or off the product while it is moving
• Do not overload the product. Maximum user weight is 30 kg.
• Never ride in the dark without lights
• Only original BERG accessories may be used. BERG has a range of accessories with which you can adapt the balance bike entirely to your own wishes. You can find all the accessories at www.bergtoys.com.

3. Maintenance

Some maintenance is necessary in order to use the BERG product and have fun with it for a long time. This chapter describes how, how often, and which maintenance must be carried out.

3.1 Maintenance scheme

Daily Monthly Yearly
Wheels / TiresCheck for wearCheck the tire pressure and if necessary increase the pressure.	FrameClean and check all nuts and bolts.Check the frame for any cracks and fractures.SteeringCheck all nuts and bolts.Lubricate the moving parts.	Plastic PartsClean the plastic parts and check for damage.

3.2 Maintenance activities

3.2.1 Frame

The frame is powder-coated or black zinc plated. To prevent it from rust, it's important to store the balance bike indoors, and clean it regularly. If you want to conserve the frame with grease, only use acid free substances. You can treat damaged areas with paint.

Check the bolts and nuts for rust and replace them to prevent them from breaking which can cause injuries.

3.2.2 Wheels / Tires

Regularly check the rims and tires for any damage (for example cuts, cracks and bulges). Attention: damaged rims and tires can lead to accidents! The tires must not come into contact with oil, grease or fuel.

Check the tire pressure if your BERG balance bike has air tires. The correct tire pressure is shown on the outside of the tire. If the tires are at the correct pressure the product will be light and easy to handle. If the pressure is too low, the tires will leak quicker and will suffer excessive wear and tear. If the tire pressure is too high, the tire can for example come loose from the rim, resulting in dangerous situations. Attention: remember that in bright sunlight and at high temperatures the tire pressure increases!

3.2.3 Steering

The steering equipment must be checked every month for the following:

• Damage, rust, wear and tear.
- All the nuts and bolts must be tightened.

3.2.4 Plastic parts

The plastic parts must be checked regularly for damage and breakage.

In the case of breakage, do not use the product but immediately replace the part concerned with an original part, in order to guarantee the safety of the user.

4. Warranty

4.1 Warranty period

• The frame has a warranty of 2 years from the date of purchase.
- Other parts have a warranty of 2 years from the date of purchase.
- Parts that are liable to wear and tear (such as chains and tires) are excluded from warranty.
- Check www.bergtoys.com for extensive warranty regulations.

4.2 Warranty regulations

The owner of the product can only claim a warranty by presenting the original bill of the purchase. The warranty only applies to material and construction faults and with respect to this product or parts thereof. The warranty lapses if:

• The product is incorrectly and/or carelessly used.
- Use of the product is not in accordance with its purpose.
• The product is not assembled and maintained in conformance with the user manual.
• Technical repairs to the product are not carried out in a professional way.
- Parts mounted afterwards do not meet technical specifications of the product involved or have not been mounted correctly.
- Added parts or replaced parts are no official BERG spare parts or accessories.
• Deficiencies arise as a result of climate influences, such as rust or normal weathering of the paint work.
- The product has been used for rental purposes or in any other way made available to several unspecified persons.

Under no circumstances can BERG be held responsible for damage to the products (of parts thereof) as a result of:

• Incorrect adjustment/tightening of the steering, the steering mechanism and tires.
• Replacement of parts such as the tires not being carried out in time.
  Replacement of parts such as the tires not being carried out in time.

During the warranty period, all material and construction faults assessed by BERG will be repaired or replaced at the discretion of BERG.

The owner of the product can only lay claim under this warranty by returning to the company where the product was bought. Besides the complaint, take the product serial number and original purchase receipt with you. You can find the serial number on the frame of the product.

If the claim under the warranty is refused, all costs incurred must be paid by the owner.

The warranty is not transferable to third parties.

Introductie

Diagram of a car gear shift lever with a red arrow indicating direction (no text or symbols present)

Top-down schematic of a mechanical component with circular head and central hub (no text or symbols)

Technical line drawing of a mechanical component with a circular label (B) and no visible text or symbols.

Diagram of a vehicle gear shift lever inside a vehicle gear assembly, with a red arrow indicating direction (no text or symbols present)

Simple line drawing of a mechanical component with circular outline and labeled point A (no text or symbols beyond label)

Technical line drawing of a mechanical component with circular outline and labeled point B (no text or symbols beyond label)

Diagram of a car gear shift lever inside a vehicle, showing a red arrow indicating direction (no text or symbols present)

Top-down schematic of a mechanical component with labeled circular section (A), no text or symbols present

Top-down schematic of a mechanical component with circular outline and labeled point B (no text or symbols beyond label)

Diagram of a car gear shift lever inside a vehicle, with a red arrow indicating direction (no text or symbols present)

Simple line drawing of a vehicle's front view with circular outline and labeled point A (no text or symbols beyond label)

Top-down schematic of a mechanical component with circular outline and labeled point B (no text or symbols beyond label)

Diagram of a mechanical gear shift lever inside a vehicle gear assembly (no text or symbols)

Simple line drawing of a mechanical component with a circular label (A) and no text or symbols

Top-down schematic of a mechanical component with circular outline and labeled point B (no text or symbols beyond label)

Black-and-white photo of a child jumping joyfully in a circular pool, arms outstretched (no text or symbols visible)

Black-and-white photo of a person driving a small wheeled vehicle on a dirt track, surrounded by trees (no visible text or symbols)

Child riding a three-wheeled tricycle on a grassy field, surrounded by trees (no text or symbols visible)

PRODUCT REGISTRATION

Would you like free supplementary guarantee?\*

Don't forget to register your product online immediately! Go to www.bergtoys.com/registration. This will ensure your 3-year, 5-year (go-karts), 8-year or 13-year (trampolines) frame guarantee on your purchase.

*For the conditions, please visit www.bergtoys.com/registration

Wil je extra gratis garantie?\*

Illustration of a computer monitor displaying a document with a pen, symbolizing editing or writing (no text or symbols present)

www.bergtoys.com/registration
