| Product Type | Faucet |
| Brand | Berg |
| Model | Porta |
| Material | Brass |
| Finish | Chrome |
| Installation Type | Deck-mounted |
| Number of Handles | 1 |
| Valve Type | Ceramic disc |
| Flow Rate | 1.5 GPM (5.7 L/min) |
| Weight | 2.5 lb (1.1 kg) |
| Dimensions (H x W x D) | 12 x 8 x 8 in (30.5 x 20.3 x 20.3 cm) |
| Spout Height | 6 in (15.2 cm) |
| Spout Reach | 5.5 in (14 cm) |
| Number of Faucet Holes | 1 |
| Included Components | Faucet body, handle, mounting hardware, supply lines |
| Warranty | Limited lifetime |
| Certification | cUPC, NSF 61 |
| Maintenance | Clean with mild soap and water; avoid abrasive cleaners |
| Repair Parts | Available; contact Berg customer service |
Frequently Asked Questions - Porta Berg
How do I install the Berg Porta faucet?

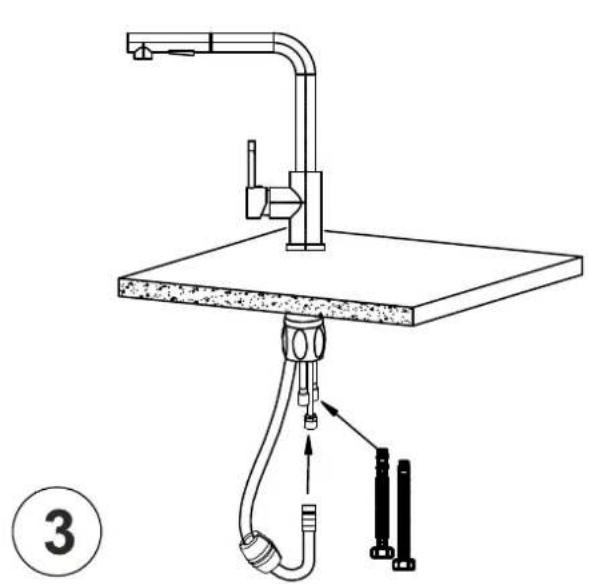

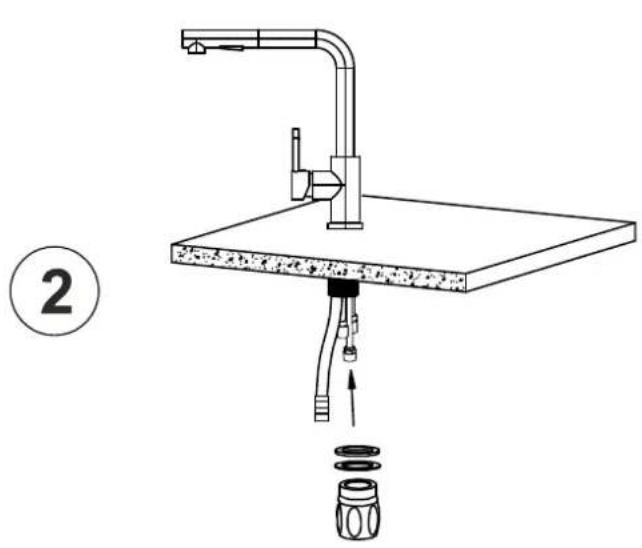

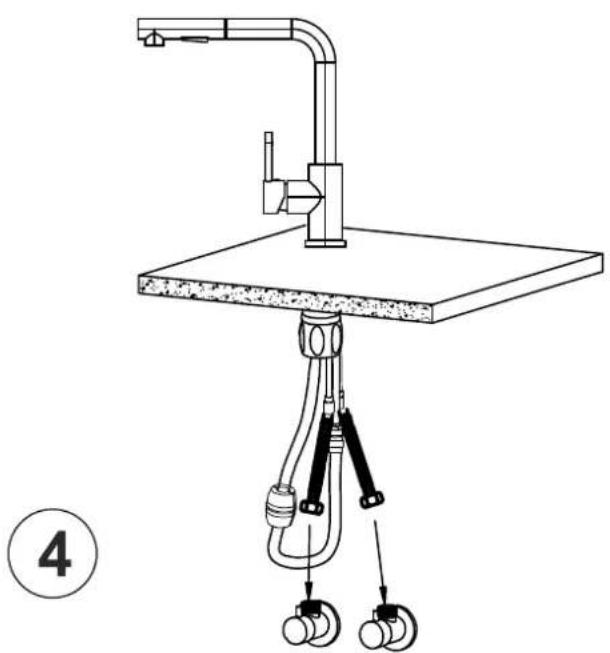

Installation is standard for deck-mounted faucets. First, turn off water supply. Insert faucet through the mounting hole, secure with nuts and washers from below. Connect the supply lines to hot and cold stops. Turn on water and check for leaks. Detailed instructions are in the manual.
What tools are needed for installation?
You typically need an adjustable wrench, basin wrench, screwdriver, and plumber's tape. Some installations may require a drill if holes are not pre-drilled.
How do I clean the Berg Porta faucet?
Use a soft cloth with mild soap and water. Rinse and dry thoroughly. Avoid abrasive cleaners or scrubbing pads that could damage the finish. For stubborn spots, a 50/50 vinegar-water solution can be used.
Is the faucet lead-free?
Yes, the Berg Porta faucet is made from lead-free brass and complies with NSF 61 standards for low lead content.
Why is my faucet leaking from the handle?
Leaking from the handle often indicates a worn cartridge or loose packing nut. Turn off water supply, remove handle, and tighten or replace the cartridge. Check the faucet manual for specific instructions.
Can I install the faucet on a granite countertop?
Yes, as long as a standard 1-3/8 inch hole is available. For granite, you may need a carbide-tipped hole saw to drill the hole. Ensure proper sealing with silicone sealant to prevent moisture damage.
What is the warranty on the Berg Porta faucet?
Berg offers a limited lifetime warranty on this faucet against defects in materials and workmanship. Coverage details are provided in the manual.
How do I replace the aerator?
Unscrew the aerator from the spout tip using pliers or an aerator key. Clean or replace the aerator screen. Reattach by hand-tightening; do not overtighten.
Does the faucet come with supply lines?
Yes, the Berg Porta faucet includes braided stainless steel supply lines (hot and cold) for easy connection.
Can I use the faucet with a tankless water heater?
Yes, the faucet is compatible with standard residential water systems, including tankless water heaters. Ensure the water pressure is within typical limits (40-80 psi).
User questions about Porta Berg
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Faucet in PDF format for free! Find your manual Porta - Berg and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Porta by Berg.
USER MANUAL Porta Berg

