USER MANUAL INNOMARK delta ACE

Each preestalyzer which you buy from ACE Instruments can also be calibrated by ACE Instruments. Of course, we also calibrate devices which were bought from other contractors, as long as these devices are identical in construction to the devices sold by ACE Instruments.

You can see the due date of the next calibration on the calibration sticker placed on your breathalyzer. If the sticker is missing, the calibration is to be done 6 months after the purchase date; e.g. purchase date: 13.05 = next calibration on the 13.11, and the next on the 13.05 of the following year.

I or a calibration service you can send the device to the service address specified at www.alkomatnet.

WHY IS A CALIBRATION NECESSARY?

The calibration is not mandatory, but the accuracy of the sensor installed in the breathalyzer will decrease steadily without a calibration and additionally guarantee expires, if you don't pay attention to the calibration ranges.

WHICH FACTORS INFLUENCE THE MEASUREMENT ACCURACY

• The more often the device is used the more the zero point is influenced.
• The higher the alcohol concentration is, the more the zero point is relocated.
  • Devices which are used rarely have a decreased sensibility, too.

ACE Instruments recommends using the breathalyzer at least once (1x) a week independently of having drunken alcohol or not. To maintain the measurement accuracy, the breathalyzer should also be calibrated periodically

PLEASE ALSO BE AWARE OF THE SEVERAL FACTORS OF INFLUENCE ON THE MEASURING RESULT

• Alcohol amount
  • Period of the consumption of alcohol
• Gender
• Age
  • Weight
  • le qnt
• Drinking habits
• Health state
  • Vitality of the liver
• Size of the lung
  • Admission of food during the consumption of alcohol
  • Influence of medicine

INNOMARK delta

BREATHALYZER

EN – Important Notes

IMPORTANT NOTES ON TEST EXECUTION AND SELF-ASSESSMENT

After the last sip of alcohol you should wait at least 15 minutes, as there may still be residual alcohol in the oral cavity, which influences the measurement result. Also smoking should be avoided before a test, as cigarette smoke harms the sensor.

For each test you should use a new mouthpiece – not only for hygiene reasons, but also because an already used mouthpiece can influence the next measurement result. The mouthpiece could contain residual a cone, which would affect the new test result when the same mouthpiece is used again (this for example could show an alcoholization of a person who hasn't drunken any alcohol).

If Err ^a appears on the display, the given breath sample was insufficient or ended too soon. Blow into the mouthpiece for about 4 seconds constantly (without a break) preferably as if you were whistling without a sound.

If the same person performs 2 tests consecutive y, then wait at least 3 m nules between the two tests, as a too short waiting time may cause different measurement results. The air oxaloed from the lungs is, after a test, no longer enriched with the same alcohol content as in the previous test. Therefore, an immediate second test will indicate a lower test result.

A I measured values determined with this breathalyzer are always indicative and not legally binding.

WHY THE ESTIMATED ALCOHOLIZATION AND THE MEASUREMENT RESULT IN MOST CASES CANNOT MATCH

An alcohol test is affected by a lot of different factors which also affect the test result. Beside the gender, age, body size and body weight, also the body fat percentage and the amount of body fluid have a big influence.

In addition, the general physical and mental state or the current daily constitution have to be taken into consideration. Furthermore, the meals eaten before a breath lost (type of content and level of the stomach) and the intake of medication may influence the measurement.

Other influencing factors are, of course, the type of drink (percentage of alcohol content in the beverage and its carbon dioxide and sugar content), the drinking rate and the individual subject's duration of alcohol build up or degradation in the body.

Some people quickly have a high alcohol content in the blood, with other people it takes longer until an alcoholization is detected. About 40-50% of the consumed alcohols in the body within 15 minutes, after 30 minutes it is 65% and after 70 minutes, no previous y consume alcohol s 100% absorbed in the body. However, it should also be noted that some people – partly due to genetic factors – quickly reduce the alcohol content in the blood, whereas others still have an increased alcohol content in the blood after a longer period of time.

INNOMARK WAIT BLOW LRC 8:00.0 ###/16#BACHBAC delta

BLOW 25 → BLOW 00

BLOW BLOW BLOW

Three identical line drawings of a trash bin with no text or symbols, each showing a cross-shaped opening and a circular base (no text or symbols present)

Hg Cd Pb

A information herein was created conscientiously and under the assumption of correctness. Hence, the author cannot be held liable for the use of any kind whatsoever and/or any ensuing consequences. Furthermore, the author is not liable for any costs or expenses for damage that result from any information in this document. Any information is subject to change without prior notice.

INTRODUCTION

Thank you for purchasing our INNOMARK cella Breathalyzer! It measures the alcohol concentration in human breath using an electrochemical sensor and calculates the blood alcohol level. The test results are very reliable and have a tolerance of - / 0.06% BAC (per mil = g/L) with reference to 0.50% BAC at 25^ ambient temperature. The measurements, results are displayed as 3-digit number with 2 decima s are are inoperable 1:1 (for example the display shows the value 0.36 - 0.36 per mill).

The sensor ins do the cov cc can be cal brated. To maintain the measurement accuracy of this device and the sensor warranty, i should be calibrated regularly. I or a calibration service you can send the device to the service address specified at www.alkomat.net.

The device must only be used pursuant to the instructions mentioned in this manual. All measured values determined by this brca.halyzer are always a guide only and are not legally binding. Broath tests should be carried out using clip on mouthp oocs (one new mouthpiece should be used per test for reasons of hygiene and to avoid falsified readings).

NOTE TO COUNTRY-SPECIFIC MEASUREMENT UNITS

Customers in the EU receive the pre-ethalyzer with % BAC (per mil) as default setting, in the UK the default setting is mg/L and in the USA, it's % BAC. In the chapter "Technical data," you will find information about the accuracy concerning the different measurement units. Please check

the website of the Department of Transportation, the website of the Ministry of Transport, or automotive clubs to become informed about the current alcohol limits in your country.

SCOPE OF DELIVERY

• 1 Digital IN NOMARK delta Breathalyzer with fuel cell sensor
• 10 Mouthpieces
• 1 Quick Start Guide (German & English)
• 1 Manual (German & English)

Note: Three (3) AAA alkaline batteries are required to use the instrument but not included.

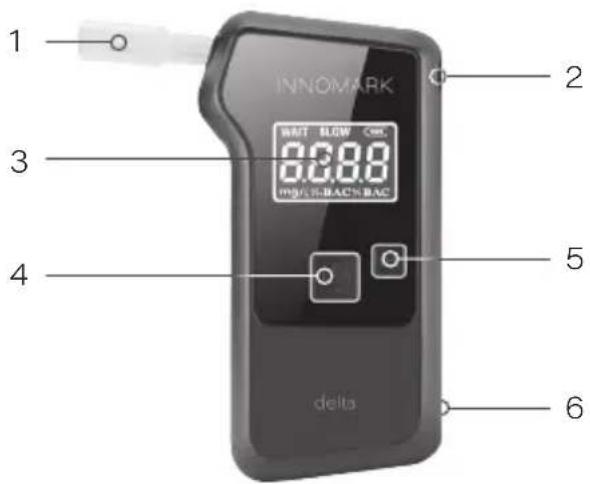

LABEL OF INDIVIDUAL COMPONENTS

INNOMARK WMT BLOW Cdc. 8:38.0 MOSI-BACK BAC delta 1 2 3 4 5 6

1. Mouthpiece and Mouthpiece slot
2. Air outlet (always keep this part unblocked)
3. Digital LC display
4. Power button (ON / OFF and Test)
5. M Key (to switch units between mg/L, g/L = ‰ BAC, % BAC)
6. Battery compartment cover and buzzer (on the back of the device)

EN – Operating Manual

INNOMARK

TIPS TO RECEIVE THE MOST ACCURACTE RESULTS

A) Wait at least 15 minutes after your last sip of alcohol.
Do not eat, drink, or smoke during that time.
B) Do not open the casing
C) Do not keep the breathalyzer in cold, hot, moist, or bady ventilated paces.
D) Keep the breathalyzer out of the reach of children.
E) Conduct three inlet tests after long storage before conducting the actual alcohol test.
F) Do not crop the breathalyzer
G) Charge the battery T it is depleted. Diminished battery capacity leads to incorrect test results
H) Do not conduct tests in loud (sound waves disrupt the sensor), drafty, or poorly ventilated places.
1) After a test result of 1.00 per mill (per mill - EU setting) / 0.10% BAC (% BAC = US setting) / 0.50mg/L (mg/L = UK setting) or higher the sensor needs rest time. In this case, wait at least three minutes before starting the next test.
J) Do not conduct tests in very cold, very hot, or an unventilated, smoky amolence.
K) Store the breathalyzer in a way to avoid penetration by dust or liquids.
L) Bowing too hard may cause damage to the sensor as saliva flows into it.

1. Slide the battery compartment cover (on the back of the unit) down and insert 3 AAA (alkaline, 1.5 V) batteries into the battery compartment. When inserting and replacing old batteries with now ones, always observe the polarity (+/ ) of the batteries
2. Place a mouthpiece on the side opening for attaching the mouthpieces (- the opening on the left side of the front of the unit). Make sure that the mouthpiece is tight. Use a new mouthpiece for each test person (for hygienic reasons and to maintain the accuracy of the measurement, as a used mouthpiece could contain residual carbon inside).

CONDUCTING THE MEASUREMENT

1. Sensor initialization

Turn on the device by pushing the Power button for 2 seconds. The sensor in tization will start automatically and reset the sensor into a better working state. The display shows the following picture:

Note: The sensor initialization time is determined dynamically.

• If the device was not used for a long period of time, the initialization time will be longer.
• During the use of the device, the sensor initialization time depends on the last test concentration. If the last test result was high, the initialization time will be longer in order to reset the sensor and make the test result more accurate, but the longest initialization time won't exceed 90 seconds.

Tip: Alarm level setting

During the sensor in realization mode, you can keep pressing the "V" button for 2 seconds and so you can enter the alarm level setting mode. Shortly press the "V" button to select the alarm level b2, b3, bb or b8. After the selection you can press the power button to start a new test.

EN – Operating Manual

INNOMARK

b2 b5

b3 b8

b2 Means alarm level is set at 0.20‰ BAC (= 0.020% BAC or 0.100mg/L)

b3 Means a arm level is set at 0.30‰ BAC (- 0.030% BAC or 0.150mg/L)

b5 Means a arm level is set at 0.50‰ BAC (= 0.050% BAC or 0.250mg/L) - default setting

b8 Means a arm level is set at 0.80‰ BAC (- 0.080% BAC or 0.400mg/L)

2. Breath sampling

After the sensor initial zation, "BLOW" flashes for about 25 seconds together with beep tones and the device is ready to test. Please carry out the measurement within this period. Blow continuously and without interruption through the mouthpiece for about 5 seconds, a long beep tone sounds continuously while blowing. Tip: Blow like you would whistle without, a lone (but without a break).

25 → 00

Only stop blowing when the beep tore stops together and when the dynamic progress bar is full displayed (see images below). When you hear two bees sounds and fee

the vibration of the motor, the breath sample was successful and the test result will be displayed accordingly. The following pictures show the dynamic progress bar display on the display while blowing:

• The device will put itself off automatically, if the user fails to start the blowing test within 25 seconds.
- "Err" will be displayed when the oblowing process is interrupted. You need to start a new test. If the test was successful you will see the test result (see e.g. the right, image below).

• As soon as the test result or „Err“ is shown on the display, you can press the Power button for a new test. If you keep pressing the button for 2 seconds, the device is put off.
• When "Tn" or the test result is shown on the display, the device will put itself off automatically if there's no any operation within 30 seconds
• As soon as the test result is shown on the display, you can press the "M" button to switch the measurement units between mg/l, % BAC or % BAC. The next test result will be shown in the unit you chose at last. The default setting of a new device is % BAC (g/l - per mill)
• When the test result is shown on the display, you can review the last test records (up to 10 records can be saved). Just keep pressing the "M" button for 2 seconds.

EN – Operating Manual

INNOMARK

3. Display of test result

If the test result exceeds the alarm level, the screen background turns red and flashes 10 times together with a beep sound. If the test result is lower than the alarm level, the screen background is blue.

• The reading range is 0.00% BAC - 4.00% BAC (= 4.00 g/L or 4.00 per mil).
• "4.00% BAC" will be shown if the reeding is higher than 4.00% BAC.
• "0.00% BAC" will be shown if the reacing is lower than 0.05% BAC.

For example, if the alarm level is set at 0.50% BAC (-0.05% BAC or 0.250mg/L), the test result will be shown as following

Unit Result analysis Alarm status
% BAK Result <0.50% BAC,no alarmResult ≥ 0.50% BAC,alarm		No alarmThe screenbackground isblue and alwayson.Alarm:The screenbackight is red,flashes 10 timesand at the sametime you can hoarse beep sound.
% BAK Result <0.050% BAC,no alarmResult > 0.050% BAC,alarm
mg/L Result <0.250mg/L, noalarmResult > 0.250mg/l ,alarm

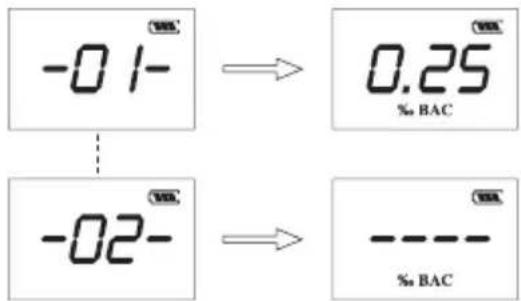

4. Test records review

When the test result is displayed, you can press the "M" button for 2 seconds to enter the memory mode. Then shortly press the "M" button repeatedly to review the last stored records (maximum 10 records), the number of each record and its test reading will flash on the display alternatively.

For example, if the first record is 0.25% BAC, then "0" and the BAC reading "0.25" flashes alternatively, "no second test result is stored, then the display shows"—", (see following images).

-0 1- → 0.25 % BAC -02- → --- % BAC

Memory mode

Note: The stored record is FIFO (first in first out), so the tenth record will overwrite the first one and so on. AI records will be deleted automatically if the batteries are removed or reset the device.

If you opened the memory recall mode and press no other button within 30 seconds, then the device will put self off automatcally.

EN – Operating Manual

INNOMARK

ACE INSTRUMENTS RECOMMENDS

• Always use a new mouthpiece for each person and test that is conducted. AC= Instruments assumes no liability for any damages that may arise when several people use the same mouthpiece for multiple tests
• Only use the provided individually packaged and hygienic mouthpieces. During each test the breathalyzer's internal and external parts come into contact with human secretion (saiva, blood, swca, etc).
• Use safety gloves when pulling out a mouthpiece used by another person! You can buy appropriate gloves at AC ^- Technik (www.ace-technik.de).

IMPORTANT NOTICE

• WHEN YOU HAVE EATEN, DRUNKEN ALCOHOL OR SMOKED A CIGARETTE, WAIT AT LEAST 15 MINUTES BEFORE STARTING THE MEASUREMENT, ANY TEST CONDUCTED PRIOR TO THE EXPIRATION OF THE RECOMMENDED WAITING PERIOD WILL RESUIT IN INACCURATI RESULTS
• IF THE TEST RESULT IS BELOW 0.05% BAC (PER MILL - g/L) OR 0.005% BAC (US setting) OR 0.025mg/L (UK setting) THEN THE DEVICE SHOWS 0.00 (% OR % BAC OR mg/L - depending on the setting) ON THE DISPLAY. THIS HAPPENS BECAUSE AT A LOW RANGE OF ALCOHOL CONCENTRATION IT'S POSSIBLE TO MEASURE OTI IFRMATERIALS IN YOUR MOUT.
• This breathalyzer is a high quality and sensitive measurement device. To maintain the accuracy of the sensor, it should regularly be used. If the device is not used for an extended period of 1 mo, the sensor can dry out. ACF Instruments recommends using the breathalyzer at least 2 times per month (even if you have not been drinking alcohol).
• Due to changes in the product, the procedures stated can change. This can take place without prior notice or adaptation of the operating manual and is no cause for complaint, return or price reduction. The user is responsible for recognizing discrepancies between the operating manual and the actual handling of the breathalyzer and must react accordingly.

ONLY USE ORIGINAL ACE INSTRUMENTS MOUTHPIECES

• Guarantees lost result accuracy
• Guarantees hygiene of you and the device
• Guarantees full warranty of this device

ACE INSTRUMENTS ADVISES

even if you get a result meaning "safe range", you should never drive after consuming alcohol or do any other activities that are severely impaired by alcohol consumption and might endanger your health and safety or the health and safety of others.

DISPLAY INDICATIONS

DISPLAY MEANING ACTION
Err	The sampling volume was not enough of the blow power was too uneven to analyze the breath sample.	Please perform a new test. Press the start button, the sensor initialization will start again.Start broathing as soon as "BLOW" appears on the display.
Lob	The testing cannot be performed because the batteries are low. Additionally, the battery symbol in the upper right, corner flashes 10 times together with a bee tone. Then the device puts itself off automatically.	Replace the batteries with 3 now Alkaline batteries. Pay attention to the battery poles (+/).

EN – Operating Manual

INNOMARK

CALIBRATION

To maintain the accuracy of the oreathalyzer, ACE Instruments recommends a calibration after 6 up to maximum 2 months or after 1,000 tests (depending which incident happens first). For a calibration service you can send the device to ACE Instruments (see www.alkomatnet). The calibration is not mandatory, but the accuracy of the breathalyzer will decrease steadily without it and additionally the warranty for the sensor expires.

We recommend sending it as a parcel, so that in case of loss an inquiry or proof of delivery is possible.

BATTERY NOTICES

The device is run with three (3) AAA Aka no batteries (1.5 V). These batteries are not made for recharging. The use of a rechargeable batteries is not possible with this device and can damage it. If the batteries are depleted, they must not be thrown into the household waste. Used batteries may contain harmful substances that can cause environmental or health damage. Please return all depleted batteries to electrical appliance stores, who collect them for free

BATTERY EXCHANGE

To replace the baller os, push the battery cover on the back of the unit downwards and replace the discharged batteries with new ones. Be aware of the polarity when inserting the batteries (1/- pole). Close the battery compartment cover again. In the EU the return of used batteries is mandatory by law. All depolce batteries and also rechargeable baller os will be recycled. This way valuable resources like iron, zinc and nickel can be retrieved and are reusable then Battery recycling is the eas est lesson in environmental protection - so please support it

The shown garbage bins mean that batteries or rechargeable batteries must not be thrown into the household waste. The signs below the garbage bins are acronyms for the chemical substances inside the battery:

Three identical line drawings of a trash bin with no text or symbols

Hg Cd Pb

Hg: Battery contains Mercury

Co: Battery contains Cadmium

Po Battery contains Load

TECHNICAL DATA*

Sensor Fuel Cell Sensor (Reference standard compies with EN16280)
Accuracy +/-	0.06‰ BAC (per mill) with reference to 0.50‰ BAC at 25°C (per mill = default setting)OR /- 0.006% BAC (Blood Alcohol Concentration) with reference to 0.050% BAC at 25°COR-/ 0.03mg/L with reference to 0.250mg/L at 25°C
Detection Range	0.00 up to 4.00‰ BAC (per mill)OR 0.000 up to 0.400% BAC (USA)OR 0.000 up to 2000mg/l (UK)
Warm-up Time	Within 10 up to 15 seconds at 0.5‰ BAC, it may vary according on the value of per mill / BAC which was measured
Dimension 1325 x 685 x 26mm ( ×W×II)
Weight 87g (122g including 3 batteries)
Power Supply	3 pieces of 1.5V/VA Alkaline battery
Working Temperature	0°C up to 50°C

EN – Operating Manual

INNOMARK

Storage Temperature	-20°C up to 70°C
Calibration Recommendation: Every 6 up to maximum 12 months or after 1,000 tests (depending which incident happens frs.). For a calibration service you can send the device to ACE Instruments (see www.alkoma.net)

* The technical data are subject to change without prior notice for functional improvements.

WARRANTY AND LIABILITY

ACE Handes und Entwicklungs GmbH (ACE Instruments) provides a warranty of two years after purchase for material and processing errors of the product (see attached warranty and liability declaration) in all versions and designations; and a warranty of one year for the sensor. This warranty includes the electronics as well as the casing and sensor without sampling components. Components that inevitably degrade over time (such as fuses) are not part of this warranty. The warranty is valid from the date of delivery or from the date of first activation (always the shorter period), if not stated otherwise in the accompanying ACE Instruments product literature.

LIMITATION OF WARRANTY AND LIABILITY 1. PRODUCT DESCRIPTION

ACE Instruments rejects any further expressly slated or implied warranty, including the marketo-bilty and suitability for a determined purpose. This warranty especially excludes calibration. After changing the sensor, calibration is absolutely necessary, if an exchange of the sensor or a calibration is required for a product, the user may receive a cost estimate. Should the user reject the estimate, ACE Instruments will send the product back unrepaired/not calibrated and the product, will be labelled accordingly. Should the product not fulfil the warranty, the claim of the buyer and the obligations of ACE Instruments are

limited exclusively to the discretion of ACE Instruments for exchange, repair of the affected goods or reimbursement of the purchasing price for the faulty merchandise

2. APPLICATION RESTRICTION

ACE Instruments is by no means liable for additional, nonidental or consequential damage such as, among others, ost profit and downtime that result from selling, producing or using products that are part of this application restriction. This is independent of any claims emanating from, for instance, contracts, negligence or other culpable actions. The product, which is accompanied by this warranty and liability declaration (no matter the version or designation), in particular cannot be used in a legally binding manner to deform no one's capability to operate vehicles or execute action that could lead to personal injury or injury to others under the influence of alcohol.

The thorough check for damage of all products upon receipt, calibration suitable for the given use by the buyer and the proper use, maintenance and service according to the instructions of the accompanying ACE Instruments product literature are mandatory prerequisites of this warranty. Maintenance and service work performed by non qualified persons as well as the use of non-approved consumables or spare parts results in the voiding of this warranty. As for all technically challenging products, it is a fundamental prerequisite and mandatory for ACE Instruments warranty that all users of these products are familiar with the properties and restrictions of the devices as stated in the respective literature.

3. ADVICE RESTRICTION

The buyer is solely responsible and confirms that they have checked the intended use and suitability of purchased goods for any purpose. Between the two parties it is expressly agreed that all technical or other advice given by ACE Instruments regarding the use of goods or services is free of charge and made under risk to the buyer exclusively. Therefore, no obligation or liability can result to ACF instruments from any recommendation or their consequences.
