Product Type	Breathalyzer
Brand	ACE
Model	Neo
Dimensions	Approximately 100 x 50 x 20 mm
Weight	About 50 g (including batteries)
Power Supply	2 x AAA alkaline batteries (not included)
Sensor Type	Semiconductor (electrochemical fuel cell)
Measurement Range	0.00% – 0.40% BAC
Accuracy	±0.01% BAC at 0.05% BAC
Warm-Up Time	Less than 10 seconds
Result Display	LCD screen with backlight
Units	% BAC or mg/L (switchable)
Number of Tests	Approximately 200 tests per set of batteries
Auto Shut-Off	Yes, after 30 seconds of inactivity
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 50°C
Calibration	Recommended every 6 months or after 300 tests
Warranty	1 year limited warranty
Included Accessories	User manual, carrying pouch, warranty card
Clean and Maintenance	Wipe the exterior with a soft, dry cloth; do not immerse in water
Safety Warnings	Do not use near flammable materials; not for medical use

Frequently Asked Questions - Neo ACE

How do I turn on the ACE Neo breathalyzer?

Press and hold the power button for 2 seconds until the screen lights up. The device will warm up automatically.

How long does the sensor last?

The fuel cell sensor typically lasts for 200 to 300 tests before requiring recalibration or replacement. For best accuracy, calibrate every 6 months.

What is the correct way to blow into the device?

Wait for the "Blow" prompt, then blow steadily for 5-6 seconds with a constant flow. Do not stop until the device beeps.

Can I use the breathalyzer right after drinking?

No, wait at least 15-20 minutes after drinking, eating, or smoking to avoid false positives from mouth alcohol.

How do I change the batteries?

Slide off the battery cover on the back, remove old AAA batteries, insert new ones in the correct polarity, and close the cover.

What does "Err" mean on the display?

An error indicates a problem with the sensor, battery, or sample. Try a new mouthpiece, replace batteries, or wait 10 minutes before retesting.

How do I clean the breathalyzer?

Wipe the exterior with a soft, dry cloth. Do not use liquids or immerse the device. Replace the mouthpiece after each use.

Is the ACE Neo medical grade?

No, this device is for personal use only and should not be relied upon for legal or medical decisions. It is not FDA approved.

How often should I calibrate?

Calibrate every 6 months or after 300 tests, whichever comes first. Contact ACE customer support or a certified lab for service.

Can I use the device in cold weather?

Avoid use below 10°C, as it may affect sensor accuracy. Store at room temperature before testing.

USER MANUAL Neo ACE

Close-up of a black mechanical component with an arrow indicating direction, shown from before and after states (no text or symbols visible)

All information herein was created conscientiously and under assumption of correctness. The creator cannot be held liable though for the use of any kind whatsoever and any ensuing consequences.

The creator is not liable for any costs or expenses for damage that are the result of any information within this document. Any information is subject to change without prior notice.

Short description:

The ACE Neo is a digital electrochemical alcohol testing device, which measures the alcohol concentration in the breath and calculates the blood alcohol level from that. The device can be operated

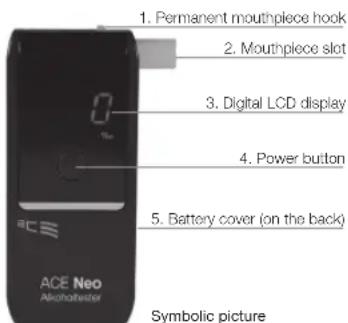

ACE Neo Operating manual

by only one button. For each breath test a mouthpiece is needed. As owner of the ACE Neo you can use your personal mouthpiece which is fix integrated in the device. Please send the device for a calibration service to ACE Technik at the latest when the display shows "CAL".

Scope of delivery:

Digital electrochemical breathalyzer ACE Neo
5 mouthpieces
■ 2 pieces AAA batteries (1.5 V)
Hard case
Pouch
Operating manual in English & German

Introduction:

Thank you for purchasing our breath-alyzer ACE Neo! It measures alcohol concentration in human breath using an electrochemical sensor and offers reliable breath alcohol test results. It must only be used on basis of the instructions mentioned in this manual.

This way you receive a result as accurately as possible:

a) Wait at least 15 minutes after your last sip of alcohol. Do not eat, drink or smoke during that time.
b) Do not open the casing.
c) Do not keep the ACE Neo in cold, hot, moist or badly ventilated places.
d) Keep the ACE Neo out of the reach of children.
e) Conduct three inlet tests after long storage before conducting the actual alcohol test.
f) Do not let the ACE Neo fall.
g) Change batteries after battery alarm. Diminished battery capacity leads to incorrect test results.
h) Do not conduct tests in loud (sound waves disrupt the sensor), draughty or badly ventilated places.
i) After a test result of 1.00 per mille or higher the sensor needs a resting time. In this case wait at least three minutes before the next test.
j) Do not conduct tests in very cold, very hot or unventilated, smoky ambience.
k) Avoid blowing cigarette smoke into the device!
I) Store the ACE Neo in a way which avoids penetration by dust or liquids.

Notes to the battery law (BattG):

The device for which this operating manual is contains two AAA alkaline batteries (1.5 V) in delivery condition. Those batteries are not made for recharging. Trying to recharge can cause damage to property or persons. Also the use of rechargeable batteries is not possible with this device, because it can cause damage to the device. When the batteries are depleted, they must not be thrown in the household waste. Used batteries may contain harmful substances that can cause damage to the environment or health. Please return batteries / rechargeable batteries to the store or to the buyback centre. The return is free of charge und mandatory by law. Please throw only depleted batteries into the containers and tape over the poles of lithium batteries. For battery exchange only pull off the battery compartment cover and change the depleted batteries for new ones. Mind the polarity: The negatives poles of the batteries are in contact with the springs in the battery trough. Slide the battery compartment cover over the casing until it snaps in. All batteries and rechargeable batteries will be recycled. This way, precious resources like iron, zinc and nickel are gathered. Battery recycling is the easiest lesson in environmental.

Hg

Cd

Pb

The garbage bin means: Batteries and rechargeable batteries must not be thrown into the household waste. The signs below the garbage bins stand for:

Hg: Battery contains mercury
Cd: Battery contains cadmium
Pb: Battery contains lead

Calibration:

To maintain the accuracy of the ACE Neo, we recommend a calibration after 12 months at the latest. The calibration is not mandatory; the accuracy of ACE Neo will decrease steadily without it, though. Send the device with the note 'Alkomat calibration service' to the company address stated on the invoice you received with the device. We recommend sending it as a parcel, so that in cases of loss an inquiry or proof of delivery is possible. Due to changes in the product, the procedures stated can change. This can take place without prior notice or adaptation of the operating manual and is no cause for complaint, return or price reduction. The user is responsible to recognise deviations between the operating manual and the actual handling of the ACE Neo and he has to react accordingly.

Preparation for the test:

1. Install 2 pieces of AAA batteries (alkaline, 1.5 V) in the battery compartment. Remove the battery compartment cover at the back

of the device carefully and insert the 2 pieces of AAA batteries. Mind the battery polarity in the process (+/-).

1. Put a mouthpiece on the mouthpiece connection, which is on the side of the device. Make sure it is attached properly. Use a different mouthpiece for each test person. You yourself can always use your personal mouthpiece which is fix integrated in the device.

ACE Technik recommends:

■ Always use a new mouthpiece for each person and each test which is conducted not by yourself (you can use your integrated personal mouthpiece). ACE Technik assumes no liability for any damages which arise when several people use the same mouthpiece for multiple tests.
■ Each other test person than yourself should use the hygienic mouthpieces from the ACE series! During each test the ACE Neo internal and external gets in contact with human secretion (saliva, blood, sweat etc.)!

Use safety gloves when pulling out a mouthpiece which was used by another person than yourself! You can buy appropriate gloves at ACE Technik.

Conducting the measurement:

1. Press the power button.
2. The device warms up until you can see the sign "0".
3. Blow through the mouthpiece into the unit for 4 seconds until the sounds (a "tictac" tone) concludes.
4. The result is displayed for 10 seconds, afterwards the device automatically turns off.

If you want to test again, press the power button after the back light has turned off.

If you keep press and hold the power switch, you can see "C" and shortly afterwards "A" on the LCD. "C" shows the total number of all done tests. "A" only shows the number of tests with a measurement of more than 0.2 per mille. The counting of "C" and "A" starts again with "0" after a calibration service.

Important: When you have eaten, drunken alcohol or smoked a cigarette, wait at least 20 minutes before starting the measurement. ACE Technik warns: Even if you get a result with the meaning „Safe range“, you should not drive after having consumed alcohol or do any other activities which are badly affected by the consumption of alcohol.

Usage of personal mouthpiece:

If you push the hook aside like shown on the right, you can use your personal mouthpiece.

Flow

The breath sample was not strong enough for measurement. After warming automatically, please blow strong and steady during sampling.

bAt

The battery power is low. Please replace the batteries.

CAL

If you test over 1,000 tests, ACE Neo will display "CAL" sign for 3 seconds when warming up for test. This "CAL" sign will be provided the appropriate time for calibration. Please send the device to ACE Technik for a calibration service.

Out

The device is turning off („Out“ is shown during approx. 5 seconds on the display, then the device switches itself off automatically). OUT also appears if you don't use the device during approx. 30 seconds or if you press continuously the start button for approx. 3 seconds.

P

The device is in passive mode. „P“ appears on the display if you turn on the device and push the start button afterwards again. The passive mode can be used when a person is too drunk to do a test by using a mouthpiece. As soon as „P“ appears on the display, the test person must briefly exhale in the direction where normally the mouthpiece is inserted and at the same time you have to push the start button permanently for a few seconds until you hear a „tictac tone“. Now the device evaluates the test and afterwards you can see either „P“ or „F“ in the display. P = Pass (person is not drunken) F = Fail (person is drunken and must not drive) Default values (not changeable): P < 0,20 per mille and F >= 0,20 per mille

Technical data:

Statement of the BAC: 0,00 - 4,00 % (fixed basic setting) Accuracy: +/- 0,05 % Warm-up time: 3 sec up to max. 4 min Response time: Within 10 seconds Sensor: Fuel cell sensor Mouthpieces: ACE mouthpieces (each hygienic and separately packaged) Energy supply: 2 pieces AAA alkaline batteries (1.5 V) Dimensions of the device: 44 x 100 x 15 mm (width x height x thickness) Weight: 66 g (including batteries) Ambient conditions: Operation: 5 - 40°C Storage: 0 - 50°C Calibration: Every 12 months or after 1000 tests

Warranty and liability:

Warranty: The ACE Handels- und Entwicklungs GmbH will give a warranty of two years after purchase for material and processing errors for the product, to which this warranty and liability declaration is attached, in all versions and designations; a warranty of one year for the sensor. This warranty includes the electronics as well as the casing or the sensor without sampling components. Components that are inevitably destroyed upon effectiveness (such as fuses) are not part of this warranty. The warranty is valid from the date of delivery or from the date of first activation (always the shorter period), if this is not stated otherwise in the accompanying literature of the product by ACE Handels- und Entwicklungs GmbH. Limitation of warranty and liability:

Product description: The ACE Handels- und Entwicklungs GmbH rejects any further expressly stated or implied warranty, including the marketability and suitability for a determined purpose. This warranty especially excludes calibration. After changing the sensor, calibration is absolutely necessary. When an exchange of the sensor or a calibration is necessary for a product, the user may receive a estimate of costs. Should the user refuse the estimate, the ACE Handels- und Entwicklungs GmbH will send the product back unrepaired / uncalibrated and the product will be labelled accordingly. Should the product not fulfil the warranty, the claim of the buyer and the obligations of the ACE Handels- und Entwicklungs GmbH are limited exclusively and at the discretion of the ACE Handels- und Entwicklungs GmbH to an exchange or repair of the affected goods or to a reimbursement of the purchasing price for the faulty goods.

Application restriction: The ACE Handels- und Entwicklungs GmbH is on no account liable for additional damage, incidental damage or consequential damage such as, among others, lost profit and downtime that result from selling, producing or using products, which are part of this application restriction. This is independent of

any claims, such as from contracts, negligence or other culpable actions. The product, which is accompanied by this warranty and liability declaration, no matter in which version or designation, can especially not be used legally binding to determine capability to operate vehicles or to execute action that could lead to damage to oneself or others under the influence of alcohol. The thorough check for damage of all products upon receipt, a calibration suitable for the given use by the buyer and the proper use, maintenance and service according to the instructions of the accompanying product literature by the ACE Handels- und Entwicklungs GmbH are mandatory prerequisites for this warranty. Maintenance and service work by non-qualified persons, as well as using non-approved consumables or spare parts lead to an expiry of this warranty. As for all technically challenging products, it is a fundamental prerequisite and mandatory for the warranty by ACE Handels- und Entwicklungs GmbH, that all users of these product are familiar with the properties and restrictions of the product as stated in the respective literature.

Advice restriction: The buyer confirms that he has checked the intended use and suitability of purchased goods for any purpose in sole responsibility. Between the two parties it is expressly agreed upon that all technical or other advice by ACE Handels- und Entwicklungs GmbH regarding use of the goods or services is free of charge and was made with to the exclusive risk of the buyer. Therefore no obligation or liability can arise to the ACE Handels- und Entwicklungs GmbH from any recommendation or their result.
