USER MANUAL SPBT2005BK NEDIS

ned.is/spbt2005bk Bluetooth® Speaker compact sized (15 W) easily to be taken with you SPBT2005BKa Quick start guide 4

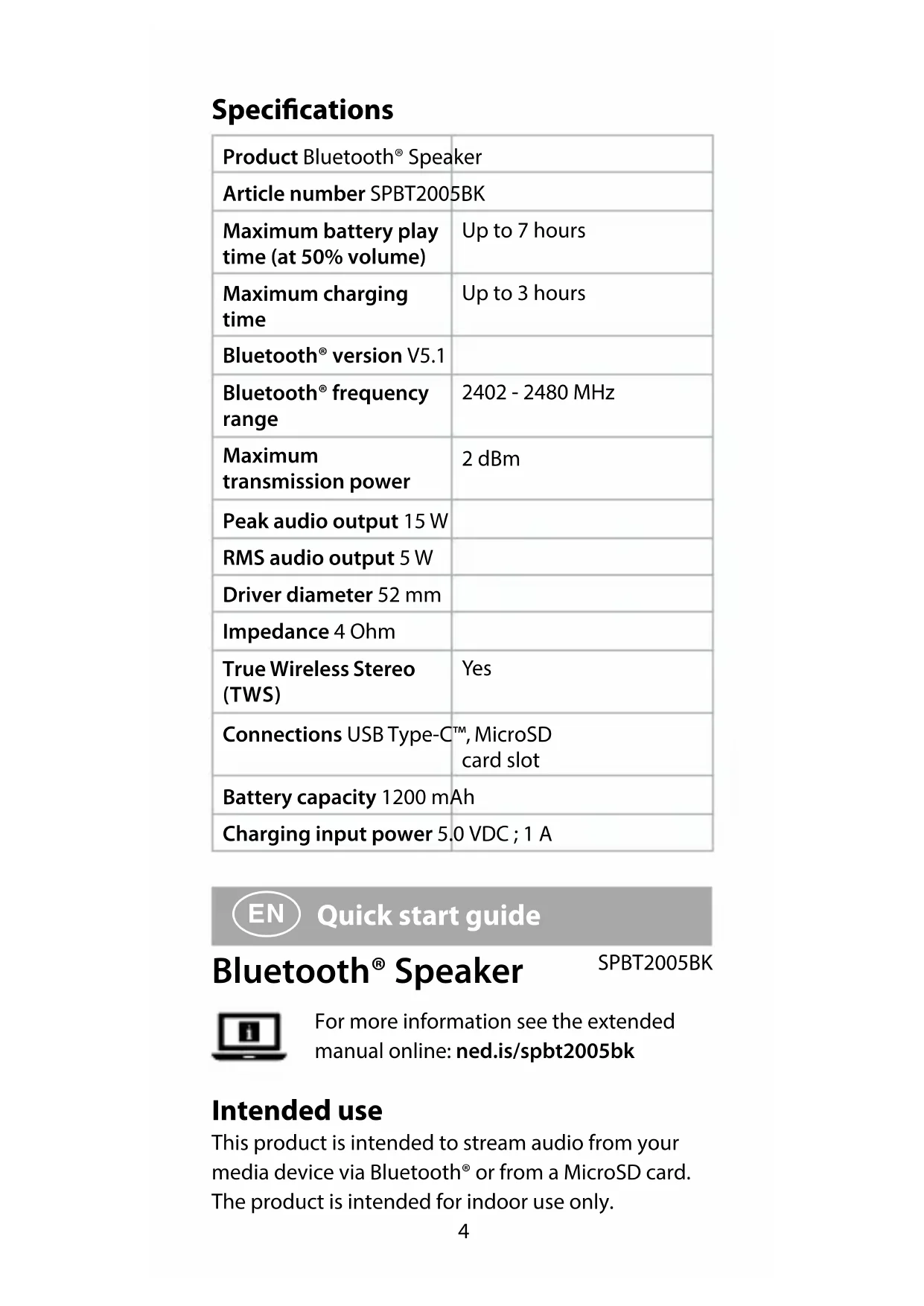

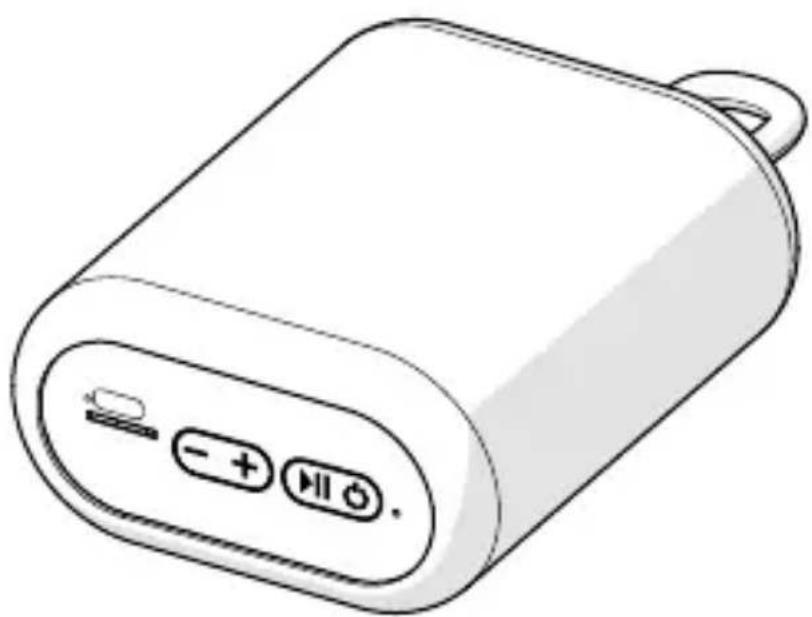

Quick start guide Bluetooth® Speaker SPBT2005BK For more information see the extended manual online: ned.is/spbt2005bk Intended use This product is intended to stream audio from your media device via Bluetooth® or from a MicroSD card. The product is intended for indoor use only. Specications Product Bluetooth® Speaker Article number SPBT2005BK Maximum battery play time (at 50% volume) Up to 7 hours Maximum charging time Up to 3 hours Bluetooth® version V5.1 Bluetooth® frequency range 2402 - 2480 MHz Maximum transmission power 2 dBm Peak audio output 15 W RMS audio output 5 W Driver diameter 52 mm Impedance 4 Ohm True Wireless Stereo (TWS) Yes Connections USB Type-C™, MicroSD card slot Battery capacity 1200 mAh Charging input power 5.0 VDC ; 1 A5 The product is not intended for professional use. Any modication of the product may have consequences for safety, warranty and proper functioning. Main parts (image A) 1 USB-C charging port 2 MicroSD card slot 3 Carrying handle 4 Volume down/ previous track button 5 Volume up/next track button 6 Indicator LED 7 Power button 8 Play/pause button 9 USB – USB-C charging cable Safety instructions

• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep the packaging and this document for future reference.

• Only use the product as described in this document.

• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.

• Disconnect the product from the power source and other equipment if problems occur.

• Do not drop the product and avoid bumping.

• This product may only be serviced by a qualied technician for maintenance to reduce the risk of electric shock.

• Do not expose the product to a high pressure of water or moisture.

• Do not immerse the product in water.

• Do not charge when the product is wet.

• Do not expose the product to water, rain, moisture or high humidity.6

• Do not expose the electrical connections to water or moisture.

• Do not dismantle, open or shred cells or batteries.

• Do not expose cells or batteries to heat or re. Avoid storage in direct sunlight.

• Do not expose the product to direct sunlight, naked ames or heat.

• Do not subject cells or batteries to mechanical shock.

• Disconnect the product from the electrical outlet and other equipment if problems occur.

• Extended exposure to high volumes can cause hearing loss.

• Only use the provided USB charging cable.

• Charge the battery for at least 3 hours when you use it for the rst time.

• Do not short-circuit a cell or a battery.

• Do not store cells or batteries haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by other metal objects. Switching the product on/o

1. Press and hold the power button A

to switch on the product.

2. Press and hold the power button A

to switch o the product.

The product automatically switches o after 10 minutes of inactivity. Charging the product You can charge the product in two ways. For charging via the power outlet:

1. Plug the USB-C connector of the USB - USB-C

into the USB-C charging port

2. Plug the other end of the USB-USB-C charging

into a 5V/1A USB adapter (not included).

3. Plug the USB adapter into a power outlet.

For charging via a USB charging port:

1. Plug the USB-C connector of A

2. Plug the other end of the USB-USB-C charging

into a 5V/1A USB power source. A PC is a usable power source for example.

When the battery is low the speaker emits the voice alert "Please charge". Playing music from a Bluetooth® audio source

1. Switch on the product.

ashes blue quickly to indicate pairing mode is active Activate Bluetooth® on your audio source and connect with the product (SPBT2005BK).

lights up continuously to indicate pairing is successful.

2. Play music from a Bluetooth® connected audio

source. Switching between modes Press the power button A

to switch between Bluetooth® and MicroSD mode. Controlling the music

1. Press and hold the volume up / next track button

to skip between tracks.

to control the volume.

to play or pause the music.8 You can also control music and volume from your audio source. Disposal The product is designated for separate collection at an appropriate collection point. Do not dispose of the product with household waste. For more information, contact the retailer or the local authority responsible for the waste management. Declaration of Conformity We, Nedis B.V. declare as manufacturer that the product SPBT2005BK from our brand Nedis®, produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation. The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via: nedis.com/SPBT2005BK#support
