Product type	Portable LED projector
Brand	Brennenstuhl
Model	JARO 7003 CM
Category	Lamp
Power supply	100-130 V~, 50/60 Hz
Nominal power	80 W
Max current	0.5 A
Power factor	>0.9
Protection rating	IP65
Power plug	CEE
Dimensions (L x W x H)	402 x 204 x 340 mm
Weight	4.68 kg
Protection cover dimensions	248.8 x 171.8 x 5 mm
Maximum projection surface area	1400 cm²
Light source	Non-replaceable LED
Usage	Indoor and outdoor
Cleaning	Dry or slightly damp cloth, without solvent
Maintenance	Replace the entire lamp at end of life
Safety	Mandatory grounding; do not look directly into the beam; check for damage before use
Standards	European Directive 2012/19/EC (WEEE)
Manufacturer	H. Brennenstuhl S.A.S., 4 rue de Bruxelles, F-67170 Bernolsheim

Frequently Asked Questions - JARO 7003 CM BRENNENSTUHL

What is the power supply voltage of the JARO 7003 CM?

The nominal voltage is 100-130 V~ (110 V models). Do not connect to a 230 V outlet.

Is the JARO 7003 CM projector delivered with a telescopic stand?

No, only models with the 'T' designation (e.g., JARO 7000 T) include a telescopic stand. The JARO 7003 CM is a projector without a stand, to be placed on a flat, dry surface.

Can I use this projector outdoors?

Yes, it has a protection rating of IP65, making it resistant to water jets and suitable for outdoor use.

How to clean the projector?

Use a dry or slightly damp cloth. Never use solvents, abrasive products, or aggressive cleaners.

Can I replace the LED bulb?

No, the light source is not replaceable. At end of life, replace the entire projector.

How to install the projector on a telescopic stand (for compatible models)?

Loosen the fixing screw (C), unfold the legs, then tighten (C). Place the stand mount between the two arrows on the tube. Secure the projector using screw (A) on the thread at the top of the tube. Adjust the height with the clamping rings (B).

What to do if the power cable is damaged?

The external cable cannot be replaced. If the cable is damaged, the lamp must be disposed of and replaced. You can contact the manufacturer or an authorized service.

Must I ground the projector?

Yes, it is mandatory to ground the projector in accordance with applicable standards to avoid any risk of electrocution.

What to do if the protective glass is damaged?

Replace the glass with an original Brennenstuhl spare part before any use. Do not use the projector without an intact glass.

How to dispose of this projector at end of life?

Do not dispose of it with household waste. In accordance with directive 2012/19/EU, deposit it at a collection point for waste electrical and electronic equipment (WEEE).

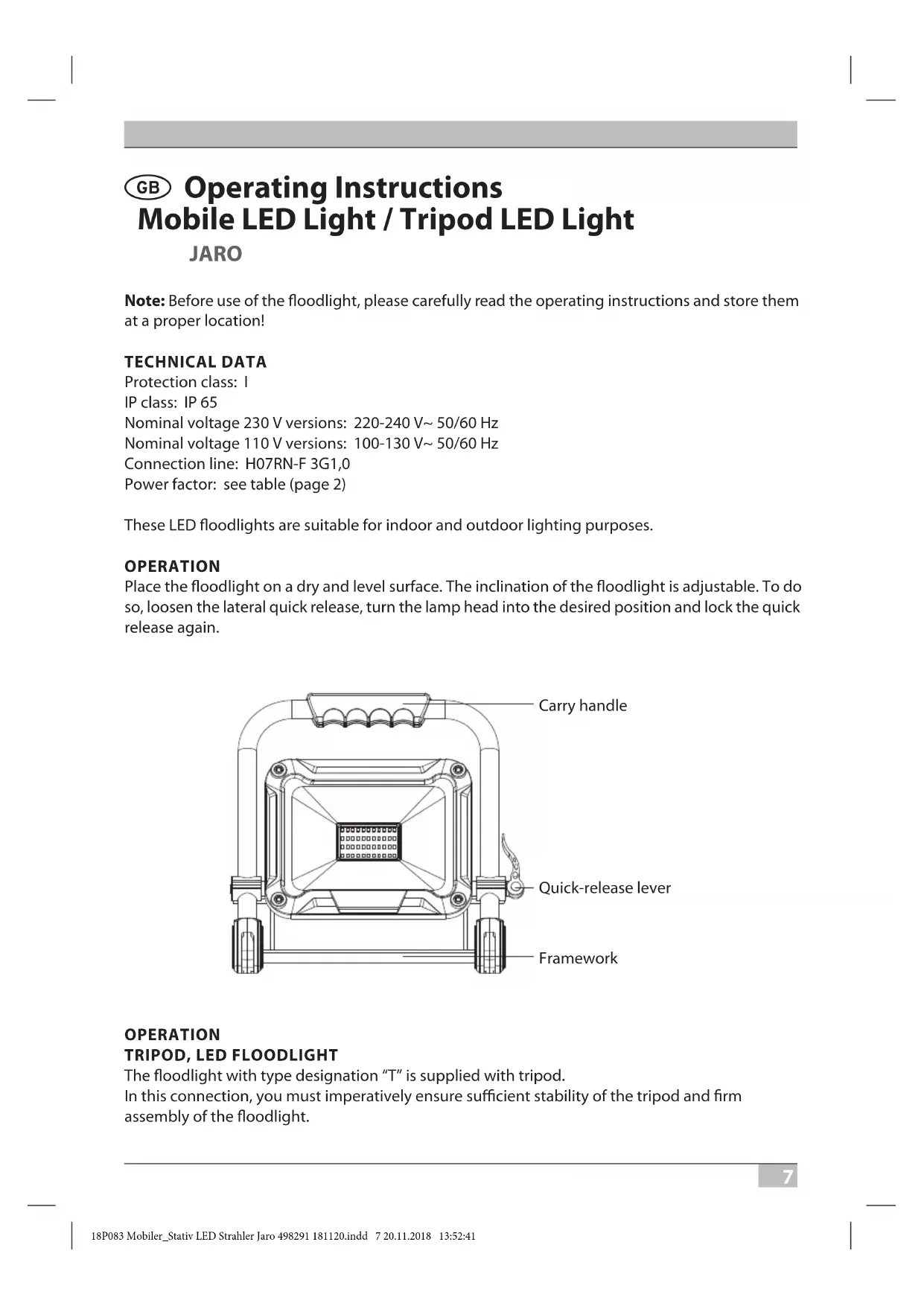

USER MANUAL JARO 7003 CM BRENNENSTUHL

Note: Before use of the floodlight, please carefully read the operating instructions and store them at a proper location!

TECHNICAL DATA

Protection class: I

IP class: IP 65

Nominal voltage 230 V versions: 220 - 240V 50 / 60Hz

Nominal voltage 110 V versions: 100 - 130V 50 / 60Hz

Connection line: H07RN-F 3G1,0

Power factor: see table (page 2)

These LED floodlights are suitable for indoor and outdoor lighting purposes.

OPERATION

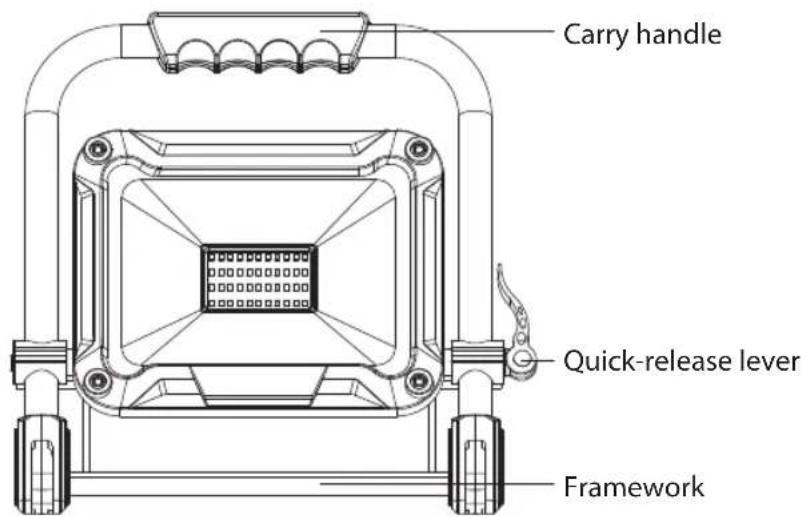

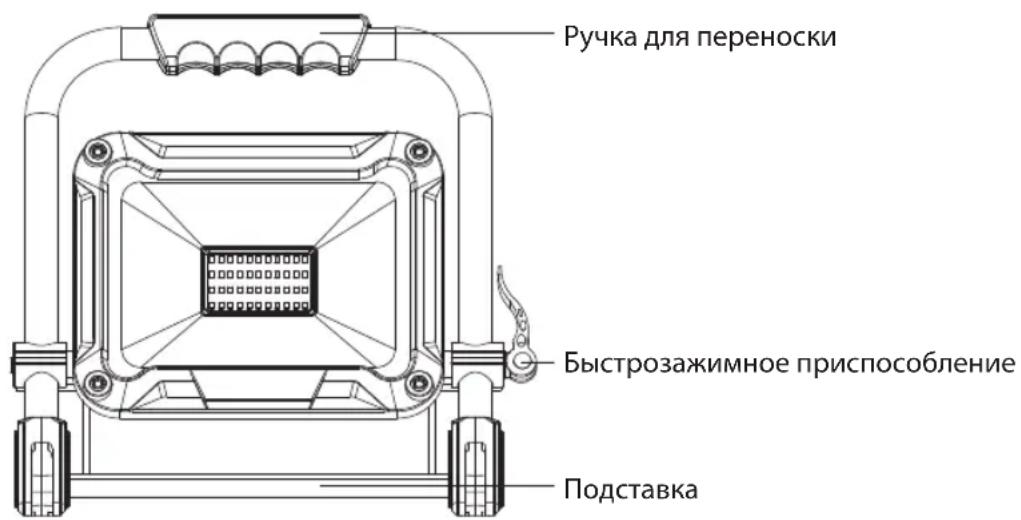

Place the floodlight on a dry and level surface. The inclination of the floodlight is adjustable. To do so, loosen the lateral quick release, turn the lamp head into the desired position and lock the quick release again.

OPERATION

TRIPOD,LED FLOODLIGHT

The floodlight with type designation "T" is supplied with tripod.

In this connection, you must imperatively ensure sufficient stability of the tripod and firm assembly of the floodlight.

Tripod for individual floodlight 20 W: extendible from 75 cm to 160 cm Tripod for individual floodlight 30/50 W: extendible from 86 cm to 152 cm Tripod for double floodlight 2× 20W : extendible from 82 cm to 142 cm

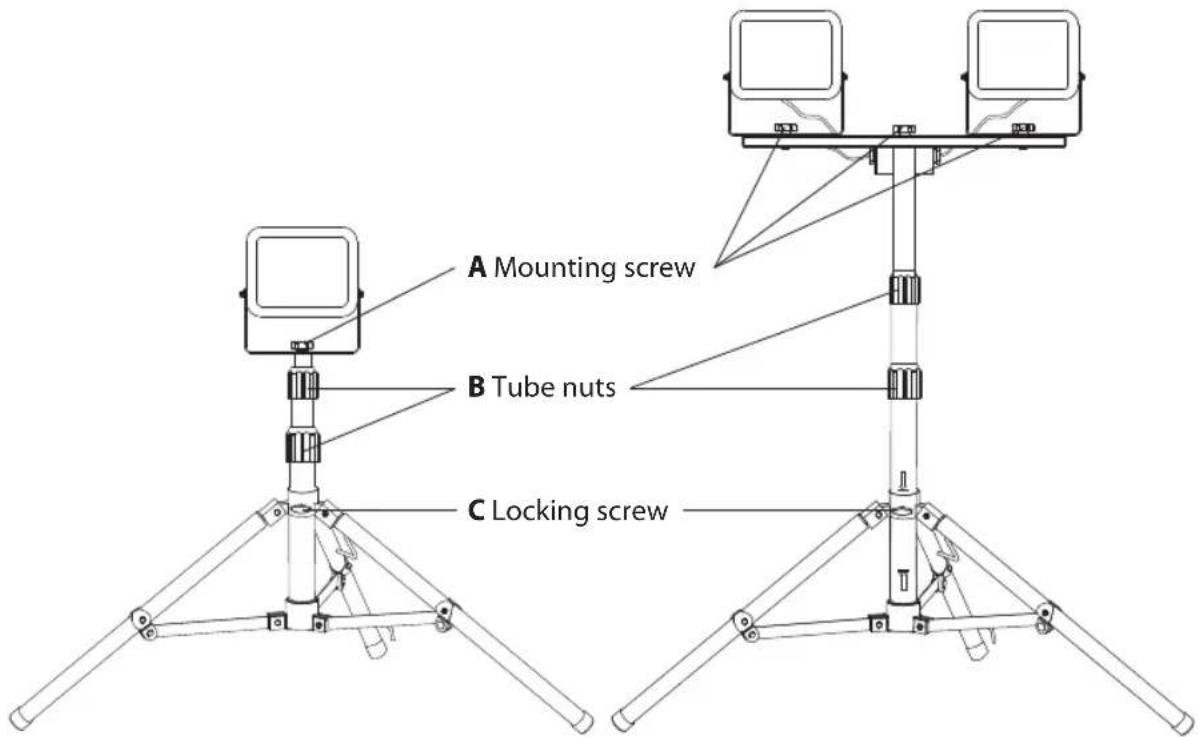

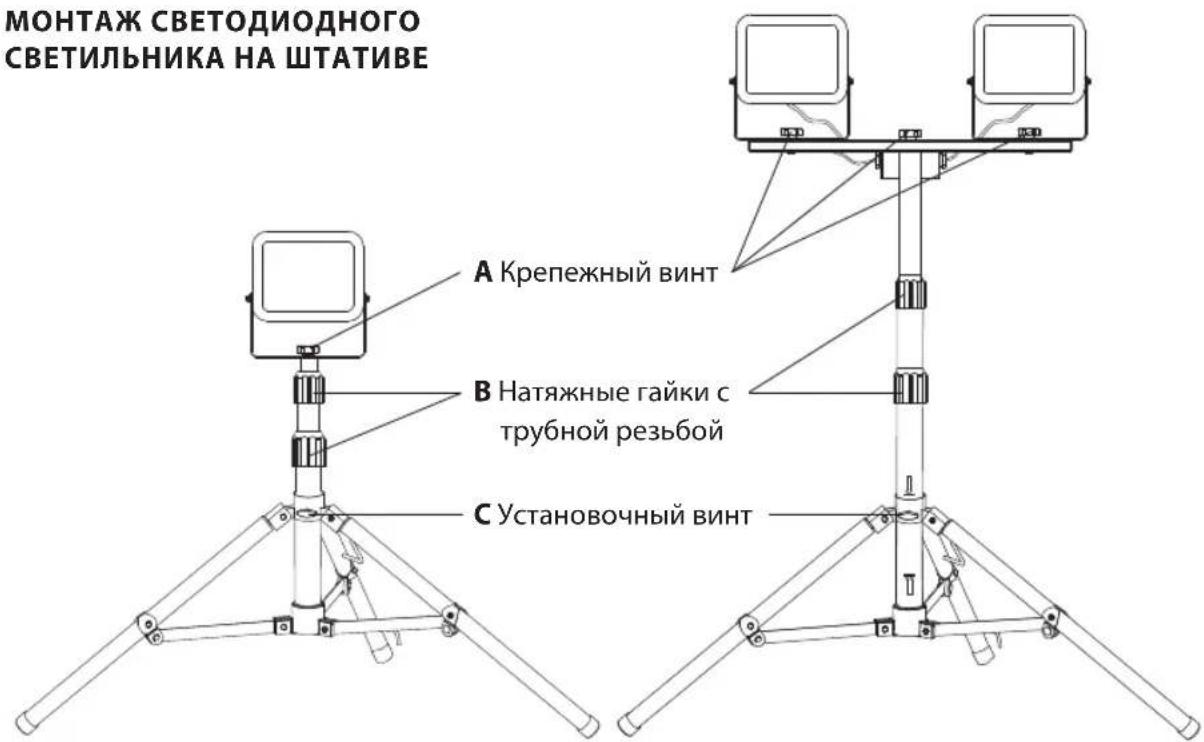

ASSEMBLY OF THE LED FLOODLIGHT ON THE TRIPOD

Loosen the locking screw (C). Fold out the feet completely. Afterwards, re-tighten the locking screw (C).

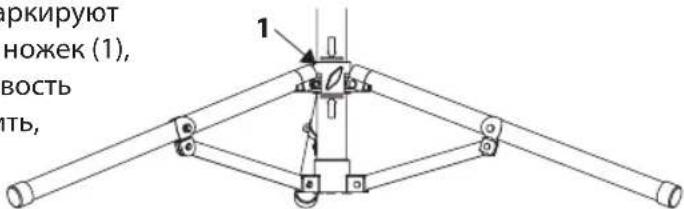

There are two arrows at the tube. These mark the area where the ring of the feet (1) have to be placed to ensure sufficient stability of the tripod. The afore make sure that the ring of the feet (1) matches insides the arrows area.

Fasten the LED floodlight by means of the locking screw (A) at the central hole of the fastening bracket on the tripod.

To change the tripod height, loosen the tube nuts (B). Extend the tripod up to the desired height and re-tighten the tube nuts (B).

SAFETY INFORMATION

1. Before use, always check the floodlight and the power supply line for any possible damage. Never use the floodlight in case of any damage. Caution! In case of a damaged floodlight or a damaged power supply line there will be a risk of fatal injury from electrical current!

2. The external flexible cable or cord of this luminaire cannot be replaced. If the cord is damaged, the luminaire should be destroyed.
   2.1. Valid for articles JARO 7000 M / JARO 7003 M / JARO 7003 CM / JARO 7002 M / JARO 7012 M. If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.

3. The floodlight must be grounded properly.
4. The floodlight must not be used without properly attached sealing rings!
5. LED floodlights are extremely bright. Please never look directly into the light.
6. If the protective cover is broken, it should be replaced by an original Brennenstuhl protective cover before further use of the floodlight.

1. Make sure that the floodlight has a safe and stable position.
   Make sure that the cables are not crushed or damaged otherwise.
2. Keep the floodlight away from children. Children are not aware of the risks imposed by electric current.

MAINTENANCE

The light source of this lamp cannot be replaced; if the light source has reached the end of its service life, the entire lamp has to be replaced.

CLEANING

Do not use solvents, caustic cleaning agents or similar products. Only use a dry or slightly moistened cloth for cleaning.

DISPOSAL

Dispose of electric appliances in an environmentally friendly manner! Electric appliances must not be disposed of in household waste!

The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment rules that used electric appliances should be collected separately and recycled in an environmentally friendly manner.

For possibilities of disposal of the used appliance, please contact your local or municipal administration.

DECLARATION OF CONFORMITY

The declaration of conformity is stored at the manufacturer's.

Addresses

Cable de raccordement: H07RN-F 3G1,0
