Antimite UV WB73 - Vacuum Cleaner JIMMY - Free user manual and instructions

Product type	UV anti-dust mite vacuum
Brand	JIMMY
Model	WB73
Power supply	220-240 V ~, 50 Hz
Rated power	600 W
Operating modes	Dust mite removal + beating, suction only, combination of both
Filtration system	MIF filter (dry washable) + cyclone
Dust sensor	Indicator light: green (clean), orange (moderate), red (dirty)
UV lamp	Yes, with automatic safety shut-off (distance < 3 cm, tilt < 30°)
Rotary brush	Yes, removable for cleaning
Dust bin capacity	Approximately 0.3 L (not officially specified)
MIF filter lifespan	30 to 50 hours of cumulative use before replacement
Automatic shut-off	Yes, when dust bin is full or suction is blocked
Warranty	1 year
Included accessories	MIF filter, mini brush, user manual
Weight	Approximately 1.5 kg (estimated)

Frequently Asked Questions - Antimite UV WB73 JIMMY

How to clean the dust bin of the Jimmy WB73 vacuum?

Turn off the power and unplug the unit. Press the unlock button to remove the bin. Separate the cover by turning clockwise, then remove the cyclone cone to empty the dust. Use the included cleaning brush. Clean the MIF filter by tapping (do not wash with water).

Why doesn't the UV lamp on my Jimmy WB73 turn on?

The UV lamp automatically turns off if the device is tilted more than 30° or if the distance to the object exceeds 3 cm. Make sure the sensor window is clean. If the problem persists, contact after-sales service.

How to replace the MIF filter?

The MIF filter is located in the dust bin. After removing the bin, pinch the 'UP' mark on the filter and pull it out. Replace it with a new one after 30 to 50 hours of cumulative use. You can purchase filters from the seller.

What to do if suction becomes weak?

Check that the suction inlet is not blocked. Clean the MIF filter by tapping and check the cyclone. If the dust bin is full, empty it. Also make sure the rotary brush is not tangled.

Why does the device turn off by itself?

The device automatically turns off if the dust bin is full, if the suction is blocked, or if the motor overheats. Clean the bin and filter, then wait 2 hours before using again. If the problem persists, contact after-sales service.

The indicator light turns red: what to do?

The red light indicates a high concentration of aspirated dust. This means the area is very dirty. Continue vacuuming that area until the light turns green again.

Can I use the Jimmy WB73 vacuum on wet surfaces?

No, this product is designed only for dry cleaning of textiles (mattresses, sofas, pillows). Do not use it on wet surfaces, in the bathroom, or to vacuum liquids, as this could damage it.

How to clean the rotary brush?

Turn off and unplug the device. Slide the button on the brush cover to open it, remove the roller and brush assembly. Clean them with the provided brush or with water, then dry thoroughly before reassembling.

What objects should I not vacuum with this device?

Never vacuum hot objects (ashes, cigarette butts), sharp objects (broken glass), corrosive liquids, flammable materials (gasoline, alcohol), or plants. This could damage the device or cause a fire.

How to store the vacuum when not in use?

Place the device in a cool, dry place, away from direct sunlight and humidity. Store it with the dust bin clean and the MIF filter dry.

USER MANUAL Antimite UV WB73 JIMMY

WB73

User Guide Anti-mite Vacuum Cleaner
Instrukcja obsługi Odkurzacz antyroztoczowy
Gebrauchsanweisung Staubsauger zum Entfernen von Milben
Mode d'emploi Aspirateur anti-acarien
Manuale d'uso Aspirapolvere Anti-acaro
Instrucciones de uso Aspirador de eliminación de ácaros
Инструкция по эксплуатации Пылесос для удаления клещей

Contents

English 2

Polski 9

Deutsch 16

Français 24

Italiano 32

Español 39

русский язык 47

Product Installation

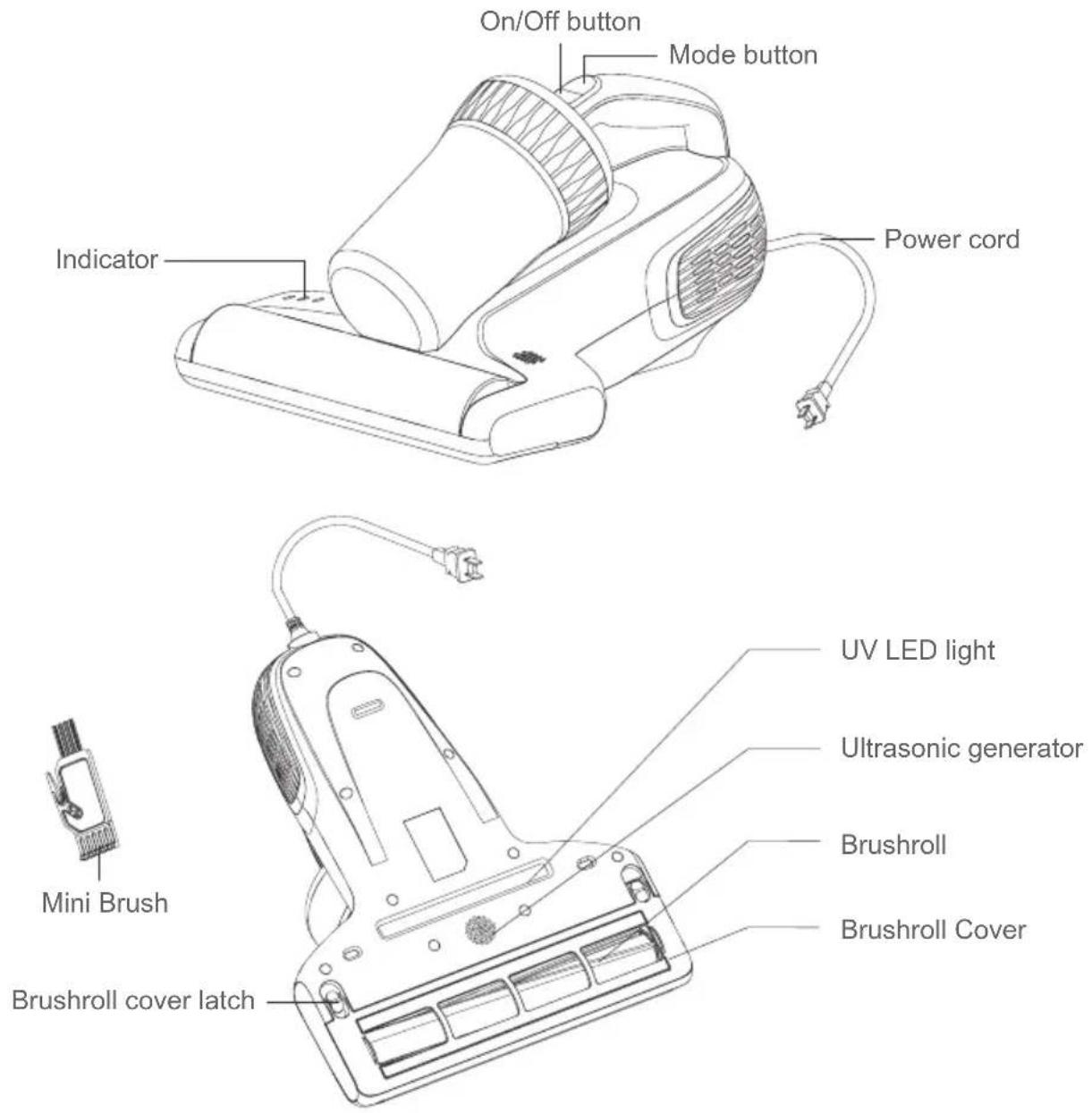

Parts Name

Packing List

Name Vacuum Cleaner MIF Filte Mini brush User Guide
Quantity 1 1 1	1

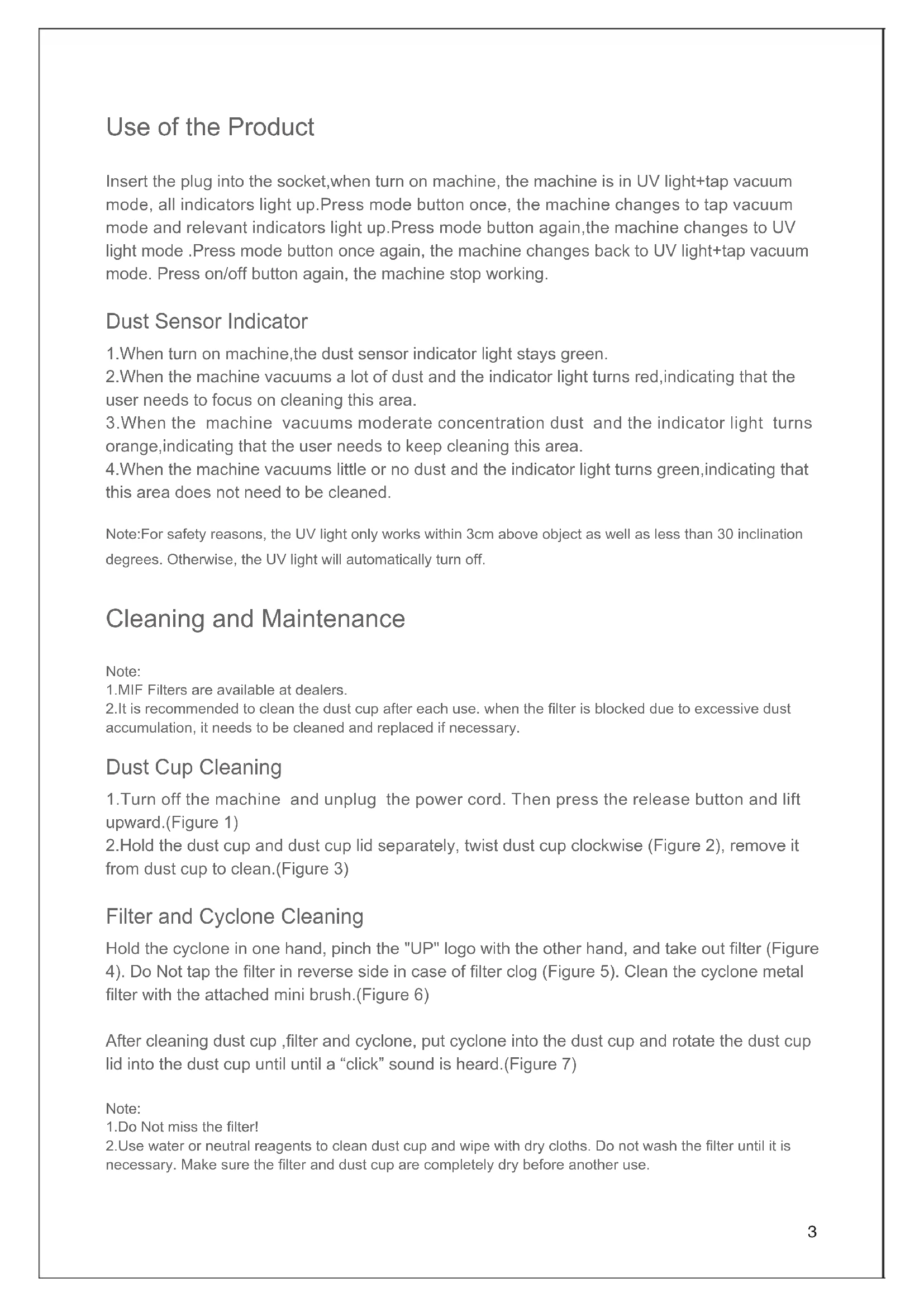

Use of the Product

Insert the plug into the socket, when turn on machine, the machine is in UV light+tap vacuum mode, all indicators light up. Press mode button once, the machine changes to tap vacuum mode and relevant indicators light up. Press mode button again, the machine changes to UV light mode. Press mode button once again, the machine changes back to UV light+tap vacuum mode. Press on/off button again, the machine stop working.

Dust Sensor Indicator

1. When turn on machine, the dust sensor indicator light stays green.
2. When the machine vacuums a lot of dust and the indicator light turns red, indicating that the user needs to focus on cleaning this area.
3. When the machine vacuums moderate concentration dust and the indicator light turns orange, indicating that the user needs to keep cleaning this area.
4. When the machine vacuums little or no dust and the indicator light turns green, indicating that this area does not need to be cleaned.

Note: For safety reasons, the UV light only works within 3cm above object as well as less than 30 inclination degrees. Otherwise, the UV light will automatically turn off.

Cleaning and Maintenance

Note:

1. MIF Filters are available at dealers.
2. It is recommended to clean the dust cup after each use. when the filter is blocked due to excessive dust accumulation, it needs to be cleaned and replaced if necessary.

Dust Cup Cleaning

1. Turn off the machine and unplug the power cord. Then press the release button and lift upward.(Figure 1)
2. Hold the dust cup and dust cup lid separately, twist dust cup clockwise (Figure 2), remove it from dust cup to clean.(Figure 3)

Filter and Cyclone Cleaning

Hold the cyclone in one hand, pinch the "UP" logo with the other hand, and take out filter (Figure 4). Do Not tap the filter in reverse side in case of filter clog (Figure 5). Clean the cyclone metal filter with the attached mini brush.(Figure 6)

After cleaning dust cup, filter and cyclone, put cyclone into the dust cup and rotate the dust cup lid into the dust cup until until a "click" sound is heard.(Figure 7)

Note:

1. Do Not miss the filter!
2. Use water or neutral reagents to clean dust cup and wipe with dry cloths. Do not wash the filter until it is necessary. Make sure the filter and dust cup are completely dry before another use.

Brushroll Cleaning Brushroll Cleaning and installation

Turn off the machine and unplug the power cord, rotate the right lock knob anticlockwise with hand from locked position to unlock position (Figure 8) to remove the brushroll to clean up.(Figure 9)

After brushroll cleaning, install the brushroll and the brushroll cover into the machine in turn and lock the latch of the brushroll.

Note: For safety reasons, please turn off the machine and unplug power cord before cleaning brushroll.

Maintenance and Storage

Please clean dust cup and filter after each use for further use. It is recommended to replace a filter after 30-50 hours of working time (depending on specific situation) for better use.

Any paper, lead glass, plastic will greatly affect the effect of UV light. Please wipe and clean the UV tube regularly for better use.

Do Not touch the UV tube as dirt will affect UV light effect.

Put the machine in cool and dry place if the machine is to be idled. Do Not leave it in direct sunlight or humid environment.

Cautions

1. Please read this instruction manual carefully before use and keep it properly for future use.
2. Never leave the machine working without supervision.
3. Keep this product beyond the reach of special individual such as children without adult supervision.
4. Keep the power cord away from sharp objects and do not drag the cord to move the machine in case of cord damage.
5. Do not use this product to clean water or wet dust. Do Not operate it in humid places (such as bathroom, toilet, laundry room, etc.) to avoid malfunction.
6. This product can ONLY use for cleaning of textiles such as mattresses, blankets, pillows, sofas, etc.
7. Do Not place the machine near heating appliances or expose it to direct sunlight in case of fire hazard.
8. For safety reasons, please do not use the product to clean hot objects such as carbon, cigarette butts, sharp objects such as broken glass, corrosive liquids, flammable and explosive materials such as gasoline and alcohol. Otherwise it may cause product damage or fire.
9. Do Not operate this machine with suction port blocked in case of product damage.
10. Do Not remove the brushroll cover or force the cover outward when the machine is powered on for safety reasons.
11. The product has UV light, for safety reasons, Do Not look at the bottom of the machine when the power is on in case of ultraviolet rays harming.
12. Do Not apply this product to plants. Excessive use of UV may cause object damage.
13. Do NOT sit on this product in case of personal injury and product damage.
14. Cut the power source in maintenance or off-service.
15. If the power cord is damaged, please ask for professional help of the manufacturer and other professionals for safety reasons.
16. Please turn off the power switch and unplug the power cord if the machine is to be idled. Do Not unplug the power cord with humid hand in case of electric shock.

Trouble shooting

Please check the following trouble points before go to the maintenance department.

Problems	Possible Reasons	Solution
Power failure	Power cord is not firmly inserted	Insert the power cord firmly
	No power on socket Check the	socket
	On/Off button not pressed Press	the On/Off button
Low suction power	Suction port clogged Clean up	suction port
	Dust accumulation on filter Clean up the dust cup and filter
	Dust accumulation on cyclone	Clean up cyclone
UV light tube failure	The UV function is automatically off for safety reasons or weak reflection of object	The UV function operates on the condition of less than 3 cm height from the object
	The machine operates on the same position for a long time	Move the machine forward and backward
	The machine is placed upright	Machine tilted no more than 30 degrees
	Sensor window is contaminate	Clean the sensor window with a half-dry cloth
	UV light damage Contact after-sale service
Automatically turned off	Dust cup full	The machine will automatically turn off to prevent the motor under long operation. If the machine automatically turned off, please clean up the dust cup and filter, unplug power cord and reuse if after 2 hours
	Suction port clogged
	Filter blocked
Brushroll failure	Brushroll tangled with foreign matter	Remove the cover and clean up brushroll according to user guide
	Belt broken	Remove the cover according to user guide and check the belt. If broken, contact after-sale to repair

Note: If fault remains after adopting the following solutions, contact after sale service or local distributor immediately.

Product Specifications

Technical Parameter

Model	WB73
Rated voltage 220V-240V	~
Rated frequency	50Hz
Rated power	600W

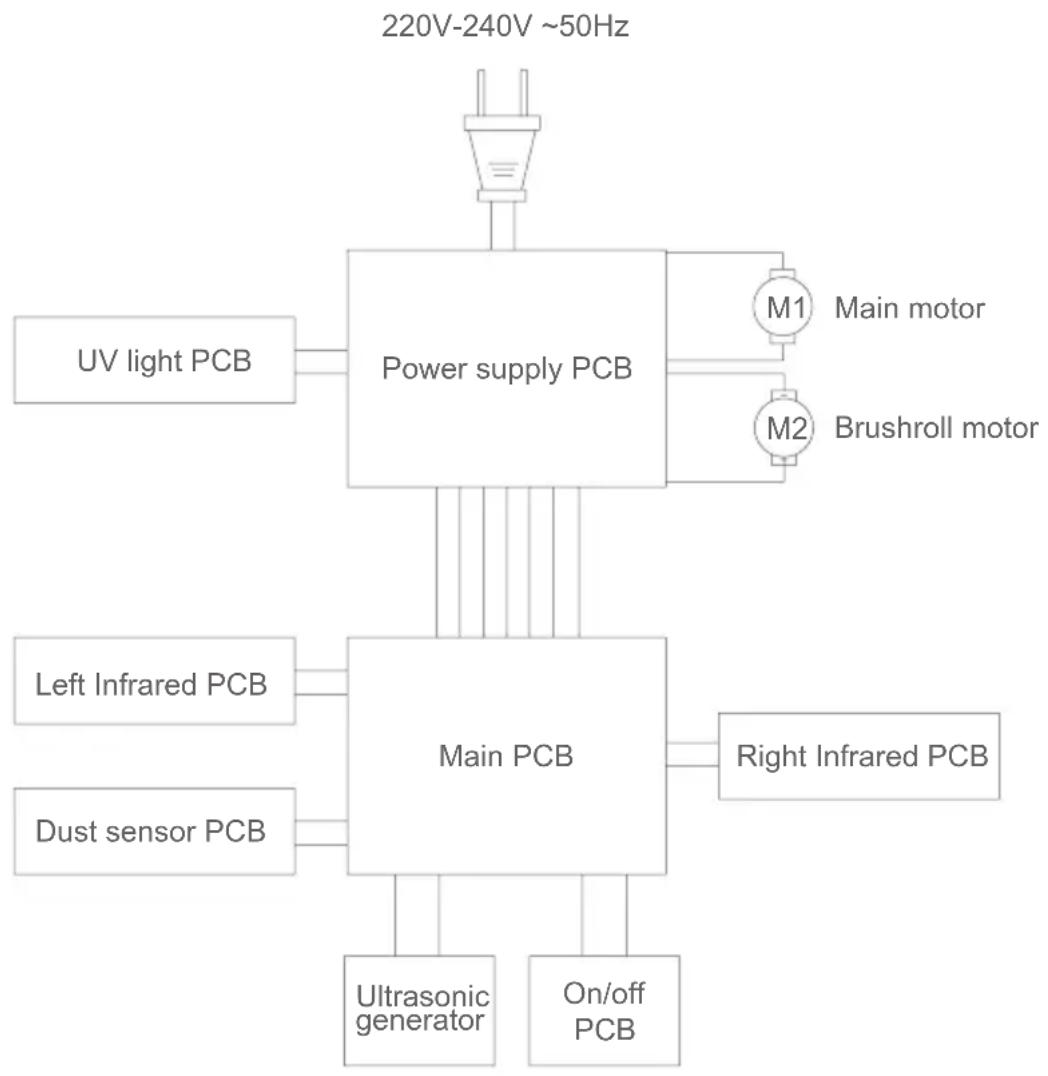

Circuit diagram

Manufacturer Information

Manufacturer Kingclean Electric Co., Ltd
Address	No.1 Xiangyang Road, Suzhou New District, Jiangsu Province 215009, China

Disposal

The machine, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of the machine into household waste!

Only for EC countries: According to the European Guideline 2012/19/EU, machine that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

Subject to change without notice.

Warranty Information

This product enjoys one year warranty for the machine, service starting from the date of purchase.

Excluded from the guarantee is normal wear, commercial use, alterations to the appliance as purchased, cleaning activities, consequences of improper use or damage by the purchaser or a third person, damage, that can be attributed to external circumstances.
