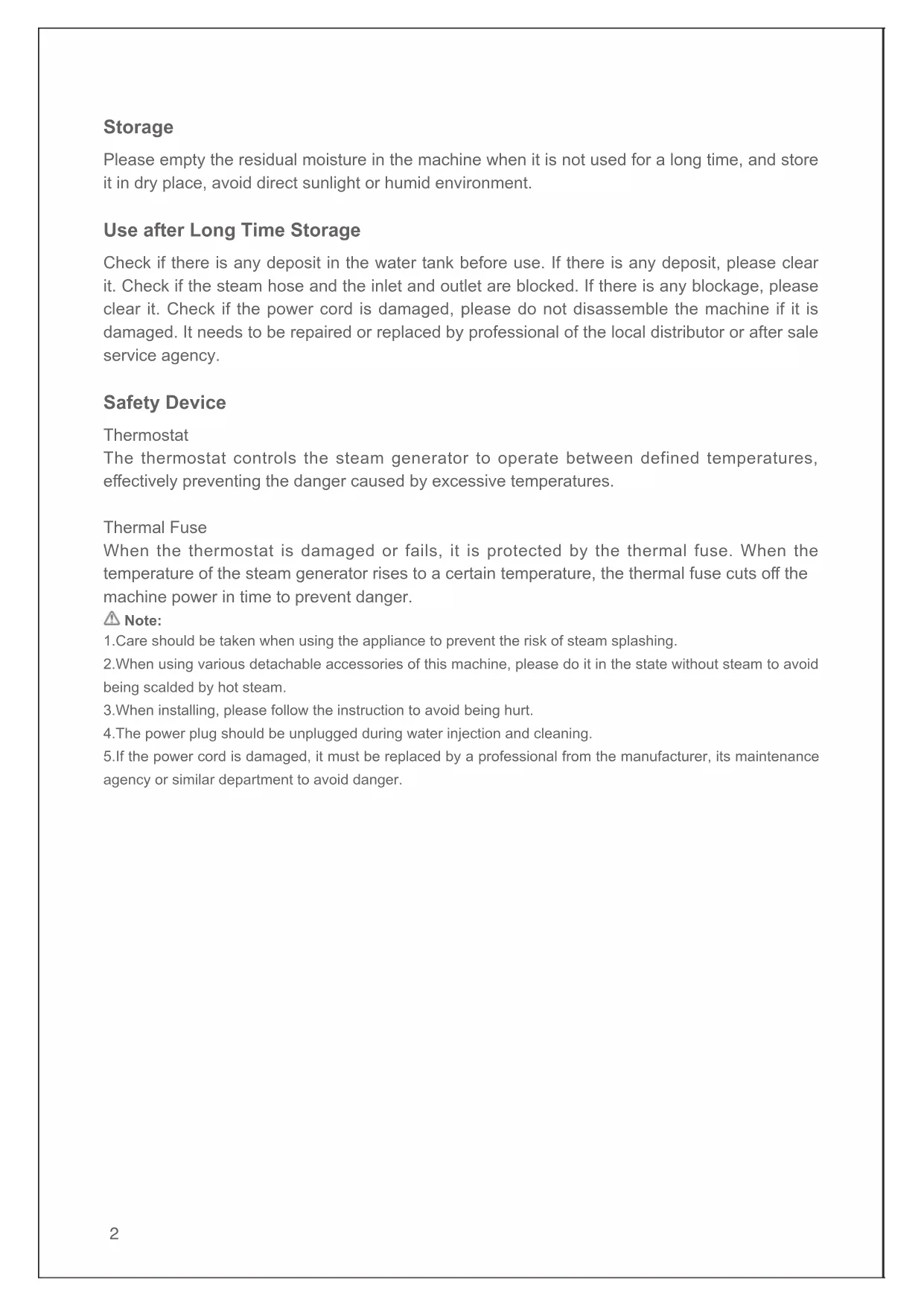

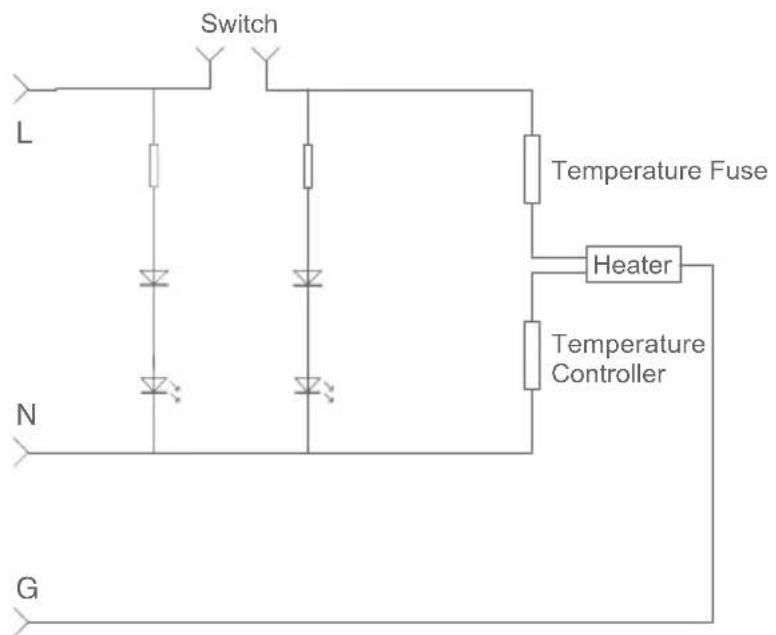

Instruction Manual Garment Steamer Manuel utilisateur Machine suspendue Benutzerhandbuch Heißluftdämpfer Manuale d'uso Macchina appesa Manual de Usuario Vapor de la ropa Инструкция по применению Паровая гладильная машина для вертикального отпаривания GT3061 Contents English 1 русский язык 47 Español 38 Italiano 29 Deutsch 20 Français 1 12 Storage Please empty the residual moisture in the machine when it is not used for a long time, and store it in dry place, avoid direct sunlight or humid environment. Use after Long Time Storage Check if there is any deposit in the water tank before use. If there is any deposit, please clear it. Check if the steam hose and the inlet and outlet are blocked. If there is any blockage, please clear it. Check if the power cord is damaged, please do not disassemble the machine if it is damaged. It needs to be repaired or replaced by professional of the local distributor or after sale service agency. Safety Device Thermostat The thermostat controls the steam generator to operate between defined temperatures, e󰀨ectively preventing the danger caused by excessive temperatures. Thermal Fuse When the thermostat is damaged or fails, it is protected by the thermal fuse. When the temperature of the steam generator rises to a certain temperature, the thermal fuse cuts o󰀨 the machine power in time to prevent danger. Note: 1.Care should be taken when using the appliance to prevent the risk of steam splashing. 2.When using various detachable accessories of this machine, please do it in the state without steam to avoid being scalded by hot steam. 3.When installing, please follow the instruction to avoid being hurt. 4.The power plug should be unplugged during water injection and cleaning. 5.If the power cord is damaged, it must be replaced by a professional from the manufacturer, its maintenance agency or similar department to avoid danger.3 Product Assembly Unpacking Open the package, take out the foam pad , all accessories and machine from the package, take o󰀨 the plastic bag and save them for the purpose of future maintenance and repair. Parts Name Ironing Board Water Tank Front Cover Foot Switch Steam Nozzle and Handle Clothes Hanger Supporting Pole Main Body Base Protective Glove Packing List Part Name Main Body Supporting Pole Steam Nozzle and Handle Clothes Hanger Quantity 1 1 1 1 Part Name Ironing Board Ironing Cushion Protective Glove User’s Manual Quantity 1 1 1 14 Assembly Assembly of the Supporting Pole According to the marks in the figure, the supporting pole can be inserted directly during assembly (Figure 1). When the supporting pole needs to be taken out, press the release button of the supporting pole downward and pull up the support pole to take out .(Figure 2) Note: supporting pole release button is only used when the supporting pole needs to be taken out. Assembly of Supporting Pole Open the latch, stretch the supporting pole up to the longest, then close the latch and press to tighten. Disassemble the supporting pole in opposite way after use .(Figure 3) Assembly of Clothes Hanger Open the latch on the supporting pole, insert the bottom side into the supporting pole with the steam nozzle hanger in the back .(Figure 4) Assembly of Steam Nozzle Insert the flexible hose into the round hole of the host until a “click ” sound is heard, then put the steam nozzle on the steam nozzle hanger

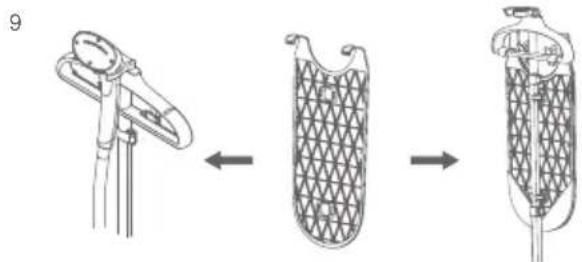

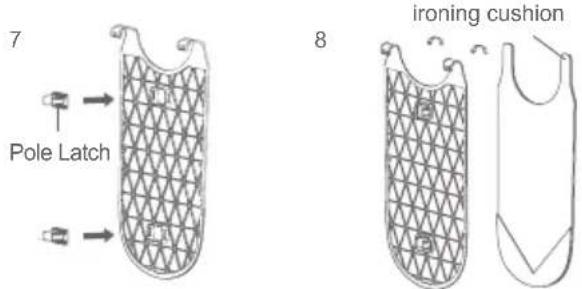

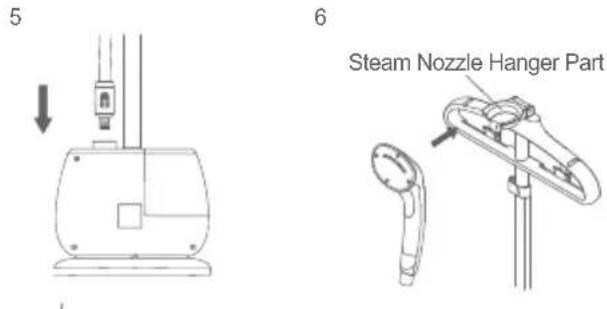

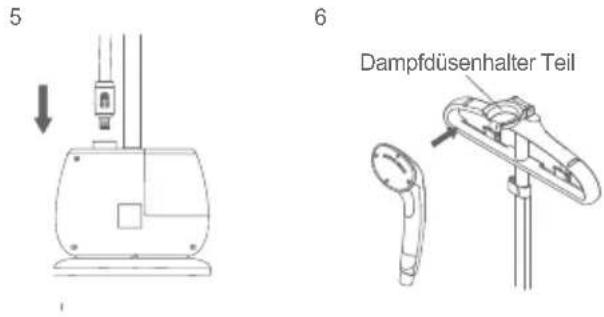

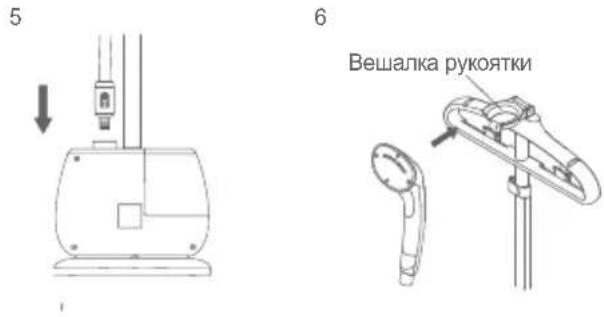

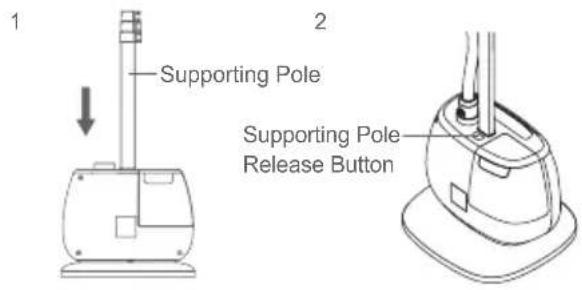

(Figure 5, 6) Assembly of the Ironing Board Install the pole latches to the ironing board, then place the ironing cushion over the ironing board. (Figure 7, 8) Hang the ironing board on the clothes hanger and fasten the ironing board on the supporting pole with the latches. Disassemble the ironing board in opposite sequense .(Figure 9)

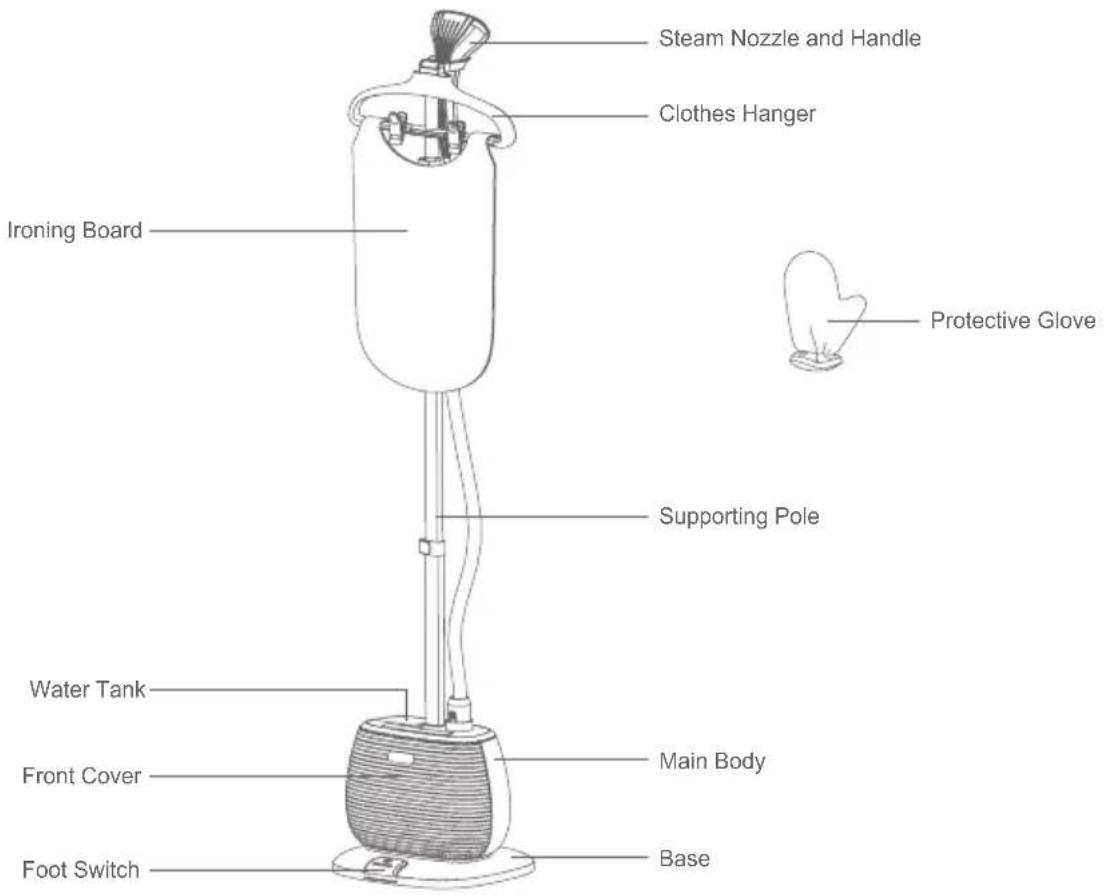

Supporting Pole Latch Clothes Hanger ironing cushion Steam Nozzle Hanger Part Pole Latch Latch Supporting Pole Release Button5

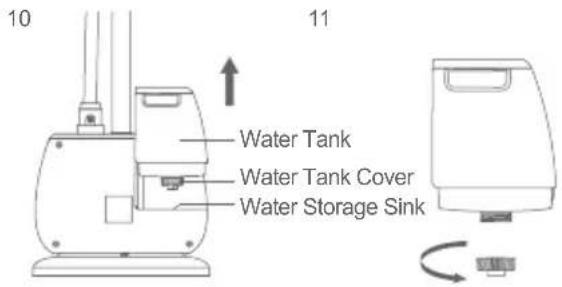

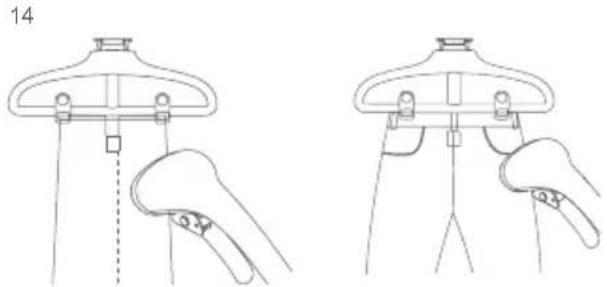

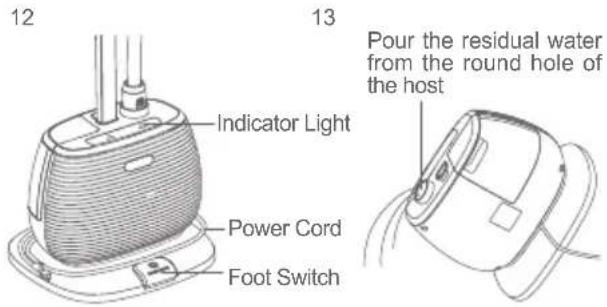

Water Tank Indicator Light Pour the residual water from the round hole of the host Power Cord Foot Switch Water Tank Cover Water Storage Sink Use of Garment Steamer Check before Use Before use, check whether there is deposit in the water tank. If there is deposit, please clear it. Check if the steam hose and the inlet and outlet are blocked. If there is any blockage, please clear it. A󰀨usion of Water Tank Take out the water tank, unscrew the cover at the bottom of the tank, add water (in order to extend the service life of the machine, it is recommended to use pure water), then tighten the tank cover and place the tank flat in the host. (Figure 10, 11) Connection of Power Before inserting the plug into the power socket, please confirm that the voltage is 230V and keep the power plug and hand dry. Use of Machine Hang the clothes with the clothes hanger. After the machine is connected with power, the power indicator lights on, step on the foot switch, the steam indicator lights up and the machine starts to work .(Figure 12) After use, step on the foot switch to turn o󰀨 the power, unplug the power supply, place the power cord around the base. In the process of use, in order to prevent the steam hose from being in the u-shaped bending state, please keep the hose in the vertical upward state during use. If you hear the purr or see the steam is not uent, please lift the hose in time and keep the hose upright, so that the condensed water can return to secondary heating to produce steam. After use, the machine should be cooled for at least 30 minutes. Disassemble the attachments, turn the host over and pour out the residual water in the machine. Be careful not to scald your hands. (Figure 13) Use of Clothes Hanger When ironing pants, the width of clips can be adjusted according to the width of the pants. (Figure 14)6 Cleaning and Maintenance Clean the residual water between the water tank and the host to prevent scale. When the steam amount is significantly less than before or steam flow stops shortly after working, please remove the scale accumulated on the heater of the garment steamer. We suggest that you remove the scale according to the following methods: 1.Turn o󰀨 the garment steamer and unplug the power supply, take out the supporting pole and remove it from the main machine; 2.When the garment steamer is cooled to room temperature, remove the water tank from the main machine and drain the remaining water in the machine;

3. Mix white vinegar and water in 1:1 ratio (if scale is too much, please increase the proportion

of white vinegar as appropriate). If you have no white vinegar, you can use other detergent which can remove scale; 4.Slowly pour the mixture into the water tank then put the water tank into the machine, the mixture shalll not overow; 5.Soak for 1-2 hours at room temperature (please extend the soaking time if there is much scale, but do not exceed 8 hours); 6.Pour the mixture out of the water storage sink and the round outlet on the machine. 7.Fill the water storage sink with water and pour it out. Repeat injection of clean water to wash, until the scale and acid avour inside the machine is gone;

8. Reassemble the parts so that they can be used again.

Notes Please read this instruction carefully before using this machine and keep it for future reference. This product is only for indoor use, please do not put the machine on the table, the work table or other high table surface to use, please put the machine on the level ground. Please do not allow children or people with no independent behavior ability or lack of relevant experience to use this product alone to avoid the risk. When using this product, please use the power supply with 30mA leakage protection switch. Be careful of condensed hot water to prevent scalding. Do not add water after starting the power to prevent dry burning. Do not add hot water to the water tank as this will cause the tank to deform. Do not add cleaning agent or other solutions into the water tank. Do not pour perfume, vinegar, starch, scale remover or other chemicals into the water tank.7 Keep the machine upright when there’s water in the water tank. Do not dump or shake the machine to prevent water from owing out of the machine. When in use, please do not leave, do not let children or people with no independent behavior ability touch the machine to avoid the risk. Please do not pull out the steam hose during normal use to avoid splash of hot steam or water. Please iron up and down vertically. Do not iron on the platform or work table, which will cause drips from the steam nozzle. Do not touch the heating parts or the steam nozzle, and pour the residual water carefully to avoid scalding. Do not bend the steam hose or block the steam nozzle, which may cause high pressure and accidents. Let the machine cool naturally after use. When not in use, please pull out the power plug. When not in use, please unplug the power supply, place the power cord around the base. Pay attention to the safety of plug and power supply. Do not pull out the plug by dragging. When the machine leaks steam, please stop using it immediately and ask a professional for maintenance. This product must be cleaned and maintained after a period of use (one month or continuous use of 10 boxes of water). Please remove the power plug when repairing, cleaning. In case of any damage to any part of the product, please inform the professional to repair it. Incorrect repair may cause accident. Please do not dismantle the machine without permission, which will lead to danger. If there is any damage, please go to the maintenance department designated by the company or nd a professional to repair it. If the power cord is damaged, it should be replaced by a professional from the manufacturer, its maintenance department or other after-sale departments to avoid danger.8 Trouble Shooting Please check the following issues before sending to designated maintenance departments. Symptoms Possible Causes Solutions No Steam ow, indicator light is o󰀨 Whether power supply is connected Connect the power supply Whether the switch is damaged Ask a professional for maintenance Whether thermal fuse is damaged No steam flow, but indicator light is on Steam generator burnt out Ask a professional for maintenance Steam nozzle leaks Whether steam nozzle is broken Replace the steam nozzle Use the steam nozzle horizontally Please use the steam nozzle up and down vertically The connection of steam hose leaks Whether the sealing ring is aging Replace the sealing ring Connection looseness Tightten connection of steam hose Overow of water tank Water tank is broken Replace water tank Water tank deforms Whether hot water added Whether other chemicals added Steam ow is too small Whether the pipe is blocked with scale Remove scale with professional detergent Whether the voltage is too low Use the power supply with a voltage regulator Switch damage or heater damage Ask a professional for maintenance Noise in steam hose Whether the steam hose is bent Extend the steam hose and lift the steam nozzle Steam nozzle is below the horizontal line during use yellow substance in the water tank The heater generates scale Clean the scale according to chapter “Cleaning and Maintenance”9 Product Specication Technical Parameter Model No GT306 Rated Voltage 230V~ Rated Frequency 50Hz Rated Power 1600W Water Tank Capacity 1.3L Working Noise
