540 - Detector Testo - Free user manual and instructions

Product Type	Light meter (lux meter)
Brand	Testo
Model	540
Measurable quantities	Lux (lm/m²), Foot candle (lm/ft²)
Measuring ranges	0 … 99999 Lux, 0 … 9300 ftc
Resolution	1 Lux (0…19999 Lux), 10 Lux (remaining range); 1 ftc (0…1860 ftc), 10 ftc (remaining range)
Accuracy (at 22 °C)	± 3 Lux or ± 3 % of value (class B, DIN 5032 part 7)
Sensor	Photodiode
Protection type	IP40
Operating temperature	0 … 50 °C / 32 … 122 °F
Storage temperature	-40 … 70 °C / -40 … 158 °F
Power supply	2 batteries 1.5 V type AAA
Battery life	200 h (without display backlight)
Dimensions (with cover)	133 x 46 x 25 mm
Weight (with batteries and cover)	95 g
Display	Digital display with backlight (10 s)
Display functions	Current value, Hold, Max, Min
Auto Off function	Yes (10 min) or can be disabled
Maintenance	Clean with a damp cloth (soapy water), do not use solvents
Battery replacement	Slide the battery compartment cover, respect polarity

Frequently Asked Questions - 540 Testo

How to turn on the device?

Briefly press the ⏻ button. The device switches to measurement mode.

How to change the display unit (lux / ftc)?

Press the ⬆ button repeatedly until the desired unit (lux or ftc) appears.

How to activate Hold, Max or Min mode?

Press the Mode button repeatedly to toggle between Current value, Hold, Max (maximum) and Min (minimum).

How to turn on the display backlight?

When the device is on, press the ⏻ button. The backlight turns off automatically after 10 seconds.

How to turn off the device?

Press and hold the ⏻ button for 2 seconds until the display turns off.

How to configure the Auto Off function?

Turn off the device, then press and hold the ⏻ button for 2 seconds. Select ON (automatic shutdown after 10 min) or OFF with the ⬆ button and confirm with Mode.

What to do if the display shows 'Hi'?

The measured value exceeds the maximum measuring range (99999 Lux). Observe the allowed range.

How to change the batteries?

Slide the battery compartment cover downward, remove the used batteries, insert two new AAA (1.5 V) batteries observing polarity, then close the cover.

How to clean the housing?

Use a damp cloth with soapy water. Never use solvents or aggressive cleaning agents.

Where to find Testo after-sales service contact information?

Visit www.testo.com/service-contact to contact support or your dealer.

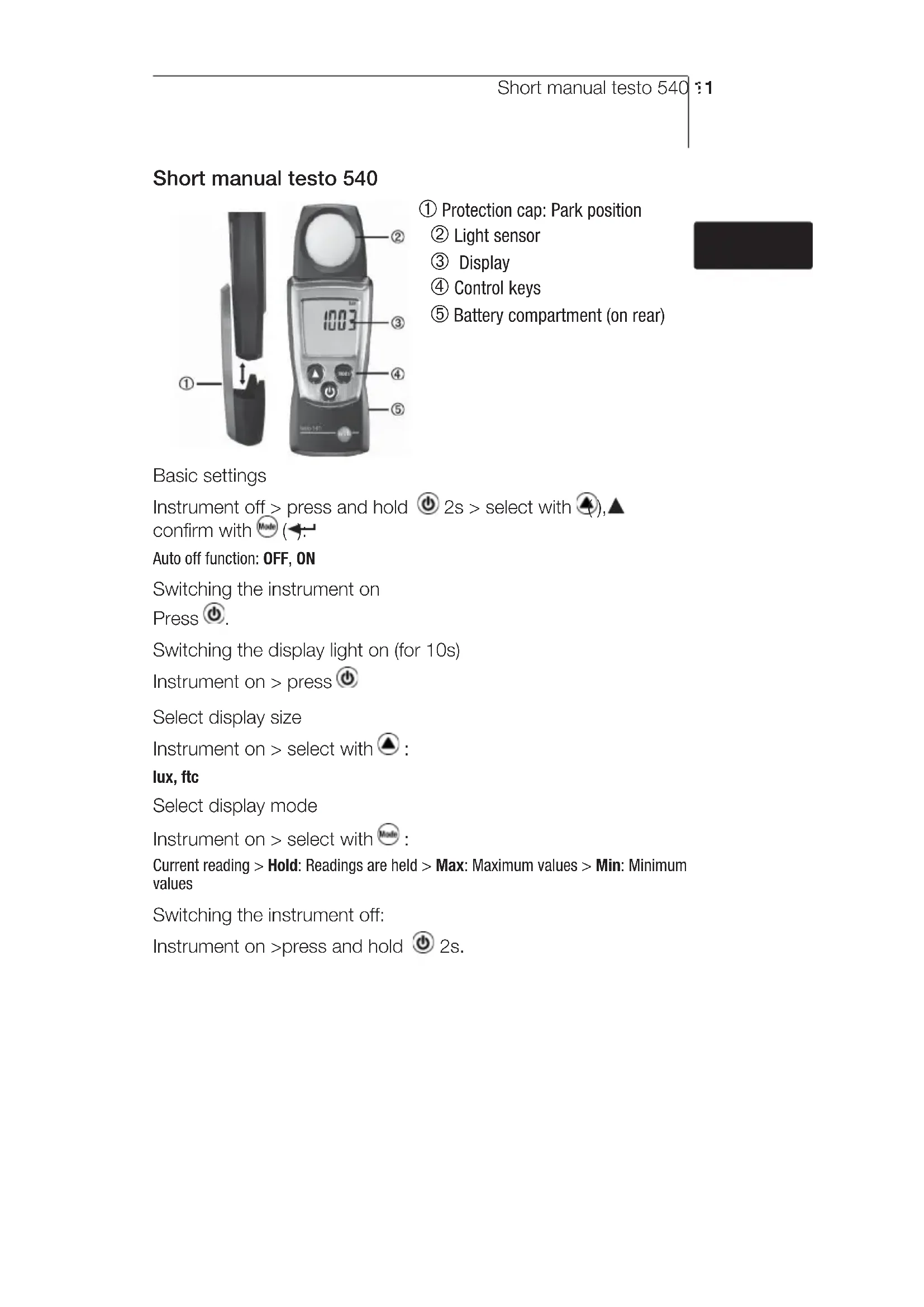

USER MANUAL 540 Testo

① ② 100.3 ③ ④ ⑤

Diagram of a digital multimeter with labeled parts including scale, pointer, and function buttons

① Protection cap: Park position

② Light sensor
③ Display
④ Control keys
⑤ Battery compartment (on rear)

Basic settings

Instrument off > press and hold ⏻ 2s > select with ⚠️, ▲ confirm with ⏻ (◀).

Auto off function: OFF, ON

Switching the instrument on

Press ⏻.

Switching the display light on (for 10s)

Instrument on > press ⏻

Select display size

Instrument on > select with ⬆ :

lux, ftc

Select display mode

Instrument on > select with 📂 :

Current reading > Hold: Readings are held > Max: Maximum values > Min: Minimum values

Switching the instrument off:

Instrument on >press and hold ⏻ 2s.

Safety and the environment

About this document

- Please read this documentation through carefully and familiarise yourself with the product before putting it to use. Keep this document to hand so that you can refer to it when necessary. Hand this documentation on to any subsequent users of the product.

- Pay particular attention to information emphasised by the following symbols:

i Important.

Avoid personal injury/damage to equipment

• Only operate the measuring instrument properly, for its intended purpose and within the parameters specified in the technical data. Do not use force.
• Never store the product together with solvents, acids or other aggressive substances.
• Only carry out the maintenance and repair work that is described in the documentation. Follow the prescribed steps when doing so. Use only OEM spare parts from Testo.

Protecting the environment

• Take faulty rechargeable batteries as well as spent batteries to the collection points provided for them.
• Send the product back to Testo at the end of its useful life. We will ensure that it is disposed of in an environmentally friendly manner.

Specifications

Functions and use

The testo 540 is an illuminance measuring instrument. It is normally used to measure illuminance, e.g. at workplaces.

Technical data

Measurement data

• Sensor:
  Photo diode
• Parameters:
  Lux (lm/m²), foot candle (lm/ft²)
• Measuring ranges:
  0...99999 Lux, 0...9300 ftc
• Resolutions:
  1 Lux (0...19,999 Lux), 10 Lux (rest of range)
  0.1 ftc (0...1,860 ftc), 1 ftc (rest of range)
• Accuracies (Nominal temperature
  25 °C, ±1 Digit):
  ± 3 Lux or ± 3 % to reference (Class B, DIN 5032 part 7)*
• Measuring rate:
  0.5 s

* whichever is the greater

Further instrument data

• Protection class: IP40
  • Ambient conditions: 0...50 °C, 32...122 °F
• Storage/transport conditions: -40...70 °C, -40...158 °F
  • Voltage supply: 2x 1.5 V type AAA
• Battery life: 200 h (without display light)
• Dimensions: 133x46x25mm / 5.2x1.8x1.0 in (inc. protection cap)
• Weight: 95 g / 3.4 oz (inc. batteries and protection cap)

Directives, standards and tests

• EC Directive:2014/30/EU

Warranty

• Duration: 2 years, warranty conditions: see www.testo.com/warranty

Product description

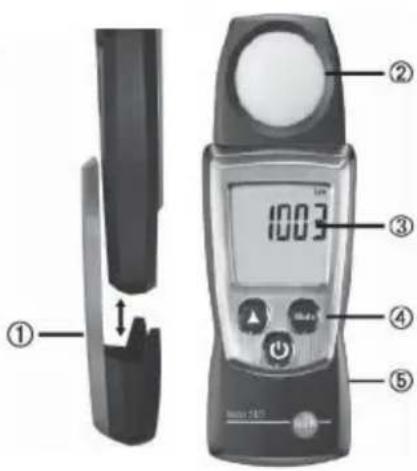

At a glance

Diagram of a digital multimeter with labeled parts including display, buttons, and adjustment knob

① Protection cap: Park position

② Light sensor

③ Display

④ Control keys

⑤ Battery compartment (on rear)

First steps

▶ Inserting batteries:

1 To open the battery compartment, push the battery cover down.

2 Insert batteries (2x 1.5 V type AAA). Observe the polarity!

3 To close the battery compartment, push the battery cover back on.

▶ Basic settings (configuration mode):

Adjustable functions

- Auto off function: OFF, ON (instrument switches off automatically if no key is pressed for 10 minutes)

1 When switching the instrument on, press and hold ⏻ until ▲ and ← appear on the display (configuration mode).

- The adjustable function is displayed. The current setting flashes.

2 Press ⬆ (▲several times until the desired setting flashes.

3 Press Mode (←) to confirm the input.

- The instrument changes to measuring mode.

Using the product

To guarantee correct readings: Hold the instrument horizontally so that the light sensor is directed upwards.

Switching the instrument on:

Press Ⓧ.

- Measuring mode is opened.

Switching the display light on:

√ The instrument is switched on.

Press Ⓧ.

- The display light goes out automatically if no key is pressed for 10 seconds.

▶ Changing the parameter unit:

Press ▲ until the desired unit appears.

Adjustable units

- lux

· ftc

▶ Changing the display view:

Adjustable views

- Current reading

- Hold: Readings are held.

- Max: Maximum values since the instrument was last switched on or last reset.

- Min: Minimum values since the instrument was last switched on or last reset.

Press several times until the desired view appears.

Resetting Max/Min values:

1 Press Mode several times until the desired view appears.

2 Press Mode and hold until - - - - appears.

3 Repeat steps 1 and 2 for all values that are to be reset.

▶ Switching the instrument off:

Press ⏻ and hold until the display goes out.

Maintaining the product

▶ Changing batteries:

1 To open the battery compartment, push the battery cover down.
2 Remove used batteries and insert new batteries (2x 1.5 V type AAA). Observe the polarity!
3 To close the battery compartment, push the battery cover back on.

▶ Cleaning the housing:

Clean the housing with a moist cloth (soap suds) if it is dirty.

Do not use aggressive cleaning agents or solvents!

Tips and assistance

Questions and answers

Question	Possible	causes/solutions
Hi · Readings outside the measuring range (too high:Keep to the permitted measuring range.
	· Residual capacity <10 min: Change batteries.

If we could not answer your question, please contact your dealer or Testo Customer Service. For contact details, please visit www.testo.com/service-contact.

Notes18
