USER MANUAL HG08597A Livarno Lux

PDF ONLINE www.lidl-service.com

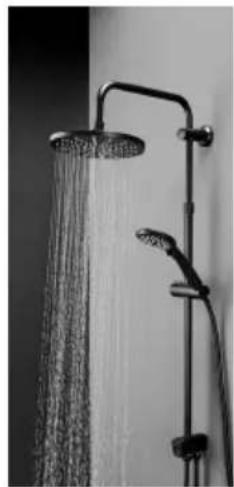

Shower shower system with two lenses and showerhead (no text or symbols visible)

Shower shower system with showerhead and hose, black and white photo (no text or symbols visible)

ÜBERKOPFBRAUSESET / SHOWER RISER KIT / SET DE DOUCHE

DE AT CH

ÜBERKOPFBRAUSESET

Assembly and safety advice

FR BE

SET DE DOUCHE

GB/IE Assembly and safety advice Page 8

Line drawing of a handheld electric drill (no text or symbols)

1 x 2

min. 800 mm

max. 1200 mm

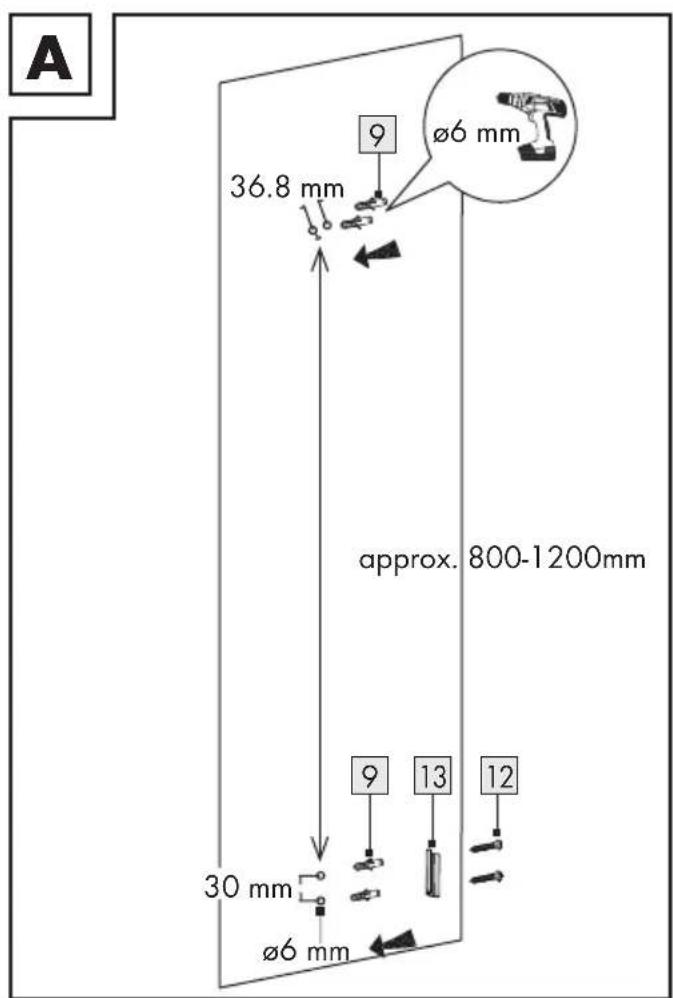

A 36.8 mm 9 ø6 mm approx. 800-1200mm 30 mm ø6 mm 9 13 12

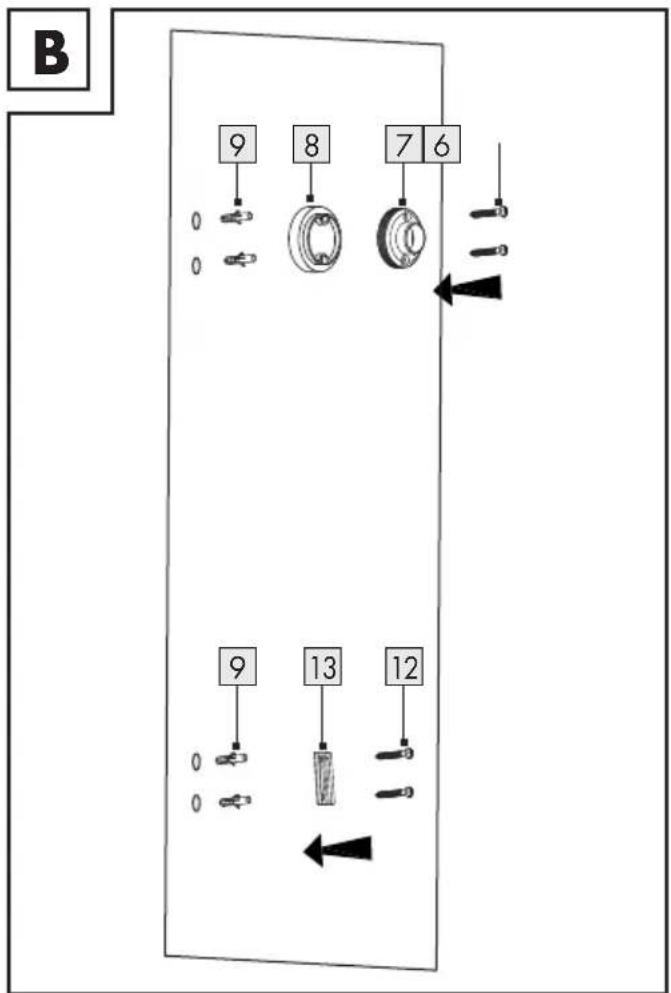

B 9 8 7 6 9 13 12

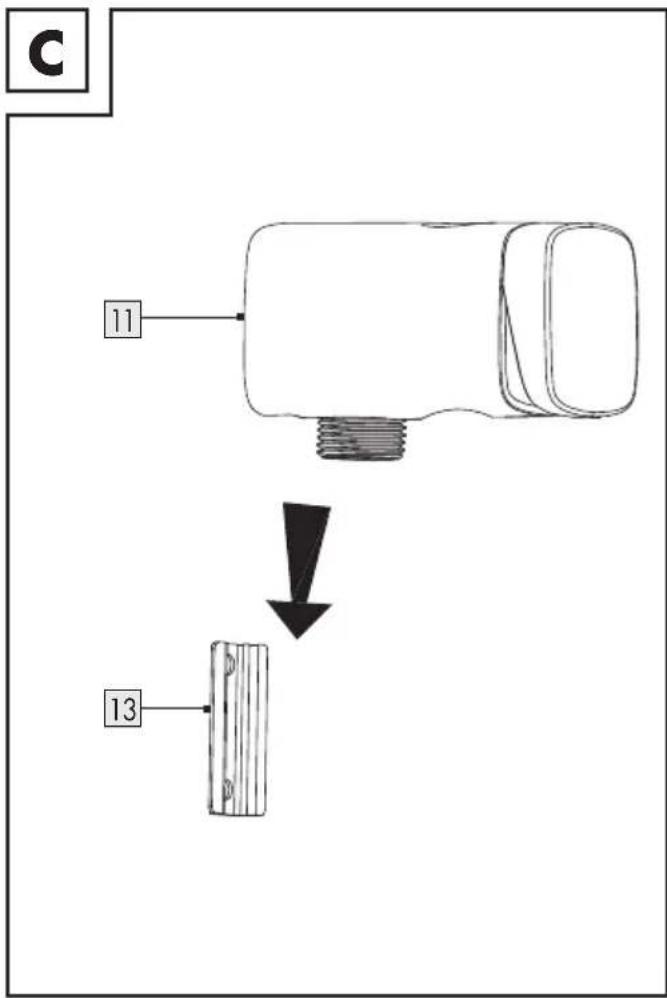

C 11 13

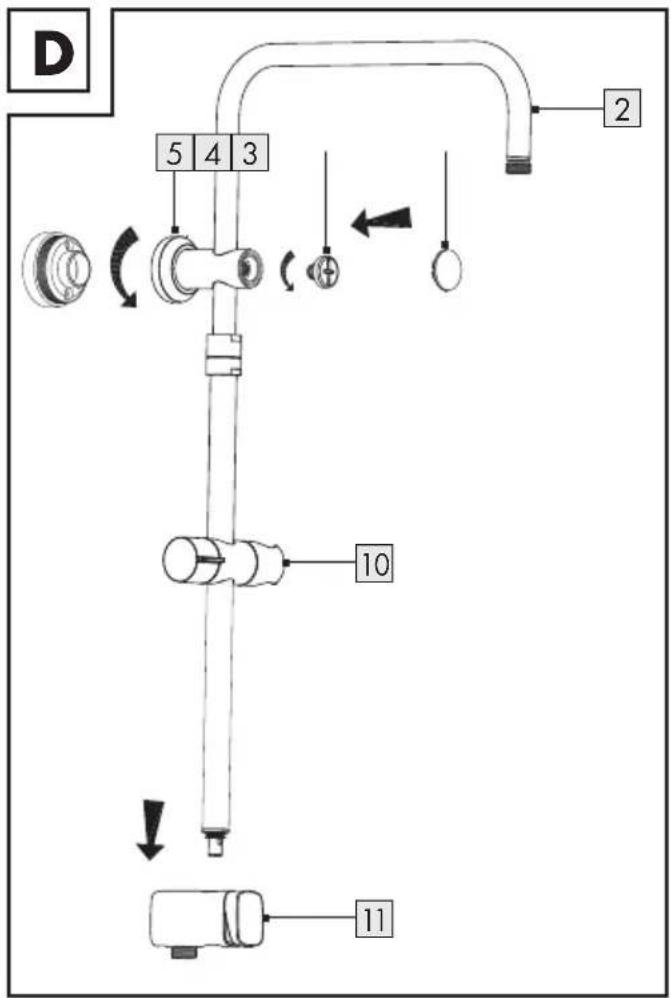

D 5 4 3 2 10 11

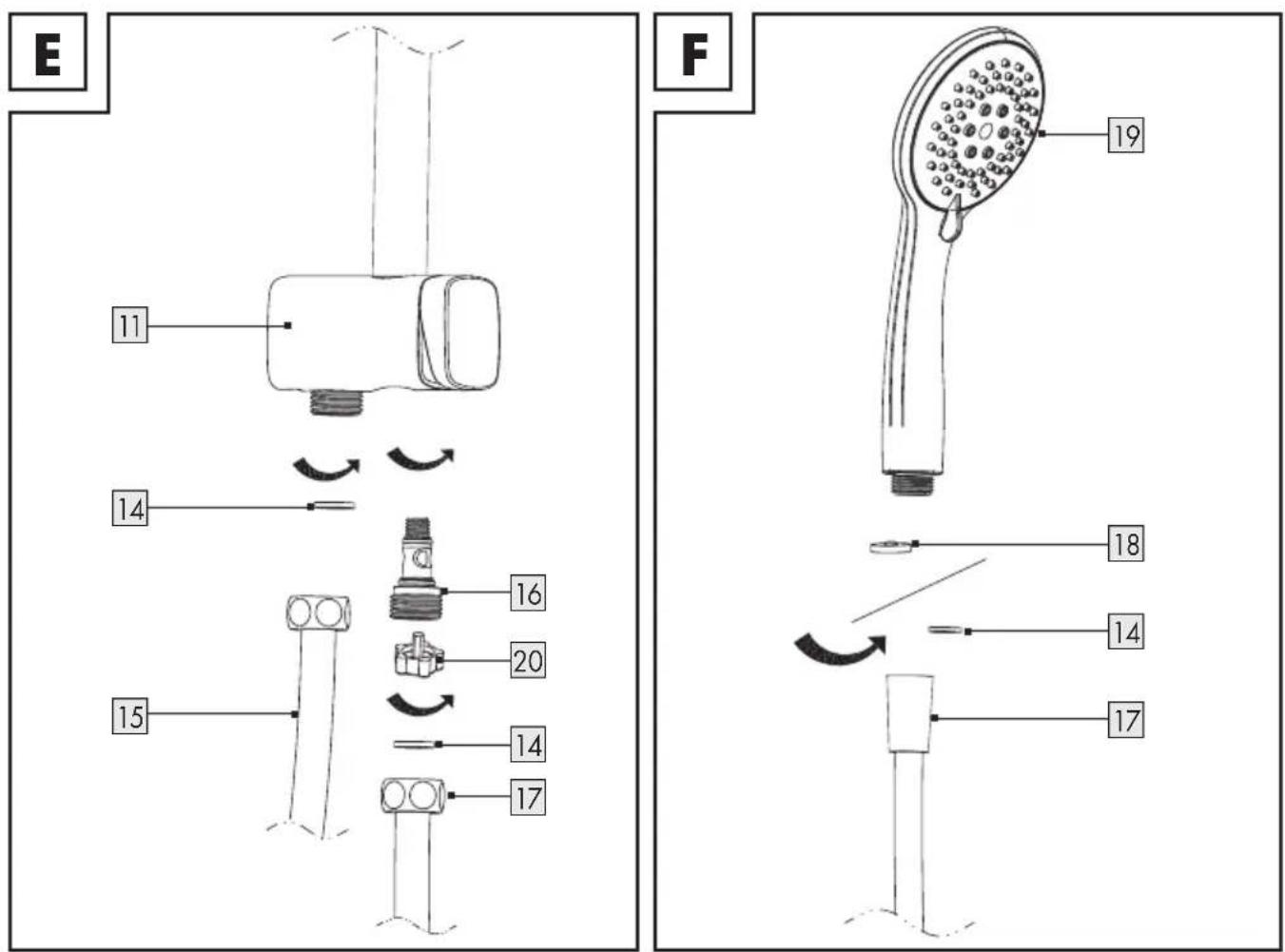

E 11 14 15 16 20 14 17 F 19 18 14 17

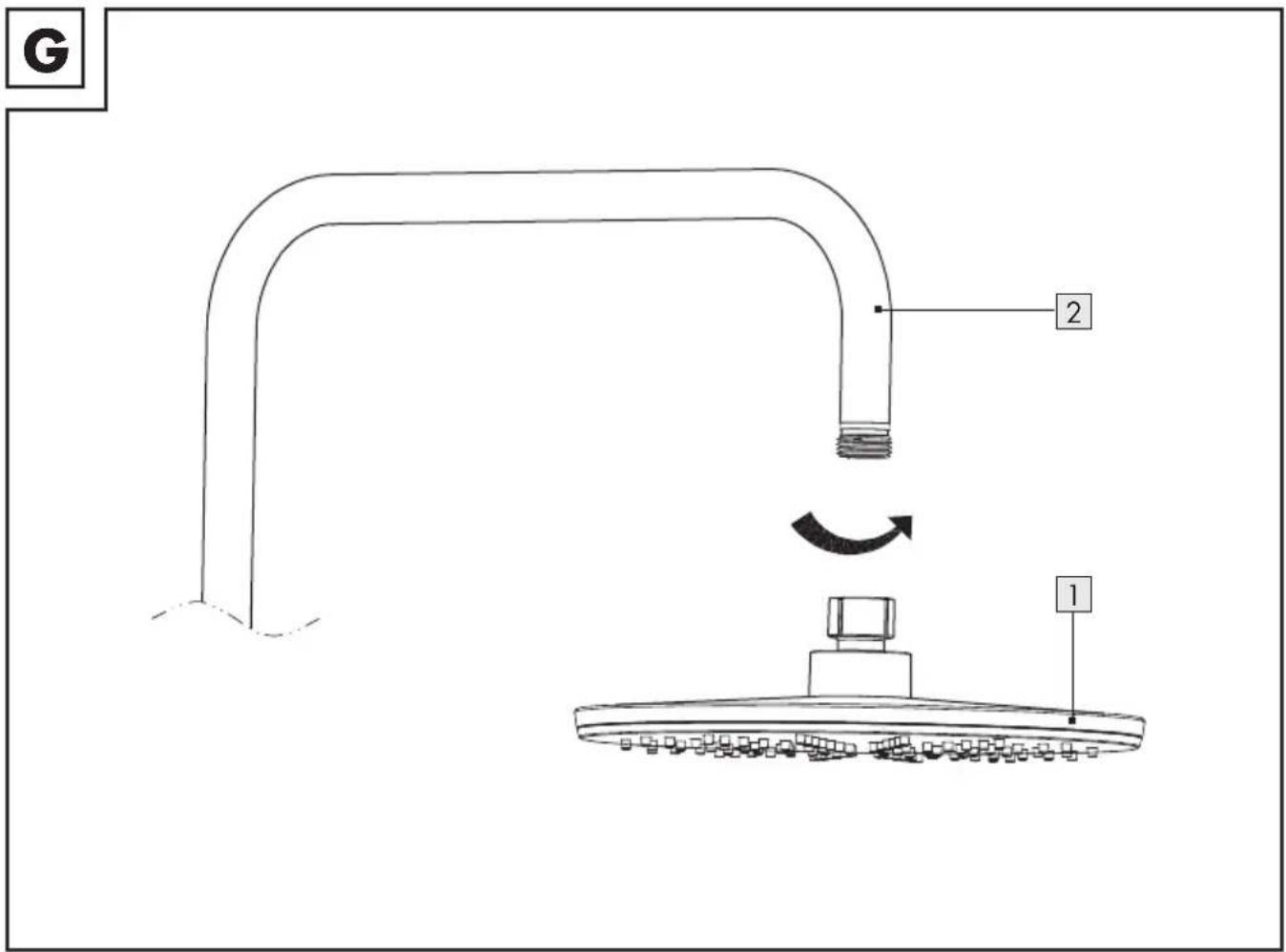

G 2 1

ÜBERKOPFBRAUSESET

Einleitung

We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is suitable for all pressure-tight hot water systems such as central heating boilers, instantaneous water heaters, pressurised boilers and the like. It is not suitable for low-pressure water heaters such as wood or coal burning bath geysers, oil or gas bath geysers, open electrically heated water tanks. If in doubt please seek the advice of a plumber or heating engineer. The product is intended for personal use only and not for medical or commercial use.

● Description of parts

1 Shower head with pre-installed washer
2 Shower bar
3 Covering cap (pre-installed on 5)
4 Plastic screw (pre-installed on 5)
5 Wall bracket
6 Screw (45 mm)
7 Wall bracket fixture
8 Wall fixing part (for wall bracket fixture)
9 Dowel
10 Hand shower holder
11 Diverter
12 Screw (35 mm)
13 Wall fixing part (for diverter)
14 Seal

15 Shower hose (connect to fitting / approx. 70 cm)
16 Hose connector
17 Shower hose (connect to hand shower / approx. 150 cm)
18 Water saving insert
19 Hand shower
20 Plastic key

- Technical data

Minimum working pressure: 1.5 bar

Safety instructions

Avoid the danger of death from electric shock!

WARNING! DANGER TO LIFE! Leaks or water seepage can pose a risk to life due to electric shock. Carefully check that all connections are tight. Additionally, ensure that all cables from any electrical devices are correctly and safely installed. Seek specialist advice if necessary.

Do not hold on to or support yourself by the shower bar 2. The materials are not designed for the resulting forces.

WARNING! RISK OF LOSS OF LIFE OR ACCIDENT TO INFANTS AND CHILDREN! Never

leave children unsupervised with the packaging materials. Danger of suffocation. Keep the product away from children. The product is not a toy.

CAUTION! RISK OF INJURY! Please ensure that no parts are damaged and that all parts are correctly assembled. Incorrect assembly could lead to injury. Please note that seals are wear parts and therefore will require to be replaced from time to time. Damaged parts could adversely affect safety and proper function.

ATTENTION! RISK OF DAMAGE TO

PROPERTY! Have the installation done by experienced persons only. Leaks or escape of water can lead to serious damage to buildings or household fittings and furniture. Check all connections for leaks carefully.

- Ensure that all seals are correctly seated to prevent leakage of water.

CAUTION! DANGER OF SCALDING! When making the hot water setting please ensure that the temperature of the water is not too high.

Please read carefully through these operating instructions before installing and using the product. Keep all the safety advice and instructions in a safe place for future reference!

Do not connect the shower hose 15 directly to a shut-off valve, always connect the shower hose with the provided diverter 11.

Before wall mounting, check that the wall can take the weight of the product. If in doubt, ask in a specialist shop.

CAUTION! WATER DAMAGE! Check the installation area for the presence of hidden water pipes before drilling the holes for the wall bracket 5 and wall fixing part 13 i.e. using a pipe and metal detector.

Examine the wall before installation and choose suitable installation fixings. We have supplied fixings suitable for an ordinary solid masonry wall.

Mounting

Tip: For fittings with 34 " (26.4 mm) connection, use an adaptor with 34 " (26.4 mm) inner thread and 12 " (21 mm) outer thread, available in DIY store or bathroom shops.

■ Please refer to fig. A-G.

Notes:

The length of the shower bar 2 is adjustable. Set the desired length before drilling.
■ Fasten hose connections and converter hand-tight.

Operation

Use the diverter 11 to switch between shower head 1 and hand shower 19.

Adjusting the hand shower 19:

• Adjust the height of the hand shower holder 10 by using the adjustment knob.
• Adjust the angle at which the hand shower is tilted by using the hand shower holder 10.

Water-saving insert:

The water-saving insert 18 reduces the flow of water. This may have an effect on how your continuous-flow water heater works. If the flow of water is too low, your continuous-flow water heater will automatically switch off.

Diverter function:

Press the switch on the diverter 11 to select the corresponding function (overhead shower or hand shower).

Cleaning and care

• Clean the product with a soft, damp cloth and use a mild cleaning agent if necessary.
  ■ Remove the limescale on the product by using a commercially available limescale remover. Please follow the directions for using your cleaning agent.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

Information

- Potability of mains water

- Find out about the potability of your mains water supply. Your local water authority or water supply company will be able to inform you.

The following general recommendations apply to the potability of the water from your pipework:

Let the water run freely for a short time if it has been stagnating in the pipework for more than four hours. Do not use any of this stagnant water in the preparation of food or for drinking. This applies particularly as far as babies and infants are concerned. Failure to observe this advice may result in risks to health. Fresh water can be readily distinguished from stagnant as fresh water is noticeably cooler.

Do not use stagnant water from chromium-plated pipework for the preparation of food or for drinking or for personal hygiene if you are allergic to nickel. This water may contain high quantities of nickel and trigger an allergic reaction.

Do not use water from lead pipework for preparing food or drink for babies or infants. Do not use it for preparing food or drink during pregnancy. Lead dissolves in drinking water and is particularly damaging to the health of babies and young children.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

● Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 385900_2110) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail:[e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail:[e-mail]
