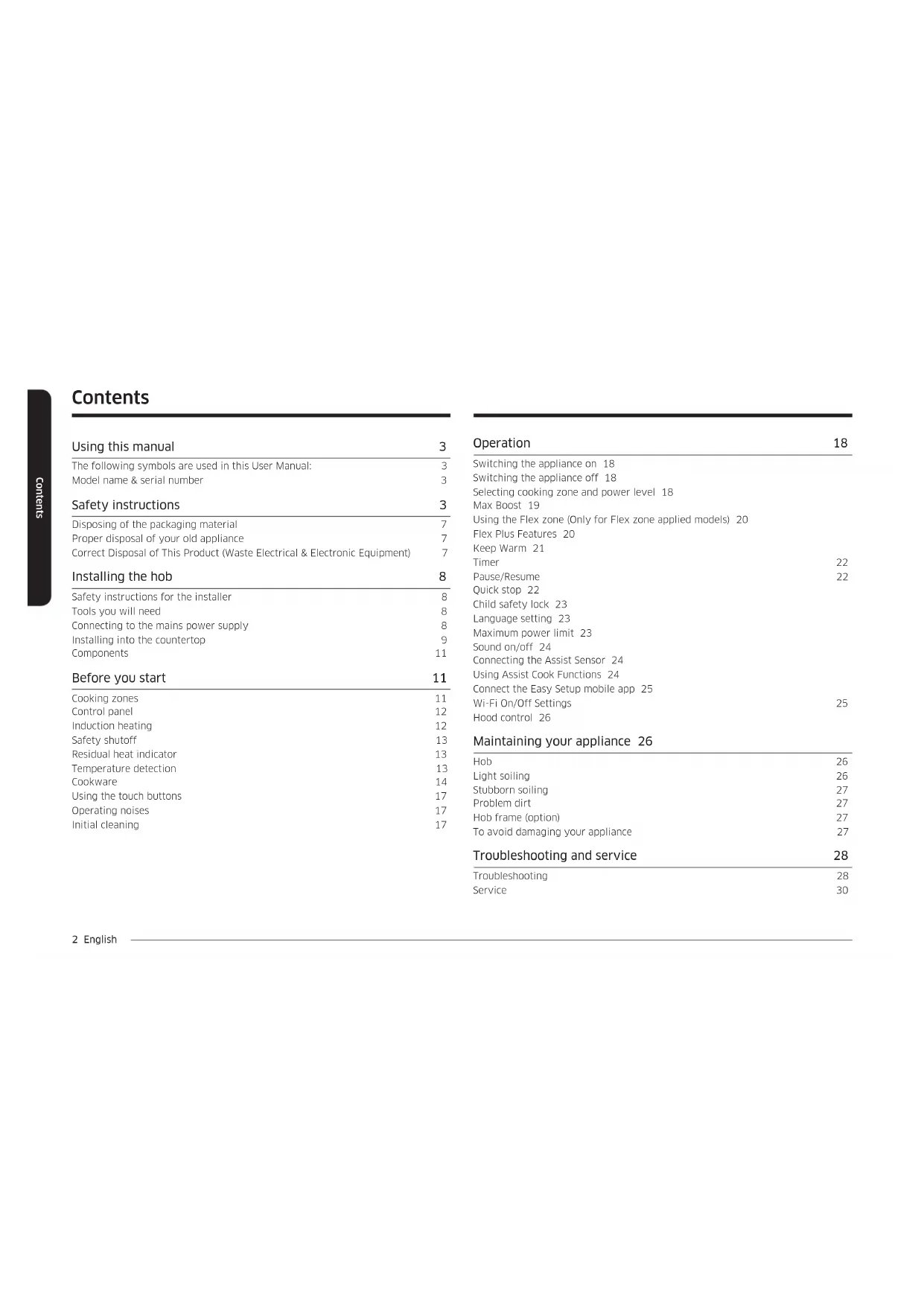

Induction Hob User manual NZ64B7799**2 English Contents Contents Operation 18 Switching the appliance on 18 Switching the appliance off 18 Selecting cooking zone and power level 18 Max Boost 19 Using the Flex zone (Only for Flex zone applied models) 20 Flex Plus Features 20 Keep Warm 21 Timer 22 Pause/Resume 22 Quick stop 22 Child safety lock 23 Language setting 23 Maximum power limit 23 Sound on/off 24 Connecting the Assist Sensor 24 Using Assist Cook Functions 24 Connect the Easy Setup mobile app 25 Wi-Fi On/Off Settings 25 Hood control 26 Maintaining your appliance 26 Hob 26 Light soiling 26 Stubborn soiling 27 Problem dirt 27 Hob frame (option) 27 To avoid damaging your appliance 27 Troubleshooting and service 28 Troubleshooting 28 Service 30 Contents Using this manual 3 The following symbols are used in this User Manual: 3 Model name & serial number 3 Safety instructions 3 Disposing of the packaging material 7 Proper disposal of your old appliance 7 Correct Disposal of This Product (Waste Electrical & Electronic Equipment) 7 Installing the hob 8 Safety instructions for the installer 8 Tools you will need 8 Connecting to the mains power supply 8 Installing into the countertop 9 Components 11 Before you start 11 Cooking zones 11 Control panel 12 Induction heating 12 Safety shutoff 13 Residual heat indicator 13 Temperature detection 13 Cookware 14 Using the touch buttons 17 Operating noises 17 Initial cleaning 17English 3 Using this manual Using this manual Please take the time to read this owner’s manual, paying particular attention to the safety information contained in the following section, before using your appliance. Keep this manual for future reference. If transferring ownership of the appliance, please remember to pass the manual on to the new owner. The following symbols are used in this User Manual: WARNING Hazards or unsafe practices that may result in severe personal injury or death. CAUTION Hazards or unsafe practices that may result in minor personal injury or property damage. CAUTION To reduce the risk of re, explosion, electric shock, or personal injury when using your hob, follow these basic safety precaution. NOTE Useful tips, recommendations, or information that helps users manipulate the product. Model name & serial number Both the model name and the serial number are labeled underneath the hob base. For later use, write down the information or attach the additional product label (located on the top of the product) onto the current page. Model Name Serial Number Safety instructions The safety aspects of this appliance comply with all accepted technical and safety standards. However, as manufacturers we also believe it is our responsibility to familiarize you with the following safety instructions. WARNING This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. The means for disconnection must be incorporated in the xed wiring in accordance with the wiring rules.4 English Safety instructions Safety instructions The appliance is not intended to be operated by means of an external timer or separate remote-control system. CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously. The appliance must not be installed behind a decorative door in order to avoid overheating.

WARNING: The appliance and its accessible parts become hot

during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

WARNING: Unattended cooking on a hob with fat or oil can be

dangerous and may result in a re. NEVER try to extinguish a re with water, but switch off the appliance and then cover ame e.g. with a lid or a re blanket.

WARNING: Danger of re: Do not store items on the cooking

WARNING: Use only hob guards designed by the manufacturer

of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents. This Appliance should be allowed to disconnection from the supply after installation. The disconnection may be achieved by having the plug accessible or by incorporating a switch in the ed wiring in accordance with the wiring rules. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard. The method of xing stated is not to depend on the use of adhesives since they are not considered to be a reliable xing means.

WARNING: If the surface is cracked, switch off the appliance to

avoid the possibility of electric shock. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the hob.

WARNING: Accessible parts may become hot during use. Young

children should be kept away. A steam cleaner is not to be used. Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot. After use, switch off the hob element by its control and do not rely on the pan detector.English 5 Safety instructions CAUTION Be sure the appliance is properly installed and grounded by a qualied technician. The appliance should be serviced only by qualied service personnel. Repairs carried out by unqualied individuals may cause injury or serious malfunction. If your appliance is in need of repair, contact your local service centre. Failure to follow these instructions may result in damage and void the warranty. Flush - mounted appliances may be operated only after they have been installed in cabinets and workplaces that conform to the relevant standards. This ensures sufcient protection against contact for electrical units as required by the essential safety standards. If your appliance malfunctions or if fractures, cracks or splits appear:

• switch off all cooking zones;

• disconnect the hob from the mains supply; and

• contact your local service centre. If the hob cracks, turn the appliance off to avoid the possibility of electric shock. Do not use your hob until the glass surface has been replaced. The surfaces are liable to get hot during use. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children less than 8 years.6 English Safety instructions Safety instructions Always keep the control panels clean and dry. Never place combustible items on the hob, it may cause re. There is the risk of burns from the appliance if used carelessly. Cables from electrical appliances must not touch the hot surface of the hob or hot cookware. Do not use the hob to dry clothes. Users with Pacemakers and Active Heart Implants must keep their upper body at a minimum distance of 30 cm from induction cooking zones when turned on. If in doubt, you should consult the manufacturer of your device or your doctor. (Induction hob model only) Do not attempt to repair, disassemble, or modify the appliance yourself. Always turn the appliance off before cleaning. Clean the hob in accordance with the cleaning and care instructions contained in this manual. Keep pets away from the appliance because pets may step on the controls of the appliance, causing an malfunction. Do not use the hob to heat aluminium foil, products wrapped in aluminium foil or frozen foods packaged in aluminium cookware. Liquid between the bottom of the pan and the hob can produce steam pressure. Which may cause the pan to jump. Always ensure that the hotplate and the base of the pan are kept dry. The cooking zones will become hot when you cook. Always keep small children away from the appliance. Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children. This appliance is to be used only for normal cooking and frying in the home. It is not designed for commercial or industrial use. Never use the hob for heating the room. Take care when plugging electrical appliances into mains sockets near the hob. Mains leads must not come into contact with the hob. Overheated fat and oil can catch re quickly. Never leave surface units unattended when preparing foods in fat or oil, for example, when cooking chips. Turn the cooking zones off after use.English 7 Safety instructions Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government ofce, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal. For information on Samsung’s environmental commitments and product specic regulatory obligations e.g. REACH visit: www.samsung.com/uk/aboutsamsung/ sustainability/environment/our-commitment/data/ Disposing of the packaging material WARNING All materials used to package the appliance are fully recyclable. Sheet and hard foam parts are appropriately marked. Please dispose of packaging materials and old appliances with due regard to safety and the environment. Proper disposal of your old appliance WARNING Before disposing of your old appliance, make it inoperable so that it cannot be a source of danger. To do this, have a qualied technician disconnect the appliance from the mains supply and remove the mains lead. The appliance may not be disposed of in the household rubbish. Information about collection dates and public refuse disposal sites is available from your local refuse department or council.8 English Installing the hob Tools you will need Pencil Phillips Head Screwdriver Ruler or Straightedge Safety Glasses Saber Saw Drill Connecting to the mains power supply Before connecting, check that the nominal voltage of the appliance, that is, the voltage stated on the rating plate, corresponds to the available supply voltage. The rating plate is located on the lower casing of the hob. WARNING Shut off power to circuit before connecting wires to circuit.

• The heating element voltage is AC 230 V

. The appliance also works perfectly on networks with AC 220 V

. The hob is to be connected to the mains using a device that allows the appliance to be disconnected from the mains at all poles with a contact opening width of at least 3 mm, eg. automatic line protecting cut - out, earth leakage trips or fuse.

• The cable connections must be made in accordance with regulations and the terminal screws tightened securely.

• Once the hob is connected to the mains supply, check that all cooking zones are ready for use by briey switching each on in turn at the maximum setting with suitable cookware. WARNING Pay attention (conformity) to phase and neutral allocation of house connection and appliance (connection schemes); otherwise, components can be damaged. Warranty does not cover damage resulting from improper installation. Installing the hob WARNING Be sure the new appliance is installed and grounded only by qualied personnel. Please observe this instruction. The warranty will not cover any damage that may occur as a result of improper installation. Technical data is provided at the end of this manual. Safety instructions for the installer

• A device must be provided in the electrical installation that allows the appliance to be disconnected from the mains at all poles with a contact opening width of at least 3 mm. Suitable isolation devices include line protecting cut - outs, fuses (screw type fuses are to be removed from the holder), earth leakage trips and contactors.

• With respect to re protection, this appliance corresponds to EN 60335 - 2 -

6. This type of appliance may be installed with a high cupboard or wall on one

• The installation must guarantee shock protection.

• The kitchen unit in which the appliance is tted must satisfy the stability requirements of DIN 68930.

• For protection against moisture, all cut surfaces are to be sealed with a suitable sealant.

• On tiled work surfaces, the joints in the area where the hob sits must be completely lled with grout.

• On natural, articial stone, or ceramic tops, the snap action springs must be bonded in place with a suitable articial resin or mixed adhesive.

• Ensure that the seal is correctly seated against the work surface without any gaps. Additional silicon sealant must not be applied; this would make removal more difcult when servicing.

• The hob must be pressed out from below when removed.

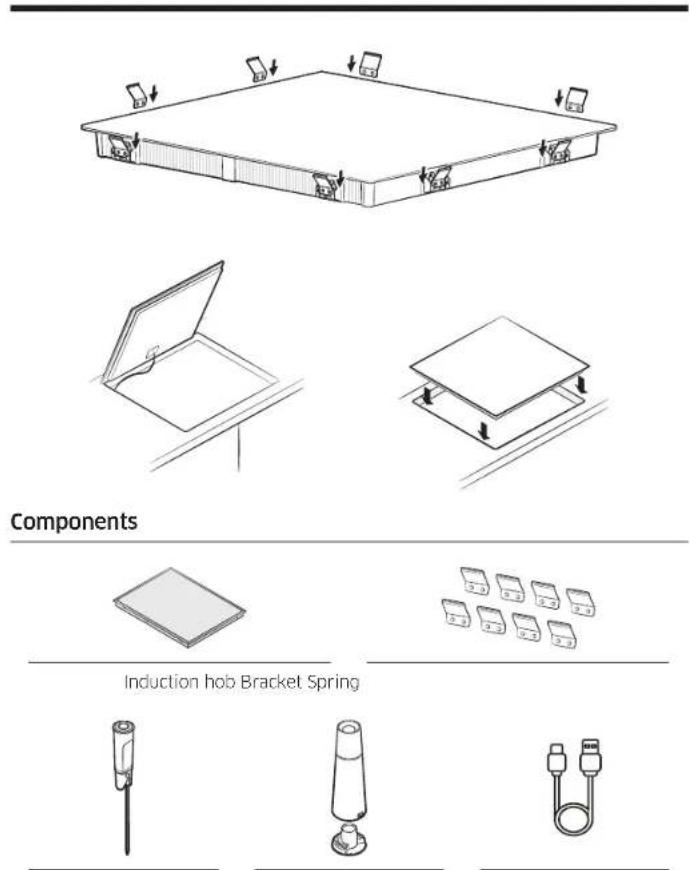

• A board can be installed underneath the hob.

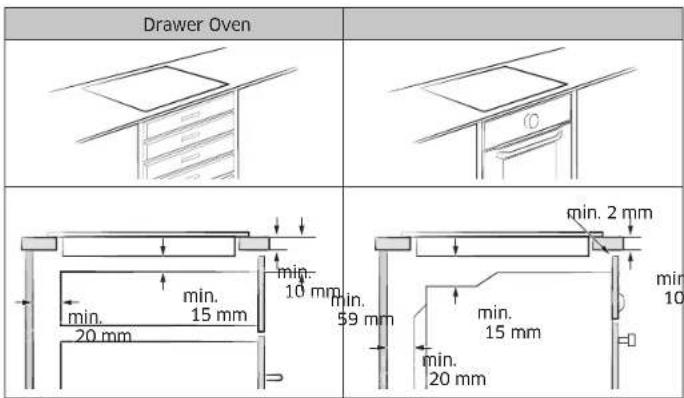

• The ventilation gap between the worktop and front of the unit underneath it must not be covered.English 9 Installing the hob WARNING If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.

L1 L2 N 2N~ (16A): Separate the 2-phase wires (L1 and L2) before connection.

L1 N1 L2 N2 2 x 1N~ (16A): Separate the wires before connection.

WARNING For correct supply connection, follow the wiring diagram attached near the terminals. Installing into the countertop

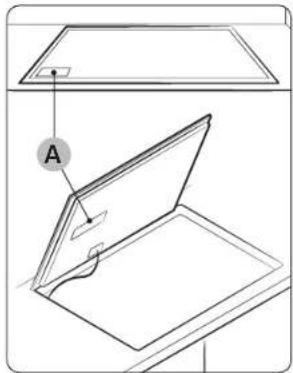

A. Serial number NOTE Make a note of the serial number on the appliance rating label prior to installation. This number will be required in the case of requests for service and is no longer accessible after installation, as it is on the original rating plate on the upperside or underside of the appliance. NOTE

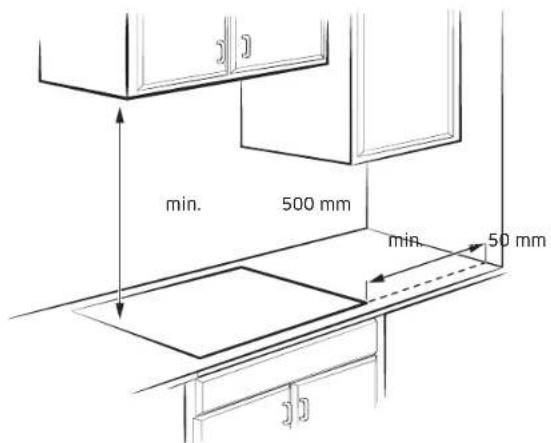

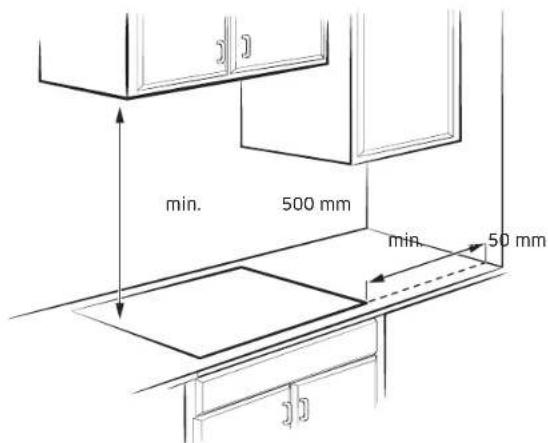

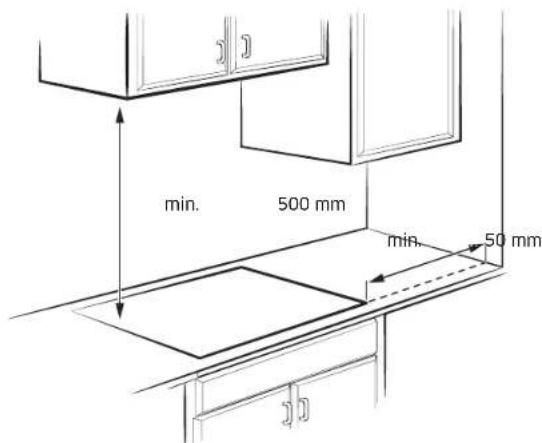

• Pay special attention to the minimum space and clearance requirements.

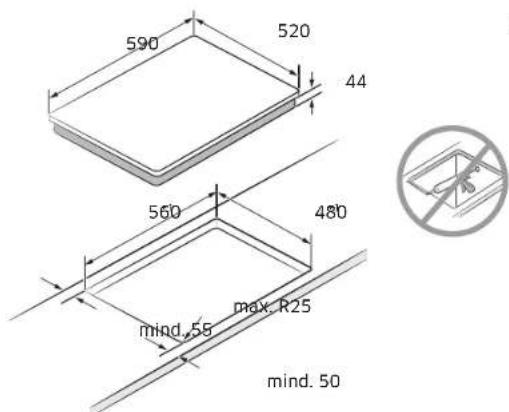

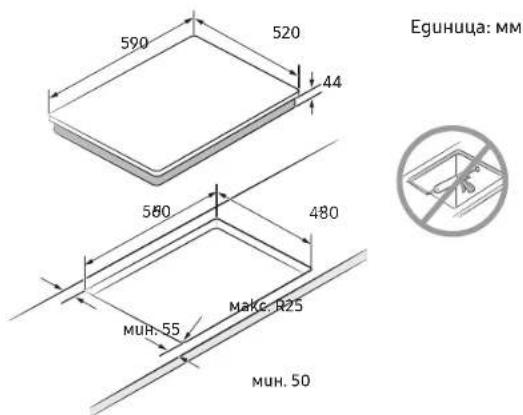

Unit : mmUnit : mm Flushed Fit Type (Only NZ6******FK model can be installed) Table Hob

+0.5+0.5 ※ ※ Remove the silicone with Remove the silicone with knife before service.knife before service.English 11 Before you start Components Induction hob Bracket Spring Assist Sensor Wireless charger USB Cable (C-Type) Before you start Cooking zones

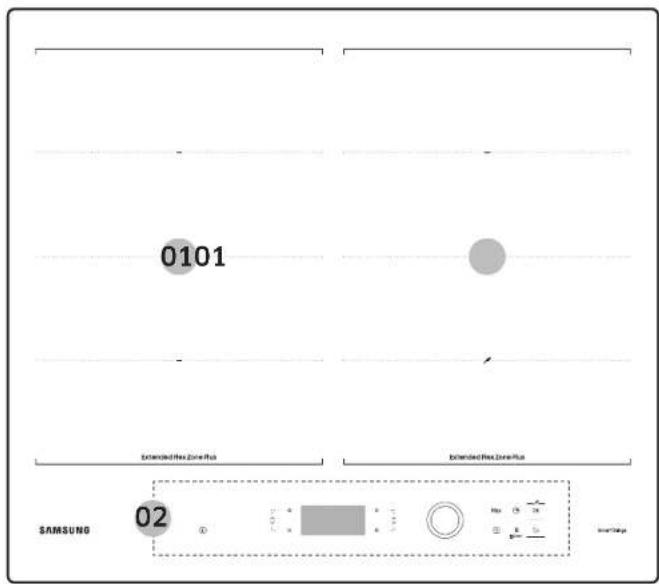

Induction cooking zone

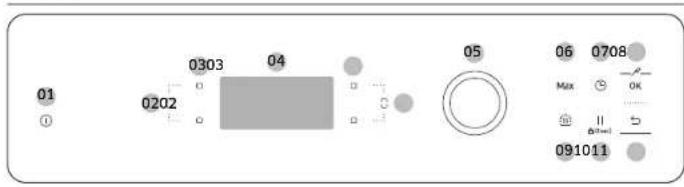

Control panel12 English Before you start Before you start Induction heating

A. Induction coil B. Induced currents C. Electronic circuits

• The Principle of Induction Heating: When you place your cookware on a cooking zone and you turn it on, the electronic circuits in your induction hob produce “induced currents” in the bottom of the cookware which instantly raise cookware’s temperature.

• Greater speed in cooking and frying: As the pan is heated directly and not the glass, the efciency is greater than in other systems because no heat is lost. Most of the energy absorbed is transformed into heat. Control panel

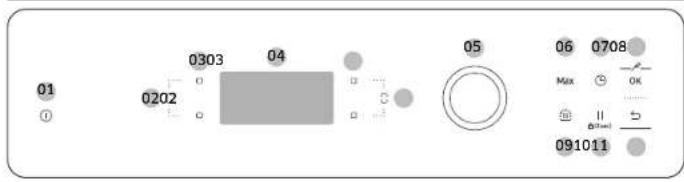

On/Off To activate and deactivate the hob.

Cooking zone To select the cooking zone.

Display To show for heat settings, residual heat, and Wi-Fi connection.

Control knob To set a heat setting and increase or decrease the time you can move the menu when using the Assist Cook function

Timer To turn timer on or off and set timer.

Assist Cook Assist Cook Only You can enter the Assist Cook menu or set each setting.

Keep warm To keep cooked food warm.

Pause & Lock To switch all cooking zones on to the low power setting. Press 3 seconds to lock or unlock the control panel. (Child safety lock)

Backsliding Assist Cook Only You can move to the previous stage or go out.English 13 Before you start Residual heat indicator When an individual cooking zone or the hob is turned off, the presence of residual heat is shown with an Heat, Heat in the corresponding cooking zone display. Even after the cooking zone has been switched off, the residual heat indicator goes out only after the cooking zone has cooled. You can use the residual heat for thawing or keeping food warm. WARNING

• As long as the residual heat indicator is illuminated, there is a risk of burns.

• If the power supply is interrupted, the Heat, Heat symbol will go out and information about residual heat will no longer be available. However, it may still be possible to burn yourself. This can be avoided by always taking care when near the hob. Temperature detection If for any reason the temperatures on any of the cooking zones were to exceed the safety levels, the cooking zone will automatically reduce to a lower power level. When you have nished using the hob, the cooling fan will continue to run until the hob’s electronics has cooled down. And the cooling fan switches itself off depending upon the temperature of the electronics. Safety shutoff If one of the cooking zones is not switched off or the power level is not adjusted after an extended period of time, that particular cooking zone will automatically switch itself off. The cooking zones switch themselves off at the following times. Power level Switch off 1-3 After 6 hours 4-6 After 5 hours 7-9 After 4 hours 10-15 After 1.5 hours NOTE

• If the Hob is overheated because of abnormal operation, C1 will be displayed. And the Hob will be switched off.

• If cookware is unsuitable, too small, or no cookware has been placed on the cooking zone, will be displayed. And after 1 minute the corresponding cooking zone will be switched off.

• Should one or more of the cooking zones switch off before the indicated time has elapsed, see the “Troubleshooting”. Other reasons why a cooking zone will switch itself off All cooking zones will switch themselves off if liquid boils over on the control panel. The automatic shutoff will also be activated if you place a damp cloth on the control panel. In both of these instances, the appliance will need to be switched on again using the On/Off key after the liquid or the cloth has been removed.14 English Before you start Before you start Cookware for induction cooking zones The Induction burner can only be turned on when cookware with a magnetic base is placed on one of the cooking zones. You can use the cookware identied as suitable below. Material Suitability Steel, enameled steel, cast iron Yes Stainless steel Yes (If magnet sticks to the bottom of the cookware) Aluminum, copper, brass, glass, ceramic, porcelain

• Cookware appropriate for induction cooking is labelled as suitable by the manufacturer.

• Certain cookware can make noises when being used on induction cooking zones.

• These noises do not indicate that the hob is malfunctioning and do not affect its operation in any way.

• Special stainless-steel cookware may not be suitable for induction cooking. Check if the base of the cookware is attracted by a magnet. Cookware Use at-bottomed cookware that completely contacts the entire cooking zone. Check for atness by rotating a ruler across the bottom of the cookware. Be sure to follow all the recommendations for using cookware.

• Use cookware made with the correct material for induction cooking.

• Use quality cookware with heavier bottoms for better heat distribution. This gives best cooking results.

• Match the cookware size to the quantity of food being prepared.

• Do not let cookware boil dry. This may cause permanent damage in the form of breakage, fusion, or marring that can affect the ceramic hob. (This type of damage is not covered by your warranty).

• Do not use dirty cookware or cookware with heavy grease buildup. Always use cookware that is easy to clean after cooking. CAUTION

• The cooking zones may appear cooled down after they have been turned off. However, the glass surface may be hot from residual heat transferred from the cookware. The risk of burns is still present.

• Do not touch hot cookware directly with your hands. Always use oven mitts or pot holders to protect your hands from burns.

• Do not slide cookware across the hob surface. Doing so may permanently damage the hob.English 15 Before you start Other induction cookware Some cookware has thin magnetic material on the bottom to work with an induction heating hob. These cookware has weak magnetism and may not work well. (Weak magnetism means a magnet does not stick rmly or the area where the magnet sticks is small.)

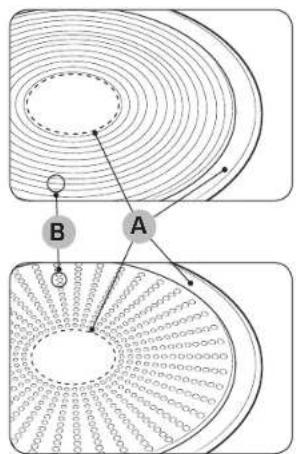

A. Area where magnet does not stick B. Area where magnet sticks Even though cookware are designed for an induction hob, the heating performance could be weak or sometimes the hob may not detect the cookware depending on the size and strength of the magnetic area on the bottom of the cookware. When using large cookware with a smaller ferromagnetic element, only the ferromagnetic element heats up. Consequently, heat might not be uniformly distributed. Cookware sizes for induction cooking zones Induction cooking zones adapt automatically to the bottom size of the cookware up to a certain limit. However, the magnetic part of the bottom of the cookware must have a minimum diameter depending upon the size of the cooking zone. For best results, use cookware whose ferromagnetic diameter match that of a burner. If the cookware is not sensed by the burner, try a bigger sized burner. NOTE For Cookware diameter, please refer to the model’s Cooking zones specications.16 English Before you start Before you start Correct positioning Correct Incorrect Flat-bottomed cookware and straight sides. Cookware with curved or warped bottoms or sides. The cookware meets or exceeds the recommended minimum size for the cooking zone. The cookware does not meet the minimum size required for the current cooking zone. The cookware rests completely on the hob surface. The cookware rests on the hob trim or does not rest completely on the hob surface. The cookware is properly balanced. The heavy handle causes the cookware to tilt. Suitability test Cookware is suitable for induction cooking if a magnet sticks to the bottom of the cookware and the cookware is labelled as suitable by the cookware manufacturer.

• You can recognise good cookware by their bases. The base is supposed to be as thick and at as possible.

• When buying new cookware, pay special attention to the diameter of the base. Manufacturers often give only the diameter of the upper rim.

• Do not use cookware which have damaged bases with rough edges or burrs. Damaged cookware can scratch the ceramic hob permanently if you slide them across the surface.

• When cold, cookware bases are normally bowed slightly inwards (concave). They must not be bent outwards (convex).

• If you want to use a special type of cookware, for example, a pressure cooker, a simmering pan, or a wok, please follow the manufacturer’s instructions.English 17 Before you start Energy saving tips Follow these tips to save power consumption.

• Always put cookware on a cooking zone before you turn the corresponding burner on.

• Keep the cooking zones and cookware bases clean. Otherwise, more power will be consumed.

• Firmly close the cover of cookware if available. This will reduce power consumption.

• Turn the working burner off before the end of the cooking time. Use the residual heat to keep food warm. Correct positioning You can test cookware to see if they are suitable for use with the product.

key for 1-2 seconds to turn on the hob.

2. Press the Pause & Lock

key for 3 seconds to activate the child safety lock.

3. Press the Timer key for 3 seconds to activate the cookware suitability test

4. Place the cookware on the one of the cooking zones, and then press and hold

the Cooking zone key for 3 seconds. Display Description 0 Cookware is unsuitable 10 ~ 70 % Cookware is suitable, but inefcient 80 ~ 100 % Cookware is suitable Using the touch buttons To operate the touch buttons, touch the desired button with the tip of your pointed nger until the relevant displays illuminate or go out, or until the desired function is activated. Ensure that you are touching only one button when operating the appliance. If your nger is too at on the button, an adjacent button may be actuated as well. Operating noises If you can hear.

• Cracking noise: cookware is made of different materials.

• Whistling: you use more than two cooking zones and the cookware is made of different materials.

• Humming: you use high power levels.

• Clicking: electric switching occurs.

• Hissing, Buzzing: the fan operates. The noise are normal and do not refer to any defects. WARNING Do not use cookware of different size and material. Using cookware of different sizes or materials may cause noises and vibrations. NOTE Using low power levels (1-5) may cause clicking noises. Initial cleaning Wipe the ceramic glass surface with a damp cloth and ceramic hob glass cleaner. WARNING Do not use caustic or abrasive cleaners. The surface could be damaged.18 English Operation OperationOperation Switching the appliance on The appliance is switched on using the On/Off key. Press the On/Off key for approximately 1-2 seconds. NOTE After the On/Off key has been actuated to switch on your appliance, a power level must be selected within approximately 20 seconds. Otherwise, the appliance will switch itself off for safety reasons. Switching the appliance off To completely switch off the appliance, use the On/Off key. Press the On/Off key for approximately 1-2 seconds. NOTE After switching off a single cooking zone or the entire cooking surface, the presence of residual heat will be indicated in the digital displays of the corresponding cooking zones in the form of an Heat, Heat two steps for “hot”. The temperature is lowered, Heat, Heat wil be disappeared. Selecting cooking zone and power level

1. For selecting the cooking zone, press the corresponding Cooking zone key.

2. For setting and adjusting the power level, use the Control bar or Control key

or Control knob. Control Knob NOTE

• The default level is set to 15 when selecting the cooking zone.

• If more than one key is pressed for longer than 8 seconds, d0 will show in the cooking zone display.English 19 Operation Suggested settings for cooking specic foods The numbers in the table below are guidelines. The power level required for various cooking methods depend on a number of variables, including the quality of the cookware being used and the type and amount of food being cooked. Power level Cooking method Examples for Use 14-15 Warming / Sautéing / Frying Warming large amounts of liquid, boiling noodles, searing meat, browning goulash, braising meat 8-11 Intensive frying Steak, sirloin, hash browns, sausages, pancakes / griddle cakes 7-10 Frying Schnitzel / chops, liver, sh, rissoles, fried eggs 5-7 Boiling Cooking up to 1.5 l liquid, potatoes, vegetables 2-4 Steaming / Stewing / Boiling Steaming and stewing of small amounts of vegetables, boiling rice and milk dishes 1-2 Melting Melting butter, dissolving gelatine, melting chocolate NOTE You will need to adjust the power level according to specic cookware and foods. Max Boost The Max Boost function makes additional power available to the each cooking zones. (example : bring a large volume of water to the boil) After Max Boost times, the cooking zones automatically sets back to the highest heat setting. NOTE

• In certain circumstances, the Max Boost function may be deactivated automatically to protect the internal electronic components of the hob. For example, It is impossible to output max power on Flex zone rear and Flex zone front at the same time.

• Refer to your model’s Cooking zones specication for Max Boost time. Power management The cooking zones have a maximum power available to them. If this power range is exceeded by switching on the Max Boost function, Power Management automatically reduces the power level of cooking zone. The display for this cooking zone alternates for some seconds between the set power level and the maximum possible power level. After then, the display changes from the set power level to maximum possible power level.20 English Operation Operation Flex Plus Features Cooking Zone 1 Cooking Zone 2 Cooking Zone 3 Cooking Zone 4 Cooking Zone 5 Cooking Zone 6 Cooking Zone 7 Cooking Zone 8 Flex Zone is a multi-pot, multi- shape, multi-size Customized to cook fans at the same time It is located on the left/right side of the induction as a cooking area. (Refer to the picture on the left) Each ex zone has four cooking zones, Wherever you put the cooking vessel in the cooking zone, It's convenient because you can use the crater separately. Flex Plus zones can be used by combining different cooking zones. See the table below to see how to combine the cooking zones using the crater selection button. Cooking zone Crater 1 Crater 2 Crater 3 Crater 4

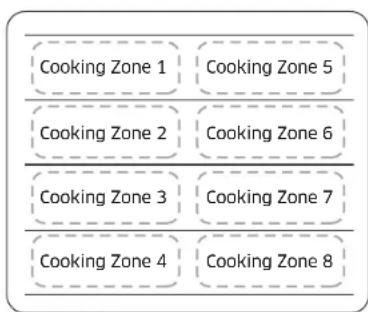

Using the Flex zone (Only for Flex zone applied models) The Flex function can operate complete left side cooking zone for using large size cookware. (example : oval cookware, sh kettle)

2. For setting and adjusting the power level, use the Power level key.

• Press the Flex zone key during operating, Flex zone function will be off.

• If you press the Flex zone key while each burner operation different level, burner set at a high level.English 21 Operation Keep Warm

1. Use this function to keep cooked food warm. Press the corresponding Cooking

3. The cooking zone display will be changed.

4. Press the Keep warm key again to turn off the cooking zone.

• When using only one cooking zone, the diameter of the bottom of the cookware must be less than 14 cm.

• The hob may take 5-10 seconds to recognise the position of cookware.

• Noises may occur while the hob recognise the cookware.

• Do not remove cookware during cooking. For safety purposes, the hob automatically stops if cookware has been removed for more than 5 seconds. Using the Flex zone Plus (Only for Flex zone plus applied models)

2. For setting and adjusting the power level, use the Power level key.

• If you press the Flex zone key during operating, Flex zone function will be off.

• If you press the Flex zone key while each cooking zone is operating at different levels, it will be automatically adjusted to higher level.

• When moving or adding cookware to a new Flex zone, cancel the current operation, and then press the corresponding Cooking zone key to activate the cooking zone.22 English Operation Operation Pause/Resume The Pause/Resume function simultaneously switches all cooking zones that are switched on to the low power setting and then back to the power level that was previously set. This function can be used to briey interrupt and then continue the cooking process e.g., to take a telephone call. When the Pause/Resume function is activated, all keys except for the Pause & Lock , and the On/Off keys are disabled. To resume cooking, press the Pause & Lock key again. Quick stop This option reduces the step and time it takes to stop cooking. To switch off a cooking zone, press the Cooking zone key for 2 seconds. NOTE The Flex zone key does not support quick stop function. Timer Using as the safety shutoff timer If you set the specic time on the burner, it will automatically switch itself off after the time has passed. This function is useful when using more than one burner at the same time. Setting the safety shutoff timer

1. Turn on the burner that you are going to apply the safety shutoff timer.

2. Press the Timer (

) key on the operating burner.

3. Use the knob to set the time.

• You can set the time at 30-second intervals from 30 seconds to 10 minutes, at 1-minute intervals from 10 minutes to 60 minutes, and at 5-minute intervals from 60 minutes to 120 minutes.

• Press and hold the Timer ( ) key to set the time quickly. NOTE

• You can set the timer up to a maximum of 2 hours.

• Press and hold (for 1 second) the Max Boost ( ) button to immediately set the time to the maximum.

• Use a knob to set the timer in detail. Disabling the safety shutoff timer

1. Select the burner to disable the safety shutoff timer.

2. Press and hold the Timer (

) key on the operating burner. The timer is disabled.English 23 Operation Language setting

1. Press the On/Off key for a long time (more than 1 second) to turn on the

2. Press and hold the OK

key + Pause & Lock key for 3 seconds.

3. Select the language using Knob and press the OK

key. Maximum power limit This function allows you to adjust the maximum power of the unit.

1. Keep the power off.

2. Press the Pause & Lock

key for approximately 3 seconds to turn on the child safety lock.

3. Press the left front Cooking zone key and right front Cooking zone key at

the same time for approximately 3 seconds.

key for approximately 3 seconds. The displays will show Po. and current maximum power.

5. You can adjust the power limit using the OK

key. (4000 W, 7400 W)

6. Press the On/Off key to set the setting.

NOTE In low-power (4000 W) mode, the power level will be adjusted automatically. Child safety lock You can use the child safety lock to safeguard against unintentionally turning on a cooking zone and activating the cooking surface. Also the control panel, with the exception of the On/Off key (Only turn off control), can be locked in order to prevent the settings from being changed unintentionally, for example, by wiping over the panel with a cloth. Switching the child safety lock On/Off

1. Press the Pause & Lock

key for approximately 3 seconds. An acoustic signal will sound as conrmation.

will appear in the displays, indicating the child safety lock has been activated.

3. For switching the child safety lock off, press the Pause & Lock

key again for 3 seconds. An acoustic signal will sound as conrmation. NOTE

• Regardless of power on/off, child lock is activated.

• You can set the child safety lock during cooking. To turn off the burner with the child safety lock on, press the On/Off key or turn off the child safety lock rst and then press the corresponding Cooking zone key.24 English Operation Operation Using Assist Cook Functions

1. Enter the Assist Cook Menu and press

the Settings ( ) button to use the following functions by utilizing the knob.

2. Turn the knob to adjust the output

power. The adjusted output power is displayed separately depending on the cooking type. Assist Cook Menu Assist Cook Menu Details Sous-vide Use the assist sensor to keep the food at the desired temperature (35 °C to 100°C).

• For this function, the timer can be set up to 9 hours and 59 minutes. Use it for various cooking styles, including sous vide. Thermometer Use the assist sensor to check the temperature of the current food. Connect to SmartThings To see great recipes After receiving a recipe from the kitchen service, you can save up to ve recipes and use them immediately.

• If you do not connect to SmartThings, your recent recipe will not be activated. CAUTION Start the Assist Cook when the hob is cold. NOTE

• Sous-vide and Thermometer are available for all burners. Connect to SmartThings to see great recipes can only be used in the right front burner.

• If the Assist Sensor is not used for more than 5 minutes after removing it from the charger, it enters Sleep Mode. Press the Assist Sensor button once to reuse. Sound on/off

1. Press the On/Off key for approximately 1-2 seconds.

key for 3 seconds within 10 seconds after the power has turned on.

3. Sound will turn off and Sound off will be displayed in the display.

4. To change the sound setting, repeat steps 1 and 2. Sound will turn on and

Sound on will be displayed in the display. NOTE It is not possible to change the sound settings after 10 seconds from turning the power on. Connecting the Assist Sensor When cooking a pan/pot using a Assist Sensor, the food temperature can be measured for customized cooking and automatic cooking.

1. Press the On/Off key for a long time (more than 1 second) to make the

product Turn it on, enter and set the Assist Cook menu Please press the key.

2. The Assist Sensor Connection screen is displayed on the screen.

3. Press the key on the

4. When the Assist Sensor connection is completed, the completion screen is

displayed. NOTE Please refer to the Assist Sensor manual for how to operate the Assist Sensor. Scan this with your smartphone.English 25Operation Wi-Fi On/Off Settings 1. Press and hold (for at least 1 second) the Power () button to turn on the product.2. Within 10 seconds after the product turns on, press and hold the Pause & Lock () key for about 3 seconds.

3. Press and hold the Max Boost ( )

key on the right for about 3 seconds. The product’s Wi-Fi is enabled. Wi-Fi Off Tap OK to turn on

4. Press the OK ( ) key to set the

Wi-Fi On/Off. NOTE While “( Heat) Residual heat” is displayed on the screen, you are unable to set the Wi-Fi On/Off for safety reasons. Connect the Easy Setup mobile app Search “SmartThings” in the Google Play Store, Galaxy Store, or Apple App Store.Download the SmartThings app, provided by Samsung Electronics, on your smart device. You need a Samsung account to use the app.1. Press and hold (for at least 1 second) the Power () button to turn on the product and start up the mobile app (SmartThings).

2. Press and hold the Pause & Lock (

) key for about 5 seconds. After that, prepare to connect to the mobile app. Proceed with the connection by following the guide displayed on the mobile app. • Continue holding down the Pause & Lock () key even after the “Lock Settings screen" appears. Connecting 3. Once the device is connected to the mobile app, “Connecting” will appear on the screen. (This may take up to a maximum of 5 minutes depending on your usage environment.) Connection complete 4. Once the connection is complete, “Successfully connected” will appear on the screen. You can now monitor your device's status using the mobile app.26 English Maintaining your appliance Operation Hood control This product features a Bluetooth device that you can use to connect the hob to Samsung hood control models. Through the Bluetooth connection, you can use the hood control function on the SmartThings app. To nd out more about Samsung hood control-enabled models, visit www. samsung.com. To connect to a hood control model

1. Download and run the SmartThings app on your smartphone. Then, complete

the Smart Connect procedure to connect to the hob.

2. Follow the Bluetooth instructions of the hood control model and activate the

Bluetooth connection.

3. Press and hold the Timer

and Pause & Lock keys simultaneously to make the Bluetooth connection. When the Bluetooth connection is successfully established, Bluetooth appears on the display.

4. Follow the instructions in the user manual of the hood control model and the

App guide to use the hood control. NOTE

• If the Smart Connect connection is not successful, you cannot use the SmartThings app to monitor and control the hood.

• Without a Smart Connect connection to the hob, you can use a Bluetooth connection to pair the hob with the hood and sync them. To do this, follow steps 2 and 3 above. Maintaining your appliance Hob WARNING Cleaning agents must not come into contact with a heated ceramic glass surface: All cleaning agents must be removed with adequate amounts of clean water after cleaning because they can have a caustic effect when the surface becomes hot. Do not use any aggressive cleaners such as grill or oven sprays, scouring pads or abrasive pan cleaners. NOTE Clean the ceramic glass surface after each use when it is still warm to the touch. This will prevent spillage from becoming burnt onto the surface. Remove scales, watermarks, fat drippings and metallic discolouration with the use of a commercially available ceramic glass or stainless steel cleaner. Light soiling

1. Wipe the ceramic glass surface with a damp cloth.

2. Rub dry with a clean cloth. Remnants of cleaning agent must not be left on the

3. Thoroughly clean the entire ceramic glass cooking surface once a week with a

commercially available ceramic glass or stainless steel cleaner.

4. Wipe the ceramic glass surface using adequate amounts of clean water and

rub dry with a clean lint - free cloth.English 27 Maintaining your appliance Stubborn soiling

1. To remove food that has boiled over

and stubborn splashes, use a glass scraper.

2. Place the glass scraper at an angle to

the ceramic glass surface.

3. Remove soiling by scraping with the

blade. NOTE Glass scrapers and ceramic glass cleaners are available from specialty retailers. Problem dirt

1. Remove burnt-on sugar, melted plastic,

aluminium foil or other materials with a glass scraper immediately and while still hot. WARNING There is a risk of burning yourself when the glass scraper is used on a hot cooking zone:

2. Clean the hob as normal when it has

cooled down. If the cooking zone on which something has melted has been allowed to cool, warm it up again for cleaning. NOTE Scratches or dark blemishes on the ceramic glass surface, caused, for example, by a pan with sharp edges, cannot be removed. However, they do not impair the function of the hob. Hob frame (option) WARNING Do not use vinegar, lemon juice or scale remover on the hob frame; otherwise dull blemishes will appear.

1. Wipe the frame with a damp cloth.

2. Moisten dried debris with a wet cloth. Wipe and rub dry.

To avoid damaging your appliance

• Do not use the hob as a work surface or for storage.

• Do not operate a cooking zone if there is no pan on the hob or if the pan is empty.

• Ceramic glass is very tough and resistant to temperature shock, but it is not unbreakable. It can be damaged by a particularly sharp or hard object dropping onto the hob.

• Do not place pans on the hob frame. Scratching and damage to the nish may occur.

• Avoid spilling acidic liquids, for example, vinegar, lemon juice and descaling agents, onto the hob frame, since such liquids can cause dull spots.

• If sugar or a preparation containing sugar comes into contact with a hot cooking zone and melts, it should be cleaned off immediately with a kitchen scraper while it is still hot. If allowed to cool, it may damage the surface when removed.

• Keep all items and materials that could melt, for example, plastics, aluminium foil and oven foils, away from the ceramic glass surface. If something of this nature melts onto the hob, it must be removed immediately with a scraper.28 English Troubleshooting and service Troubleshooting and service Troubleshooting A fault may result from a minor information that you can correct yourself with the help of the following instructions. Do not attempt any further repairs if the following instructions do not help in each specic case. WARNING Repairs to the appliance are to be performed only by a qualied service technician. Improperly effected repairs may result in considerable risk to the user. If your appliance needs repair, please contact your customer service centre. Symptom Conrmation Method of action There is no display on the screen.

• Does the power breaker in the house break?

• Call the service engineer. It doesn't work even if I press the button.

• Is there any water or wet cloth in the operation unit?

• Keep the manipulator clean.

• Did you turn on the power by pressing the power button?

• Press the power button to turn on the power.

• Is the lock function set?

• Turn off the lock function.

• Is the power off? • If you turn on the power and do not press any button for a certain period of time, the power is automatically turned off. Symptom Conrmation Method of action The operation unit suddenly doesn't work.

• Is the power off? • Power outages or failsafes may be activated and power may be turned off. You can turn it on again.

• Is there any water or wet cloth in the operation unit?

• Keep the manipulator clean. I turned off the power after using it, but the Heat mark does not appear.

• Did you use the crater only for a short time?

• I don't have a lot of residual heat. It does not show Heat mark.

• Is the surface of ceramic glass hot?

• Request service. The cooling fan keeps running even though the power is off.

• Haven't you turned it off for a long time?

• Even if the power is turned off to cool the inside of the product, the cooling fan for a certain period of time It works. When cooling is complete, the cooling fan action is automatically terminated.English 29 Troubleshooting and service Symptom Causes and countermeasures

• It occurs when the DC Motor cannot operate due to defects of PCB, wiring, or some disturbance on the motor blade.

• If there is a problem with the product due to heating in an empty pot or abnormal operation for a long time, remove the cooking container and cool the product sufciently before using it. C0, C2

• If you get the same message even if you take action, please ask the service center.

• It is displayed if there is something wrong with the temperature sensor. Please refer it to the service center.

• Check if there are any foreign substances on the operation part, wipe the operation part clean, Try it again.

• If you keep pressing the button for more than 8 seconds, a message appears for safety. Try turning it off and then on again.

• If the same message appears even if you take action, please ask the service center. F0, F2

• This message is caused by poor communication of Chips inside the product. Please refer it to the service center.

• It is indicated when there is an abnormality in the usage voltage. Please check the outlet. Symptom Causes and countermeasures

• If the cooking container is not suitable for induction or operates without the cooking container.

• Use cooking containers suitable for induction.

• If the same message appears even if you take action, please ask the service center.

• It is displayed when the lock function is set.

• If the same message appears even if you take action, please ask the service center. Heat, Heat

• It is displayed when there is residual heat on the glass top plate after the power is turned off.

• If the product doesn't disappear after it's completely cold, ask the service center.30 English Troubleshooting and service Troubleshooting and service Service Before calling for assistance or service, please check the section “Troubleshooting”. If you still need help, follow the instructions below. Is it a technical fault? If so, please contact your customer service centre. Always prepare in advance for the discussion. This will ease the process of diagnosing the problem and also make it easier to decide if a customer service visit is necessary. Please take note of the following information.

• What form does the problem take?

• Under what circumstances does the problem occur? When calling, please know the model and serial number of your appliance. This information is provided on the rating plate as follows:

• S/N code (15 digits) We recommend that you record the information here for easy reference.

• Serial number: When do you incur costs even during the warranty period?

• If you could have remedied the problem yourself by applying one of the solutions provided in the section “Troubleshooting”.

• If the customer service technician has to make several service calls because he was not provided with all of the relevant information before his visit and as a result, for example, has to make additional trips for parts. Preparing for your phone call as described above will save you the cost of these trips. What should I do if the cooking zone will not switch on or off? This could be due to one of the following possibilities:

• The control panel is partially covered by a damp cloth or liquid.

• The child safety lock is on. and display

What should I do if the d0 display is illuminated? Check for the following:

• The control panel is partially covered by a damp cloth or liquid. To reset, press the On/Off key.

• If liquid has overowed on control panel, please wipe the liquid. What should I do if the C1 display is illuminated? Check for the following:

• The hob is overheated because of abnormal operation.

• After hob is cooled down, press the On/Off key for resetting. What should I do if the display is illuminated? Check for the following:

• Cookware is unsuitable, too small, or no cookware has been placed on the cooking zone.

• If you use suitable cookware, displayed message will automatically disappear. What should I do if the cooling fan runs after the hob is turned off? Check for the following:

• When you have nished using the hob, the cooling fan runs by itself for cooling down.

• After the hob’s electronics has cooled down or elapsed max time (10 minutes) the cooling fan will be turned off.

• If you request a service call because of an information made in operating the appliance, the visit from the customer service technician may incur a charge even during the warranty period.MemoCOUNTRY CALL OR VISIT US ONLINE AT AUSTRIA 0800 72 67 864 (0800-SAMSUNG) www.samsung.com/at/support

Assist Sensor -toets.

Wi-Fi Off Tap OK to turn on
