ROC 350 - Remote control THOMSON - Free user manual and instructions
Find the device manual for free ROC 350 THOMSON in PDF.
| Product type | Universal remote control |
| Brand | THOMSON |
| Model | ROC 350 |
| Dimensions (approx.) | 17 cm × 5 cm × 2 cm |
| Weight (with batteries) | Approximately 100 g |
| Power supply | 2 AAA batteries (not included) |
| Battery type | Alkaline, non-rechargeable |
| Infrared range | Approximately 8 meters |
| Compatible devices | Televisions, VCRs, laser disc players, satellite and cable receivers with infrared control |
| Programming methods | 1-digit subcode, 3-digit code, manual search, automatic search |
| ShowView / VideOPLUS+ function | Yes, recording programming |
| NAVILIGHT navigation | Yes, compatible with equipped THOMSON devices |
| Volume control in satellite/cable mode | Yes, configurable |
| Indicator light | Red, indicates command transmission |
| Main keys | Power/Standby, Volume, Mute, Source selection, Navigation, OK, Menu, Exit, Playback keys (Play, Stop, Rew, FF, Rec.), Numeric keypad, Colored keys (teletext) |
| Number of keys | 40 |
| User manual | Manual provided, 83 pages in French, free download at notice-facile.com |
| Maintenance and cleaning | Clean with a soft, dry cloth. Do not use abrasive products. |
| Safety | Do not mix new and old batteries. Remove batteries if not used for an extended period. Recycle batteries according to regulations. |
| Spare parts and repairability | Only batteries are replaceable by the user. No spare parts available. |
Frequently Asked Questions - ROC 350 THOMSON
User questions about ROC 350 THOMSON
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Remote control in PDF format for free! Find your manual ROC 350 - THOMSON and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ROC 350 by THOMSON.

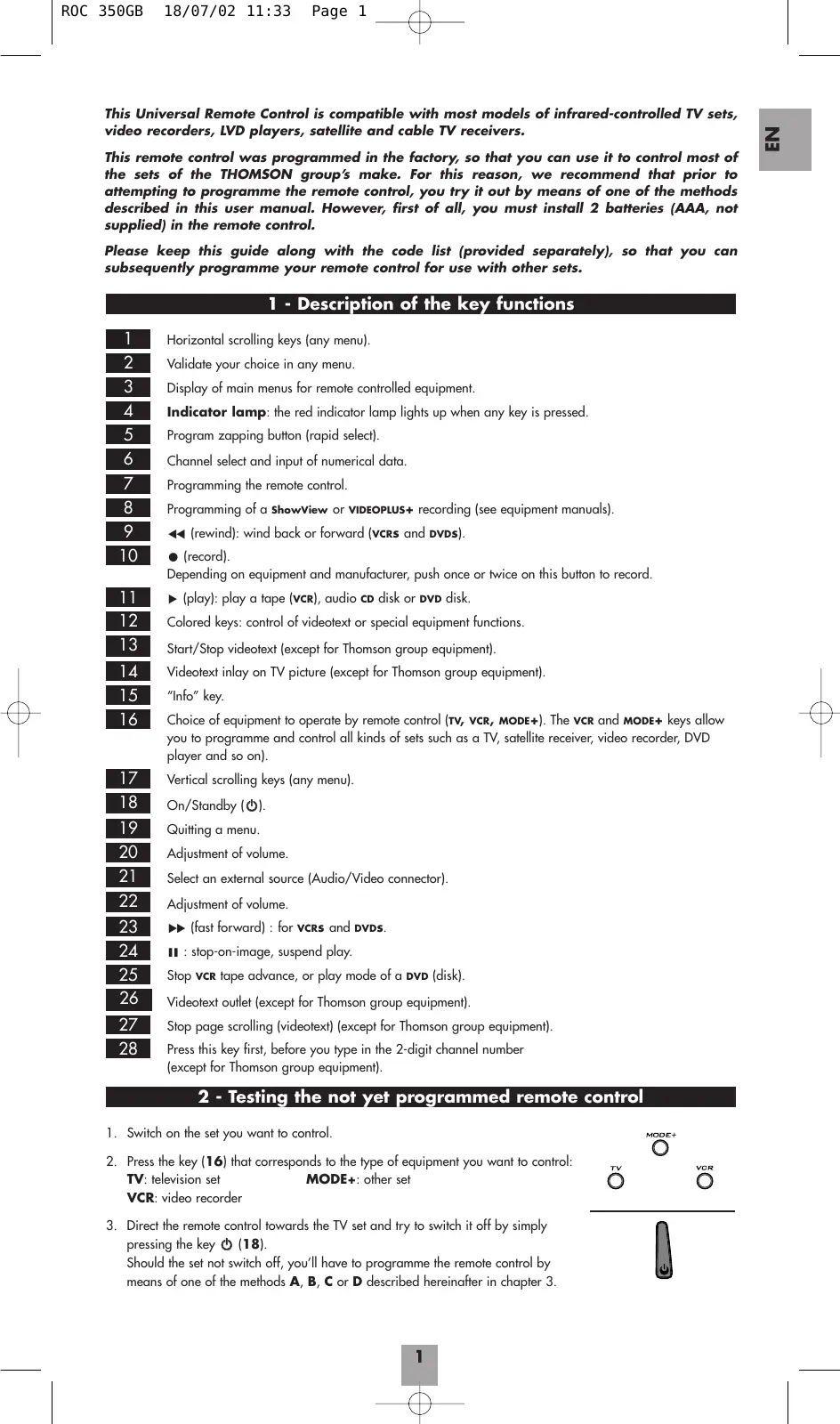

USER MANUAL ROC 350 THOMSON
ENGLISH - Do not mix different types of batteries or new and old batteries. Do not use rechargeable batteries. In order to avoid any risk of explosion, observe polarities indicated inside the battery compartment. Replace only with the type of batteries specified above. Do not throw them into fire, do not recharge them. If you are not using the remote control for a long period of time, remove the batteries. Please respect the environment and prevailing regulations. Before you dispose of batteries or accumulators, ask your dealer whether they are subject to special recycling and if they will accept them for disposal.
This Universal Remote Control is compatible with most models of infrared-controlled TV sets, video recorders, LVD players, satellite and cable TV receivers.
This remote control was programmed in the factory, so that you can use it to control most of the sets of the THOMSON group's make. For this reason, we recommend that prior to attempting to programme the remote control, you try it out by means of one of the methods described in this user manual. However, first of all, you must install 2 batteries (AAA, not supplied) in the remote control.
Please keep this guide along with the code list (provided separately), so that you can subsequently programme your remote control for use with other sets.
1 - Description of the key functions
Horizontal scrolling keys (any menu).
2 Validate your choice in any menu.
3 Display of main menus for remote controlled equipment.
4 Indicator lamp: the red indicator lamp lights up when any key is pressed.
5 Program zapping button (rapid select).
6 Channel select and input of numerical data.
7 Programming the remote control.
8 Programming of a ShowView or VIDEOPLUS+ recording (see equipment manuals).
9 (rewind): wind back or forward (VCRS and DVDS).
10 (record).
Depending on equipment and manufacturer, push once or twice on this button to record.
11 (play): play a tape (VCR), audio CD disk or DVD disk.
12 Colored keys: control of videotext or special equipment functions.
13 Start/Stop videotext (except for Thomson group equipment).
14 Videotext inlay on TV picture (except for Thomson group equipment).
15 "Info" key.
16 Choice of equipment to operate by remote control (TV, VCR, MODE+). The VCR and MODE+ keys allow you to programme and control all kinds of sets such as a TV, satellite receiver, video recorder, DVD player and so on).
17 Vertical scrolling keys (any menu).
18 On/Standby (O).
19 Quitting a menu.
20 Adjustment of volume.
21 Select an external source (Audio/Video connector).
22 Adjustment of volume.
23 (fast forward): for VCRS and DVDs.
24 11:stop-on-image,suspend play.
25 Stop VCR tape advance, or play mode of a DVD (disk).
26 Videotext outlet (except for Thomson group equipment).
27 Stop page scrolling (videotext) (except for Thomson group equipment).
28 Press this key first, before you type in the 2-digit channel number (except for Thomson group equipment).
2 - Testing the not yet programmed remote control
- Switch on the set you want to control.
- Press the key (16) that corresponds to the type of equipment you want to control:
TV: television set
MODE+: other set
VCR: video recorder
- Direct the remote control towards the TV set and try to switch it off by simply pressing the key 0 (18).
Should the set not switch off, you'll have to programme the remote control by means of one of the methods A, B, C or D described hereinafter in chapter 3.
3 - Programming the remote control
Method A - Fast programming with 1-digit subcode
Before you start programming, you must find the subcode of the set to be controlled (Television, VCR, satellite receiver, cable receiver or DVD player).
Refer to the list provided with these instructions, page 1 of the subcodes.
- Switch on the set you want to control.
- Hold down the key S (7) until the red indicator lamp (4) remains lit (the indicator light remains on for a few seconds to give you the time to proceed with the following steps. The indicator lamp flashes to signal that this time is almost up, and then goes off).
- Press the key (16) that corresponds to the type of equipment you want to control: TV: television set, VCR: video recorder, MODE+: other set
- While the indicator is lit, type in the subcode (example: 1 for THOMSON).
- Direct the remote control towards the set and try to switch it off by pressing the key (18).
- If the set you want to control switches off, press OK (2) to memorise the subcode.
- Should the set not switch off, press key (18) repeatedly, until the set switches off. Between two subsequent key depressions, give the red indicator lamp (4) enough time to extinguish and light up again (about 1 second). Proceeding this way will enable you to see whether the set responds or not.
- Immediately upon the switching-off of the set to be controlled, press OK (2) to store the subcode.
Note:
When programming the MODE+ key or if you want to assign another type of set than those mentioned on the remote control, for example a satellite code in VCR mode, begin by entering a code that corresponds to the set you want to programme (a 3-digit code that you will find in the code booklet, see method B). Then begin the automatic search (method D).
Example: if you want to control a satellite receiver with the MODE+ key, begin by entering a satellite code (any satellite code that you find in the code list, for example: 603 for a Thomson satellite receiver) then begin the automatic search procedure. The remote control will then test all the satellite codes for the selected make.
Check of the programming:
In principle, your set is ready for receiving the remote control commands.
Check your remote control for proper functioning by performing the test described on page 4.
Method B - 3-digit codes programming
Before you start programming, you must find the code of the set to be controlled (Television, VCR, satellite receiver, cable receiver or DVD player).
Refer to the list provided with these instructions, page II of the codes.
- Switch on the set you want to control.
- Hold down the key S (7) until the red indicator lamp (4) remains lit (the indicator light remains on for a few seconds to give you the time to proceed with the following steps. The indicator lamp flashes to signal that this time is almost up, and then goes off).
- Press the key (16) that corresponds to the type of equipment you want to control: TV: television set, VCR: video recorder, MODE+: other set
- While the indicator is lit, enter the first digit of the 3-digit code proposed for the set to be controlled (example: 036 for Thomson). The red indicator then goes off or flashes, if the code is not on the list.
- Direct the remote control towards the set and try to switch it off by pressing the key (18).
- Should the set not switch off, repeat step 2. Then type in the next 3-digit code. Try to switch off the set by pressing key (18) once. Repeat this procedure by trying out each of the 3-digit codes.
Check of the programming:
In principle, your set is ready for receiving the remote control commands.
Check your remote control for proper functioning by performing the test described on page 4.
Method C - Programming by means of code retrieval
Should none of the codes work, you still have the possibility of retrieving the appropriate code without having to perform any input.
- Switch on the set you want to control.
- Hold down the key S (7) until the red indicator lamp (4) remains lit (the indicator light remains on for a few seconds to give you the time to proceed with the following steps. The indicator lamp flashes to signal that this time is almost up, and then goes off).
- Press the key (16) that corresponds to the type of equipment you want to control: TV: television set, VCR: video recorder, MODE+: other set
- Direct the remote control towards the set and try to switch it off by pressing the key (18).
- If the set you want to control switches off, press OK (2) to memorise the subcode.
- Should the set not switch off, press key (18) as many times as required (up to 200 times), until the set switches off. Between two subsequent key depressions, give the red indicator lamp (4) enough time to extinguish and light up again (about 1 second). Proceeding this way will enable you to see whether the set responds or not.
- Immediately upon the switching-off of the set to be controlled, press OK (2) to store the code.
Note:
When programming the MODE+ key or if you want to assign another type of set than those mentioned on the remote control, for example a satellite code in VCR mode, begin by entering a code that corresponds to the set you want to programme (a 3-digit code that you will find in the code booklet, see method B). Then begin the automatic search (method D).
Example: if you want to control a satellite receiver with the MODE+ key, begin by entering a satellite code (any satellite code that you find in the code list, for example: 603 for a Thomson satellite receiver) then begin the automatic search procedure. The remote control will then test all the satellite codes for the selected make.
Check of the programming:
In principle, your set is ready for receiving the remote control commands.
Check your remote control for proper functioning by performing the test described on page 4.
Method D - Automatic code search
With this method, the remote control scrolls through the full code list by sending an IR signal to the set to be controlled remotely. Proceed as follows:
- Check that your equipment is on. If not, switch it on manually.
- Hold down the key S (7) until the red indicator lamp (4) remains lit (the indicator light remains on for a few seconds to give you the time to proceed with the following steps. The indicator lamp flashes to signal that this time is almost up, and then goes off).
- Release the S key.
- Press the key corresponding to the type of equipment (for example TV).
- Press the PR + or standby (18) or PLAY (▶-VCR only) key. After a few seconds, the remote control begins to scroll through the whole code list included in the library (at a rate of roughly 1 code per second).
Press the PR + key once again to slow down the test speed (1 code every 3 seconds). As soon as the set changes channels, you must press OK (2) to save the code and stop the remote control scrolling through the list. If you do not react quickly enough, you can go back to the previous code by pressing PR - (5) or REW (▲) as many times as necessary (you can go forward by pressing ♂ (18), PR + (5) or PLAY (▶) if you have gone back too far). As soon as the set responds again, press OK (2) to save the code.
Note:
When programming the MODE+ key or if you want to assign another type of set than those mentioned on the remote control, for example a satellite code in VCR mode, begin by entering a code that corresponds to the set you want to programme (a 3-digit code that you will find in the code booklet, see method B). Then begin the automatic search (method D).
Example: if you want to control a satellite receiver with the MODE+ key, begin by entering a satellite code (any satellite code that you find in the code list, for example: 603 for a Thomson satellite receiver) then begin the automatic search procedure. The remote control will then test all the satellite codes for the selected make.
Method E - Programming for control of a COMBO (combined TV-VCR set)
Setting up the remote control for control of a COMBO means that you first programme the television and then the video recorder subset, the combination of which makes up the COMBO set.
Before you start programming, you must find the subcode or code of the subset to be controlled (television or video recorder).
Refer to the list supplied with this user manual (see page subcodes or codes).
- Switch on the COMBO you want to control.
- Hold down the key S (7) until the red indicator lamp (4) remains lit (the indicator light remains on for a few seconds to give you the time to proceed with the following steps. The indicator lamp flashes to signal that this time is almost up, and then goes off).
- Press the TV (16) key, then follow one of the programming methods (A, B, C or D) described earlier.
- Hold down the key S (7) until the red indicator lamp (4) remains lit (the indicator light remains on for a few seconds to give you the time to proceed with the following steps. The indicator lamp flashes to signal that this time is almost up, and then goes off).
- Press the VCR (16) key, then follow one of the programming methods (A, B, C or D) described earlier.
4 - How to retrieve a programmed code
It may be useful to retrieve the code programmed in the remote control.
- Hold down the key S (7) until the red indicator lamp (4) remains lit (the indicator light remains on for a few seconds to give you the time to proceed with the following steps. The indicator lamp flashes to signal that this time is almost up, and then goes off).
- Press the key (16) that corresponds to the type of equipment you want to control: TV: television set, VCR: video recorder, MODE+: other set
- Press S (7) again briefly. The red indicator lamp flashes once.
- Press the number keys (0 to 9) in ascending order until the red indicator lamp (4) flashes once.
- The digit which made the red indicator lamp (4) flash, is the first number of the 3-digit code. Please note it down below.
- Repeat step 4 to find out the two other numbers of the code.
- When the third number is found, the red indicator lamp (4) goes off.
5 - Check of the programming
- For a television or a satellite receiver: switch on and, for example, press 2 to change channels.
- Video recorder: load a tape and then press PLAY (▶).
- DVD player: load a DVD and then press PLAY (▶).
Try other remote control keys to find out the range of functions you can control. If you think that not all of the keys are active, try the programming Method B or C.
When you have retrieved the code of your set, jot it down so that you can use it whenever needed.
After battery replacement, you'll have to programme the remote control again.
6 - Other function: All modes OFF
If the O (18) key is pressed twice within one second, and is held down for more than 2 seconds the second time, then the remote control will send the OFF code for all modes.
7 - Controlling volume in satellite and cable mode
Since some satellite and cable receivers have no volume control, the ROC 350 remote control allows you to control the television's volume in satellite or cable mode. For satellite systems with a volume control, it is possible to choose the set that the MUTE (22) and VOL (20) keys will control in each of these modes: the television volume or the volume of the satellite or cable receiver.
To choose, proceed as follows:
- Press the TV key (the remote control must be in TV mode for this procedure).
- Hold down the key S (7) until the red indicator lamp (4) remains lit (the indicator light remains on for a few seconds to give you the time to proceed with the following steps. The indicator lamp flashes to signal that this time is almost up, and then goes off).
- Release the S key.
- Press the MUTE (22) key for around 8 seconds. The indicator light will blink and then go off for about 8 seconds before blinking once more and then staying off.
- If the remote control previously controlled the television volume in SAT (MODE+) mode, it will now control the volume of the satellite receiver; if it previously controlled the volume of the satellite receiver, it will now control the television volume.
8 - The NAVILIGHT system
The THOMSON NAVILIGHT system allows you easy access to the settings of your television (TV) or video recorder (VCR) including this feature.
- Switch on the set you want to control.
- Press the key corresponding to the type of set you want to use (TV, VCR or MODE+). In the VCR position, make sure that the AV mode is activated for the TV set (the SCART socket must be selected).
- Press key MENU (3) once.
- Navigate through the setting menus with the keys up, down, left, right (1 and 17).
- Validate with OK (2).
- To leave the menus, press key EXIT (19) once.
MENU
THOMSON HELPLINE
You can contact THOMSON by dialling: 0845 601 3093 (For Great-Britain, all calls will be charged at local rate) www.thomson-europe.com
