Product type	Digital radio alarm clock
Brand	TFA
Model	60.2018.01
Power supply	3 x 1.5 V AAA batteries (not included)
Housing dimensions	138 x 48 x 79 mm
Weight	155 g (device only)
Display	Large LCD screen
Main functions	Date display, alarm with snooze function, indoor temperature, automatic backlight
Temperature measurement range	0°C to +50°C (32°F to 122°F)
Time system	12 or 24 hours
Alarm function	With snooze (5-minute interruption)
Backlight	Manual or automatic via light sensor
Maintenance and cleaning	Soft damp cloth, no solvents
Safety	Keep batteries out of reach of children, do not throw into fire, do not repair yourself
Spare parts and repairability	Not planned by the manufacturer
General information	Compliant with EU standards, WEEE treatment

Frequently Asked Questions - 60.2018.01 TFA

How to set the time on the TFA 60.2018.01 alarm clock?

Slide the switch to TIME SET. The time flashes. Use the HOUR/MONTH button to set the hours and MIN/DATE/C/F for the minutes. Slide the switch back to LOCK to lock.

How to set the date?

Slide the switch to DATE SET. Use the HOUR/MONTH, MIN/DATE/C/F and 12/24/YEAR buttons to set the year, month and day.

How to set the alarm?

Slide the switch to AL SET. The alarm time flashes (default 06:00). Use HOUR/MONTH for hours and MIN/DATE/C/F for minutes.

How to turn the alarm on or off?

To activate, set the ALARM ON/OFF switch to ON. The alarm symbol appears. To deactivate, set it to OFF.

How to use the snooze function?

When the alarm sounds, press the SNOOZE/LIGHT button. The alarm stops for 5 minutes and the snooze symbol flashes. To stop it permanently, press any other button.

How to change the temperature display to °C or °F?

Press the MIN/DATE/°C/F button to switch between Celsius and Fahrenheit.

How to turn on the backlight?

Press the SNOOZE/LIGHT button to turn on the backlight for 5 seconds. For automatic lighting, set the SENSOR ON/OFF switch to ON.

What to do if the display is missing or incorrect?

Check the battery polarity. If the display is still missing or incorrect, replace the batteries with three new 1.5 V AAA batteries, observing polarity.

How to replace the batteries?

Open the battery compartment on the back, remove the old batteries and insert three new 1.5 V AAA batteries, observing the + and - signs. Close the compartment.

How to clean the alarm clock?

Use a soft damp cloth to clean the device. Do not use solvents or abrasive products. Remove the batteries if you are not using it for a long time.

USER MANUAL 60.2018.01 TFA

Thank you for choosing this instrument from TFA.

GB

1. Before you use this product

2. Please make sure you read the instruction manual carefully.
   This information will help you to familiarize yourself with your new device, to learn all of its functions and parts, to find
   out important details about its first use and how to operate it and to get advice in the event of a malfunction.

3. Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your
   statulory rights arising from defects due to incorrect use.
   Likewise, we take no responsibility for any incorrect readings or for any consequences resulting from them. We shall not be liable for any damage occurring as a result of non-following of these instructions.
   We shall not be liable for any damage occurring as a result of non following of these instructions.
   Please keep this instruction manual safe for future reference.

4. Delivery contents

Alarm clock Instruction manual

1. Range of application and all the benefits of your new Instrument at a glance
   Large LCD display
2. Date display

• Alarm with snooze function
  Automatic backlight with light sensor

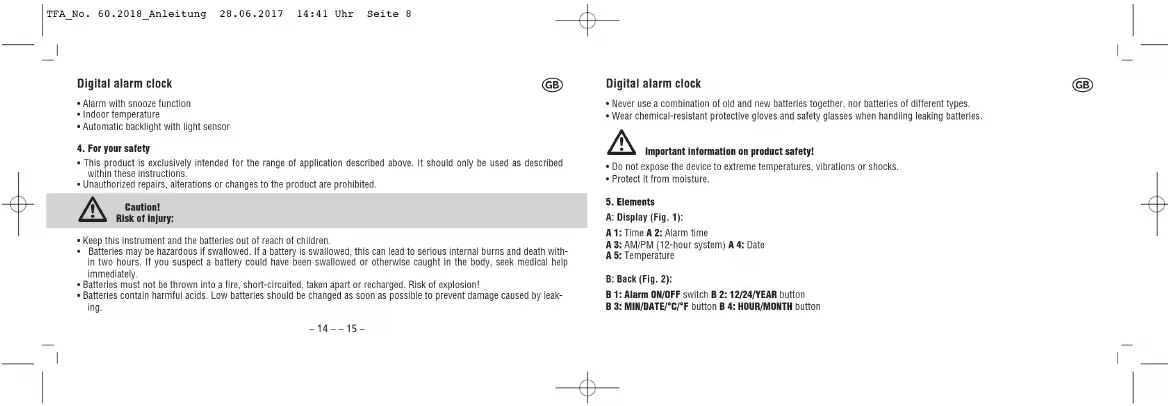

4. For your safety

This product is exclusively intended for the range of application described above. It should only be used as described within these instructions.
- Unauthorized repairs, alterations or changes to the product are prohibited.

Caution! Risk of Injury:

• Keep this instrument and the batteries out of reach of children.
  Batteries may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help
• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!
• Batteries contain harmful acids. Low batteries should be changed as soon as possible to prevent damage caused by leaking.

-14--15

GB

Digital alarm clock

• Never use a combination of old and new batteries together, nor batteries of different types.
• Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.

Important information on product safety!

Do not expose the device to extreme temperatures, vibrations or shocks.
Protect it from moisture.

5. Elements

A:Display (Fig.1):

A1:Time A2:Alarm limits
A3:AM/PM (12-hour system) A4:Date
A 5: Temperature

B:Back(Fig.2):

B 1: Alarm ON/OFF switch B 2: 12/24/YEAR button
B 3: MIN/DATE/°C/°F button B 4: HOUR/MONTH button

GB

B 5: LOCK/SET switch B 6: SENSOR ON/OFF switch
B7:SNOOZE/LIGHT button B8:Light sansor
B 9: Battery compartment

6. Getting started

• Remove the protective film from the display
  Open the battery compartment and insert three new AAA 1.5 V batteries.
• Close the gallery compartment again.
  The indoor temperature (default ^ C ) appears on the display.

7. Settings

7.1 Display change ^ C / ^
- Press the MIN/DATE/C/F button to select the temperature display in °C (Celsius) or °F (Fahrenheit) as temperature unit.

7.2 12-HR or 24-HR system

• Press the 12/24/YEAR button to choose between the 12-hour or 24-hour system. In 12-hour system AM or PM appears on the display.

-16--17

GB

Digital alarm clock

7.3 LOCK/SET switch
- Press and hold the buttons in setting mode for fast mode.

After setting slide the switch to the position LOCK.

7.3.1 Time setting

• Slide the switch to the position TIME SET.
  The time flashes on the display.
• Press the HOUR/MONTH button to adjust the hours.
• Press the MIN/DATE/C/F button to adjust the minutes.

7.3.2 Setting of the date

• Slide the switch to the position DATE SET.
  The date flashes on the display.
• Press the MIN/DATE/°C/°F, HOUR/MONTH and 12/24/YEAR button to adjust the date.

7.3.3 Alarm time setting

• Slide the switch to the position AL SET.
  The alarm time (default 6:00) will be flashing on the display.

GB

• Press the HOUR/MONTH button to adjust the hours.
• Press the MIN/DATE/°C/°F button to adjust the minutes.

7.4 Alarm functions

• Slide the switch to the position AL ON to activate the alarm function.
• The alarm symbol and the snooze symbol appear on the display.
• When the adjusted alarm time is reached, the alarm rings.
  If the alarm is not stopped manually, the ascending alarm tone automatically turns off after one minute and the alarm will be reactivated at the same set time on the following day. The alarm symbol and the snooze symbol remain on the display.
• Press any button to turn off the alarm sound or press the SNDOZE/LIGHT button to activate the snooze function.
  The backlight turns on for a short period.
  The snooz symbol flashes on the display.
  The alarm sound will be interrupted for five minutes.
• Press any button to turn off the snooze function.
• Slide the switch to AL OFF, to turn off the alarm function
  The alarm symbol and the snooze symbol disappear from the display.

-18--19

GB

Digital alarm clock

GB

8. Backlight

• Press the SNOOZE/LIGHT button and the backlight will be activated for 5 seconds.
• Move the SENSOR ON/OFF switch to ON, a weak backlight turns an automatically as soon as the light sensor registers darkness.

9. Care and maintenance

Clean the device with a soft damp cloth. Do not use solvents or scouring agents.
- Remove the batteries if the device will not be used for an extended period of time

• Keep the device in a dry place.

9.1 Battery replacement

• Change the batteries when the device functions become weak
• Open the battery compartment and insert three new AAA 1.5 V batteries.
• Close the battery compartment again.

10. Troubleshooting

Problem Solution No display Ensure the batteries' polarity are correct

Change the ballaries

Incorrect Indication Change the batteries

If your device fails to work despite these measures, contact the retailer where you purchased the product.

11. Waste disposal

This product has been manufactured using high-grade materials and components which can be recycled and reused

Never dispose of empty batteries and rechargeable batteries in ordinary household waste. As a consumer, you are required by law to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment.

The symbols for the contained heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead

This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE).

Please do not dispose of this product in ordinary household waste. As a consumer, you are required to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.

-20--21

Digital alarm clock

GB

12. Specifications

Power consumption 3 x AAA 1,5 V batteries (not included)

Measuring range - temperature 0^ ... 50^ (32^ ... 122^) ^ C / ^ -reversible

Housing dimension 138 x 48 x 79 mm

Weight 155 g (device only)

TFA Dostmann GmbH & Co.KG, Zum Ottersberg 12, D-97877 Wertheim, Germany

No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice.

The latest technical data and information about your product can be found by entering the product number on our homepage.
