USER MANUAL Prestige SO331 SONORO

3.3 Inserting and replacing the battery in the remote control .................... 79

Read the operating manual and the safety manual in their entirety before using RELAX.

Keep the operating manual for future reference.

If you pass RELAX on to a third party, please provide them with the operating manual and safety manual as well.

Failure to follow the operating manual and safety manual can result in serious injury or damage to RELAX.

We assume no liability for damage resulting from failure to observe the instructions in this operating manual and safety manual. The images in this operating manual are intended to illustrate the actions necessary to operate RELAX. Enjoy your RELAX!

RELAX is intended for personal use only. It is not intended for commercial use. RELAX is solely intended for the following tasks:

Playback of FM/DAB+/Internet radio and streaming services.

Audio playback from external devices connected via AUX In port.

Audio playback from Bluetooth-enabled devices (e.g. mobile phones).

Charging of external devices that are connected via the USB port.

Playback of nature sound, mediation music and guided meditation. Any other use is considered improper use and is prohibited. We assume no liability for damages resulting from improper use. 2 Getting to know your RELAX

2.1 Scope of delivery

In addition to the RELAX itself, the following accessories are also included in the scope of delivery:

AC adapter with universal adapter (VDE and UK)

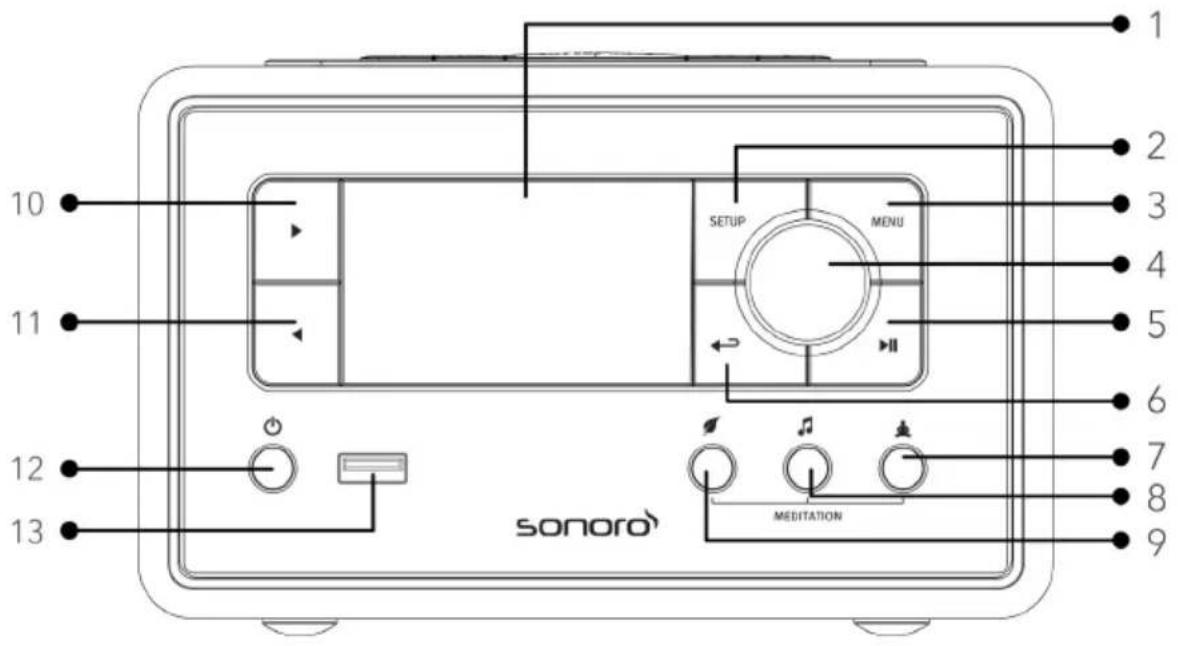

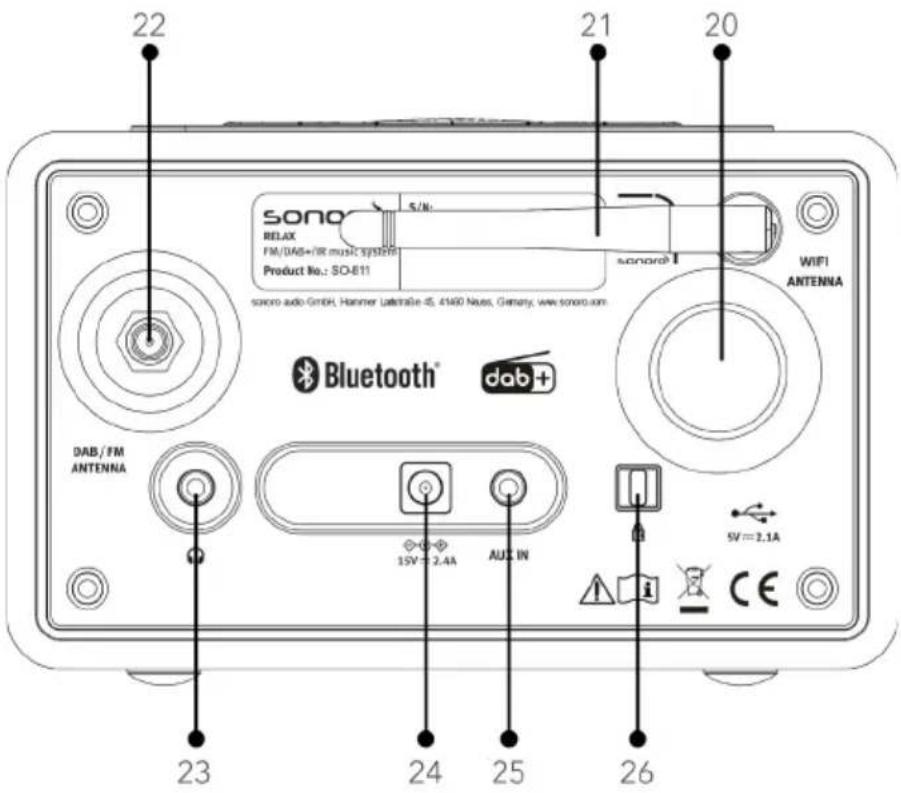

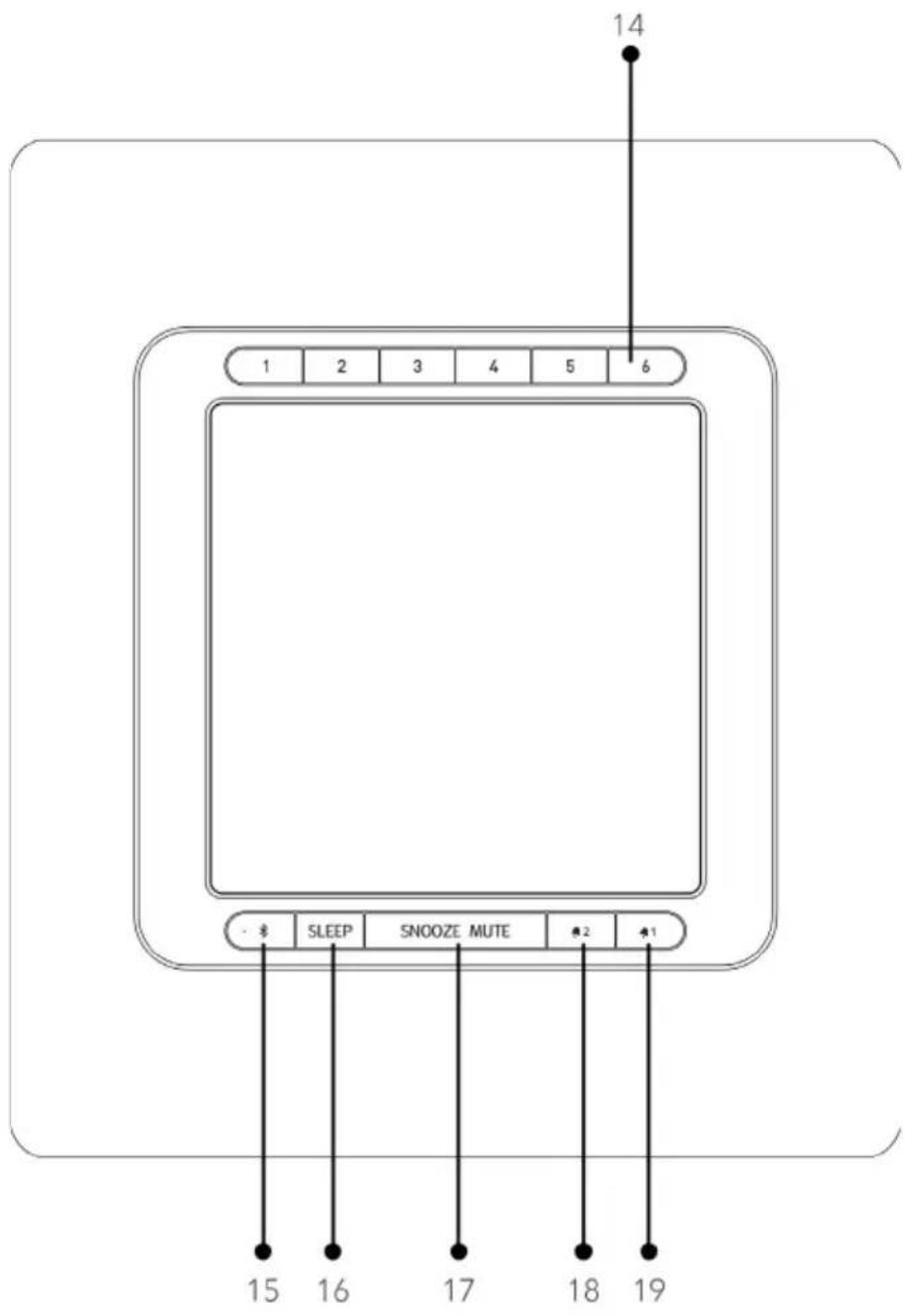

2.2 Controls and ports

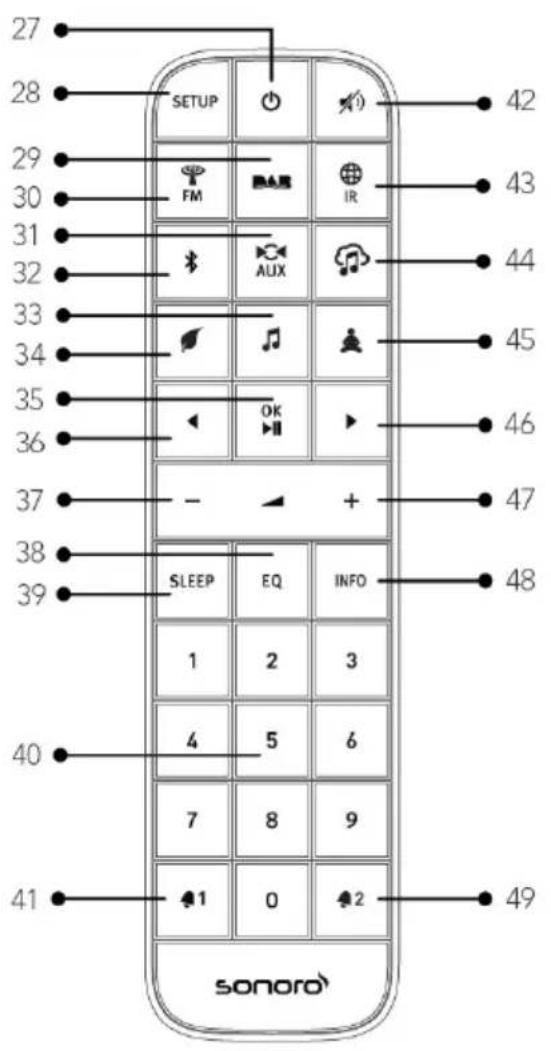

44. Music streaming services ( )

45. Guided mediation mode ( )

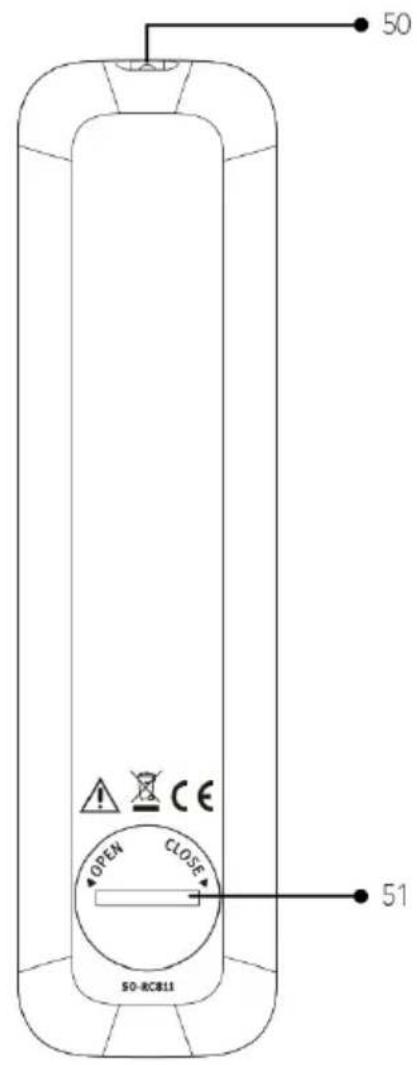

51. Battery compartment

2.4 Marks of approval and certiﬁcates

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by sonoro audio GmbH is under license. Other trademarks and trade names are those of their respective owners. The Spotify software is subject to third party licenses found here: https://www.spotify.com/connect/third-party-licenses Deezer and Deezer logo are international trademarks of Deezer S.A., registered in France and other countries. Amazon, Amazon Music Unlimited and all related logos are trademarks of Amazon.com, Inc. or its afﬁliates.© sonoro audio GmbH 202278 3 Getting started

1. Take RELAX out of the packaging and check whether RELAX or the individual

parts are damaged. If this is the case, do not use RELAX. Should you detect any damage, contact your dealer or sonoro audio GmbH customer support immediately.

2. Check to make sure that the delivery is complete (see chapter “Scope of

3. Place RELAX in a suitable location. If you want to put your RELAX on a natural

wood surface, please make sure that it is suitable. Oiled or waxed surfaces may cause stains.

4. Remove the protective ﬁlm from the display.

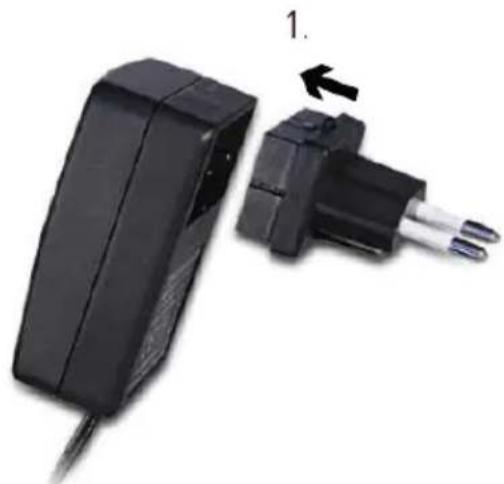

3.2 Connecting the power supply

1. Plug the power adapter vertically into the contact pins of the power supply.

2. To remove the power adapter, press the release button and pull out the power

3. Insert the connector of the power adapter into the DC power input jack on the

4. Insert the power plug into a wall socket. RELAX is turned on.© sonoro audio GmbH 2022 79

3.3 Inserting and replacing the battery in the remote control

1. Open the battery compartment cover on the back of the remote control by

turning it anticlockwise using a small coin.

2. Insert the supplied batteries (CR2032, 3 V) with the label (+) side up.

3. Close the battery compartment cover by turning the cover clockwise using

a small coin. Do not block the infra-red sensor on the RELAX and the infra-red transmitter on the remote control during use.

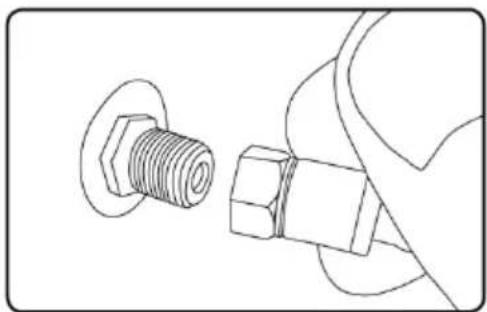

3.4 Using the antennas

1. Screw the rod antenna located on the back of RELAX to the FM/DAB antenna

2. If you are using the rod antenna, pull the rods of the antenna apart and align

the antenna so that you have the best possible reception. For even better reception, connect RELAX to a suitable house antenna.

3. Lift Wi-Fi antenna upwards.© sonoro audio GmbH 202280

3.5 Performing initial setup

When RELAX is powered on for the ﬁrst time, the “Language” (to be used in the display) selection shows on the display. Then, the “Setup wizard” appears on the display. Follow the instructions below to conﬁgure some initial settings.

1. When the “Setup Wizard” is displayed, press or on the remote control

(or rotate the navigation knob) to select “YES” and then press OK to start the setup.

2. You are then prompted to select:

Time format (12 or 24-hour),

Source of time & date auto update (Update from Radio, Internet or no update). Depending on the selection you have made, follow the instructions on the display to further set up date and time, time zone, daylight saving or wireless network. Rotate the navigation knob on RELAX or press the navigation buttons on the remote control to make selections and then press OK to conﬁrm (see chapter “Using the menus”). If update from Internet is selected, a Wi-Fi connection must be established. When entering the key of your wireless network, rotate the navigation knob on RELAX or press the navigation buttons on the remote control to select a character and then press OK to conﬁrm. To delete the last entry, select [BKSP]. To cancel entering the key, select [CANCEL]. To conﬁrm the entered key, select [OK].© sonoro audio GmbH 2022 81

3. When “Setup wizard completed” appears, press OK to exit the setup wizard.

To run the setup wizard again, go to [System Settings] and then select [Setup Wizard] (See chapter “System Settings”).© sonoro audio GmbH 202282 4 Basic operation To turn on Press . RELAX starts operation from the last selected playback mode. To turn off (standby mode) Press . The time and date (if set) are displayed. RELAX will automatically change to Standby mode without playback and operation after 15 minutes. To select a playback mode Press MENU once, then ◄ or ► (or rotate the navigation knob) to select a playback mode and then press OK to conﬁrm. Mode sequence: FM Radio > DAB Radio > Internet Radio > Podcasts > Bluetooth > Aux In > Nature Sound > Meditation Music > Guided Meditation > Spotify > Deezer > Amazon Music To directly select a playback mode Press the direct operation mode key on the remote control to directly switching from one operation mode to the other. To control the volume Press or on the remote control or rotate the volume knob on RELAX.© sonoro audio GmbH 2022 83

5 Using the menus There are three types of menus in RELAX.

Setup menu (For speciﬁc settings in a playback mode, e.g. [Recall from Preset] in FM mode)

System Settings (For general settings, e.g. time/date, language etc.)

Main menu (For accessing the playback modes, sleep timer and alarms) To access the menus Press SETUP. Contents of the menus may differ in different playback modes. To select an option in the menus Rotate the navigation knob on RELAX or press or on the remote control. To conﬁrm a selection in the menus Press OK on the remote control. (On RELAX, press the navigation knob) To go back one level in the menu Press .© sonoro audio GmbH 202284 6 Display icons Refer to the table below for the meanings of the display icons when they show on the display. Wi-Fi connection is established (with signal strength). Wi-Fi connection is disconnected. A Bluetooth device is connected. Alarm 1 is activated. Alarm 2 is activated. The radio station is in the preset list. FM RDS information is received. Radio signal is being received (with signal strength). Repeat all playback mode is active. Repeat one playback mode is active. Repeat folder playback mode is active. Shufﬂe playback mode is active. Repeat all and shufﬂe playback mode is active. Sleep timer is active. Stereo sound broadcast is available. Sound output is muted. Playback is paused.© sonoro audio GmbH 2022 85

To access the FM Radio mode Press key on remote control. Or, press MENU once, then ◄ or ► (or rotate the navigation knob) to select the FM Radio mode and then press OK to conﬁrm. To manually tune the frequency Press ◄ or

To automatically tune to the next available station Press and hold ◄ or

Or, press the navigation knob to start the automatic tuning. To store a radio station in the preset list A maximum of 30 radio stations can be stored.

1. Press SETUP and select the [Save to Preset], then

2. Press or (or rotate the navigation knob) to

select a preset station number and then press OK to conﬁrm. To directly store a radio station in the preset list

1. Press and hold one of the 6 preset keys (1-6) on

2. On the remote control: Press and hold one of the

preset station button (1-9). To recall a radio station in the preset list You have 3 options for selecting a saved preset:

1. Press SETUP and select the [Recall from Preset],

then press OK to conﬁrm Press or on the remote control (or rotate the navigation knob) to select a radio station in the preset list and then press OK to conﬁrm.

2. Press one of the 6 preset keys (1-6) on RELAX.

3. Press the preset station button (0–9) on the

remote control to access a stored preset station (1–30).© sonoro audio GmbH 202286 To browse the radio station information (if available) Press INFO on the remote control repeatedly. To mute or restore the sound output Press or SNOOZE MUTE button. To recall 2 digit favourites, press buttons after each other on the remote control.

Press SETUP in the FM mode to access the setup menu (see chapter “Using the menus”). The following options are available and the current settings (if applicable) are marked with an asterisk (*).

[Recall from Preset] To recall a radio station in the preset list.

[Save to Preset] To store a radio station in the preset list.

[FM Auto Search] To auto store all available radio stations in the preset list.* *All existing preset stations will be erased.

[FM Scan Setting] To decide if only stations with strong signals are scanned when performing automatic tuning.

To access the DAB Radio mode Press the key on the remote control. Or press MENU once, then ◄ or ► (or rotate the navigation knob) select the DAB Radio mode and then press OK to conﬁrm. To search for DAB radio stations The ﬁrst time you select the DAB mode, or if the station list is empty, RELAX will automatically perform a full scan and store all available stations in the station list. To tune to a station Press ◄ or

To store a radio station in the preset list A maximum of 30 radio stations can be stored.

1. Press SETUP and select the [Save to Preset], then

2. Press or (or rotate the navigation knob) to

select a preset station number and then press OK to conﬁrm. To directly store a radio station in the preset list

1. Press and hold one of the 6 preset keys (1-6) on

2. On the remote control: Press and hold one of the

preset station button (1-9). To recall a radio station in the preset list You have 3 options for selecting a saved preset:

1. Press SETUP and select the [Recall from Preset],

then press OK to conﬁrm Press or on the remote control (or rotate the navigation knob) to select a radio station in the preset list and then press OK to conﬁrm.

2. Press one of the 6 preset keys (1-6) on RELAX.

3. Press the preset station button (0–9) on the

remote control to access a stored preset station (1–30). To browse the radio station information* (if available) Press INFO on the remote control repeatedly.© sonoro audio GmbH 202288 To mute or restore the sound output Press or SNOOZE MUTE button. *DAB information (if available) includes: Station name, Dynamic Label Segment (DLS), Signal strength, Program type (PTY), Ensemble Name, Frequency, Signal error rate, Bit rate and audio status, Codec, and Time and date. To recall 2 digit favourites, press buttons after each other on the remote control.

Press SETUP in the DAB mode to access the setup menu (see chapter “Using the menus”). The following options are available and the current settings (if applicable) are marked with an asterisk (*).

[Recall from Preset] To recall a radio station in the preset list.

[Save to Preset] To store a radio station in the preset list.

[Station List] To display all available stations.

[Scan] To scan and store all available stations.

[Manual Tune] To manually tune the frequency. The list of available digital radio ensembles is shown.

[Prune invalid Stations] To remove all invalid stations from the station list.

[DRC] Some DAB broadcasts offer dynamic range compression (DRC). Compressing the dynamic range of a radio signal can increase the volume of quiet sounds and reduce the volume of loud sounds. You can select high, low or off level. High level is recommended for noisy environment.© sonoro audio GmbH 2022 89

[Station Order] To deﬁne how the stations are listed when browsing the station list. Options are:

[Alphanumeric]: Arrange the stations in alphabetical order.

[Ensemble]: List groups of stations that are broadcast together on the same ensemble.

Wi-Fi connection must be established ﬁrst to use the Internet radio (see chapters “Performing initial setup” and “Network”). To access the Internet Radio mode Press the key on the remote control to toggle Internet Radio mode. Or, press MENU once, then ◄ or ► (or rotate the navigation knob) to select the Internet Radio mode and then press OK to conﬁrm. RELAX starts connecting to the previously connected network and then the last listened station. To tune to a radio station or podcast See chapter “Station List”. To store a radio station in the preset list A maximum of 30 radio stations can be stored.

1. Press SETUP and select the [Save to Preset], then

2. Press or (or rotate the navigation knob) to

select a preset station number and then press OK to conﬁrm. To directly store a radio station in the preset list

1. Press and hold one of the 6 preset keys (1-6) on

2. On the remote control: Press and hold one of the

preset station button (1-9). To recall a radio station in the preset list You have 3 options for selecting a saved preset:

1. Press SETUP and select the [Recall from Preset],

then press OK to conﬁrm Press or on the remote control (or rotate the navigation knob) to select a radio station in the preset list and then press OK to conﬁrm.

2. Press one of the 6 preset keys (1-6) on RELAX.

3. Press the preset station button (0–9) on the remote

control to access a stored preset station (1–30).© sonoro audio GmbH 2022 91

To browse the station information* (if available) Press INFO on the remote control repeatedly. To mute or restore the sound output Press or SNOOZE MUTE button. *Station information (if available) includes: Artist and track name, Station description, Station genre and location, Codec and sampling rate, Playback buffer, and date. To recall 2 digit favourites, press buttons after each other on the remote control.

Press SETUP in the Internet Radio mode to access the setup menu (see chapter “Using the menus”). The following options are available and the current settings (if applicable) are marked with an asterisk (*).

[Recall from Preset] To recall a radio station in the preset list.

[Save to Preset] To store a radio station in the preset list.

[Last listened] To tune to your last listened radio stations.

[Station List] To tune to any available Internet radio stations (See chapter “Station List”).

The following menus and sub-menus are available in the [Station List]:

[Local (name of your location)] To browse and tune to any radio stations available in your area.© sonoro audio GmbH 202292

[Search] To search for any available radio by entering keywords.

[Location] To browse and tune to radio stations by location.

[Popular] To browse and tune to the most popular Internet radio stations.

[Discover] To search the station list for stations by Origin, Genre, Language, and see the list of results with “Show stations”.© sonoro audio GmbH 2022 93

Wi-Fi connection must be established ﬁrst to use the Podcast mode (see chapters “Performing initial setup” and “Network”). To access the Podcast mode Press the key on the remote control to toggle Podcast mode. Or, press MENU once, then ◄ or ► (or rotate the navigation knob) to select the Internet Radio mode and then press OK to conﬁrm. RELAX starts connecting to the previously connected network and then the last listened station. To tune to a podcast See chapter “Podcast List”. To store a podcast in the preset list A maximum of 30 radio stations can be stored.

1. Press SETUP and select the [Save to Preset], then

2. Press or (or rotate the navigation knob) to

select a preset station number and then press OK to conﬁrm. To directly store a podcast in the preset list (1–9)

1. Press and hold one of the 6 preset keys (1-6) on

2. On the remote control: Press and hold one of the

preset station button (1-9). To recall a podcast in the preset list You have 3 options for selecting a saved preset:

1. Press SETUP and select the [Recall from Preset],

then press OK to conﬁrm Press or on the remote control (or rotate the navigation knob) to select a radio station in the preset list and then press OK to conﬁrm.

2. Press one of the 6 preset keys (1-6) on RELAX.

3. Press the preset station button (0–9) on the remote

control to access a stored preset station (1–30). To browse the podcast information* (if available) Press INFO on the remote control repeatedly.© sonoro audio GmbH 202294 To mute or restore the sound output Press or SNOOZE MUTE button. *Podcast information (if available) includes: Artist and track name, Podcast description, Codec and sampling rate, Playback buffer, and date. To recall 2 digit favourites, press buttons after each other on the remote control.

Press SETUP in the Podcast mode to access the setup menu (see chapter “Using the menus”). The following options are available and the current settings (if applicable) are marked with an asterisk (*).

[Recall from Preset] To recall a radio station in the preset list.

[Save to Preset] To store a radio station in the preset list.

[Last listened] To tune to your last listened radio stations.

[Podcast list] To tune to any available Internet radio stations (See chapter “Podcast List”).

The following menus and sub-menus are available in the [Podcast List]:

[Local (name of your location)] To browse and tune to any podcasts available in your area.

[Search] To search for any available podcasts by entering keywords.

[Location] To browse and tune to podcasts by location.© sonoro audio GmbH 2022 95

[Discover] To search the podcasts by Origin, Genre, Language, and see the list of results with “Show podcasts”.© sonoro audio GmbH 202296 11 Bluetooth mode RELAX can connect to Bluetooth-enabled players (e.g. mobile phone) within a range of approximately 10 meters (30 feet). You have to disconnect any existing Bluetooth connection before connecting RELAX to another device!

remote control (or rotate the navigation knob) to select the Bluetooth mode and then press OK to conﬁrm. When the small Bluetooth icon is blinking, RELAX is ready for pairing.

2. On your Bluetooth-enabled player, turn on the Bluetooth function and search

for available Bluetooth devices.

3. Select “RELAX” in the list of available Bluetooth devices to start pairing.

The Bluetooth icon stops blinking and is steady when pairing is complete.

To access the Bluetooth mode Press key on the remote control. Or, press MENU once, then ◄ or ► (or rotate the navigation knob) to select the Bluetooth mode and then press OK to conﬁrm. To start playback Select an audio ﬁle from your Bluetooth-enabled player and start playback. To pause or resume playback Press . To skip to the previous or next audio ﬁle Press ◄ or

To disconnect the Bluetooth connection

Switch to another playback mode, or

Select [BT disconnect] from the setup menu (see below), or

To browse the information (if available) of the audio ﬁle Press INFO on the remote control repeatedly. To mute or restore the sound output Press or SNOOZE MUTE button.

Press SETUP in Bluetooth audio mode to access the setup menu (see chapter “Using the menus”). The following options are available and the current settings (if applicable) are marked with an asterisk (*).

[Disconnect BT] To disconnect the Bluetooth connection.

[Connected Device]: To get the existing connected Bluetooth device name.

Your external player (e.g., mp3 player) must be connected to the auxiliary input jack of RELAX with an audio cable (with 3.5 mm connector, not supplied). To access the AUX In mode Press key on the remote control. Or, press MENU once, then ◄ or

(or rotate the navigation knob) to select the AUX In mode and then press OK to conﬁrm. To start and control playback Perform all playback operations on the external player. To mute or restore the sound output Press or SNOOZE MUTE button.

Press SETUP in AUX In mode to access the setup menu (see chapter “Using the menus”). The following options are available and the current settings (if applicable) are marked with an asterisk (*).

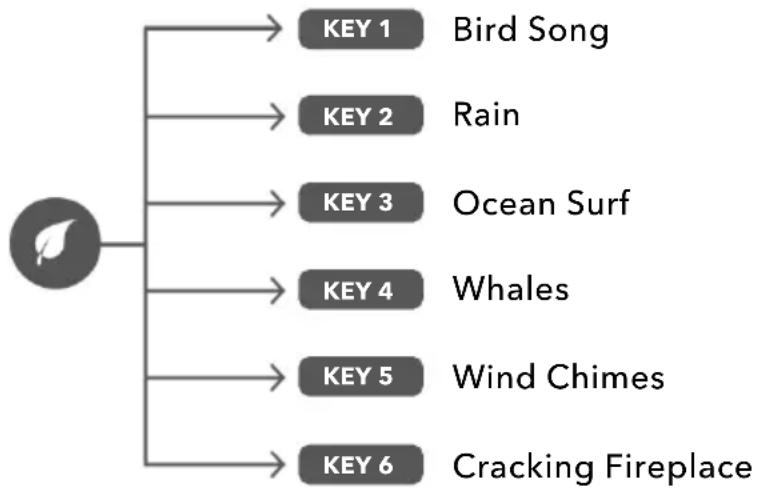

A range of nature sounds are integrated into your RELAX to help you relieve stress. To access the Nature Sound mode Press the key on RELAX or remote control. Or, press MENU once, then ◄ or ►. (or rotate the navigation knob) to select the Nature Sound mode and then press OK to conﬁrm. To start and control playback Select a track from preset station button (1–6)* to directly access the nature sound music. To pause or resume playback Press . Nature sound contents *For nature sound contents, see chapter “Nature sounds”. To skip to the previous or next nature sound music Press ◄ or

Press SETUP in the nature sound mode to access the setup menu (see chapter “Using the menus”). The following options are available and the current settings (if applicable) are marked with an asterisk (*).

INTRO KEY 1-6 Harmony Just like nature itself, its sounds, too, exert a special magic on us. The soothing sound of waves lapping on the shore or the comforting crackling of a ﬁreplace can be profoundly powerful and relaxing. Nature sounds nourish the soul. They restore a sense of balance and help us unwind. And nature sounds are not just great for stress relief. They can also help boost creativity and productivity. KEY 1 Bird Song KEY 2 Rain KEY 3 Ocean Surf KEY 4 Whales KEY 5 Wind Chimes KEY 6 Cracking Fireplace© sonoro audio GmbH 2022 101

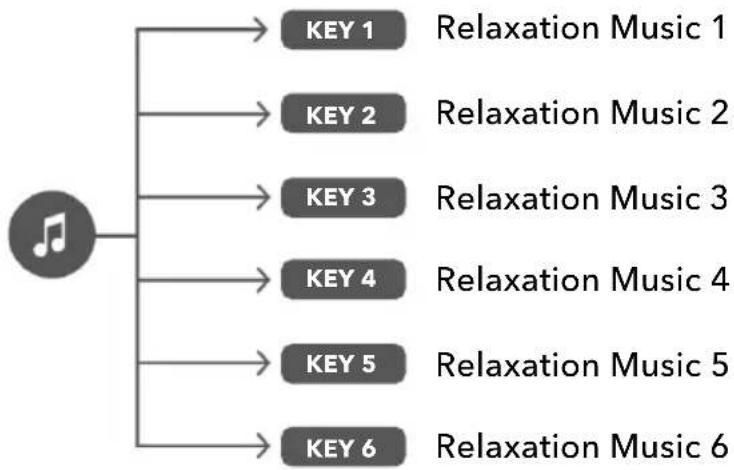

The meditation music on your RELAX helps you truly let go of any stressful thoughts. To access the Meditation Music mode Press the key on RELAX or remote control. Or, press MENU once, then ◄ or

(or rotate the navigation knob) to select the Meditation Music mode and then press OK to conﬁrm. To start and control Playback Select a tracks from preset station button (1–6)* to directly access the meditation music. To pause or resume playback Press . Meditation content language* *For the meditation content language, see chapter “Relaxation soundtracks”. To skip to the previous or next meditation music Press ◄ or

Press SETUP in the meditation music mode to access the setup menu (see chapter “Using the menus”). The following options are available and the current settings (if applicable) are marked with an asterisk (*).

INTRO KEY 1-6 The magic of sound Beautiful soundscapes full of mesmerizing power. Composed to help you shed the clutter of distracting thoughts. Restore your equilibrium with relaxing soundtracks and gentle harmonies – Take a walk on the brighter side of life! KEY 1 Relaxation Music 1 KEY 2 Relaxation Music 2 KEY 3 Relaxation Music 3 KEY 4 Relaxation Music 4 KEY 5 Relaxation Music 5 KEY 6 Relaxation Music 6© sonoro audio GmbH 2022 103

The guided meditation music on your RELAX helps you enter true relaxation and release stress or tension you may feel. To access the Guided Meditation mode Press the key on RELAX or remote control. Or, press MENU once, then ◄ or

(or rotate the navigation knob) to select the Guided Meditation mode and then press OK to conﬁrm. To start and control playback Select an album from preset station button (1–6)* to directly access the guided meditation. To pause or resume playback Press . Guided meditation content language* *For the guided meditation content language, see charpter “Guided meditations”. To skip to the previous or next guided meditation Press ◄ or

Press SETUP in the guided meditation mode to access the setup menu (see chapter “Using the menus”). The following options are available and the current settings (if applicable) are marked with an asterisk (*).

15.3 Guided meditations

INTRO KEY 1-5 Short relaxation Taking time out is so important. Countless studies conﬁrm that regular short relaxation exercises can help prevent burn-out. The great thing is: these short relaxation exercises only take a few minutes, but they are surpringly effective! Meditative relaxation and progressive muscle relaxation Meditative relaxation and progressive muscle relaxation are effective tools to de-stress and release tension, even for people with no prior experience with the format. It is practiced lying down and has been recommended for nearly a hundred years to restore a sense of calm and inner balance. It is also known to promote better body awareness and improved health. INTRO KEY 6 Guided visualisation Travelling on the wings of your imagination you take a break from the everyday. With a little practice you will soon be able to achieve a state of calm and relaxation simply by recalling individual scenes from your creative visualization. In addition to its calming and restorative effect, the technique is also known to enhance focus and concentration. And if you’re having trouble getting to sleep, creative visualization is also a proven method to promote restful sleep. KEY 1 Relax by letting go of stress KEY 2 Relaxing by feeling your pulse KEY 3 Relaxing by meditating on our breath KEY 4 Mindfulness Meditation KEY 5 Progressive Muscle Relaxation according to Jacobson KEY 6 A journey of the imagination Beach and Warmth© sonoro audio GmbH 2022 105

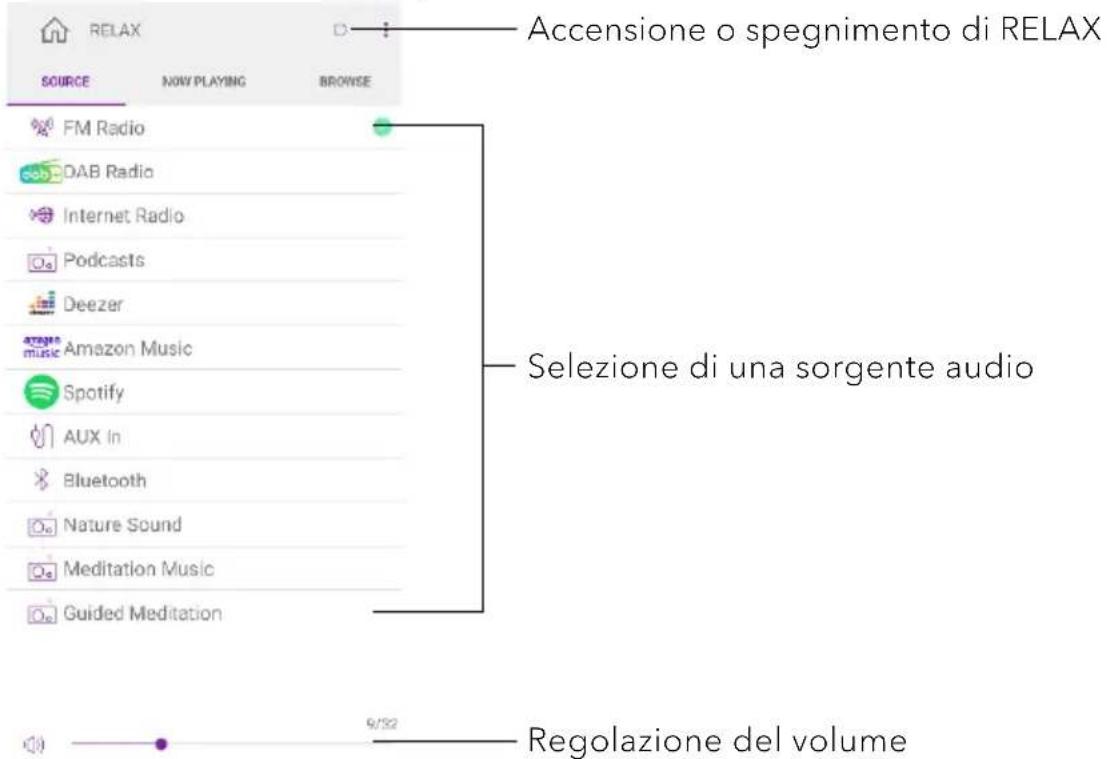

16 Streaming services Your RELAX can play content from the following streaming services: You will also ﬁnd the symbols of these services in the display of your RELAX. Your device (eg. smartphone) must be connected to the same network as your RELAX! For tips for the UNDOK™ app please refer to chapter 21. We recommend that you ﬁrst install the UNDOK™ app on the device that you want to use to control your RELAX (this can be a smartphone or tablet, for example). Please note: The use of streaming services requires contracts with the streaming providers; these may incur costs. In particular, free offers often contain advertising. Any changes are the responsibility of the streaming service. For more information, please visit the streaming service’s website. Services may also be operated directly with the streaming service’s app or the RELAX itself. Please check with the streaming service.© sonoro audio GmbH 2022106

The procedures described below applies analogously to all available streaming services. Selection of a streaming service Press the key on the remote control and go to the selection of desired streaming service. The symbols of the services listed above will appear accordingly in the display of your RELAX. Or, press MENU once, then ◄ or ► (or rotate the navigation knob) to select the desired streaming service and then press OK to conﬁrm. Log into a streaming account (Deezer, Amazon Music) To use a streaming service on your RELAX, sign in to RELAX or the UNDOK™ app installed on your mobile device with your account. Follow the instructions on the screen. How to use Spotify Connect Use your phone, tablet or computer as a remote control for Spotify. Go to spotify.com/connect to learn how. To pause or resume playback Press . To skip to the previous or next audio ﬁle Press ◄ or

To store a playback item in the preset list A maximum of 8 playback items can be stored for Deezer and Amazon Music, and 10 for Spotify.

1. Press SETUP and select the [Save to Preset], then

2. Press or on the remote control (or rotate the

navigation knob) to select a preset item and then press OK to conﬁrm. To directly store a playback item in the preset list

1. Press and hold one of the 6 preset keys (1-6) on

2. On the remote control: Press and hold one of the

To recall a playback item in the preset list You have 3 options for selecting a saved preset:

1. Press SETUP and select the [Recall from Preset],

then press OK to conﬁrm Press or on the remote control (or rotate the navigation knob) to select a radio station in the preset list and then press OK to conﬁrm.

2. Press one of the 6 preset keys (1-6) on RELAX.

3. Press the preset station button (1-8) on the remote

control (Spotify 0-9) to access a stored preset station. To browse the station information* (if available) Press INFO on the remote control repeatedly. To mute or restore the sound output Press SNOOZE MUTE or button.

Press SETUP in the Steaming music mode to access the setup menu (see chapter “Using the menus”). The following options are available and the current settings (if applicable) are marked with an asterisk (*).

Demo music can be played in standby mode to demonstrate RELAX in a shop, for example. To access the demo music mode RELAX is in standby mode. Press and hold navigation knob for 3sec. To start and control playback Select a music song from preset station button (1–6). To pause or resume playback Press . To skip to the previous or next music track Press ◄ or

You can set up two alarms.

1. Press and hold or to access the alarm setting mode.

Alternatively, press SETUP in any playback mode and then select [Main menu] and then [Alarm]. You may also access the alarm setting mode when RELAX is in standby (off) mode. To do so, press and hold or button.

2. Select the alarm you want to set (Alarm 1 or 2) and then press OK.

3. The following options show how to set the alarm. Rotate the navigation knob

or press the navigation buttons to perform the settings (see chapter “Using the menus”).

[Enable] To turn on or off and set frequency of the alarm. The following options are available:

[Off]: To deactivate the alarm.

[Daily]: The alarm activates everyday.

[Once]: The alarm activates once only.

[Weekends]: The alarm activates on Saturdays and Sundays.

[Weekdays]: The alarm activates from Monday to Friday.

[Time] To set the alarm time.

[Mode] To select the alarm sound source. The following options are available:

[Preset] To select the last listened station or a preset station as the alarm sound source. This only shows when Internet Radio, DAB or FM is selected in [Mode]. To select the wake up ringone track including [Beep], [Awakening], [Bird], [Guitar], [Piano], [Xylophone]. This only shows when Ringtone is selected in [Mode]. To select the wake up nature sound track including [Birds], [Rain], [Ocean Surf], [Whales], [Wind Chimes], [Fireplace]. This only shows when Nature sound is selected in [Mode].

[Volume] To set the volume of the alarm sound.

[Save] To save the current settings. Once [Save] is selected, the alarm settings will be stored. If an alarm is activated, the alarm icon ( / ) will show.

18.2 Turning the alarms on or off

When RELAX is in operation mode or in standby (off) mode, press or repeatedly to switch on or off the corresponding alarm.

When an alarm is turned on, the corresponding alarm icon( / ) will show.

18.3 Turning off an activated alarm

Press or on the remote control (or rotate the navigation knob) to change the snooze period (5, 10, 15 or 30 min).

During the snooze period, the alarm icon will blink and the remaining snooze time will show.

19 Sleep timer The sleep timer sets the duration of time before RELAX turns off automatically.

1. Press SETUP in any playback mode and then select [Main menu] and then

[Sleep]. Or, direct press SLEEP button on remote control to turn the sleep timer on or off.

2. Press or on the remote control (or rotate the navigation knob) to select a

sleep timer (5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100, 105, 110, 115 or 120 min).

3. Press OK to conﬁrm the selection.

When the sleep timer is active, the sleep timer icon ( ) and the remaining time will be shown. To cancel the sleep timer, select [Sleep OFF].© sonoro audio GmbH 2022112 20 System Settings

20.1 Accessing the system settings

Press SETUP in any playback mode and then select [System Settings].

Refer to the chapters below for details of each setting option. The current settings (if applicable) are marked with an asterisk (*).

See chapter “Using the menus” for browsing and making selections in the system settings.

Select one of the sound equalizer options including: [Loudness], [Jazz], [Rock], [Movie], [Classic], [Pop], [News], [My EQ] and [My EQ proﬁles setup].

[My EQ Proﬁle Setup] allows you to set your own bass and treble levels.

[Network wizard] To establish network connection.

[WPS WLAN Setup] Select this option if your wireless router supports both WPS and PBC setup methods.

[View Settings] To view the current network information.

[Manual Settings] Under the [Wireless] option, select [DHCP enable] to allocate IP address automatically or [DHCP disable] to do it manually.

[NetRemote PIN setup] To set up a NetRemote PIN.

[Network Proﬁle] To display a list of networks saved by RELAX.

[Keep Network Connected] To keep the network connected. This allows you to wake RELAX from standby using a remote app.

If you are updating time from a source (Radio – FM/DAB), the daylight savings setting has no effect.

If you are updating time from the Internet network, set your time zone.

[Daylight Savings] To enable or disable daylight savings time.

20.5 Inactive standby

This option sets the duration of time before RELAX turns off automatically. Options include: Off, 2, 4, 5 and 6 hours.

To choose the brightness of the display: The sensor in the front of RELAX will automatically adjust the display brightness based on ambient light conditions. You can adjust your settings for bright lightning conditions as well as for low lightning conditions, e.g. in your bedroom.

[High Ambience] Level 8 to 15

This option sets the menu language. Options include: English, German, Danish, Spanish, French, Italian, Dutch, Norwegian, Polish, Portuguese, Finnish, Swedish and Turkish.

This option clears all user-deﬁned settings and replaces them with the original default settings.

[Check now] To check for update immediately. If a new software is available, RELAX will ask if you want to proceed with an update. Before software upgrade, make sure that RELAX is connected to a stable power connection. Disconnecting power during a software update may damage RELAX.

To perform initial setup (see chapter “Performing initial setup”).

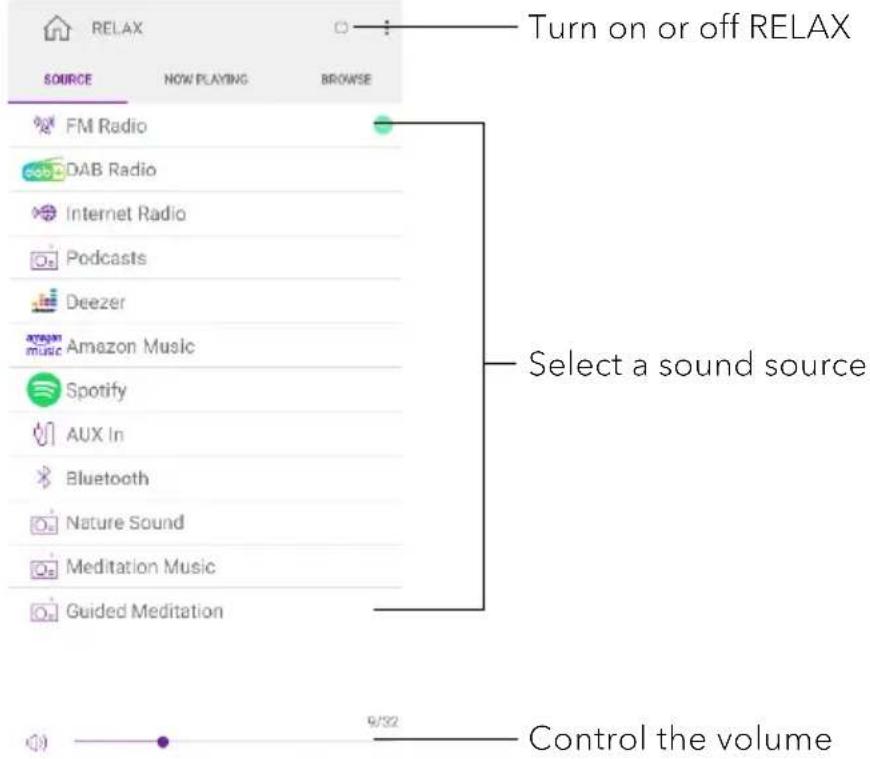

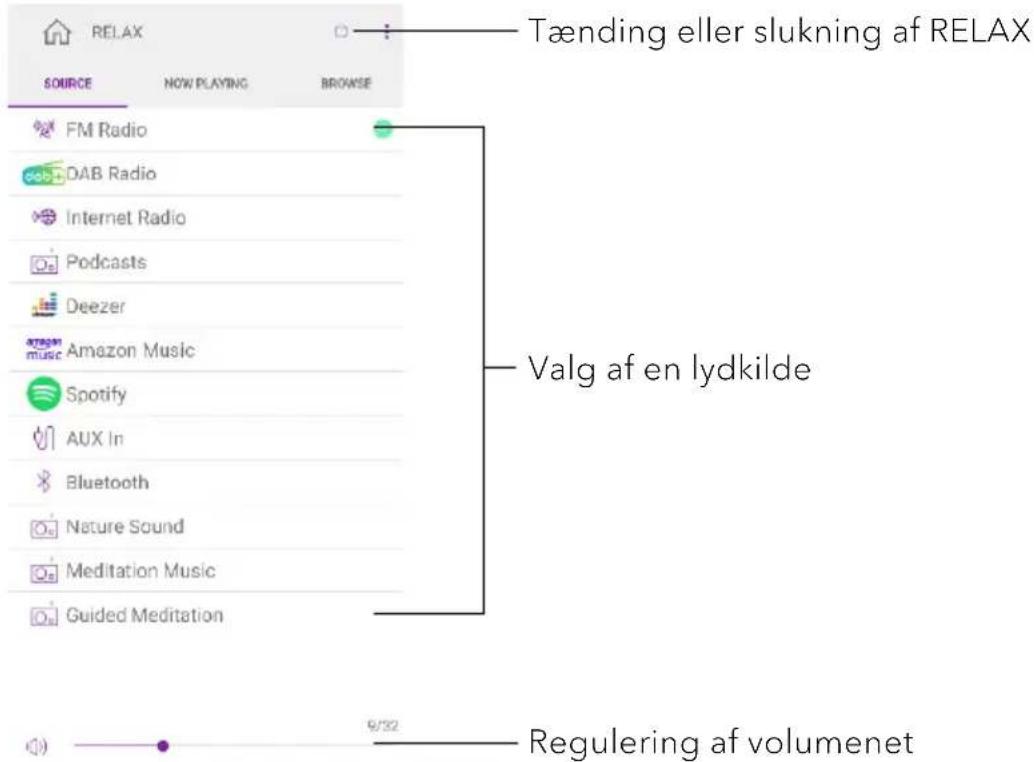

21 Using UNDOK™ app to control RELAX RELAX is compatible with the Frontier Smart Technologies UNDOK™ app. The app offers comprehensive remote control functionality for FS based audio modules with an iOS or Android smart device. To install and use the UNDOK™ app:

1. Download the UNDOK™ app from “App Store” or “Google play” and install it

on your iOS or Android smart device.

2. Connect your smart device to the same Wi-Fi network as RELAX.

3. Launch the UNDOK™ app on your smart device. The app will search for

compatible audio systems. You may also tap on to start searching for audio systems.

4. Select “RELAX” from the list of available audio systems.

5. Control RELAX through the UNDOK™ app.

Turn on or off RELAX Control the volume Select a sound source© sonoro audio GmbH 2022116 22 Troubleshooting Malfunctions can occur with any electrical equipment. This is not necessarily due to RELAX defect. Please see the below table for troubleshooting tips. Malfunction Possible cause Solution No power. Power cable is not properly connected. Connect the power cable properly. No response from RELAX. There is an error in the RELAX. Disconnect and reconnect the power plug. Then turn RELAX on again. Remote control does not work, or only works sporadically. Distance to RELAX is too large. Reduce the distance between the remote control and RELAX. Battery is empty. Replace the battery. No sound or poor sound. Sound is turned off. Adjust the volume. RELAX is not set to the correct playback mode. Select another playback mode. Headset is plugged in. Pull the headset out of the jack. FM/DAB or Internet reception is poor. Extend/adjust the FM/DAB antenna or check the Wi-Fi connection. There is radio interference. Keep RELAX away from other electronic devices. Alarm does not work. Alarm is not activated. Activate the alarm. Alarm volume is set too low. Increase the alarm volume. Insufﬁcient Wi-Fi signal strength. The router is too far or blocked. Place RELAX closer to the router or adjust the position of the Wi-Fi antenna.© sonoro audio GmbH 2022 117

Malfunction Possible cause Solution Cannot connect to your Wi-Fi network. Router is not switched on or working properly. Switch on your router or check the router conditions. Setup method is incorrect. Check if your router supports WPS and uses the correct setup method (PBC or PIN). Conﬁgure the Wi-Fi settings again. Internet radio station does not work sometimes. Some stations only support a limited number of listeners. Try again later. Station is not broadcasting. Try again later. Some Internet radio stations disappear from the station list. The station is removed from the list when it stops broadcasting. Check again later. If the station broadcasts again, it will be brought back to the list. USB device is not charging. USB cable is not connected or broken. Check the USB cable. USB device is not playing music. USB playback is not supported. USB port is used for charging.© sonoro audio GmbH 2022118 23 Cleaning NOTICE! Material damage due to improper cleaning! Improper cleaning can result in damage to RELAX or cause certain functions to stop working.

Never use abrasive or solvent-based cleaning agents, as these may damage the surface of RELAX.

Never use hot or compressed air to dry RELAX.

The edges and corners of RELAX are vulnerable to pressure. Protect these areas to prevent them from being subjected to excessive pressure. Cleaning off ﬁngerprints and light soiling

Clean RELAX only from the outside with a soft, dry cloth. Cleaning off heavy soiling

Clean RELAX only from the outside with a slightly damp cloth and then dry RELAX with a soft, dry cloth.© sonoro audio GmbH 2022 119

24 Warranty When submitting warranty claims, the following applies without restricting your legal rights:

Warranty claims can only be asserted within a period of max. 2 years (1 year in North America and Australia), calculated from the date of purchase.

sonoro audio GmbH shall, at its own discretion, repair or replace RELAX free of charge any defects caused by material or manufacturing defects within the warranty period.

In case of a complaint, please contact your dealer or our customer service department. You will ﬁnd our contact data under “Contact data” (Chapter 1.1) or visit our website at www.sonoro.com

No new warranty period begins following repair or replacement of RELAX. The warranty period of 2 years (1 year in North America and Australia) from date of purchase remains applicable.

Excluded from the warranty are batteries, damage caused by improper use, normal wear and tear, as well as defects which only minimally affect the value or usability of RELAX. The warranty also expires in case of any modiﬁcations not made by our authorised service centre.

3rd FL, FLAT A & B HIGH WIN FTY BLDG KWUN TONG,

At sonoro we are putting the utmost effort in to developing state-of-the-art products with impeccable quality standards. It is very important to us that you stay satisfied with your sonoro product for the lifetime of the unit. If for any reason you need assistance or have a warranty claim, please do not hesitate to get in touch with our Service Team.

Manual assistant

Waiting for your message

Product information

Brand : SONORO

Model : Prestige SO331

Category : Radio
