TT43WA - Turntable Classic Phono - Free user manual and instructions

Product type	Turntable with FM radio, Bluetooth and built-in speakers
Brand	Classic Phono
Model	TT43WA
Power supply	DC 12V 1A power adapter, input 100-240V~50/60Hz, 0.3A max
Speeds	33, 45 and 78 RPM
Bluetooth	Version 5.0, pairing name TT-43, standard range
FM radio	Frequency range 87.5 to 108 MHz
Audio inputs	3.5 mm AUX IN jack, RCA jack for external speakers
Audio outputs	RCA jack (stereo type), built-in internal speakers
Speakers	2 stereo speakers (if stereo source)
Auto-stop	Yes, switchable. Stops the platter at the end of the record or can be disabled
Stylus	Removable, replaceable. Recommended lifespan: about 250 hours of play
Operating temperature	0 to 40 °C
Storage temperature	-20 to 70 °C
Care and cleaning	Soft dry cloth; clean the stylus tip with a soft brush (back-and-forth movements); use a mild detergent for the casing
Safety	Do not open the device, avoid moisture and shocks, do not ingest the remote control's button batteries
Spare parts / Repairability	Replaceable stylus; have any repairs carried out by qualified personnel; warranty void if opened by an unauthorized repairer
Included accessories	Power adapter, 45 RPM adapter, instruction manual
Manufacturer	Shenzhen Shi Guang Kai Yuan Technology., Ltd., Guangdong, China
After-sales service	Via the retailer or www.lenco.com; imported by Commaxx B.V., Netherlands

Frequently Asked Questions - TT43WA Classic Phono

How do I change the stylus on the TT43WA?

To remove the old stylus, place a screwdriver on the tip and push downwards (direction A), then pull it forward. To install the new one, insert it by pressing (direction B) then push upwards (direction C) until it locks. Use a stylus suitable for 78 RPM records if necessary.

What should I do if the record stops before the end of the last track?

This may happen if the auto-stop zone is incorrectly positioned. Disable auto-stop by setting the switch to the Off position. You will then need to manually lift the tonearm at the end of the record and return it to its rest position before turning off the power.

How do I connect the TT43WA via Bluetooth to my smartphone?

Set the mode selector to BT. The blue LED flashes. Enable Bluetooth on your smartphone and search for 'TT-43' in the device list. Select it to connect. Once connected, the LED becomes solid. Set your phone volume to maximum and use the turntable volume knob to adjust listening.

Can I use external speakers with the turntable?

Yes, connect an RCA cable (not included) from the RCA jack to your active speakers or hi-fi system. When the cable is connected, sound may be output simultaneously through the internal and external speakers, depending on the setting.

How can I play music from an external device (MP3, phone) through the turntable?

Use a 3.5 mm audio cable (not included) to connect the headphone or line output of your device to the AUX IN jack on the back of the turntable. Set the mode selector to Aux In. Adjust the volume with the knob. If using the headphone output, first set the volume on your external device.

How do I clean the stylus tip?

Use a special soft brush for the stylus and make back-and-forth movements only. If using a cleaning fluid, apply it very sparingly. Avoid touching the tip with your fingers and do not knock it against the platter or record.

What should I do if the turntable does not power on?

Check that the power adapter is properly connected to the power jack and to a working wall outlet. Also check that the Power On/Off button is turned on. If the problem persists, unplug the device for 1 to 2 hours to eliminate any condensation, then try again.

The sound crackles or is of poor quality in radio mode. How can I improve reception?

Unwind and fully extend the FM antenna at the back of the device. For better reception, move the antenna away from sources of electrical interference. Adjust the tuning knob to pick up stations clearly.

Can I use a 78 RPM record with the turntable?

Yes, set the speed selector to 78 RPM. For best results, use a stylus specifically designed for 78 RPM (sold separately). Use such a stylus only with 78 RPM records.

How do I maintain the casing and platter?

Clean the casing with a soft, dry cloth. For stubborn stains, use a slightly damp cloth with a mild detergent. Never use solvents or harsh chemicals. Wipe records with an antistatic cloth before each play.

USER MANUAL TT43WA Classic Phono

USER MANUAL- Turntable with radio, Bluetooth and speakers

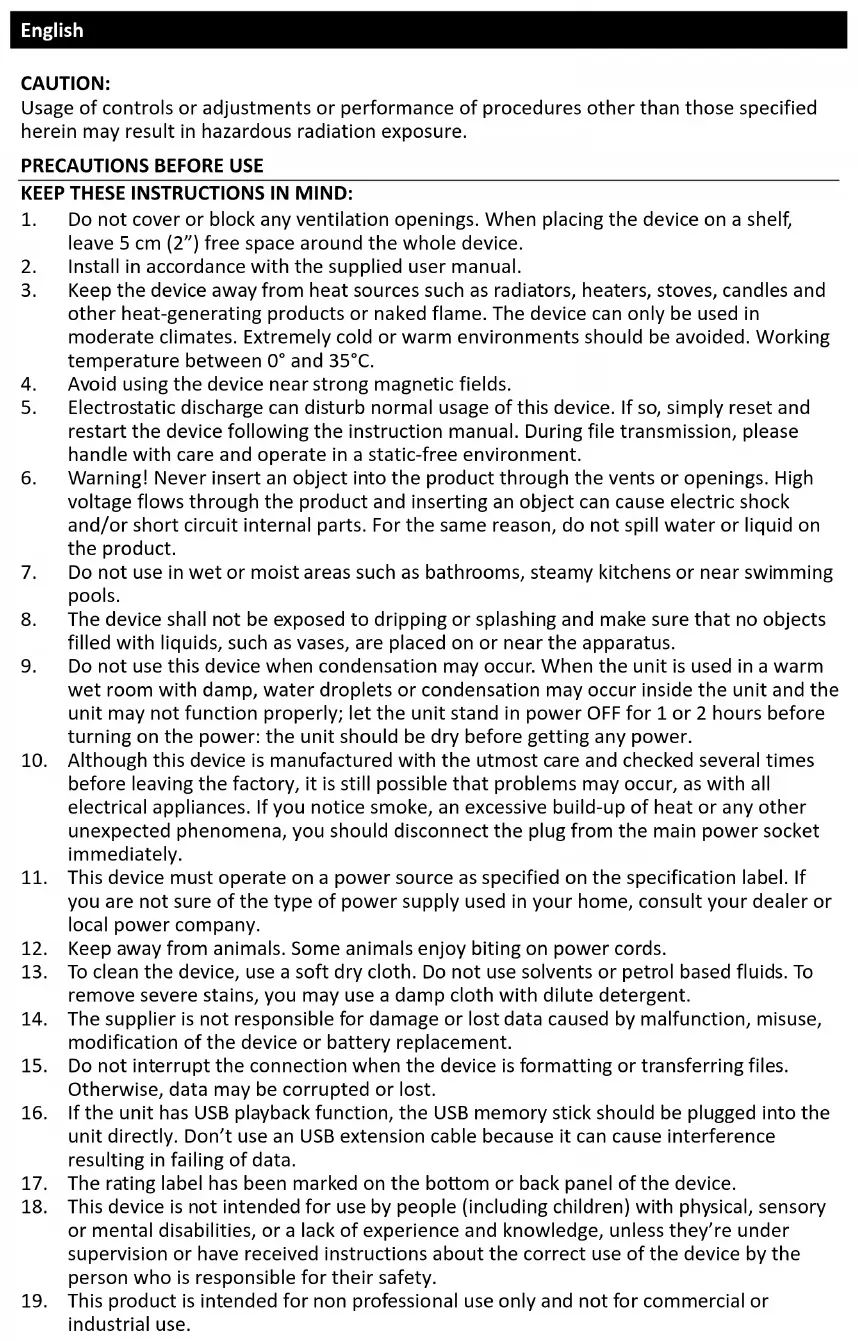

Usage of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

KEEP THESE INSTRUCTIONS IN MIND:

1. Do not cover or block any ventilation openings. When placing the device on a shelf, leave 5cm (2^ ) free space around the whole device.
2. Install in accordance with the supplied user manual.
3. Keep the device away from heat sources such as radiators, heaters, stoves, candles and other heat-generating products or naked flame. The device can only be used in moderate climates. Extremely cold or warm environments should be avoided. Working temperature between 0^ and 35^ .
4. Avoid using the device near strong magnetic fields.
5. Electrostatic discharge can disturb normal usage of this device. If so, simply reset and restart the device following the instruction manual. During file transmission, please handle with care and operate in a static-free environment.
6. Warning! Never insert an object into the product through the vents or openings. High voltage flows through the product and inserting an object can cause electric shock and/or short circuit internal parts. For the same reason, do not spill water or liquid on the product.
7. Do not use in wet or moist areas such as bathrooms, steamy kitchens or near swimming pools.
8. The device shall not be exposed to dripping or splashing and make sure that no objects filled with liquids, such as vases, are placed on or near the apparatus.
9. Do not use this device when condensation may occur. When the unit is used in a warm wet room with damp, water droplets or condensation may occur inside the unit and the unit may not function properly; let the unit stand in power OFF for 1 or 2 hours before turning on the power: the unit should be dry before getting any power.
10. Although this device is manufactured with the utmost care and checked several times before leaving the factory, it is still possible that problems may occur, as with all electrical appliances. If you notice smoke, an excessive build-up of heat or any other unexpected phenomena, you should disconnect the plug from the main power socket immediately.
11. This device must operate on a power source as specified on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company.
12. Keep away from animals. Some animals enjoy biting on power cords.
13. To clean the device, use a soft dry cloth. Do not use solvents or petrol based fluids. To remove severe stains, you may use a damp cloth with dilute detergent.
14. The supplier is not responsible for damage or lost data caused by malfunction, misuse, modification of the device or battery replacement.
15. Do not interrupt the connection when the device is formatting or transferring files. Otherwise, data may be corrupted or lost.
16. If the unit has USB playback function, the USB memory stick should be plugged into the unit directly. Don't use an USB extension cable because it can cause interference resulting in failing of data.
17. The rating label has been marked on the bottom or back panel of the device.
18. This device is not intended for use by people (including children) with physical, sensory or mental disabilities, or a lack of experience and knowledge, unless they're under supervision or have received instructions about the correct use of the device by the person who is responsible for their safety.

19. This product is intended for non professional use only and not for commercial or industrial use.

20. Make sure the unit is adjusted to a stable position. Damage caused by using this product in an unstable position vibrations or shocks or by failure to follow any other warning or precaution contained within this user manual will not be covered by warranty.

21. Never remove the casing of this device.
22. Never place this device on other electrical equipment.
23. Do not allow children access to plastic bags.
24. Only use attachments/accessories specified by the manufacturer.
25. Refer all servicing to qualified service personnel. Servicing is required when the device has been damaged in any way, such as the power supply cord or the plug, when liquid has been spilled or objects have fallen into the device, when the device has been exposed to rain or moisture, does not operate normally, or has been dropped.
26. Long exposure to loud sounds from personal music players may lead to temporary or permanent hearing loss.

27. If the product is delivered with power cable or AC power adaptor:

28. If any trouble occur, disconnect the AC power cord and refer servicing to qualified personnel.

29. Don't step on or pinch the power adaptor. Be very careful, particularly near the plugs and the cable's exit point. Do not place heavy items on the power adaptor, which may damage it. Keep the entire device out of children's reach! When playing with the power cable, they can seriously injure themselves.
30. Unplug this device during lightning storms or when unused for a long period.
31. The socket outlet must be installed near the equipment and must be easily accessible.
32. Do not overload ac outlets or extension cords. Overloading can cause fire or electric shock.
33. Devices with class 1 construction should be connected to a main socket outlet with a protective earthed connection.
    Devices with class 2 construction do not require a earthed connection.
    Always hold the plug when pulling it out of the main supply socket. Do not pull the power cord. This can cause a short circuit.

34. Do not use a damaged power cord or plug or a loose outlet. Doing so may result in fire or electric shock.

35. If the product contains or is delivered with a remote control containing coin/cell batteries:

Warning:

• "Do not ingest battery, Chemical Burn Hazard" or equivalent working.
• [The remote control supplied with] This product contains a coin/burner cell battery. If the battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
• Keep new and used batteries away from children.
• If the battery compartment does not close securely, stop using the product and keep it away from children.

• If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

• Caution about the use of Batteries:

• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

• Battery cannot be subjected to high or low extreme temperatures, low air pressure at high altitude during use, storage or transportation.
• Replacement of a battery with an incorrect type that can result in an explosion or the leakage of flammable liquid or gas.
• Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.

• Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or that leakage of flammable liquid or gas.

• A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.

• Attention should be drawn to the environmental aspects of battery disposal.

INSTALLATION

• Unpack all parts and remove protective material.

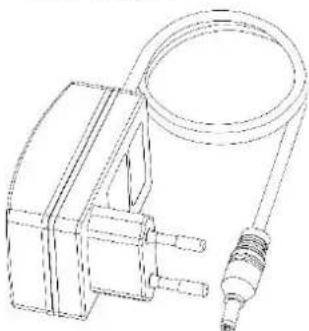

Accessories included:

User manual

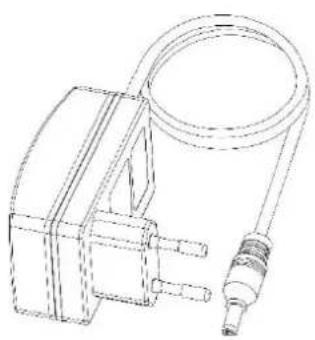

Power adaptor

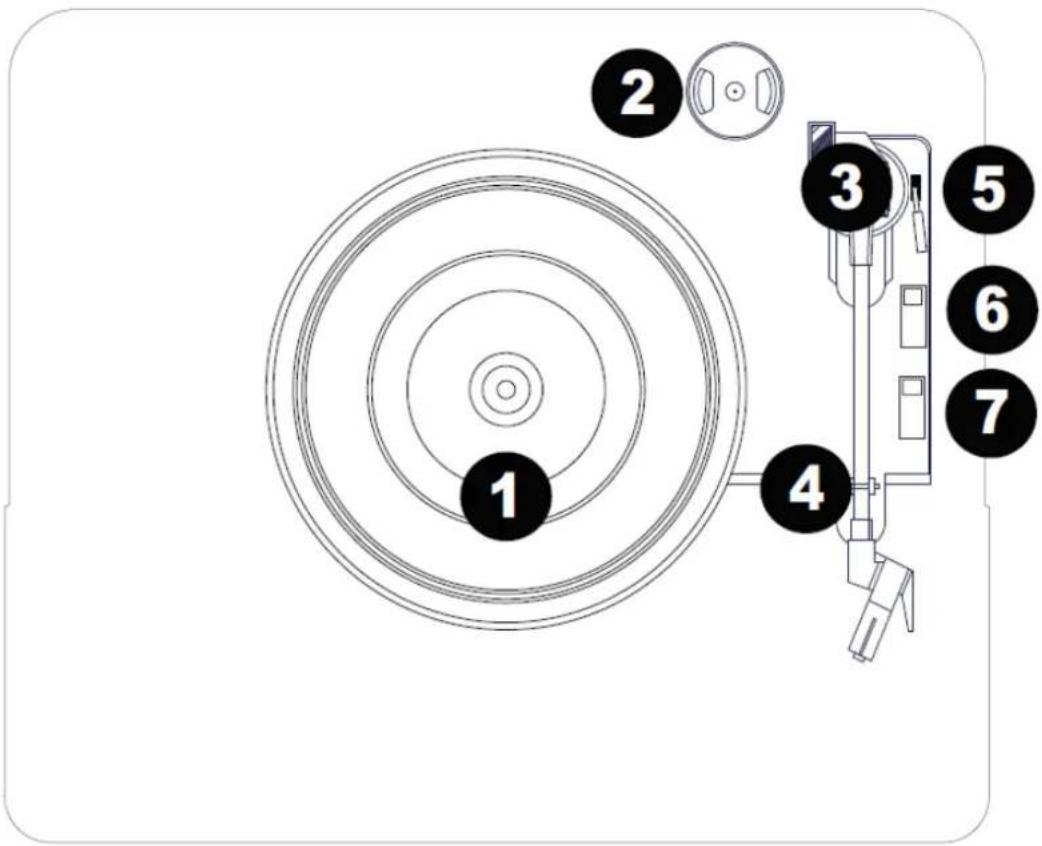

Location of Controls

1. Platter: Place your record here.
2. 45 RPM Adapter Holder: Holds the included 45 RPM adapter. When not using the adapter, please place it in this holder.
3. Tonearm: The fixed tonearm can be raised and lowered by hand, or by moving the raise / lower lever.
4. Arm Clip: This specially designed arm clip secures the tonearm while at rest or when not in use. The arm clip has been designed to remain in the up position while unlocked.
5. Raise / Lower Lever: Raises and lowers the tonearm.
6. Autostop switch: This switch turns autostop on or off. When autostop is on, the platter will start spinning when the tonearm is placed over the record and stop spinning when the record has reached the end. When Autostop is off, the platter will always spin regardless of the position of the tonearm.

Note: If your vinyl record stops before it reaches the end of the music, turn Autostop to the off position for this particular record. This is generally recommended for 45 RPM records.

1. 33/45/78 RPM Switch: This switch controls the speed of the turntable platter.

Note: For best results when playing 78 RPM vinyl records, use a 78 RPM stylus (sold separately). Only use a 78 RPM stylus with 78 RPM vinyl records.

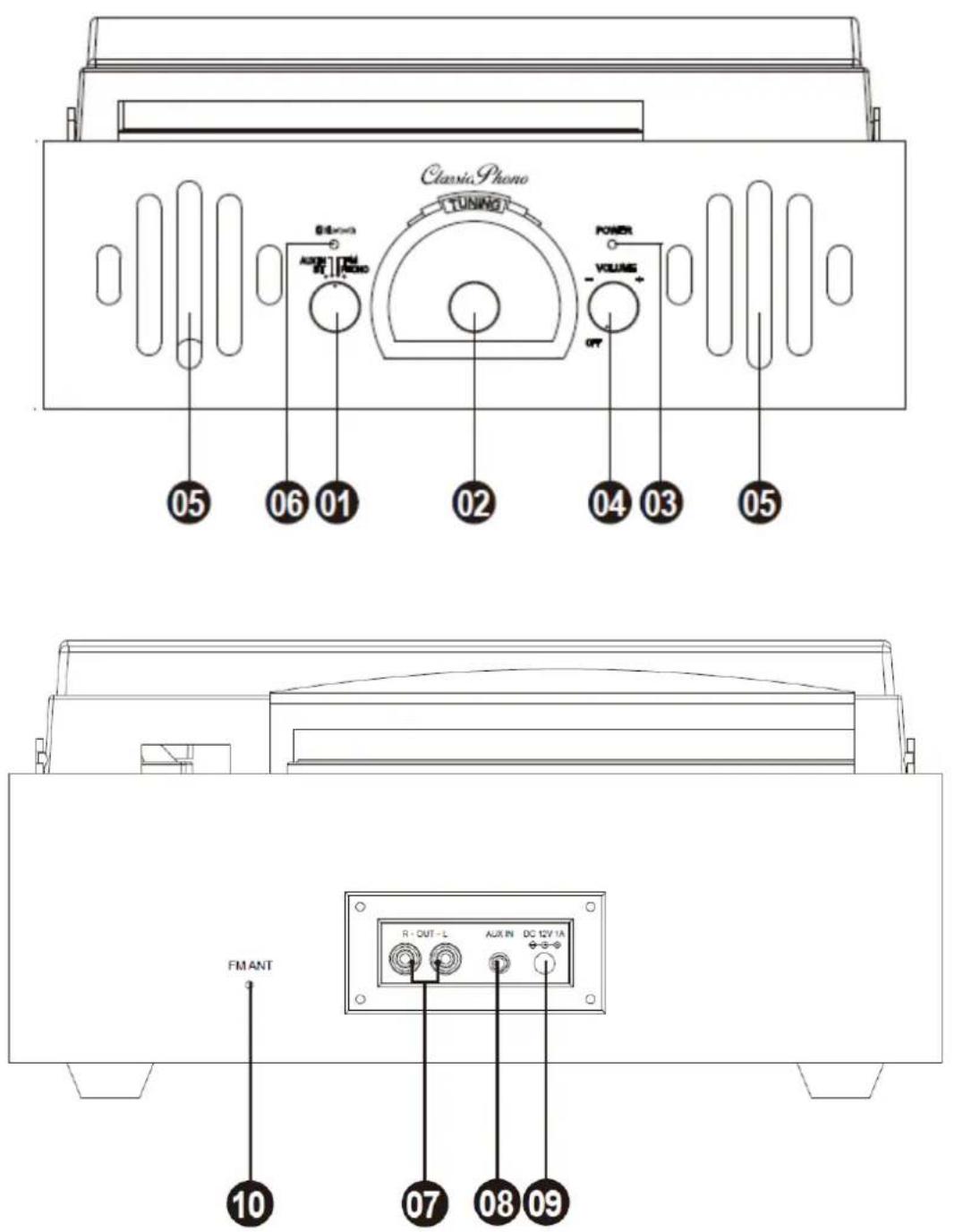

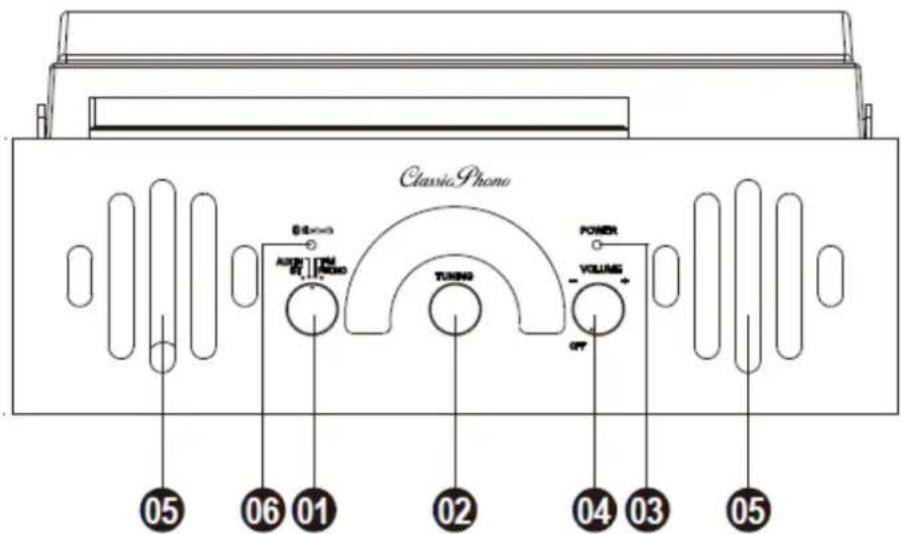

1. Mode: Turn this dial to select which source to use: BT. FM, Phono, or Aux In.
2. Radio Frequency Selector (Tuning): Turn this dial to select the FM radio station frequency.
3. Power LED: This LED illuminates when the power is turned on.
4. Power ON/OFF and Volume: Switch On/Off and Adjusts the sound level for the internal speakers.
5. Speakers: 2 stereo speakers if the source is stereo.

6. Bluetooth LED: This LED illuminates when the Bluetooth mode is turned on.

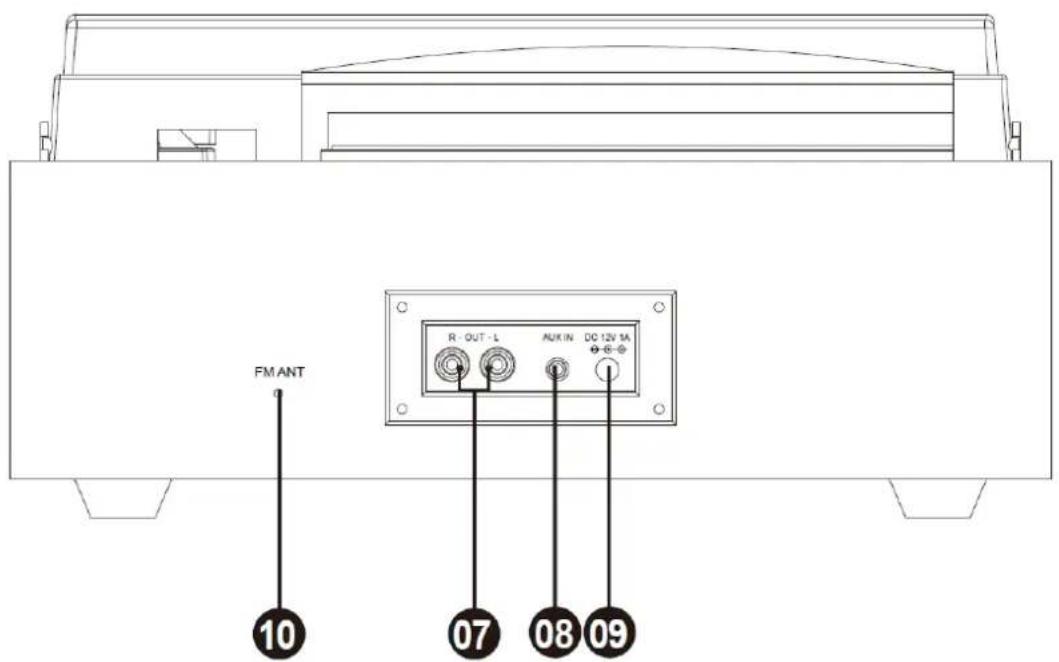

7. RCA Jack: Connect to external speaker (not included)

8. AUX IN Jack: Connect to external audio device e.g. MP3, mobile phone etc to listen music in this unit
9. Adaptor Jack: Connect power adaptor
10. FM Antenna: FM Radio signal reception

TurntablePlayback

Before use, please make sure to:

Remove the stylus protector. Reconnect the protective cap on the stylus when not in use. Ensure the tonearm is free to move from the tonearm rest. Lock the tonearm in place again when not in use.

1. Set the Mode selector to Phono and lift the turntable dust cover.
2. Place a record on the turntable, over the central spindle on the slipmat.
3. Set the Speed selector to 33, 45, or 78 RPM depending on the record.
4. Lift the tonearm from the tonearm rest by using the Raise Lever and slowly move it over the record.

The turntable platter will start turning.

1. Place the tonearm on the desired location of the record.
2. Gently lower the tonearm onto the record to start playing.
3. When the record is finished playing, the tonearm will automatically stop. Lift the tonearm from the record and put it back on the rest.
4. To manually stop the record, lift the tonearm from the record and return it to the rest.

Note: Do not stop or turn the platter manually. Moving or jarring the turntable without securing the tonearm clamp could result in damage to the tonearm.

Autostop Switch Operation

Certain types of records may have an autopost area outside the pre-set limit, so the turntable may stop before the last track finishes. If this occurs, set the Autostop switch to the Off position. This allows the record to play to the end, but it will not stop automatically. You must manually raise the tonearm and place it back in the rest and then turn the power off to stop the turntable from spinning.

AUX IN MODE

1. Set the Mode selector to Aux In.
2. Connect stereo audio cable (not included) from the Aux In Jack to the line output or headphone output of your external audio device to be able to listen to the external source through internal speakers.
3. Adjust the volume to the desired level.

Note: If the line output of your external device is connected, you only need to adjust the system's volume control. If your external device's headphone output is connected, you may need to adjust the volume control on both your external device and TT-43 achieve the desired volume.

RADIO MODE

1. Set the Mode selector to the FM position.
2. Select the desired radio station by turning the Tuning knob.
3. Adjust the volume to the desired level.
4. When finished listening to the radio, set the Mode selector to the Phono position to turn off the radio.

Note: The receiver has a built-in FM antenna hanging at the rear cabinet. This wire should be fully uncoiled and extended for best reception.

BLUETOOTH MODE

1. Set the Mode selector to the BT position. The Power Led Light Indicator will begin to flash BLUE.
2. Turn your external device's Bluetooth Setting ON. Wait a moment, then look for the Bluetooth pairing name "TT-43"
3. Select the Bluetooth pairing name, to connect the unit. Once connected, the BLUE Led light will stop flashing.
4. You are now connected to your external device via Bluetooth
5. The best is to put the volume level on your Bluetooth device (smartphone or tablet) on the maximum and adjust the desired listening volume with your turntable volume control switch.

CONNECT THE TT-43 TO EXTERNAL ACTIVE SPEAKERS OR EXTERNAL HIFI SET

Connect the RCA Output Jack to the external speaker system with the RCA cable (not provided) to enjoy vinyl records music on your speaker system.

HOW TO REPLACE THE NEEDLE

To replace the needle, please refer to the instructions below.

Removing the needle from the cartridge

1. Place a screwdriver at the tip of the stylus and push downward as shown in direction "A".
2. Remove the stylus by pulling the stylus forward and pushing downward.

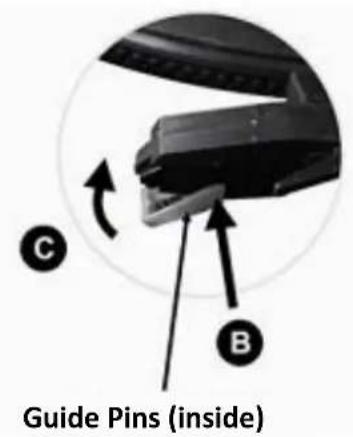

Installing the Stylus

1. Hold the tip of the stylus and insert the stylus by pressing as shown in direction "B".
2. Push the stylus upward as in direction "C" until the stylus locks into the tip position.

NOTES

We advise you to clean your records with an anti-static cloth to gain maximum enjoyment from them.

We would also point out that for the same reason your stylus should be replaced periodically (approximately every 250 playback hours)

TIPS FOR BETTER TURNTABLE PERFORMANCE

1. When opening or closing the turntable cover, handle it gently, gripping it either at the Center or at each side.
2. Do not touch the needle tip with your fingers; avoid bumping the needle against the turntable platter or record edge.
3. Frequently clean the needle tip And use a soft brush in a "back-to-front" motion only.
4. If you must use a needle cleaning fluid, use very sparingly.
5. Gently wipe the turntable player housing with a soft cloth. Use only a small amount of mild detergent to clean the turntable player.
6. Never apply harsh chemicals or solvents to any part of the turntable system.

SPECIFICATIONS

Power adaptor.

Output DC 12V 1A

Input AC 100-240V, 50/60Hz, 0.3A max.

Bluetooth: V5.0

BT Pairing name: TT-43

Aux in: 3.5mm

Aux out: RCA type

FM Frequency band 87.5-108MHz

Bluetooth Frequency 2402-2480MHz

Operating Temperature: 0^ - 40^

Storage Temperature: -20°C-70°C

Due to continuing improvement, the features and the design are subject to change without notice

Power supply adaptor (For EU only)

Use only the power supply listed in the user instructions

Information	Value and precision
Manufacturers name or trade mark, commercial registration and address	SHENZHEN SHI GUANGKAIYUAN TECHNOLOGY.,LTD. 2 floor, 41 TianSheng Road, TianLiao village, GongMing Street, Guangming, Shenzhen, GuangDong, P.R.China
Model Identifier	GKYZA0100120EU
Input voltage	100-240V
Input AC frequency	50/60Hz
Output voltage	12V
Output current	1A
Output Power	12W
Average active efficiency	84.84%
No load Power consumption	0.042W

Guarantee

Lenco offers service and warranty in accordance to European law, which means that in case of repairs (both during and after the warranty period) you should contact your local dealer. Important note: It is not possible to send products that need repairs to Lenco directly.

Important note: If this unit is opened or accessed by a non-official service center in any way, the warranty expires.

This device is not suitable for professional use. In case of professional use, all warranty obligations of the manufacturer will be voided.

Disclaimer

Updates to Firmware and/or hardware components are made regularly. Therefore some of the instruction, specifications and pictures in this documentation may differ slightly from your particular situation. All items described in this guide for illustration purposes only and may not apply to particular situation. No legal right or entitlements may be obtained from the description made in this manual.

Disposal of the Old Device

This symbol indicates that the relevant electrical product or battery should not be disposed of as general household waste in Europe. To ensure the correct waste treatment of the product and battery, please dispose them in accordance to any applicable local laws of requirement for disposal of electrical equipment or batteries. In so doing, you will help to conserve natural resources and improve standards of environmental protection in treatment and disposal of electrical waste (Waste Electrical and Electronic Equipment Directive).

CE Marking

Hereby, Commaxx B.V. Wiebachstraat 37, 6466 NG Kerkrade, The Netherlands, declares that this product is in compliance with the essential EU directive requirements.

The declaration of conformity may be consulted via [e-mail]

Service

For more information and helpdesk support, please visit www.lenco.com

Commaxx B.V. Wiebachstraat 37, 6466 NG Kerkrade, The Netherlands.

Nederlandsl

LET OP:

m = 311

MEPbI IPEDOCTOPOXHOCTN INPEED NCIOLb3OBAHHEM

COBLODAITE PNPBEDEHHbIE HNKe YKA3AHNA:

1. He NaKpbBaIte N He nepeKePbBaIte BeHTnlaUOnHHbe OTBepCTN.Ipn pa3MeUeHnn yctpoiCTBa Ha NOJIke OCTaBbTe 5 cm (2 IIOMa) CBO6oJHO npocTpaHcTba c KaXdoI CTOpOHbl YcTpoiCTBa.
2. OcyuieCTBIAIe YcTaHOBky B COOTBeTCTBnN C NdyuIM B KOMJIeKTe pyKOBOdCTBOM NOlb3OBaTeJI.
3. XpaHnte yctpoBCTBO BdaIIN OT hCtoHnKOB TeNla, TaKx KaK paDnAToPbI, o6OrpeBaTeIIN, neu, cBeuN IpyrHe TepNoBbIeJaIOUne 06BeKtBI NII IN hCtoHnKN OTKpbITOrO OrH.N.YcTPOBCTBO MoKeT IcNoJIb3OBAbTCa ToIbKO B CpeDe C yMepeHHoI TemnepaTyPoI. CNeyET n36eRaTb KpaIHe xoIoHOH NII TepNoI cpeDbI. Pa6OuaY TemnepaTypa oT 0^ do 35^
4. 136eraTe nCnoB3ObaHn yCTpoiCTBa B6n3n CInbHbIX MaRHTbIX noJe.
5. ΘleKtpocTaTnueckn pa3pIa MoKeT HApUHTb HopMaJIbHoe IcNoJIb3OBAHne DaHHoro yCTpoiCTBa.EcII 3TO cIyUInoCb, npocTo c6pocTe npepe3arpy3nte yCTpoiCTBO B COOTBeTCTBn C pyKOBoDCTBOM NoJIb3OBaTeJIa. Bo BpeMn pepeDaun faiJIOB o6paauIteCb c yCTpoiCTBOM OCTOpOxHO IN IcNoJIb3yIte erO B cpeJe, He coIepKaIeN CTaTnuecknx NOMex.
6. PpeDynpexJeHne! HnKOrda He BCTabJIte Be yCTpoIcTB ONoCTOpOHHe npeMeTbI Ype3 BeHTnJIaUHOHHbIe NII INHbIe OTBepCTnJ. Ype3 ycTpoIcTBo IPOXoNT BbICOKoe HAprrKeHne, N BCTaBA KaKoro-JIbO npeMeTa MoKeT npNBecTu K nopaxeHIO 3JIeKTpUYeCKM TOKOM N/INK KopOTKOMy 3AmbIKAHN BHyTpEHNX DeTaN. ITOJ Je npuHHe He npOLBaIte BoDy NII JNkDKocTb Ha yCTpoIcTBO.
7. He nCnoJIb3yIte yCTpoIcTBo B MOKpbIX NIN BLaJXHbIX NOMEeHnIX, TAKNX KAK BaHHbIE KOMHaTbI, KYXH, HAcblIeHHbIe BOJaHbIM napOM, INN B6JIu3N PNaBaTeJIbHbIX 6accEHHOB.
8. Ha yctpoiCTBO He doJIHHbI nonaTaB kaIIIN IIN 6pbI3rN, TaKHe o6ecneYbTe, qTO6bl HnKaKHe npEdMeTbI, HanoJIHeHHbIe KInDkoCTbIO, TaKHe KaK Ba3bl, He pa3MeUaJIncb Ha yctpoiCTBe IIN pAdom C HIM.
9. He nCnoJIb3yIte DaHHeO yCTpoiCTBO B ClyaX BepoAHTHO CTn O6pa3OBaHnB NOMEeHN KOnDeHCata. Ipn HcNoJIb3OBaHN YCTPOICTBA B TeNLOM BLnKHom NOMEeHN BHyTpN yCTPOICTBa MOrT O6pa3OBaTbCkAnN BObl NlN KOHJeHCAT, N UCTPOICTBO MOKeT pa60TaTb HenPaBnIbHO; NepeD BKIOUeHnEM NITAHn DaIte YCTPOICTBY NOCTOARb B BbIKIOUeHHOM COCTOHRN B TeueHne 1 NII 2 aCoB: yCTPOICTBO DOJHKHO 6bITb CyxIM nepeD BKIOUeHHem NITAHn.
10. HecmOTpHa To, yTo daHHe yCTpoIcTB O pOn3BeJeHO C nppeIbHOJ OCmOTpTeNbHOCTbIO HecKoJIbKO pa3 npOBepHo nepei BblNycOM c fo6pnKi, ecTb BEPOaTHOCb BO3HnKHOBeHn Ipo6JIeM, KaK i C IIIO6bIMN 3JIeKTPuYeCKmM nPn6OpamN. Ecl N Bbl 3aMeTIIN DblM, Upe3MePHO He KAKONJIeHne TEnla INn KaKe-Im6O dpyrHe HeoXnDaHHbIe RaJIeHn, Bam CJIeDyET HeMeIJIeHNO OTCoEduHHTb BVILKy OT CeTEBOI pO3eTKI\PITAHn.
11. Данhoe усторьdoлжно pa6oTaB OT nCTOuyHka nHTaHn, yka3aHHoro Ha 3TKeTke C TexHnueckmX xapaKTePncTnKaMn. EcIn Bbl He yBepeHb B Tnne nCTOuyHka nHTaHn, NcNoJIb3yEmoTo B BaWeM Dome, o6paTntecb K BaWeMy npOdaBu y IJN MeCTHOJ 3HEpreTNueckoKOMnAHn.

12. DepeKHTe yCTpoNCTBO BHe IOCTyNa KINBOTHbIX. HeKOTOpBle KINBOTHbIe IIO6r Tpbl3b HHyptbl NITAHn.
    13.Дя OUCNTKU YCTPOJCTBA NCNoJIb3yIe MRAKHyO cyXHy TkaHb.He IcNoJIb3yIte pactBopnteINI INI JxNIOKCTn Ha OCHOBe 6eHNHa.DIyIaJeHnCINbHbIX nTHe MOxHO NcNoJIb3OBA Tb BIAKHyTO TkaHb Cpa3BeDeHHbIM MOUoMm CpeDCTBOM.

13. NocTaBzNk He Hecet OTBeTCTBeHOctn 3a NOBpeKJeHne IIN NoTePIO DaHHbIX, Bbl3BaHHbIX HEnCnpaBHOCTbIO, HEnpaBnIbHbIM NcNoIb3OBAHNeM, MoInΦnKaUneI yCTpoiCTBa IIN 3aMeHOJAKyMylTopa.

14. He npepbBaIte coeDInHeHne, KOrda yCTpoiCTBO OcyuIeCTBnIeT fOpMaTIPOBaHne nn nepeJaet aIbI. B npOTUBHom cIyAae daHHbIe MOrY T 6bITb NOBpeXdEhbl nn noTepeHbl.
15. Ecn yctpoCTBO HmeeT cyHKUHO Bocnpo3BedeHnuepe3 USB, to USB-hakonntel b CJeDyET NOKJIIOHTb HENOCpeDCBeHHO K yctpoiCTBy. He nCNoIb3yIte YdInHtBelhbl USB-ka6eIb, TaK KaK OH MOKeT BblBaTb NOMExn, PpNBoJusne K c6oIO nepeDaun DaHHBX.
16. Ha HnKnHIO nIIN 3aDnHO IaHeJIyCTpoJcTbHaHaHeCeHa MeTKa peYTHnHa 3aUHTbl.
    18.ДaHHoe yCToIcTBO He npedHa3HaueHO IJIr IcNoIb3OBAHnI IOJbMn (BkIIOyAJeTee) cΦu3NueckmN, ceHCOPHBIM NIIY UMCtBeHHbIMn HeIOCTaTKaMn, a TaKKe C HeIOCTaTOUHbIM ONbITOM N3HaHnAIMN, ecNI TOJIbKO OHI He HaxoIaTcI NOd Ha6JIIOdeHnEM NIIr He 6bll NpOHnCTpyKTHpOBaHbI O npaBnIbHOM IcNOJIb3OBAHnI yCTpoIcTBA JIncOM, OTBeTCTBeHHbIM 3a INx 6e3ONaCHocTb.
    19.Данhoe yctpoiCTBO npeHa3NayeHO ToIbKO IЯ He npoeeCNOHaIbHOrO nCNoIb3OBaHnry,И He IЯ KOMMepueckoro NIn IpomblJeHHORO nCNoIb3OBaHnry.
17. 06ecneybte, yTo6bl yctpoCTBO 6blno pa3MeueHO B yctOuHBOM NOLOKeHH. TapaHTnHa He pacnpoctpaHareTcH a NoBpeKDeHH, Bbl3BaHHbIe NcNoJb3OBaHNem DaHHoro yctpoiCTBa B HeYCToUHBOM NOLOKeHH, Bn6paunMn IInyDapAMn, a TaKHe HecO6JIIODeHHeM LIO6bl Dpynx PpeDyPpeKdEHH nn Mep PpeDooCTOpOxHOCtN, coedePkauxxCB B daHHom pykoBDCTBe NOJb3OBaTeJIa.
18. HNKoRda He cHIMaTe KOpNc daHHoro yCTpoiCTBa.
19. HnKorda He pa3MeaTe daHoe yCTpoiCtBO cBepxu pyrOTo 3JeKtpnueckoro o6OpydoBaHna.
20. IcklouHTe DocTyn DeTeN K nlaactNKOBbIM naKeTaM.
21. IcnoIb3yIte ToIbKO npHnAdJeKHOCTu/Akceccyapbl, yKa3aHHbIe npOn3BODntTeMe.
22. 06paaetaecb no Bopocam kaKoro-JIbO o6cJyXuBaHnK KBaIhΦuHPOBaHOMy cepBnCHOMy nepcoHany. ObcJyXuBaHne Tpe6yeTcA, ecIn yCTpoiCTBO 6blIO KaKIM-JIbO 6pa3oM nobpejdeHo, Hanpimep, clyuNIOcb NOBpejdeHn SHypa NITAHN INBILKN, INe ECIN Ha yCTpoiCTBO 6blIa IpoJIta JxIDKOCTb INN B Hero YNAI npeMeTbI, KOrda yCTpoiCTBO IOdBeprloCb BO3DeIcTBIO DOJkJa INN BlaRn, He pa6oTaet HOpMaIbHO INI naDANO.
    26.ДиntelbHoe npocnyuBaHne rpoMkOro 3Byka OT nepcoHaIbHbIX My3bIkaJIbHbIX npOnrpbIbATEne MoKeT npINBecTN K BpeMeHHOu INN NOCTOAHHOJ NOTepe cLyxa.
23. EcnuYcTpoIcTBo nocTabIaTeTc co WHypOM nITaHnI nn aDanTePOM nepemehHoro TOka:

PnB03HKnHOBeHHn KaKnx-Jn6o HEnOlaOk OTCoeDnHHe UHyp NHTAHn nepemehHOro ToKa n o6paTntecb 3a o6cnyKHBaHnEM K KBaIINΦuNpOBaHHOMy nepcoHaIy.
He HacTynaiTe Ha aadanTepe nTuHnI He 3aKImaTe erO. BybTe oc06eHHo OCmOTpuTeIbHbI,OCo6eHHo B6IINBnIKn IMcTa BbIXoJa shHypa nTuHnI. He cTabBeHa aadanTepe nTuHnI TAgKeJIbIpe NpeDMetbl, KOTOpbIe MOrYerO nobpeDnTB. DePknTe BeCb KOMNLeKT YcTpoiCTBa B HeNoCTyHnom IJra DeTei MeCte! Irpaar co WHypom nTuHnI, OHn MOrY CepBe3HO nopAHHTbcra.
OTKJIouaTe DaHHe yCTpoiCTBO OT ceTn BO BpeMa rpo3bl npn dInTeJbHOM HeNCNoIb3OBAHH.
- Po3eTka dOJXHa 6bIb yCTaHOBHeHa pAOM c yCTpOiCTBOM n DOJXHa 6bITb IerKoIOcTynHa.
He neperpykaTe po3eTKn nepemehHoro ToKa IIN ydInHnten. Nepepy3ka MoKeT npBecTu K BO3rOpaHnIO IIN npaXeHnIO 3JeKtpnueckm TOkOM.
- YcTpoIcTbA C KOHcTpkyKuNei KLnacca 1 DoJHKbI 6bITb NOdkNIOueHbIK CeTeBOI p03eTKe C 3aUHTbIM 3a3emLeHneM.
- YcTpoiCTBa c KOHcTpkyKuNei KlaCca 2 He Tpe6yIOT 3a3eMJIeHnI.
Bcerda depkntecb 3a Bnky, KOrda BblHmaeTe ee n3 ceTeBOI po3eKn. He TAHNTe 3a Hyp nHTAHN. 3TO MOKeT npNBecTNI K KOPOTKOMY 3aMbikaHIO.

He nCnoIb3yIte NoBpeKdEHHbI uHyp NITaHn, BnIky IIN He3aKpeNJIeHHyU pO3eTKy. 3TO MOKeT npNBecTI K BO3rOpAHIO IIN NopAKeHNIO 3JIeKTpNUeCKM TOKOM.

1. EcIn yctpoiCTBO coepKHT INI INeT B KOMnJIeKTe C NylbTom dNCTaHcNOHOrO ynpabLeHn, coepKaUIM nlockn KpyrIbI aKKMyJrTop:

PpeDynpexKdeneH:

• I36eraTe nonaHaHn aKKyMylTopa BHyTp b opraHn3Ma, 3TO npEicTaBnaeT onaCHOCTb XIMNueCKOrO OKORA NIN aHaJIOTnHyIO ONaCHOCTb.
  [Bcnyae ecnB KOMnneKeT nIeT npIbT dNCTaHNoHHoro ynpabHeHn] DaHoe yctpojCTBO coepKHT aKKymyJrTOP KHOIOuHOro Tnna. B clyae nporlaTbIBAHn aKKymyJrTopa, OH MOKeT Bbl3BaTb CInIbHbIe BHyTpEHnE OXkOrn BCero 3a 2 Yaca N MoKeT npNBecTN K CMeptn.
  XpaHnTe HOBbie HcNoJIb3OBAHHbIe aKKyMylAToPbI BdaII NOTeT.

• Ecnn OTCek IJRA AKKyMylrTOPOB He 3aKpbIbAeTc HAdEHHO, OCTaHOBNTe NcNoJIb3OBaHHe yCTpoiCTBa n DepKHTe erO BdaIIN OT DeTei.
  EcnBbI cHTaTe, YTO aKKyMylrTopbl MOrN 6bITb npOrIoueHb IIN NOnaII BHyTp b KaKoJ-1n6 Oactn TeLa, HeMeJeHHO o6paTntecb 3a MeuHckO INOMOsbIO.

• Праздостешиь ВОТHOWEHIN ИСПОЛБОВHAнУ aKKUМЛТОВ:

Onachoctb B3pbBa npn HenpaBnBHO 3aMeHe aKKymyIaTopa.3aMeHrTe aKKymyIaTOP ToIbKO Ha TaKo Jne NnN 3KBuBaJeHTbI TnI.
- AkkyIaTOp He IOnJKeH NObBepraTbCBAO3DeIcTBNIO Upe3BbIaHOB BbICOKHX Hn3Knx TEMnepaTpy, Hn3KOMy DaBHeHIO BO3DyXa npu nCNoJIb3OBAHn Ha 6oJbwoi Bbcote, npx XpaHeHm nn TpaHCnpTnpOBke.
3aMeHa aKKyMylTopa Ha HenpaBnIbHbI Tn MoKeT npNBecTu K B3pbBy Nn yTeUke IerKOBocnlaMeHoueJcR HNkOCTu Nn r3a.
Bb6paCbBAHne aKcymyIaTopa B OOrh bnn ropayu neyb,ero MexaHueckoe dpo6JeHne nn pa3pe3aHne MoryT npnbecn K B3pbIBy.
EcnnocTabntaKKMyIATOpBcpeDeCye3BbIaHHO BbcOKoTeMnepaTpyo,3TO MoKET npNBecTN K B3pbIBy NIN YTeUKe IerKOBOCnlaMeHHOeJcraXnDKOCTN NIN ra3a.
Ecnn akkymlyatop noDBepraetc BO3deNCTBNUO ype3BbuaHNO H3K0rO daBLeHHBO3dyxa, 3TO MOKeT npuBecTN K B3pbBy Nn yTeueKe IerKOBocnlaMeHHOUeCJKNkOCTNuN ra3a.
CneyetyuNbBaTb3KoIOnHueckNe acNeKTblYTNIN3aUAnnAkkymyIANTOpOB.

YCTAHOBKA

• PacnakyTe BCE deTaIIN CHIMITE 3aUNTHbI MaTePnaI.

KomIIeKtaun:

PykoBOcTONoIb3OBATeJIa

AanTep nTaHn

PacnoJoxHeOpraHOynpaBneHn

1. Dnck: cnyknt dny pa3MeueHn nlaactnHKn.
   2.Дерхаел b aanrepa Ha 45 06/MnH:ФИКСИРуET Ha MeCTe NДУПиВ KOMЛeKTe aanTep Ha 45 06/MnH.EcIn aanTep He nCNoJIb3yETc, NOMECTe erO B daHHbI JepxaleB.
   3.ToHapM:ΦHKcnpoBaHHbToHapM MoKHO NOpHMaTbNOnyckaTb BpyHyO HnI npemeuaa pbUar NOpBeMa/OnyckaHn.
   4.ФИКCATOP TOHAPMa:daHHbI CNEuaJIbHO pa3pa6OtaHHbI ΦИKcATOp TOHApMa 6JOKnpyET TOHAPM Ha MeCTe, KOrJa YCTpoiCTBO HAXODITcB COCTOaHIN NOKoN KOrJa OHO He

NcnoJIb3yeTc.ΦnKcaTOp ToHApMa 6bl cKOHCTpyuPoBaH TaKIM O6pa3OM, YTO OH OCTaETcB B BePXHeM NpOJKeHm, KOrda ToHApM pa36NoKupoBaH.

1. Pbyar noDbema/onycKaHn: cIyKHT IJIa noDbema n OnyckaHn ToHaPMa.

2. Пееклочаел b abTomatueckoi octahOBKn: daHbI nepeKlOHT b BKIOUaET nII BbIKLOUaET abTomatueckyio octahOBky. KOrda aBtOMatuecka octahOBka BKIOUeHa, NlaCTINKa NaHcT BpaTaTbC, KOrda ToHapM 6yDet NOMEuH Ha Hei, N nepeCTaHET BpaTaTbCra, KOrda ToHapM DoCTnHET KOHca NlaCTINKn. Korda aBtOMatuecka OCTAHOBKa BbIKLOUeHa, NlaCTINKa BceRda 6yDet BpaTaTbCra He3aBnCMo OT NOJoxHeNr TOHapMa.

PnmeaHne:ecnBaHa 3aHcB Ha BaWe nactHKe 3aKaHnBaetcdoTOro, KaK ToHapM DOCTHTKOHua nactHKn, BbIKIOHTe aBTOMaTHueCKyO OCTaHOBYdAHHo KOHKpeTHOH nactHKn.ObbHNO 3To peKOMeHdyETcIg nactHOK Ha 45 o6/MnH.

1. NepeknioateIb Ha 33/45/78 o6/MnH: daHHbI nepeknioateIb ynpaBraTe CKOpocTbIO BpaueHna DnCKa npOnrpBaTeJI PnactHOK.

PnmeHne: nanyeHnHaNlyuXpeyIbTaOB npBBOcnpOn3BeHeHH nlaCTnHOK Ha 78 06/MnH nnoJb3yIte roNoBky Ha 78 06/MnH (npOdaetc OTeJeBHO). NcnoJb3yIte roNoBky Ha 78 06/MnH ToIbKO IaCTnHOK Ha 78 06/MnH.

1. Pexm: noBepHnTe 3OT nepeKIOuAteIb Ia Bb6opa nCnoIb3yEmo Ro hctouHnka (BT, FM, Phono nn Aux In).
   2.пepeклioуателba pадиочactOT (нactpoіka): nobepHnte 3TOT nepekeIIOUaTeJIb dIy Bbl6opa qacToTb paIIOCTaHcN FM.
2. CBETOIOHOHbI HDAKATOp NHTAHN: 3TOT CBETOIOHOHbI HDAKATOp NHTAHN 3aRopaeTcPn BkJIouHeHH NHTAHN.
3. BKJIIOUOHEHNE/BbIKJIIOUOHEHNE nHTaHnI rpoMkoCTb: BKNIOueHne/BbIKIOUeHne IN perylnpOBkra rpoMKOCTn IaB BYTpeHHnx DnHaMKOB.
   5.Диhamнк:2 ctepeoHnHaMaKa,ecnNtOuHnk ctepeo.
4. CBeToaHbI HdKATop Bluetooth: 3TOCTcBeToaHbI HdKaTOp 3aropaeTc npn BkIoueHnn peXmAb Bluetooth.
5. Pa3bem RCA: cIyKHT IJIa NIOKIIHcHnBHeHrO dINHaMnKa (He BXoNT B KOMnIeKT).
6. Pa3bem Bxoda AUX: cnjxnt nla noKlouehn BHeHero aydnoycpoctba, Hanpimep MP3-nleepa, moBnIbHoro TelefoHa n T.D., nla npocnyuBaHHa My3bIKn C noKloueHHoro yctpoiCTBa.
7. Pa3bem aanterpa: cnkynt nIy noKnloeHnaantepa nHTAHn.
8. FM-aHTeHHa: cnJxNt Ia npnema FM-paDnOcHnHa.

Bocnpoun3BeDeHne uepe3 npounrpblBaTeIb

IpeudncnoB3OBaHnEM BbINOJIHTe cJeDyOuuee:

• CHIMITE 3aunthyU O nleHky C rOIOBKn. NOBTOPO UcTaHO BHTbI KOLNAQOK Ha roIOBKe, KOrda npOnrpbIbATEJIb He NcNoJIb3yETcR.

-Пюверьт,УTOToHApM cBo6OJNo nepemeuaeTcC onOpblДЯ ToHapMa. KOrda npOnrpbIbATEJIb He nCNoJIb3YeTe, cHOBa 3aФИKcInpyTe ToHapM Ha Onope.

1. YcTaHOBnTe pyuKy nepeKluOeHna pexMMOB B NOJIOKeHne Phono I NOHMnTe nbIe3aUHTHyU KpbIuKy npONrPbIBaTeJIa.
   2.Помecntteпл actнку Ha npoHpBbATEJIb, BCTaBb ee Ha ueHTpaIbHyO OcB, BblcTynaiouyIO n3 dNcKa.
2. YctaHOBnTe nepeKJIIOHATeIb ckOpOteH Na 33, 45 Nn78 o6/MnH B 3aBNCMOCTN OT Tnna IIaCTnHKn.
3. Побнmate ToHapm C noDCTaBKn, nCnoIb3yra pbiur noDbema, n MeIeHNo nepemecHTe ero B noLoKeHne Hnd nlaactnHKoI.

DnCK npoIrpblBaTeIaHaHT BpaAaTbcra.

1. NpeMeCTe ToHApM B NOLOKeHne NOBepx HUxKHO MeCTa INaCTnKN.
2. AkkypaTHO onyctnte ToHApM Ha nlaCTnHKy, yTO6bI hauTaB Bocnpo3BeDeHne.
3. Korda nlaactnHka donrpaet, Tohapm aBtOMaTnueckn octaHOBNT XoI. IOnHMnTe ToHAPM c nlaCTnHKn uYCTaHOBNTe o6paTHO Ha IOnCTaBky.
4. 8To6bI BpyHyIO octaHOBHTb PIACTHKy, NOdHMnTe TOHaPm C PIACTHKn I BepHnTe erO Ha NODCTABKy.

Примочанe: He ocTaHaBnBaIte n He noBopaHbAitc Te dNcK BpyHyo. IpeHocKa nI IN TpRcKa npOuRpbIbAteTl npH He3akpeNJIeHHOM B ΦNKCaTope ToHapMe MoKet npNBecTu K IOBpeJdeHIO ToHapMa.

IcnoJIb3OBAHHe nepeKJIIOUaTeJIa ABTOMATUeCKoO octaHOBKn

Hekotopbte TnblpI pIacTHNOK MoryT HMeTb oBlaCTb aBTOcTOna 3a paMkam 3aDaHHoro
npedeLa, no3ToMpy npOINrpbIBaTeIb MOKeT OCTaHOBnTBcE uee Do OKOHuaHn IocJeDnei
3aIncn. Ecln 3To npOIN3oJdET, yCTAHOBInTe nepeKJIouHateIb aBTOMaTIueCKo OCTaHOBKn B
BbIKIOUeHHoe NOLOXeHne. 3To nO3BOJAEr pONrPBbATb PIACTNHKy Do KOHca, Ho OHa He
OCTaHOBnTCa ABtOMaTIueckn. Bam Heo6xOJIMo BpyHyIO NOJHrTa TOHApM i NOMEcTb erO
6paTHo Ha NoCDTaBky, a 3aTeM BbIKIOUHTb NITaHne, YTO6bl OCTaHOBnTB BpaSeHne
npOINrpbIBaTeIy.

PEKIM AUX IN

1. YcTaHOBnTe nepeKJIIOuHaTeIb peXIMoB B nOLOKeHne Aux In.
2. Побкюп Te Ka6eь ctepo3Byka (He BXoNT B KOMnJIeKT) ot pa3bema Aux In K ЛинейнOMу ВьIXOу Ил Nь ВьOXу ДЯ HayшнКOB Baшero BHeшero aydnoYcToPIcTBa, Чтбы IMeТ b Bo3MOxHOCt bПрocLyuShBaT b BHeSHn IcTOHnK chepe3 BHyTpEHHne ДИнамКи.
3. OTPeryIpyIte rpoMkoCTb Do HxKHO rpoBHA.

PnmeaHne: ecn noKlueyen IInHeHbI BbIXoB BaWero BHeHero yCTpoiCtBa, Bam HxHO ToIbKO HAcTPOHTpeyIaTOp rpoMkoCTn CnCTeMbI. Ecn noKluoyen BixOd JI

HayuHKOB BaIero BHeHero yCTpoNCTBa, Bam MoKeT nOTpe6oBaTbca HAcTPONTb peryIaTOp rPOMKocTN KaK Ha BHeHem ycTpoNCTBe, TaK n Ha TT-43 dJa DoCTnHexHn Heo6xOdHMoR rPOMKocTN.

PEKIM PADI NO

1.YcTaHOBnTe nepeKJIouaTeIb peKIMoB B nOIOJKeHne FM.
2. Bb6epnte HxHHyo paNIOCTaHcIIO, NOBopauHBa pyKy NaCTpOKn.
3. OTPeryIpyuTe rpoMkoCTb Do HxKHOro yPoBHa.
4. 3aBepuB npocnyuBaHne paNo, yCTaHOBnTe nepeKluOyateIb peXHMOB B NOLOKeHne Phono, yTO6bl BBIKJIOUHTb paNo.

Причесанe: рпсемнк IMeet BCtrpoeHHy FO M-aHTeHHy, yCTaHOBJIeHHyIO Ha 3aJHei CTopoHe. ДaHHbI ПрOBODdoJIXeH 6bITb PONHOCTbIO pa3MOTAH I BbITaHHT dIЯ Лушero npriema.

PEXMM BLUETOOTH

1. YcTaHOBIne nepeKIOuATEIb peXIMOB B NOLOKeHne BT. CBeToIDNoHbI INHdNKaTOp NITaHnHauchET MIRATb CNHM cBeTom.
2. B Hacptpoikkax Baawero BHeHero yctpoiCTBa BKIOUHTe cyHKuHIO bluetooth. HemHoro noDOKIte, a 3aTeM HaJITe uepe3 bluetooth IMa coppKeHra «TT-43»
3. BbIepeTe nMa cOnpJKeHn bluetooth, uTo6bl IoKIOUHTb yCTpoiCTBO. Iocne IoDKJIIOUeHn CINHm CBeToaNOd nepeTaHeT MraTb.
4. Tenepb Bbl nodklouheBk BHeWHeMy ycTpoiCTBy uepe3 bluetooth
5. Luyche BCero noCTaBnTb ypOBeHb rpOMKoCTn Ha BaWeM bluetooth-ycTroPcTBe (cMaprfoHe nn nIaanweTe) Ha MaKcHmym HAcTpoNTb Heo6xOdImyU rpOMKoCTb npocnyuBaHn, nCnoJIb3yra pyuKpeYIpOBKn rpOMKoCTn Ha npOnrpBbATEne.

ПОДКЛIOЧNTE TT-43 K BHEUSHHIM AKTUBHBIM ДИHAMNKAM ИЛIN BHEUSHEMY HIFI-KOMПLEKTY

YTo6bl 3aMeHnTb nIry cm. npNBeDeHHyIO HnKe IHCTpyKUHO.

N3BHeHHe HrlbI N3 KapTpndJa

1. ПометиTe OTBepTKу Ha KOHUnK rOJOBKN И NaДaВITE BHN3, KaK nOKa3aHO B HappaBJIeHn «A».
   2.ИЗВЛЕКИТЕ ГOLOBК,NOTЯНΥБ ee BnpepeиВиH3.

YcTaHOBkaTIOJOBKn

1. YdepeHnBaIe KOHnK rOIOBKn n BCTaBbTe ee, HnAaBnB HnPaBHeHn «B», KaK noka3aHo Ha pncyHke.
2. Notaryte roIobky BBepx B HappaBneHn «C», noka oHa He 3aΦHKcnpyeTcB HaKIOHHom IIOJoxeHn.

HanpaBraIoune KOHTaKTbI (BHyTpN)

ПРИМЕЧАЙ

MbI COBetyem Bam Ounuatab Baun NlaactnHKn aHTNCtATnuecko TkaHbIO, YTO6bl NOyuaTb MaKcMajbHOe ydoBOJIbCTBne OT IN pOcLyuBaHna.

MbI TAKKe XOTEJI 6bl OTMeNTb, YTO NO 3ToJ Ke npuHHe BAuY rOLOBky CJeDyET nepNoDiueckn 3aMeHrTb (npimepHo KaKdIbe 250 uacOB BocnpOn3BeDeHna)

COBETbI IO JIyUHEMY ICNIOJIb3OBAHNUI PONIPBIBATEJIA

1. OTKpbIbA INI 3aKpbIbA KpbIshky npOnrPbIbATEJI, o6paauTeCb C HeN OCTOpOxHO, ydepxnbA ee IIno B ueHTpe, IIno no 6okam.
2. He npnkaTecb nalbuaM K KOHny Hrlbl; 36eraTe cToKHOBEHna Hrlbl C dNCKOM npoIrpblBaTeIy IIN Kpaem PnactHHKn.
3. PeryIaRHO uNCTHTe KOHUN K INblb MArKoU STeKo, TOnbKO DnBxKeHNem «Ha3aD-BnepeD»
4. EcnBAM Heo6xOIMO nCnOJIb3OBaTb JnIkoCTb IJIy ChCTKn IJI, nCnoJIb3yIte ee B He6OJIb7nx KOLIyEcTBax.
5. AkkypaTHO npotpnte Kopnyc nponrpbIbATEJMaKoTkaHbIO. IcnoB3yIte TOnbKO He6obJbwoe KOJIueCTBO MArKOrO MoOSeTo CpeCTBa JIry NCTKN PONrPbIBaTeJ.
6. HnKoIa He HaHocnte arpeccBhbie XmMueckne BeuecTba Nn pactbOpnten Ha KaKyIO-Jn6o YacTb CnCTeMbI npOnrPbIBaTeJI.

TEXHNUECKNE XAPAKTEPNCNTIKN

AanTep nTaHn:

BbIXoD 12 B nep. ToKa, 1 A

Bxo100-240 B nep. Toka, 50/60 Fu, MaKc. 0,3 A

Bepcnbluetooth: 5.0

IIMyycTpOyCTBa npn TT-43

coprajxhenyuepe3

bluetooth:

BxoA Aux: pa3beM 3,5 MM

BbIXoD Aux: pa3beM RCA
