Product Type	True Wireless Earbuds
Brand	Ausounds
Model	AUFrequency BT
Bluetooth Version	5.2
Bluetooth Protocols	SBC, MSBC, AAC
Bluetooth Range	10 meters (32 feet)
Speaker Type	Dynamic
Speaker Diameter	10 mm
Impedance	32 ohms
Frequency Response	20 Hz - 20 kHz
Sound Pressure Level (SPL)	102 dB
Battery Life (earbuds)	5 hours
Total Battery Life with Case	30 hours
Battery Capacity (earbud)	60 mAh
Charging Time	1.5 hours
Weight (per earbud)	5 g
Protection Rating	IPX4 (splash resistant)
Touch Control	Yes (play/pause, calls, volume, voice assistant)
Auto Connection	Yes (turns off in case)
Cleaning	Soft dry cloth; diluted mild detergent if needed; no solvents
Warranty	1 year (parts and labor)

Frequently Asked Questions - AUFrequency BT Ausounds

How to charge the earbuds for the first time?

Before first use, charge the earbuds for at least 1 hour. Once the initial charge is complete, leave them in the case for another 15 minutes. Use the provided USB-C cable.

How to connect the earbuds to a new device?

Press 5 times on the touch panel of one earbud. The LED will flash alternately red and green, indicating the earbuds are in pairing mode. Select 'AUFrequency BT' from your device's Bluetooth settings.

How to reset the pairing?

Press 7 times on each side of the earbud. The red LED flashes 3 times, pairing records are erased, and the earbuds return to pairing mode.

What is the battery life of the earbuds?

The earbuds provide up to 5 hours of continuous listening. With the charging case, total battery life reaches 30 hours.

How to control volume and change tracks?

For volume: press and hold the left earbud to decrease, the right earbud to increase. For previous or next track: double-tap the left or right earbud respectively.

Can I use a single earbud?

Yes, both left and right earbuds can be connected and used individually. They connect automatically when removed from the case.

Are the earbuds water resistant?

Yes, they are rated IPX4, meaning they are resistant to water splashes and sweat, but should not be submerged.

How to clean the earbuds?

Wipe the exterior with a soft dry cloth. For stubborn dirt, use a slightly damp cloth with a diluted mild detergent solution. Never use solvents like alcohol, benzene, or thinner.

What to do in case of Bluetooth connection issues?

Make sure the earbuds are charged and within 10 meters of the device. Try resetting the pairing (press 7 times on each side). If the issue persists, contact Ausounds support.

What is the warranty policy?

Ausounds offers a one-year warranty from the date of purchase for material and workmanship defects. Contact [e-mail] or the retailer. After 365 days, labor charges may apply.

USER MANUAL AUFrequency BT Ausounds

Ausounds Intelligence, LLC.

15300 Ventura Blvd., Suite 214

Sherman Oaks, California 91403, USA

www.ausounds.com

Designed by Ausounds in California | Made in China

Thank you for purchasing the AU-Frequency BT True Wireless Earbuds. Please read this user manual carefully before using this product, and keep it for future reference.

These true wireless earbuds come with Bluetooth® 5.2 technology, for easy seamless connection. We took our time to create a wireless earbud with the audio that would be respected by the music creator community, but would also serve the purpose of music lovers everyday use.

CONTENTS

Please check if the following parts in the package are complete

Simple line drawing of a vertical cylindrical object with a circular top and base, no text or symbols present.

Earbuds

Charging Case

Pure electrical circuit lines without any symbols

Ear Tips Charging Cable

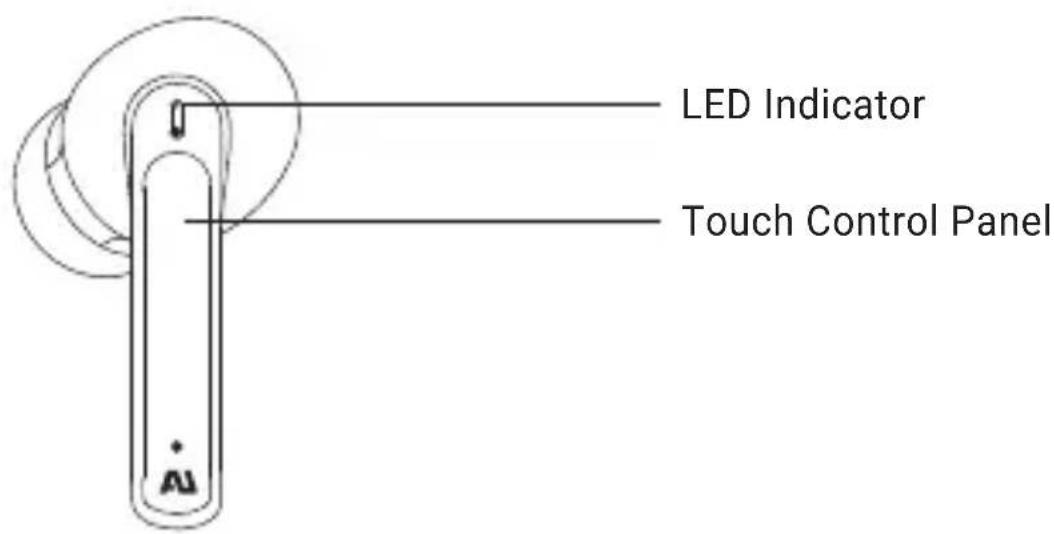

PRODUCT DETAILS

Please charge for 1 hour prior to the first use.

LISTENING COMFORT

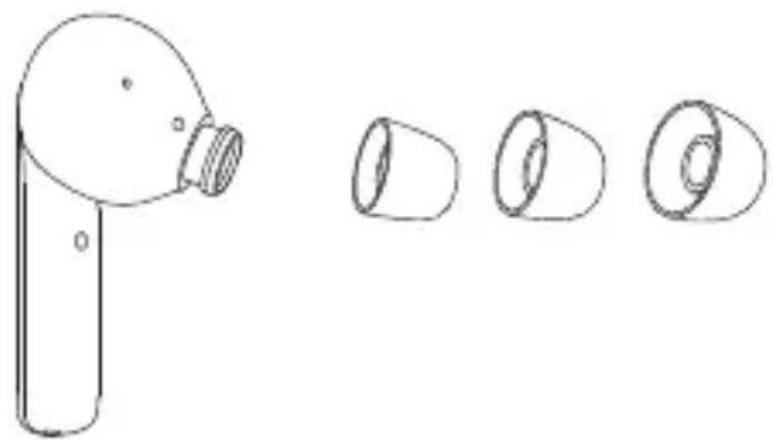

Select the right size ear tip

Line drawing of a hairdryer with three separate views of the bulb (no text or symbols)

Select the ear tip that provides the most comfortable fit and audio seal. Lightly pull the ear tip to remove it from the earbuds, and install a new suitable ear tip.

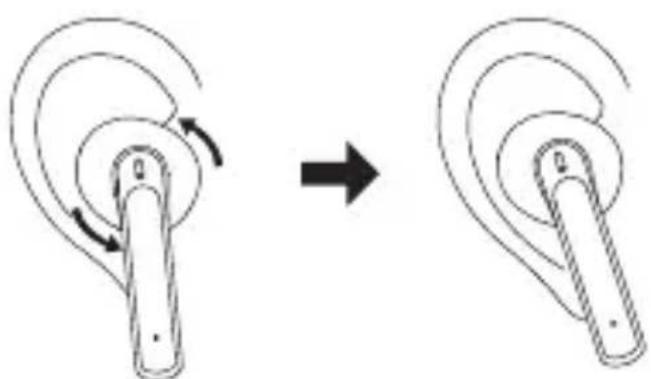

Wearing earbuds

Diagram showing ear device before and after rotation, illustrating the change in ear structure (no text or symbols)

Lightly insert the earbuds into the ear and rotate it for a comfortable fit. There is a left side and a right side earbud as indicated by the L and R markers on them.

BLUETOOTH FEATURES

Automatic connection

The AU-Frequency BT will automatically turn off when it is placed in the charging case. If there is no connection for 5 minutes your earbuds will automatically turn off. The left and right earbuds can be connected to the device and used independently.

Add a new device

Tap either touch panel 5 times. The indicator light will alternately flash red and green and the earbuds will enter the pairing state.

Reset

To reset the pairing, tap 7 times on each side of the earbud. The red LED will flash 3 times; then the pairing record is cleared and the earbuds will re-enter pairing mode. (Android devices vary by system)

CHARGING

Battery life

Please charge for 1 hour prior to first use. Allow an additional 15 minutes once initial charge has been completed. A single play can last up to 5 hours, and the total battery life can reach 30 hours with the charging case.

Earbuds

Put the earbuds in the charging case and they will automatically shut down and enter the charging state.

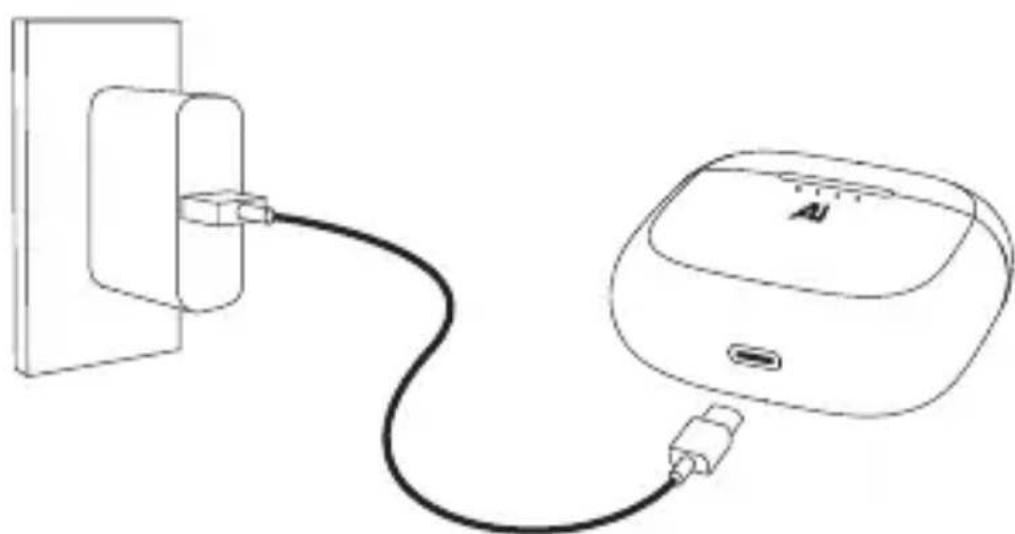

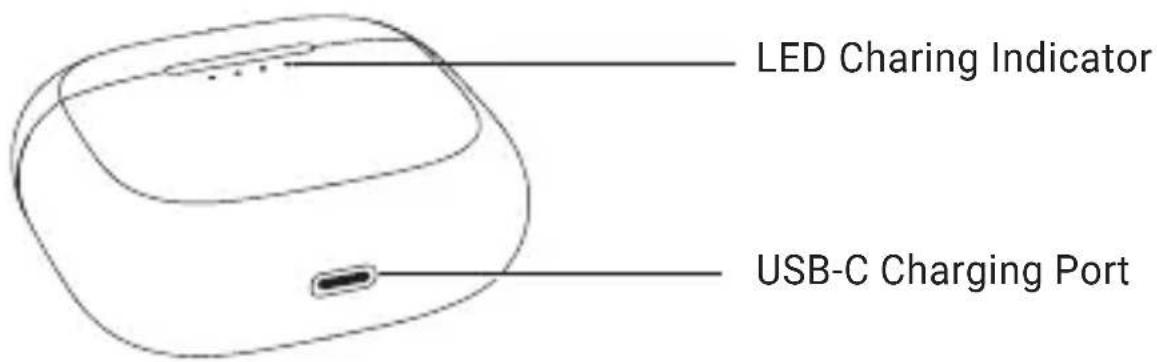

Charging case

Line drawing of a plug connecting a wall to a device with cable (no text or symbols)

PLAYBACK CONTROLS

Touch Control	Left Ear Right Ear
Volume control	Long press volume -	Long press volume +
Previous/Next track	Double tap	Double tap
Answer	Tap	Tap
End Call/Decline call	Long press 2 sec	Long press 2 sec
Play/Pause	Tap	Tap
Activate voice assistant	Tap 3 times	Tap 3 times

SPECIFICATIONS

Bluetooth Version	BT 5.2
Bluetooth Protocol	SBC, MSBC, AAC
Bluetooth Range	10m | 32ft
Driver Type	Dynamic driver
Driver Size	10mm
Impedance	32 ohms
Frequency Range	20Hz-20kHz
SPL	102 db
Battery Life (total)	30 Hours
Battery Capacity (earbud)	60mAh
Charging Time	1.5 Hours
Weight (earbud)	5g
Waterproof level	IPX4

SAFETY INSTRUCTIONS

• Do not attempt to make any modifications to the product, including removing or modifying the product, as the damage is not covered by the warranty.
• Do not place the product in extremely high or low ambient temperatures for extended periods of time. Extreme temperatures can cause equipment to deform, and reduce the charging capacity of the device.
• Thunderstorm weather may affect the normal use of the product and there is a risk of electric shock, so please do not use the earphones outside during thunderstorms.
• This product contains small parts. Do not swallow it to avoid danger. Keep the product out of the reach of children.
• Using the product for a long time at high volume may affect your hearing, please control the volume.
• If this product supports active noise cancellation. Please do not turn this function on when walking, driving, or cycling to avoid accidents.

BATTERY WARNING

This product contains lithium battery, please do not disassemble, impact, squeeze or put into fire. Please do not place the product under high temperature or hot sun, beware of explosion. If there is swelling, leakage, odor or any other abnormality in the battery compartment of the product, do not continue to use it. Please dispose of used batteries properly in accordance with local regulations.

WARNING

Do not subject the product to excessive shock. If your product has touch sensor, do not apply stickers or other adhesive items to the touch sensor control panel. Be careful not to catch your finger in the unit when folding. The Bluetooth function may not work with a mobile phone, depending on the signal conditions and the surrounding environment. Do not apply weight or pressure to the product for long periods, including when it is stored, as it may cause deformation. If you experience

discomfort while using the product, stop using it immediately. If this product has earpads/ ear tips they may be damaged or deteriorate with long-term use and storage.

CLEANING THE UNIT

When the outside of the product is dirty, clean it by wiping with a soft dry cloth. If the product is particularly dirty, soak a cloth in a dilute solution of neutral detergent, and wring it well before wiping. Do not use solvents such as thinner, benzene, or alcohol, as they may damage the surface.

DO NOT USE THE HEADSET NEAR MEDICAL DEVICES

This product has magnets which may interfere with pacemakers, defibrillators and programmable shunt valves or other medical devices. Do not put this product close to these medical devices and the person who use any of these medical devices. Consult your doctor before using this product, if you have any concerns.

DO NOT PLACE CARDS WITH MAGNETS IN THE VICINITY OF THE HEADSET

This product has magnets. Placing cards with magnets in the vicinity of the product may affect the magnetism of the card and render it unusable.

READ ALL INSTRUCTIONS BEFORE USE AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  — Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  — Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC RF EXPOSURE STATEMENT:

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device complies with FCC radiation exposure limits set forth for an uncontrolled environment.

CAUTION!

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

ISEDC STATEMENT

This device complies with Innovation, Science, and Economic Development Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

ISEDC RF EXPOSURE STATEMENT

The device is compliance with RF exposure guidelines, users can obtain Canadian information on RF exposure and compliance.

PRODUCT WARRANTY

Ausounds Intelligence warrants this product to the original purchaser to be free from defects in material and workmanship, under normal conditions for a period of 1-year for parts and labor only from the date of original purchase. Ausounds agrees at our option during the warranty period, to repair any defect in material or workmanship or to furnish an equal product in exchange without repair charges, during the first 365 days. After 365 days, a flat labor rate may be required and payment sent along with the product. Except where prohibited by applicable law, this warranty is nontransferable and is limited to the original purchaser and the country in which the product was purchased. This warranty gives you specific legal rights, and you may also have other rights, including a longer warranty duration that may vary under local laws. If you do not find a solution on our website, please contact the retailer from whom you made your purchase. Valid warranty claims are generally processed through the point-of-purchase retailer during the first thirty (30) days after purchase. This period of time may vary depending on the retailer. If your warranty claim cannot be processed through the point-of-purchase retailer, please contact our support department at [e-mail] or call direct at 1-818-873-0113.

Please follow these directions to return your product:

1. Contact Ausounds support at [e-mail] or 818-873-0113 to receive a return authorization

2. Pack the unit in a well-padded sturdy carton if you do not have the original packaging

3. Enclose a copy of your sales receipt to validate the date of purchase

4. Ausounds will elect to repair or replace the product free of repair charges during the first 365 days. After 365 days, payment for labor may need to be sent with the product. Call customer support at 818-873-0113 or email [e-mail]

Ausounds Intelligence

Attention: Warranty Services

3190 Chicago Ave Riverside, CA 92507-3448 US

NOTE: This warranty does not cover any product which has been subject to damage due to misuse, neglect, accidental damage, abuse, commercial use, or any product modifications. This warranty does not cover damage due to improper operation or maintenance, connection to an improper voltage supply, or attempted repair by anyone other than Ausounds. This warranty does not cover products sold AS IS or refurbished units. For consumers, who are covered by consumer protection laws or regulations in their country of purchase or, if different, their country of residence, the benefits conferred by Ausounds' Limited Warranty are in addition to all rights and remedies driven by such consumer protection laws and regulations, including but not limited to these additional rights.

National Statutory Rights

Consumers have legal rights under applicable national legislation governing the sale of consumer goods. Such rights are not affected by the warranties in this Limited Warranty. In Brazil, remedies include the consumer's option to keep the defective product and receive a proportional price reduction.

European Union notice:

Please note that, in the European Union, any warranty period less than two years shall be increased to two years.

For Australia/New Zealand Consumers Only:

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. This warranty is provided by Ausounds Intelligence, LLC 15300 Ventura Blvd Suite 214 Sherman Oaks, CA 91403. Contact information for Australia/New Zealand Consumers Only: Telephone: [phone]. For any product/warranty -related questions, please contact customer support at [e-mail]

For Japan Consumers Only:

The Federal Arbitration Act (the “FAA”) applies to the agreement to arbitrate to the maximum extent allowable. Except as preempted by FAA, the laws of the State of California, without reference to its choice of laws principles, will govern this Limited Warranty. With the exception of disputes in small claims court or in arbitration, You and Ausounds consent to jurisdiction and venue in the state or federal courts located in Los Angeles County, California, for any claims arising out of a dispute relating to this Limited Warranty. Notwithstanding the Section titled “Binding Arbitration and Class Action Waiver”, if You are a consumer in Japan, You have the right to resolve disputes before the Tokyo District Court in Japan. Nothing in this Limited Warranty affects Your rights as a consumer in Japan to rely on mandatory provisions of Japanese law. Contact information for Japanese Consumers Only: Telephone: [phone]. For any product/warranty -related questions, please contact customer support at [e-mail]

Simple line drawing of a vertical cylindrical object with a circular top and base, no text or symbols present.

Écouteurs

Boîtier de charge

Pure electrical circuit lines without any symbols

Line drawing of a handheld device with three separate views of a cylindrical object (no text or symbols)

Diagram showing ear device before and after rotation, illustrating the change in ear structure (no text or symbols)

Line drawing of a plug connecting a wall to a device (no text or symbols present)

COMMANDES DE LECTURE

Ausounds Intelligence

Simple line drawing of a vertical cylindrical object with a circular top and base, no text or symbols present.

Fones de ouvido

Simple line drawing of a square frame with a central horizontal bar and 'Au' label, no text or symbols beyond the label.

Pure electrical circuit lines without any symbols

Line drawing of a hairdryer with three separate views of the bulb (no text or symbols)

Diagram showing ear device before and after rotation, illustrating the change in ear structure (no text or symbols)

Line drawing of a plug connecting a wall to a device (no text or symbols)

Ausounds Intelligence

Attention: Warranty Services

3190 Chicago Ave Riverside, CA 92507-3448 USA

Simple line drawing of a vertical cylindrical object with a circular top and base, no text or symbols present.

Auricolari

Pure electrical circuit lines without any symbols

Line drawing of a handheld device with three separate views of a cylindrical object (no text or symbols)

Diagram showing ear device before and after rotation, illustrating the change in ear structure (no text or symbols)

Line drawing of a plug connecting a wall to a device (no text or symbols present)

Ausounds Intelligence

Simple line drawing of a vertical cylindrical object with a circular top and base, no text or symbols present.

Ohrhörer

Ladeetui

Line drawing of a handheld device with three separate views of a cylindrical object (no text or symbols)

Diagram showing ear device before and after rotation, illustrating the change in ear structure (no text or symbols)

Line drawing of a plug connecting a wall to a device with cable (no text or symbols)

WIEDERGABESTEUERUNG

Ausounds Intelligence

Attention: Warranty Services

3190 Chicago Ave Riverside, CA 92507-3448 US

Simple line drawing of a vertical cylindrical object with a circular top and base, no text or symbols present.

Auriculares

Estuche de carga

Pure electrical circuit lines without any symbols

Line drawing of a hairdryer with three separate views of the bulb (no text or symbols)

Diagram showing ear ear rotation process before and after (no text or symbols)

Line drawing of a plug connecting a wall to a device with cable (no text or symbols)

Ausounds Intelligence

Attention: Warranty Services

Simple line drawing of a vertical cylindrical object with a circular top and base, no text or symbols present.

이어버드

충전 케이스

Pure electrical circuit lines without any symbols

이어탑 충전 케이블

제품 세부 정보

Line drawing of a hairdryer with three separate views of the bulb (no text or symbols)

Diagram showing ear ear before and after rotation, illustrating the change in ear structure (no text or symbols)

Line drawing of a cable being inserted into a wall socket connected to a device (no text or symbols present)

재생 컨트롤

Ausounds Intelligence

수신: Warranty Services

3190 Chicago Ave Riverside, CA 92507-3448 US

Simple line drawing of a vertical cylindrical object with a circular top and base, no text or symbols present.

耳机

充电盒

耳套 充电线

Pure electrical circuit lines without any symbols

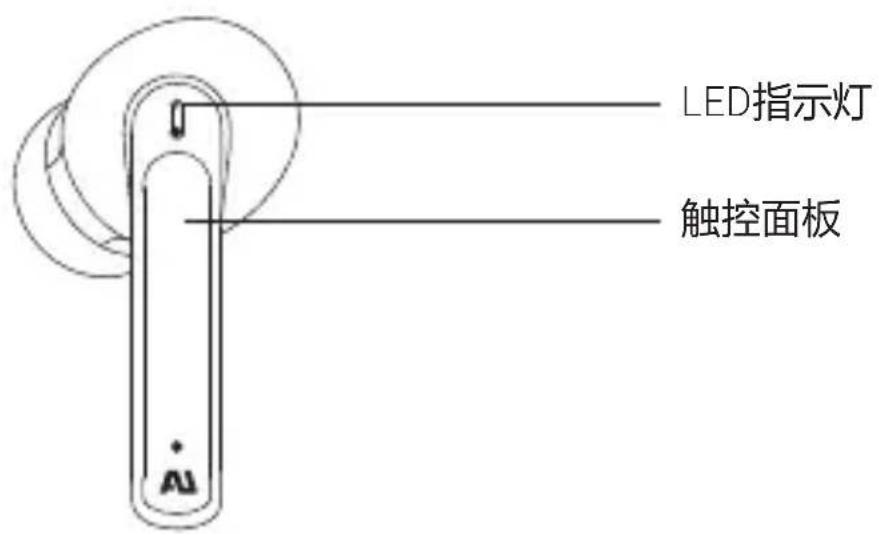

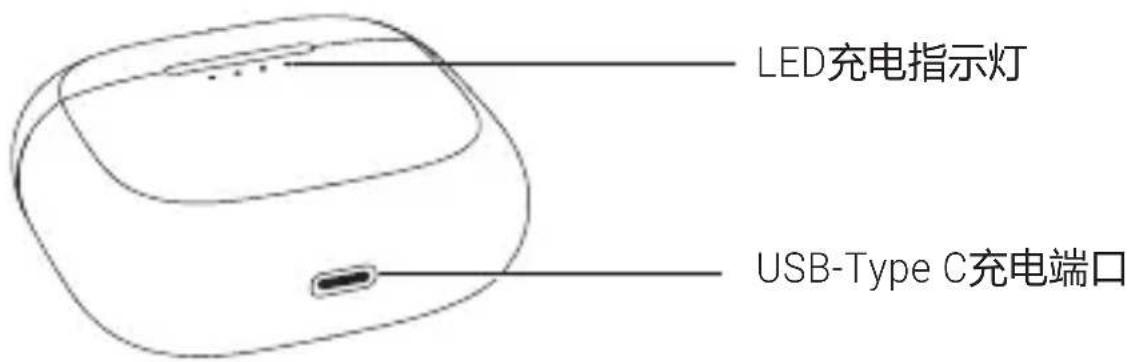

产品详情

请在首次使用前充电1小时。

舒适聆听

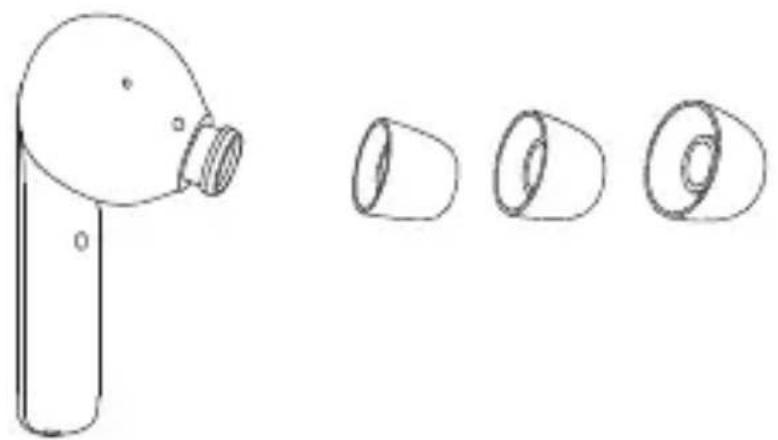

选择合适大小的耳套

Line drawing of a hairdryer with three separate views of the bulb (no text or symbols)

Diagram showing ear rotation process before and after, with no text or symbols present

Line drawing of a plug connecting a wall to a device with cable (no text or symbols)

播放控制

Ausounds Intelligence

Attention: Warranty Services

3190 Chicago Ave Riverside, CA 92507-3448 US

Simple line drawing of a vertical cylindrical object with a circular top and base, no text or symbols present.

耳機

充電盒

Pure electrical circuit lines without any symbols

耳套 充電線

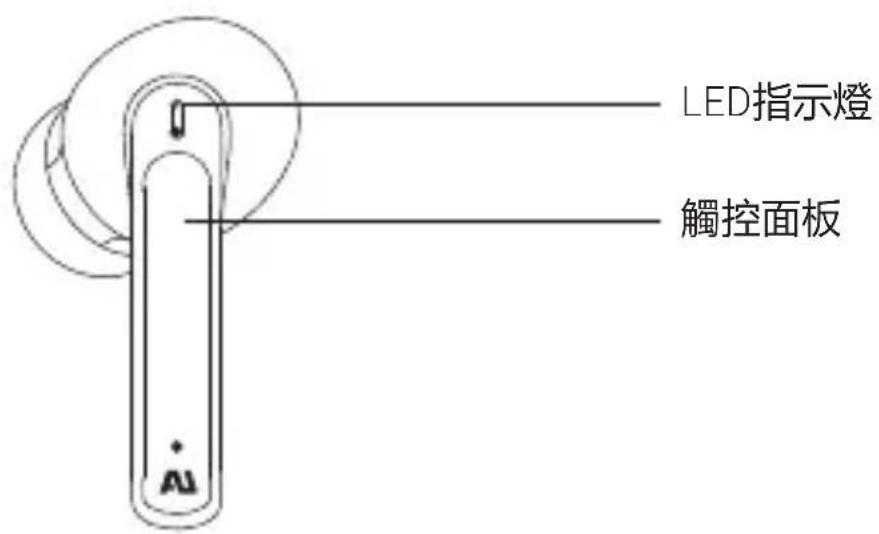

產品詳情
