Product type	Professional immersion electric whisk
Brand	Dynamic
Model	Junior 551022
Power supply	Single-phase, 10 A, class II (double insulation)
Speed	Variable by knob
Capacity	From 2 to 50 egg whites
Usage	Commercial applications (restaurants, canteens, bakeries, etc.)
Safety	Double safety: trigger (LC) + safety button (BS)
Automatic stop	Release of the trigger
Material of whisks	Stainless steel (not specified, estimate)
Maintenance of whisks	Cleaning with clear water, possible with dish soap
Maintenance of motor unit	Do not immerse, clean with damp cloth
Precautions	Do not run empty; do not use non-recommended accessories
Warranty	1 year against manufacturing defects
After-sales service	Dynamic France S.A.S. (contact details in manual)
Repairability	Spare parts available via after-sales service; replacement by manufacturer or qualified person
Cable length	Approximately 1.5 m (estimate)

Frequently Asked Questions - Junior 551022 Dynamic

How to start the Dynamic Junior 551022 electric whisk?

Hold the mixer by the handle, place one finger on the LC trigger without pressing. With the other hand, press the BS safety button. Then press the LC trigger: the appliance starts. You can release the safety button. To stop, release the trigger.

How to adjust the whisk speed?

Turn the knob of the V speed variator to vary the speed continuously. Adapt the speed according to the preparation (e.g., low speed for egg whites, high speed for whipped cream).

What types of preparations can I make with this whisk?

This whisk is designed for professional preparations: batters, creams, mousselines, egg whites (up to 50), genoise, meringues, buttercream, whipped cream, sauces, mayonnaise, etc.

How to clean the whisks after use?

Dip the whisks in clear water and run the appliance for 3 seconds. You can use dish soap. Be careful of the risk of cuts during cleaning. Never immerse the motor unit.

Can I clean the motor unit with a water jet?

No. Never clean the motor unit with a water jet or steam cleaner. Use a slightly damp sponge or cloth.

What to do if the appliance no longer works?

Contact your dealer or send the appliance to Dynamic France S.A.S. (address in manual) in a sturdy package, postage paid. The warranty covers manufacturing defects for 1 year.

Can the whisk be used by children?

Yes, from 8 years old under supervision. Persons with reduced capabilities can use it if they have received safety instructions. Children must not play with the appliance or clean it without supervision.

What are the important usage precautions?

Never run the appliance empty. Hold it at an angle without placing the protective bell at the bottom of the container. Unplug after use. Use only original accessories.

Is this whisk suitable for domestic use?

It is mainly intended for commercial use (professional kitchens). It can be used at home for intensive preparations, but is not designed for continuous production.

How to check the condition of the appliance regularly?

Periodically check the condition of the power cord (wires must not be exposed), the seal of the reduction box, and the wear of the whisks. If the cable is damaged, have it replaced by a professional.

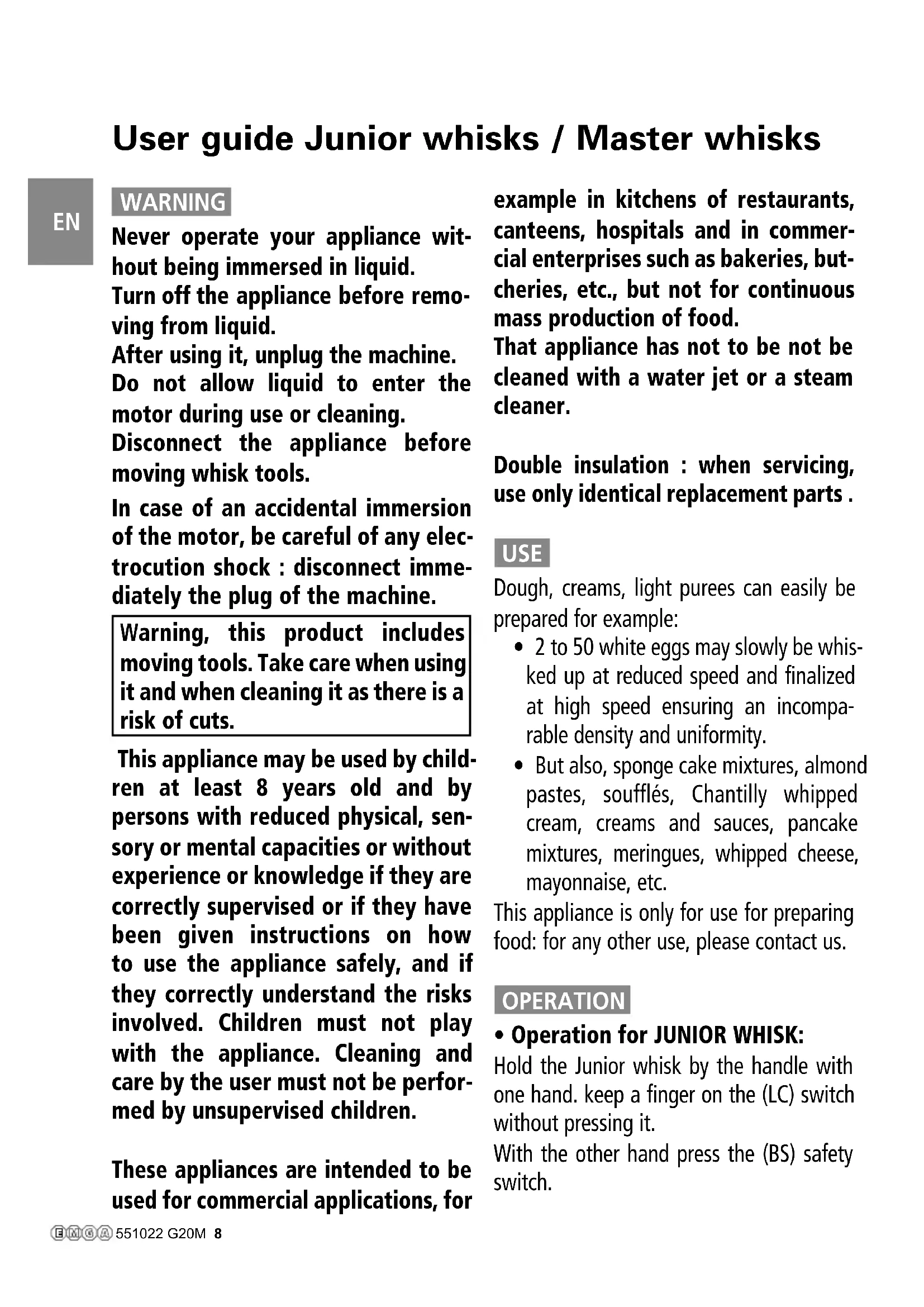

USER MANUAL Junior 551022 Dynamic

Never operate your appliance without being immersed in liquid.

Turn off the appliance before removing from liquid.

After using it, unplug the machine.

Do not allow liquid to enter the motor during use or cleaning.

Disconnect the appliance before moving whisk tools.

In case of an accidental immersion of the motor, be careful of any electrocution shock : disconnect immediately the plug of the machine.

Warning, this product includes moving tools. Take care when using it and when cleaning it as there is a risk of cuts.

This appliance may be used by children at least 8 years old and by persons with reduced physical, sensory or mental capacities or without experience or knowledge if they are correctly supervised or if they have been given instructions on how to use the appliance safely, and if they correctly understand the risks involved. Children must not play with the appliance. Cleaning and care by the user must not be performed by unsupervised children.

These appliances are intended to be used for commercial applications, for

example in kitchens of restaurants, canteens, hospitals and in commercial enterprises such as bakeries, butcheries, etc., but not for continuous mass production of food.

That appliance has not to be not be cleaned with a water jet or a steam cleaner.

Double insulation : when servicing, use only identical replacement parts .

USE

Dough, creams, light purees can easily be prepared for example:

• 2 to 50 white eggs may slowly be whisked up at reduced speed and finalized at high speed ensuring an incomparable density and uniformity.
• But also, sponge cake mixtures, almond pastes, soufflés, Chantilly whipped cream, creams and sauces, pancake mixtures, meringues, whipped cheese, mayonnaise, etc.

This appliance is only for use for preparing food: for any other use, please contact us.

OPERATION

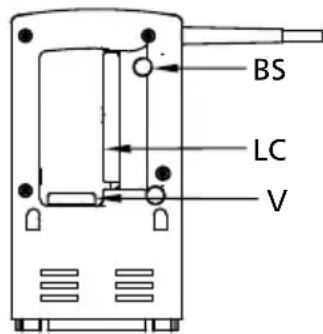

Operation for JUNIOR WHISK:

Hold the Junior whisk by the handle with one hand. keep a finger on the (LC) switch without pressing it.

With the other hand press the (BS) safety switch.

User guide Junior whisks / Master whisks

Press and hold down the safety button then press on the control lever (LC), the JUNIOR is now working and you can release the security button.

Release the (LC) switch to turn the machine off.

While using the mixer you can change the mixing speed by turning the speed variator knob V.

Operation for MASTER WHISK:

To operate the dynamic MASTER WHISK., connect the plug.

Push on the security button (BS) and press the control lever (LC), the MASTER WHISK is now working and you can release the security button (BS).

If you want your mixer to operate by itself, just push the Locking Switch Button (LSB). (Only for the USA and Canada).

While using the mixer you can change the mixing speed by turning the speed variator knob V.

To stop the MASTER WHISK, release the control lever (LC).

Precautions for the use of the appliance:

Never run the appliance outside a recipient. After each use unplug the appliance.

For higher effectiveness we recommend holding the appliance in a slanting position without the whisk tools touching the bottom of the pan as shown in the sketches opposite (2/3 of the way down the tube).

Never use accessories not recommended by the manufacturer. They may be a hazard for the user and may damage the device. Only use original items and accessories.

CARE

The appliance can be cleaned using a sponge or a slightly damp cloth.

To clean the inside of the whisk tools, run the appliance with the whisk tools in clean water for 3 seconds.

User guide Junior whisks / Master whisks

EN

Clean the stand in clean water using washing up liquid if necessary.

Be careful : risk of cuts when cleaning the mixer with the whisk tools.

NEVER clean the appliance using a hose.
NEVER immerse the motor block in liquid.

MAINTENANCE

It is preferable to regularly check:

• That the power cable is in good condition (the copper wires in the cable should not be visible).
• That the appliance is watertight
• That the whisk tools are sharp.

If the power cable is damaged, it must be replaced by the manufacturer, its afterwards service or people of similar qualification to avoid danger.

ELECTRIC REQUIREMENTS

The mixer of a class 2 category (double insulation) powered by a single phase alternating current and does not require a "u" ground plug.

The installation must be protected by a ground fault circuit breaker and a 10 A calibre fuse.

Use a standard 10/16 A single phased socket.

Check that the electricity supply voltage and the value on the mixer specifications plate are compatible.

ELECTRICAL DIAGRAM

CERTIFICATE OF CONFORMITY CUSTOMER SERVICE AND WARRANTY

This machine is in accordance with CE standards and :

- Customer service and warranty:

Should your unit require service, contact your distributor for the nearest authorized service centre if you wish your unit to be serviced by the manufacture ship it to :

CANADA SERVICE CENTRE DYNAMIC INTERNATIONAL LTD.

3227 boul. Pitfield

Saint-Laurent - Quebec H4S-1H3

Toll free phone: [phone]

Toll free fax: [phone]

Local Phone : [phone]

Local Fax : [phone]

USA SERVICE CENTRE DYNAMIC USA

1320 route 9 # 1352 - Champlain, NY - 12919

Toll free phone : [phone]

User guide Junior whisks / Master whisks

Toll free fax: [phone]

DYNAMIC FRANCE S.A.S.

Your new Dynamic product is warranted to the original purchaser, for a period of one year, from the date of purchase. DYNAMIC warrants products to be free of manufacturing defects for a period of one year from the day of original shipment, covering all parts and labor. Damage caused by improper use, accident and/or abuse are not considered to be manufacturing defects. DYNAMIC will repair or replace, at its discretion, defective products returned to an authorized warranty repair center, freight prepaid one way. Unauthorized work on the products during the warranty period will void this warranty.

The portion below must be sent to the Service Centre within 10 days from the purchase date.

Robert Koch Straße 7

77694 Kehl - Auenheim
