USER MANUAL JET121 RIBIMEX
JET61
JET81; JET101; JET121
JET101i
FR POMPE AUTOAMORÇANTE
User and maintenance manual
IT POMPA DA SUPERFICIE AUTODESCANTE
WARNING: Carefully read this instruction manual before operating this product. Incorrect operation may cause injury and/or damages. Please keep this manual for future reference.
User and Maintenance Manual
(Pump JET61 / JET81 / JET 101/ JET101I / JET121)
CAUTION! To reduce the risk of fire, electric shock or injury to persons
during the installation and use of your pump, it is recommended that basic safety precautions should always be taken, including the following precaution:
Read all these instructions before starting to operate this product and keep these instructions in a safe place.
1) GENERAL
The JET pump has been designed to suck up clear water.
It should be installed in a location that is dry, ventilated and protected from bad weather and heat. The maximum suction height should not exceed 8 meters.
Correctly installed, your pump will function with maximum, output and should meet your requirements fully: read the following Instructions carefully.
2) TECHNICAL CHARACTERISTICS
| Model | JET 61 | JET 81 | JET 101/JET101I | JET 121 |
| Type | Self-priming | Self-priming | Self-priming | Self-priming |
| Max suction | 8 m | 8 m | 8 m | 8 m |
| Output | 38 l/min at 5 m | 28 l/min at 8m | 33 l/min at 8m | 35 l/min at 8m |
| Discharge | 10l/min at 15 m | 24l/min at 15m | 28 l/min at 15m | 31 l/min at 15m |
| Motor power | 600 W | 750 W | 970 W | 1180 W |
| Power supply | 230 V/ 50Hz | 230 V/ 50Hz | 230 V/ 50Hz | 230 V/ 50Hz |
| Speed(rotations / minute) | 2850 | 2850 | 2850 | 2850 |
3) INSTALLATION
a) Important recommendations;
Before connecting to the electrical supply, you must:
➢ Fix the pump firmly to the ground or onto a suitable support. To do this, there are two notches provided for this purpose in the foot of the pump for securing it with bolts (not supplied).
Check that the mains supply corresponds to that given on the pump's technical table.
WARNING
The warranty does not cover accidents due to poor installation. This pump should be installed according to the national standards in force (NFC 15100 for France) and by qualified personnel. We advise you to call in an electrician.
The fixed pipe works to which the pump will be connected must have a separation device with contacts of at least 3mm opening distance at all poles.
If the pump is used for swimming pools it must be powered by a transformer with circuit breaker (RCCD) with sensitivity not exceeding 30mA. The pump should not be used in outside fountains, garden ponds and similar places.
N.B.: This pump is not intended for cleaning or other maintenance operations on swimming pools. When it is used for swimming pools, it must be installed in an enclosed service area.
The total manometric height should not-exceed 35m. The connection cable should be at least of the type H05RNF-3x1mm ^2 (live, neutral and earth).
b) Electrical connection:
- Remove the lid from the junction box by loosening the three crosshead screws on the top.
- Loosen the two screws from the drawing shutdown system until the upper section slides freely and allows a power cable to be fed through.
- Ensure that the power cable used is not connected to the mains.
- Thread the cable into-the rubber sheath of the cable gland, then through the drawing shutdown system.
- Connect it up according to the diagram below:
- The green and yellow wire should be connected to the terminal Marked:
- The blue wire should be connected to the terminal marked N.
- The red wire should be connected to the terminal marked L.
Junction box
blue
yellow
Capacitor
Card anchorage device
rubber sheath
- Ensure that all the wires are securely attached to the terminals.
- Retighten the cord anchorage device, ensuring that the connector is resting on the power cable sheath and not on the wires.
- Replace the lid on the junction box by tightening up the crosshead screws.
- Connect the power cable to the mains
4) CONNECTING THE SUCTION HOSE
When assembling, all connections should be sealed with Teflon to ensure that complete sealing is achieved.
For connections fitted with flat or O-ring type seals, it is not necessary to add Teflon.
Check periodically that the seals are sound. The suction hose should be a minimum of 25mm diameter and be rigid to prevent it from being squashed. Do not forget to check the connections for the screen (sealed with Teflon). Add clamps if necessary.
In any event, the suction hose should not be pointing upwards. When using in wells containing sand or gravel, place the screen 50cm from the bottom or in a bucket at the bottom of the well.
In order to avoid leakage and to obtain optimum output, it is essential to seal the connections with Teflon.
6) START-UP
- Unscrew the filler cap from the body of the pump.
Using a suitable container, fill the body of the pump until it overflows. (Do not splash water onto electrical parts).
➢ Replace the cap and tighten so that no air can enter.
If the water level drops in the body or it is not filling up properly, it is because there is an air intake. In this event, check the suction hose connections, and then continue to refill the body.
➢ Ensure that there is no water on the electrical parts of the pump.
➢ Start up the pump and check again that there is no leakage from the body.

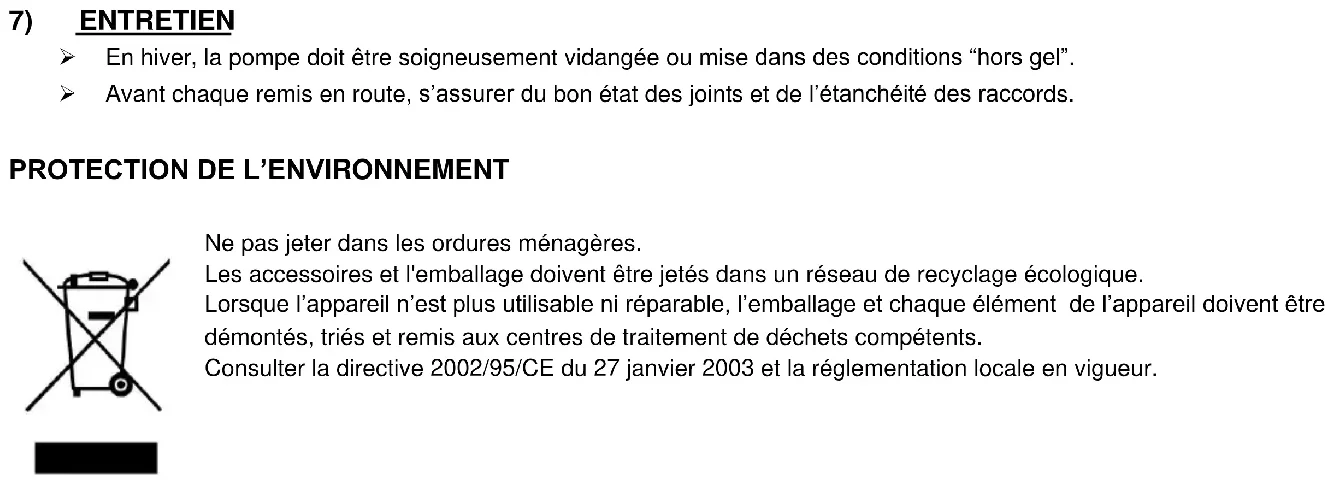

7) MAINTENANCE
In winter, the pump should be thoroughly drained or kept in "frost free" conditions.
Before each start-up, ensure that the seals are in good condition and that the connections are tight.
PROTECTING THE ENVIRONMENT
Do not dispose of with regular household waste.
When the appliance is out of order or cannot be repaired, the packaging, accessories and each part of the appliance must be dismantled, separated and taken to a recycling depot in accordance with applicable local regulation.
