45017 - Wall socket Heitronic - Free user manual and instructions

Brand	Heitronic
Model	45017
Product type	Pop-up table socket
Supply voltage	230 V ~ AC, 50-60 Hz
Maximum power	3500 W (16 A)
Mounting diameter	67 mm
Cable length	1800 mm
Protection rating	IP20
Protection class	I
Use	Dry and protected indoor use only
Installation	Fixed mounting in a stable surface, cut-out hole and fastening with ring
Opening / Closing	Press the ring downwards, pull the handle upwards to open; press downwards to close
Material	Not specified in the manual (plastic and metal)
Maintenance	Unplug before cleaning, use a slightly damp cloth, no chemicals
Safety	Do not modify, do not expose to heat, keep children away, check for damage before use
Repairability	Repairs by a professional electrician only
Disposal	Do not dispose with household waste, drop off at a collection point for electronic devices
Warranty	Lost in case of failure to follow instructions or modification

Frequently Asked Questions - 45017 Heitronic

What is the maximum power supported by the Heitronic 45017 table socket?

The socket supports a maximum power of 3500 W at 230 V, with a maximum current of 16 A.

How to install the pop-up table socket?

Cut a hole of 67 mm diameter in the worktop. Unscrew the black fixing ring, insert the socket into the opening then screw the ring back on from underneath to secure it firmly. Make sure no cables are damaged.

Can I use this socket outdoors?

No, the socket is intended only for dry and protected indoor use. Its IP20 protection rating is not suitable for outdoors.

How to open and close the table socket?

To open, press the ring downwards then pull the handle upwards. To close, simply press downwards again.

What to do if the fuse blows after installation?

First check that the fuse of the domestic installation has not blown. Also ensure that the connector is properly plugged in. If the problem persists, contact an electrician.

How to clean the table socket?

Before cleaning, unplug the socket. Use a slightly damp cloth. Never use chemical or abrasive products.

What is the required supply voltage?

The socket only works with a voltage of 230 V ~ 50-60 Hz. Check that your domestic installation matches.

Can I modify or alter the socket?

No, any modification or alteration of the socket leads to voiding of the warranty and may be dangerous. Repairs must be carried out by a professional electrician.

What if the table socket is damaged during transport?

If the socket or its electrical parts are damaged, do not put it into service. Contact the seller or an electrician for inspection.

How to dispose of the table socket at the end of its life?

Do not throw the device into household waste. Drop it off at a public collection point for waste electrical and electronic equipment (WEEE).

USER MANUAL 45017 Heitronic

Close-up of hands holding a small cylindrical object inside a circular device (no visible text or symbols)

Close-up of a hand pressing a power button into a cylindrical device (no visible text or symbols)

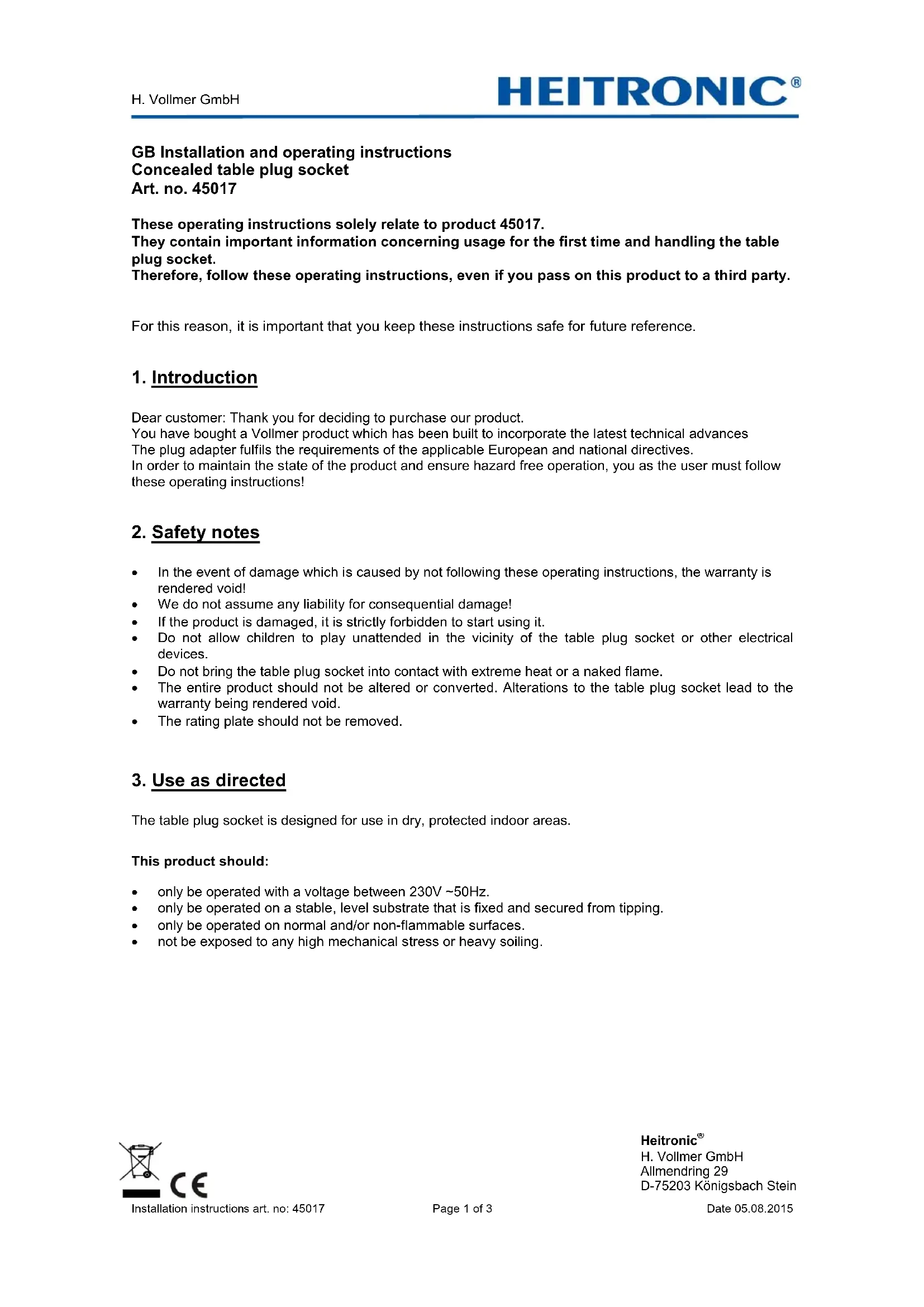

GB Installation and operating instructions

Concealed table plug socket

Art. no. 45017

These operating instructions solely relate to product 45017.

They contain important information concerning usage for the first time and handling the table plug socket.

Therefore, follow these operating instructions, even if you pass on this product to a third party.

For this reason, it is important that you keep these instructions safe for future reference.

1. Introduction

Dear customer: Thank you for deciding to purchase our product.

You have bought a Vollmer product which has been built to incorporate the latest technical advances

The plug adapter fulfils the requirements of the applicable European and national directives.

In order to maintain the state of the product and ensure hazard free operation, you as the user must follow these operating instructions!

2. Safety notes

• In the event of damage which is caused by not following these operating instructions, the warranty is rendered void!
  • We do not assume any liability for consequential damage!
  • If the product is damaged, it is strictly forbidden to start using it.
• Do not allow children to play unattended in the vicinity of the table plug socket or other electrical devices.
• Do not bring the table plug socket into contact with extreme heat or a naked flame.
• The entire product should not be altered or converted. Alterations to the table plug socket lead to the warranty being rendered void.
  • The rating plate should not be removed.

3. Use as directed

The table plug socket is designed for use in dry, protected indoor areas.

This product should:

• only be operated with a voltage between 230V \~50Hz.
• only be operated on a stable, level substrate that is fixed and secured from tipping.
  • only be operated on normal and/or non-flammable surfaces.
  • not be exposed to any high mechanical stress or heavy soiling.

4. Before installation/usage for the first time

• The table plug socket should only be used out of the packaging.
• Carefully take the product out of the packaging.
- Before you use the table plug socket, make sure that it has not been damaged in transit. The table plug socket should not be used in the event of damage to electrical parts. Repairs should only be carried out by a qualified electrician.
- Keep packaging material away from children and pets. Risk of suffocation!
- Make sure that the connected load used in your domestic installation corresponds with the data on the rating plate of the product.

5. Installation/Usage for the first time

• Make sure that the substrate is suitable for reliably holding the weight of the concealed table plug socket.
• Using a saw, cut out the installation dimensions at the desired position. In order to fasten the concealed table plug socket, turn the black fastening ring downwards from the screw thread. Then lower the table plug socket into the intended opening and from below, screw the fastening ring over the thread again until the table plug socket sits rigidly and securely. Make sure that no wires are damaged.
• Once mounted, the table plug socket can only be realigned and locked by loosening and refastening the fastening ring.
• Do not kink the wire; make sure the wire and the plug are free from tensile and torsional strains. Protect all wires and insulation from damage.
• Carefully plug the connector plug into the in socket (fitted in the building)

6. Opening/Closing

Close-up of hands holding a small cylindrical object inside a circular device (no visible text or symbols)

Close-up of a hand pressing a power button on a mechanical device (no visible text or symbols)

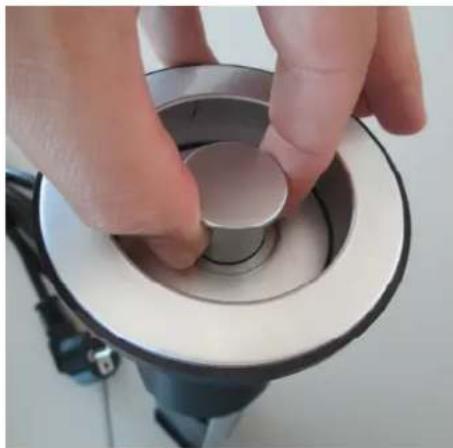

• Pres the ring downwards

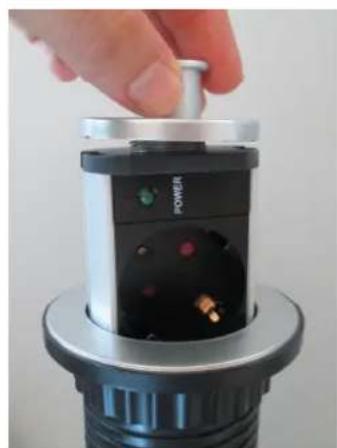

• Pull bar upwards – the plug socket will be pulled from the table
• To close, simply press down again.

6. Functional faults

• Is the fuse activated?
• Is the plug plugged in?

7. Technical care

Article Connection Table plug socket			Protection type	Safety class
45017	230 V~ AC, 50 ~ 60 Hz	Max. load 3500W, 16A, Installation diameter 67mm, Connection cable 1800mm	IP 20 I

8. Care

• Before cleaning, you must ensure that current has been disconnected. Remove the plug adapter from the plug socket.
  • For cleaning, use a cloth that has been slightly moistened.
  • Never use chemicals or scouring agents for cleaning.

9. Disposal

- Old electronic devices should be passed on to public collection points and should not be disposed of as domestic waste.
