35461 - Wall socket Heitronic - Free user manual and instructions

Brand	Heitronic
Model	35461
Product type	Energy distributor (multiple wall socket)
Number of outlets	4 power outlets
Supply voltage	220-240 V ~ 50/60 Hz
Maximum load	3680 W (16 A)
Protection rating	IP44 (splash-proof)
Protection class	I (with protective conductor)
Application	Indoor and outdoor (on stable, non-flammable surface)
Installation	Vertical, on a flat and stable surface
Material	Weather-resistant plastic
Color	Black (standard)
Cable length	Approximately 2 m
Dimensions (approx.)	20 x 10 x 5 cm
Weight (approx.)	0.5 kg
Cleaning	With a slightly damp, lint-free cloth
Safety instructions	Do not expose to direct water jet, do not cover, do not plug connectors one after another
Maintenance	Disconnect power before cleaning, regularly check for damage
Repairability	Repairs exclusively by a professional electrician
Warranty	2 years (subject to legal conditions)

Frequently Asked Questions - 35461 Heitronic

Can I use this energy distributor outdoors?

Yes, this model is designed for indoor and outdoor use thanks to its IP44 protection rating. However, do not expose it to a direct water jet and place it on a stable, non-flammable surface.

What is the maximum power I can plug in?

The maximum load is 3680 W (16 A) total across all outlets. Never exceed this limit to avoid any risk of overheating.

How to install this distributor correctly?

Before installation, cut the power at the circuit breaker. Place the distributor vertically on a flat and stable surface. Connect the wires according to the diagram: phase (brown), neutral (blue), earth (green/yellow). Restore power after checking.

What if an outlet does not work?

First check if the connected device is defective. Then check the voltage and connections. Make sure the circuit breaker has not tripped. If the problem persists, call an electrician.

Can I plug multiple devices at the same time?

Yes, you can plug up to 4 devices, but ensure that the total power does not exceed 3680 W (16 A). Do not plug the connectors one after another.

How to clean this energy distributor?

First unplug the device. Clean it with a slightly damp, soft, lint-free cloth. Never use a high-pressure cleaner or harsh chemicals.

Can the distributor be covered?

No, it must not be put into service while covered. This could cause overheating and a fire risk.

What is the protection class of this device?

It is protection class I, meaning it is equipped with a protective conductor (earth) for enhanced safety.

Can I modify or repair the distributor myself?

Modifications are prohibited and void the warranty. In case of damage, repairs must be carried out exclusively by a professional electrician.

How to dispose of this product at end of life?

Do not throw it with household waste. Take it to a public collection point for electrical and electronic equipment waste (WEEE).

USER MANUAL 35461 Heitronic

Technical diagram showing five-step assembly steps of a mechanical device with labeled components and directional arrows indicating motion.

35461

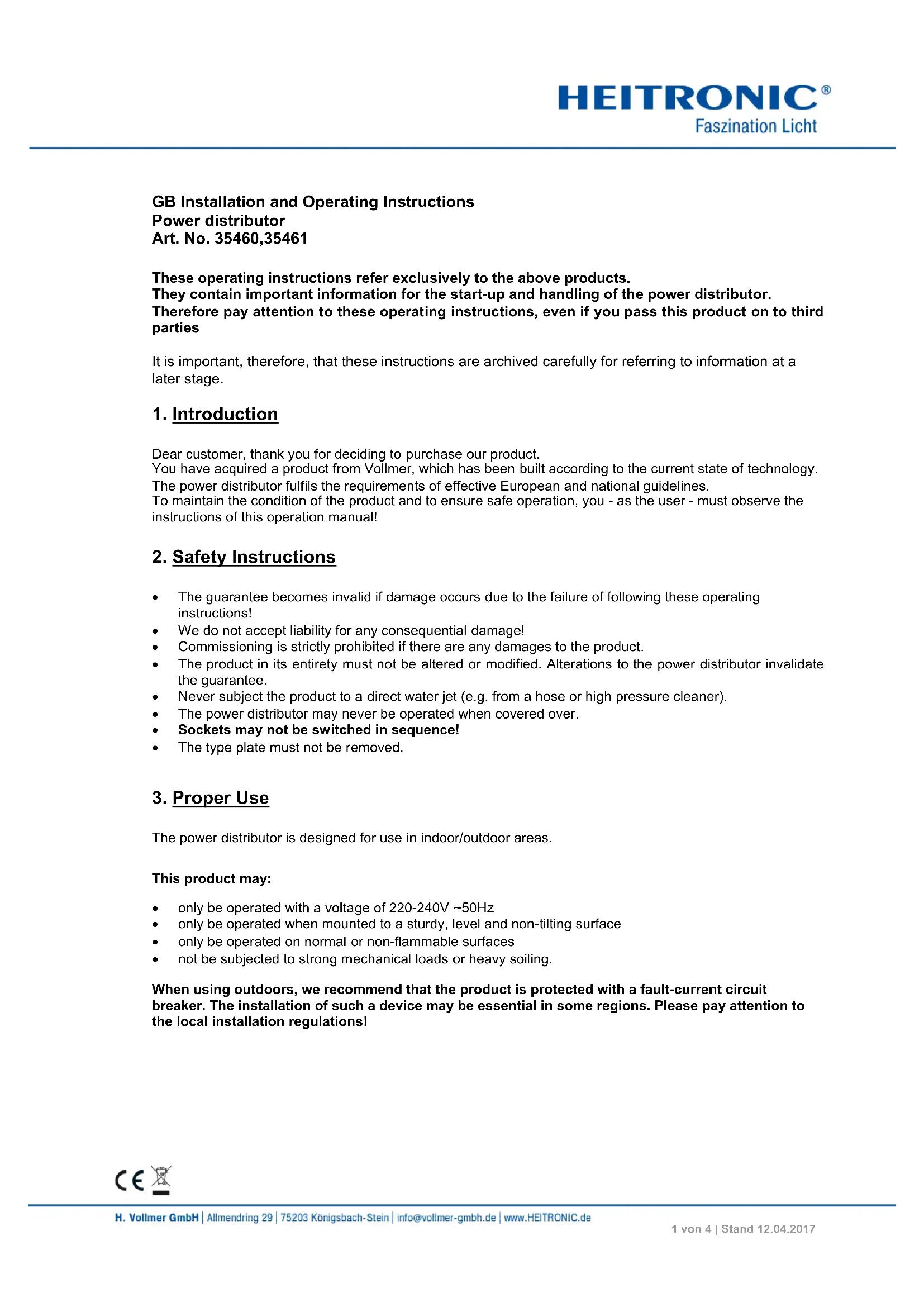

GB Installation and Operating Instructions

Power distributor

Art. No. 35460,35461

These operating instructions refer exclusively to the above products.

They contain important information for the start-up and handling of the power distributor.

Therefore pay attention to these operating instructions, even if you pass this product on to third parties

It is important, therefore, that these instructions are archived carefully for referring to information at a later stage.

1. Introduction

Dear customer, thank you for deciding to purchase our product.

You have acquired a product from Vollmer, which has been built according to the current state of technology.

The power distributor fulfils the requirements of effective European and national guidelines.

To maintain the condition of the product and to ensure safe operation, you - as the user - must observe the instructions of this operation manual!

2. Safety Instructions

• The guarantee becomes invalid if damage occurs due to the failure of following these operating instructions!
  • We do not accept liability for any consequential damage!
  • Commissioning is strictly prohibited if there are any damages to the product.
• The product in its entirety must not be altered or modified. Alterations to the power distributor invalidate the guarantee.
• Never subject the product to a direct water jet (e.g. from a hose or high pressure cleaner).
  • The power distributor may never be operated when covered over.
• Sockets may not be switched in sequence!
  • The type plate must not be removed.

3. Proper Use

The power distributor is designed for use in indoor/outdoor areas.

This product may:

• only be operated with a voltage of 220-240V \~50Hz
• only be operated when mounted to a sturdy, level and non-tilting surface
• only be operated on normal or non-flammable surfaces
• not be subjected to strong mechanical loads or heavy soiling.

When using outdoors, we recommend that the product is protected with a fault-current circuit breaker. The installation of such a device may be essential in some regions. Please pay attention to the local installation regulations!

4. Before Installation/Commissioning

• The power distributor may only be operated once removed from the packaging.

- Remove the product from the packaging carefully.

- Make sure that the connection levels for your building's installation corresponds with the data on the product type plate.

- Make sure that the power distributor has not been damaged during transport before taking it into operation. The product may not be operated if there are any damages to electrical parts. Repairs may only be carried out by a qualified electrician.

- Keep packaging materials away from children and pets. Danger of suffocation!

5. Installation/Commissioning

- The connection lines in the building must be disconnected before installation and secured against being switched back on. For this, trip the corresponding fuse switch in the building installation.

- Choose where to attach the product. Make sure that no water can accumulate around the power distributor's position.

- Make sure that the surface is suitable for permanently and reliably taking the weight of the power distributor. It may only be taken into operation in an upright position!

- Make sure that the maximum capacity of the power distributor is not exceeded before connecting a consumer.

- Pay attention to possible tripping hazards, especially in walking areas, when laying the cable.

- Do not bend the cables; make sure that the cables and plugs are not subject to tension or torsional forces. Protect all cables and insulation against possible damages.

- Check proper connection once again.

- Switch the building installation's fuse switch back on.

Live : Brown ; Braun Earth : Green/Yellow ; Grun/Gelb Neutral : Blue ; Blau

6. Faulty Function

Connected consumers won't switch on

- Consumer defective?

- Voltage test

- Check the connected lines

- Fuse switched on?

7. Technical Data

Article Connection Power distributor capacity				Protection Type	Protection Class
35460	220-240V, 50 ~ 60 Hz	2 Steckdosen	Max. 3680W, 16A	IP 44	I
35461	220-240V, 50 ~ 60 Hz	4 Steckdosen	Max. 3680W, 16A	IP 44	I

8. Care

• Disconnect the entire product from the mains first before cleaning or maintaining the product.
• Clean the product regularly using only a slightly moist, soft and lint-free cloth.
  Pay attention to any enclosed instructions.

9. Waste Disposal

- Old electronic devices must be taken to public waste disposal sites and must not be put into general household waste.

35460

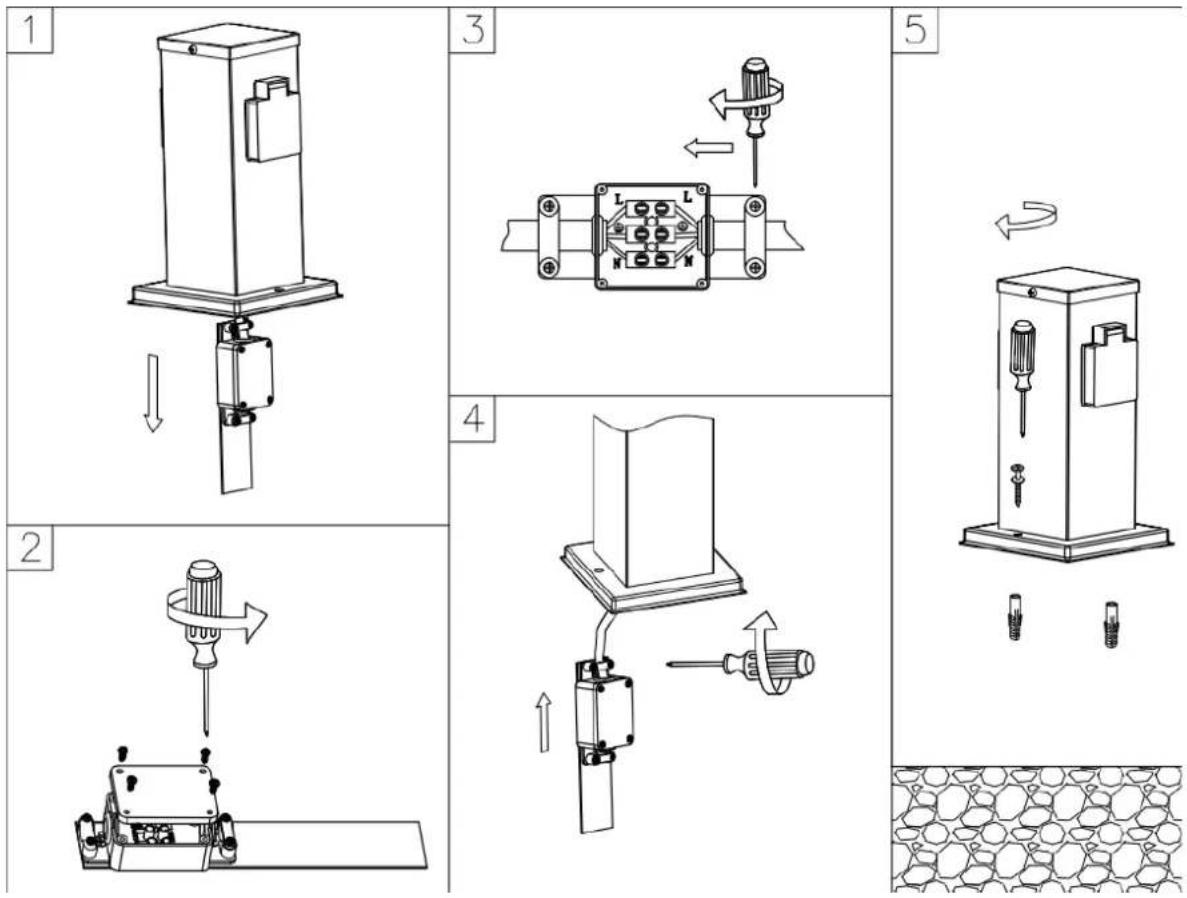

Technical diagram showing five-step assembly steps of a mechanical device with labeled components and directional arrows indicating motion.

35461

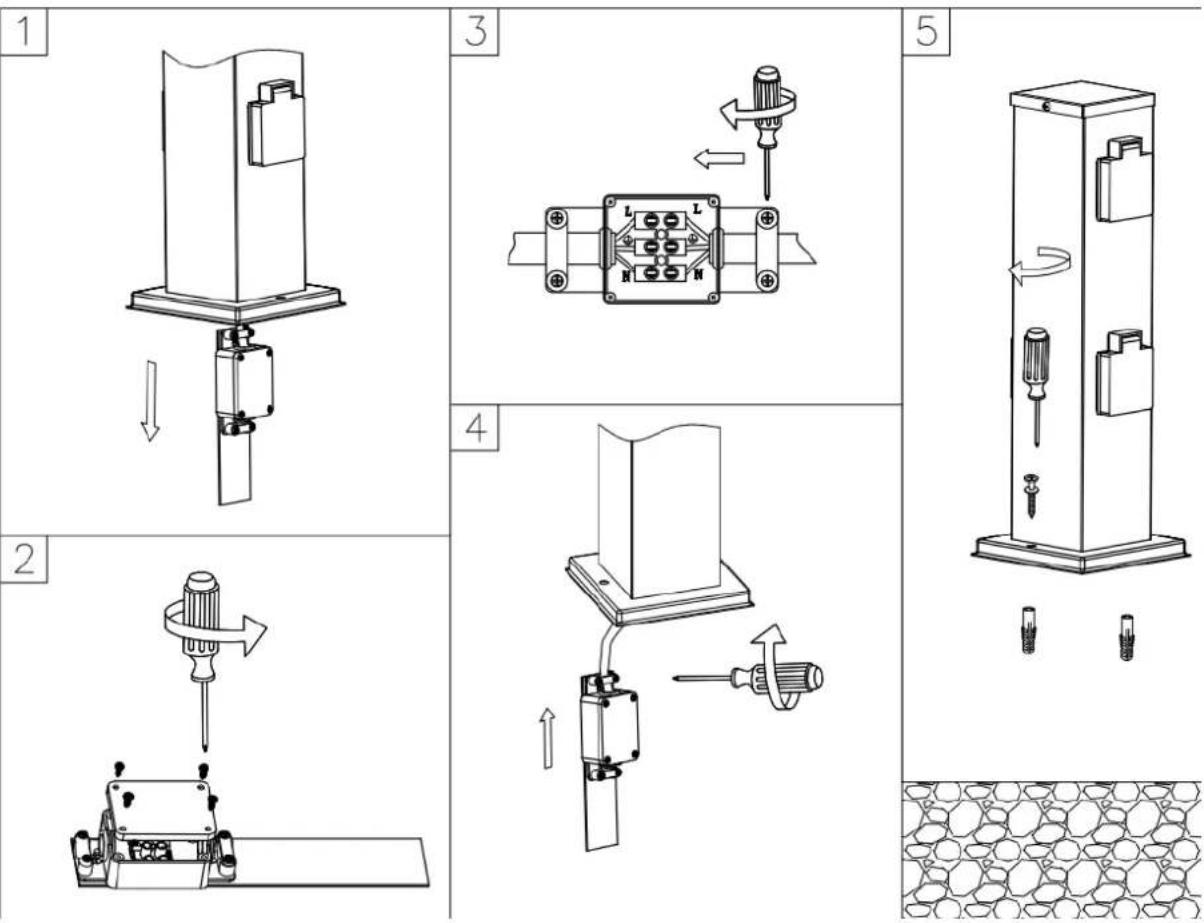

Technical diagram showing five-step assembly steps of a mechanical device with labeled components and directional arrows indicating motion.
