USER MANUAL CMCN623 Craftsman

Battery release button

Magazine release lever

a ) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electricshock. b ) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed orgrounded. c ) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electricshock. d ) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electricshock. e ) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electricshock. f ) If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electricshock.

a ) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personalinjury. b ) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non‑skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personalinjuries. c ) Prevent unintentional starting. Ensure the switch is in the off‑position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invitesaccidents. d ) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personalinjury. e ) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpectedsituations. f ) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in movingparts. g ) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust‑relatedhazards.

WARNING: Read all safety warnings, instructions,

illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or seriousinjury.

AND INSTRUCTIONS FOR

FUTUREREFERENCE. The term “power tool” in the warnings refers to your mains‑operated (corded) power tool or battery‑operated (cordless) powertool.

a ) Keep work area clean and well lit. Cluttered or dark areas inviteaccidents. b ) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust orfumes. c ) Keep children and bystanders away while operating a power tool. Distractions can cause you to losecontrol. Definitions: Safety Alert Symbols and Words This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or propertydamage.

DANGER: Indicates an imminently hazardous

situation which, if not avoided, will result in death or seriousinjury.

WARNING: Indicates a potentially hazardous situation

which, if not avoided, could result in death or seriousinjury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderateinjury.

(Used without word) Indicates a safety relatedmessage. NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in propertydamage. Intended Use Your pin nailer is designed for professional fasteningapplications. Your pin nailer is a professional powertool. DO nOT use under wet conditions or in presence of flammable liquids orgases. DO nOT let children come into contact with the tool. Supervision is required when inexperienced operators use thistool. English (original instructions)

WARNING: Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or seriousinjury.

WARNING: To reduce the risk of injury, read the

instructionmanual.5 English Additional Nailer Safety Warnings

WARNING: When using any nailer, all safety

precautions, as outlined below, should be followed to avoid the risk of death or serious injury. Read and understand all instructions before operating thetool. Nailer Safety Warnings

• Always assume that the tool contains fasteners. Careless handling of the nailer can result in unexpected firing of fasteners and personalinjury.

• Do not point the tool towards yourself or anyone nearby. Unexpected triggering will discharge a fastener causing aninjury.

• Do not actuate the tool unless the tool is placed firmly against the workpiece. If the tool is not in contact with the workpiece, the fastener may be deflected away from yourtarget.

• Disconnect the tool from the power source when the fastener jams in the tool. While removing a jammed fastener, the nailer may be accidentally activated if it is pluggedin.

• Use caution while removing a jammed fastener. The mechanism may be under compression and the fastener may be forcefully discharged while attempting to free a jammedcondition.

• Do not use this nailer for fastening electrical cables. It is not designed for electric cable installation and may damage the insulation of electric cables thereby causing electric shock or firehazards. d ) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation orburns. e ) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk ofinjury. f ) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 265°F (130°C) may causeexplosion. g ) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk offire.

a ) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool ismaintained. b ) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized serviceproviders. h ) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of asecond.

4) Power Tool Use and Care

a ) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it wasdesigned. b ) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must berepaired. c ) Disconnect the plug from the power source and/ or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power toolaccidentally. d ) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrainedusers. e ) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained powertools. f ) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier tocontrol. g ) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardoussituation. h ) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpectedsituations.

5) Battery Tool Use and Care

a ) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another batterypack. b ) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury andfire. c ) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or afire.ENGLISH

Additional Safety Information

WARNING: Never modify the power tool or any part of

it. Damage or personal injury couldresult.

WARNING: ALWAYS use safety glasses. Everyday

eyeglasses are NOT safety glasses. Also use face or dust mask if cutting operation is dusty. ALWAYS WEAR CERTIFIED SAFETYEQUIPMENT:

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicalsare:

• lead from lead‑based paints,

• crystalline silica from bricks and cement and other masonry products, and

• Refer to the Maintenance and Repairs sections for detailed information on the proper maintenance of thetool.

• Always operate the tool in a clean, lighted area. Be sure the work surface is clear of any debris and be careful not to lose footing when working in elevated environments such asrooftops.

• Do not drive fastener near edge of material. The workpiece may split causing the nail to ricochet, injuring you or a co‑worker. Be aware that the fastener may follow the grain of the wood (shiner), causing it to protrude unexpectedly from the side of the work material. Drive the chisel point of the fastener perpendicular to the grain to reduce risk ofinjury.

• Do not drive nails onto the heads of other fasteners or with the tool at too steep an angle. Personal injury from strong recoil jammed nails, or ricocheted nails mayresult.

• Keep hands and body parts clear of immediate work area. Hold workpiece with clamps when necessary to keep hands and body out of potential harm. Be sure the workpiece is properly secured before pressing the nailer against the material. Unsecured work may shift unexpectedly.

• Do not use tool in the presence of flammable dust, gases or fumes. The tool may produce a spark that could ignite gases causing a fire. Driving a nail into another nail may also cause aspark.

• Keep face and body parts away from back of the tool cap when working in restricted areas. Sudden recoil can result in impact to the body, especially when nailing into hard or densematerial.

• Grip tool firmly to maintain control while allowing tool to recoil away from work surface as fastener is driven. In Bump mode if contact trip is allowed to recontact work surface before trigger is released an unwanted fastener will befired.

• Choice of triggering method is important. Check the manual for triggeringoptions.

• Keep hands and body parts away from the discharge area of the tool. While in use NEVER grasp the tool by the magazine or canister, a mis‑driven nail can exit the nose causing injury.

• Hold tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring. Contact with a “live” wire will make exposed metal parts of the tool “live” and shock theoperator.

• Actuating tool may result in flying debris, collation material, or dust which could harm operator’s eyes. Operator and others in work area MUST wear safety glasses with side shields. These safety glasses must conform to ANSI Z87.1 requirements (approved glasses have “Z87” printed or stamped on them. It is the employer’s responsibility to enforce the use of eye protection equipment by the tool operator and other people in the workarea.

• Always wear appropriate personal hearing and other protection during use. Under some conditions and duration of use, noise from this product may contribute to hearingloss.

• Disconnect battery pack from the tool when not in use. Always remove battery pack and remove fasteners from magazine before leaving the area or passing the tool to another operator. Do not carry tool to another work area in which changing location involves the use of scaffoldings, stairs, ladders, and the like, with battery pack connected. Do not make adjustments, perform maintenance or clear jammed fasteners while battery is inplace.

• Do not remove, tamper with, or otherwise cause the tool or trigger to become inoperable. Do not tape or tie trigger in the on position. Make daily inspections for free movement of trigger. Uncontrolled discharge couldresult.

• Inspect tool before use. Do not operate a tool if any portion of the tool or trigger is inoperable, disconnected, altered, or not working properly. Damaged parts or missing parts should be repaired or replaced before use. Refer toRepairs.

• Do not alter or modify the tool in anyway.

• Always assume that the tool containsfasteners.

• Do not point the tool at co‑workers or yourself at any time. No horseplay! Work safe! Respect the tool as a workingimplement.

• Keep bystanders, children, and visitors away while operating a power tool. Distractions can cause you to lose control. When tool is not in use, it should be locked in a safe place, with the battery removed, and out of the reach ofchildren.

• Do not overreach. Maintain proper footing and balance at all times. Loss of balance may cause personalinjury.

• Use the tool only for its intended use. Do not discharge fasteners into open air, concrete, stone, extremely hard woods, knots or any material too hard for the fastener to penetrate. Do not use the body of the tool or top cap as a hammer. Discharged fastener may follow unexpected path and causeinjury.)7 English

READ ALL INSTRUCTIONS

Important Safety Instructions for All Battery Packs

WARNING: Read all safety warnings, instructions,

and cautionary markings for the battery pack, charger and product. Failure to follow the warnings and instructions may result in electric shock, fire and/or seriousinjury.

• Do not charge or use the battery pack in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery pack from the charger may ignite the dust orfumes.

• NEVER force the battery pack into the charger. DO NOT modify the battery pack in any way to fit into a non‑compatible charger as battery pack may rupture causing serious personal injury. Consult the chart at the end of this manual for compatibility of batteries andchargers.

• Charge the battery packs only in CRAFTSMANchargers.

• DO NOT splash or immerse in water or otherliquids.

• DO NOT allow water or any liquid to enter batterypack.

• Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 104°F (40°C) (such as outside sheds or metal buildings in summer). For best life store battery packs in a cool, drylocation. NOTE: Do not store the battery packs in a tool with the trigger switch locked on. Never tape the trigger switch in the ONposition.

• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium‑ion battery packs areburned.

• Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 265°F (130°C) may causeexplosion.

• Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk offire.

• If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithiumsalts.

BATTERIES AND CHARGERS

The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below and then follow charging proceduresoutlined. When ordering replacement battery packs, be sure to include the catalog number andvoltage. The label on your tool may include the following symbols. The symbols and their definitions are asfollows: V ......................... volts Hz .......................hertz min ..................... minutes or DC ......direct current ...................... Class I Construction (grounded) …/min ..............per minute BPM .................... beats per minute IPM ..................... impacts per minute OPM .................... oscillations per minute RPM .................... revolutions per minute sfpm ................... surface feet per minute SPM .................... strokes per minute A ......................... amperes W ........................watts Wh ......................watt hours Ah ....................... amp hours or AC ...........alternating current or AC/DC .... alternating or direct current ...................... Class II Construction (double insulated)

• arsenic and chromium from chemically‑treatedlumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopicparticles.

• Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote absorption of harmfulchemicals. Direct particles away from face andbody.

• Use the appropriate dust extractor vacuum to remove the vast majority of static and airborne dust. Failure to remove static and airborne dust could contaminate the working environment or pose an increased health risk to the operator and those in closeproximity.

• Use clamps or other practical ways to secure and support the workpiece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss of control andinjury.

• Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in movingparts.

CAUTION: When not in use, place tool on its side on a stable surface where it will not cause a tripping or falling hazard. Some tools with large battery packs will stand upright on the battery pack but may be easily knockedover.ENGLISH

Important Safety Instructions for All Battery Chargers

WARNING: Read all safety warnings, instructions,

and cautionary markings for the battery pack, charger and product. Failure to follow the warnings and instructions may result in electric shock, fire and/or seriousinjury.

• DO NOT attempt to charge the battery pack with any chargers other than a CRAFTSMAN charger. CRAFTSMAN chargers and battery packs are specifically designed to worktogether.

• These chargers are not intended for any uses other than charging CRAFTSMAN rechargeable battery packs. Charging other types of battery packs may cause them to overheat and burst, resulting in personal injury, property damage, fire, electric shock orelectrocution.

• Do not expose the charger to rain orsnow.

• Do not allow water or any liquid to entercharger.

• Pull by the plug rather than the cord when disconnecting the charger. This will reduce the risk of damage to the electric plug andcord.

• Make sure that the cord is located so that it will not be stepped on, tripped over or otherwise subjected to damage orstress.

• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock orelectrocution.

• When operating a charger outdoors, always provide a dry location and use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electricshock.

• An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the heavier the cord and thus the greater its capacity. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. The following table shows the correct size to use depending on total length of all extension cords plugged together, and nameplate ampere rating. If in doubt, use the next heaviergauge. Minimum Gauge for Cord Sets Volts Total Length of Cord in Feet (meters) 120V 25 (7.6) 50 (15.2) 100 (30.5) 150 (45.7) Ampere Rating American Wire Gauge More Than Not More Than

• Do not place any object on top of the charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of thehousing. The RBRC® Seal Please take your spent battery packs to an authorized CRAFTSMAN service center or to your local retailer for recycling. In some areas, it is illegal to place spent battery packs in the trash. You may also contact your local recycling center for information on where to drop off the spent battery pack. Do not place in curbside recycling. For more information visit www.call2recycle.org. or call the toll free number in the RBRC®Seal. RBRC® is a registered trademark of Call 2Recycle,Inc.

• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medicalattention.

• Battery liquid may be flammable if exposed to spark orflame.

• Never attempt to open the battery pack for any reason. If the battery pack case is cracked or damaged, do not insert into the charger. Do not crush, drop or damage the battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (e.g., pierced with a nail, hit with a hammer, stepped on). Damaged battery packs should be returned to the service center forrecycling. Storage Recommendations The best storage place is one that is cool and dry, away from direct sunlight and excess heat or cold. Store the fully charged battery pack out of thecharger. Battery Pack Cleaning Instructions Dirt and grease may be removed from the exterior of the battery pack using a cloth or soft non-metallic brush. Do not use water or any cleaningsolutions. Fuel Gauge Battery Packs (Fig.B) Some battery packs include a fuel gauge. When the fuel gauge button is pressed and held, the LED lights will indicate the approximate level of charge remaining. This does not indicate tool functionality and is subject to variation based on product components, temperature, and end-userapplication. Transportation

WARNING: Fire hazard. Do not store, carry, or

transport the battery pack so that metal objects can contact exposed battery terminals. For example, do not place the battery pack in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys, coins, hand tools, etc. When transporting individual battery packs, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a short circuit. NOTE: Li‑ion battery packs should not be put in checked baggage on airplanes and must be properly protected from short circuits if they are in carry‑onbaggage.9 ENGLISH Wall Mounting Some CRAFTSMAN chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting, locate the charger within reach of an electrical outlet, and away from a corner or other obstructions which may impede air flow. Use the back of the charger as a template for the location of the mounting screws on the wall. Mount the charger securely using drywall screws (purchased separately) at least 1” (25.4mm) long, with a screw head diameter of 0.28–0.35” (7–9mm), screwed into wood to an optimal depth leaving approximately 7/32” (5.5 mm) of the screw exposed. Align the slots on the back of the charger with the exposed screws and fully engage them in theslots. NOTE: Do not attempt to mount CMCB101 charger under a bench ortable. NOTE: Only mount CMCB101 charger with the charging lights pointed upward toward theceiling. VersaTrack™

WARNING: Do not charge batteries while charger is

hung onTrackwall. CRAFTSMAN chargers, except the CMCB101, can be stored on CRAFTSMAN VersaTrack™ Trackwall. Hooks and accessories are sold separately. Please refer to the VersaTrack™ Trackwall accessory sheet for furtherinformation. Important Charging Notes

1. Longest life and best performance can be obtained if

the battery pack is charged when the air temperature is between 65°F – 75°F (18° C– 24°C). DO NOT charge when the battery pack is below +40°F (+4.5°C), or above +104°F (+40°C). This is important and will prevent serious damage to the batterypack.

2. The charger and battery pack may become warm to the

touch while charging. This is a normal condition, and does not indicate a problem. To facilitate the cooling of the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed or an uninsulatedtrailer.

3. If the battery pack does not charge properly:

a. Check operation of receptacle by plugging in a lamp or other appliance; b. Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights; c. If charging problems persist, take the tool, battery pack and charger to your local servicecenter.

4. You may charge a partially used pack whenever you

desire with no adverse effect on the batterypack. Charger Cleaning Instructions

from the AC outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non‑metallic brush. Do not use water or any cleaningsolutions.

• Do not operate the charger with a damaged cord orplug. Have them replacedimmediately.

• Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any way. Take it to an authorized servicecenter.

• Do not disassemble the charger; take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution orfire.

• The charger is designed to operate on standard 120V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicularcharger.

• Foreign materials of a conductive nature, such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil or any buildup of metallic particles should be kept away from the charger cavities and ventilation slots.

• Always unplug the charger from the power supply when there is no battery pack in thecavity. Charging a Battery (Fig.C, D)

1. Plug the charger into an appropriate outlet.

2. Insert and fully seat battery pack. Green charging light(s)

will continuously blink whilecharging.

3. Charging is complete when the green charging light(s)

remain(s) continuously ON. Battery pack can be left in charger or removed.

WARNING: Only charge batteries in air temperature

over 40° F (4.5° C) and below 104° F (+40°C).

4. Charger will not charge a faulty battery pack, which may

be indicated by the charging light(s) staying OFF. Take charger and battery pack to an authorized service center if light(s) stay(s)OFF. NOTE: Refer to label near charging light(s) on charger for blinkpatterns. NOTE: To remove the battery pack, some chargers require the battery pack release button to bepressed. Hot/Cold Pack Delay When the charger detects a battery pack that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery pack has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery packlife. A cold battery pack may charge at a slower rate than a warm batterypack. The hot/cold pack delay will be indicated by the green light(s) continuing to blink but with the red light continuously ON. Once the battery pack has reached an appropriate temperature, the red light will turn OFF and the charger will resume the chargingprocedure. Electronic Protection System Li-Ion tools are designed with an Electronic Protection System that will protect the battery pack against overloading, overheating or deep discharge. The tool will automatically turn off and the battery pack will need to berecharged.ENGLISH

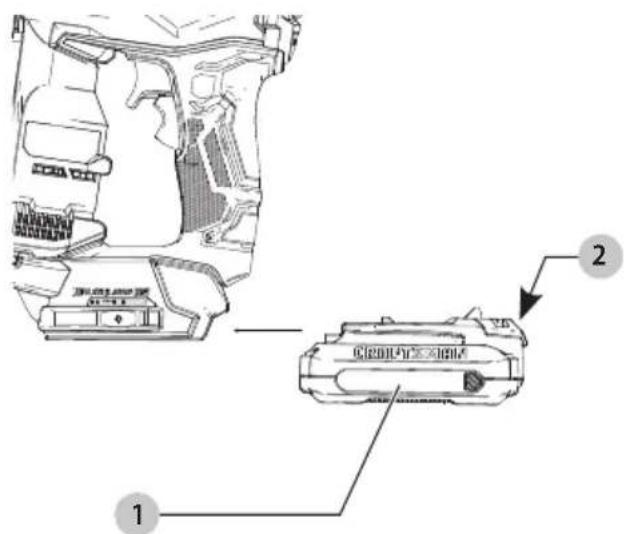

Installing and Removing the Battery Pack (Fig.F)

WARNING: Ensure the tool/appliance is in the off

position before inserting the batterypack. NOTE: For best results, make sure your battery pack is fullycharged. To install the battery pack

into the tool handle, align the battery pack with the rails inside the tool’s handle and slide it into the handle until the battery pack is firmly seated in the tool and ensure that it does notdisengage. To remove the battery pack from the tool, press the release button

and firmly pull the battery pack out of the tool handle. Insert it into the charger as described in the charger section of thismanual. Proper hand position requires one hand on the handle

shown. Proper Hand Position (Fig.E)

WARNING: To reduce the risk of serious personal injury,

WARNING: To reduce the risk of serious personal

injury, ALWAYS hold securely in anticipation of a suddenreaction. OPERATION

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start‑up can causeinjury. PIN SPECIFICATIONS Model CMCN623 Pins DeWALT DWPN23xxx PORTER-CABLE PPN23xxx, PN23PP BOSTITCH PT-23xx-3M, BTPN23PP Gauge 23 Headless pin range 5/8"–1 3/8" (16 mm–35 mm) Magazine capacity 110 nails TOOL SPECIFICATIONS Model CMCN623 Length 9.21" (234 mm) Height 8.30" (211 mm) Width 3.15" (80 mm) Weight 4.1 lbs (1.85 kg) Adjusting Depth (Fig.I)

WARNING: To reduce risk of serious injury from

accidental actuation when attempting to adjust depth, ALWAYS:

• Always point the nose of the nailer away fromyou.

• Avoid contact with trigger duringadjustments. The depth that the fastener is driven can be adjusted using the depth adjustment screw

which is stored on the tool housing. The depth of drive is factory adjusted to a nominal setting. Test fire a fastener and check depth. If a change is desired:

1. To drive the nail deeper, rotate the depth adjustment

screw counterclockwise.

2. To drive a nail shallower, rotate the depth adjustment

screw clockwise. Test drive another fastener and check depth. Repeat as necessary to achieve desiredresults. Dry Fire Lock Out The tool will detect when there are about 10 pins left, and shut off. When additional pins are loaded, the tool will return to normal function. Loading the Tool (Fig.G) NOTICE: Use only pins recommended for use in your pin nailer which meet the CRAFTSMAN specifications. Refer to PinSpecifications.

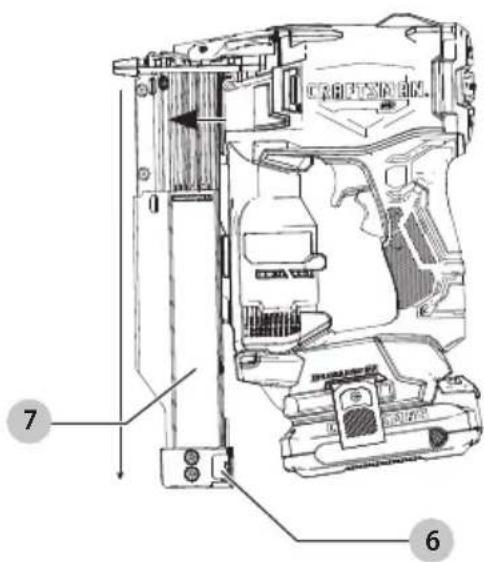

1. Depress the magazine release lever

2. Pull sliding portion of magazine

3. Load the stick of pins with the arrow pattern pointing

to the left as shown. If pins have black dots instead of arrows, the dots should be positionedup.

4. Close magazine until it latches. The tool is now ready

foruse. Preparing the Tool NOTE: The battery pack is not fully charged out of the carton. Follow instructions outlined (refer to ChargingaBattery).

1. Read the Nailer Safety Warnings section of thismanual.

2. Wear eye and earprotection.

3. Remove battery fromtool.

4. Ensure magazine is empty of allfasteners.

5. Check for smooth and proper operation of pusher

assemblies. Do not use the tool if pusher assembly is not functioning properly.

6. Keep tool pointed away from yourself andothers.

7. Insert fully charged batterypack.

NOTE: The CMCB101 charger is not CRAFTSMAN VersaTrack™ Trackwallcompatible.

SAVE THESE INSTRUCTIONS FOR

FUTURE USE Trigger Operation with a Secondary Trigger (Fig.A)

WARNING: Never inadvertently pull or grasp the

secondary trigger when moving about, changing work location, when holstering or hanging tool, or when preparing work surface for fasteningoperation.11 English Cleaning

WARNING: Blow dirt and dust out of all air vents with

clean, dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performing thisprocedure.

WARNING: Never use solvents or other harsh

chemicals for cleaning the non‑metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into aliquid. Cold Weather Operation When operating tools at temperatures below freezing:

1. Keep tool as warm as possible prior touse.

2. Actuate the tool 5or 6times into scrap timber

beforeusing. Hot Weather Operation Tool should operate normally. However, keep tool out of direct sunlight as excessive heat can deteriorate bumpers and other rubber parts resulting in increasedmaintenance. Tool Operation Check (Fig.A)

WARNING: Remove all fasteners from tool before

performing tool operationcheck. Trigger Operation with a SecondaryTrigger The primary trigger

can actuate the tool only if the secondary trigger

has already beenpulled. The secondary trigger is located under the primarytrigger.

1. Place the nose of the tool against a workpiece for all of

the following operationchecks.

2. With hand on rear end of the handle, further back away

from the secondary trigger, and not squeezing the secondary trigger, use finger to pull the primarytrigger. ThE TOOl MUsT nOTCYClE.

3. With hand on handle, and squeezing the secondary

WARNING: While the secondary trigger remains

squeezed, the tool will cycle each time the primary trigger ispulled.

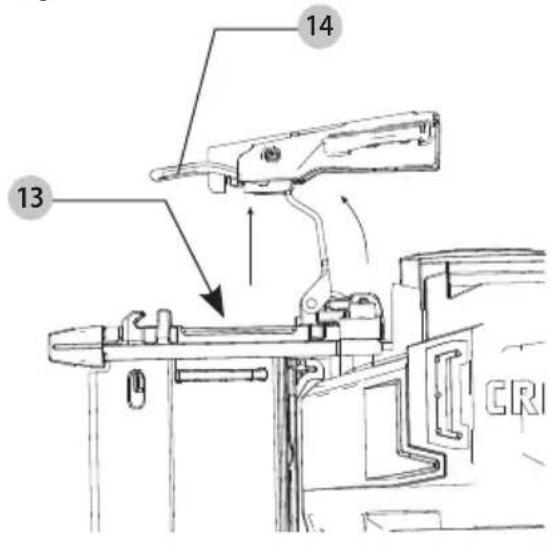

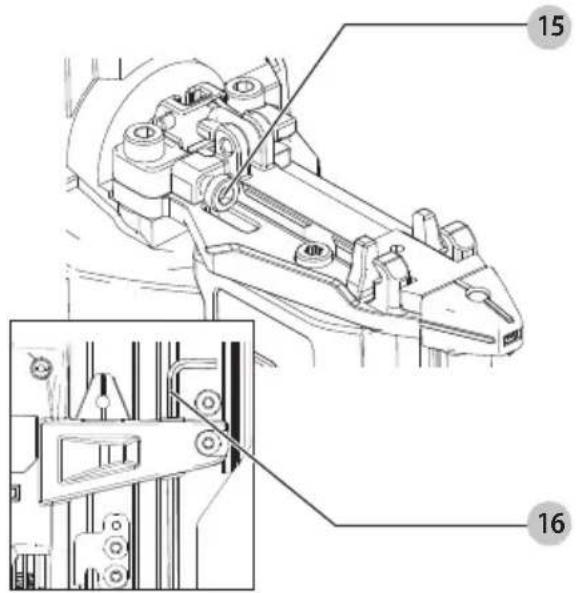

down to lock the mechanism back to operating position after the jam is cleared as shown in FigureH.

7. Attach the no-martip.

8. Close the magazine and reconnect the batterypack.

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start‑up can causeinjury. Your CRAFTSMAN power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regularcleaning. Belt Hook (Fig.A)

WARNING: Remove pins from magazine before

making any adjustments or servicing this tool. Failure to do so may result in seriousinjury.

WARNING: Disconnect the power source from the tool

before making any adjustments, changing accessories, servicing, or moving the tool. Such preventative safety measures reduce the risk of actuating the toolaccidentally. Your CRAFTSMAN pin nailer includes an integrated belt hook

and can be attached to either side of the tool to accommodate left- or right-handedusers. If the belt hook is not desired at all, it can be removed from thetool. Removing and Reattaching the BeltHook

1. Remove the battery pack from thetool.

2. To switch the tool from right- to left-hand usage simply

from the opposite side of the tool and reattach the belt hook

WARNING: The operator must not hold the secondary

trigger pulled except during fastening operation as serious injury could result if the trigger accidentally contacts someone or something, causing the tool tocycle. The tool will actuate each time the primary trigger

pulled until the secondary trigger

under the hand grip is released. This trigger operated tool is operated by first pulling or grasping the secondary trigger under the hand grip, followed by pulling the primary trigger asshown. Tool-Free Jam Release (Fig.A, H)

WARNING: Always turn unit off and remove the

battery pack before clearing a jammedpin. Your pin nailer features a tool-free jam release for clearing jammedpins. To Clear a Jammed Pin

1. Remove the battery pack from thetool.

2. Depress the magazine release lever

and pull the magazine

back to stop pinfeeding.

4. Grab the small tabs on each side of the nose cover

and pull up as shown in FigureH.

5. With the nose cover lifted, slide the inner nose cover

forward and lift up to clear the jammedpin.ENGLISH

Register Online Thank you for your purchase. Register your product nowfor:

• WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with yourproduct.

• CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof ofpurchase.

• FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer SafetyAct.

• Register online at www.craftsman.com/registration Repairs The charger and batteries are notserviceable. There are no serviceable parts inside the charger or batterypack.

WARNING: To assure product SAFETY and RELIABILITY,

repairs, maintenance and adjustment (including brush inspection and replacement, when applicable) should be performed by a CRAFTSMAN factory service center or a CRAFTSMAN authorized service center. Always use identical replacementparts. Accessories

WARNING: Since accessories, other than those

offered by CRAFTSMAN, have not been tested with this product, use of such accessories with this product could be hazardous. To reduce the risk of injury, only CRAFTSMAN recommended accessories should be used with thisproduct. Recommended accessories for use with your product are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN call 1-888-331-4569. Cleaning the Driver Path (Fig. A, H) Glue from the pin strip may need to be cleaned from the driver path if the tool will not drive pins properly.

1. Remove the battery pack

2. Remove the pin strip from the tool.

3. Open the tool free jam release (refer to To Clear a

4. Apply a small amount of tool oil on a clean cloth and

wipe down the pin channel until any glue is removed.

5. Reinstall the drive cover and bolts.

6. Insert a pin strip and reinstall the battery.

Three Year Limited Warranty CRAFTSMAN will repair or replace, without charge, any defects due to faulty materials or workmanship for three years from the date of purchase. This warranty does not cover part failure due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit www.craftsman.com or call 1-888-331-4569. This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHERS, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE, AND EXCLUDES ALL INCIDENTAL

OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary in certain states orprovinces.

90DAY MONEY BACK GUARANTEE

If you are not completely satisfied with the performance of your CRAFTSMAN Power Tool or Nailer for any reason, you can return it within 90days from the date of purchase with a receipt for a full refund – no questionsasked. LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warrantyinformation. FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-888-331-4569 for a freereplacement.13 English TROUBLESHOOTING GUIDE Many common problems can be solved easily by utilizing the chart below. For more serious or persistent problems, contact a CRAFTSMAN service center or call 1‑888‑331‑4569.

WARNING: To reduce the risk of serious personal injury, ALWAYS disconnect battery pack from tool before

allrepairs. sYMPTOM CAUsE FiX Headlights don’t come on when secondary trigger is depressed Dryfire lockout is engaged. Load pins into magazine. Low battery charge or damaged battery. Check charge level if pack shows state-of- charge. Charge or replace battery pack if necessary. Battery pack not fully inserted. Check that battery is fully inserted. Damaged or dirty internal electronics See authorized service center. Dryfire lockout is engaged when secondary trigger is depressed Dryfire lockout is engaged due to low nail count. Load pins into magazine. Pin jammed in magazine and/or nose. Clean magazine and/or nose area and watch closely for small pieces of broken pins stuck in the nail channel. Damaged or dirty internal electronics. See authorized service center. Tool does not actuate when secondary and primary triggers are depressed Dryfire lockout is engaged. Load pins into magazine. Tool has timed out if triggers are held on for 10-20 seconds and tool will power down. Release primary and secondary triggers for automatic electronic reset. Damaged or dirty internal electronics See authorized service center. Headlights flash after the secondary and primary triggers have been depressed Low charge battery pack. Check charge level if pack shows state-of- charge. Charge battery pack if necessary. Tool internal electronics need to be reset. Remove battery, wait 3 seconds and reinsert. Damaged or dirty internal electronics. See authorized service center. Tool operates but does not drive fasteners fully Depth adjust set too shallow. Rotate depth adjust to a deeper setting. Tool not firmly applied to workpiece. Apply adequate force to tool securing it tightly to workpiece. Material and fastener length. Make sure that the pin type and size are appropriate for the application and material selection. Pins inserted backwards. Check that the pins are loaded into the magazine in the correct orientation. Damaged driver blade. Order and install replacement driver blade assembly. Worn or damaged mechanism. See authorized service center.English

sYMPTOM CAUsE FiX Tool operates but no fastener is driven Wrong size and/or type fastener. Refer to Pin Specifications. Driver blade stuck down. Refer to "Driver blade continues to get stuck in down position" symptom, found below. Nail alignment issue. Sticks of pins should be loaded with the tips at the front of the magazine. All pins in magazine should be of equal length. Debris or jammed pin in nose and/or magazine. Clean magazine and/or nose area and watch closely for small pieces of broken pins stuck in the nail channel. Nail feeding issue. Check that pins are loaded properly. Tool may be too cold if used below operable temperatures. With nose pressed against scrap workpiece, cycle the tool until it begins firing pins. Worn or damaged mechanism. See authorized service center. Driver blade continues to get stuck in down position Dirty drive path Clean nose driver path and underside of door. Jammed pin Clean magazine and/or nose area and watch closely for small pieces of broken pins stuck in the nail channel. Damaged driver blade Worn or damaged seals Lack of internal lubrication See authorized service center. Jammed pin Wrong size and/or type fastener Refer to Pin Specifications. Material and fastener length Make sure that the pin type and size are appropriate for the application and material selection. Debris in nose or magazine Clean magazine and/or nose area and watch closely for small pieces of broken pins stuck in the nail channel. Nail feeding issue Check that pins are loaded properly. Damaged driver blade Order and install replacement driver blade assembly. Damaged magazine See authorized service center.FRAnçAis

• Maximum initial battery voltage (measured without a workload) is 20, 60or 120volts. Nominal voltage is 18, 54or 108. (120V Max* is based on using two 60V Max* lithium‑ion batteries combined.)

WARNING: Use of any other battery packs may create a risk of injury andfire.
