USER MANUAL CMPBN18SB Craftsman

Magazine release lever

WARNING: Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or seriousinjury.

WARNING: Never modify the product or any part of it.

Damage or personal injury couldresult.

WARNING: To reduce the risk of injury, read the

instructionmanual. If you have any questions or comments about this or any product, call CRAFTSMAN toll free at: 1-888-331-4569. Definitions: Safety Alert Symbols and Words This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or seriousinjury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or seriousinjury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderateinjury.

(Used without word) Indicates a safety related message. NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in propertydamage. Fig. A

WARNING: Only persons who have read and

understand the tool operating/safety instructions should operate the tool.

WARNING: Actuating tool may result in flying

debris, collation material, or dust which could harm operator’s eyes. Operator and others in work area MUST wear safety glasses with side shields. These safety glasses must conform to ANSI Z87.1 requirements (approved glasses have “Z87” printed or stamped on them). Employer is responsible for enforcing the usage of eye protection equipment by the tool operator and all other personnel in the workarea.

WARNING: Always assume that the tool

WARNING: (Air and Supply)

• Do not use oxygen, combustible gases, or bottled gases as a power source for this tool as tool may explode, possibly causing injury.

• Do not use supply sources which can potentially exceed 200p.s.i.g. (14kg/cm

) as tool may burst, possibly causing injury.

• The connector on the tool must not hold pressure when air supply is disconnected. If a wrong fitting is used, the tool can remain charged with air after disconnecting and thus will be able to drive a fastener even after the air line is disconnected possibly causing injury.

• Do not pull the trigger while connected to the air supply as the tool may cycle, possibly causinginjury.

• Always disconnect air supply: 1.) Before making adjustments; 2.) When servicing the tool; 3.) When clearing a jam; 4.) When tool is not in use; 5.) When moving to a different work area, as accidental actuation may occur, possibly causing injury.

WARNING: When loading tool:

• Never place a hand or any part of body in fastener discharge area of tool.

• Never point tool at yourself or anyone else.

• Do not pull the trigger as accidental actuation may occur, possibly causinginjury.

• Be careful when handling fasteners, especially when loading and unloading, as the fasteners have sharp points.

WARNING: Do not operate tool if:

• There is any damage to air hose or fitting.

• The tool has received a sharp blow, malfunctions or is dropped or damaged in any manner. Return Pneumatic Finish Tools

CMPBN18SB, CMPFN16SB

tool to the nearest authorized service facility for examination, repair, or mechanicaladjustment.

• Warning labels are missing or damaged.

• Tool is not in proper working order. Tags and physical segregation shall be used for control.

• Tool is without workpiece contact. A tool without workpiece contact can be fired unintentionally causing injury to an operator or a bystander.

WARNING: When operating the tool:

• Always handle the tool with care: - Never engage in horseplay. - Never pull the trigger unless nose is directed toward the work. - Never point the tool at yourself or others. - Keep others a safe distance from the tool while tool is in operation as accidental actuation may occur, possibly causing injury. - Keep bystanders and children away while operating tool. - Respect tool as a working implement. - Stay alert, focus on your work and use common sense when working with tools. - Do not use tool while tired, after having consumed drugs or alcohol, or while under the influence of medication. - Do not overreach. Only use in a safe workingplace. - Keep proper footing at all times.

• When working close to an edge of a workpiece or at steep angles use care to minimize chipping, splitting or splintering, or free flight or ricochet of fasteners, which may cause injury.

• Do not drive fasteners on top of other fasteners or with the tool at an overly steep angle as this may cause deflection of fasteners which could causeinjury.

• Do not load tool with fasteners when any one of the operating controls is activated.

• Use extra caution when driving fasteners into existing walls or other blind areas to prevent contact with hidden objects or persons on other side (e.g., wires, pipes.)

• The operator must not pull the trigger except during fastening operation as serious injury could result if the tool accidentally contacts someone or something, causing the tool to cycle.

• Keep hands and body away from the discharge area of the tool. The tool may bounce from the recoil of driving a fastener and an unwanted second fastener may be driven possibly causinginjury.3 English

• Check operation of the trigger mechanism frequently. Do not use the tool if the trigger is not working correctly as accidental driving of a fastener may result. Do not interfere with the proper operation of the trigger mechanism.

• Never inadvertently pull or grasp the trigger when moving about, changing work location, when holstering or hanging tool, or when preparing work surface for fasteningoperation.

• This tool produces SPARKS during operation. NEVER use the tool near flammable substances, gases or vapors including lacquer, paint, benzine, thinner, gasoline, adhesives, mastics, glues or any other material that is ‑‑ or the vapors, fumes or byproducts of which are ‑‑ flammable, combustible or explosive. Using the fastenerer in any such environment could cause an EXPLOSION resulting in personal injury or death to user andbystanders.

WARNING: After driving a fastener, tool may

bounce back (“recoil”) causing it to move away from the work surface. To reduce risk of injury always manage recoil by:

• Always maintaining control of tool.

• Allowing recoil to move tool away from worksurface.

• Not resisting recoil such that tool will be forced back into the work surface. In “Contact Actuation Mode,” if workpiece contact is allowed to re‑contact work surface before the trigger is released, an unintended discharge of a fastener will occur.

• Keeping face and body parts away from tool.

WARNING: Disconnect tool:

• When performing any maintenance or repairs,

• When clearing a jam,

• When elevating, lowering or otherwise moving tool to a new location,

• When tool is outside of the operator's supervision or control,

• When removing fasteners from the magazine.

WARNING: When maintaining the tool:

• Always shut off air supply, and disconnect tool from air supply when not in use.

• When working on air tools note the warnings in this manual and use extra care when evaluating problemtools. Additional Safety Warnings

WARNING: Do not use this product to fasten electrical

cables. Fastening electric wires / cables could result in electric shock or serious harm.

WARNING: Make sure there are no electrical cables,

gas pipes, etc. that could cause a hazard if damaged by use of the tool.

WARNING: This tool is not intended for use in

potentially explosive atmospheres and is not insulated from coming into contact with electrical power.

• Use the pneumatic tool only for the purpose for which it was designed.

• Do not use the tool as a hammer.

• Always carry the tool by the handle with hand off both triggers.

• Never lift, pull, lower, or carry the tool by the air hose.

• Whipping hoses can cause severe injury. Always check for damaged or loose hoses or fittings.

• Never direct compressed air at yourself or anyone else.

• Compressed air can cause severe injury.

• Do not alter or modify this tool from the original design or function without approval from CRAFTSMAN.

• Never clamp or tape the trigger in an actuated position.

• Ensure tool is always safely engaged on the workpiece and cannot slip.

• Never leave a tool unattended with the air hose attached. TO PREVENT ACCIDENTAL INJURIES:

• Never place a hand or any other part of the body in fastener discharge area of tool while the air supply isconnected.

• Never actuate the tool unless nose is directed at the work.

• Do not actuate the tool while loading.

• Keep hands and body parts away from the discharge area of the tool. While in use NEVER grasp the tool by the magazine or canister, a mis‑driven fastener can exit the nose causing injury. Additional Safety Information

WARNING: ALWAYS use safety glasses. Everyday

eyeglasses are NOT safety glasses. Also use face or dust mask if cutting operation is dusty. ALWAYS WEAR CERTIFIED SAFETYEQUIPMENT:

WARNING: Some dust created by power sanding,

sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicalsare:

• lead from lead‑based paints,

• crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemically‑ treatedlumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopicparticles.ENGLISH

SAVE THESE INSTRUCTIONS FOR

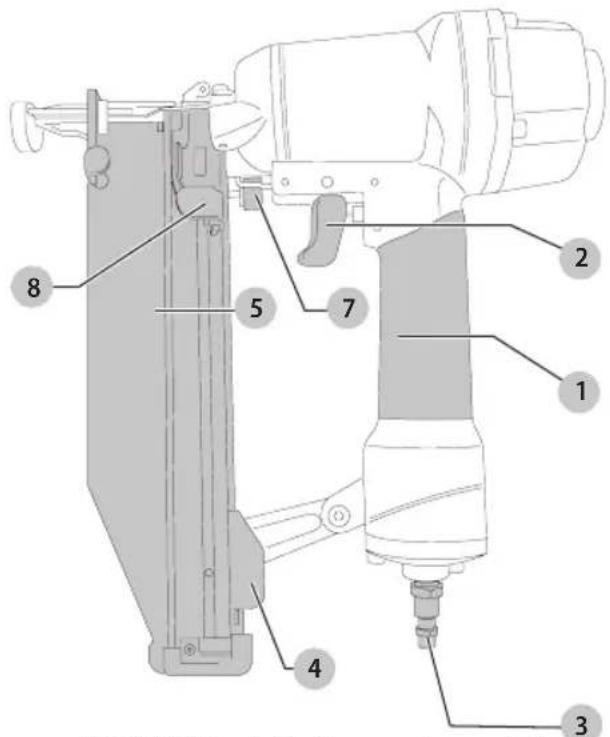

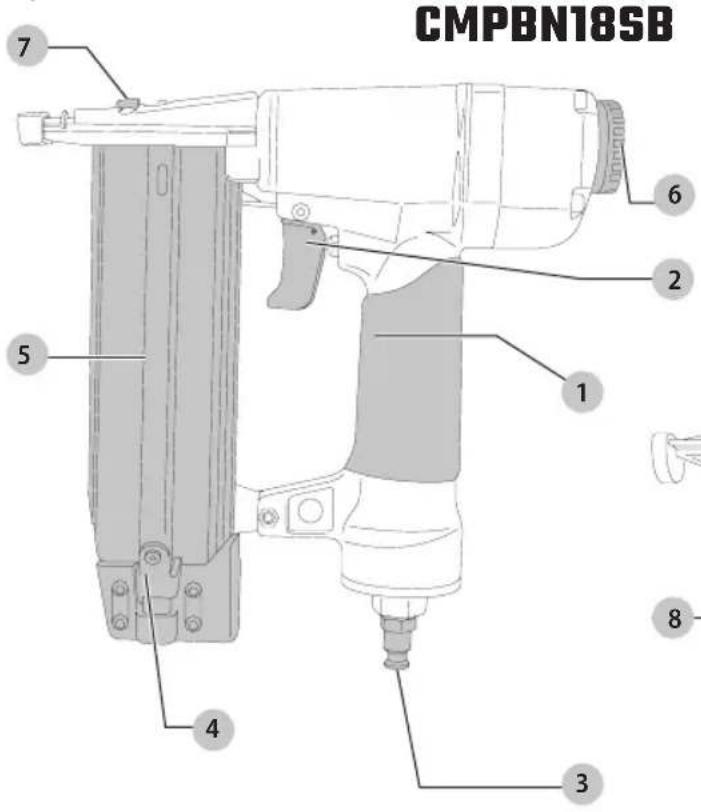

FUTURE USE COMPONENTS (FIG. A) Intended Use Your nailer is designed for professional fasteningapplications.

• Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other construction activities. Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote absorption of harmfulchemicals.

WARNING: Use of this tool can generate and/

or disperse dust, which may cause serious and permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection appropriate for the dust exposure. Direct particles away from face andbody.

WARNING: Always wear proper personal hearing

protection that conforms to ANSI S12.6 (S3.19) during use. Under some conditions and duration of use, noise from this product may contribute to hearingloss.

CAUTION: When not in use, place tool on its side on a stable surface where it will not cause a tripping or falling hazard. Some tools will stand upright but may be easily knocked over.

• Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in movingparts. DO NOT use under wet conditions or in presence of flammable liquids orgases. Your nailer is a professional power tool. DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use thistool. TOOL SPECIFICATIONS Model CMPBN18SB CMPFN16SB Length 9.25" (234.95 mm) 11.25" (285.75 mm) Height 9.5" (241.3 mm) 11.5" (292.1 mm) Width 2" (50.8 mm) 3" (76.2 mm) Weight 2.69 lbs (1.22 kg) 4.03 lbs (1.82 kg) FASTENER SPECIFICATIONS Model CMPBN18SB CMPFN16SB Fixations Brad nail Brad nail Gauge 18 16 Fastener Range 5/8"– 2" (15.87 mm - 50.8 mm) 1"– 2.5" (25.4 mm - 63.5 mm) Tool Air Fitting This tool uses a free flow connecting plug 1/4" N.P.T. The inside diameter should be .200" (5mm) or larger. The fitting must be capable of discharging tool air pressure when disconnected from the air supply. Operating Pressure 60 to 100p.s.i.g. (4.92 to 6.9kg/cm²). Select the operating pressure within this range for best fastener performance. DONOT EXCEED THIS RECOMMENDED OPERATINGPRESSURE. Adjustments and Usage Prep Air Supply and Connections

gases, or bottled gases as a power source for this tool as tool may explode, possibly causing injury. Fittings Install a male fitting on the tool which is free flowing and which will release air pressure from the tool when disconnected from the supply source. Hoses (Fig. A) Air hoses should have a minimum of 150 p.s.i.g. (10.6kg/cm²) working pressure rating or 150% of the maximum pressure that could be produced in the air system. The supply hose should contain a fitting that will provide “quick disconnecting” from the 1/4" male fitting

.......................no load speed n .........................rated speed ......................earthing terminal .....................safety alert symbol .....................visible radiation ..................... avoid staring at light ..................... wear respiratory protection ..................... wear eye protection ..................... wear hearing protection ..................... read all documentation IPXX .................... IP symbol5 ENGLISH Lubrications Frequent, but not excessive, lubrication is required for best performance. Oil added through the air line connection will lubricate the internal parts. Do not use detergent oil or additives as these lubricants will cause accelerated wear to the seals and bumpers in the tool, resulting in poor tool performance and frequent tool maintenance.If no airline lubricator is used, add oil during use into the air fitting on the tool once or twice a day. Only a few drops of oil at a time is necessary. Too much oil will only collect inside the tool and will be noticeable in the exhaustcycle. OPERATION

WARNING: To reduce the risk of serious personal injury, turn unit off and remove air supply before making any adjustments or removing/installing attachments or accessories. An accidental actuation can causeinjury. Proper Hand Position (Fig. B)

WARNING: To reduce the risk of serious personal injury, ALWAYS use proper hand position as shown.

WARNING: To reduce the risk of serious personal injury, ALWAYS hold securely in anticipation of a sudden reaction.Proper hand position requires one hand on the handle

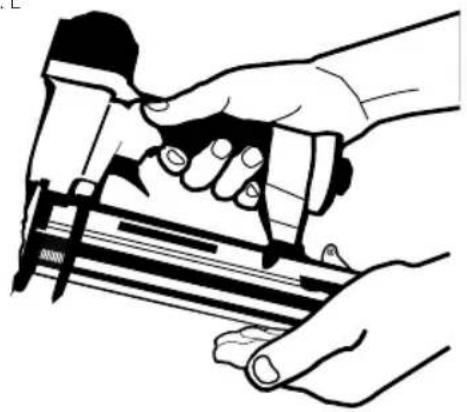

Loading Fasteners CMPBN18SB (Fig. C–F)

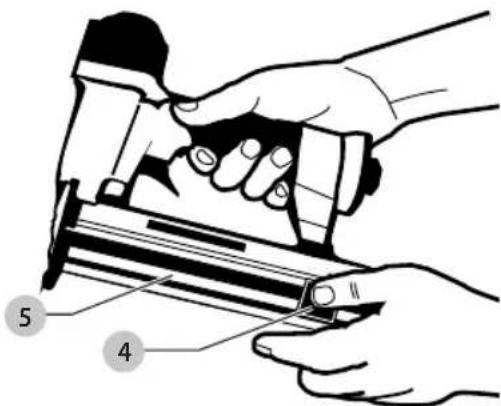

1. Disconnect the tool from the air supply.2. Disengage the magazine release lever

and pull back the magazine

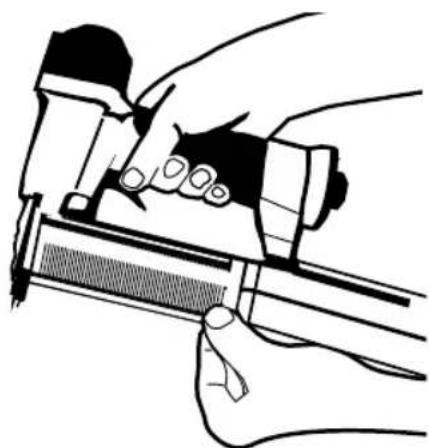

3. With magazine fully open insert fasteners. Points must be against bottom of magazine.Fig. D4. Push magazine forward.BOTTLED GASES, AS A POWER SOURCE FOR THIS TOOL AS TOOL MAY EXPLODE.RegulatorA pressure regulator with an operating pressure of 0–125p.s.i.g. (0–8.79 kg/cm²) is required to control the operat iing pressure for safe operation of this tool. Do not connect this tool to air pressure which can potentially exceed 200 p.s.i.g. (14 kg/cm²) as tool may fracture or burst, possibly causing injury.Operating PressureDo not exceed recommended maximum operating pressure as tool wear will be greatly increased. The air supply must be capable of maintaining the operating pressure at the tool. Pressure drops in the air supply can reduce the tool’s driving power. Refer to Tool Specifications for setting the correct operating pressure for the tool.FilterDirt and water in the air supply are major causes of wear in pneumatic tools. A filter will help to get the best performance and minimum wear from the tool. The filter must have adequate flow capacity for the specific installation. The filter has to be kept clean to be effective in providing clean compressed air to the tool. Consult the manufacturer’s instructions on proper maintenance of your filter. A dirty and clogged filter will cause a pressure drop which will reduce the tool’s performance.English

5. Continue pushing until magazine release lever

is engaged. Fig. F Loading Fasteners CMPFN16SB (Fig. G–I)

1. Disconnect the tool from the air supply.

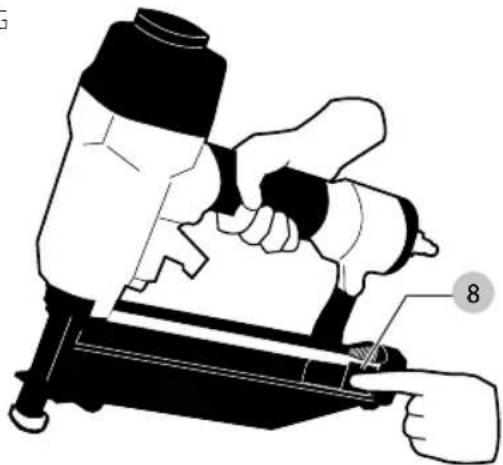

back until it latches. Fig.G

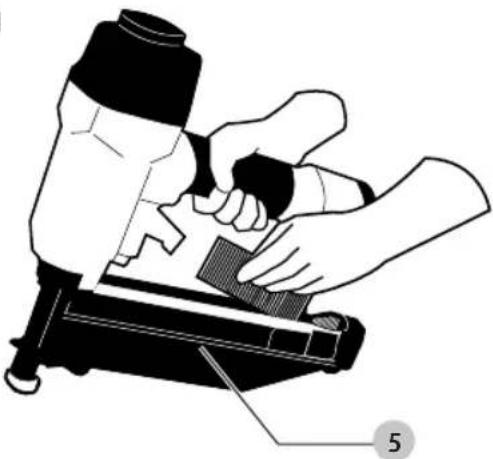

3. Insert nails into track of magazine

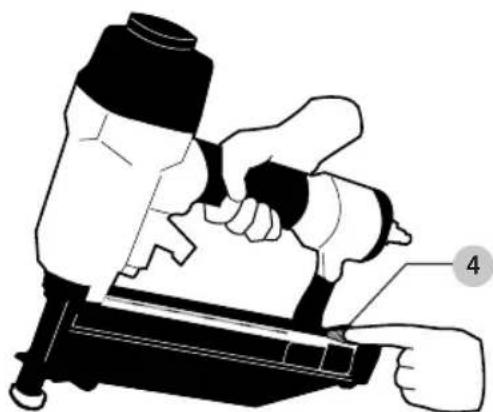

4. Press pusher release

to disengage follower.

Fig.I Sequential Trip Operation This tool is supplied with a sequential trip trigger installed. The SEQUENTIAL TRIP contains a contact trip that operates in conjunction with the trigger to drive a fastener. To operate a sequential trip tool, first position the contact trip on the work surface WITHOUT PULLING THE TRIGGER. Depress the contact trip and then pull the trigger to drive a fastener. As long as the contact trip is contacting the work and is held depressed, the tool will drive a fastener each time the trigger is depressed. If the contact trip is allowed to leave the work surface, the sequence described above must be repeated to drive another fastener. Tool Operation Check

CAUTION: Remove all fasteners from tool before performing tool operation check.

1. Press the contact trip against the work surface, without

touching the trigger. THE TOOL MUST NOT CYCLE.

2. Hold the tool off the work surface and pull the trigger.

THE TOOL MUST NOT CYCLE. Release the trigger. The trigger must return to the trigger stop on the frame.

3. Pull the trigger and press the contact trip against the

work surface. THE TOOL MUST NOT CYCLE.

4. With finger off the trigger, press the contact trip

against the work surface. Pull the trigger. THE TOOL MUSTCYCLE.7 English Depth Adjustment (Fig. A, J)

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove air supply before making any adjustments or removing/installing attachments or accessories. An accidental actuation can causeinjury. The depth that the fastener is driven can be adjusted using the depth adjustment wheel.

1. To drive the fastener shallower, rotate the depth

2. To drive a fastener deeper, rotate the depth adjustment

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove air supply before making any adjustments or removing/installing attachments or accessories. An accidental actuation can causeinjury.

WARNING: Do not store tools in a cold weather

environment to prevent frost or ice formation on the tools operating valves and mechanisms that could cause tool failure.

WARNING: Some commercial air line drying

liquids are harmful to “O”‑rings and seals – do not use these low temperature air dryers without checkingcompatibility. When operating tools at temperatures below freezing:

1. Make sure compressor tanks have been properly

drained prior to use.

2. Keep tool as warm as possible prior to use.

3. Make certain all fasteners have been removed

4. Lower air pressure to 80 p.s.i.g. or less.

5. Reconnect air and and load fasteners into magazine.

6. Actuate the tool 5 or 6 times into scrap lumber to

7. Turn pressure up to operating level (not to exceed

120p.s.i.g.) and use tool as normal.

8. Always drain the compressor tanks at least once a daily.

In Addition to the Other Warnings Contained in this Manual Observe the Following for Safe Operation

• Use the pneumatic tool only for the purpose for which it was designed.

• Never use this tool in a manner that could cause a fastener to be directed toward the user or others in the work area.

• Do not use the tool as a hammer.

• Always carry the tool by the handle. Never carry the tool by the air hose.

• Do not alter or modify this tool from the original design or function.

• Always be aware that misuse and improper handling of this tool can cause injury to yourself and others.

• Never clamp or tape the trigger or contact trip in an actuated position.

• Never leave a tool unattended with the air hoseattached. MAINTENANCE

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove air supply before making any adjustments or removing/installing attachments or accessories. An accidental actuation can causeinjury. When working on air tools, note the warnings in this manual and use extra care evaluating problem tools.

Caution must be used when working with the spring assembly. The spring is wrapped around, but not attached to, a roller. If the spring is extended beyond its length, the end will come off the roller and the spring will roll up with a snap, with a chance of pinching your hand. Also the edges of the spring are very thin and could cut. Care must also be taken to insure no permanent kinks are put in the spring as this will reduce the springs force. Assembly Procedure For Seals When repairing a tool, make sure the internal parts are clean and lubricated. Coat each “O”-ring with lubrication before assembling. Use a small amount of oil on all moving surfaces and pivots. After reassembly add a few drops of Air Tool Lubricant through the air line fitting before testing. Air Supply-Pressure And Volume Air volume is as important as air pressure. The air volume supplied to the tool may be inadequate because of undersize fittings and hoses, or from the effects of dirt and water in the system. Restricted air flow will prevent the tool from receiving an adequate volume of air, even though the pressure reading is high. The results will be slow operation, misfeeds or reduced driving power. Before evaluating tool problems for these symptoms, trace the air supply from the tool to the supply source for restrictive connectors, swivel fittings, low points containing water and anything else that would prevent full volume flow of air to the tool.English

WARNING:To assure product SAFETY and

RELIABILITY, repairs, maintenance and adjustment (including brush inspection and replacement, when applicable) should be performed by a CRAFTSMAN factory service center or a CRAFTSMAN authorized service center. Always use identical replacementparts. Cleaning

WARNING: Blow dirt and dust out of all air vents with

clean, dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performingthis procedure.

WARNING: Never use solvents or other harsh

chemicals for cleaning the non‑metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into aliquid. Register Online Thank you for your purchase. Register your product nowfor:

• WARRAnTY sERViCE: Registering your product will help you obtain more efficient warranty service in case there is a problem with yourproduct.

• COnFiRMATiOn OF OWnERshiP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof ofpurchase.

• FOR YOUR sAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer SafetyAct. Register online at www.craftsman.com/registration Versatrack Variables 1ST_Figure 1ST_Callout 2ND_Callout K 10 3 Fig. K

WARNING: Since accessories, other than those

offered by CRAFTSMAN, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only CRAFTSMAN recommended accessories should be used with thisproduct. Recommended accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN, call 1-888-331-4569. Versatrack™ (Fig. K)

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove air supply before making any adjustments or removing/installing attachments or accessories. An accidental actuation can causeinjury.

WARNING: To reduce the risk of serious personal

injury, do not use a damaged Versatrack™ hang hook or Versatrack™ Trackwall. A damaged Versatrack™ hang hook or Versatrack™ Trackwall will not support the weight of the tool.

WARNING: To reduce the risk of serious personal

injury, ensure the coupler holding the hang hook issecure.

WARNING: To reduce the risk of serious personal

injury, DO NOT suspend tool overhead or suspend objects from the hang hook. ONLY suspend tool on the Versatrack™ Trackwall using the hang hook.

WARNING: Ensure that the tool weight does not

exceed the maximum rated weight for the selected Versatrack™ hook.

WARNING: When hanging objects on a Versatrack™

Trackwall rail, adequately space the tools in order to not exceed 75 lb (35 kg) per linear foot. iMPORTAnT: Versatrack™ accessories mount compatible tools securely to the Versatrack™ Trackwallsystem.

1. Turn tool off, remove accessories, and remove air supply.

CAUTION: Any product with exposed cutting teeth must have them covered securely if it is to be on theVersatrack™ Trackwall.

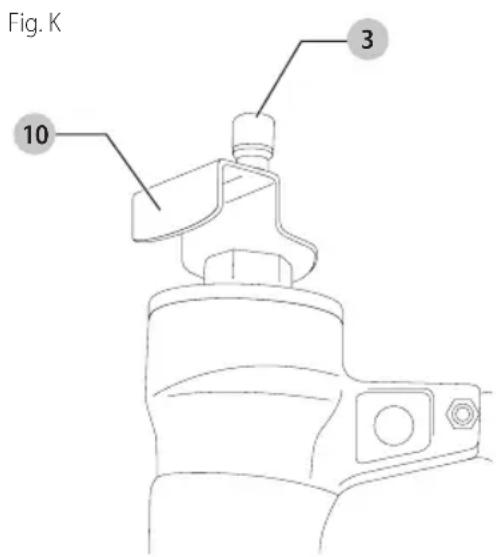

on the tool. a. Use a wrench to remove the fitting

b. Place the Versatrack™ hang hook on the fitting. c. Use a wrench to re-install the coupler to the fitting at the base of the tool. nOTE: Versatrack™ accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN, call 1-888-331-4569.9 ENGLISH Versatrack Variables 1ST_Figure 1ST_Callout 2ND_Callout K 10 3 Three Year Limited Warranty CRAFTSMAN will repair or replace, without charge, any defects due to faulty materials or workmanship for three years from the date of purchase. This warranty does not cover part failure due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit www.craftsman.com or call 1-888-331-4569. This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHERS, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE, AND EXCLUDES ALL INCIDENTAL

OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary in certain states orprovinces.

90 DAY MONEY BACK GUARANTEE

If you are not completely satisfied with the performance of your CRAFTSMAN Power Tool or Nailer for any reason, you can return it within 90 days from the date of purchase with a receipt for a full refund – no questionsasked. LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warrantyinformation. FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-888-331-4569 for a freereplacement.ENGLISH

Troubleshooting Problem Cause Correction Trigger valve housing leaks air. O-ring cut or cracked. Replace O-ring. Trigger valve stem leaks air. O-ring/seals cut or cracked. Replace trigger valve assembly. Frame/nose leaks air. Loose nose screws. Tighten and recheck. O-ring or gasket is cut or cracked. Replace O-ring or gasket. Bumper cracked/worn. Replace bumper. Frame/cap leaks air. Damaged gasket or seal. Replace gasket or seal. Cracked/worn head valve bumper. Replace bumper. Loose cap screws. Tighten and recheck. Failure to cycle. Air supply restriction. Check air supply equipment. Tool dry, lack of lubrication. Use Air Tool Lubricant. Worn head valve O-rings. Replace O-rings. Broken cylinder cap spring. Replace cylinder cap spring. Head valve stuck in cap. Disassemble/Check/Lubricate. Lack of power; slow to cycle. Tool dry, lacks lubrication. Use Air Tool Lubricant. Broken cylinder cap spring. Replace cap spring. O-rings/seals cut or cracked. Replace O-rings/seals. Exhaust blocked . Check bumper, head valve spring, muffler. Trigger assembly worn/leaks. Replace trigger assembly. Dirt/tar build up on driver. Disassemble nose/driver to clean. Cylinder sleeve not seated correctlyon bottom bumper. Disassemble to correct. Head valve dry. Disassemble/lubricate. Air pressure too low. Check air supply equipment. Skipping fasteners; intermittent feed. Worn bumper. Replace bumper. Tar/dirt in driver channel. Disassemble and clean nose and driver. Air restriction/inadequate air flow through quick disconnect socket and plug. Replace quick disconnect fittings. Worn piston O-ring. Replace O-ring, check driver. Tool dry, lacks lubrication. Use Air Tool Lubricant. Damaged pusher spring. Replace spring. Low air pressure. Check air supply system to tool. Loose magazine nose screws. Tighten all screws. Fasteners too short for tool. Use only recommended fasteners. Bent fasteners. Discontinue using these fasteners. Wrong size fasteners. Use only recommended fasteners. Leaking head cap gasket. Tighten screws/replace gasket. Trigger valve O-ring cut/worn. Replace O-ring. Broken/chipped driver. Replace driver (check piston O-ring). Dry/dirty magazine. Clean/lubricate use Air Tool Lubricant. Worn magazine. Replace magazine. Fasteners jam in tool. Driver channel worn. Replace nose/check door. Wrong size fasteners. Use only recommended fasteners. Bent fasteners. Discontinue using these fasteners. Loose magazine/nose screws. Tighten all screws. Broken/chipped driver. Replace driver.FRANÇAIS
