English (original instructions) 1

Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

(Ued without word) Indicates a safety related message.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

Fig. A

CMPBN18SB 7 6 2 5 1 4 3 8

CMPFN16SB

Technical diagram of a mechanical device with numbered components for identification

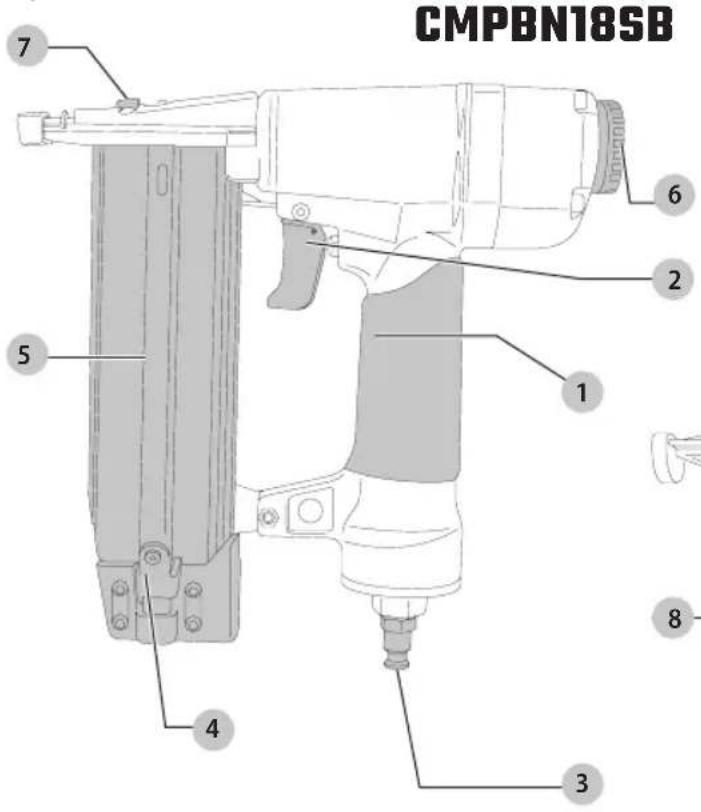

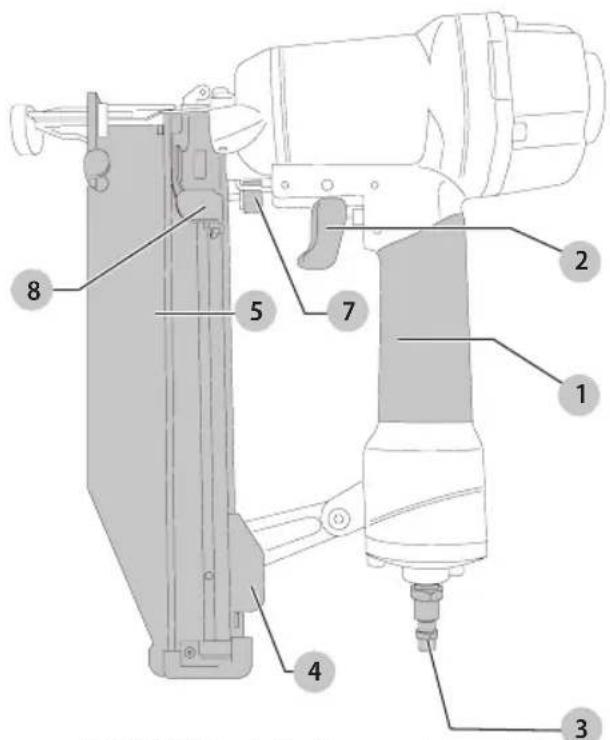

COMPONENTS

1 Main handle
2 Trigger
3 1/4" Male fitting
4 Magazine release lever
5 Magazine
6 Adjustable exhaust (CMPBN18SB)
7 Depth adjustment
8 Follower

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING: Never modify the product or any part of it. Damage or personal injury could result.

WARNING: To reduce the risk of injury, read the instruction manual.

If you have any questions or comments about this or any product, call CRAFTSMAN toll free at: 1-888-331-4569.

Pneumatic Finish Tools CMPBN18SB,CMPFN16SB

IMPORTANT SAFETY INSTRUCTIONS

WARNING: Only persons who have read and understand the tool operating/safety instructions should operate the tool.

WARNING: Actuating tool may result in flying corrosion, collation material, or dust which could harm operator's eyes. Operator and others in work area MUST wear safety glasses with side shields. These safety glasses must conform to ANSI Z87.1 requirements (approved glasses have "Z87" printed or stamped on them). Employer is responsible for enforcing the usage of eye protection equipment by the tool operator and all other personnel in the work area.

WARNING: Always assume that the tool contains fasteners.

WARNING: (Air and Supply)

- Do not use oxygen, combustible gases, or bottled gases as a power source for this tool as tool may explode, possibly causing injury.

• Do not use supply sources which can potentially exceed 200 p.s.i.g. (14 kg/cm ^2 ) as tool may burst, possibly causing injury.
• The connector on the tool must not hold pressure when air supply is disconnected. If a wrong fitting is used, the tool can remain charged with air after disconnecting and thus will be able to drive a fastener even after the air line is disconnected possibly causing injury.
• Do not pull the trigger while connected to the air supply as the tool may cycle, possibly causing injury.
  • Always disconnect air supply: 1.) Before making adjustments; 2.) When servicing the tool; 3.) When clearing a jam; 4.) When tool is not in use; 5.) When moving to a different work area, as accidental actuation may occur, possibly causing injury.

WARNING: When loading tool:

Never place a hand or any part of body in fastener discharge area of tool.

• Never point tool at yourself or anyone else.
• Do not pull the trigger as accidental actuation may occur, possibly causing injury.
• Be careful when handling fasteners, especially when loading and unloading, as the fasteners have sharp points.

WARNING: Do not operate tool if:

There is any damage to air hose or fitting.

• The tool leaks air.
- The tool has received a sharp blow, malfunctions or is dropped or damaged in any manner. Return

tool to the nearest authorized service facility for examination, repair, or mechanical adjustment.

• Warning labels are missing or damaged.
• Tool is not in proper working order. Tags and physical segregation shall be used for control.
• Tool is without workpiece contact. A tool without workpiece contact can be fired unintentionally causing injury to an operator or a bystander.

WARNING: When operating the tool:

ways handle the tool with care:

• Never engage in horseplay.
• Never pull the trigger unless nose is directed toward the work.
• Never point the tool at yourself or others.
• Keep others a safe distance from the tool while tool is in operation as accidental actuation may occur, possibly causing injury.
• Keep bystanders and children away while operating tool.
• Respect tool as a working implement.
• Stay alert, focus on your work and use common sense when working with tools.
• Do not use tool while tired, after having consumed drugs or alcohol, or while under the influence of medication.
• Do not overreach. Only use in a safe working place.
• Keep proper footing at all times.

- When working close to an edge of a workpiece or at steep angles use care to minimize chipping, splitting or splintering, or free flight or ricochet of fasteners, which may cause injury.

- Do not drive fasteners on top of other fasteners or with the tool at an overly steep angle as this may cause deflection of fasteners which could cause injury.

- Do not load tool with fasteners when any one of the operating controls is activated.

- Use extra caution when driving fasteners into existing walls or other blind areas to prevent contact with hidden objects or persons on other side (e.g., wires, pipes.)

- The operator must not pull the trigger except during fastening operation as serious injury could result if the tool accidentally contacts someone or something, causing the tool to cycle.

- Keep hands and body away from the discharge area of the tool. The tool may bounce from the recoil of driving a fastener and an unwanted second fastener may be driven possibly causing injury.

• Check operation of the trigger mechanism frequently. Do not use the tool if the trigger is not working correctly as accidental driving of a fastener may result. Do not interfere with the proper operation of the trigger mechanism.
• Never inadvertently pull or grasp the trigger when moving about, changing work location, when holstering or hanging tool, or when preparing work surface for fastening operation.
• This tool produces SPARKS during operation. NEVER use the tool near flammable substances, gases or vapors including lacquer, paint, benzine, thinner, gasoline, adhesives, mastics, glues or any other material that is -- or the vapors, fumes or byproducts of which are -- flammable, combustible or explosive. Using the fastenerer in any such environment could cause an EXPLOSION resulting in personal injury or death to user and bystanders.

WARNING: After driving a fastener, tool may reduce back ("recoil") causing it to move away from the work surface. To reduce risk of injury always manage recoil by:

• Always maintaining control of tool.
- Allowing recoil to move tool away from work surface.
- Not resisting recoil such that tool will be forced back into the work surface. In "Contact Actuation Mode," if workpiece contact is allowed to re-contact work surface before the trigger is released, an unintended discharge of a fastener will occur.
- Keeping face and body parts away from tool.

WARNING: Disconnect tool:

When not in use,

• When performing any maintenance or repairs,
• When clearing a jam,
• When elevating, lowering or otherwise moving tool to a new location,
• When tool is outside of the operator's supervision or control,
• When removing fasteners from the magazine.

WARNING: When maintaining the tool:

Always shut off air supply, and disconnect tool from air supply when not in use.
- When working on air tools note the warnings in this manual and use extra care when evaluating problem tools.

Additional Safety Warnings

WARNING: Do not use this product to fasten electrical cables. Fastening electric wires / cables could result in electric shock or serious harm.
WARNING: Make sure there are no electrical cables, gas pipes, etc. that could cause a hazard if damaged by use of the tool.

WARNING: This tool is not intended for use in potentially explosive atmospheres and is not insulated from coming into contact with electrical power.

• Use the pneumatic tool only for the purpose for which it was designed.
• Do not use the tool as a hammer.
  • Always carry the tool by the handle with hand off both triggers.
• Never lift, pull, lower, or carry the tool by the air hose.
• Whipping hoses can cause severe injury. Always check for damaged or loose hoses or fittings.
• Never direct compressed air at yourself or anyone else.
• Compressed air can cause severe injury.
• Do not alter or modify this tool from the original design or function without approval from CRAFTSMAN.
• Never clamp or tape the trigger in an actuated position.
• Ensure tool is always safely engaged on the workpiece and cannot slip.
• Never leave a tool unattended with the air hose attached.

TO PREVENT ACCIDENTAL INJURIES:

• Never place a hand or any other part of the body in fastener discharge area of tool while the air supply is connected.
• Never actuate the tool unless nose is directed at the work.
• Do not actuate the tool while loading.
• Keep hands and body parts away from the discharge area of the tool. While in use NEVER grasp the tool by the magazine or canister, a mis-driven fastener can exit the nose causing injury.

Additional Safety Information

WARNING: ALWAYS use safety glasses. Everyday eyeglasses are NOT safety glasses. Also use face or dust mask if cutting operation is dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:

• ANSI Z87.1 eye protection (CAN/CSA Z94.3),
• ANSI S12.6 (S3.19) hearing protection,
• NIOSH/OSHA/MSHA respiratory protection.

WARNING: Some dust created by power sanding, sowing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paints,
  • crystalline silica from bricks and cement and other masonry products, and
  • arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

ENGLISH

- Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other construction activities. Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote absorption of harmful chemicals.

WARNING: Use of this tool can generate and/ an adverse dust, which may cause serious and permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection appropriate for the dust exposure. Direct particles away from face and body.

WARNING: Always wear proper personal hearing in action that conforms to ANSI S12.6 (S3.19)

during use. Under some conditions and duration of use, noise from this product may contribute to hearing loss.

CAUTION: When not in use, place tool on its side on a stable surface where it will not cause a tripping or falling hazard. Some tools will stand upright but may be easily knocked over.

• Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in moving parts.

The label on your tool may include the following symbols. The symbols and their definitions are as follows:

V....volts

Hz hertz

min minutes

- - - or DC.....direct current

Class I Construction (grounded)

.../min.....per minute

BPM.....beats per minute

IPM....impacts per minute

RPM......revolutions per minute

sfpm .... Surface feet per minute

SPM ...... strokes per minute

OPM....oscillations per minute

A.....amperes

W.....watts

\~ or AC......alternating current

≈ or AC/DC....alternating or direct current

Class II Construction (double insulated)

n_0 ..... no load speed n ..... rated speed

earthing terminal

⚠️ ...... safety alert symbol

△......visible radiation

avoid staring at light

wear respiratory protection

wear eye protection

O....wear hearing protection

read all documentation

IPXX....IP symbol

SAVE THESE INSTRUCTIONS FOR FUTURE USE

COMPONENTS (FIG. A)

Intended Use

Your nailer is designed for professional fastening applications.

DO NOT use under wet conditions or in presence of flammable liquids or gases.

Your nailer is a professional power tool.

DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool.

TOOL SPECIFICATIONS

Model CMPBN18SB CMPFN16SB

Length 9.25" (234.95 mm) 11.25" (285.75 mm)

Height 9.5" (241.3 mm) 11.5" (292.1 mm)

Width 2" (50.8 mm) 3" (76.2 mm)

Weight 2.69 lbs (1.22 kg) 4.03 lbs (1.82 kg)

FASTENER SPECIFICATIONS

Model CMPBN18SB CMPFN16SB

Fixations Brad nail Brad nail
Gauge 18		16
Fastener Range	5/8"-2"(15.87 mm - 50.8 mm)	1"-2.5"(25.4 mm - 63.5 mm)

Tool Air Fitting

This tool uses a free flow connecting plug 1/4" N.P.T. The inside diameter should be .200" (5 mm) or larger. The fitting must be capable of discharging tool air pressure when disconnected from the air supply.

Operating Pressure

60 to 100 p.s.i.g. (4.92 to 6.9 kg/cm ^2 ). Select the operating pressure within this range for best fastener performance. DO NOT EXCEED THIS RECOMMENDED OPERATING PRESSURE.

Adjustments and Usage Prep

Air Supply and Connections

WARNING: Do not use oxygen, combustible gases, or bottled gases as a power source for this tool as tool may explode, possibly causing injury.

Fittings

Install a male fitting on the tool which is free flowing and which will release air pressure from the tool when disconnected from the supply source.

Hoses (Fig. A)

Air hoses should have a minimum of 150 p.s.i.g. (10.6 kg/ cm ^2 ) working pressure rating or 150% of the maximum pressure that could be produced in the air system. The supply hose should contain a fitting that will provide "quick disconnecting" from the 1/4" male fitting 3 on the tool.

Supply Source

Use only clean regulated compressed air as a power source for this tool. NEVER USE OXYGEN, COMBUSTIBLE GASES, OR

BOTTLED GASES, AS A POWER SOURCE FOR THIS TOOL AS TOOL MAY EXPLODE.

Regulator

A pressure regulator with an operating pressure of 0–125 p.s.i.g. (0–8.79 kg/cm ^2 ) is required to control the operat iing pressure for safe operation of this tool. Do not connect this tool to air pressure which can potentially exceed 200 p.s.i.g. (14 kg/cm ^2 ) as tool may fracture or burst, possibly causing injury.

Operating Pressure

Do not exceed recommended maximum operating pressure as tool wear will be greatly increased. The air supply must be capable of maintaining the operating pressure at the tool. Pressure drops in the air supply can reduce the tool's driving power. Refer to Tool Specifications for setting the correct operating pressure for the tool.

Filter

Dirt and water in the air supply are major causes of wear in pneumatic tools. A filter will help to get the best performance and minimum wear from the tool. The filter must have adequate flow capacity for the specific installation. The filter has to be kept clean to be effective in providing clean compressed air to the tool. Consult the manufacturer's instructions on proper maintenance of your filter. A dirty and clogged filter will cause a pressure drop which will reduce the tool's performance.

Lubrications

Frequent, but not excessive, lubrication is required for best performance. Oil added through the air line connection will lubricate the internal parts. Do not use detergent oil or additives as these lubricants will cause accelerated wear to the seals and bumpers in the tool, resulting in poor tool performance and frequent tool maintenance.

If no airline lubricator is used, add oil during use into the air fitting on the tool once or twice a day. Only a few drops of oil at a time is necessary. Too much oil will only collect inside the tool and will be noticeable in the exhaust cycle.

OPERATION

WARNING: To reduce the risk of serious personal injury, turn unit off and remove air supply before making any adjustments or removing/installing attachments or accessories. An accidental actuation can cause injury.

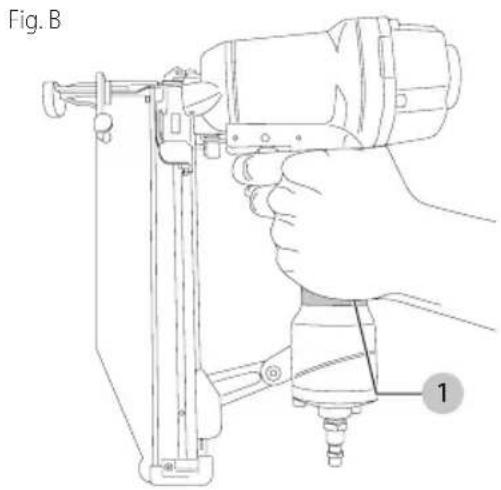

Proper Hand Position (Fig. B)

WARNING: To reduce the risk of serious personal injury, ALWAYS use proper hand position as shown.

WARNING: To reduce the risk of serious personal injury, ALWAYS hold securely in anticipation of a sudden reaction.

Proper hand position requires one hand on the handle 1.

Line drawing of a hand using a drill bit on a mechanical device (no text or symbols)

Loading Fasteners CMPBN18SB (Fig. C–F)

1. Disconnect the tool from the air supply.

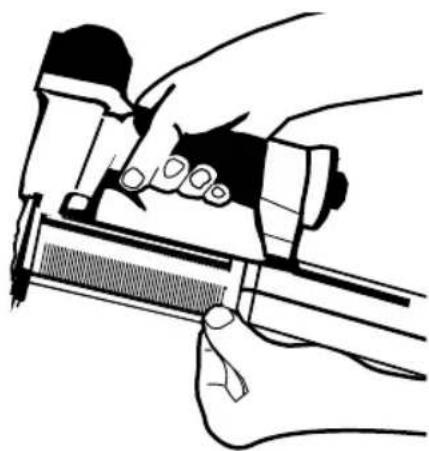

2. Disengage the magazine release lever 4 and pull back the magazine 5.

Fig. C

Diagram showing hands operating a power tool with labeled parts 4 and 5

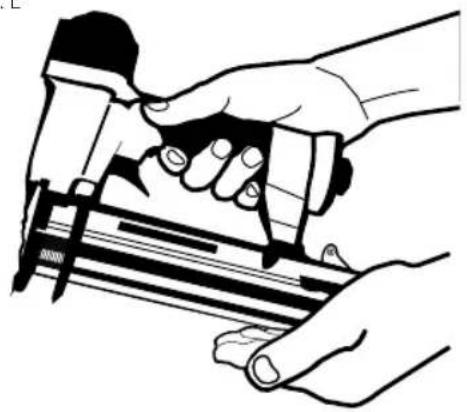

1. With magazine fully open insert fasteners. Points must be against bottom of magazine.

Fig. D

Illustration of a hand using a tool to cut a metal strip (no text or symbols visible)

1. Push magazine forward.

English
Fig. E

Illustration of hands using a tool to adjust or install a component (no text or symbols visible)

1. Continue pushing until magazine release lever is engaged.

Fig. F

Illustration of hands using a fastener to press or install a machine (no text or symbols visible)

Loading Fasteners CMPFN16SB (Fig. G-I)

1. Disconnect the tool from the air supply.

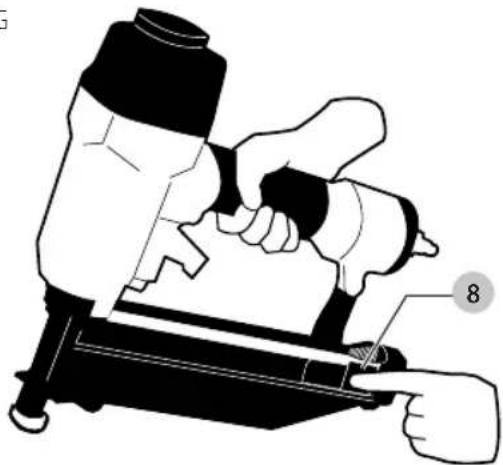

2. Pull follower 8 back until it latches.

Fig. G

8

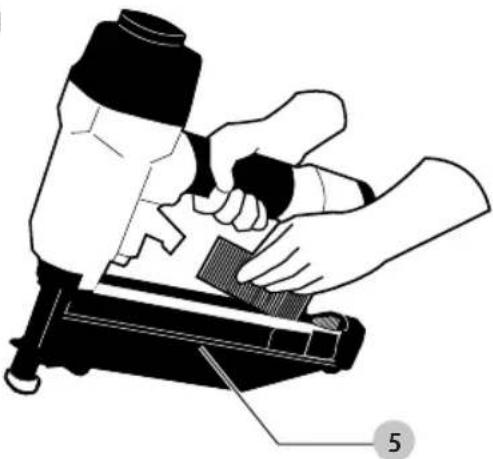

1. Insert nails into track of magazine 5.

Fig. H

Illustration of a hand using a power tool to press or install a component, labeled with number 5 (no text or symbols on the diagram itself)

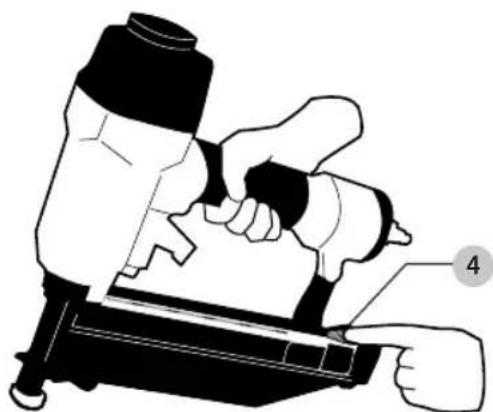

1. Press pusher release 4 to disengage follower.
   Fig.1


Illustration of a hand using a power tool to press or install a component, with no visible text or symbols.

Sequential Trip Operation

This tool is supplied with a sequential trip trigger installed. The SEQUENTIAL TRIP contains a contact trip that operates in conjunction with the trigger to drive a fastener. To operate a sequential trip tool, first position the contact trip on the work surface WITHOUT PULLING THE TRIGGER. Depress the contact trip and then pull the trigger to drive a fastener. As long as the contact trip is contacting the work and is held depressed, the tool will drive a fastener each time the trigger is depressed. If the contact trip is allowed to leave the work surface, the sequence described above must be repeated to drive another fastener.

Tool Operation Check

CAUTION: Remove all fasteners from tool before performing tool operation check.

1. Press the contact trip against the work surface, without touching the trigger. THE TOOL MUST NOT CYCLE.
2. Hold the tool off the work surface and pull the trigger. THE TOOL MUST NOT CYCLE. Release the trigger. The trigger must return to the trigger stop on the frame.
3. Pull the trigger and press the contact trip against the work surface. THE TOOL MUST NOT CYCLE.
4. With finger off the trigger, press the contact trip against the work surface. Pull the trigger. THE TOOL MUST CYCLE.

Depth Adjustment (Fig. A, J)

WARNING: To reduce the risk of serious personal injury, turn unit off and remove air supply before making any adjustments or removing/installing attachments or accessories. An accidental actuation can cause injury.

The depth that the fastener is driven can be adjusted using the depth adjustment wheel.

1. To drive the fastener shallower, rotate the depth adjustment wheel 7 to the right.
2. To drive a fastener deeper, rotate the depth adjustment wheel 7 to the left.

Fig. J

7

Cold Weather Operation

WARNING: To reduce the risk of serious personal injury, turn unit off and remove air supply before making any adjustments or removing/installing attachments or accessories. An accidental actuation can cause injury.

WARNING: Do not store tools in a cold weather environment to prevent frost or ice formation on the tools operating valves and mechanisms that could cause tool failure.

WARNING: Some commercial air line drying liquids are harmful to "O"-rings and seals – do not use these low temperature air dryers without checking compatibility.

When operating tools at temperatures below freezing:

1. Make sure compressor tanks have been properly drained prior to use.
2. Keep tool as warm as possible prior to use.
3. Make certain all fasteners have been removed from magazine.
4. Lower air pressure to 80 p.s.i.g. or less.
5. Reconnect air and and load fasteners into magazine.
6. Actuate the tool 5 or 6 times into scrap lumber to lubricate o-rings.
7. Turn pressure up to operating level (not to exceed 120 p.s.i.g.) and use tool as normal.
8. Always drain the compressor tanks at least once a daily.

In Addition to the Other Warnings Contained in this Manual Observe the Following for Safe Operation

- Use the pneumatic tool only for the purpose for which it was designed.

• Never use this tool in a manner that could cause a fastener to be directed toward the user or others in the work area.
• Do not use the tool as a hammer.
  • Always carry the tool by the handle. Never carry the tool by the air hose.
• Do not alter or modify this tool from the original design or function.
  • Always be aware that misuse and improper handling of this tool can cause injury to yourself and others.
• Never clamp or tape the trigger or contact trip in an actuated position.
• Never leave a tool unattended with the air hose attached.

MAINTENANCE

WARNING: To reduce the risk of serious personal injury, turn unit off and remove air supply before making any adjustments or removing/installing attachments or accessories. An accidental actuation can cause injury.

When working on air tools, note the warnings in this manual and use extra care evaluating problem tools.

WARNING: Pusher spring (constant force spring). Correction must be used when working with the spring assembly. The spring is wrapped around, but not attached to, a roller. If the spring is extended beyond its length, the end will come off the roller and the spring will roll up with a snap, with a chance of pinching your hand. Also the edges of the spring are very thin and could cut. Care must also be taken to insure no permanent kinks are put in the spring as this will reduce the springs force.

Assembly Procedure For Seals

When repairing a tool, make sure the internal parts are clean and lubricated. Coat each "O"-ring with lubrication before assembling. Use a small amount of oil on all moving surfaces and pivots. After reassembly add a few drops of Air Tool Lubricant through the air line fitting before testing.

Air Supply-Pressure And Volume

Air volume is as important as air pressure. The air volume supplied to the tool may be inadequate because of undersize fittings and hoses, or from the effects of dirt and water in the system.

Restricted air flow will prevent the tool from receiving an adequate volume of air, even though the pressure reading is high. The results will be slow operation, misfeeds or reduced driving power.

Before evaluating tool problems for these symptoms, trace the air supply from the tool to the supply source for restrictive connectors, swivel fittings, low points containing water and anything else that would prevent full volume flow of air to the tool.

English

Accessories

WARNING: Since accessories, other than those offered by CRAFTSMAN, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only CRAFTSMAN recommended accessories should be used with this product.

Recommended accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN, call 1-888-331-4569.

Versatrack™ (Fig. K)

WARNING: To reduce the risk of serious personal injury, turn unit off and remove air supply before making any adjustments or removing/installing attachments or accessories. An accidental actuation can cause injury.

WARNING: To reduce the risk of serious personal injury, do not use a damaged Versatrack™ hang hook or Versatrack™ Trackwall. A damaged Versatrack™ hang hook or Versatrack™ Trackwall will not support the weight of the tool.

WARNING: To reduce the risk of serious personal injury, ensure the coupler holding the hang hook is secure.

WARNING: To reduce the risk of serious personal injuries, DO NOT suspend tool overhead or suspend objects from the hang hook. ONLY suspend tool on the Versatrack™ Trackwall using the hang hook.

WARNING: Ensure that the tool weight does not be used and the maximum rated weight for the selected Versatrack™ hook.

WARNING: When hanging objects on a Versatrack™ Trench wall rail, adequately space the tools in order to not exceed 75 lb (35 kg) per linear foot.

iIMPORTAnT: Versatrack™ accessories mount compatible tools securely to the Versatrack™ Trackwall system.

1. Turn tool off, remove accessories, and remove air supply.

CAUTION: Any product with exposed cutting teeth have them covered securely if it is to be on the Versatrack™ Trackwall.

1. Attach the hang hook 10 on the tool.

a. Use a wrench to remove the fitting 3.
b. Place the Versatrack™ hang hook on the fitting.
c. Use a wrench to re-install the coupler to the fitting at the base of the tool.

NOTE: Versatrack™ accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN, call 1-888-331-4569.

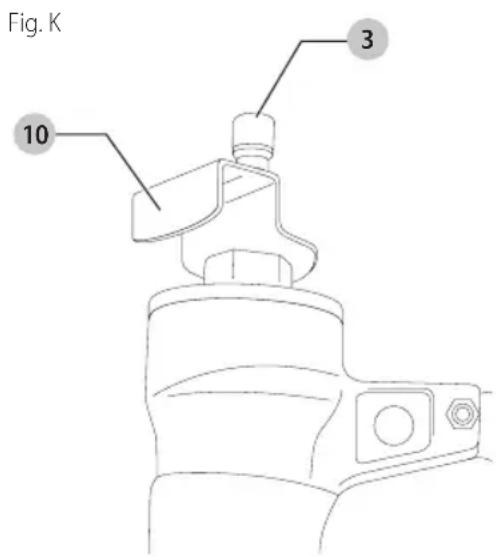

Fig. K 10 3

Cleaning

WARNING: Blow dirt and dust out of all air vents with clean, dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performing this procedure.

WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

Repairs

WARNING: To assure product SAFETY and RAILABILITY, repairs, maintenance and adjustment (including brush inspection and replacement, when applicable) should be performed by a CRAFTSMAN factory service center or a CRAFTSMAN authorized service center. Always use identical replacement parts.

Register Online

Thank you for your purchase. Register your product now for:

• WARRAnTY sERViCE: Registering your product will help you obtain more efficient warranty service in case there is a problem with your product.
• COnFiRMATiOn OF OWnERshiP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof of purchase.
• FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act.

Register online at www.craftsman.com/registration

Three Year Limited Warranty

CRAFTSMAN will repair or replace, without charge, any defects due to faulty materials or workmanship for three years from the date of purchase. This warranty does not cover part failure due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit www.craftsman.com or call

1-888-331-4569. This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHERS, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND EXCLUDES ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary in certain states or provinces.

90 DAY MONEY BACK GUARANTEE

If you are not completely satisfied with the performance of your CRAFTSMAN Power Tool or Nailer for any reason, you can return it within 90 days from the date of purchase with a receipt for a full refund – no questions asked.

LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warranty information.

FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-888-331-4569 for a free replacement.

Troubleshooting

Problem Cause Correction
Trigger valve housing leaks air. O-ring cut or cracked. Replace O-ring.
Trigger valve stem leaks air. O-ring/seals cut or cracked. Replace trigger valve assembly.
Frame/nose leaks air. Loose nose screws. Tighten and recheck.
Frame/cap leaks air. Damaged gasket or seal. Replace gasket or seal.
Failure to cycle. Air supply restriction. Check air supply equipment.
Lack of power; slow to cycle.	Tool dry, lack of lubrication.	Use Air Tool Lubricant.
	Worn head valve O-rings.	Replace O-rings.
	Broken cylinder cap spring.	Replace cylinder cap spring.
	Head valve stuck in cap.	Disassemble/Check/Lubricate.
	Tool dry, lacks lubrication.	Use Air Tool Lubricant.
	Broken cylinder cap spring.	Replace cap spring.
	O-rings/seals cut or cracked.	Replace O-rings/seals.
	Exhaust blocked.	Check bumper, head valve spring, muffler.
	Trigger assembly worn/leaks.	Replace trigger assembly.
	Dirt/tar build up on driver.	Disassemble nose/driver to clean.
	Cylinder sleeve not seated correctlyon bottom bumper.	Disassemble to correct.
	Head valve dry.	Disassemble/lubricate.
	Air pressure too low.	Check air supply equipment.
Skipping fasteners; intermittent feed.	Worn bumper.	Replace bumper.
	Tar/dirt in driver channel.	Disassemble and clean nose and driver.
	Air restriction/inadequate air flow through quick disconnect socket and plug.	Replace quick disconnect fittings.
	Worn piston O-ring.	Replace O-ring, check driver.
	Tool dry, lacks lubrication.	Use Air Tool Lubricant.
	Damaged pusher spring. Replace spring.
	Low air pressure.	Check air supply system to tool.
	Loose magazine nose screws.	Tighten all screws.
	Fasteners too short for tool. Use only recommended fasteners.
	Bent fasteners.	Discontinue using these fasteners.
	Wrong size fasteners.	Use only recommended fasteners.
	Leaking head cap gasket.	Tighten screws/replace gasket.
	Trigger valve O-ring cut/worn.	Replace O-ring.
	Broken/chipped driver. Replace driver (check piston O-ring).
	Dry/dirty magazine.	Clean/lubricate use Air Tool Lubricant.
	Worn magazine.	Replace magazine.
Fasteners jam in tool.	Driver channel worn.	Replace nose/check door.
	Wrong size fasteners.	Use only recommended fasteners.
	Bent fasteners.	Discontinue using these fasteners.
	Loose magazine/nose screws.	Tighten all screws.
	Broken/chipped driver. Replace driver.

fabrication classe II (double isolation)

○ protection auditive

Line drawing of a hand using a power tool to press or install a component, no text or symbols present

Chargement de fixations (Fig. C–F)

Technical diagram showing hands operating a fastener with labeled parts 4 and 5

Illustration of a hand using a tool to cut a textured object, no text or symbols present

Illustration of a hand using a pressure tool to press or install a cylindrical component (no text or symbols visible)

Illustration of hands using a power tool to press or install a component (no text or symbols visible)

Chargement de fixations CMPFN16SB

(Fig. G-I)

Illustration of a hand using a power tool to press or install a component, with no visible text or symbols.

Illustration of a hand using a power tool to press or install a component, labeled with number 5 (no text or symbols on the diagram itself)

Illustration of a hand using a pressure tool to press or install a component, with no visible text or symbols.

Modelo CMPBN18SB CMPFN16SB

Longitud 234,95 mm (9,25") 285,75 mm (11,25")

Altura 241,3 mm (9,5") 292,1 mm (11,5")

Ancho 50,8 mm (2") 76,2 mm (3")

Peso 1,22 kg (2,69 lbs.) 1,82 kg (4,03 lbs.)

ESPECIFICACIONES DE SUJETADOR SUGERIDO

Modelo CMPBN18SB CMPFN16SB

Sujetadores Brad nail Brad nail
Calibre 18 16
Rango del sujetador	15,87 mm - 50,8 mm(5/8" - 2")	25,4 mm - 63,5 mm(1" - 2,5")

Technical diagram showing hands operating a fastener with labeled parts 4 and 5

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of hands using a tool to press or install a mechanical component (no text or symbols visible)

Illustration of hands using a power tool to press or install a component (no text or symbols visible)

Loading Fasteners CMPFN16SB (Fig. G-I)

Illustration of a hand using a pressure tool to press or install a component, with no visible text or symbols.

Illustration of a hand using a fastener to press or install a component, labeled with number 5 (no text or symbols on the diagram itself)

Illustration of a hand using a pressure tool to press or install a component, with no visible text or symbols.

Disparo Secuencial

Eje Central Lázaro Cárdenas No. 18 - Local (55) 5588 9377 D, Col. Obrera

MERIDA, YUC

Calle 63 #459-A - Col. Centro [phone]

MONTERREY, N.L.

Av. Francisco I. Madero 831 Poniente - Col. (818) 375 23 13 Centro

PUEBLA, PUE

17 Norte #205 - Col. Centro [phone]

QUERETARO, QRO

Av. San Roque 274 - Col. San Gregorio (442) 2 17 63 14

SAN LUIS POTOSI, SLP
