USER MANUAL CMCN410 Craftsman

20V Max* 3/8" (10 mm) Crown Stapler

Agrafeuse à couronne 3/8 po (10 mm) 20 V max* Engrapadora de corona de 3/8" (10 mm) 20V Max*

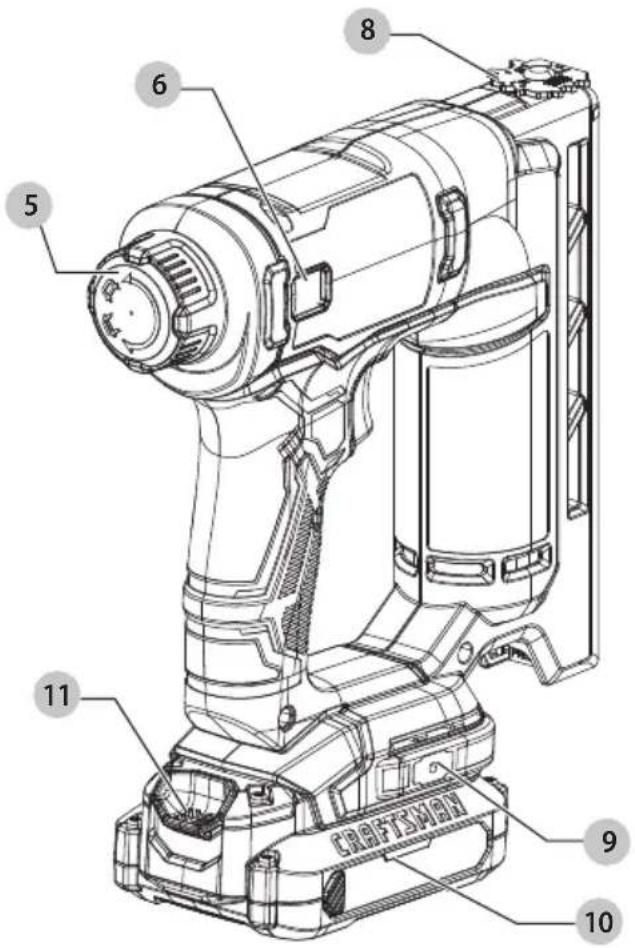

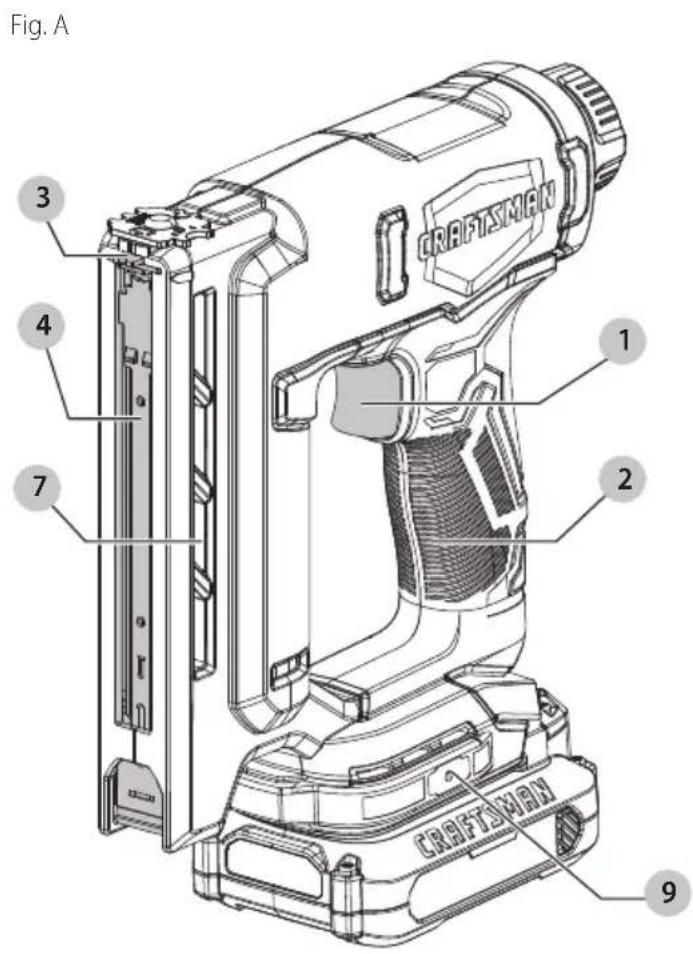

1 Trigger
2 Main handle
3 Contact trip
4 Magazine
5 Depth adjustment knob
6 Drive force indicator
7 Staple indicator window
8 Onboard wire clip
9 CRAFTSMAN accessory mounting location
10 Battery pack
11 Battery release button

WARNING: Read all safety warnings, instructions, illustrations, and specifications in this manual, including the battery and

charger sections provided in an original tool manual or the separate Batteries and Chargers manual.

Manuals can be obtained by contacting Customer Service. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

ANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

Used without word) Indicates a safety related message.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

English (original instructions) 3

Francais (traduction de la notice d'instructions originale) 9

Your cordless finish stapler has been designed for driving staples into wooden workpieces.

DO not use under wet conditions or in presence of flammable liquids or gases.

Your cordless finish stapler is a professional power tool.

DO not let children come into contact with the tool.

Supervision is required when inexperienced operators use this tool.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

SAVE ALL WARNING AND INSTRUCTIONS FOR FUTURE REFERENCE.

The term "power tool" in the warnings refers to your mains-operated (cored) power tool or battery-operated (cordless) power tool.

1) Work Area Safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical Safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.

3) Personal Safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power Tool Use and Care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/ or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Battery Tool Use and Care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

ENGLISH

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Stapler SafetyWarnings

• Always assume that the tool contains fasteners. Careless handling of the stapler can result in unexpected firing of fasteners and personal injury.
• Do not point the tool towards yourself or anyone nearby. Unexpected triggering will discharge a fastener causing an injury.
• Do not actuate the tool unless the tool is placed firmly against the workpiece. If the tool is not in contact with the workpiece, the fastener may be deflected away from your target.
• Disconnect the tool from the power source when the fastener jams in the tool. While removing a jammed fastener, the tacker may be accidentally activated if it is plugged in.
• Use caution while removing a jammed fastener. The mechanism may be under compression and the fastener may be forcefully discharged while attempting to free a jammed condition.
• Do not use this stapler for fastening electrical cables. It is not designed for electric cable installation and may damage the insulation of electric cables thereby causing electric shock or fire hazards.

Additional Stapler SafetyWarnings

WARNING: When using any stapler, all safety precautions, as outlined below, should be followed to avoid the risk of death or serious injury. Read and understand all instructions before operating the tool.

WARNING: NEVER spray or in any other way apply lubricants or cleaning solvents inside the tool. This can seriously affect the life and performance of the tool.

WARNING: If the tool has been dropped or you suspect tool damage perform tool operation check as defined in the mode selection section of the manual. If it doesn't perform according to the manual, stop using the tool and have it serviced at an authorised CRAFTSMAN service centre.
- Hold tool by insulated gripping surfaces when performing an operation where driven fasteners may contact hidden wiring. Contact with a "live" wire will make exposed metal parts of the tool "live" and shock the operator.
- Always wear appropriate personal hearing and other protection during use. Under some conditions and duration of use, noise from this product may contribute to hearing loss.
- Disconnect battery pack from the tool when not in use. Always remove battery pack and remove fasteners from magazine before leaving the area or passing the tool to another operator. Do not carry tool to another work area in which changing location involves the use of scaffoldings, stairs, ladders, and the like, with battery pack connected. Do not make adjustments, perform maintenance or clear jammed fasteners while battery is in place.
- Do not remove, tamper with, or otherwise cause the tool, trigger, trigger lock-off, or contact trip to become inoperable. Do not tape or tie trigger or contact trip in the

on position. Do not remove spring from contact trip. Make daily inspections for free movement of trigger and contact trip. Uncontrolled discharge could result.

• Inspect tool before use. Do not operate a tool if any portion of the tool, trigger, trigger lock-off, or contact trip is inoperable, disconnected, altered, or not working properly. Damaged parts or missing parts should be repaired or replaced before use. Refer to Repairs.
• Do not alter or modify the tool in any way.
• Always assume that the tool contains fasteners.
• Do not point the tool at co-workers or yourself at any time. No horseplay! Work safe! Respect the tool as a working implement.
• Do not carry the tool from place to place holding the trigger. Accidental discharge could result.
• Do not overreach. Maintain proper footing and balance at all times. Loss of balance may cause personal injury.
• Use the tool only for its intended use. Do not discharge fasteners into open air, concrete, stone, extremely hard woods, knots or any material too hard for the fastener to penetrate. Do not use the body of the tool or top cap as a hammer. Discharged fasteners may follow an unexpected path and cause injury.
• Always keep fingers clear of contact trip to prevent injury from inadvertent release of the pusher
  Refer to the Maintenance and Repairs sections for detailed information on the proper maintenance of the tool.
• Always operate the tool in a clean, lighted area. Be sure the work surface is clear of any debris and be careful not to lose footing when working in elevated environments such as rooftops.
• Do not drive fasteners near edge of material. The workpiece may split causing the fastener to ricochet, injuring you or a co-worker. Be aware that the staple may follow the grain of the wood (shiner), causing it to protrude unexpectedly from the side of the work material. Drive the chisel point of the staple perpendicular to the grain to reduce risk of injury.
• Do not drive staples onto the heads of other fasteners or with the tool at too steep an angle. Personal injury from strong recoil, jammed fasteners, or ricocheted staples may result.
• Keep hands and body parts clear of immediate work area. Hold workpiece with clamps when necessary to keep hands and body out of potential harm. Be sure the workpiece is properly secured before pressing the stapler against the material. The contact trip may cause the work material to shift unexpectedly.
• Do not use tool in the presence of flammable dust, gases or fumes. The tool may produce a spark that could ignite gases causing a fire. Driving a staple into another staple may also cause a spark.
• Keep face and body parts away from back of the tool cap when working in restricted areas. Sudden recoil can result in impact to the body, especially when stapling into hard or dense material.
• Grip tool firmly to maintain control while allowing tool to recoil away from work surface as fastener is driven.
• Choice of triggering method is important. Check the manual for triggering options.

• Do not drive staples onto the heads of other fasteners. Strong recoil, jammed fasteners, or ricocheted staples may result.

• Be aware of material thickness when using stapler. A protruding staple may cause injury.

• Depth adjustment: To reduce risk of serious injury from accidental actuation when attempting to adjust depth, ALWAYS;

• Remove battery pack.

• Avoid contact with trigger during adjustments

• Do not drive staples blindly into walls, floors or other work areas. Fasteners driven into live electrical wires, plumbing, or other types of obstructions can result in injury.

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury.

Additional Safety Information

WARNING: Never modify the product or any part of it. Damage or personal injury could result.

WARNING: ALWAYS use safety glasses. Everyday eyeglasses are NOT safety glasses. Also use face or dust mask if cutting operation is dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:

ANSI Z87.1 eye protection (CAN/CSA Z94.3)
ANSI S12.6 (S3.19) hearing protection,
- NIOSH/OSHA/MSHA respiratory protection.

WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paints,
  crystalline silica from bricks and cement and other masonry products, and
  arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.
- Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other construction activities. Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote absorption of harmful chemicals.

WARNING: Use of this tool can generate and/or disperse dust, which may cause serious and permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection appropriate for the dust exposure. Direct particles away from face and body.

WARNING: Always wear proper personal hearing protection that conforms to ANSI S12.6 (S3.19) during use. Under some conditions and duration of use, noise from this product may contribute to hearing loss.

WARNING: Do not operate this tool for long periods of time. Vibration caused by the operating action of this tool may cause permanent injury to fingers, hands, and arms. Use gloves to provide extra cushion, take frequent rest periods, and limit daily time of use.

AUTION: When not in use, place tool on its side on a stable surface where it will not cause a tripping or

falling hazard. Some tools will stand upright but may be easily knocked over.
- Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in moving parts.

The label on your tool may include the following symbols. The symbols and their definitions are as follows:

V.....volts

Hz.....hertz

min.........minutes

=or DC......direct current

Class I Construction (grounded)

.../min..per minute

BPM... .beats per minute

IPM............ impacts per minute

OPM. .oscillations per minute

RPM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. sfpm .. .. .. .. .. .. surface feet per minute

SPM.........strokes per minute

A. amperes

W.....watts

Wh.....watt hours

Ah.....amp hours

or AC....alternating current

or AC/DC....alternating or direct current

回............Class II

Construction (double insulated)

no load speed n .rated speed
PSI. . pounds per square inch
..earthing terminal
A .safety alert symbol
visible radiation do not stare into the light
...wear respiratory protection
... wear eye protection
O............wear hearing protection
...read all documentation
do not expose to rain

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

TOOL SPECIFICATIONS

Voltage 20
Height 8.2" (207.7 mm)
Width 2.39" (60.7 mm)
Length 8.18" (208 mm)
Weight (without battery) 2.95 lbs (1.34 kg)
Magazine angle	Straight
Loading capacity 85 staples

STAPLE SPECIFICATIONS

Staple Crown 3/8" (10 mm)

Staple Length 1/4"–9/16" (6 mm – 14 mm)

Belt Hook (Fig. A, K)

WARNING: Remove staples from magazine before making any adjustments or servicing this tool. Failure to do so may result in serious injury.

WARNING: Disconnect battery pack from tool before making any adjustments, changing accessories, servicing, or moving the tool. Such preventative safety measures reduce the risk of starting the tool accidentally.

ENGLISH

AUTION: When not in use, place tool on its side on a stable surface where it will not cause a tripping or falling hazard. Some tools with large battery packs will stand upright on the battery pack but may be easily knocked over.

WARNING: To reduce the risk of serious personal injury, ONLY use the tool's belt hook to hang the tool from a work belt. DO NOT use the belt hook for tethering or securing the tool to a person or object during use. DO NOT suspend tool overhead or suspend objects from the belt hook.

WARNING: To reduce the risk of serious personal injury, ensure the screw holding the belt hook is secure. IMPORTANT: When attaching or replacing the belt hook, use only the screw 13 that is provided. Be sure to securely tighten the screw.

The belt hook 12 can be attached to either side of the tool using only the screw provided, to accommodate left- or right-handed users.

1. Turn the tool off, remove the battery pack 10.
2. Attach the belt hook 12 on the tool.
   a. Place the belt hook onto the accessory mounting location 9 at the base of the tool.
   b. Use a screwdriver to secure the hang hook with the provided screw 13. Do not use any other screw for this. If the hook is not desired at all, it can be removed from the tool.
3. To move belt hook 12, remove the screw that holds the belt hook in place then reassemble on the opposite side.
4. Be sure to securely tighten the screw 13.

OPERATION

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Installing and Removing the Battery Pack (Fig. B)

NOTE: For best results, make sure your battery pack is fully charged.

To install the battery pack 10 into the tool handle, align the battery pack with the rails inside the tool's handle and slide it into the handle until the battery pack is firmly seated in the tool and ensure that it does not disengage.

To remove the battery pack from the tool, press the battery release button 11 and firmly pull the battery pack out of the tool handle. Insert it into the charger.

Proper Hand Position (Fig. F)

WARNING: To reduce the risk of serious personal injury, ALWAYS use proper hand position as shown.

WARNING: To reduce the risk of serious personal injury, ALWAYS hold securely in anticipation of a sudden reaction. Proper hand position requires one hand on the main handle 2.

Loading the Tool (Fig. A, C)

WARNING: Keep the tool pointed away from yourself and others.
WARNING: Never load staples with trigger activated.
WARNING: Always remove battery pack before loading or unloading staples.
AUTION: Keep fingers clear of magazine latch to prevent injury.

1. Remove the battery pack 10.
2. While depressing the magazine latch 14 slide the magazine 4 out of the tool until it reaches the end of its travel.
3. Drop the staple strip 15 into the staple channel 16 of the magazine, making sure the staple heads align correctly into the staple channel. (Refer to Staple Specifications to determine compatible size.)
4. Keeping fingers clear of the staple channel, close the magazine by pushing it back into the tool. Carefully allow the magazine latch to click back into position.

NOTE: Do not slam the magazine into the tool or you could damage staples or tool.

NOTE: Tool comes with an staple indicator window 7 located on both sides of the magazine to let the operator know when the tool is running low on staples.

Depth Adjustment Knob/Drive Force Indicator (Fig. D, E)

The depth that a staple is driven into the workpiece can be adjusted using the depth adjustment knob 5 on the back of the tool (Fig. D). Adjusting the depth adjustment knob will display on the drive force indicator 6 the depth that the staple will enter into the workpiece (Fig. E).

Depth Adjustment Knob

1. To drive the staple shallower into the workpiece rotate the depth adjustment knob 5 couterclockwise.
2. To drive the staple deeper into the workpiece rotate the depth adjustment knob 5 clockwise.

NOTE: Hard workpieces/materials will require a deeper staple setting.

Drive Force Indicator

Rotating the depth adjustment knob will move the white bar displayed on the drive force indicator (Fig. E).

1. Rotating the depth adjustment knob 5 counterclockwise to a shallow setting will move the white bar on the drive force indicator 6 to the left.
2. Rotating the depth adjustment knob 5 clockwise to a deeper setting will move the white bar on the drive force indicator 6 to the right.

NOTE: Before use, test the setting depth of your tool on a scrap peice of material that is to be used for your project.

Onboard Wire Clip (Fig. G)

The tool comes equipped with a onboard wire clip 8 allowing up to four different application edge options for flat surfaces, thick fencing wires, small fencing wires, and screen material. The onboard wire clip is useful for attaching wire or screen to a workpiece or a wooden frame. The onboard wire clip can be rotated to the desired setting by lining up the icons towards the front of the contact trip 3.

Actuating the Tool (Fig. A, F-J)

WARNING: Always assume that the tool contains staples. Careless handling of the stapler can result in unexpected firing of staples and personal injury. Do not point the tool towards yourself or anyone nearby. Unexpected triggering could discharge a staple causing an injury.

WARNING: Do not actuate the tool unless the tool is placed firmly against the workpiece. If the tool is not in contact with the workpiece, the staple may be deflected away from your target.

WARNING: Staples must be driven straight into the material. Do not tilt stapler while driving staples. Staple retention values improve when tool is fired perpendicular to the material.

Driving a Staple (Fig. A, F-H)

1. For general stapling applications, rotate the onboard wire clip to the staple application edge 21 towards the front of contact trip 3.
2. Hold the tool firmly by the main handle 2 (Fig. F).
3. Press the contact trip 3 of the tool down against the workpiece 17 at a 90^ angle (Fig. H).
4. Once the contact trip is fully depressed into the work piece pull the trigger 1.

NOTE: The staple will not fire into the workpiece unless the contact trip is fully depressed.

NOTE: Test the setting depth of your tool on a scrap peice of material that is to be used for your project. Refer to Depth Adjustment Knob/Drive Force Indicator.

Installing Wire Fencing (Fig. A, G, I)

The onboard wire clip comes with two size options for installing wire fencing.

1. For small wire fencing projects, rotate the small wire application edge 19 towards the front of contact trip 3.
2. For large wire fencing projects, rotate the large wire application edge 20 towards the front of contact trip 3.
3. Hold the wire fencing in place on the workpiece 17 (Fig. I).

NOTE: Keep your fingers away from the discharge area of the contact trip 3.

1. Make sure the wire is centered into the notch of the contact trip while depressing the contact trip of the tool against the workpiece.
2. Once the contact trip is full depressed, pull the trigger 1 to drive a staple into the workpiece.

Installing Screen (Fig. A, G, J)

1. For stapling screen material, rotate the onboard wire clip to the screen application edge 18 towards the front of contact trip.
2. Hold the screen material in place on the workpiece 17 (Fig.J).

NOTE: Keep your fingers away from the discharge area of the contact trip 3.

1. Depress the contact trip of the tool against the workpiece.
2. Once the contact trip is full depressed, pull the trigger 1 to drive a staple into the workpiece.

Clearing a Jammed Staple (Fig. A, L)

WARNING: Do not actuate the tool if a staple is jammed. Attempting to use the tool while it is jammed could damage the tool or is parts.

If a staple becomes jammed in the tool, keep the tool pointed away from you and follow these instructions to remove the jammed staple.

1. Remove the battery pack 10.
2. While depressing the magazine latch 14 slide the magazine 4 out of the tool until it reaches the end of its travel.
3. Remove the staple strip 15 from the staple channel 16.

4. Visually check the front of the contact trip 3 and the inside of the staple channel 16 for any jammed staples.

5. Remove bent staple, using needle-nose pliers 22 if necessary (Fig. L).

6. Reinsert staple strip into magazine (see Loading the Tool).
7. Reinsert battery pack.

MAINTENANCE

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Your CRAFTSMAN power tool has been designed to operate over a long period of time with minimum maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

Cleaning

WARNING: Blow dirt and dust out of all air vents with clean, dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performing this procedure.

WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

Accessories

WARNING: Since accessories, other than those offered by CRAFTSMAN, have not been tested with this product, use of such accessories with this product could be hazardous. To reduce the risk of injury, only CRAFTSMAN-recommended accessories should be used with this product. Recommended accessories for use with your product are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN. Call 1-888-331-4569.

Repairs

The charger and battery pack are not serviceable. There are no serviceable parts inside the charger or battery pack.

WARNING: To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment (including brush inspection and replacement, when applicable) should be performed by a CRAFTSMAN factory service center or a CRAFTSMAN authorized service center. Always use identical replacement parts.

Register Online

Thank you for your purchase. Register your product now for:

• WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with your product.
• CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof of purchase.
  FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act.

Register online at www.craftsman.com/account/login.

ENGLISH

Three-Year Limited Warranty

For warranty terms, go to www.craftsman.com/pages/warranty.

To request a written copy of the warranty terms, contact: Customer Service at CRAFTSMAN, 701 East Joppa Road, Towson, MD 21286 or call 1-888-331-4569.

LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country-specific warranty information contained in the packaging, call the local company, or see website for warranty information.

FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-888-331-4569 for a free replacement.

Utilisation prévue

www.craftsman.com/account/login.

Col. Santa Fe Alvaro Obregon,

Ciudad de Mexico, Mexico.

C.P.01210

TEL[phone]

R.F.C.BDE8106261W7

Registrar en Linea

WARNING: Use of any other battery packs may create a risk of injury and fire.

AERTISSEMENT:utiliser d'autres blocs-piles peut creer un risque de blessure ou d'incendie.
ADVERTENCIA: El uso de cualquier(other paquete de batería pueda create un riesgo de lesiones e incendio.

NOTE: DO NOT charge when the battery pack is below 40^ F (4.5^ C) or above 104^ F (40^ C). Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 104^ F (40^ C).
