USER MANUAL 60.2552.01 TFA

BINGO 2.0 - Radio-controlled alarm clock

3. Range of operation and all the benefits of your new instrument at

• With time zone and manual setting option

• Two separate alarms with different alarm sounds

• Choice of ascending or continuously loud alarm tone

• Indication of indoor temperature

• Indication of weekday and date

• Automatic backlight with light sensor

• Intuitive operation with silent keys

• This product is exclusively intended for the range of application described above. It should only be used as described within these instructions.

• Unauthorized repairs, modifications or changes to the product are prohibited. Caution! Risk of injury:

• Keep this instrument and the batteries out of reach of children. Thank you for choosing this instrument from TFA.

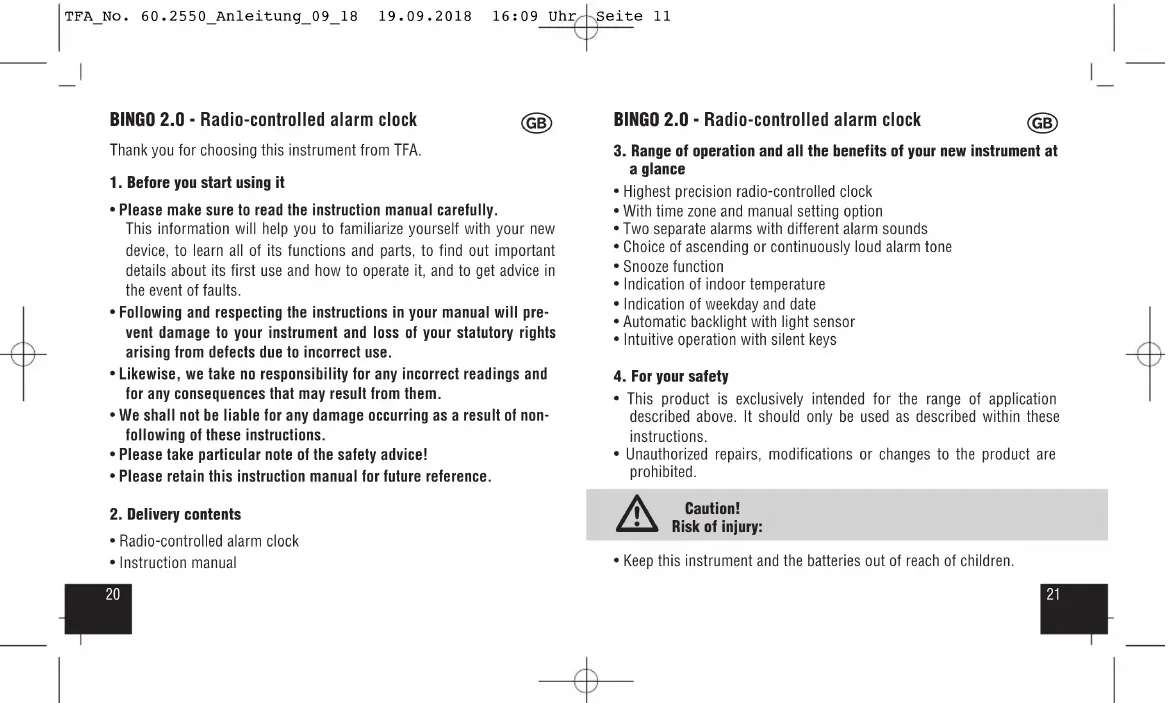

1. Before you start using it

• Please make sure to read the instruction manual carefully. This information will help you to familiarize yourself with your new device, to learn all of its functions and parts, to find out important details about its first use and how to operate it, and to get advice in the event of faults.

• Following and respecting the instructions in your manual will pre- vent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.

• Likewise, we take no responsibility for any incorrect readings and for any consequences that may result from them.

• We shall not be liable for any damage occurring as a result of non- following of these instructions.

• Please take particular note of the safety advice!

• Please retain this instruction manual for future reference.

2. Delivery contents

• Radio-controlled alarm clock

BINGO 2.0 - Radio-controlled alarm clock

LARM switch C: Housing (Fig. 1-2): C 1: Battery compartment C 2: Colour mark for alarm time 1 ON / OFF C 3: Colour mark for alarm time 2 ON / OFF C 4: Light sensor

• Batteries contain harmful acids and may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help imme- diately.

• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!

• Low batteries should be changed as soon as possible to prevent damage caused by leaking. Never use a combination of old and new batteries together, nor batteries of different types.

• Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries. Important information on product safety!

• Do not expose your product to extreme temperatures, vibrations or shocks.

• Protect it from moisture.

BINGO 2.0 - Radio-controlled alarm clock

• If the clock cannot detect the DCF-signal (e.g. due to interferences, transmitting distance, etc.), the time can be set manually. The clock will then work as a normal quartz clock. (See: Manual settings). Radio-controlled time reception The time base for the radio-controlled time is a caesium atomic clock operated by the Physikalisch Technische Bundesanstalt in Braun- schweig. It has a time deviation of less than one second in one million years. The time is coded and transmitted from Mainflingen near Frank- furt via frequency signal DCF-77 (77.5 kHz) and has a transmitting range of approximately 1.500 km. Changeover from summer time to winter time is automatic. In Daylight Saving Time, DST is shown on the LCD. The quality of the reception depends mainly on the geographic location. Normally there should be no reception problems within a

1.500 km radius around Frankfurt.

Please take note of the following:

• The recommended distance to any interfering sources like computer screens or TV sets is at least 1.5 - 2 meters.

• Inside concrete rooms reinforced with steel (e.g. basements, super- structures), the received signal is naturally weakened. In extreme cases, please place the unit close to a window to improve the recep- tion.

• Open the battery compartment and insert the three AA 1.5 V batteries. Make sure the polarities are correct.

• Close the battery compartment again.

• The device will alert you with a beep and all LCD segments will be displayed for a short moment.

• The clock will now scan the DCF frequency signal and the DCF sym- bol will be flashing on the LCD. When the time code is success- fully received after 3-8 minutes, the radio-controlled time, the date and the DCF symbol are steadily displayed on the LCD.

• The DCF reception always takes place at 3:00 o'clock in the morning. If the reception is not successfully received at this time, further attempts will happen at 4:00 and 5:00 o'clock respectively.

• You can also start the initialization manually.

• Press and hold the – button for three seconds.

• The DCF symbol will be flashing.

• To end the reception, press and hold the – button for three seconds again. The DCF symbol disappears.

• There are three different reception symbols: flashing - reception is active solid - reception is good no symbol - no reception/reception is deactivated TFA_No. 60.2550_Anleitung_09_18 19.09.2018 16:09 Uhr Seite 132726 BINGO 2.0 - Radio-controlled alarm clock

BINGO 2.0 - Radio-controlled alarm clock

• Press the – or + button to adjust the time zone (-9/+9).

• The time zone correction is needed for countries where the DCF sig- nal can be received but the time zone is different from the DCF time (e.g. +1=one hour later).

• Confirm the setting with the SET button.

• Press the SET button to make the settings in the following sequence: the hours, the minutes, the year, the month, the day, the temperature unit (default °C), the day-of-week language (default German), and the button tone (default OFF). Press the – or + button to adjust it.

• Confirm the setting with the SET button.

• After a successful reception of the DCF signal, and if the DCF recep- tion is activated (ON), the manually set time will be overwritten.

7.1.1 Setting of the temperature unit

• Press the – or + button to toggle between Celsius (°C) or Fahrenheit (°F) as temperature unit to select.

• Confirm the setting with the SET button.

• If Fahrenheit is set, the time is automatically displayed in the 12- hour format. AM or PM appears on the display. The date format changes to month / day.

• During nighttime, the atmospheric interference is usually less severe, and reception is possible in most cases. A single daily reception is adequate to keep the accuracy deviation under 1 second.

• Press and hold – or + button in the setting mode for fast mode.

• The instrument will automatically quit the setting mode if no button is pressed within 15 seconds.

• If the button tone is enabled, each button operation is acknowledged with a beep.

• Press and hold the SET button at the back in normal mode for three seconds.

• dcF appears on the display and ON (default) will be flashing. If the DCF reception is activated and after successful reception of the DCF signal no manual adjustment is necessary.

• Press the – or + button if you want to deactivate the DCF reception (OFF).

• Confirm the setting with the SET button.

BINGO 2.0 - Radio-controlled alarm clock

• The adjusted alarm time appears on the display.

• To activate the alarm function, move the switch alarm time 1 ON/OFF upwards (ON). At the same time, the box is highlighted in colour and a frame with the alarm symbol appears around the alarm time:

• The first alarm time is now activated.

• When the adjusted alarm time is reached, the alarm will ring.

• The alarm symbol will be flashing and the backlight will be activated for 5 seconds.

• Press any button to stop the alarm.

• If the alarm is not stopped manually, the alarm will automatically turn off after a few minutes.

• The alarm symbol remains on the display and the alarm time will be reactivated at the same time

• When the alarm rings, press the SNOOZE/LIGHT button to activate the snooze function.

• Once the snooze function is activated, zZ will be flashing on the dis- play.

• The alarm will be interrupted for 5 minutes.

• Slide the alarm time 1 ON/OFF switch downwards (OFF) to deacti- vate the alarm function.

• The alarm symbol and the colour mark disappear.

7.1.2 Setting of the day-of-week language

• Adjust the desired day-of-week language with the – or + button: Ger- man (D), English (EN), French (FR), Spanish (ES), Italian (IT) or Dutch (NL).

• Confirm the setting with the SET button.

7.1.3 Setting of the button tone

• Normally, the button tone (beep) is disabled (OFF).

• Press the – or + button to activate the button tone (ON).

• Confirm the setting with the SET button.

• The alarm clock has two separate alarms with different alarm tones.

8.1 Setting of the first alarm time

• Press the button in normal mode.

• 7:00 (default) or the last adjusted alarm time, appears on the display.

• The hour digits flash.

• Press the – or + button to adjust the hours.

• Confirm the setting with the button.

• The minute digits will be flashing. Press the – or + button to adjust the minutes.

BINGO 2.0 - Radio-controlled alarm clock

10. Care and maintenance

• Clean your instrument with a soft damp cloth. Do not use solvents or scouring agents.

• Remove the batteries if you do not use the product for a long period of time.

• Store the instrument in a dry place.

10.1 Battery replacement

• Change the batteries when the battery symbol appears on the display.

• Open the battery compartment and insert three new AA 1.5 V batteries. Ensure the battery polarities are correct

• Close the battery compartment again.

Problem Solution No display ➜ Ensure that the batteries polarities are correct ➜ Change the batteries No DCF reception ➜ Activate (ON) the DCF reception in the setting mode

8.2 Setting of the second alarm time

• Press the button in normal mode.

• 7:00 (default), or the last adjusted alarm time, appears on the dis- play.

• Set the alarm time for the second alarm in the same way as the first one.

• You can select either continuously loud or ascending alarm tone with the slide switch ALARM / ALARM found on the back of the unit.

• The backlight turns on for 5 seconds and fades gently.

• The device is provided with a light sensor to turn on the light auto- matically when dark.

• Use the AUTO LIGHT ON/OFFF switch at the back to activate or deac- tivate the automatic backlight.

• appears or disappears on the display.

BINGO 2.0 - Radio-controlled alarm clock

This product has been manufactured using high-grade materials and components that can be recycled and reused. Never dispose of empty batteries and rechargeable batter- ies in household waste. As a consumer, you are legally required to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to pro- tect the environment. The symbols for the heavy metals contained are: Cd=cadmium, Hg=mercury, Pb=lead This instrument is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE). Please do not dispose of this instrument in household waste. The user is obligated to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmen- tally-compatible disposal. ➜ Press the – button for 3 seconds and start the reception manually ➜ Choose another place for your pro- duct ➜ Wait for attempted reception during the night ➜ Check if there is any source of inter- ference ➜ Restart the device according to this instruction manual ➜ Manual setting of the clock No backlight ➜ Set the AUTO LIGHT switch to ON (see: backlight) ➜ Clock is in the DCF signal reception mode Flickering backlight ➜ Change the batteries Incorrect display ➜ Change the batteries If your device fails to work despite these measures, contact the supplier from whom you purchased this product. TFA_No. 60.2550_Anleitung_09_18 19.09.2018 16:09 Uhr Seite 173534 BINGO 2.0 - Radio-controlled alarm clock

Power consumption: Batteries 3 x AA 1.5 V Temperature measuring range: -10°C ... 50°C (14°F... 122°F) °C/°F-reversible Housing dimension: 95 x 41 x 96 mm Weight: 161 g (instrument only) No part of this manual may be reproduced without written consent of TFA Dost- mann. The technical data are correct at the time of going to print and may change without prior notice. The latest technical data and information about this product can be found in our homepage by simply entering the product number in the search box. EU Declaration of conformity Hereby, TFA Dostmann declares that the radio equipment type 60.2550 and 60.2552 is in compliance with Directive 2014/53/EU. The full text of the EU decla- ration of conformity is available at the following Internet address: www.tfa-dostmann.de E-Mail: [e-mail] TFA Dostmann GmbH & Co.KG Zum Ottersberg 12, D-97877 Wertheim, Germany 09/18 TFA_No. 60.2550_Anleitung_09_18 19.09.2018 16:09 Uhr Seite 183736 BINGO 2.0 - Réveil radio-piloté
