USER MANUAL 60.2018.02 TFA

Thank you for choosing this instrument from TFA.

1. Before you use this product

• Please make sure you read the instruction manual carefully. This information will help you to familiarize yourself with your new device, to learn all of its functions and parts, to find out important details about its first use and how to operate it and to get advice in the event of a malfunction.

• Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.

• Likewise, we take no responsibility for any incorrect readings or for any consequences resulting from them.

• We shall not be liable for any damage occurring as a result of non following of these instructions.

• Please take particular note of the safety advice!

• Please keep this instruction manual safe for future reference.

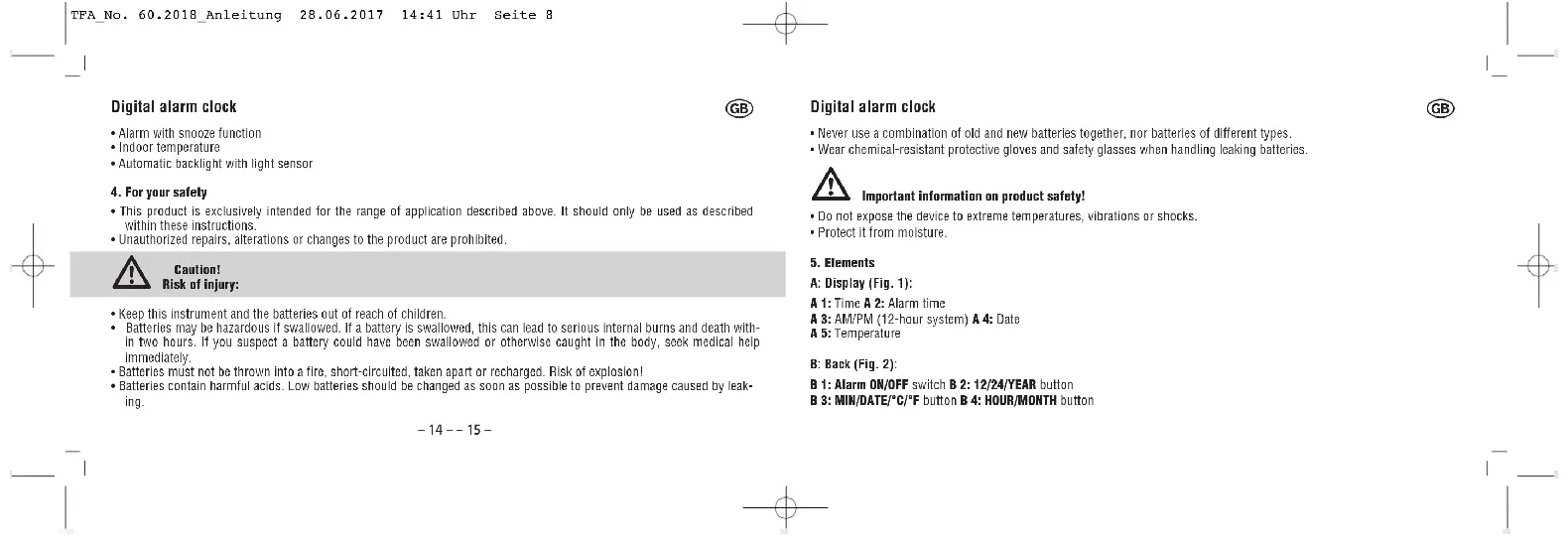

3. Range of application and all the benefits of your new instrument at a glance

• Alarm with snooze function

• Automatic backlight with light sensor

• This product is exclusively intended for the range of application described above. It should only be used as described within these instructions.

• Unauthorized repairs, alterations or changes to the product are prohibited. Caution! Risk of injury:

• Keep this instrument and the batteries out of reach of children.

• Batteries may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death with- in two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.

• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!

• Batteries contain harmful acids. Low batteries should be changed as soon as possible to prevent damage caused by leak- ing. Digital alarm clock

• Never use a combination of old and new batteries together, nor batteries of different types.

• Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries. Important information on product safety!

• Do not expose the device to extreme temperatures, vibrations or shocks.

• Protect it from moisture.

• Remove the protective film from the display.

• Open the battery compartment and insert three new AAA 1.5 V batteries.

• Close the battery compartment again.

• Press the MIN/DATE/°C/°F button to select the temperature display in °C (Celsius) or °F (Fahrenheit) as temperature unit.

7.2 12-HR or 24-HR system

• Press the 12/24/YEAR button to choose between the 12-hour or 24-hour system. In 12-hour system AM or PM appears on the display. Digital alarm clock

• Press and hold the buttons in setting mode for fast mode.

• After setting slide the switch to the position LOCK.

• The time flashes on the display.

• Press the HOUR/MONTH button to adjust the hours.

• Press the MIN/DATE/°C/°F button to adjust the minutes.

7.3.2 Setting of the date

• Slide the switch to the position DATE SET.

• The date flashes on the display.

• Press the MIN/DATE/°C/°F, HOUR/MONTH and 12/24/YEAR button to adjust the date.

7.3.3 Alarm time setting

• Slide the switch to the position AL SET.

• Press the HOUR/MONTH button to adjust the hours.

• Press the MIN/DATE/°C/°F button to adjust the minutes.

• Slide the switch to the position AL ON to activate the alarm function.

• The alarm symbol and the snooze symbol appear on the display.

• When the adjusted alarm time is reached, the alarm rings.

• If the alarm is not stopped manually, the ascending alarm tone automatically turns off after one minute and the alarm will be reactivated at the same set time on the following day. The alarm symbol and the snooze symbol remain on the display.

• Press any button to turn off the alarm sound or press the SNOOZE/LIGHT button to activate the snooze function.

• The backlight turns on for a short period.

• The snooze symbol flashes on the display.

• The alarm sound will be interrupted for five minutes.

• Press any button to turn off the snooze function.

• Slide the switch to AL OFF, to turn off the alarm function.

• The alarm symbol and the snooze symbol disappear from the display. Digital alarm clock

• Press the SNOOZE/LIGHT button and the backlight will be activated for 5 seconds.

• Move the SENSOR ON/OFF switch to ON, a weak backlight turns on automatically as soon as the light sensor registers darkness.

9. Care and maintenance

• Clean the device with a soft damp cloth. Do not use solvents or scouring agents.

• Remove the batteries if the device will not be used for an extended period of time.

• Keep the device in a dry place.

9.1 Battery replacement

• Change the batteries when the device functions become weak.

• Open the battery compartment and insert three new AAA 1.5 V batteries.

• Close the battery compartment again.

➜ Change the batteries Incorrect indication ➜ Change the batteries If your device fails to work despite these measures, contact the retailer where you purchased the product.

This product has been manufactured using high-grade materials and components which can be recycled and reused. Never dispose of empty batteries and rechargeable batteries in ordinary household waste. As a consumer, you are required by law to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment. The symbols for the contained heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE). Please do not dispose of this product in ordinary household waste. As a consumer, you are required to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal. Digital alarm clock

Power consumption 3 x AAA 1,5 V batteries (not included) Measuring range - temperature 0°C ... 50°C (32°F... 122°F) °C/°F-reversible Housing dimension 138 x 48 x 79 mm Weight 155 g (device only) TFA Dostmann GmbH & Co.KG, Zum Ottersberg 12, D-97877 Wertheim, Germany No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice. The latest technical data and information about your product can be found by entering the product number on our homepage. www.tfa-dostmann.de 06/17 TFA_No. 60.2018_Anleitung 28.06.2017 14:41 Uhr Seite 11– 22 – – 23 –
