Product type	Front-loading washing machine
Brand	THOMSON
Model	WFT8142I
Washing capacity	8 kg
Power supply	220-230 V ~ 50 Hz, 2200 W
Required water pressure	0.05 to 1 MPa (0.5 to 10 kg/cm²)
Wash programs	Cotton 90°C, 60°C, 40°C, 30°C; Synthetic 60°C, 40°C, 30°C; Delicate cold, 30°C; Wool; Hand wash; Duvet; Quick; Spin; ExcelA 45'
Options	Delayed start up to 24h, Easy iron, Extra rinse, Intensive
Maximum spin speed	1200 rpm
Spin speed selection	From 400 to 1200 rpm in 100 rpm increments, or no spin
Child safety	Key lock by long press on Start/Pause
Drum type	Stainless steel
Detergent drawer	3 compartments (prewash, wash, fabric softener), removable siphon, adaptable for liquid detergent
Drain filter	Accessible via the base, cleaning recommended at least once a year
Installation	Unpacking (3 transit bolts), leveling via adjustable feet, water and drain connection
After-sales service	THOMSON - contact retailer or qualified professional

Frequently Asked Questions - WFT8142I THOMSON

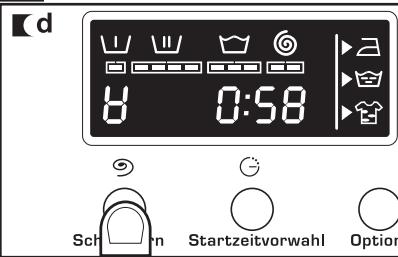

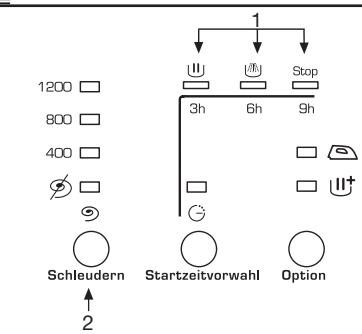

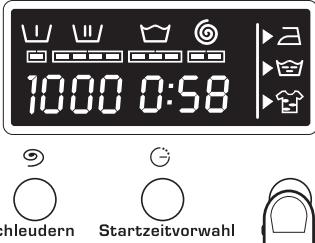

How to use the delayed start on the THOMSON WFT8142I washing machine?

Press the Delayed start button after selecting the program. Each press delays the wash by one hour (up to 24h on models with display). To cancel, press several times until it disappears.

What to do if water does not enter the machine (code F01)?

Check that the water tap is open, that there is no water cut-off, and that the water inlet filter is not clogged. Clean the filter if necessary.

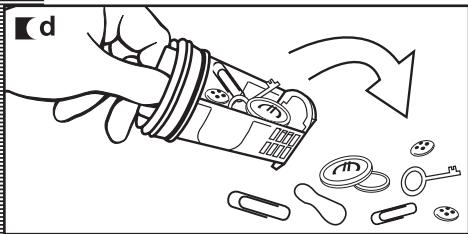

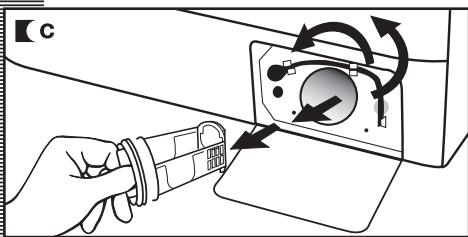

How to clean the drain filter?

Open the base cover with a coin, place a container under the hose, unscrew the filter and remove any foreign objects. Important: the water should not exceed 30°C to avoid burns.

Why does the machine not drain (code F02)?

Code F02 indicates a drainage problem. Check that the pump filter is not clogged, that the drain hose is not kinked or blocked, and that the pump is working.

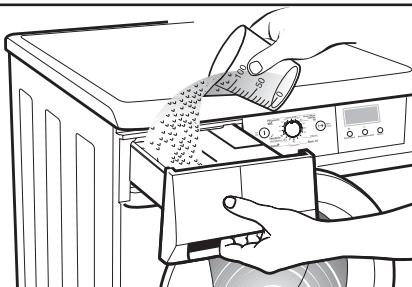

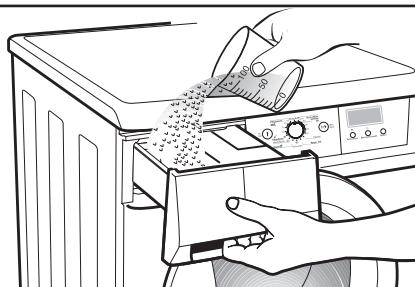

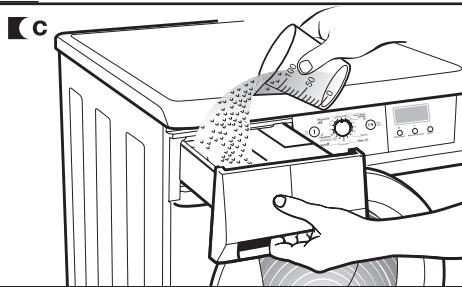

How to use liquid detergent?

Close the wash compartment flap by pulling the blue tab fully. The flap will remain vertical. For powder detergent, leave the flap open.

What does code C03 (no spin) mean?

The laundry distribution in the drum is uneven, causing excessive vibrations. Redistribute the laundry evenly and restart a spin program.

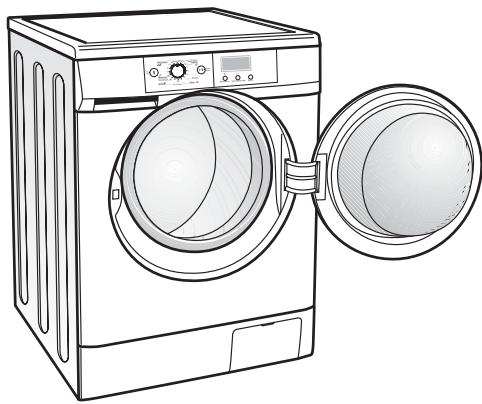

How long should you wait to open the door after the wash ends?

Wait approximately 2 minutes after the drum has completely stopped for the lock safety to deactivate.

How to activate the child lock?

After selecting the program and options, press the Start/Pause button for at least 3 seconds. The display shows the lock indicator. To cancel, press and hold for 3 seconds again.

What programs are available for delicate clothing?

Programs Delicate cold and Delicate 30°C are suitable. The Hand wash program is also available for wool.

What to do if the display shows error code F05 to F10?

These codes indicate a technical problem. Unplug the appliance and contact the Official THOMSON Technical Service. Do not open the appliance yourself.

USER MANUAL WFT8142I THOMSON

INSTALLATION AND ASSEMBLY 56

USING THE APPLIANCE. PRACTICAL TIPS 60

MAINTENANCE AND CLEANING 70

SAFETY AND TROUBLESHOOTING 72

ENVIRONMENTAL WARNINGS 75

THOMSON

Chère Cliente, Cher Client,

NOUS PENSONS TOUJOURS A VOTRE CONFORT

NOUS PENSONS TOUJOURS A L'INNOVATION

Écrans LCD.

Illustration of a coiled cable with two connectors (no text or symbols)

Line drawing of a hand opening a washing machine with a door, showing the blade and vent (no text or symbols)

DÉBRIDAGE

Illustration of a screwdriver with a head screw and threaded shaft (no text or symbols)

Illustration of a hand adjusting a circular mechanical component with a ring (no text or symbols visible)

Technical diagram showing a threaded connector and a coiled hose assembly (no text or symbols)

Technical line drawing of a mechanical connector assembly (no text or symbols)

Diagram of a pipe fitting with multiple connectors and fittings (no text or symbols)

RACCORDEMENT AU RÉSEAU DE VIDANGE

Pure mechanical diagram showing a bolt and nut assembly without any text, numbers, or symbols

Diagram of a hand pressing a bolt with an upward arrow indicating motion (no text or symbols)

Illustration of a front-loading washing machine with a door handle and front panel, shown in grayscale (no text or symbols)

Line drawing of a washing machine with a circular vent and directional arrow (no text or symbols)

BRANCHEMENT ÉLECTRIQUE

Line drawing of a person holding a small object near their torso, with no visible text or symbols

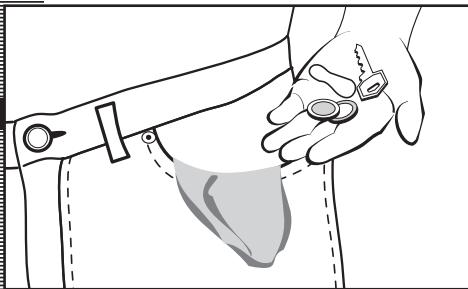

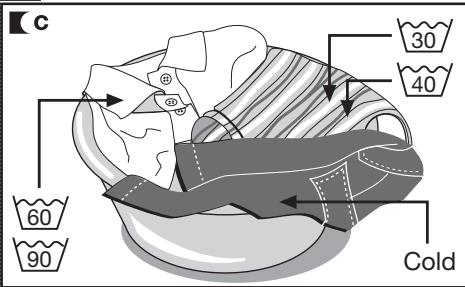

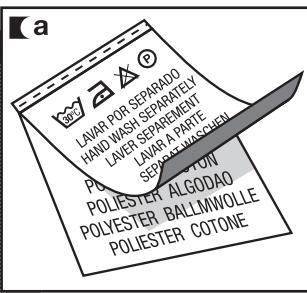

TRI DU LINGE

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a car interior drawer with an arrow indicating direction (no text or symbols)

c

Line drawing of hands cleaning a washing machine with a cloth (no text or symbols)

Abstract black-and-white graphic with two interlocking leaf-like shapes inside a circle, no text or symbols present.

Abstract black-and-white line art of two overlapping leaves within a circular frame (no text or symbols)

7

DÉROULEMENT DU PROGRAMME DE LAVAGE ET COUPURE D'ÉLECTRICITÉ

Line drawing of a front-loading washing machine with two doors open, showing front and back views (no text or symbols)

1 NETTOYAGE DU BAC À LESSIVE

Line drawing of hands using a drain to clean or wash a small container (no text or symbols)

Diagram showing a mechanical assembly with arrows indicating motion or force direction (no text or symbols)

Line drawing of a hand holding a small object with liquid pouring from a faucet (no text or symbols)

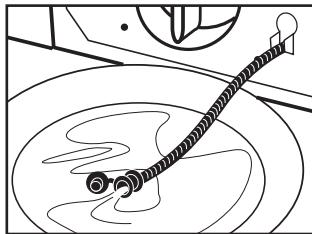

NETTOYAGE DU FILTRE

Line drawing of a hand holding a tool near a device with a dial (no text or symbols)

Line drawing of a kitchen appliance with a circular base and a rotary dial (no text or symbols)

Simple line drawing of a mechanical component with a coiled spring or rope, no text or symbols present.

NETTOYAGE EXTÉRIEUR

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Abstract black-and-white line art of two overlapping leaves within a circular frame (no text or symbols)

Important

Illustration of a coiled cable with two connectors (no text or symbols)

Line drawing of a hand opening a large washing machine (no text or symbols present)

ENTFERNEN DER

Illustration of a screwdriver with a head screw and threaded shaft (no text or symbols)

ANSCHLUSS AN DIE

KALTWASSERVERSORGUNG

Illustration of a hand adjusting a circular mechanical component (no text or symbols visible)

Technical diagram showing a threaded connector and a coiled hose assembly (no text or symbols)

Technical line drawing of a mechanical connector assembly (no text or symbols)

Diagram of a pipe fitting with multiple connectors and fittings (no text or symbols)

ANSCHLUSS AN DAS

ABWASSERNETZ

Pure mechanical diagram showing a bolt and rotating component without any text, numbers, or symbols

Diagram of a hand pressing a bolt with an upward arrow indicating motion (no text or symbols)

Line drawing of a front-loading washing machine with a door and front panel (no text or symbols)

Line drawing of a washing machine with a circular vent and directional arrow (no text or symbols)

Line drawing of a person holding a small object near their torso, with no visible text or symbols

Diagram of a car interior showing a directional arrow and labeled component 'b' (no text or symbols beyond label)

Line drawing of a car interior drawer with an arrow indicating direction (no text or symbols)

Line drawing of a hand washing a microwave oven with a cloth partially removed (no text or symbols)

Abstract black-and-white logo featuring two interlocking leaf-like shapes within a circular frame (no text or symbols)

Abstract black-and-white line art of two interlocking leaves within a circular frame (no text or symbols)

PROGRAMMABLAUF

Line drawing of a front-loading washing machine with two doors open, showing front panel and control panel (no text or symbols)

Line drawing of hands using a tool to clean or wash a small object (no text or symbols present)

Diagram showing a mechanical assembly with arrows indicating direction (no text or symbols)

Line drawing of a hand holding a small object with liquid, possibly a tool or device, against a plain background (no text or symbols)

FILTERREINIGUNG

Line drawing of a hand holding a tool near a device panel (no text or symbols)

Line drawing of a washing machine with a circular dial and control panel (no text or symbols)

Simple line drawing of a mechanical component with a coiled spring and circular base (no text or symbols)

ÄUßERE REINIGUNG

Symbol of a trash bin crossed out by a diagonal line, with no text or labels present.

Abstract black-and-white line art of two overlapping leaves within a circular frame (no text or symbols)

You have just acquired a THOMSON washing machine and we would like to thank you.

We have invested all our dedication and know-how in this appliance so that it would best meet your needs. With innovation and performance, we designed it to be always easy to use.

In the THOMSON product range, you will also find a wide choice of ovens, microwaves, cooking hobs, ventilation hoods, dishwashers, driers, fridges and freezers, that you can coordinate with your new THOMSON washing machine.

As part of our commitment to constantly improving our products, we reserve the right to make changes to them based on technical advances to their technical and functional features and appearance.

Warning:

Before installing and using your appliance, please carefully read this Guide to Installation and Use, which will allow you to quickly familiarise yourself with its operation.

thanks for placing your trust in us

Our new range of washing machines has been designed to make life more convenient for you:

WITH YOUR CONVENIENCE ALWAYS IN MIND

Large hatch.

Maximum opening.

• Designed higher than the normal axis and with the drum tilted to achieve maximum ergonomics.
• Its maximum opening makes it much easier to put clothes in.

■ Easy-access filter.

• And simple maintenance.

WITH SAVINGS ALWAYS IN MIND

■ 8 kg capacity.

- Which allows you to do less washes and make savings.

■ Washing in less time.

- The wash programmes do not last as long giving you more free time.

■ Time delay.

- To take advantage of cheap electricity rates.

WITH INNOVATION ALWAYS IN MIND

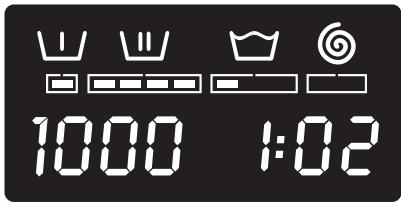

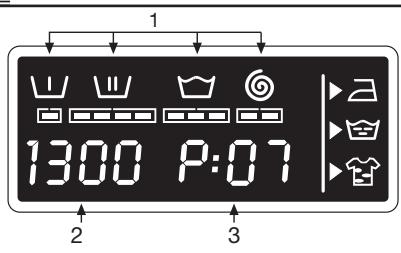

LCD screens.

- Which allows you to have constant information about the wash programme and its duration.

■ Detergent dispenser designed to offer maximum convenience.

• Easy to remove for cleaning.
• Possibility of using liquid detergent.

warnings

To avoid the risk of fire, electrical shocks, injury or damage when using your washing machine, please take the following precautions:

This washing machine comes with a manual that includes operating, maintenance and installation instructions. Please read all the instructions before using the washing machine.

■ Do not wash items that have previously been cleaned, washed, soaked or treated with petrol, solvents for dry cleaning, other inflammable substances or explosives, as they produce fumes that could catch fire or explode.

■ Do not add petrol, solvents for dry cleaning or other inflammable or explosive substances to the wash water as they produce fumes that could catch fire or explode.

■ Do not repair or replace any part of the washing machine or try to carry out any type of servicing unless it is recommended in the maintenance instructions in the manual.

- This washing machine comes with a manual that includes operating, maintenance and installation instructions. Please read all the instructions before using the washing machine. - Do not wash items that have previously been cleaned, washed, soaked or treated with petrol, solvents for dry cleaning, other inflammable substances or explosives, as they produce fumes that could catch fire or explode. - Do not add petrol, solvents for dry cleaning or other inflammable or explosive substances to the wash water as they produce fumes that could catch fire or explode. - Do not repair or replace any part of the washing machine or try to carry out any type of servicing unless it is recommended in the maintenance instructions in the manual.

■ Do not climb onto the machine or stand on the open hatch door.

■ Do not use an extension lead or adaptor to connect your washing machine to the mains supply.

■ The machine should only be used for the purpose it is designed for.

■ Follow the washing instructions recommended by the manufacturer of the garment to be washed.

■ Do not turn your washing machine on until you are sure that:

- Do not climb onto the machine or stand on the open hatch door. - Do not use an extension lead or adaptor to connect your washing machine to the mains supply. - The machine should only be used for the purpose it is designed for. - Follow the washing instructions recommended by the manufacturer of the garment to be washed. - Do not turn your washing machine on until you are sure that:

- It has been installed in accordance with the installation instructions.

- All the water, drainage, mains electricity and earth connections meet the local regulations and/or other applicable regulations.

- It has been installed in accordance with the installation instructions. - All the water, drainage, mains electricity and earth connections meet the local regulations and/or other applicable regulations.

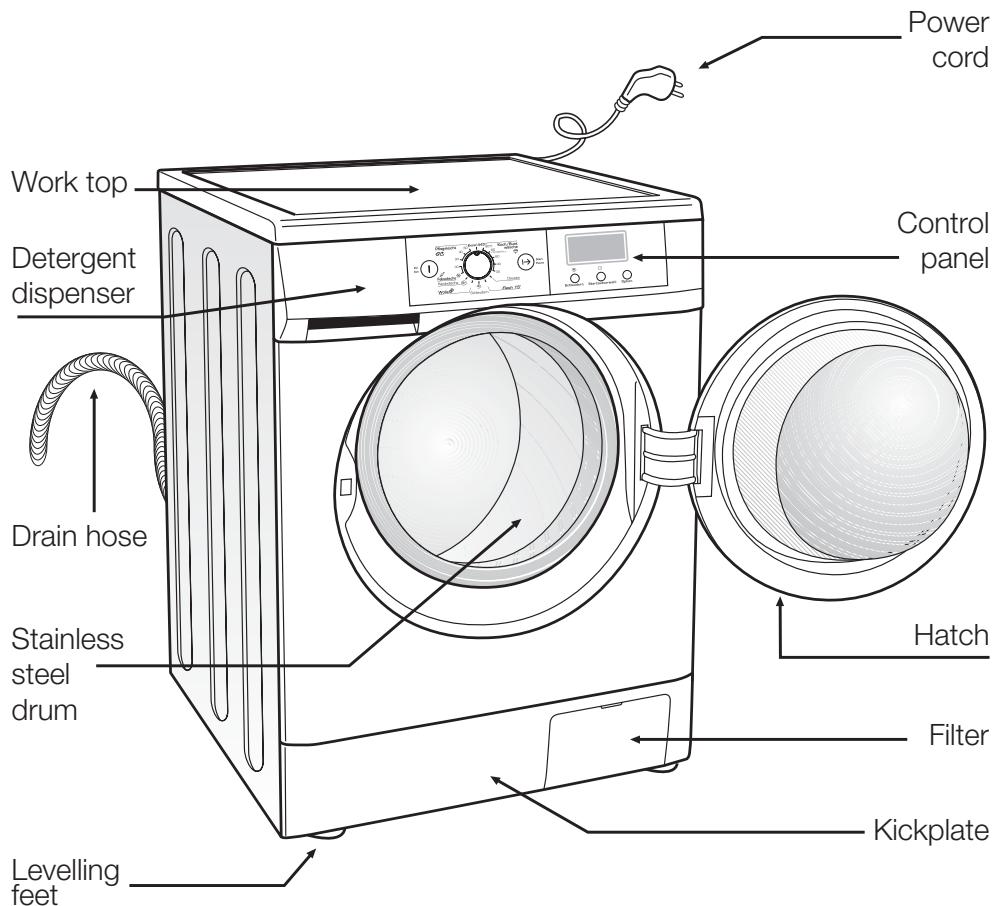

specifications

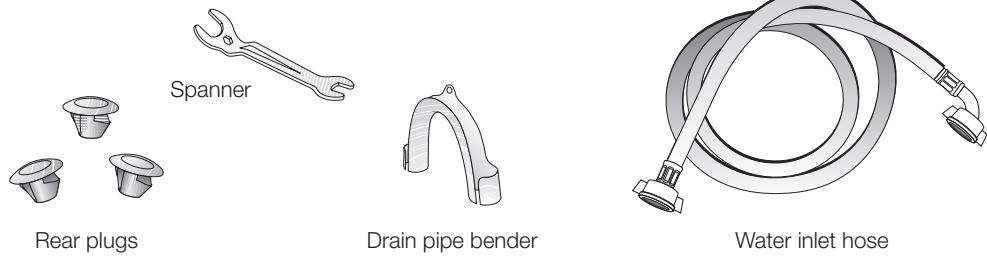

ACCESSORIES LOCATED

INSIDE THE DRUM

washing machine installation and assembly

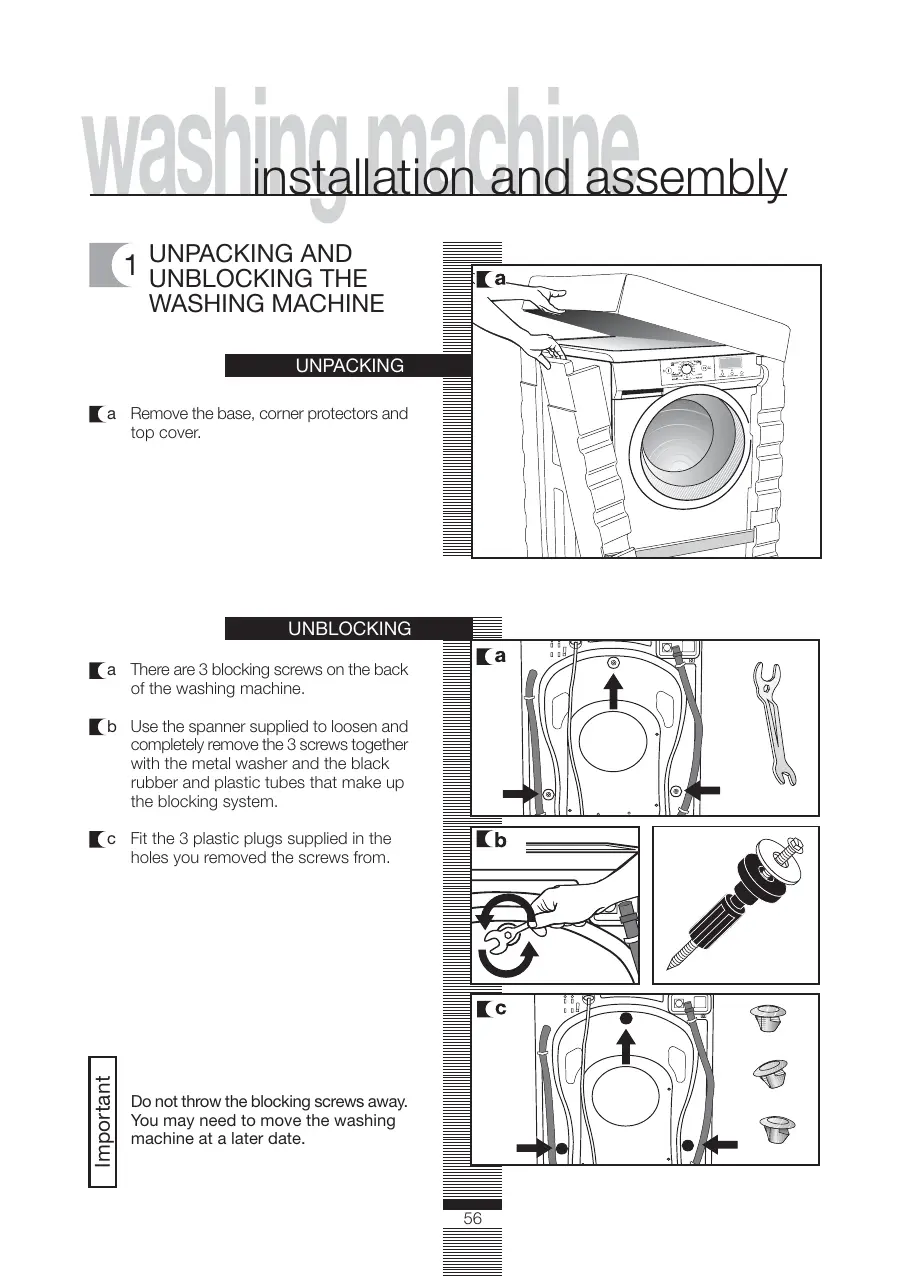

1 UNPACKING AND UNBLOCKING THE WASHING MACHINE

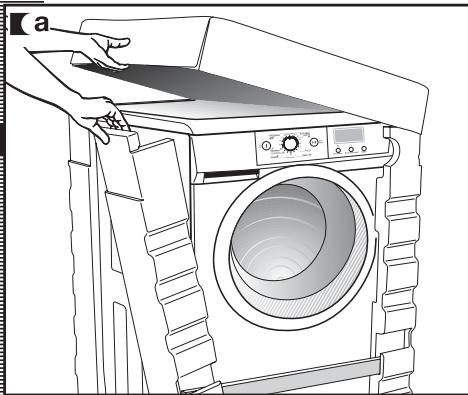

UNPACKING

a Remove the base, corner protectors and top cover.

Line drawing of a hand opening a large washing machine with a circular vent (no text or symbols)

UNBLOCKING

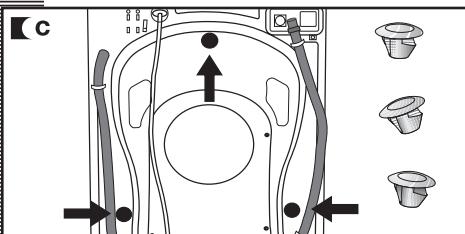

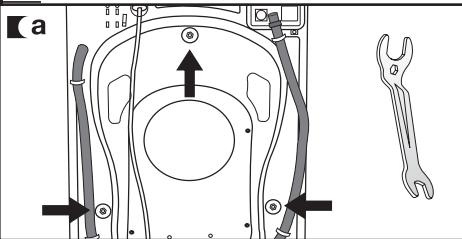

a There are 3 blocking screws on the back of the washing machine.
b Use the spanner supplied to loosen and completely remove the 3 screws together with the metal washer and the black rubber and plastic tubes that make up the blocking system.
c Fit the 3 plastic plugs supplied in the holes you removed the screws from.

Illustration of a screwdriver with a head screw and threaded shaft (no text or symbols)

Do not throw the blocking screws away. You may need to move the washing machine at a later date.

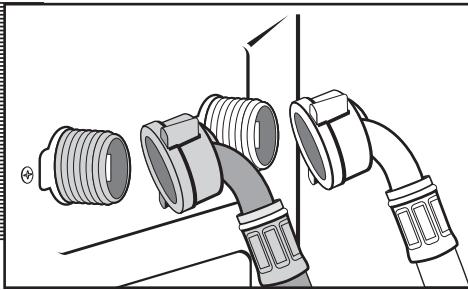

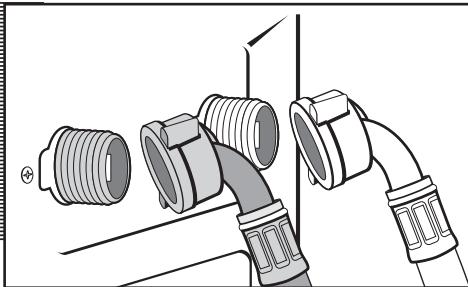

CONNECTION TO THE MAINS WATER SUPPLY

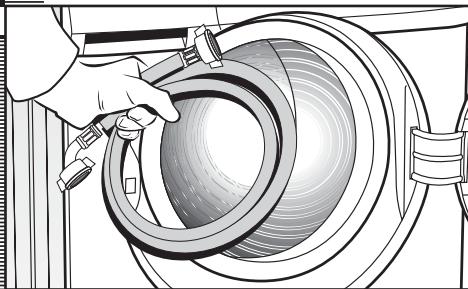

The water supply hose is inside the drum:

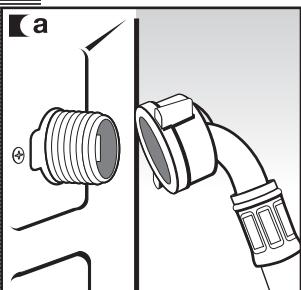

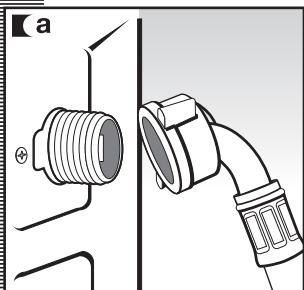

a Connect the bent end of the hose to the threaded inlet of the electrovalve located at the rear of the washing machine.
b Connect the other end of the hose to the water intake. Then securely tighten the connection nut.

It is important that the drain hose bend is correctly fastened to the outlet, to prevent any risk of it becoming detached and causing flooding.

If your washing machine has a hot water intake, connect the hose with the red threaded end to the hot water tap, and to the electrovalve with the red filter.

The washing machine must be connected to the mains water supply, using the new supply hoses supplied with the appliance. Do not use water supply hoses that have been used before. For your washing machine to work properly, the mains water pressure must be between 0.05 and 1MPa (0.05 and 10 Kgr/cm ^2 ).

Illustration of a hand adjusting a circular mechanical component (no text or symbols visible)

Technical diagram showing a threaded connector and a connected hose (no text or symbols)

Technical diagram of a mechanical connector assembly (no text or symbols)

Diagram of a pipe fitting with multiple connectors and fittings (no text or symbols)

DRAINAGE CONNECTION

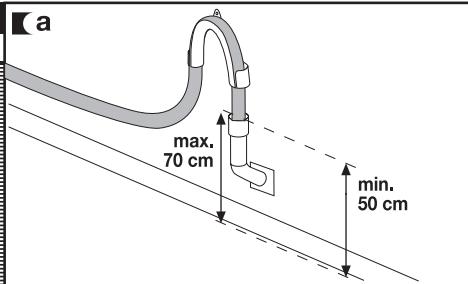

a It is recommended that you have a fixed drainage outlet 50 tom 70 cm from the floor.

Avoid the drain hose being too tight, kinked or restricted. Use the bend supplied.

3

LEVELLING THE WASHING MACHINE AND CONNECTING IT TO THE MAINS ELECTRICITY SUPPLY

installation and assembly

LEVELLING

Important

a First of all, we recommend that you fix and level the rear feet. When they are properly fixed, secure the metal locknut tightly to the top part.
b Put the washing machine into its niche. Dampen the floor to help you move the machine into its final position.
c Finally level and secure the front feet in the same way as you levelled the rear feet. Keep the spanner supplied, in case you need it again.

Mechanical assembly diagram showing a bolt and nut assembly with directional arrows (no text or labels)

Diagram of a hand pressing a button with an upward arrow, no text or symbols present

Illustration of a front-loading washing machine with a door and front panel, shown in grayscale (no text or symbols)

Line drawing of a washing machine with a curved arrow indicating motion (no text or symbols)

ELECTRICAL CONNECTION

Consult the specifications plate located on the hatch door of the washing machine before making the electrical connections. Ensure that the voltage reaching the plug is the same as that on the plate.

Do not remove the specifications plate. The information on it is important.

Important

It is very important to correctly earth the washing machine.

The electrical installation, plug, socket, fuses or automatic switch and counter must be correctly dimensioned for the maximum power indicated on the specifications plate.

Do not plug the washing machine plug into the socket with wet or damp hands.

To remove the power cord, pull on the body of the plug.

If the power cord is damaged, it must be replaced by a cord or special unit provided by either the manufacturer or your after-sales service.

With built-in washing machines, the plug must be accessible after installation.

PRE-CLEANING

When your washing machine has been correctly installed, we recommend that you pre-clean the machine.

This is to check that the installation, the connections and the drainage are all correct, and to thoroughly clean the inside of the washing machine before any wash programmes are run (see the operating instructions on the following pages).

a Press ON/OFF button.
b Select the normal programme at 60^ C.
c Press the start/pause button.

a

Hand holding a circular button with a finger, no text or symbols visible

Pfle

Before placing the clothes in the drum, make sure all the pockets are empty.

Any small objects may block the drain pump.

Line drawing of a person holding a small object near their torso, with no visible text or symbols

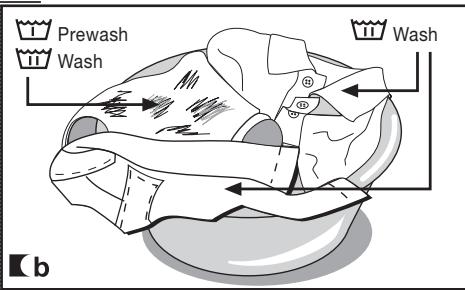

SORTING THE CLOTHES

a Sort the clothes according to fabric and how they are made. We recommend using the delicate programmes for sensitive fabrics. There is a special wool programme for woollens.
b Sort clothes according to how soiled they are.

• Wash lightly soiled garments using a short programme.
• Use a programme without prewash for medium-soiled garments.
• Wash heavily soiled garments using a long programme with prewash.

c Sort your clothes according to colour.

Wash whites and coloureds separately.

Important

We recommend loading the washing machine to its full capacity. This means savings on water and energy.

Whenever possible, we recommend that you wash garments of different sizes within the same wash programme. This improves the washing action and also aids the correct distribution of the garments in the drum when spin-drying, and the washing machine will therefore be quieter.

It is a good idea to put small garments in a wash bag.

Important

Make sure beforehand that your woollens can be machine-washed.

2 USING DETERGENT AND ADDITIVES

using the appliance and practical tips

DETERGENT

AND ADDITIVES

a Your washing machine's detergent dispenser has three compartments.
If you are going to use liquid detergent you must close the wash compartment flap. Take the blue tab protruding from the bottom of the compartment between 2 fingers and pull outwards as far as it will go. Release the flap and it will remain in the vertical position and prevent the liquid detergent from getting out. It must be open for powdered detergent. Put it in the horizontal position, pressing the top tab with your finger and pushing it back as far as it will go.
c Put the detergent, either liquid or powder, or additive into the detergent dispenser before starting the wash programme.

Important

The liquid level must never be higher than the MAX mark printed on the dispenser wall.

Remember that the amount of detergent to be used will always depend on:

■ The amount of clothes to be washed.
■ How heavily the clothes are soiled.
■ The water hardness (information about water hardness is available from the relevant local authorities).

Important

We recommend the use of a decalcifying product if the water hardness is high in your area.

a

Technical line drawing of a mechanical component with mounting holes and internal compartments (no text or symbols)

Line drawing of a device interior showing a tray with a lid and an arrow indicating direction (no text or symbols)

c

Line drawing of hands cleaning a microwave oven with a cloth (no text or symbols)

eco-note

Remember that concentrated detergents exist which are more environment- and nature-friendly.

The use of more detergent than necessary will not improve your washing results, and apart from costing you

Abstract circular design with two interlocking leaf-like shapes, no text or symbols present

money it will have a negative effect on the preservation of the environment.

We therefore recommend you follow the detergent manufacturer's instructions.

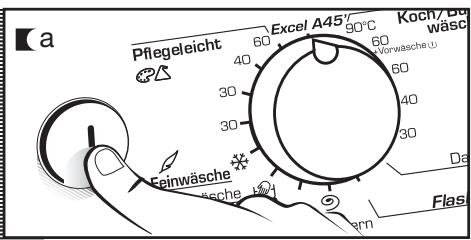

The procedure for selecting a wash programme is as follows:

a Press the On/Off button to switch on the washing machine.
b Select the desired wash programme by turning the programme selector dial (see programme table).

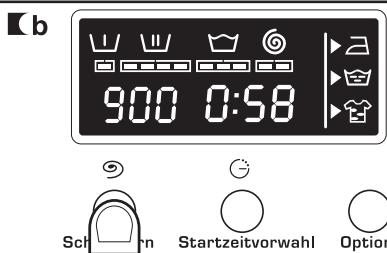

When you select a programme, the following information will appear on the display:

1 Wash programme phases:

- display models

Prewash

Wash

Rinse

Spin-dry

- non-display models

Wash

Rinse

End

2 Spin speed

3 Programme n° (for a few seconds) and then programme duration (display models only).

Options:

- display models

Easy ironing

Extra rinse

Intensive

- non-display models

Easy ironing

Intensive

There are five programme types:

Cotton programmes

Synthetic programmes

Delicate programmes

Wool programmes

Complementary programmes

eco-note

We recommend choosing the most suitable programme and avoiding using the prewash whenever possible. This will save you money and help to preserve the environment.

PROGRAMMES
Cotton	Complem.	Wool	Delicates	Synthetic
1 Cotton 90°C	6 Duvet	9 Wool	11 Delicate cold	13 Synthetic 30°C
2 Cotton 60°C	7 Rapid'	10 Hand wash	12 Delicate 30°C	14 Synthetic 40°C
+ prewash	15 min			15 Synthetic 60°C
3 Cotton 60°C	8 Spin-dry			16 ExcelA 45'
4 Cotton 40°C
5 Cotton 30°C

Abstract black-and-white line art of two interlocking leaves within a circular frame (no text or symbols)

	Programme		Recommended temperature	Textile type	Option buttons possible
					Extra rinse (*)	Intensive wash	Easy ironing	Spin-dry select	No spin	Tube full stop (*)
Cotton programmes	1	Cotton 90°C		Cotton	YES
	2	Cotton 60°C + prewash		Cotton	YES
	3 (*)	Cotton 60°C		Cotton	YES
	4	Cotton 40°C		Cotton	YES
	5	Cotton 30°C		Cotton	YES
Comp. prog.	6	Duvet		Duvet	YES
	7	Rapid' 15 min		Synthetic	YES	NO	YES
	8	Spin-dry	-		NO			YES	NO
Wool prog.	9	Wool		Wool	YES	NO	YES
	10	Hand wash	Cold	Wool		YES	NO	YES
Delicate prog.	11	Delicate cold	Cold	Delicate		YES	NO	YES
	12	Delicate 30°C		Delicate	YES	NO	YES
Synthetic prog.	13	Synthetic 30°C		Synthetic	YES
	14	Synthetic 40°C	[Y43S]	Synthetic	YES
	15	Synthetic 60°C		Synthetic	YES
	16	ExcelA 45'		Cotton/ Synthetic	YES	NO	YES

Max. load of clothes (kg)	Additive compartments	Programme description	Total consumption KWh/litres	Approx. duration (minutes)
8		Normal wash, rinses, fabric softener added automatically if used and long final spin	2,20/64	110
8		Prewash, normal wash, rinses, fabric softener added automatically if used and long final spin	1,50/64	100
8		Normal wash, rinses, fabric softener added automatically if used and long final spin	1,36/59	80
8			0,60/59	57
8			0,30/59	52
8		Delicate wash, rinses, fabric softener added automatically if used and gentle final spin	0,20/45	50
1		SHORT wash, rinse, fabric softener added automatically if used and long final spin	0,05/22	15
8	-	Draining and long final spin	0,05/0	10
2		WOOLLENS wash, rinses, fabric softener added automatically if used and gentle final spin	0,45/55	40
2			0,05/55	30
4		Delicate wash, rinses, fabric softener added automatically if used and gentle final spin	0,10/37	50
4			0,20/37	50
4		Synthetics wash, rinses, fabric softener added automatically if used and gentle final spin	0,20/45	50
4			0,40/45	55
4			1,00/45	70
4,5		Normal wash, rinses, fabric softener added automatically if used and gentle final spin	0,60/40	45

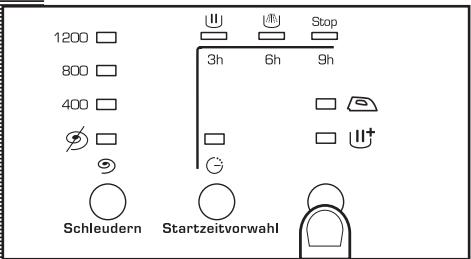

SPIN DRYING

The wash options must always be selected after choosing the wash programme. Any programme change during selection cancels the previously selected options.

■a Spin speed selection

The programme selected is associated with certain spin revolutions, as shown on the display.

■b It can be modified by pressing the spin button and the number of revolutions will be reduced by 100 revolutions at a time to 400.

c No spin 0

Press the spin button again to get to the no spin option. A programme without a final spin. It is used to prevent creasing when washing special fabrics.

d Full tub stop option

The wash programme stops on the last rinse, with the clothes left in water. When the function is deactivated, the washing machine continues the programme, draining and spin-drying. It is used, for example, when you are not at home and want to delay the spin-drying until you get home, to prevent the clothes creasing after spin-drying and being left in the drum to be removed.

TIME DELAY

Time delay selection button

On display models, a delay of up to 24 hours can be selected. The delay must be selected after choosing the wash programme.

To select the delay time, press the clock button. On display models, the delay will be increased by an hour each time the button is pressed. On non-display models, you can choose a delay of either 3, 6 or 9 hours.

Cancelling the delay

To cancel the delay you have to press the clock button successively. The delay will be cancelled when 24 hours have been reached and the button is pressed once more. If the programme is changed the delay is also cancelled.

ADDITIONAL FUNCTIONS

Additional function selection button depending on programmes

There are either 3 options or 2 options, depending on the model: easy ironing, extra rinse and intensive.

Press the select button to display the option required.

By pressing the button several times you can choose between several combinations of one, two and up to three additional functions at the same time depending on the programme selected.

Button: Easy ironing

This option prevents garments from creasing by means of carrying out a special programme with special turns to fluff out the garments after spin-drying and make them easier to iron.

Button: Extra rinse (on display models)

Increases the level of the final rinse obtained in the clothes; suitable for large loads and garments belonging to people with sensitive skin. Increases water consumption!

Button: Intensive

This option, specially recommended for heavily soiled, stained clothes, achieves better results by extending the normal wash cycle.

STARTING UP

Start/pause button

To start up the washing machine you have to press the start / pause button. The display will constantly show the minutes left until the wash is over (on display models).

LOCK FUNCTION

Lock function selection

Available on display models.

The various buttons can be locked to prevent them from being pressed and affecting the selected wash programme and options. This can be used to stop children playing with the buttons, etc.

The lock function should be activated after the wash programme has been selected together with all its options.

Activating the lock function

a The lock function is activated by pressing the start/pause button and holding it down for at least 3 seconds. The display will show if it is activated.

Deactivating the lock function

The lock function is cancelled when the wash programme comes to an end. If you want to deactivate the lock function before the end of the programme, you have to hold the start button down again for at least 3 seconds. After 3 seconds, the lock function indicator will disappear from the display, and it will go into pause status.

The ON/OFF button does not cancel the lock function.

PROGRAMME

PHASES

On display models, when the programme is running you can see which phase it is at on the display, as well as how long there is to the end of the programme. On non-display models the phase the programme is at is shown by the LEDs.

The active phases will appear successively at the top of the display as the programme progresses. The time remaining until the end of the programme will also appear on the display. It updates at regular intervals, but not minute by minute.

Any option button can be selected provided the wash phase in which it takes effect has not been passed and when the programme accepts the option.

Pressing the delay button during the wash has no effect on the washing machine.

Pressing the start/pause button during the wash activates the PAUSE function.

If you change the wash programme during the wash using the selector, the PAUSE function is activated and the programme is cancelled.

If you need to add or remove a garment, press the start/pause button and make sure that the water level is not above the door overflow level and that the temperature inside is not high. Press the start/pause button again to restart the wash from the same cycle phase it had stopped at.

POWER CUTS

If there is a power cut, when the electricity comes back on the washing machine will continue to run from where it left off (it has several hours of memory). The same will happen if the ON/OFF button is pressed.

warnings

■ Level the washing machine by adjusting the feet to reduce the noise caused by spin-drying.
■ Try and wash clothes of different sizes in the same wash programme to favour the distribution of the clothes inside the drum during spin-drying.
■ All the models have a safety system for spin-drying that prevents spin-drying from being carried out if the distribution of the clothes inside the drum is too concentrated. This prevents the appliance from vibrating too much.

If you find that the clothes are not properly wrung out, try spin-drying them again after having distributed the clothes more evenly in the drum.

washing machine maintenance and cleaning

MAINTENANCE

After each wash, leave the door open for a while to allow the air to circulate freely inside the machine.

From time to time, depending on the hardness of your water, it is recommendable to run a full wash cycle using a decalcifying product. This will extend the life of your washing machine.

Important

The washing machine should be disconnected from the mains electricity supply before any cleaning or maintenance is carried out.

Line drawing of a front-loading washing machine with two large doors open (no text or symbols)

1 CLEANING THE DETERGENT DISPENSER

Clean the detergent dispenser whenever there is any washing product residue left inside.

a Pull outwards on the handle and press the blue lever with your finger to remove the detergent dispenser completely.
Use warm water and a brush to clean the compartments.

b Also clean the additive compartment siphon. To remove it, pull the flap at the back out. Once it has been cleaned, put it back pressing down to make sure that it fits right in. Put the dispenser back into the washing machine.

Important

A dirty or incorrectly fitted siphon will prevent the additives from being taken in and leave water inside the compartment at the end of the wash.

Line drawing of hands using a drain to clean or wash a small container (no text or symbols)

Diagram showing a mechanical assembly with arrows indicating motion or force direction (no text or symbols)

Line drawing of a hand holding a small object with liquid pouring from a faucet (no text or symbols)

CLEANING THE FILTER

Clean the accessible filter if the drain pump is blocked by any foreign objects.

a Open the kickplate cover with the aid of a coin and by pulling gently on it.
b Place a container under the drain pipe to collect any water that comes out of it. Remove the drain pipe, place it on the container and open the cover. Water will start to come out.
c When all the water has come out of the machine, turn the filter several times until it can be completely removed, by pulling gently on it.
d Remove the objects or fluff caught in the filter or the drain pump. Put the filter, the drain pipe and cover back in place again.

Important

We recommend that you clean the filter at least once a year. To avoid burns, do not carry out this operation when the wash water is at a temperature of over 30^ C.

a

Line drawing of a hand holding a tool near a device panel (no text or symbols)

Line drawing of a kitchen appliance with a circular base and control panel (no text or symbols)

Simple line drawing of a mechanical component with a coiled spring or rope, no text or symbols present.

CLEANING THE OUTSIDE

The outside of the washing machine should be cleaned with warm soapy water or a gentle cleaning agent. Do not use abrasive cleaning products or solvents. It should then be thoroughly dried with a soft cloth.

Important

When there have been spillages of detergent or additives from the dispenser onto the washing machine cabinet, clean them up right away as they are corrosive.

safety and troubleshooting

If you detect any problems with your washing machine, you will probably be able to rectify them yourself by consulting the following instructions.

If this is not the case, unplug the appliance and contact the TECHNICAL ASSISTANCE SERVICE.

Important

Never open up the appliance. There is no fuse or similar component inside that can be replaced by the user.

Indicator	Problems
FO1	No water coming in
FO2	Does not drain or spin-dry
CO3	Does not spin-dry
FO4	Does not start
FO5 F10	Call the Technical Assistance Service

PROBLEMS

Why won't the washing machine start?

Why is the washing machine vibrating or making too much noise?

This may be due to the following:

■ The washing machine is not plugged into the mains or there is no voltage in the mains supply.
■ The Start/Pause button has not been pressed.
■ When the washing machine door is not properly closed, F04 appears on the display. Check that the door has been closed properly.

This may be due to the following:

■ The blocking and transport screws have not been removed.
■ The washing machine has not been correctly levelled.
During spin-drying the motor makes a “whistling” noise which is normal due to the mechanical action of the motor itself.

Why doesn't the washing machine take in water?

■ When there is no water coming in F01 will appear on the display.
Indicator F01, no water coming in, this may be due to a cut in the water supply, a tap turned off or a blocked water inlet filter.
The possible solutions are as follows: wait for the water supply to be reconnected, turn on the tap, or remove the water inlet hose and clean the filter.

Why doesn't the washing machine drain or spin dry?

■ When F02 appears on the display.
The reasons for the F02 indicator may be the following: washing machine drain pump blocked, building drainage pipes blocked, or incorrect pump electrical connection.
■ Solution: if the pump is blocked, gain access to it as described in section 2, maintaining and cleaning the appliance.

Why doesn't the machine spin-dry?

■ When it does not spin-dry, C03 appears on the display.
This may be due to an uneven distribution of clothes in the drum and may cause an excessive level of vibrations.
■ The solution is to select a spin-drying programme.

Why can't I see any water in the drum during the wash?

This is due to the fact that the washing machine is provided with a system which is able to adapt to the load and type of fabrics, adjusting the levels of water and energy used, in order to preserve the environment.

So, although the water level you can see through the hatch may look low, there is no cause for concern as washing and rinsing efficiency will still be optimum.

Why is there still some water in the dispenser?

Why can't I open the hatch immediately after the wash has finished?

Other indications

This may be because the dispenser needs cleaning. This simple operation is described in Maintaining and cleaning the appliance.

1. Cleaning the detergent dispenser.

Washing machines today are provided with safety systems for users. One of them is that the washing machine cannot be opened until it is certain that the drum is quite still. This is why the hatch cannot be opened for 2 minutes.

The washing machine can detect other indications. When this happens a number of other indicators appear on the display: F05, F06..., F10.
■ This information may be due to very different reasons.
- Check if the problem is repeated and in this case call the AUTHORISED SERVICE CENTRE.

eco-note

INFORMATION FOR THE CORRECT DISPOSAL OF WASTE ELECTRICAL AND ELECTRONIC APPLIANCES

When your appliance is of no further use, it should not be disposed of together with general domestic waste.

It can be taken, free of charge, to a specific waste collection centre, run by your local authority, or dealers who provide this service.

Disposing of waste domestic appliances separately means avoiding possible negative consequences for the environment and health, derived from incorrect disposal. This will enable the materials in them to be treated and recycled, obtaining important savings in energy and resources.

To highlight the obligation of collaborating with selective waste collection, the product is marked with a symbol to warn against using traditional containers for disposing of the appliance.

Symbol of a trash bin crossed out by a diagonal line, with no text or labels present.

For further information, contact your local authority or the shop where you purchased the product.

Abstract black-and-white logo featuring two interlocking leaf-like shapes within a circular frame (no text or symbols)

This appliance is not designed for use by physically, sensorially or mentally handicapped people or people without experience or knowledge of it (including children), unless they are supervised or instructed in the use of the appliance by a person responsible for their safety.

Children should be watched to ensure they do not play with the appliance.

EN

After Sales Service :

Any maintenance on your equipment should be undertaken by:

• either your dealer,
• or another qualified mechanic who is an authorized agent for the brand appliances.

When making an appointment, state the full reference of your equipment (model, type and serial number). This information appears on the manufacturer's nameplate attached to your equipment.

FR
