USER MANUAL WT 1407 E THOMSON

DRUM WASHING MACHINE

TROMMELWASMACHINE

LAVADORA

BUBNOVÁ PRAČKA

BUBNOVÁ PRÁČKA

MANUEL D'UTILISATION

MISES EN GARDE IMPORTANTES. 5

DESCRIPTION DE L'APPAREIL 5

INSTALLATION 6

7

UTILISATION 8

Premier lavage. 8

Fonction anti-mousse

Darty Plc © UK: EC1N 6TE 27 / 05 / 2014

CONTENTS

WARNING 23
IMPORTANT SAFETY INSTRUCTIONS 25
DESCRIPTION OF THE APPLIANCE 25
INSTALLATION 26
CONTROL PANEL 27
OPERATION 28
Washing for the first time. 28
1. Putting detergent in the appliance 28
Washing Clothes 29
Delay function 30
Signal function 30
Programme memory function 30
ECO function 30
Option function 30
Programme chart 33
Changing the programme, temperature and spin speed during operation 35
3.3 Washing Tips and Hints 35
CLEANING AND MAINTENANCE 37
37
37
Repairing a frozen washing machine 37

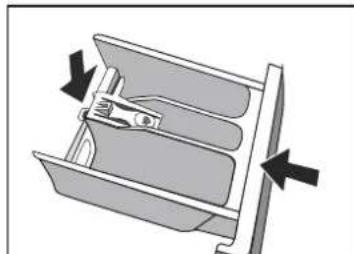

Cleaning the detergent drawer and recess 38
Cleaning the inlet hose and the inlet filter 38
Cleaning the drain pump 38
TROUBLESHOOTING 39
TECHNICAL DATA SHEET 40

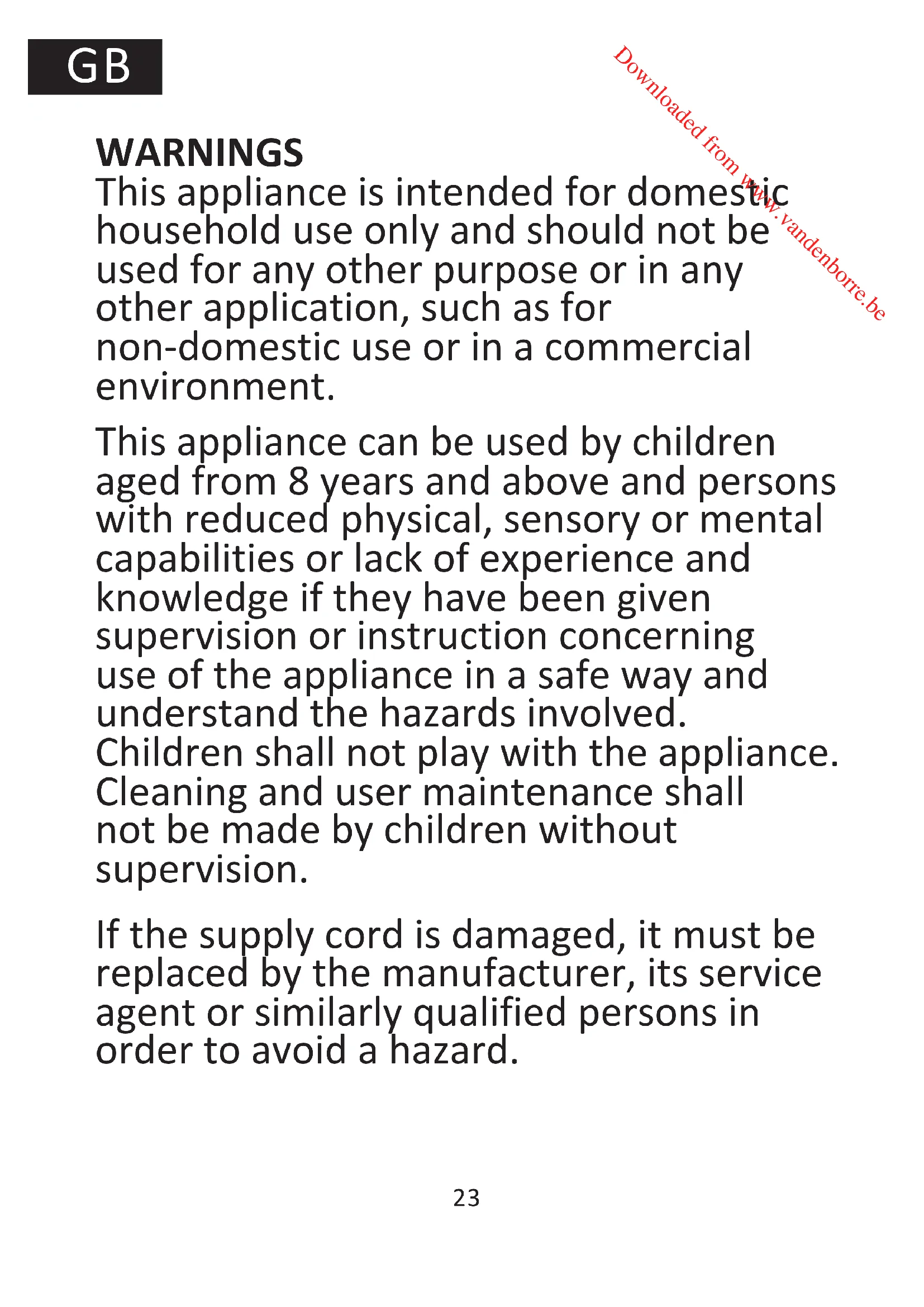

WARNING

This appliance is intended for domestic household use only and should not be used for any other purpose or in any other application, such as for non-domestic use or in a commercial environment.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

The new hose-sets supplied with the appliance are to be used; old hose-sets should not be reused.

For the details concerning the method of cleaning, please see section "Cleaning and maintenance" on pages 37 & 38.

CAUTION: Do not connect to the hot water supply.

The openings must not be obstructed by a carpet.

The water pressure must not be less than 0.05 MPa and not greater than 1 Mpa .

The maximum mass of dry clothes to be used in the washing machine of "WT1407/E" is 7kg and "WT 1408/E" is 8kg.

IMPORTANT SAFETY INSTRUCTIONS

• Keep the packing materials of the appliance away from children to avoid hazards.
• Do not plug the appliance to the power supply with wet hands.
• Never touch the appliance with wet hands or feet.
• In the event of any failure, first unplug the appliance and close the water tap.
• Keep the packing materials of the appliance away from children to avoid hazards.
• Do not plug the appliance to the power supply with wet hands.
• Never touch the appliance with wet hands or feet.
• In the event of any failure, first unplug the appliance and close the water tap. Do not attempt to repair by yourself. Please contact your authorised service agen
• Do not exceed the maximum loading capacity.
• The glass door becomes very hot during the washing cycle. Keep children and pets away from the appliance whilst it is in operation.
• Never force the door to open when the machine is running.
• Do not leave children unattended near the machine since they might lock themselves up into the machine.
• Always unplug the appliance and turn off the water supply after use.

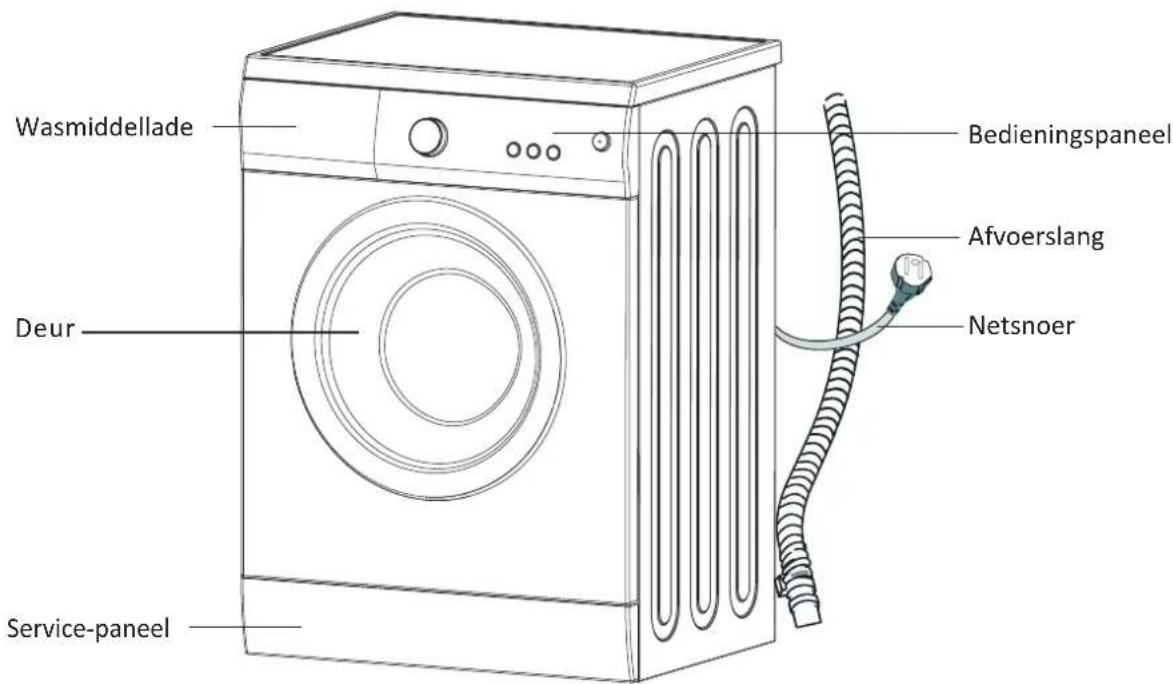

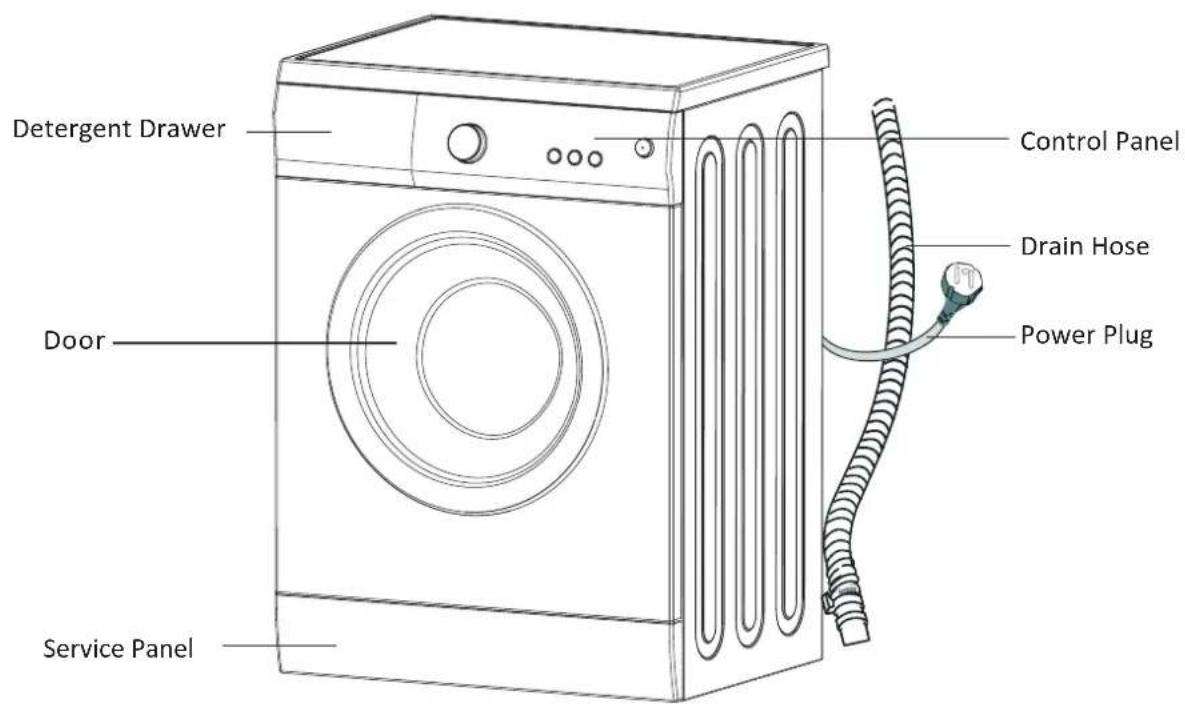

DESCRIPTION OF THE APPLIANCE

Accessories
Screw hole plug

Water inlet pipe

INSTALLATION

Unpacking

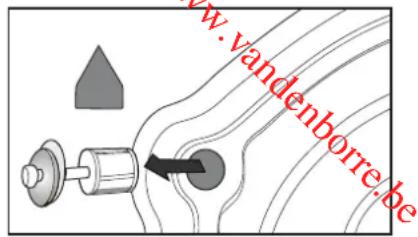

All transit bolts at the rear of the appliance and packing must be removed before using the appliance.

Keep all packaging away from children.

Keep all the transit bolts for re-use in case the appliance is to be transported again.

Positioning

Install the appliance on a flat hard floor.

Make sure that there is sufficient space for air circulation around the appliance.

Do not install the appliance on the carpet floor.

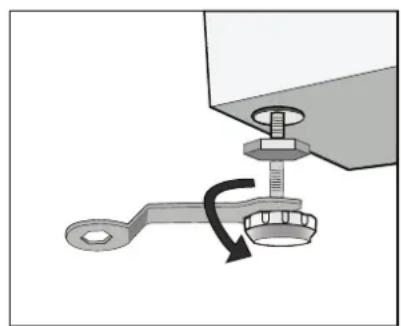

Levelling

Level the appliance by raising or lowering the feet.

Loosen the lock nut using a spanner (not supplied) and turn the foot by hand until it contacts the floor.

Hold the foot with one hand and fasten the nut against the cabinet with a spanner.

Never put cartons, wooden blocks or similar materials under the machine to balance the irregularities on the level of the ground.

Accurate levelling prevents vibration, noise and displacement of the appliance during operation.

Electrical connection

Your washing machine works with 220-240V and 50Hz.

Electrical connections must be carried out by a qualified technician in compliance with the current safety regulations.

Your washing machine must be properly earthed. We will not be held responsible for any damage that may occur as a result of usage without correct earth connection.

Do not use extension leads or multi-sockets.

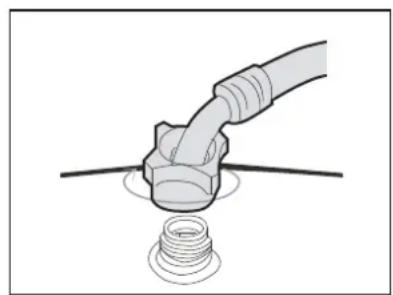

Water inlet

Screw one end of the inlet hose on the back of the appliance.

The appliance must be connected to a cold water supply.

Connect the other end of the inlet hose to a tap with a 3/4'' thread.

Make sure that the water inlet hose is not twisted or blocked.

Water drainage

To plumb in the appliance, please use one of the following methods.

1.Push the hose firmly into a drainage standpipe.

OR

1. Connect the drain hose onto a sink outlet spigot securely.

Notes:

Make sure that the water discharge hose does not bend, buckle, is not crushed or extended.

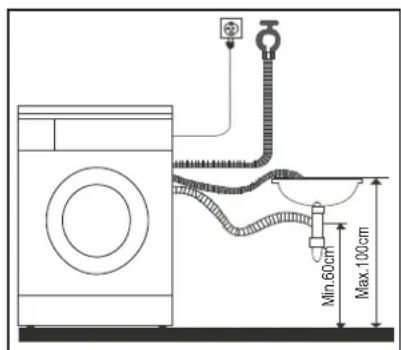

The water drain hose should be mounted at a height of minimum 60~cm , maximum 100~cm from the ground.

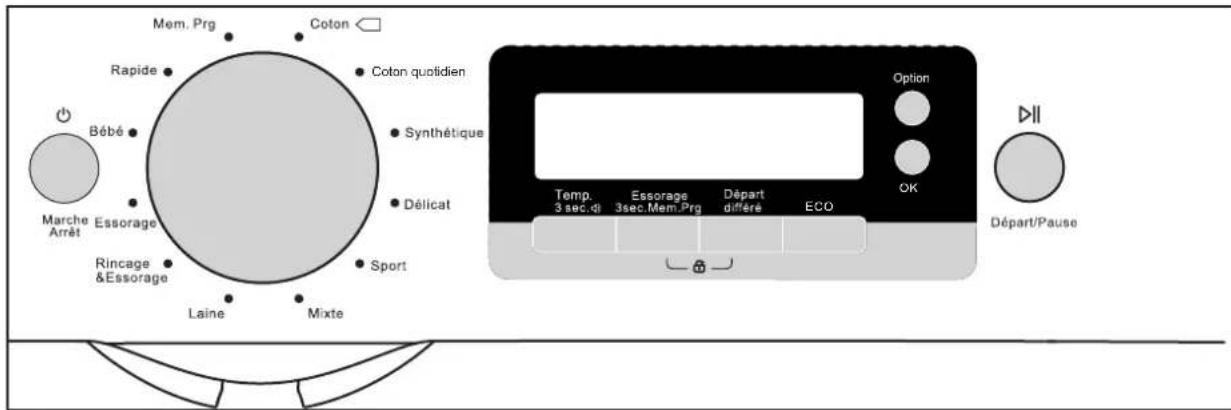

CONTROL PANEL

WT 1407 E/WT 1408 E

WT1407/WT1408

1. For switching the machine on or off.

2. Programme selector

For selecting the washing programme, washing temperature, spin speed and estimated programme duration for that programme.

The programme selector can be turned clockwise or anti-clockwise.

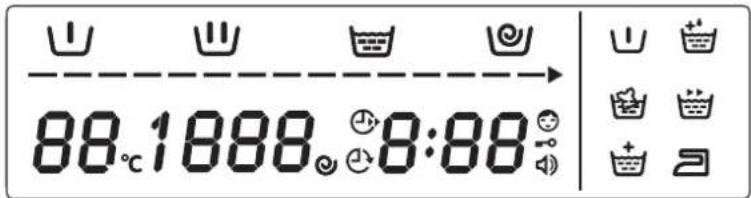

3.Display

This display is used for displaying settings, such as main washing( ) ( ), progress bar, washing progressing, washing temperature, spin speed, estimated programme duration, delay start, door lock, child lock and extra options.

3 sec. Temp. 3 sec. Temperature/Signal button

For selecting the water temperature or activate/deactivate the signal function.

1. 3sec.Mem.Prg / Essorage 3sec.Mem.Prg Spin speed/Memory programme button

For selecting the spin speed or saving a programme in memory.

Départ différé

Delay button

For delaying the start of a programme by up to 24 hours.

7.ECO

For running a programme using less energy.

8.Option

For using extra functions.

9. OK

For confirming selection.

10.

For starting/pausing a programme.

OPERATION

Washing for the first time

Before washing clothes for the first time, you must run a complete cycle without clothes.

1. Press
2. Pour a little detergent into compartment II in the detergent drawer.
3. Turn on the water supply to the appliance.
4. Press

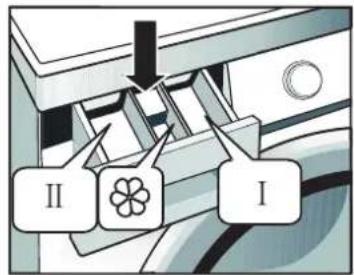

Compartment I: Detergent for pre-wash.

Compartment II: Detergent for main wash.

Compartment Additives, e.g. fabric softener.

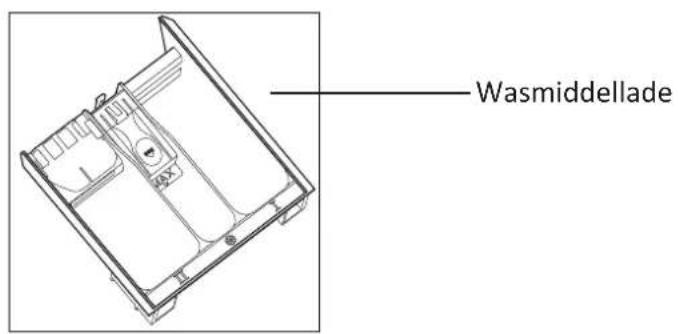

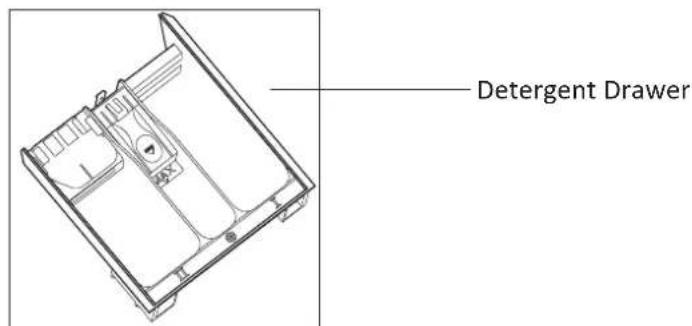

Putting detergent in the appliance

1.Pull out the detergent drawer.
2.Add laundry detergent into compartment II.
3.Add softener into Compartment as desired.
4.Add pre-wash detergent into compartment I as desired.

Note:

Your detergent consumption will change according to the level of dirtiness of your clothes. For slightly dirty clothes, do not pre-wash and put a small amount of detergent in the compartment II of the detergent drawer.

To know what quantity of detergent you should use for your clothes, refer to the instructions on the packing of the detergents.

The amount of detergent to be used will also depend on the quantity of laundry and on the water hardness.

CAUTION: Concentrated softener or additive shall be diluted with a little water before being poured into the compartment, otherwise it may obstruct the siphon and prevent the flow of softener.

Washing Clothes

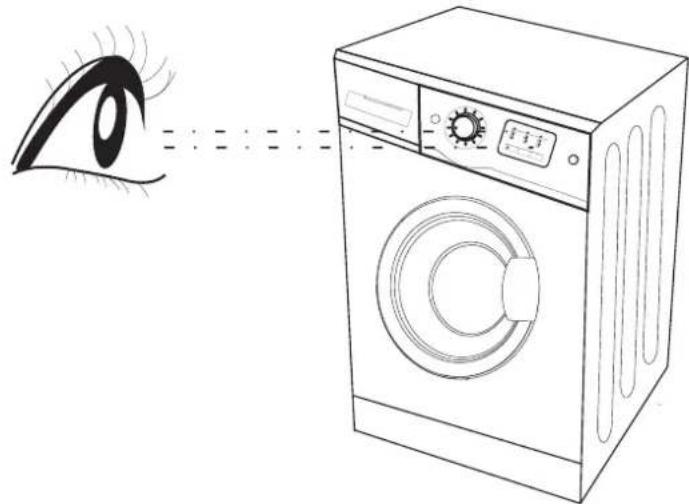

When operating the machine, BEND DOWN AND KEEP YOUR EYES AT THE SAME LEVEL AS THE CONTROL PANEL to check that you have selected the correct programme.

1. Open the door to load the articles into the drum.

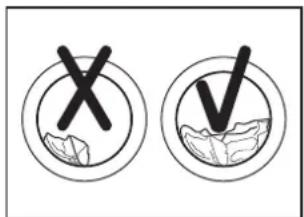

DO NOT OVERLOAD the appliance or your laundry may not wash properly.

Please refer to the chart below to determine the load capacity for the type of laundry you are washing.

Fabric Type The maximum load of dry laundry
	WT 1408/EWT 1407/E
Cotton	7 kg	8 kg
Synthetic	3.5 kg	4 kg
Wool	2.5 kg
Delicate	2.5 kg

2.Close the door.
3.Put the detergent and, if required, softener or pre-wash detergent, in the appropriate compartments.
4. Turn the water supply on and press
5. Turn the programme selector to select the desired programme.
6.Repeatedly press to Temp the desired temperature.
7.Repeatedly press essoge despin speed.

1. Press and the appliance will begin the cycle.
2. If the delay timer is set, the delay hour indicator light will flash. After the delay time has elapsed, the appliance will begin the cycle. See the section of “Delay function” below

3. To pause, press again.

4. When the cycle has finished, the machine will beep and the display will show "End".

5. Open the door and remove the laundry.

Delay function

You can use this function to delay the start time of a programme.

After a programme is selected, repeatedly press Départ différé to set the desired time and then press. The time will flash and the symbol will appear on the display.

• The maximum delayed time is 24 hours.
• Each time you press the button, the start time will be delayed by one hour.
• To cancel the time delay, repeatedly press Départ until the display shows "Oh".

Signal function

You can use this function to turn on or off the sound made when the buttons are pressed.

Press and hold Temp. 3 sec. for 3 seconds and the symbol will appear on the display

to indicate the signal function is activated.

To deactivate this function, press and hold the button again for 3 seconds and disappear from the display.

Programme memory function

1. Turn the knob to select a programme to be memorised.
2. Press and hold Essorage for 3 seconds to memorise the programme.
3. Turn the knob to the Mem. Prg position and the memorised programme will be selected.

The default factory memory programme is cotton( /Coton).

ECO function

The function is only available when the Cotton programme and washing temperature 40^ / 60^ are selected.

Press ECO and then. Your clothes will be cleaned using less energy.

Option function

This function is used for extra functions. The extra functions below are available.

Prewash: Select this function to get an extra wash before main wash.

• Extra rinse: Select this function to go through extra rinse.

Soak: When water reaches the level during the main wash cycle, your laundry will soak for five minutes and then the motor will rotate for 30 seconds. This process will be repeated four times.

NOTE:

• Soak cycle will run before prewash cycle if the prewash function is selected.

The prewash indicator will flash on the display during soak cycle.

• Soak cycle will run before main wash cycle if the prewash function is not selected.

The main wash indicator will flash on the display during soak cycle.

Speed wash: For washing in a shorter time with a washing outcome comparable to that of the standard programme. With this function selected, the main wash time will be reduced in the following two ways:

a) After heating, if the main wash time in the selected programme requires less than 20 minutes, the main wash time will only be 5 minutes.

b) After heating, if the main wash time in the selected programme requires more than 20 minutes, the main wash time will be reduced by 20 minutes.

Intensive: To increase the washing performance, washing time will be increased. It is recommended to select this function when washing baby clothes or clothes worn by persons with allergic skin.

Less iron: If this function is selected, neither drain nor spin will run after the final rinse. To resume programme, press if has not been pressed in the last 10 hours, the function will be deactivated and then the machine will continue to operate.

NOTE: Remove wrinkles from clothing using an iron.

Before you start the programme, you can select an additional option if you wish.

1. Repeatedly press Option to select the desired extra programme.
2. The selected function icon will flash on the display.
   2.To confirm, press OK.
3. The selected function icon will stop flashing, indicating the option function is activated.

To deactivate the function, press Option and the function icon will flash and then disappear from the display.

Refer to the following table to check the suitable options for each programme.

Programmes Prewash	Intensive	Soak	Speed wash	Extra rinse	Less iron
Coton Cotton	OK OK	OK OK OK	OK
Coton quotidien Daily wash		NO NO	NO	OK NO
/Synthétique Synthetic	OK OK	OK OK OK	OK
/Délucat Delicate		NO NO	NO	OK	OK
/Sport Sportswear	OK OK	OK OK OK	OK
Mix/Mixte Mixed wash	OK OK	OK OK OK	OK
/Laine Wool		NO NO	NO	NO	NO
Rincage &Spin Rince & Spin		NO NO	NO	OK	OK
/Esophage Spin		NO NO	NO	NO	NO
/Bébé Baby care	OK OK	OK OK OK	OK
/Rapide Quick wash		NO NO	NO	OK	OK

Child lock

The function is designed to prevent children from operating the washing machine.

To activate the function:

Press and hold

for 3 seconds until the display shows .It can only

be activated when the machine is in operation.

When child lock is activated, no button can work except the power button

To deactivate the function:

Press and hold

for 3 seconds until disappears from the display.

Bubble removal function

Excessive bubbles will form when there is too much detergent, which will affect wash and rinse performance. With this function, the machine will automatically remove bubbles when excessive bubbles are checked. It will also remind you of using less detergent during next washing cycles.

Programme chart

NOTE: The parameters in this chart are only for reference.

Programme M	Max Load (Kg)		Detergent Compartment			Default Temperature / Maximum temperature (°C)	Default Running Time	Default Spin Speed (rpm)
	WT 1407 /E	WT 1408 /E	I	II	®
/Coton Cotton	7.0	8.0	○	●	○	60 / 90	WT 1407/E: 3:53WT 1408/E: 3:52(ECO function)	1400
/Coton quotidien Daily wash	2.0		×	●	○	30 / 40	1:15 1000
/Synthétique Synthetic	3.5	4.0	○	●	○	40 / 60	1:25	800
/Délicate Delicate	2.5		×	●	○	Cold / 30	1:12	600
/Sport Sportswear	3.5	4.0	○	●	○	40 / 60	1:37	1000
Mix/Mixte Mixed wash	7.0	8.0	○	●	○	40 / 90 1:28	1000
/Laine Wool	2.5		×	●	○	30 / 40	1:04	600
Rincage & Essorag Rinse & Spin	7.0	8.0	×	×	○	-	0:40	1000
/Essorage Spin	7.0	8.0	×	×	×	- 0:14	1000
/Bébé Baby care	7.0	8.0	○	●	○	60 / 90 2:00	1000
/Rapide Quick wash	2.0		×	●	○	Cold / 40 0:20	800

Energy test programme: The ECO function with Cotton 60^ / 40^

Cotton 60^ / 40^ under the ECO function are the standard washing programmes.

These programmes are suitable to clean normally soiled cotton laundry and they are the most efficient programmes in terms of combined energy and water consumptions for washing that type of cotton laundry. The actual water temperature may differ from the declared cycle temperature.

Washing Programme	Type of Laundry
Coton Cotton	Bed sheets, quilt covers, pillowcases, gowns, underwear, etc.
Coton quotidien Daily wash	Lightly soiled clothes.
Synthétique Synthetic	Shirts, coats, curtains, lace textiles or similar other blends.
/Délicate Delicate	Delicate articles, such as silk.
/Sport Sportswear	Synthetic sports fabrics.
Mix/Mixte Mixed wash	Mixed load of synthetic and cotton garments.
/Laine Wool	Only machine washable woollens.
Bébé Baby care	Baby clothes.
/Rapide Quick wash	Lightly soiled clothes.

Temperature	Type of Laundry
90°C Heavily	soiled articles, pure white cotton or flax, e.g. coffee tablecloths, canteen table cloths, towels, bed sheets.
60°C Moderately	ely soiled articles, colourful flax, cotton and syntheticarticles with certain decolourising degree, e.g. shirts, pyjamas.Slightly soiled items, pure white flax, e.g. underwear.
40°C,30°C,20°C,Cold water	Normally soiled articles, including synthetic and wool.

Changing the programme, temperature and spin speed during operation

1. Press to turn off the machine and press
   gain to turn it on.
2. Turn the programme selector to select a new programme.
3. Press Temp. / 3 sec. and Essorage 3sec.Mem.Prg repeatedly to select the desired temperature and spin speed.
4. Press to start washing.

Washing Tips and Hints

Sort your laundry according to the following characteristics:

• Type of fabric care label symbol: Sort laundry into cottons, mixed fibres, synthetics, silks, wools and rayon.
• Colour: Separate whites and colours. Wash new, coloured items separately.
• Size: Placing articles of different sizes in the same load will improve the washing performance.
• Sensitivity: Wash delicate items separately. Check the labels on the items you are washing or refer to the fabric care chart below.

Graphic Symbol Illustration		Graphic Symbol Illustration
	Hand Wash	No Machine Wash
	Washing (including Machine Wash and Hand Wash)	Do not Wash
		No Dry Clean
	Dry Clean	No Wring
	Warmly Dry Clean	No Bleach
	Bleach	Do not Tumble Dry
	Tumble dry	Do not Iron
	Iron	Iron with Cloth
	Steam Iron	Dry after Wash
	Medium Temperature and Max. Temperature 150 C	Line Dry in Shade
	Line Dry

• Empty pockets (key, coins, etc) and remove the harder decorative objects (e.g. brooches).
• Securing fasteners

Close zippers and fasten buttons or hooks; loose belts or ribbons should be tied together.

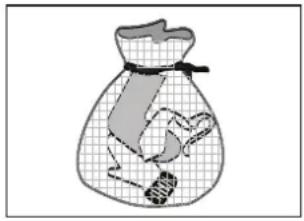

• Place small items such as socks, belts, etc. in a washing bag.
• Washing a single big and heavy item such as bath towel, jeans, wadded jacket etc. may unbalance the laundry in the drum. Therefore it is suggested to add one or two more clothes to be washed together so that draining can be done smoothly.

• Baby articles (baby clothes, towels and napkins) shall be washed separately.
  If they are washed together with the adults' clothes, they may be infected. Rinsing times shall be increased to ensure the thorough rinsing and cleaning with no detergent residues left.
• It is suggested that the items that are easily stained such as white socks, collars and sleeves etc. shall be hand washed before being put into washing machine to achieve more ideal washing effects.
• The clothes which easily get fuzzed shall be washed separately; otherwise the other articles can be stained with dust and lint particles, etc. Preferably, black clothes and cotton clothes shall be washed separately.
• Do not wash waterproof materials (ski suits, outside napkin pads, raincoats, umbrella, car covers, sleeping bags, etc).

It is better not to wash fabrics that cannot get soaked easily (such as waterproof cushions and clothes) in the washing machine. Otherwise there will be water bursting out or abnormal vibration to cause danger during rinsing and draining so that the clothes may be damaged.

• Detergent tips

The type of detergent you should use is based on the type of fabric (cotton, synthetic, delicate items, wool), colour, washing temperature, degree and type of soiling. Please use "low suds" laundry detergent.

NOTE: Do not add more detergent than needed. Please follow the usage recommendation on the detergent package.

Follow the detergent manufacturer's recommendations based upon the weight of the laundry, the degree of soiling, and the hardness of the water in your area. If you do not know how hard your water is, ask your water authority.

NOTE: Keep detergents and additives in a safe, dry place out of the reach of children.

CLEANING AND MAINTENANCE

Make sure that the appliance is unplugged from the mains socket.

Cleaning the exterior

Clean the appliance surface with a soft cloth dampened with soap liquid. Do not use organic chemicals or corrosive solvents.

Cleaning the drum

The rusts left inside the drum by the metal articles shall be removed immediately with chlorine-free detergents.

Never use steel wool.

Repairing a frozen washing machine

If the temperature drops below freezing and your washing machine is frozen:

1.Unplug the washing machine.
2. Pour warm water on the tap to loosen the water supply hose.
3.Remove the inlet hose and soak it in warm water.
4. Pour warm water into the drum and wait for 10 minutes.
5.Reconnect the inlet hose to the tap and check if the water supply and drain operations are normal.

NOTE: When the appliance is operated after repair, please make sure that the ambient temperature is above 0^ .

Cleaning the detergent drawer and recess

1. Press the release lever inside of the detergent drawer and pull it out.

2.Remove the cap from compartment.

3.Clean all parts and drawer recess under running water.
4.Reinsert the cap by pushing it firmly into place.
5.Push the drawer back into place.

Cleaning the inlet hose and the inlet filter

To prevent blockage to the water supply by ingress of foreign substances, clean the water inlet valve filter regularly.

Cleaning the drain pump

Drain the water out of the machine and then clean the drain pump.

Please inspect and clean the drain pump regularly.

Never remove the pump cover during a wash cycle. When replacing the pump cover, ensure it is securely tightened so as to stop leaks.

TROUBLESHOOTING

Problems	Possible Cause	Possible Solutions
The washing machine will not start.	The door is not properly closed.	Close the door properly.
	Poor connection to the power supply.	Check connection to the power supply.
	Power failure Check the power supply.
	Machine has not been switched on.	Switch the machine on.
The door does not open.	Machine safety protection is working.	Unplug the machine from the mains socket.
Detergent remains in the detergent drawer after the programme is complete.	The detergent is not a low suds type.	Check if the detergent is appropriate.
	Excessive use of detergent	Reduce amount of detergent in the detergent drawer.
Washing machine vibrates or is too noisy.	Not all transit bolts have been removed.	Remove all transit bolts.
	Washing machine is located on an uneven surface or is not level.	Make sure the washing machine is set on an even surface and levelled.
	Machine load is over the maximum capacity.	Reduce amount of laundry in the drum.
The washing machine does not drain and/or spin.	Drain hose is blocked.	Unblock the drain hose.
	The filter is blocked. Unblock the filter.
	Drain hose end is higher than 100 cm above the floor.	Make sure the drain hose end is lower than 100 cm above the floor.
	Unbalance of the laundry	Add clothes or run a spinning programme again.
The washing result is not good.	Your laundry was too dirty f or the programme you selected.	Select a suitable programme.
	The amount of detergent used is not appropriate.	Use more or less detergent following the manufacturer's instructions.
	Clothes exceeding the maximum capacity have been filled in your machine.	Do not exceed the maximum capacity of your machine.
Indicator on the display does not illuminate.	Power is disconnected. PC board has problems. Wiring harness has connection problem.	Check if the power is shut down and power plug is connected correctly. If not, please call for service.

Error codes

Display	Cause	Solution
LCD
E10	Inlet water error	Open the water tap to check if the inlet hose is squashed or kinked; check if the inlet valve is blocked or not; check if the water pressure is too low.
E21	Drainage error	Make sure the drain hose is not twisted or blocked. Make sure the drain hose is installed correctly. Clean the drain pump.
E30	The door is not closed.	Close the door properly.

If error still exists, please contact the maintenance personnel.

TECHNICAL DATA SHEET

Below is the sheet of household washing machine according to EU Regulations 1015/2010 and 1061/2010.

Brand	Thomson
Type/Description	WT 1407/E, WT 1408/E
Capacity	WT 1407/E: 7kg WT 1408/E: 8kg
Spin Speed	1400 rpm
Energy efficiency class ①	WT 1407/E: A++ WT 1408/E: A+++
Annual energy consumption ②	WT 1407/E: 194 kWh/annum WT 1408/E: 196 kWh/annum
Power consumption of off-mode	0.5W
Power consumption of left-on mode	1W
Annual water consumption ③	WT 1407/E: 10000 L/annum WT 1408/E: 11000 L/annum
Spin-drying efficiency class ④	B
Standard washing cycle ⑤	Cotton + ECO
Energy consumption of the standard 60° at full load	WT 1407/E: 1.01 kWh WT 1408/E: 0.97 kWh
Energy consumption of the standard 60° at partial load	WT 1407/E: 0.77 kWh WT 1408/E: 0.75 kWh
Energy consumption of the standard 40° at partial load	WT 1407/E: 0.74 kWh WT 1408/E: 0.72 kWh
Programme duration of standard 60° at full load	WT 1407/E: 233 min WT 1408/E: 235 min
Programme duration of standard 60° at partial load	WT 1407/E: 216 min WT 1408/E: 232 min
Programme duration of standard 40° at partial load	WT 1407/E: 210 min WT 1408/E: 214 min
Water consumption of the standard 60°C at full load	WT 1407/E: 50L WT 1408/E: 54L
Water consumption of the standard 60°C at partial load	WT 1407/E: 40L WT 1408/E: 45L
Water consumption of the standard 40°C at partial load	WT 1407/E: 40L WT 1408/E: 45L
Remaining moisture content of the standard 60°C at full load	50%
Remaining moisture content of the standard 60°C at partial load	55%
Remaining moisture content of the standard 40°C at partial load	55%
Noise level of washing of the standard 60°C at full load	62 dB
Noise level of spinning of the standard 60°C at full load	78 dB
Mounting	Free standing
Height	850 mm
Width	595 mm
Depth	565 mm
Power consumption	2000W
Rate voltage/frequency	220-240V~ / 50Hz
Water pressure	0.05-1 MPa

NOTE:

1 A* (highest efficiency) to D (lowest efficiency)
Energy consumption 194 kWh (WT 1407/E) or 196 kWh (WT WT 1408/E) per year, based on 220 standard washing cycles for standard programme at 60^ and 40^ at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.
Water consumption 10000 litres (WT 1407/E) or 11000 litres (WT 1408/E) per year based on 220 standard washing cycles for standard programme at 60^ and 40^ at full and partial load. Actual water consumption will depend on how the appliance is used.
4 Spin-drying efficiency class B on a scale from G (least efficient) to A (most efficient)
The standard 60^ cotton programme and the standard 40^ cotton programme are the standard washing programmes. These programmes are suitable to clean normally soiled cotton laundry and they are the most efficient programmes in terms of combined energy and water consumptions for washing that type of cotton laundry. The actual water temperature may differ from the declared cycle temperature.

Please choose the suitable type of detergent for the various washing temperatures to get the best washing performance with less water and energy consumption.

Thomson is a trademark of Technicolor

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

Darty Plc © UK: EC1N 6TE 27/05/2014

INHOUDSOPGAVE

WAARSCHUWINGEN 43
BELANGRIJKE VEILIGHEIDSVOORZORGEN 45
BESCHRIJVING VAN HET APPARAAT 45
INSTALLATIE 46
BEDIENINGSPANEEL 46
BEDIENING 48

BESCHRIJVING VAN HET APPARAAT

Accessoires

Darty Plc © UK: EC1N 6TE 27 / 05 / 2014

INDICE

ADVERTENCIAS 63

Darty Plc © UK: EC1N 6TE 27 / 05 / 2014

OBSAH

UPOZORNENI 83
DULEZITÉ BEZPECNOSTNI POKNY 85
POPIS PRISTROJE 85
MONTAZ. 86
OVLADACI PANEL 87
PROVOZ 88

RIESENIE PROBLEMOV 119

TECHNICKE UDAJE 120

VAROVANIA

Darty Plc © UK: EC1N 6TE 27 / 05 / 2014
