Product type	Washer-dryer (washing machine and dryer)
Brand	Thomson
Model	THWD96140DGAD
Height	85 cm
Width	60 cm
Depth	61 cm
Voltage	220-240 V ~ 50 Hz
Rated power	1750 W
Drying power	1350 W
Wash capacity	9 kg
Drying capacity	6 kg
Wash and dry capacity	6 kg
Maximum spin speed	1400 rpm
Energy efficiency class (wash)	A
Energy efficiency class (wash and dry)	D

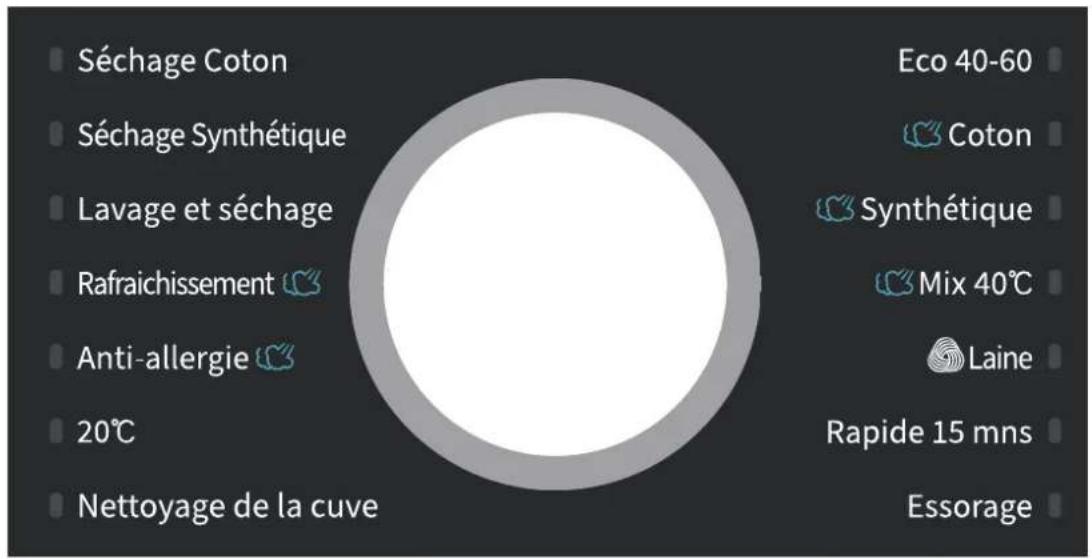

Programs	Eco 40-60, Cotton, Synthetic, Mix 40°C, Wool, Quick 15 min, Anti-allergy, 20°C, Drum Clean, Spin, Cotton Drying, Synthetic Drying, Wash & Dry, Refresh
Functions	Automatic detergent and fabric softener dosing, Delayed start (1-24h), Child lock, Steam, Prewash, Extra rinse, Eco mode, Silent
Automatic dosing	Liquid detergent (max 650 ml) and fabric softener (max 350 ml)
Wash temperatures	Cold, 20°C, 30°C, 40°C, 60°C, 90°C
Drying levels	Extra dry, Cupboard dry, Ready to iron, Timed drying
Water pressure	0.1 - 1 MPa (1 - 10 bar)
Protection rating	IPX4
Maintenance and cleaning	Drain filter removable, water inlet filter cleanable, detergent drawer removable, Drum Clean program
Safety	Child lock, automatic stop in case of malfunction, leak protection (not specified), emergency door opening
Warranty	2 years
After-sales service and parts	Available via Darty and Vanden Borre; parts delivered within 15 working days

Frequently Asked Questions - THWD96140DGAD THOMSON

What to do if the machine does not start?

Check that the door is properly closed, the water supply is open, and the machine is plugged in. If the problem persists, refer to the troubleshooting guide in the manual.

How to activate the child lock?

Press the Temperature and Spin buttons simultaneously for 2 seconds. A symbol appears on the screen. To deactivate, repeat the same procedure.

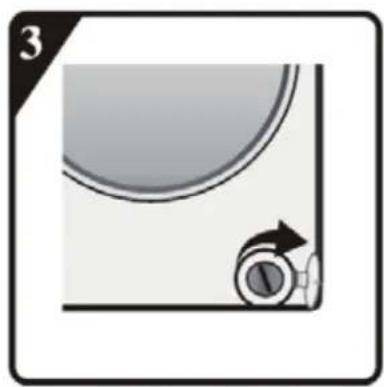

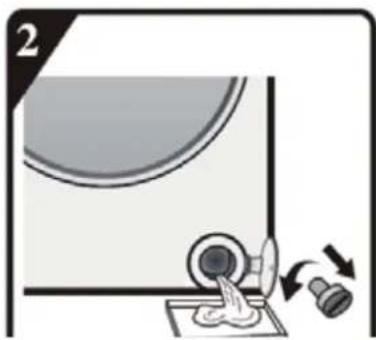

How to clean the drain filter?

Open the filter cover at the bottom right. Place a container under the filter, turn slowly counterclockwise to drain the water. Remove the filter, clean it under running water with a soft brush, then replace it.

How to use the delayed start function?

Select a program, press Delayed start multiple times to choose the desired end time (1 to 24 h), then press Start/Pause. The machine starts the countdown.

Why does the machine vibrate or make noise?

Check that all transport bolts have been removed. Ensure the machine is level and on a flat floor. Distribute laundry evenly in the drum and do not exceed the maximum capacity.

What does error code F01 mean?

F01 indicates a water supply problem. Check that the water tap is open, the inlet hose is not blocked or frozen, and the water inlet filter is clean. Once resolved, press Start/Pause.

Can I add laundry after starting?

Yes, press Start/Pause to pause. If the water level and temperature allow, the door unlocks (the reload symbol appears). Open, add laundry, close, and press Start/Pause again.

Which program to choose for cotton?

For normally soiled cotton, use the Eco 40-60 program (energy efficient). For heavily soiled cotton, select the Cotton program, possibly with the Prewash function.

Can I use powder detergent with automatic dosing?

No, automatic dosing is designed only for liquid detergent. For powder detergent, use the manual dosing compartment (center compartment) and disable the automatic detergent dosing function.

How to disable the key sounds?

Press and hold simultaneously the Spin and Drying level buttons for 2 seconds until the sound symbol disappears from the screen. Repeat the same procedure to reactivate.

USER MANUAL THWD96140DGAD THOMSON

Front view of a modern washing machine (no visible text or symbols on the device body)

Tabledesmatières

MISES EN GARDE IMPORTANTES....2

DESCRIPTION DU PRODUIT ....5

INSTALLATION....8

AVANT CHAQUE LAVAGE....12

Simple line drawing of an open book with no text or symbols visible

Illustration of hands using a tool to interact with a mechanical component, no text or symbols present

Illustration of a hand using a tool to adjust or install a screwdriver into a cylindrical component (no text or symbols present)

Illustration of a hand using a screwdriver to press or install a component with motion arrows (no text or symbols)

Illustration of a hand holding a sphere with an arrow indicating motion (no text or symbols)

Illustration of a hand holding a tablet device (no text or symbols visible)

Diagram of a device being placed into a tray with an arrow indicating rotation (no text or symbols present)

Diagram of a rectangular device with internal grid pattern and directional arrows, no text or symbols present

Simple line drawing of a hand pressing a block on a ruler, no text or symbols present

Illustration of a person using a device to interact with another person (no text or symbols present)

Diagram showing two hands performing a valve adjustment, one with a handle and the other with a handle and base (no text or symbols)

REMARQUE :

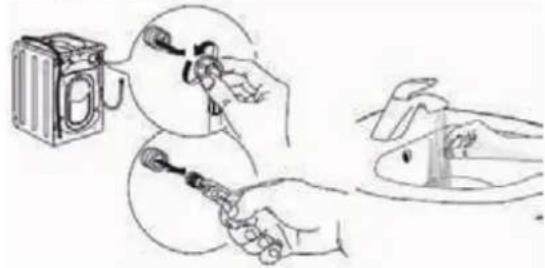

Line drawing of a washing machine with piping and wiring (no text or symbols)

Technical line drawing of a vehicle interior with dashboard and steering wheel (no text or symbols)

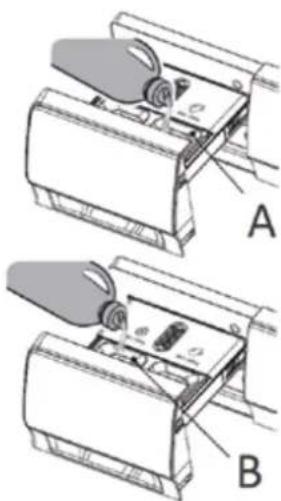

Technical line drawing of a device with labeled parts A and B, showing internal components without any text or symbols.

Weather icons including sun, moon, and wind symbols (no text or labels)

Line drawing of a hand holding a curved object, possibly a tool or device (no text or symbols present)

Illustration showing hands using a tool to adjust or install a device, with no visible text or symbols.

Line drawing of two hands using a tool to apply or install a component (no text or symbols present)

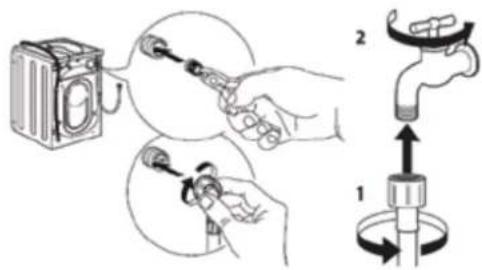

Diagram illustrating the step-by-step installation of a water tap with labeled parts and directional arrows.

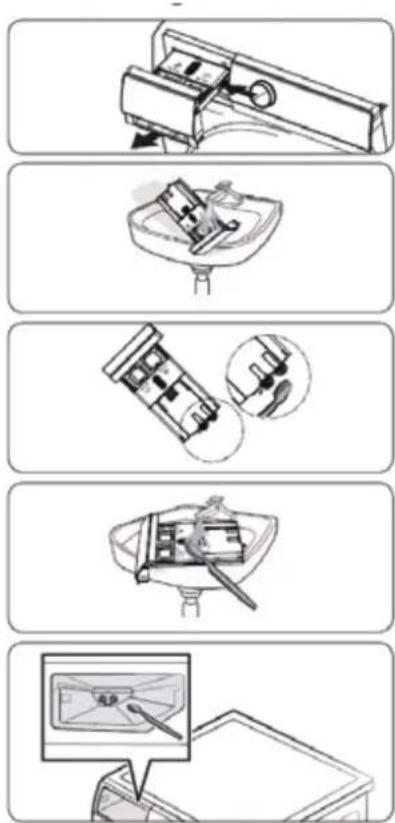

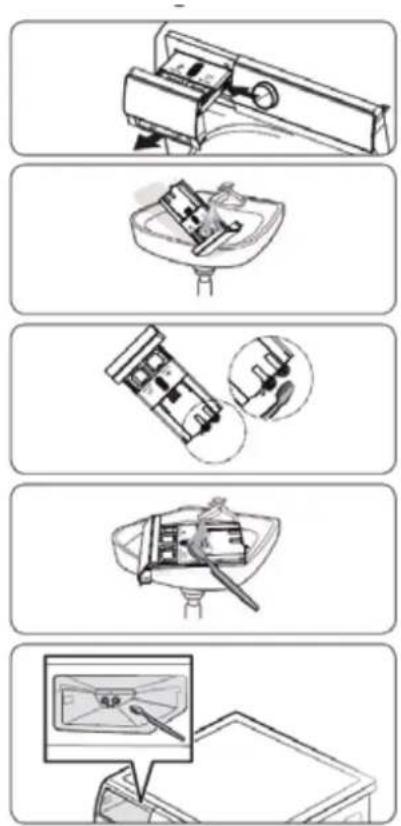

■ Nettoyagedutiroiràdétergent

Illustration of a hand holding a small object with an arrow indicating direction (no text or symbols)

Illustration of a mechanical device with a lid and base, showing motion arrows (no text or symbols)

Simple diagram showing a curved object with an arrow pointing to a circular component, labeled with number 3 (no text or symbols on the object itself)

Illustration of a hand holding a circular object with an arrow pointing to it, next to a curved surface (no text or symbols)

Simple line drawing of stacked rectangular blocks and a separate cylindrical object with a plus sign (no text or symbols)

FR

VOOR ELKE WASBEURT 11

WASSEN EN DROGEN....14

PROGRAMMATABEL....22

EXTRA FUNCTIONS 24

PROBLEEMOPLOSSING....29

PRODUCTINFORMATIEBLAD....31

SERVICE VOOR REPARATIES EN RESERVEONDERDELEN 36

VERWIJDERING....37

Simple line drawing of an open book with no text or symbols visible

Illustration of hands using a tool to interact with a vertical line, showing motion (no text or symbols)

Illustration of a hand using a tool to adjust or install a screwdriver into a cylindrical component (no text or symbols present)

Illustration of a hand using a screwdriver to press or install a component, with motion arrows indicating movement (no text or symbols)

Illustration of a hand holding a sphere with an arrow indicating motion (no text or symbols)

Illustration of a stylus device with a hand holding the screen (no text or symbols)

Diagram of a device with a handle and a circular component, showing an angle labeled '80°' (no text or symbols beyond the label)

Diagram of a rectangular device with internal grid pattern and directional arrows, no text or symbols present

Simple line drawing of a hand holding a ruler and a block on a surface, with no text or symbols present.

Illustration of a person using a medical device to interact with another person (no text or symbols present)

Diagram showing two hand-painted illustrations of a faucet with a valve, one changing from the other (no text or symbols present)

OPMERKING:

Line drawing of a washing machine with two valves and a coiled cable (no text or symbols)

Technical line drawing of a mechanical device with internal components and a handle (no text or symbols)

Technical diagram showing two mechanical assembly steps labeled A and B, with arrows indicating components and directional indicators.

Weather icons including sun, moon, and wind symbols (no text or labels)

Line drawing of a hand holding a curved object, possibly a tool or device (no text or symbols present)

Line drawing of two hands using a tool to apply a brush (no text or symbols present)

Illustration showing a hand using a screwdriver to clean a fish (no text or symbols present)

Diagram illustrating a hand holding a switch with labeled parts, showing step-by-step installation from device to valve.

■ Dewasmiddelladereinigen

Diagram illustrating five sequential steps of a robotic arm operation, showing hand positioning and tool path changes.

Illustration of a hand pressing down on a curved surface with an arrow indicating direction (no text or symbols)

Illustration of a mechanical device with a curved component and two directional arrows indicating motion (no text or symbols)

Simple diagram showing a curved line above a circular object with an arrow, no text or symbols present.

Illustration of a hand holding a ball near a curved surface, with an arrow indicating direction (no text or symbols)

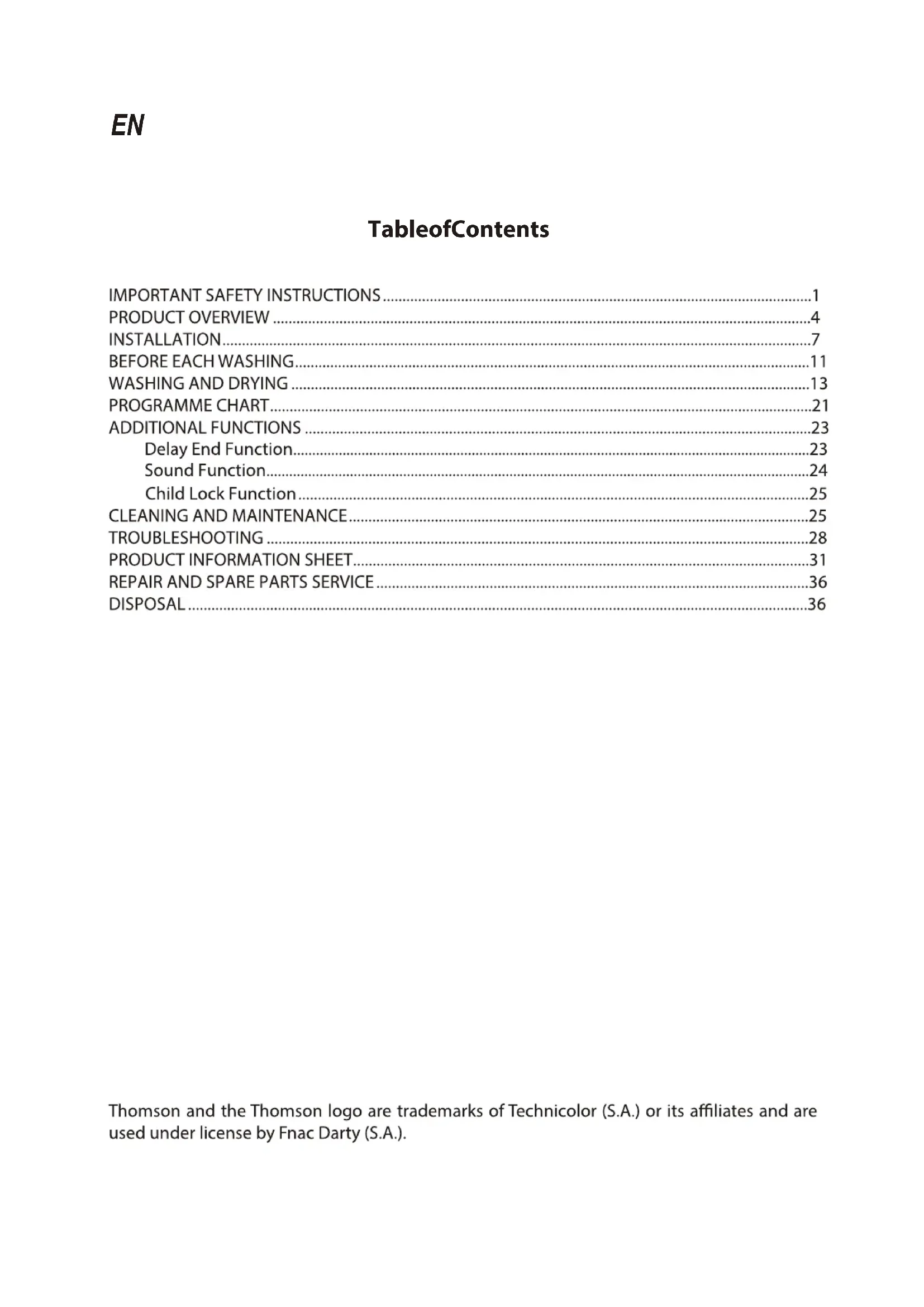

IMPORTANT SAFETY INSTRUCTIONS....1

PRODUCT OVERVIEW 4

INSTALLATION....7

BEFORE EACH WASHING....11

WASHING AND DRYING 13

PROGRAMME CHART....21

ADDITIONAL FUNCTIONS 23

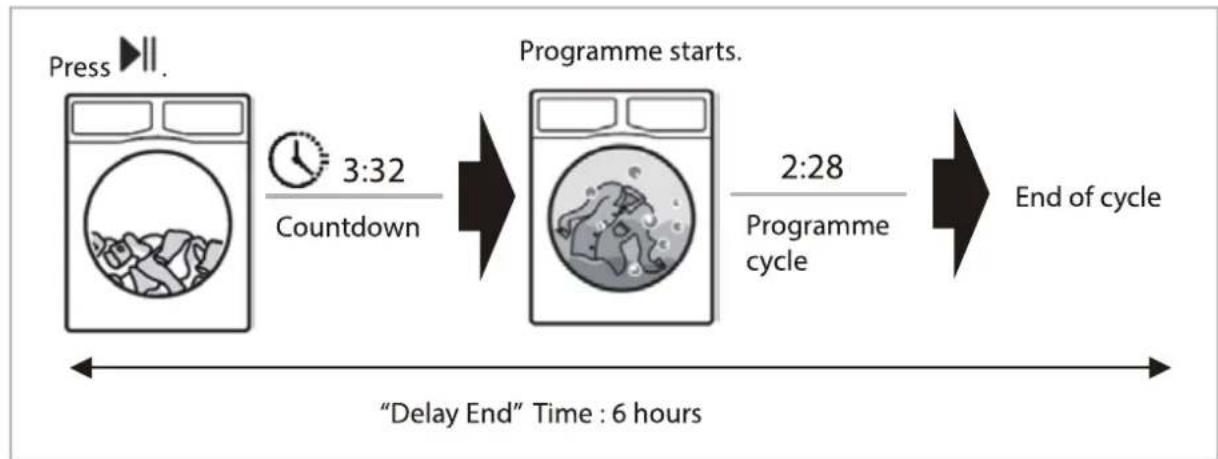

Delay End Function....23

Sound Function....24

Child Lock Function....25

CLEANING AND MAINTENANCE....25

TROUBLESHOOTING 28

PRODUCT INFORMATION SHEET....31

REPAIR AND SPARE PARTS SERVICE 36

DISPOSAL....36

Thomson and the Thomson logo are trademarks of Technicolor (S.A.) or its affiliates and are used under license by Fnac Darty (S.A.).

PLEASE READ THE FOLLOWING SAFETY WARNINGS AND THE INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE AND KEEP FOR FUTURE REFERENCE.

Warnings

Simple line drawing of an open book with no text or symbols visible

Read the instructions.

- This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
  — by clients in hotels, motels and other residential type environments;
  — bed and breakfast type environments;
  – areas for communal use in blocks of flats.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

• CAUTION: Do not connect to the hot water supply.

• The openings must not be obstructed by a carpet.

- The water pressure must not be less than 0.1 MPa and not greater than 1 MPa.

- The new hose-sets supplied with the appliance are to be used; old hose-sets should not be reused.

• Children of less than 3 years should be kept away unless continuously supervised.

- Regarding the detailed instructions concerning the method of cleaning, please see section "CLEANING AND MAINTENANCE" on pages 25-28.

- The maximum mass of dry textile material in kilograms to be used in the appliance

is 9 kg (for the wash cycle) and 6 kg (for the wash and dry cycle).

• The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
  • The lint trap has to be cleaned frequently.
• Lint must not be allowed to accumulate around the tumble dryer.
• Adequate ventilation has to be provided to avoid the back flow of gases into the room from appliances burning other fuels, including open fires.
  • Do not dry unwashed items in the tumble-dryer.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
• Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
• Remove all objects from pockets such as lighters and matches.
• WARNING: Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
• WARNING: The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.
• Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.
• The appliance must not be installed behind a lockable door, a sliding door or a door with hinges on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.

Safety Precautions

• The appliance is for indoor use only.
- Keep the packing materials of the appliance away from children to avoid hazards.

• Do not plug the appliance to the power supply with wet hands.
• Never touch the appliance with wet hands or feet.
• In the event of any failure, first unplug the appliance and close the water tap. Do not attempt to repair by yourself. Please contact your authorised service agent.
• Do not exceed the maximum loading capacity.
• The glass door becomes very hot during the washing cycle. Keep children and pets away from the appliance whilst it is in operation.
• Never force the door to open when the appliance is running.
• Do not leave children unattended near the appliance since they might lock themselves up into it.
  • Always unplug the appliance and turn off the water supply after use.
• Animals and children may climb into the machine. Check the machine before every operation.
• The plug must be remained easily accessible after installation of the appliance.
• Do not wash articles that have been cleaned in, washed in, soaked in, or dabbed with combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.). This may result in fire or explosion.
• The appliance shall not be installed in bath room or very wet rooms as well in the rooms with explosive or caustic gases.

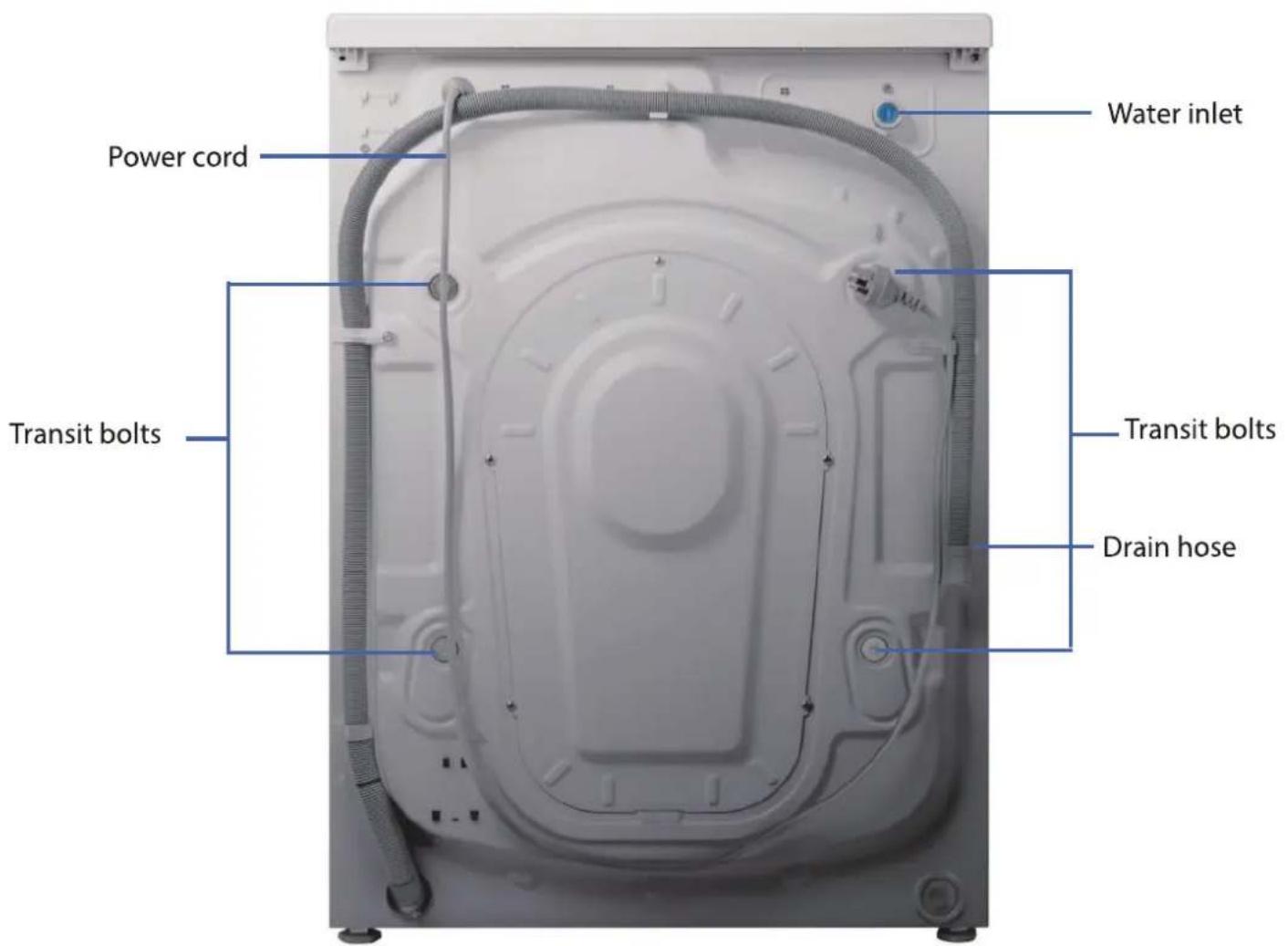

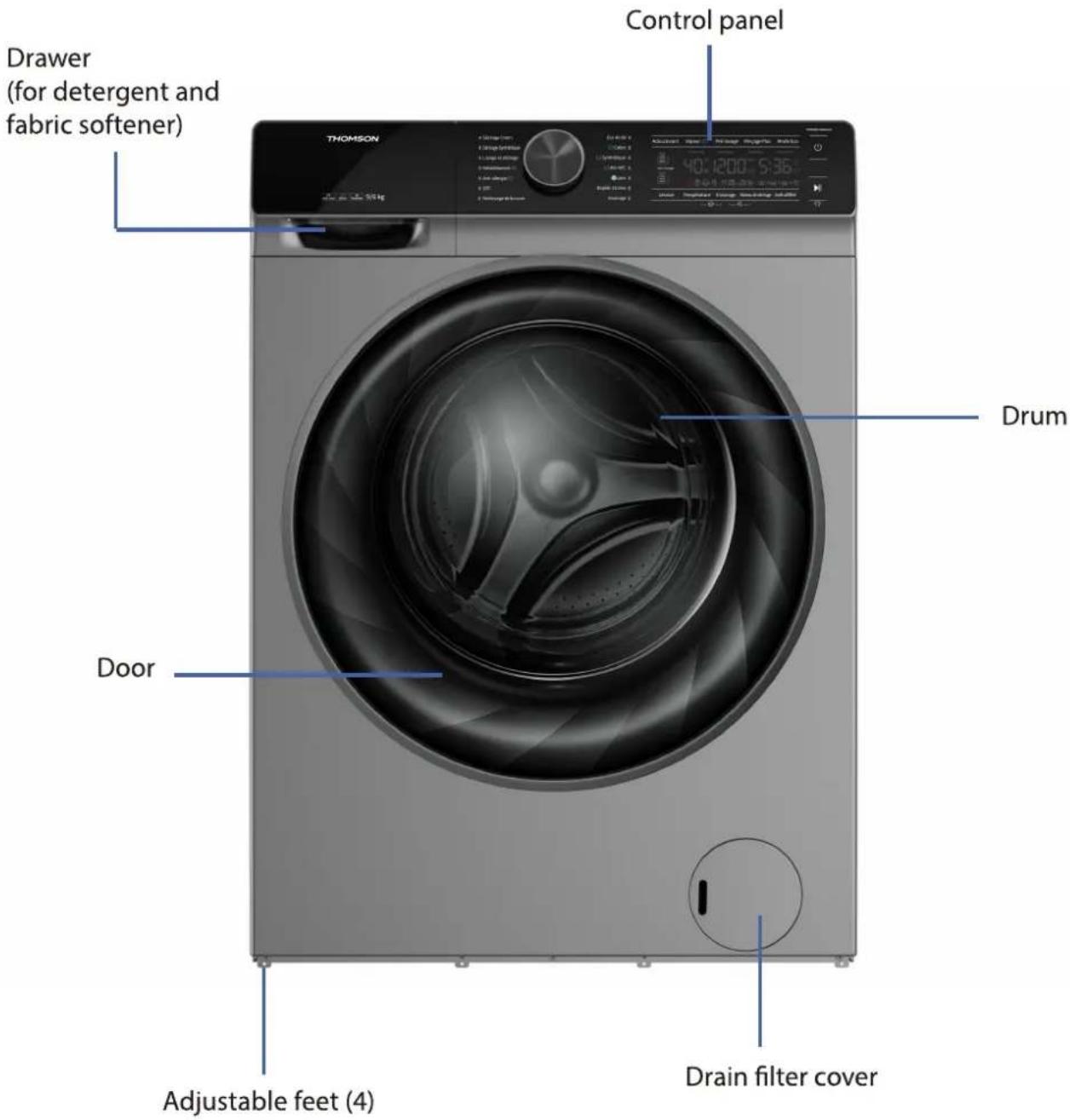

Control panel Drawer (for detergent and fabric softener) THOMSON Drum Door Adjustable feet (4) Drain filter cover

Power cord Water inlet Transit bolts Transit bolts Drain hose

Accessories

Caps

Inlet hose

Bottom plate

U-bend

Wrench

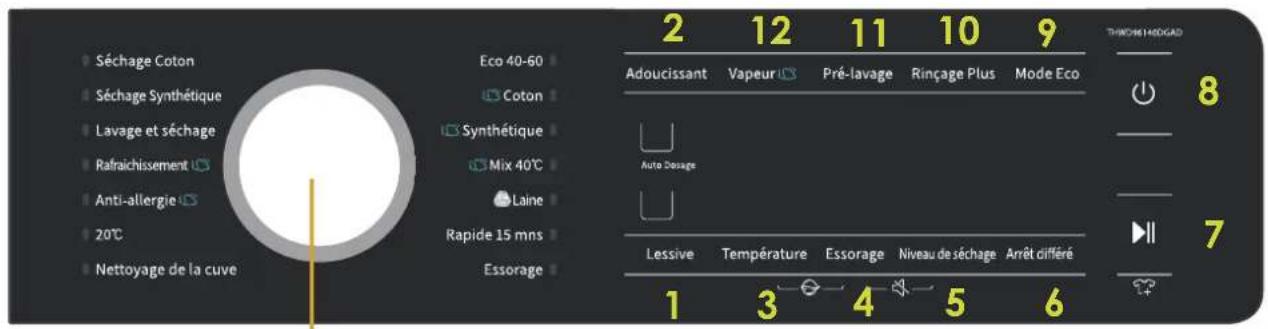

Controlpanel

Auto softener dosing Temperature Spin speed Programme duration Delay end Auto Dosage 40°C 1200 rpm 5:36 Reload

Auto detergent dosing

Water Inlet fault	Door locked	Child lock	Mute

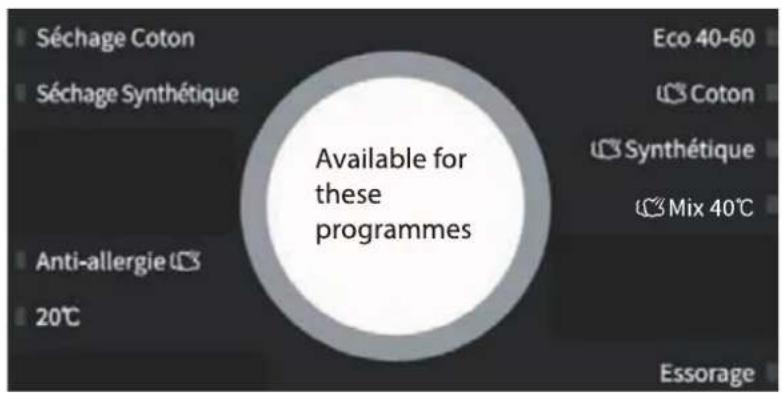

Dry level symbols

Extra dry	Cupboard dry	Iron dry	Timed drying

The symbols appear on the display when the related phase is set.

Washing phase

Rinsing phase

Spinning phase

Drying phase

INSTALLATION

■ Removing packing

1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packing. This will require 2 or more people.
3. Remove the tape securing the power supply cord and drain hose.

WARNING :

Packaging material (e.g. Films, Styrofoam) can be dangerous for children.

There is a risk of suffocation! Keep all packaging away from children.

■ Removing transit bolts

The appliance is fitted with transit bolts to prevent internal damage during transport. Packing and all transit bolts must be removed before using the appliance.

Illustration of hands using a tool to measure a circular object, no text or symbols present

Illustration of a hand using a screwdriver to adjust a mechanical component (no text or symbols present)

Illustration of a hand using a screwdriver to press or install a component, with motion arrows indicating movement (no text or symbols)

Illustration of a hand holding a sphere with an arrow indicating motion (no text or symbols)

1. Use a wrench to turn the bolt heads anticlockwise until the bolts can be partially withdrawn.
2. Push transit bolts inwards to loosen them.
3. Remove transit bolts and rubber bushes by pulling outwards.
4. Close the holes with the supplied caps.

■ Positioning

Install the appliance on a flat hard floor.

Make sure that air circulation around the appliance is not impeded by carpets, rugs, etc.

Allow at least 2 cm of clearance at each side of the appliance.

Make sure that the appliance does not stand onto the power cord.

W≥20mm

■ Installation location requirements

Before installing the appliance, the location characterised as follows shall be selected:

• Rigid, dry, and level surface
• Avoid direct sunlight
  – Sufficient ventilation
• Room temperature is above 0°C.
• Keep far away from heat resources such as coal or gas burning appliances.

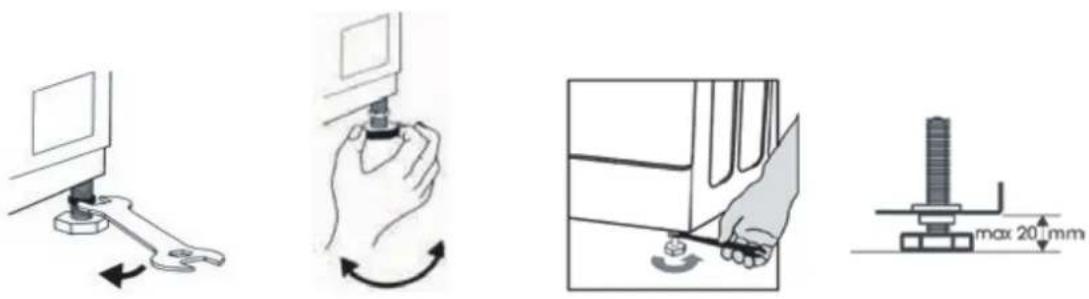

■ Levelling the appliance

Levelling the washing machine properly prevents excessive noise and vibration. Install the appliance on a solid and level floor surface.

If the floor is uneven, turn the adjustable feet as required.

- Never put cartons, wooden blocks or similar materials under the feet.

1. Loosen the lock nuts with a spanner.
2. Turn the adjustable feet to adjust the height.

- Make sure that all four feet are stable and resting on the floor and then check that the appliance is perfectly level using a spirit level.

1. Tighten the lock nuts.

■ Installing the bottom cover

Illustration of a stylus device with a hand holding the screen (no text or symbols)

Paste the sound absorption pad onto the bottom plate.

Diagram of a device with a handle and internal components, showing no text or symbols

Tilt the appliance backwards (tilting angle: 40°) and insert the bottom plate.

Diagram of a square plate with internal mesh structure and directional arrows, no text or symbols present

Peel off the backing paper from double-sided tapes at four sides of the bottom plate.

Simple line drawing of a hand using a tool to lift a block on a surface (no text or symbols)

Press the double-sided tapes to secure the bottom plate onto the appliance.

■ Electrical connection

Your washing machine works with 220-240V and 50Hz.

Electrical connections must be carried out by a qualified technician in compliance with the local safety regulations.

Your washing machine must be properly earthed. We will not be held responsible for any damage that may occur as a result of usage without correct earth connection.

Do not use extension leads or multi-sockets.

The appliance must not have an external switching device such as a timer or connected to a circuit that is regularly switched on and off.

Do not pull the plug out of the mains outlet if there is flammable gas around.

■ Connecting the hoses

Connecting the water supply hose

The appliance must be connected to a cold water supply.

Make sure that there is no kink on the hose and that it is not crushed.

1. Screw one end of the inlet hose on the back of the appliance.

Illustration of a person using a device to adjust or install a device, with an inset showing the same device (no text or symbols present)

1. Connect the other end of the inlet hose to a 34 " threaded tap.

Illustration of a faucet being inserted into a socket, showing the process (no text or symbols)

NOTE:

After completing connection, turn on the tap slowly and make sure there are no leak. Do not twist, squash, modify or cut the hose.

Connecting the drain hose

To install the drain hose, please use one of the following methods. Make sure that the drain hose does not bend, buckle, is not crushed or extended.

• Push the hose firmly into a drainage standpipe.

• When installing the drain hose to a sink, secure it tightly with a string.

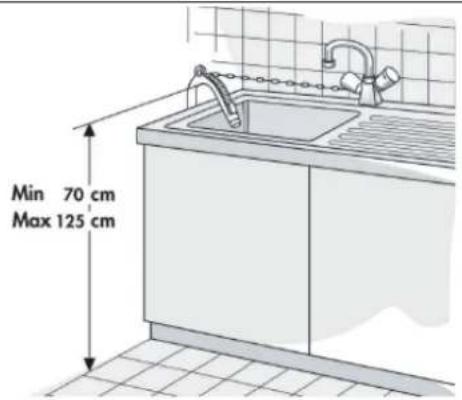

Line drawing of a washing machine with pipes and valves (no text or symbols)

Min 70 cm Max 125 cm

NOTE:

The water drain hose should be mounted at a height of minimum 70cm, maximum 125cm from the ground.

BEFORE EACH WASHING

Rules for separating laundry

• Fabric type / symbol on the wash label (cotton, mixed fibres, synthetic, wool, hand wash items)
• Colour

Separate coloured and white items. Wash new coloured items separately.

• Size
  Wash items of different sizes in the same load to improve washing efficiency and distribution of the items in the drum.
• Delicates
  Wash delicate items separately.
  • Baby articles (baby clothes, towels and napkins) shall be washed separately.
  If they are washed together with the adults' clothes, they may be infected. Rinsing times shall be increased to ensure the thorough rinsing and cleaning with no detergent residues left.
• It is suggested that the items that are easily stained such as white socks, collars and sleeves etc. shall be hand washed before being put into washing machine to achieve more ideal washing effects.

Empty pockets

Check all pockets to make sure that they are empty. Items such as nails, hair clip, matches, pens, coins and keys can damage both your appliance and your clothes.

Close all zippers, buttons, and hooks.

Close zippers, hooks and strings to make sure that these items don't snag on other clothes.

Tie all ribbons or belts.

Detergent

Read instructions on the packet of detergent or other agent, for correct quantity depending on the amount of laundry, degree of soiling, and water hardness.

Dosage

Follow the dosage recommendations on the detergent pack. They depend on:

• Degree and type of soiling
- Size of wash
Follow the detergent manufacturer's instructions for a full load;
Half load: 3/4 the amount used for a full load;
Minimum load (about 1 kg): 1/2 the amount used for a full load.

- Water hardness in your area (ask for information from your water company). Soft water requires less detergent than hard water.

Note:

Too much detergent can result in excess foam formation, which reduces washing efficiency. If the washing machine detects too much foam, it may prevent spinning. Insufficient detergent may result in grey laundry in time and also calcifies the heating system, drum and hoses.

The appliance has auto dosing compartments for liquid detergent and fabric softener, and a manual dosing compartment for powder or liquid detergent.

Auto Dose fabric softener

compartment

Store up to 350ml (max) of fabric softener suitable for several washes depending on load size.

(max) of able for pending on Softener Detergent

Auto Dose liquid detergent

compartment

Store up to 650ml (max) of liquid detergent suitable for several washes depending on load size.

Manual Dose powder detergent compartment For powder detergent used for single wash

Technical line drawing of a mechanical device with no visible text or symbols

The choice of detergent depends on:

• type of fabric (cottons, easy care/synthetics, delicate items, wool). Note: Use only specific detergents for washing Wool.
• Colour
  • the wash temperature
  • degree and type of soiling

Remarks:

• Any whitish residues on dark fabrics are caused by insoluble compounds used in modern phosphate-free powder detergents. If this occurs, shake or brush out the fabric or use liquid detergents.
• Use only detergents and softener specifically produced for domestic washing machines.
• When using descaling agents, dyes or bleaches for the pre-wash, make sure that they are suitable for use in domestic washing machines. Descaler could contain products which could damage your washing machine.
• Do not use any solvents (e.g. turpentine, benzene). Do not machine wash fabrics that have been treated with solvents or flammable liquids.
• Keep detergents and additives in a safe, dry place out of the reach of children.
• To prevent dispensing problems when using highly concentrated powder and liquid detergents, use the special detergent ball or bag supplied with the detergent and place it directly inside the drum.
• When using descaling agents, bleaches or dyes, make sure that they are suitable for washing machines. Descaler could contain compounds that can damage parts of your washing machine.
• Do not use any solvent in the washing machine (e.g. turpentine, benzine).

WASHING AND DRYING

Before the First Wash Cycle

To remove any residual water left during testing by the manufacturer, it is recommended that you carry out a short wash cycle without laundry.

1. Turn on the tap.

2. Close the door.

3. Pour a small quantity of detergent into the Manual Dose liquid/powder detergent compartment for washing phase.
4. Select and start a short programme.

WashingandDryingYourLaundry

1. Openthodoortoloadthearticlesintothedrum.

DO NOT OVERLOAD the appliance.

Observe the load sizes given in the programme chart.

Overloading the appliance will result in washing results.

2.Closethedoor.

Make sure that no laundry gets stuck between door and door seal.

3.Adddetergentandsoftener.

When the appliance is used for the first time, the auto dose function of both the detergent and softener is switched on by default. The appliance will remember the last chosen option when being started.

When using Auto Dose

Fill the liquid detergent compartment up to the 'MAX' level indicated. Only liquid detergent can be used for 'Auto Dose'.

Fill the fabric softener compartment up to the 'MAX' level indicated.

IMPORTANT!

• It is recommended that you use low-foaming detergent.
• Do not overfill the detergent / softener compartment as they may overflow.
  • After filling, please ensure that the drawer is fully closed before starting the washing program.

To activate the auto dose detergent, press ____ until the text 'Auto' and 3 bars appear on the display.

Lessive

To activate the auto dose softener, press Adouclissant until the text 'Auto' and 3 bars appear on the display.

The appliance will automatically dispense the right amount of liquid detergent and fabric softener based on load size.

When using Manual Dose

You can manually select the desired amount of detergent and softener dosage.

Repeatedly press Lessive to set the desired detergent dosage. Repeatedly press Adoucissant to set the desired softener dosage. The display will show the corresponding manual dosage level.

Little

Medium

Large

To add powder detergent, please place into the powder detergent compartment.

To turn OFF detergent and softener

Repeatedly press Lessive until the text 'Auto' and 3 bars disappear from the display. The detergent will not be dosed at the end of the program.

Repeatedly press Adoucissant until the text 'Auto' and 3 bars disappear from the display.

The softener will not be dosed at the end of the program.

Re-adding detergent and softener

When the symbol flashes on the display, it indicates that the amount of detergent/softener is insufficient. Please add detergent or softener.

Technical diagram showing two views (A and B) of a device with labeled components, likely illustrating a mechanical or electronic assembly.

1) Slide to open the drawer.
2) Add an appropriate amount of detergent to the auto dose detergent compartment (A).
3) If necessary, add an appropriate amount of softener to the auto dose softener compartment (B).
4) Close the drawer.

1. Turn the water supply on.

2. Press to turn on the power.

3. Select the desired programme.

Turn the programme dial to select the required programme. The display will show the washing time. For detailed overview of programmes, see Programme Chart.

NOTE: When selecting the programme ____ , the actual washing time is 10 hrs 30 min (10:30) but the display is designed to show 3 figures so the display will show 9:59.

1. Change temperature, if needed.

Repeatedly press Température until the desired temperature is set.

1. Change spin speed, if needed.

Repeatedly press Essorage to set the desired spin speed.

1. Select additional functions, if needed.

The corresponding function indicator will appear.

Vapeur Pré-lavage Rinçage Plus Mode Eco Function indicators

VapeurSteamSelect this function for high temperature sanitization or wrinkle removal of the laundry.NOTE:When selecting the programmeRafraichissement, the steam function is enabled as a default setting.
Pré-lavagePre-washSelect this function for washing heavily soiled laundry.When the auto dosing function is activated and pre-wash function is selected, the amount of detergent in the pre-wash phase is half of that of the main wash phase.The amount of detergent in the pre-wash phase does not a" ect the detergent in the main wash phase.
Rinçage PlusExtraRinseSelect this function to add an additional rinse cycle to give better rinse result.

Mode Eco

Power save

The power save indicator will appear when the function is selected and the indicator will disappear after the program ends.

When selecting this function, the actual temperature will be reduced by 5°C and the main wash time will be reduced.

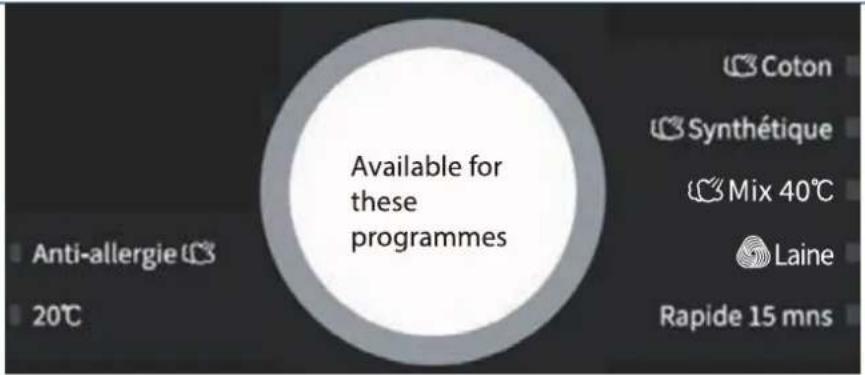

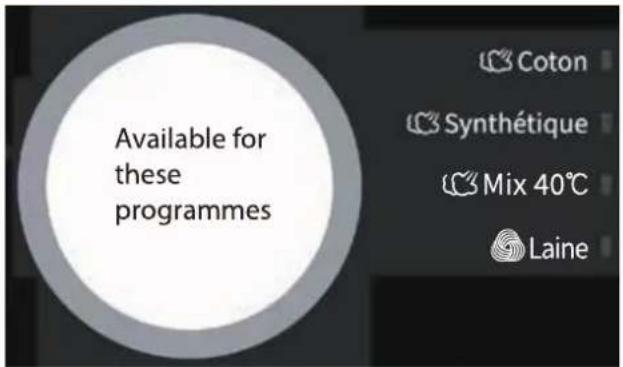

Available for these programmes Coton Synthétique Mix 40°C Laine

10. Select the desired dry level.

Repeatedly press Niveau de séchage to select the desired dry level and The display shows the symbol of the set level:

Extra dry : laundry to fully dried

Cupboard dry : laundry to be put in storage

Iron dry : laundry to be ironed

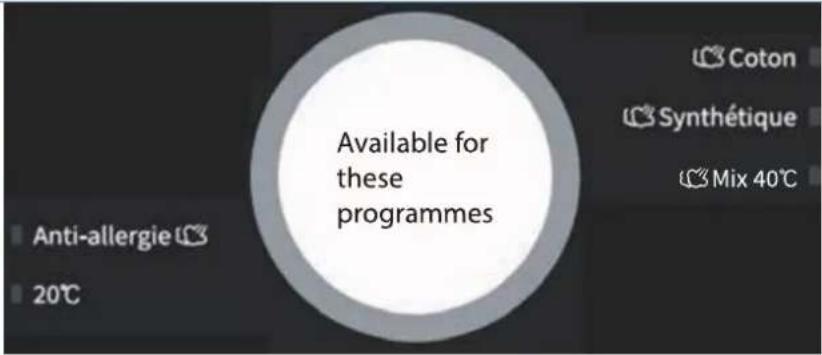

Séchage Coton Séchage Synthétique Anti-allergie 20°C Available for these programmes Eco 40-60 Coton Synthétique Mix 40°C Essorage

The appliance can sense the weight of clothes to adjust the dry time automatically. Before drying, please confirm whether the clothes can be dried.

Non washable • dry / non-dry clothes

Clothes that can neither be washed nor dried

Leather and fur products (Deformation may be caused.)

Rayon and its blended products (Discoloration or deformation may be caused.)

Large thick rubber cushions with carbamate on the back (Damage or fault may be caused.)

Hats with hard material (It will damage the machine

Cushions, pillows, articles with cotton wadding, foam and other

Others: Wrinkled or embossed clothes; crepe fabrics; Easily deformed clothes (suits, jackets, ties and

and cause faults.)

sponge materials, carpet cover (Damage or fault may be caused.)

dresses, etc.);Easily fluffing clothes (velvet, velveteen).

Clothes that cannot be dried

Any of clothes marked by graphic(Clothes may be damaged.)	Woolen clothes(Shrinkage and fur loss may be caused.)	[TD4ATights, stockings(Damage or deformation may be caused.)	Sizing clothes
Cushions or clothes with furs(Damage or fault may be Caused.)	Quilt(Damage or fault may be caused.)	Clothes with lace and embroidery, new synthetic fiber (very fine fiber)(Deformation may be caused.)	Silk

Note!

Non washable dry/non-dry clothes include but not limited to the above clothes.

The wet clothes that are dripping are not suitable for drying, which may cause the machine to alarm!

Dry timetable

The dry time of clothes of different weight in this table is estimated, and the actual dry time may vary depending on the fibre type and weight of clothes.

	Estimated dry time (min)
Clothes weight (kg)
< 1,5	60 ~ 90	40 ~ 70	80 ~ 110
1,5 ~ 3	100 ~ 140	80 ~ 120	120 ~ 160
3 ~ 4,5	150 ~ 190	150 ~ 170	190 ~ 210
4,5 ~ 6	210 ~ 250	190 ~ 230	230 ~ 270

Time dry

When the display shows the symbol

repeatedly press

Niveau de séchage

to set the time

that suits the fabrics you want to dry. The display will show the set time (30 minutes, 1 hour, 1.5 hours, 2 hours, 3 hours, and 4 hours).

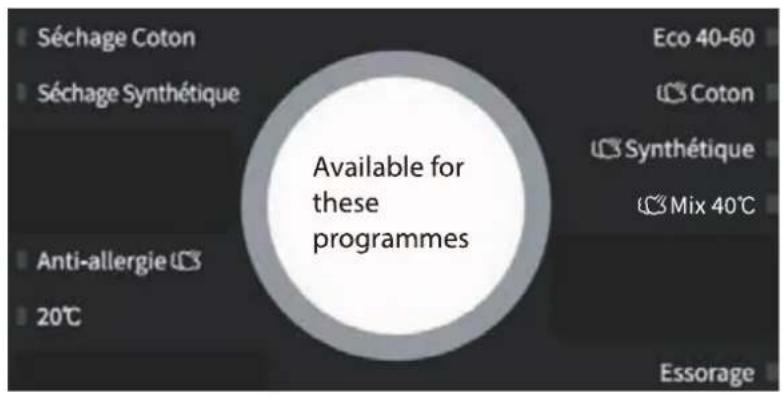

Séchage Coton Séchage Synthétique Anti-allergie 20°C Eco 40-60 Coton Synthétique Mix 40°C Available for these programmes Essorage

• Before separately drying, please take the dehydrated clothes out of the drum, and put them into the drum after making it loose.
• When few clothes or light clothes are dried, the dry time may be shorter than the set time.
• If the hand-washing clothes requires drying, before drying, please select the spin with high speed according to the clothes types. It is recommended to select the "Spin + Dry Level" programs.
• At the end of drying program, the machine will run for a period of time according to a certain rhythm to loosen the clothes and reduce the wrinkle.
• The overload dry may affect the dry effect, while the excessive dry may cause the wrinkles of clothes. For the chemical fiber clothes, such as the shirts, etc., the iron dry shall be selected.
• If the clothes with different types of fabrics are dried together, the dry performance may be affected. So it is recommended to properly sort the clothes before drying.

11. Start a programme.

Press ▶. The door will lock and the display will show the symbol 🔒.

Gray-scale icon set with five simple symbols: mountains, water, sun, and a play button (no text or labels)

These symbols show the program phases. The flashing symbol shows which phase is in progress.

Automatic weighing

The display will show “----” after starting a programme, indicating that it is weighing automatically. It will adjust the programme duration (hours:minutes) automatically according to weight of laundry.

12. Pause a running programme and open the door, if needed.

- Press ▶|| to pause a running programme.

- If water level or temperature is not too high, the door locked symbol will disappear and the display will show the reloading symbol. You can open the door, for example to add more laundry, or to remove laundry which was loaded by mistake.

- Press ▶II to proceed with the programme.

13. Change a programme and settings, if needed.

To change the settings of a running programme:

• Press and hold ⏻ for about 2 seconds to turn off the machine.
• Press ⏻ to turn on the machine.
• Select a new programme and change settings.
• Press ▶II to start the new programme.

14. At the end of the cycle, the display will show the message "End".

15. Press and hold ⏻ for about 2 seconds to turn off the machine.

16. Open the door and remove the laundry.

- The door can only be opened when the symbol ⏻ disappears.

Check that the symbol 🔍 disappears.

- Leave the door ajar to let the interior of the appliance to dry.

- Open the door and take out the laundry.

Turn off the tap.

PROGRAMMECHART

Programme	Functions	Max load (kg)	Temperatures	Max. spin speed (rpm)
Séchage Coton Cotton Dry	Drying	6	—	—
Séchage Synthétique Synthetics Dry	Drying	5	—	—
Lavage et séchage Wash and Dry	Wash and dry	6	—	1400
Rafraichissement	Drying	2	—	—
Steam Refresh
Anti-allergie Allergy Care	Washing	4	40°C, 60°C, 90°C	1400
	Wash and dry	4
20°C	Washing	9	20°C	1400
	Wash and dry	6
Nettoyage de la cuve Drum clean	Wash and dry	—	90°C	800
ECO 40-60	Washing	9	—	1400
	Wash and dry	6
Coton Cotton	Washing	9	Cold, 20°C, 30°C, 40°C, 60°C, 90°C	1400
	Wash and dry	6
Synthétique Synthetics	Washing	9	Cold, 20°C, 30°C, 40°C, 60°C	1400
	Wash and dry	6
Mix 40°C Mix	Washing	4	Cold, 20°C, 30°C, 40°C	1400
	Wash and dry
Laine Wool	Washing	2	Cold, 20°C, 30°C, 40°C	600
Rapide 15 mns Quick 15'	Washing	1	Cold, 20°C, 30°C, 40°C	800
Essorage Spin	Spin	9	—	1400
	Spin and dry	6

Programme	Programme description(Type of load and soil level)	Detergents and Additives
		Pre-washI	Main washII	Softener
Séchage CotonCotton Dry	The wet cotton & linen clothes can be dried after being spun.	—	—	—
Séchage SynthétiqueSynthetics Dry	The wet chemical fiber clothes can be dried after being spun.	—	—	—
Lavage et séchageWash and Dry	The wash and dry cycle is able to clean normally soiled cotton laundry declared to be washable at 40 °C or 60 °C, together in the same cycle, and to dry it in such a way that it can be immediately stored in a cupboard, and that this programme is used to assess the compliance with the EU ecodesignlegislation.	—	●	○
RafraichissementSteam Refresh	It is suitable for removing the peculiar smell (such as, the smell of smoke/hot pot/barbecue, etc.) on the clothes.	—	—	—
Anti-allergieAllergy Care	Programme to effectively extinguishes bacteria in textiles. It is appropriate for clothes of babies who are sensitive to clothes.	○	●	○
20°C	It is suitable for cotton clothes with light stains, energy saving.	○	●	○
Nettoyage de la cuveDrum clean	Programme to remove dirt and bacterial residue that can breed in the machine after it has been used for a period, especially when low temperature washes are used regularly.	—	—	—
ECO 40-60	For normally soiled cotton laudry	○	●	○
CotonCotton	For washing heavily and normally soiled cotton or linenFor very heavily soiled garments select the "Prewash" function	○	●	○
SynthétiqueSynthetics	For moderately soiled synthetics, cotton blended fabrics	○	●	○
Mix 40°CMix	For mixed loads of moderately soiled cotton and synthetic fabrics	○	●	○
LaineWool	For machine washable wool. (Refer to the washing label attached to the clothing).	○	●	○
Rapide 15 mnsQuick 15'	For washing lightly soiled garments quickly	○	●	○
EssorageSpin	Extra spin with selectable spin speed	—	—	—

● = dosing required / ○ = optional

ADDITIONALFUNCTIONS

■ DelayEndFunction

You can use this function to set the programme to finish at a later time. The delay end time can be chosen between 1 and 24 hours in 1-hour increments.

1. Select a programme.

2. Repeatedly press Arrêt différé to select the desired end time.

• The hours displayed indicates the time the programme will finish.

• The display will show the symbol

1. Press ▶|| to start the programme.

• The machine will then countdown.

For example, if the programme duration is longer than 2 hours, the minimum delay end function must start from 3 hours.

If the programme duration of your selected programme is 2:28 hours and you set the "Delay End" time to 6 hours, this means your washing programme will finish in 6 hours.

If you want to cancel this function before starting the programme, repeatedly press Arrêt différé until the symbol disappears from the display. Or you can select another programme by turning the programme dial.

To cancel this function after starting the programme, turn off the machine by pressing and holding for about 2 seconds.

SoundFunction

You can use this function to turn on or off the sound made when pressing the buttons or turning the programme selector.

- Press and hold Essorage and Niveau de séchage at the same time for about 2 seconds until the display shows ,indicating the sound function is activated.

• To deactivate this function, press and hold Essorage and Niveau de séchage at the same time

for about 2 seconds. The symbol will disappear from the display.

■ Child Lock Function

To strengthen the safety of children, this machine is equipped with Child Lock Function.

When the programme starts, press and hold Température and Essorage at the same time for 2 seconds. The display will show the symbol 🔍, indicating that the function is activated. When the function is activated, all function buttons will be locked.

To deactivate this function, press and hold Température and Essorage at the same time for 2 seconds again. The symbol will disappear from the display.

CLEANINGANDMAINTENANCE

WARNING :

Always unplug the appliance and turn off the water tap before cleaning and maintenance.

■ Cleaning the Machine Housing

Wipe with a soft, damp cloth. Do not use chemical or abrasive cleaning agents. Immediately remove washing and cleaning agent residue.

■ Cleaning the Drum

Any rust stains left inside the drum by metal articles must be removed immediately using chlorine-free detergents. Never use steel wool for cleaning the drum!

To descale the drum, run the Drum Clean cycle with the descaling agent according to the manufacturer's instructions for correct detergent dosage.

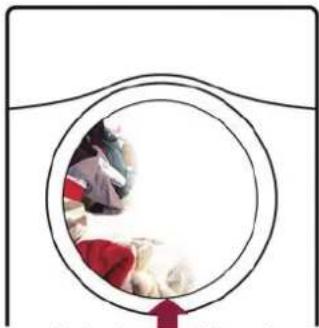

■ Cleaning the Door Seal and Glass

Line drawing of a hand gripping a curved object (no text or symbols)

Wipe the glass and seal after each wash to remove lint and stains. If lint builds up it can cause leakages. Remove any coins, buttons and other objects from the seal after each wash. Clean the Door Seal and Glass every month to ensure the normal operation of the machine.

■ CleaningtheInletFilter

NOTE:

Clean the inlet filter if water is not supplied properly.

If water is very hard or contains traces of lime deposit, the water inlet filter may become clogged. It is recommended to clean the inlet filter from time to time.

1. Close water tap and unscrew the inlet hose.

1. Unscrew the inlet hose on the back of the appliance by hand. Pull out the mesh filter from the valve on the back of the appliance with pliers and carefully clean it under running water.

Illustration of hands using a tool to adjust or install a device, with no visible text or symbols.

1. Clean the mesh filter at the hose end carefully with a fine brush.

Line drawing of two hands using a tool to apply or install a component (no text or symbols present)

1. Insert the mesh filter back in the appliance. Connect the inlet hose to the water tap and appliance. Open the water tap and check that all connections are tight.

Diagram illustrating a mechanical assembly process with labeled parts and directional arrows indicating steps.

■ Cleaning the Drawer

1. While holding down the release lever on the inner of the drawer, slide open the drawer and remove it from the appliance.
2. Open the lids of both compartments, add water and shake to loosen / remove soap residue. Repeat until clear.
3. Clean the cap valves of both compartments with a soft brush.
4. Clean the drawer compartment under running water using a soft brush.
5. Clean the drawer recess within the appliance using a soft brush. Make sure to clean the cap valves to prevent clogging.
6. Once cleaning is complete, slide the drawer back into position ensuring it moves freely into its fully retracted position.

■ Cleaning the Drain Pump Filter

The drain pump filter collects threads and small objects left in the laundry.

Check regularly that the filter is clean to ensure smooth running of your machine.

WARNING :

Be careful when draining if the water is hot. Allow the water to cool down before cleaning the drain pump filter. Risk of scalding!

Simple diagram showing a hand pressing a button on a curved surface, with no text or symbols present.

Illustration of a kitchen sink with a tool and a valve, showing motion arrows (no text or symbols)

Place a low and wide container under the water filter.

Slowly turn the filter anticlockwise until all the water has come out.

- Once the container is full, close the water filter by turning it clockwise. Empty the container. Repeat the procedure until all the water has been drained.

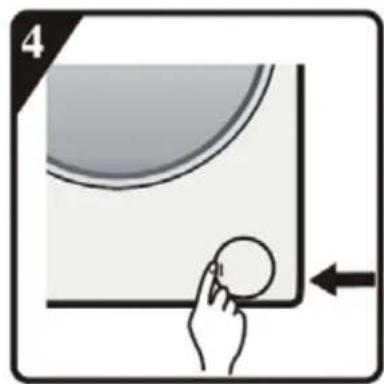

Press the tab on the cover to open the cover.

Simple diagram showing a curved line and a circular arrow with an arrow, no text or symbols present.

Insert the water filter back in the appliance by turning it clockwise.

Illustration of a hand pressing a circular object on a surface, with an arrow indicating direction (no text or symbols)

Close the cover until a click is heard.

TROUBLESHOOTING

Problems	Possible Cause	Possible Solutions
The washing machine will not start.	The door is not properly closed.	Close the door properly.
	Poor connection to the power supply.	Check connection to the power supply.
	Power failure	Check the power supply.
	Machine has not been switched on.	Switch the machine on.
Detergent remains in the drawer after the program is complete.	The detergent is not a low suds type.	Check if the detergent is appropriate.
	Excessive use of detergent	Reduce amount of detergent in the detergent drawer.
Washing machine vibrates or is too noisy.	Not all transit bolts have been removed.	Remove all transit bolts.
	Washing machine is located on	Make sure the washing
	an uneven surface or is not level.	machine is set on an even surface and levelled.
	Machine load is over the maximum capacity.	Reduce amount of laundry in the drum.
Thewashingmachinedoes notdrainand/orspin.	Drain hose is blocked.	Unblock the drain hose.
	The filter is blocked.	Unblock the filter.
	Unbalance of the laundry	Add clothes or run a spinning program again.
Thewashingresultisnot good.	Your laundry was too dirty for the program you selected.	Select a suitable program.
	The amount of detergent used is not appropriate.	Use more or less detergent following the manufacturer's instructions.
	Clothes exceeding the maximum capacity have been filled in your machine.	Do not exceed the maximum capacity of your machine.
Theappliancedoesnotdry ordoesnotdrycorrectly.	Tap is not turned on.	Turn the water tap on
	Drain pump filter is blocked.	Make sure the drain pump filter is not clogged.
	Machine loaded incorrectly	Reduce the laundry load.
	Incorrect cycle setting	Make sure you have set the correct cycle.

ErrorCodes

DisplayCauseSolution
F01	Water Inlet fault	Check if the water pressure is too low.Check if the inlet hose is knotted.Check if the inlet filter is blocked.Check if the inlet hose is frozen.After fault is removed, press ▶II.
F03	Drainage fault	Check if the drain hose is knotted.Check if the water filter is blocked.IMPORTANT:Ensure that the water has cooled before draining the appliance.Check if the drain hose is frozen.Plug in the appliance.Select and start the program Essorage or press and hold ⏻ for at least 3 seconds and
		restart the desired program.
F13	Door lock fault	Start program for 3 times to check whether the door is closed.Open or close it again.After fault is removed, press ▶II.
F14	Door unlock fault	Press ▶II. The appliance will try to open the door. The alarm will not be removed until the door is unlocked. Or press ⏻ to restart the appliance, and the alarm will be removed.
F24	Overflow or too much foam	Remove the error code by pressing ▶II and then drain water.Select and start the required program.
Other error codes F04 to F98	Electronic module fails.	Press and hold ⏻ for about 2 seconds to turn off the machine.After fault is removed, press ⏻.
Unb	Unbalance alarm	Unbalanced LoadBalanced LoadIf laundry winding occurs, separate and rearrange laundry load.If the laundry in the drum is too lightweight, add two or more towels.

Emergencydooropening

In case of failure to open the door due to power outage or other special circumstances, the emergency unlock trigger at the drainage pump door can be used for emergency opening.

Before opening the door:

CAUTION!

Risk of burns! Make sure that the water temperature is not too high and the laundry is not hot. If necessary, wait until they cool down.

CAUTION!

Risk of injury! Make sure that the drum is not rotating. If necessary, wait until the drum stops rotating.

To open the door, proceed as follows:

1. Ensure that the appliance is switched off and unplugged from the main socket.
2. Open the cover of drain pump filter.

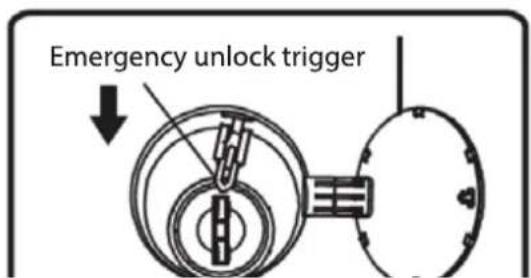

Emergency unlock trigger

1. Keep the emergency unlock trigger pulled downward and at the same time, open the appliance door.
2. Take out the laundry and then close the appliance door.
3. Close the filter cover.

(a) for the eco 40-60 programme
(b) for the wash and dry cycle

ProductInformatinSheet
COMMISSION DELEGATED REGULATION (EU) 2019/2014 with regard to energy labelling of household washing machines and household washer-dryers
Supplier's name or trade mark: Etablissements Darty & fils © | THOMSON
Supplier's address: 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France
Model identifier: THWD96140DGAD
General product parameters:
Parameter	Value		Parameter	Value
Rated capacity(kg)	Rated capacity(b)	6,0	Dimensions in cm	Height	85
	Rated washing capacity(a)	9,0		Width	60
				Depth	61
Energy Efficiency Index	EEIw(a)	51,5	Energy efficiency class	EEIw(a)	A
	EEIWD(b)	67,0		EEIWD(b)	D
Washing efficiency index	Iw(a)	1,031	Rinsing effectiveness (g/kg dry textile)	IR(a)	4,5
	Jw(b)	1,031		JR(b)	4,5
Energy consumption in kWh per cycle, for the washing cycle of the household washer-dryer, using the eco 40-60 programme at a combination of full and partial loads. Actual energy consumption will depend on how the appliance is used	0,054		Energy consumption in kWh per cycle, for the wash and dry cycle of the household washer-dryer at a combination of full and half loads. Actual energy consumption will depend on how the appliance is used.		0,513
Water consumption in litre per cycle, for the eco 40-60 programme at a combination of full and partial loads. Actual water consumption will depend on how theappliance is used and on the hardness of the water	42		Water consumption in litre per cycle, for the wash and dry cycle of the household washer-dryer at a combination of full and half loads. Actual water consumptionwill depend on how the appliance is used and on the hardness of the water.		89
Maximum temperature inside the treated textile (°C) for the washing cycle of the household washer-dryer, using the eco 40-60 programme	Rated washing capacity	36	Maximum temperature inside the treated textile (°C) for the washing cycle of the household washer-dryer, using the wash and dry cycle	Rated capacity	26
	Half	31		Half	26
	Quarter	25
Spin speed (rpm) (a)	Rated washing capacity	1400	Weighted remaining moisture content (%)(a)	52,0
	Half	1400
	Quarter	1400
Eco 40-60 programme duration (h:min)	Rated washing capacity	3:36	Spin-drying efficiency class (a)	B
	Half	2:54
	Quarter	2:54
Airborne acoustical noise emissions during the spinning phase for the eco 40-60 washing cycle at rated washing capacity (dB(A) re 1 pW)	72		wash and dry cycle duration (h:min)	Rated capacity	10:30
				Half	6:30
Type	free-standing		Airborne acoustical noise emission class for the spinning phase for the eco 40-60 programme at rated washing capacity	A
Off-mode (W) (if applicable)	0,49		Standby mode (W) (if applicable)	n.a.
Delay start (W) (if applicable)	3,70		Networked standby (W) (if applicable)	n.a.
Minimum duration of the guarantee offered by the supplier: 24 months
This product has been designed to release silver ions during the washing cycle			NO
Additional information:
Weblink to the supplier's website, where the information in point 9 of Annex II to Regulation (EU) 2019/2023 is found: www.darty.com

To find the model information in the product database :

Click the link

https://eprel.ec.europa.eu/screen/product/washerdriers2019/1228268

Values for the following programmes:

The eco 40-60 programme at the rated capacity
(a)	rated capacity in kg:	9 kg
(b)	programme duration, expressed in hours and minutes:	3:36
(c)	energy consumption, expressed in kWh/cycle:	0,780 kWh/cycle
(d)	water consumption, expressed in litres/cycle:	55 L/cycle
(e)	maximum temperature reached for minimum 5 minutes inside the laundry being treated in the washing cycle, expressed in degrees centigrade:	36°C
(f)	remaining moisture content after the washing cycle, expressed in percentage of water content,and spinning speed at which this was achieved:	52%1400 rpm

The eco 40-60 programme at half of the rated capacity
(a)	rated capacity in kg:	4,5 kg
(b)	programme duration, expressed in hours and minutes:	2:54
(c)	energy consumption, expressed in kWh/cycle:	0,480 kWh/cycle
(d)	water consumption, expressed in litres/cycle:	45 L/cycle
(e)	maximum temperature reached for minimum 5 minutes inside the laundry being treated in the washing cycle, expressed in degrees centigrade:	31°C
(f)	remaining moisture content after the washing cycle, expressed in percentage of water content,and spinning speed at which this was achieved:	52%1400 rpm

The eco 40-60 programme at a quarter of the rated capacity
(a)	rated capacity in kg:	2,5 kg
(b)	programme duration, expressed in hours and minutes:	2:54
(c)	energy consumption, expressed in kWh/cycle:	0,250 kWh/cycle
(d)	water consumption, expressed in litres/cycle:	30 L/cycle
(e)	maximum temperature reached for minimum 5 minutes inside the laundry being treated in the washing cycle, expressed in degrees centigrade:	25°C
(f)	remaining moisture content after the washing cycle, expressed in percentage of water content,and spinning speed at which this was achieved:	52%1400 rpm

The 20 °C programme at the rated capacity for this programme
(a)	rated capacity in kg:	9 kg
(b)	programme duration, expressed in hours and minutes:	1:50
(c)	energy consumption, expressed in kWh/cycle:	0,200 kWh/cycle
(d)	water consumption, expressed in litres/cycle:	85 L/cycle
(e)	maximum temperature reached for minimum 5 minutes inside the laundry being treated in the washing cycle, expressed in degrees centigrade:	20°C
(f)	remaining moisture content after the washing cycle, expressed in percentage of water content,and spinning speed at which this was achieved:	51%1400 rpm

One cotton programme at nominal temperature higher than or equal to 60 °C (if present) at the rated capacity for this programme Coton
(a) rated capacity in kg:	9 kg
(b) programme duration, expressed in hours and minutes:	3:29
(c) energy consumption, expressed in kWh/cycle:	1,560 kWh/cycle
(d) water consumption, expressed in litres/cycle:	108 L/cycle
(e) maximum temperature reached for minimum 5 minutes inside the laundry being treated in the washing cycle, expressed in degrees centigrade:	60°C
(f) remaining moisture content after the washing cycle, expressed in percentage of water content,and spinning speed at which this was achieved:	51%1400 rpm

One programme for other textiles than cotton or a mix of textiles (if present) at the rated capacity for this programme Mix 40°C
(a) rated capacity in kg:	4 kg
(b) programme duration, expressed in hours and minutes:	2:18
(c) energy consumption, expressed in kWh/cycle:	0,850 kWh/cycle
(d) water consumption, expressed in litres/cycle:	69 L/cycle
(e) maximum temperature reached for minimum 5 minutes inside the laundry being treated in the washing cycle, expressed in degrees centigrade:	45°C
(f) remaining moisture content after the washing cycle, expressed in percentage of water content,and spinning speed at which this was achieved:	45%1400 rpm

One programme for the quick washing of lightly soiled laundry (if present) at the rated capacity for this programme Rapide 15 mns
(a) rated capacity in kg:	1 kg
(b) programme duration, expressed in hours and minutes:	0:30
(c) energy consumption, expressed in kWh/cycle:	0,330 kWh/cycle
(d) water consumption, expressed in litres/cycle:	22 L/cycle
(e) maximum temperature reached for minimum 5 minutes inside the laundry being treated in the washing cycle, expressed in degrees centigrade:	38°C
(f) remaining moisture content after the washing cycle, expressed in percentage of water content,and spinning speed at which this was achieved:	55%800 rpm

One programme for heavily soiled textiles (if present) at the rated capacity for this programme
(a) rated capacity in kg:	9 kg
(b) programme duration, expressed in hours and minutes:	2:09
(c) energy consumption, expressed in kWh/cycle:	0,220 kWh/cycle
(d) water consumption, expressed in litres/cycle:	115 L/cycle
(e) maximum temperature reached for minimum 5 minutes inside the laundry being treated in the washing cycle, expressed in degrees centigrade:	20°C
(f) remaining moisture content after the washing cycle, expressed in percentage of water content,and spinning speed at which this was achieved:	51%1400 rpm

For household washer-dryers: the wash and dry cycle at the rated capacityLavage et séchage
(a) rated capacity in kg:		6 kg
(b) programme duration, expressed in hours and minutes:		10:30
(c) energy consumption, expressed in kWh/cycle:		3,600 kWh/cycle
(d) water consumption, expressed in litres/cycle:		102 L/cycle
(e) maximum temperature reached for minimum 5 minutes inside the laundry being treated in the washing cycle, expressed in degrees centigrade:		26°C
(f) remaining moisture content after the washing cycle, expressed in percentage of water content,and spinning speed at which this was achieved:		1,20%1400 rpm

For household washer-dryers: the wash and dry cycle at half of the rated capacityLavage et séchage
(a) rated capacity in kg:	3 kg
(b) programme duration, expressed in hours and minutes:	6:30
(c) energy consumption, expressed in kWh/cycle:	2,300 kWh/cycle
(d) water consumption, expressed in litres/cycle:	70 L/cycle
(e) maximum temperature reached for minimum 5 minutes inside the laundry being treated in the washing cycle, expressed in degrees centigrade:	26°C
(f) remaining moisture content after the washing cycle, expressed in percentage of water content,and spinning speed at which this was achieved:	0,40%1400 rpm

NOTES :

• The eco 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40^ or 60^ , together in the same cycle.
• This programme is used to assess the compliance with the EU ecodesign legislation.
• The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.
• The wash and dry cycle is able to clean normally soiled cotton laundry declared to be washable at 40 °C or 60 °C, together in the same cycle, and to dry it in such a way that it can be immediately stored in a cupboard, and that this programme is used to assess the compliance with the EU ecodesign legislation.
• Loading the household washing machine up to the capacity indicated by the manufacturer for the respective programmes will contribute to energy and water savings.
• Noise and remaining moisture content are influenced by the spinning speed: the higher the spinning speed in the spinning phase, the higher the noise and the lower the remaining moisture content.
• The values given for programmes other than the eco 40-60 programme and the wash cycle are indicative only.

Ratings	220-240V~, 50Hz1750W (rated power)	1350W (drying power)
Water pressure	0,1 – 1 MPa
Grade of waterproof	IPX4

Do not disassemble or repair the appliance by yourself. Failure to do so may result in an electric shock or personal injury.

To access to professional repair and order spare parts, please get the support from FNAC DARTY after-sales service.

Spare parts for your appliances will be delivered within 15 working days after having received the order.

Please Note!

All appliances have a 2-year warranty.

Warranty does not cover damages caused due to improper installation, unauthorized modification, self-repair or non-professional repair.

Contact us at :

DARTY www.darty.com 24 0978 970 970 02 334 00 00 24 Hours 7 Days a week 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France Vanden Borre in alle vertrouwen www.vandenborre.be 8 AM – 6 PM Mon to Sat Slesbroekstraat 101 1600 Sint-Pieters-Leeuw Belgium

DISPOSAL

As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling.

The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

EU Declaration of Conformity

Product Description:

WASHER DRYER

Front view of a silver washing machine with black and silver casing (no visible text or symbols)

Marque -

Brand /Merk /Marca:

THOMSON

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

Low Voltage Directive (LVD)

Eco design requirements for energy-related products (ErP)

RoHS

EMC:

EN 55014-1:2017+A11:2020

EN IEC 61000-3-2:2019

EN 61000-3-3:2013+A1:2019

EN 55014-2:2015

LVD :

EN 60335-2-7:2010 + A1:2013 + A11:2013 + A2:2019

EN 60335-2-11:2010 + A11:2012 + A1:2015 + A2:2018

EN 60335-1:2012 + A11:2014 + A13:2017 + A1:2019 + A14:2019 + A2:2019 + A15:2021

EN 62233:2008

ErP :

(EU) No 2019/2014

(EU) No 2019/2023

(EU) No 2021/340

(EU) No 2021/341

EN 60456:2016 + A11:2020

EN IEC 62512:2020 + A11:2020

This declaration of conformity is drawn up under the sole responsibility of the manufacturer.

The person responsible for this declaration is:

Place, Date / Lieu :

Ivry-sur-Seine, mai 9, 2022

CE

ASSURANCE SERVICE QUALITY FNAC DARTY
