Buzz 60.2031.10 - Clock TFA - Free user manual and instructions

Product type	Digital travel alarm clock with vibration
Brand	TFA
Model	Buzz 60.2031.10
Case dimensions	79 x 28 (35) x 74 mm
Weight	86 g (device only)
Power supply	3 x 1.5 V AA batteries (not included, alkaline recommended)
Display	Digital with backlight
Audible alarm	Progressive volume (crescendo), 3 x 20 sec., max after 60 sec.
Vibration alarm	2 seconds vibration, 2 seconds pause
Snooze function	5-minute repeat
Backlight	Press SNOOZE LIGHT button (5 seconds) or during alarm (20 seconds)
Key lock	Tiltable stand upward to lock (except SNOOZE LIGHT)
12/24 h display	Selectable
Low battery indicator	Battery symbol on display
Care and cleaning	Soft damp cloth, without solvents or abrasives
Safety instructions	Keep out of reach of children (<3 years), do not throw batteries into fire, respect polarity
Spare parts/Repairability	Not user-serviceable; contact seller in case of malfunction
Intended use	Travel alarm clock, ideal for hearing impaired or heavy sleepers

Frequently Asked Questions - Buzz 60.2031.10 TFA

How to set the time on the Buzz 60.2031.10 alarm clock?

Press and hold the ALARM SET button for 3 seconds in normal mode. The 24H display flashes. Use the + or - buttons to select 12 or 24 hour format, then confirm with ALARM SET. Then set hours and minutes in the same way.

How to set the alarm time?

Press the ALARM SET button briefly in normal mode. The alarm time (default 7:00) flashes. Use + or - to set the hour, confirm with ALARM SET, then do the same for minutes.

How to activate the vibration or sound alarm?

Use the switches on the device: Sound alarm ON/OFF and Vibration ON/OFF. Set them to ON to activate the corresponding function; the symbol appears on the display.

How to use the snooze function?

When the alarm sounds, press the SNOOZE LIGHT button. The alarm stops for 5 minutes and the snooze symbol flashes. To disable snooze, briefly press another button or hold SNOOZE LIGHT.

What does the low battery symbol on the display mean?

The low battery symbol (A2 on the diagram) indicates the display brightness is decreasing. Replace the three 1.5 V AA batteries as soon as possible.

How to turn on the backlight?

Briefly press the SNOOZE LIGHT button to turn on the backlight for 5 seconds. During the alarm, it turns on automatically for 20 seconds.

How to lock the keys to avoid accidentally triggering the alarm?

Place the stand (foot) upward. All buttons except SNOOZE LIGHT are then locked. To place the device normally, put the stand back downward.

What to do if the display shows nothing?

Check battery polarity and replace them if necessary. If the problem persists, contact the seller.

How to replace the batteries?

Open the battery compartment on the back (stand in upright position). Insert three new 1.5 V AA batteries respecting polarity (+/-). Close the compartment.

How to clean the alarm clock?

Use a soft damp cloth. Never use solvents or abrasive products that could damage the case.

USER MANUAL Buzz 60.2031.10 TFA

Digital travel alarm clock with vibration

Thank you for choosing this product from TFA.

1. Before you use this device

• Please make sure you read the instruction manual carefully.
• The operating instructions are enclosed with the device or can be downloaded at www.tfa-dostmann.de/en/service/downloads/instruction-manuals
• This product should only be used as described within these instructions.
• Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use. We shall not be liable for any damage occurring as a result of non-following of these instructions.
• Please pay particular attention to the safety notices!
• Please keep this instruction manual safe for future reference.

Digital travel alarm clock with vibration

Digital travel alarm clock with vibration

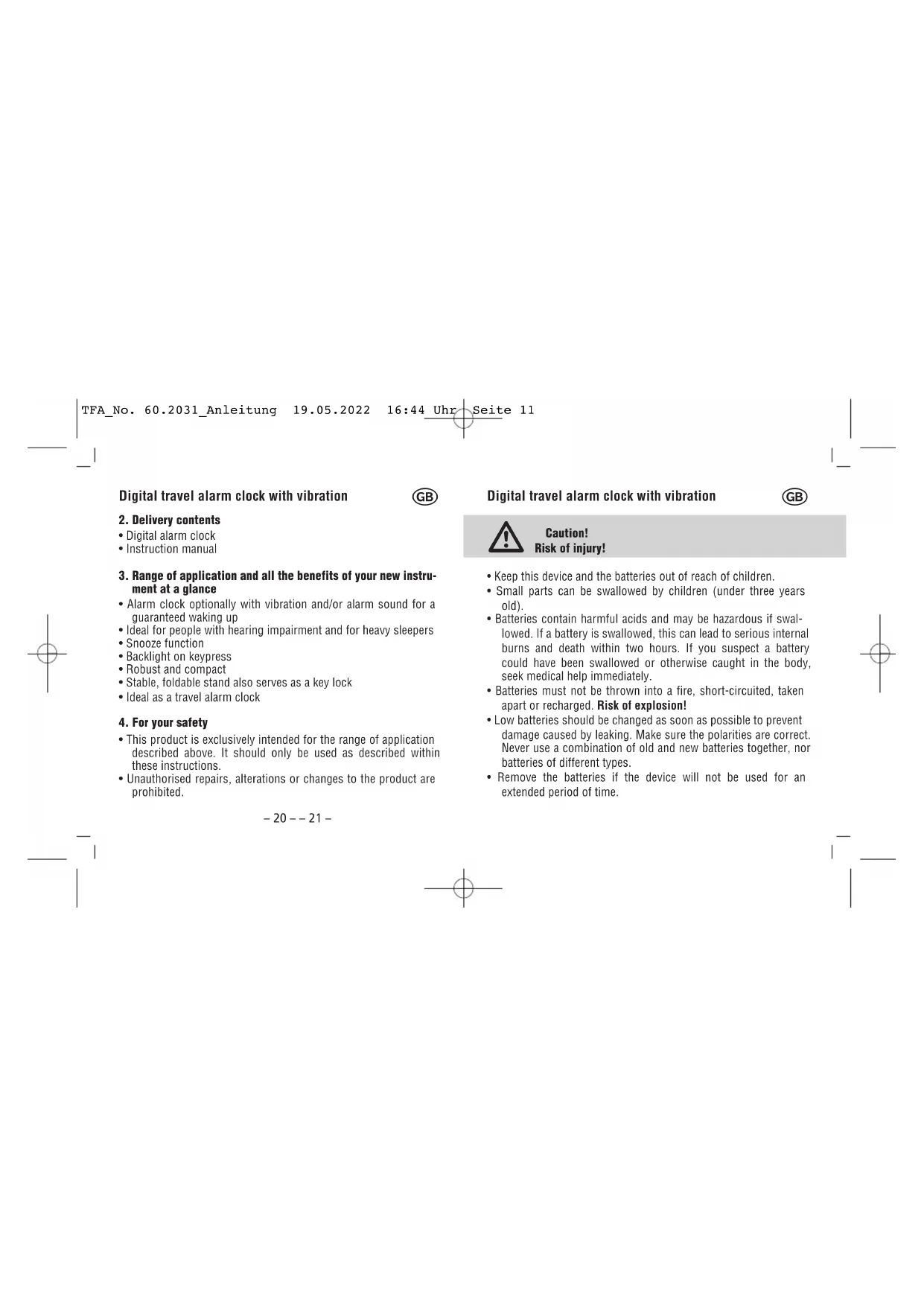

2. Delivery contents

Digital alarm clock
- Instruction manual

Caution! Risk of injury!

3. Range of application and all the benefits of your new instrument at a glance

• Alarm clock optionally with vibration and/or alarm sound for a guaranteed waking up
• Ideal for people with hearing impairment and for heavy sleepers
• Snooze function
• Backlight on keypress
• Robust and compact
• Stable, foldable stand also serves as a key lock
• Ideal as a travel alarm clock

4. For your safety

• This product is exclusively intended for the range of application described above. It should only be used as described within these instructions.

• Unauthorised repairs, alterations or changes to the product are prohibited.

• Keep this device and the batteries out of reach of children.

• Small parts can be swallowed by children (under three years old).
• Batteries contain harmful acids and may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.
• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!
• Low batteries should be changed as soon as possible to prevent damage caused by leaking. Make sure the polarities are correct. Never use a combination of old and new batteries together, nor batteries of different types.
• Remove the batteries if the device will not be used for an extended period of time.

-20--21-

Digital travel alarm clock with vibration

• Avoid contact with skin, eyes and mucous membranes when handling leaking batteries. In case of contact, immediately rinse the affected areas with water and consult a doctor.

Important information on product safety!

• Do not expose the device to extreme temperatures or shocks.
• The product must not come into contact with water or moisture. Suitable for indoor use only.
• Clean the device with a soft damp cloth. Do not use solvents or scouring agents.

5. Elements

A:Display (Fig.1):

A1: Time
A 2: Battery symbol (for display function)
A 3: Symbol alarm sound activated
A4: Alarm time
A 5: Symbol vibration activated
A6:Snoopzesymbol

Digital travel alarm clock with vibration

B: Buttons (Fig. 2):

B1:ALARMSETbutton
B 2: Alarm sound ON/OFF switch
B3:-button
B4:SNOOZE LIGHT button
B5:+button
B 6: Vibration ON/OFF switch

C: Housing (Fig. 2+3):

C 1: Battery compartment
C2: Support for free-standing
C3: Support for key lock

6. Getting started

• Lift up the stand and open the battery compartment. Insert three new AA 1.5 V batteries, polarity as illustrated. Close the battery compartment.
  The device will alert you with a beep and all LCD segments will be displayed for a short moment. The device is ready for use.

Digital travel alarm clock with vibration

7. Settings

• Press and hold the + or - button in setting mode for fast mode.
• The device will automatically quit the setting mode if no button is pressed for 20 seconds.

7.1 Time setting

• Press and hold the ALARM SET button in normal mode for three seconds.
• 24 Hr (default) will be flashing. Press the + or - button to choose 12 Hr or 24 Hr system. In the 12-HR system AM (before noon) or PM (after noon) appears on the display.
• Confirm the setting with the ALARM SET button.
  The hour digit will be flashing. Press the + or - button to adjust hours.
• Confirm the setting with the ALARM SET button. Set the minutes in the same way.
• Confirm the setting with the ALARM SET button.
  The display shows the current time.

Digital travel alarm clock with vibration

8. Alarm functions

8.1 Alarm time setting

• Press the ALARM SET button briefly in normal mode to enter the alarm setting mode. The hour digit will be flashing (default 7:00). Press the + or - button to adjust hours.
• Confirm the setting with the ALARM SET button. Set the minutes in the same way.
• Confirm the setting with the ALARM SET button.
  The adjusted alarm time appears on the display.

8.2 Activate and deactivate the alarm functions

To activate/deactivate the respective alarm function, move the alarm sound ON/OFF switch and/or the vibration ON/OFF switch to ON or OFF.
- The corresponding alarm symbol appears/disappears on the display.

Switch position Function Display symbol

Alarm sound OFF

Digital travel alarm clock with vibration

Alarm sound ON

Vibration OFF

Vibration ON

9. Wake-up process

• When the alarm is activated, the alarm starts to ring and/or to vibrate when the set alarm time is reached. The alarm time flashes and the backlight will turn on for 20 seconds.
• Press briefly any button (except SNOOZE LIGHT) or press and hold the SNOOZE LIGHT button and the alarm functions will stop. If the alarm is not stopped manually, the vibration and/or the ascending alarm tone automatically turn off after two minutes and it will be reactivated at the same set time on the following day.
  The alarm symbols remain on the display.
• When the alarm rings and/or vibrates, press the SNOOZE LIGHT button and the snooze function is activated. The snooze symbol flashes on the display.
  The alarm will be interrupted for 5 minutes.

Digital travel alarm clock with vibration

• Press briefly any button (except SNOOZE LIGHT) or press and hold the SNOOZE LIGHT button and the snooze function will stop.

10. Display light

• Press the SNOOZE LIGHT button. The backlight turns on for 5 seconds.

11. Support/ key lock

• The foldable stand also serves as a key lock and protects against unwanted activation of the device.
• If you fold the support up, all buttons (except SNOOZE LIGHT) are locked. For table standing fold the support down.

12. Battery replacement

The battery in the upper battery compartment powers the display.
- The remaining two batteries power the alarm functions.
- When the display function starts to fade, the battery symbol appears on the display.
- Please change all three batteries 1,5 V AA.

-26--27-

Digital travel alarm clock with vibration

13. Troubleshooting

Problem Solution

No display Ensure the batteries' polarities

are correct

Change the batteries

Incorrect indication Change the batteries

Alarm clock does Activate the function by moving not ring/vibrate the switch

If your device fails to work despite these measures, please contact the retailer where you purchased the product from for advice.

14. Waste disposal

This product and its packaging have been manufactured using high-grade materials and components which can be recycled and reused. This reduces waste and protects the environment.

Dispose of the packaging in an environmentally friendly manner using the collection systems that have been set up.

Digital travel alarm clock with vibration

Disposal of the electrical device

Remove non-permanently installed batteries and rechargeable batteries from the device and dispose of them separately.

This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE).

This product must not be disposed of in ordinary household waste. As a consumer, you are required to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal. The return service is free of charge. Observe the current regulations in place!

Disposal of the batteries

Never dispose of empty batteries and rechargeable batteries with ordinary household waste. They contain pollutants which, if improperly disposed of, can harm the environment and human health.

Digital travel alarm clock with vibration

As a consumer, you are required by law to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment. The return service is free of charge.

The symbols for the contained heavy metals are: Cd=cadmium, Hg=mercury, Pb=lead.

15. Specifications

Power consumption Batteries	3 x AA 1,5 V
	(not included)
	Use alkaline batteries

Vibration alarm 2 seconds vibration, 2 seconds pause

Alarm sound Rising alarm sound (crescendo)

3 x 20 seconds,

after 60 seconds maximum volume

Digital travel alarm clock with vibration

Dimensions 79× 28 (35) × 74mm

Weight 86 g (device only)

No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice. The latest technical data and information about this product can be found in our homepage by simply entering the product number in the search box.

www.tfa-dostmann.de

E-Mail: [e-mail]

TFA Dostmann GmbH & Co.KG, Zum Ottersberg 12, 97877 Wertheim, Germany 05/22

Cd = cadmium, Hg = mercury, Pb = plomb.
