Brand	TFA
Model	LUMATIC FREE 43.2039.01
Product type	Rechargeable LED headlamp
Housing dimensions	52 x 88 x 33 mm
Weight (device only)	72 g
Power supply	Rechargeable Li-ion battery 3.7 V, 1200 mAh
Charging port	USB-C (5 V, 1 A)
Charging time	2.5 to 3 hours
Battery life	Approx. 2.5 to 6.5 hours depending on setting
Diffuse light (COB)	10 W, 350 lm, range up to 5 m, angle 200°
Focused light (LED)	3 W, 120 lm, range up to 45 m
Light modes	High, low, flashing for each type
Motion sensor	Contactless on/off at about 5 cm
Protection rating	IPX4 (splash-proof)
Headband	Adjustable elastic with silicone coating
Package contents	Lamp, USB-C cable, user manual
Care and cleaning	Soft damp cloth; no solvents or abrasives
Safety	Do not look directly into the beam; do not charge if damaged; do not expose to heat
Repairability	Battery not user-replaceable; do not disassemble; contact customer service
Recycling	Device and lithium battery must be recycled at an approved collection point

Frequently Asked Questions - LUMATIC FREE 43.2039.01 TFA

How to turn on the lamp?

Press the ON/OFF button (A5). The lamp turns on in high diffuse mode. Each subsequent press changes mode: high diffuse, low diffuse, high focused, low focused, then off.

How to charge the battery?

Remove the rubber cap from the USB-C port, connect the supplied cable to the device and to a suitable USB power source (5V, 1A). The red indicator shows charging, it turns green when the battery is full (approx. 2.5 to 3 hours).

How to activate the motion sensor?

First select the desired light mode with the ON/OFF button, then press the motion sensor button (A6). The indicator turns orange/green. A hand wave about 5 cm from the sensor automatically turns the lamp on or off.

What to do if the lamp does not turn on?

Make sure the battery is charged (plug it in). If the red light blinks, recharge it. Also check that the motion sensor is not accidentally active. If the problem persists, contact the seller.

Is the battery replaceable?

No, the lithium-ion battery is permanently installed and cannot be removed without damaging the housing. For recycling, return the intact device to an approved collection point.

Can I use the lamp in the rain?

Yes, the lamp is rated IPX4, which protects against splashes. However, do not immerse it or charge it in a humid environment.

How to clean the lamp?

Use a soft damp cloth. Never use solvents or abrasive products that could damage the coating.

What is the maximum range of the lamp?

In focused mode, the range can reach up to 45 meters. In diffuse mode, it illuminates up to 5 meters with a 200° angle.

How long does the battery last on a full charge?

Battery life varies according to the mode used: from 2.5 hours (highest power mode) to 6.5 hours (lowest power mode).

How to dispose of the lamp at end of life?

Do not dispose of the device with household waste. Take it to a collection point for electrical and electronic waste (WEEE) or return it to the seller. The lithium battery must be treated separately.

USER MANUAL LUMATIC FREE 43.2039.01 TFA

service/downloads/instruction-manuals

Kat. Nr. 43.2039.01

CCCA

Fig. 1

LED-Stirnlampe

Thank you for choosing this product from TFA.

1. Before you use this device

• Please make sure you read the instruction manual carefully.
  The operating instructions are enclosed with the device or can be downloaded at www.tfa-dostmann.de/en/service/downloads/ instruction-manuals
• This product should only be used as described within these instructions.
• Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.
• Please pay particular attention to the safety notices!
• Please keep this instruction manual safe for future reference.

2. Delivery contents

• Headlamp
• Charging cable USB-C
• Instruction manual

LED-headlamp

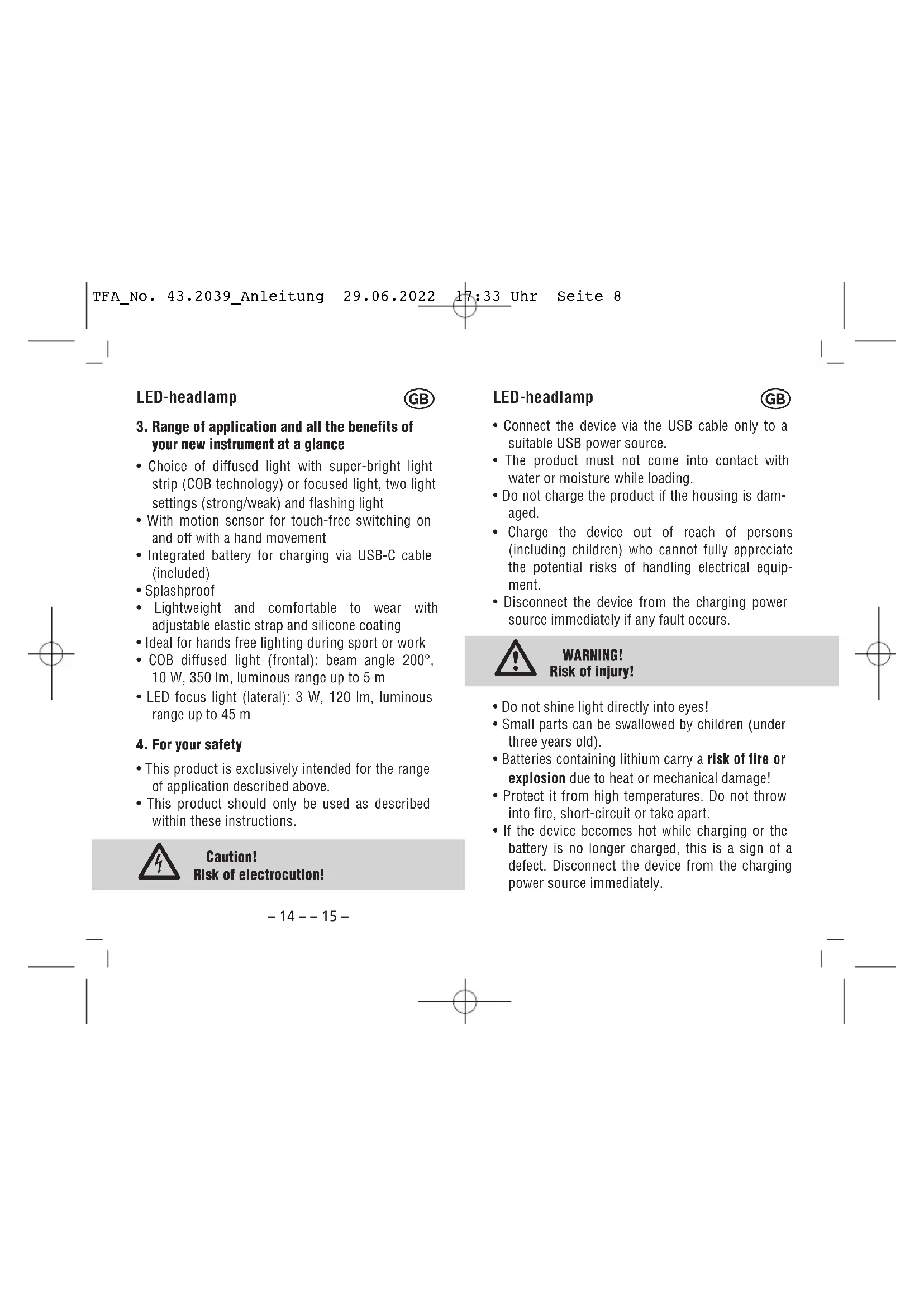

3. Range of application and all the benefits of your new instrument at a glance

• Choice of diffused light with super-bright light strip (COB technology) or focused light, two light settings (strong/weak) and flashing light
• With motion sensor for touch-free switching on and off with a hand movement
• Integrated battery for charging via USB-C cable (included)
• Splashproof
• Lightweight and comfortable to wear with adjustable elastic strap and silicone coating
• Ideal for hands free lighting during sport or work
  COB diffused light (frontal): beam angle 200^ , 10 W, 350 lm, luminous range up to 5 m
  LED focus light (lateral): 3 W, 120 lm, luminous range up to 45 m

4. For your safety

This product is exclusively intended for the range of application described above.
- This product should only be used as described within these instructions.

Caution! Risk of electrocution!

LED-headlamp

• Connect the device via the USB cable only to a suitable USB power source.
  The product must not come into contact with water or moisture while loading.
• Do not charge the product if the housing is damaged.
• Charge the device out of reach of persons (including children) who cannot fully appreciate the potential risks of handling electrical equipment.
• Disconnect the device from the charging power source immediately if any fault occurs.

WARNING! Risk of injury!

• Do not shine light directly into eyes!
• Small parts can be swallowed by children (under three years old).
• Batteries containing lithium carry a risk of fire or explosion due to heat or mechanical damage!
• Protect it from high temperatures. Do not throw into fire, short-circuit or take apart.
• If the device becomes hot while charging or the battery is no longer charged, this is a sign of a defect. Disconnect the device from the charging power source immediately.

LED-headlamp

• The battery cannot and must not be replaced or removed by you. There is a risk of explosion if the battery is replaced incorrectly. If necessary, a qualified person can obtain instructions on how to dismantle the permanently installed battery from [e-mail], should this be necessary for the purpose of repairing or recycling the product.

CAUTION

• Unauthorised repairs, alterations or changes to the product are prohibited.
• Do not expose the device to extreme temperatures, vibrations or shocks.
• Clean the device with a soft damp cloth. Do not use solvents or scouring agents.

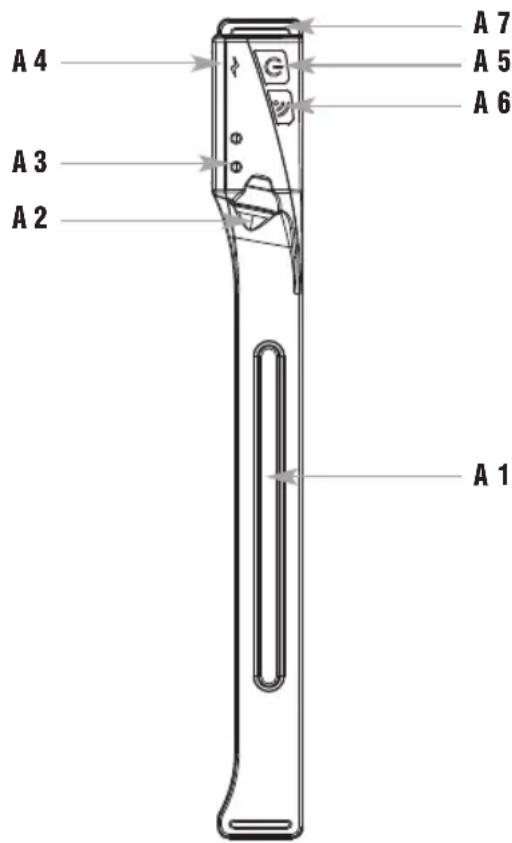

5. Elements (Fig. 1)

A1: COB light stripe
A 2: LED focus light
A3: Motion sensor
A4:Charging symbol
A 5: ON/OFF button
A 6: Motion sensor ON/OFF button
A7:USB-C port

LED-headlamp

6. Charging

• Pull off the rubber protection. Plug the supplied USB-cable into the designated port on the device and connect the unit to a suitable USB power source.
  To fully charge, leave the device connected for approximately 2.5 - 3 hours.
• The device cannot be operated during the charging process.
• The charging symbol lights up red when the battery is charging. Once the light has changed from red to green, the battery is fully charged.
• Disconnect the device from the charging power source.
• As soon as the headlamp is powered on, the charging symbol turns red. The red charging symbol flashes when the battery needs to be charged.
• Please charge the device immediately to preserve battery life.
• Recharge the battery every six months, even if the product is not in use.
• After charging, be sure to reseal the charging port with the rubber protection.

7. Getting started/Operation

• Before the first use, please charge it fully.
• Press the ON/OFF button.

LED-headlamp

GB

The charging symbol lights up red.
- You can select your respective light setting by pressing the ON/OFF button. The sequence is shown as follows:

COB diffused light (frontal) high
COB diffused light (frontal) low
- LED focused light (lateral) high
- LED focused light (lateral) low

• Press the button again and the light turns off.
• For flashing light press and hold the ON/OFF button.
• The elastic head strap can be adjusted.

8. Motion sensor mode

• Select your respective light setting by pressing the ON/OFF button.
• Press the motion sensor ON/OFF button. The charging symbol lights up orange/green. The motion sensor is activated.
• If the motion sensor detects a movement about 5cm in front of the sensor, the light will turn on and off automatically.
  To deactivate the function, press the motion sensor ON/OFF button again. The charging symbol shines red again.

LED-headlamp

GB

9. Troubleshooting Problem Solution

No light Press the ON/OFF button

to switch on the device
Charge the battery via USB
When the motion sensor is activated: Move your hand approx. 5 cm in front of the sensor

If your device fails to work despite these measures, please contact the retailer where you purchased the product from for advice.

10. Waste disposal

This product and its packaging have been manufactured using high-grade materials and components which can be recycled and reused. This reduces waste and protects the environment.

Dispose of the packaging in an environmentally friendly manner using the collection systems that have been set up.

Disposal of the electrical device

Caution! This device contains a built-in battery that cannot be removed without damaging the housing.

LED-headlamp

Improper removal represents a safety risk. Hand in the device unopened at the collection point; the device and battery will be disposed of properly.

This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE).

This product must not be disposed of in ordinary household waste. As a consumer, you are required to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal. Observe the current regulations in place!

WARNING!

Batteries containing lithium can explode

• Old batteries and rechargeable batteries containing lithium (Li = lithium) present a high risk of fire and explosion due to heat or mechanical damage with potentially serious consequences for people and the environment. Pay particular attention to correct disposal.

LED-headlamp

11. Specifications

Power consumption Built-in Li-Ion rechargeable battery

Rechargeable battery type 3.7 V, 1200 mAh

Charging input USB Type C, 5V, 1A

COB diffused light Beam angle 200°, 10 W, 350 lm, luminous range up to 5 m

LED focus light 3 W, 120 lm, luminous range up to 45 m

Accessories USB-C charging cable

Charging time 2.5-3 hours

Battery runtime Approx. 2.5-6.5 hours (depending on light setting)

Protection class IPX4

Housing dimension 52 x 88 x 33 mm

Weight 72 g (device only)
