U398CH2 - Blender ROTEL - Free user manual and instructions

Brand	Rotel
Model	U398CH2
Category	Immersion blender
Rated voltage	220-240 V
Rated frequency	50/60 Hz
Rated power	600 W
Number of speeds	2 (I and II)
Included accessories	Blending shaft, chopper with bowl (500 ml), whisk, measuring beaker
Mixer usage	Sauces, soups, mayonnaises, baby food, smoothies
Chopper usage	Meat, cheese, onions, herbs, nuts, bread, fruits, vegetables
Whisk usage	Cream, egg whites, dessert mixes
Care and cleaning	Accessories dishwasher safe or hand washable; motor unit wipe with damp cloth
Safety	Sharp chopper blades; do not immerse motor unit; unplug before cleaning
Maximum usage time	1 minute continuous (10 seconds for hard foods in chopper)
Warranty	Free repair under conditions (see manual)
Compliance	European directives 2014/35/EU and 2014/30/EU
Disposal	Do not dispose of with household waste; recycling according to WEEE

Frequently Asked Questions - U398CH2 ROTEL

How to use the immersion blender?

Insert the blending shaft into the motor unit by turning it clockwise until it locks. Fill the measuring beaker with ingredients, immerse the blending shaft, then press the speed I or II button. For a homogeneous mixture, gently lift and lower the appliance in a circular motion.

How to use the chopper?

Insert the chopper blade into the bowl and press lightly. Cut food into pieces of about 2 cm. Place the lid, attach the motor unit, then press the start button. Caution, the blades are very sharp.

What types of food can I chop?

The chopper is suitable for meat, cheese, onions, herbs, cookies, fruits, vegetables, nuts, bread, etc. Refer to the user guide for recommended quantities and times.

How to use the whisk?

Insert the whisk into its base, then place the base into the motor unit. To avoid splashes, first use speed I for about 30 seconds, then switch to speed II.

What is the maximum usage time?

Do not exceed 1 minute of continuous use. For the chopper with hard foods, limit to 10 seconds. Let the motor cool to room temperature before reuse.

How to clean the appliance?

Unplug the appliance. Wipe the motor unit, chopper lid, and whisk base with a damp cloth. Other accessories (blending shaft, bowl, blade, whisk) can be washed by hand or in the dishwasher. For dried residues, run for a few seconds in soapy water.

Can I use the blender in containers other than the provided beaker?

Yes, you can use any appropriately sized container, provided you immerse the blending shaft enough to avoid splashing.

What to do if the appliance does not work?

Check that the voltage matches and the appliance is correctly assembled. If the problem persists, contact customer service. Do not attempt to repair yourself.

How to dispose of the appliance at end of life?

Do not dispose of the appliance with household waste. Return it to a retailer, service center, or Rotel SA for recycling in accordance with the WEEE directive.

What are the important safety precautions?

Keep the appliance out of reach of children. Do not use outdoors. Never immerse the motor unit in water. Always unplug before assembly, cleaning, or changing accessories. Caution with sharp chopper blades.

USER MANUAL U398CH2 ROTEL

Product photo of a kitchen utensil with a blender, blender, whisk, and beaker (no text or symbols visible)

• GEBRAUCHSANWEISUNG
• MODE D'EMPLOI
• ISTRUZIONI PER L'USO
• INSTRUCTIONS FOR USE

CE RoHS eRecycling

D/F/I/E

Labeled diagram of a kitchen appliance with numbered parts including a hand mixer, condenser, and whisk.

Deutsch

Mechanical assembly diagram showing a cylindrical component being reduced by a curved arrow, with no visible text or symbols.

Illustration of a mechanical device with a handle and base, showing motion arrows (no text or symbols)

Three-step illustration of a kitchen brush and mixing tool, showing the step from whisk to final container (no text or symbols)

Diagram showing a mechanical component before and after a curved arrow indicating motion (no text or symbols)

Three-step illustration of a blender being processed, showing the top, side, and bottom views (no text or symbols)

• UTILISATION DU FOUET

Three-step illustration of a kitchen brush and mixing step, showing the whisk, handle, and lid (no text or symbols)

• ENTRETIEN ET NETTOYAGE

Mechanical assembly diagram showing a cylindrical component being reduced by a curved arrow, with no visible text or symbols.

Illustration of a mechanical device with a handle and base, showing motion or assembly (no text or symbols)

• USO DELLA FRUSTA

Three-step illustration of a kitchen utensil and a digital brush, showing mechanical components without any text or symbols.

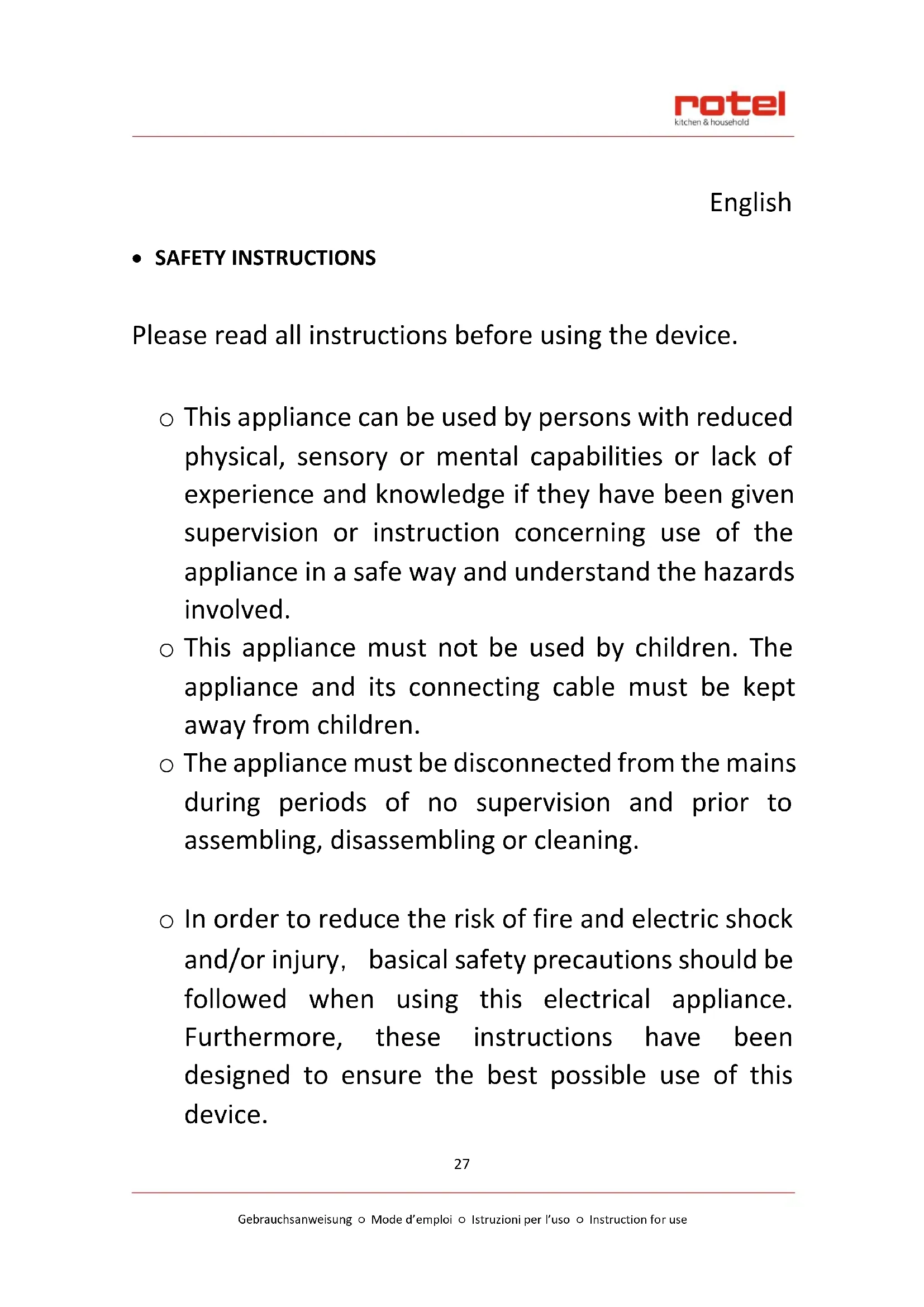

Please read all instructions before using the device.

○ This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

○ This appliance must not be used by children. The appliance and its connecting cable must be kept away from children.

- The appliance must be disconnected from the mains during periods of no supervision and prior to assembling, disassembling or cleaning.

- In order to reduce the risk of fire and electric shock and/or injury, basical safety precautions should be followed when using this electrical appliance. Furthermore, these instructions have been designed to ensure the best possible use of this device.

Before plugging into a socket, it shall be ensured that the mains voltage matches the voltage specified on the appliance's rating plate.

○ Close supervision is necessary when electrical appliance is used near children.

○ The appliance shall not be left unattended when connected to the mains.

○ If the plug or the power cable is damaged, or the appliance is defective, no repair should be attempted but by our service department.

- The use of any accessory attachment not recommended or sold by the manufacturer may cause fire, electric shock or personal injury.

- The power cord shall not hang over the edge of a table or counter, or touch hot surfaces (also the stove).

- The appliance should not be connected to a power outlet before it has been fully assembled. It shall always be unplugged when not in use or when left unattended, and before changing accessory, disassembling or cleaning.

- The appliance is intended for short-time operating only. The running time may not exceed one minute, or ten seconds when chopping hard food.

- The appliance should not be running more than three times without interruption. It must cool down to room temperature before further use.

○ The device should not be used outdoors.

- To avoid fire, electric shock and personal injury, the blender, its cord or plug shall not be immersed into water or any other fluid.

○ This appliance is intended for household only.

- BEFORE FIRST USE

○ After removing the packaging, make sure that the product is undamaged and that all accessories listed are present. Do not use the appliance if it is visibly damaged and contact our service department.

- Check that the mains voltage corresponds to the equipment's rating.

• USING THE BLENDER

This hand blender is perfectly suitable for preparing dips, sauces, soups, mayonnaise and baby food, as well as for mixing drinks, smoothies and milkshakes.

- Insert the blender shaft into the power handle, turn clockwise to lock.

Diagram showing a mechanical component being processed, with no visible text or symbols

Fill the selected ingredients into the measuring beaker and immerse the blender deeply to prevent splattering. The hand blender may be used with the measuring beaker provided or with any other suitable vessel.

○ Switch on the blender by pressing the power button at speed I or II. Switch II is the highest available speed setting.

- Mix all ingredients by gently moving the blender up and down, with circular motions.

• USING THE CHOPPER

The chopper is perfectly suited to mince food such as meat, cheese, onions, herbs, biscuits, fruits, vegetables, nuts, bread, etc.

CAUTION: the blades are very sharp! Always handle the blade unit carefully.

• Put the chopper blade unit in the chopper bowl, press it down to lock the bowl.
  Fill the food in the chopper bowl. Cut solid ingredients into smaller pieces (about 2 cm thick).
• Put the chopper coupling unit onto the chopper bowl.
• Fasten the power handle to the chopper bowl, as shown in the installation reference "Using the blender".
  ○ Switch on the appliance by pressing the power switch I or II.

Illustration of a mechanical device with a cylindrical component and curved arrows indicating motion (no text or symbols)

• USING THE WHISK

The whisk is useful to whip light ingredients such as cream, egg whites and instant desserts.

○ Insert the whisk in the whisk coupling unit.
- Connect the coupling unit to the power handle, as shown in the installation reference "Using the blender".
Press switch I to activate the whisk, and switch II after approx. 30 seconds only, in order to prevent splashing.

Three-step illustration of a kitchen utensil and a digital brush, showing mechanical components without any text or symbols.

CLEANING AND MAINTENANCE

Before cleaning, unplug the appliance and remove the accessories.
○ Wipe the power handle and the chopper/whisk coupling unit with a damp cloth only. Do not immerse in water. Other accessories may be cleaned in the dishwasher or the sink.
If some food has been allowed to dry on the blade or whisk, place a drop of dish detergent in the mixing container and add water. Plug in, then immerse the blade or whisk and operate the unit for 10 seconds. Unplug, rinse the container under running water, and then dry thoroughly.
Store this appliance in a well-ventilated and dry place to prevent the motor to be affected by damp.

CAUTION: the edges of the cutting blades are very sharp, please clean carefully.

- PROCESSING GUIDE

Recommended usage chart for a 500 ml chopper bowl:

Ingredient	Maximum (g)	Processing time (sec)
Meat	200	30
Herbs	80	30
Nuts, almonds	250	30
Cheese	250	30
Bread	80	15
Onions	300	15
Biscuits	150	15
Soft fruits	200	15

- DISPOSAL

• For proper disposal, please return device to a retailer, a service agent or Rotel AG.
  European Directive 2012/19/EC concerning Waste Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the cost of re-using and recycling materials comprising the machine, while preventing potential damage to public health and the environment. The crossed-out wheeled bin symbol appears on all products to remind owners of the obligations regarding separate waste collection. Owners should contact their local authorities or appliance dealers for further information concerning the correct disposal of household appliances.

This appliance conforms to the following EU directives:

2014/35/EU (Low Voltage Directive)

2014/30/EU (Electromagnetic Compatibility Directive)

D/F/I/E

• GARANTIE / GARANTIE / GARANZIA / WARRANTY

• 3 JAHRE GARANTIE

• 3 ANS DE GARANTIE

• 3 ANNI DI GARANZIA

• 3 YEARS WARRANTY

○ Warranty commitment

We commit ourselves to repair this device free of charge, should a failure occur within the period of warranty despite proper handling. We repair all defects caused by material or manufacturing faults. The guarantee will be fulfilled either by repairing the device or replacing the defective parts, according to our judgement. A warranty does not cover damages due to wearing parts, damages and defects caused by improper handling or maintenance (such as limescale and commercial use). It will only be granted if either the warranty card stating date of purchase, dealer's stamp and signature, or the purchase receipt is sent with the device to the relevant after-sales service (see address below). Devices shall be returned in their original packaging. Transport costs are to be borne by the purchaser. Remember to specify your address to your sending, as well as a short declaration about the failure, shall the defect not be obvious.

Servicestation:

Service après-vente:

After-sales service:

Rotel AG

Parkstrasse 43

5012 Schönenwerd

Telefon: [phone]

E-mail: [e-mail]
