USER MANUAL U396CH2 ROTEL

• Safety instructions 27
  Before first use 30

Using the blender 30
Using the chopper 31
Using the whisk 31
Cleaning and maintenance 32
- Processing guide. 32
Disposal 33

D/F/I/E 34

Garantie/Garantie/Garanzia/Warranty 34

Deutsch

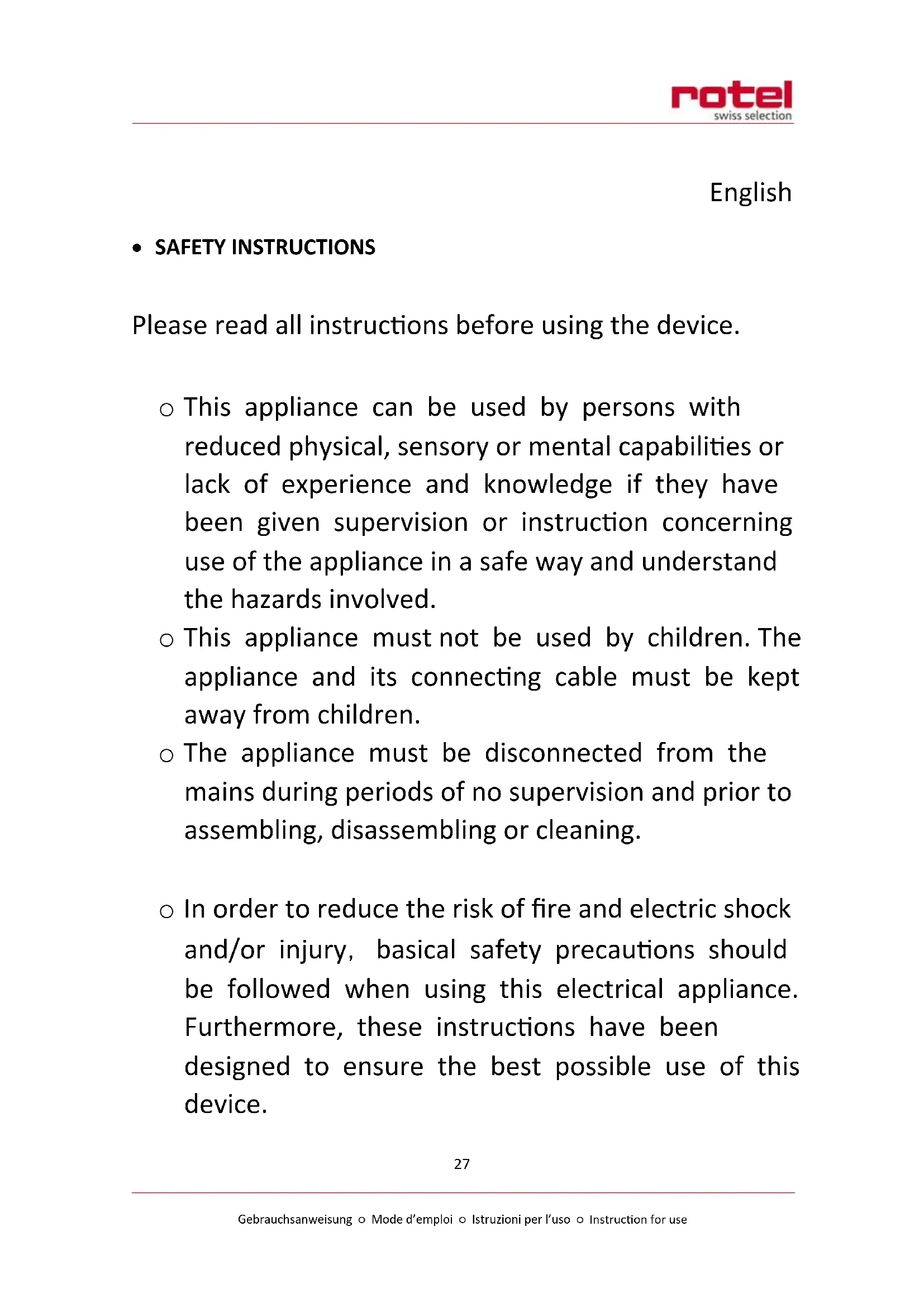

SICHERHEITSHINWEISE

Please read all instructions before using the device.

• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• This appliance must not be used by children. The appliance and its connecting cable must be kept away from children.

• The appliance must be disconnected from the mains during periods of no supervision and prior to assembling, disassembling or cleaning.

In order to reduce the risk of fire and electric shock and/or injury, basical safety precautions should be followed when using this electrical appliance. Furthermore, these instructions have been designed to ensure the best possible use of this device.

• Before plugging into a socket, it shall be ensured that the mains voltage matches the voltage specified on the appliance's rating plate.

• Close supervision is necessary when electrical appliance is used near children.

The appliance shall not be left unattended when connected to the mains.

• If the plug or the power cable is damaged, or the appliance is defective, no repair should be attempted but by our service department.

• The use of any accessory attachment not recommended or sold by the manufacturer may cause fire, electric shock or personal injury.

• The power cord shall not hang over the edge of a table or counter, or touch hot surfaces (also the stove).

• The appliance should not be connected to a power outlet before it has been fully assembled. It shall always be unplugged when not in use or when left unattended, and before changing accessory, disassembling or cleaning.

The appliance is intended for short-time operating only. The running time may not exceed one minute, or ten seconds when chopping hard food.

The appliance should not be running more than three times without interruption. It must cool down to room temperature before further use.
The device should not be used outdoors.
To avoid fire, electric shock and personal injury, the blender, its cord or plug shall not be immersed into water or any other fluid.
This appliance is intended for household only.

BEFORE FIRST USE

After removing the packaging, make sure that the product is undamaged and that all accessories listed are present. Do not use the appliance if it is visibly damaged and contact our service department.
Check that the mains voltage corresponds to the equipment's rating.

- USING THE BLENDER

This hand blender is perfectly suitable for preparing dips, sauces, soups, mayonnaise and baby food, as well as for mixing drinks, smoothies and milkshakes.

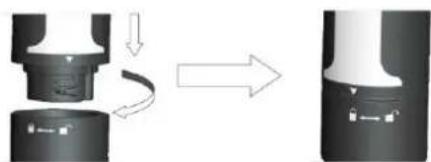

• Insert the blender shaft into the power handle, turn clockwise to lock.

Fill the selected ingredients into the measuring beaker and immerse the blender deeply to prevent splattering. The hand blender may be used with the measuring beaker provided or with any other suitable vessel.

• Switch on the blender by pressing the power button at speed I or II. Switch II is the highest available speed setting.

• Mix all ingredients by gently moving the blender up and down, with circular motions.

USING THE CHOPPER

The chopper is perfectly suited to mince food such as meat, cheese, onions, herbs, biscuits, fruits, vegetables, nuts, bread, etc.

CAUTION: the blades are very sharp! Always handle the blade unit carefully.

• Put the chopper blade unit in the chopper bowl, press it down to lock the bowl.
• Fill the food in the chopper bowl. Cut solid ingredients into smaller pieces (about 2 cm thick).

Put the chopper coupling unit onto the chopper bowl.
- Fasten the power handle to the chopper bowl, as shown in the installation reference "Using the blender".
- Switch on the appliance by pressing the power switch I or II.

- USING THE WHISK

The whisk is useful to whip light ingredients such as cream, egg whites and instant desserts.

Insert the whisk in the whisk coupling unit.
- Connect the coupling unit to the power handle, as shown in the installation reference "Using the blender".
Press switch I to activate the whisk, and switch II after approx. 30 seconds only, in order to prevent splashing.

- CLEANING AND MAINTENANCE

Before cleaning, unplug the appliance and remove the accessories.
- Wipe the power handle and the chopper/whisk coupling unit with a damp cloth only. Do not immerse in water. Other accessories may be cleaned in the dishwasher or the sink.
If some food has been allowed to dry on the blade or whisk, place a drop of dish detergent in the mixing container and add water. Plug in, then immerse the blade or whisk and operate the unit for 10 seconds. Unplug, rinse the container under running water, and then dry thoroughly.
- Store this appliance in a well-ventilated and dry place to prevent the motor to be affected by damp.

CAUTION: the edges of the cutting blades are very sharp, please clean carefully.

- PROCESSING GUIDE

Recommended usage chart for a 500 ml chopper bowl:

Ingredient	Maximum (g)	Processing time (sec)
Meat	300	15
Herbs	50	10
Nuts, almonds	150	10
Cheese	100	10
Bread	80	10
Onions	200	10
Biscuits	150	10
Soft fruits	200	10

DISPOSAL

For proper disposal, please return device to a retailer, a service agent or Rotel AG.

European Directive 2012/19/EC concerning Waste Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the cost of re-using and recycling materials comprising the machine, while preventing potential damage to public health and the environment. The crossed-out wheeled bin symbol appears on all products to remind owners of the obligations regarding separate waste collection. Owners should contact their local authorities or appliance dealers for further information concerning the correct disposal of household appliances.

This appliance conforms to the following EU directives:

2014/35/EU (Low Voltage Directive)
2014/30/EU (Electromagnetic Compatibility Directive)

D/F/I/E

- GARANTIE / GARANTIE / GARANZIA / WARRANTY

2 JAHRE GARANTIE
2 ANS DE GARANTIE
2 ANNI DI GARANZIA
2 YEARS WARRANTY

○ Warranty commitment

We commit ourselves to repair this device free of charge, should a failure occur within the period of warranty despite proper handling. We repair all defects caused by material or manufacturing faults. The guarantee will be fulfilled either by repairing the device or replacing the defective parts, according to our judgement. A warranty does not cover damages due to wearing parts, damages and defects caused by improper handling or maintenance (such as limescale and commercial use). It will only be granted if either the warranty card stating date of purchase, dealer's stamp and signature, or the purchase receipt is sent with the device to the relevant after-sales service (see address below). Devices shall be returned in their original packaging. Transport costs are to be borne by the purchaser. Remember to specify your address to your sending, as well as a short declaration about the failure, shall the defect not be obvious.

Servicestation:

Service après-venture: Rotel AG
