EL300RGB - Laser projector Laserworld - Free user manual and instructions

Product type	Laser projector
Brand	Laserworld
Model	EL300RGB
Laser sources	Diode (red, green, blue)
Laser class	2
Effect	Multi point / star effect / diffraction grating
Deviation	>50°
Operating modes	Automatic, music, DMX, master-slave
Power supply	85 V - 250 V AC
Power consumption	15 W
Operating temperature	+10°C to +35°C
Dimensions (L x W x H)	192 x 150 x 89 mm
Weight	1.25 kg
Maximum laser power	300 mW
Connectivity	DMX in/out, Interlock, Power supply, Key switch
Built-in microphone	Yes, with sensitivity adjustment
Display	LED
DMX control	7 channels
Safety	Do not look into the beam; professional use; installation by qualified personnel; use emergency stop switch; protect from moisture; wear protective goggles
Maintenance	Clean the fans; avoid overheating; do not turn on in short intervals; let cool down 15 min per hour; transport in flight case
Warranty	Do not remove the warranty sticker; incorrect use voids warranty

Frequently Asked Questions - EL300RGB Laserworld

How to turn on the EL300RGB laser projector?

To turn on the projector, connect the power cable, insert the key into the key switch and turn to ON, then connect the Interlock connector on the back and press ON to power on.

What are the different operating modes?

The device has four modes: automatic (preprogrammed effects in loop), music (reacts to sound), DMX 512 (control via external controller) and master-slave (synchronization of multiple projectors).

How to use the music mode?

In music mode, effects are activated by music or ambient noise. Turn the potentiometer on the back clockwise to increase the microphone sensitivity. Projection stops automatically after 5 seconds without detected sound.

How to set up DMX mode?

Connect a DMX controller and set the DMX address between 1 and 511 on the device. The projector uses 7 DMX channels. Make sure there is no address conflict with other devices.

What are the important safety precautions?

Never look directly into the laser beam. Use the device only indoors, in a dry and dust-free environment. Install it by qualified personnel and observe safety distances. Wear appropriate protective goggles and remove any reflective objects before intervention.

What to do if the device does not turn on?

Check that the power cable is properly connected, that the key switch is in ON position and that the Interlock connector is correctly inserted. If the problem persists, contact your dealer.

How to maintain the laser projector?

Clean the fans and heatsinks regularly to avoid overheating. Do not turn it on at short intervals. Let the device cool down about 15 minutes per hour of use. Avoid moisture and excessive heat. Use a flight case for transport.

Can I use this device outdoors?

No, the device is designed for indoor use only. It must not be exposed to moisture, rain or splashing water.

What is the warranty coverage?

The warranty is void if the warranty sticker is removed or in case of incorrect use, failure to follow maintenance instructions, or unauthorized modification. For any questions, contact Laserworld or your dealer.

How to connect multiple projectors in master-slave mode?

Connect the master projector (DMX out) to the slaves (DMX in) with DMX cables. On the master, select automatic or music mode. On the slaves, set the mode SLAV via the MODE button and confirm with Enter.

USER MANUAL EL300RGB Laserworld

Please spend a few minutes to read this manual fully before operating this laser!

Black laser projector with warning symbol and 'LASER WORLD' branding (no readable text beyond branding)

English

Deutsch

Français

10/2019

Legal notice:

Thank you for purchasing this Laserworld

product. Due to continual product developments and technical improvements, Laserworld (Switzerland) AG reserves the right to make modifications to its products. This manual and its content have been made with due care but Laserworld (Switzerland) AG cannot however, take any responsibility for any errors, omissions or any resulting damages forthwith. The brands and product names mentioned in this manual are trade marks or registered trade marks of their respective owners.

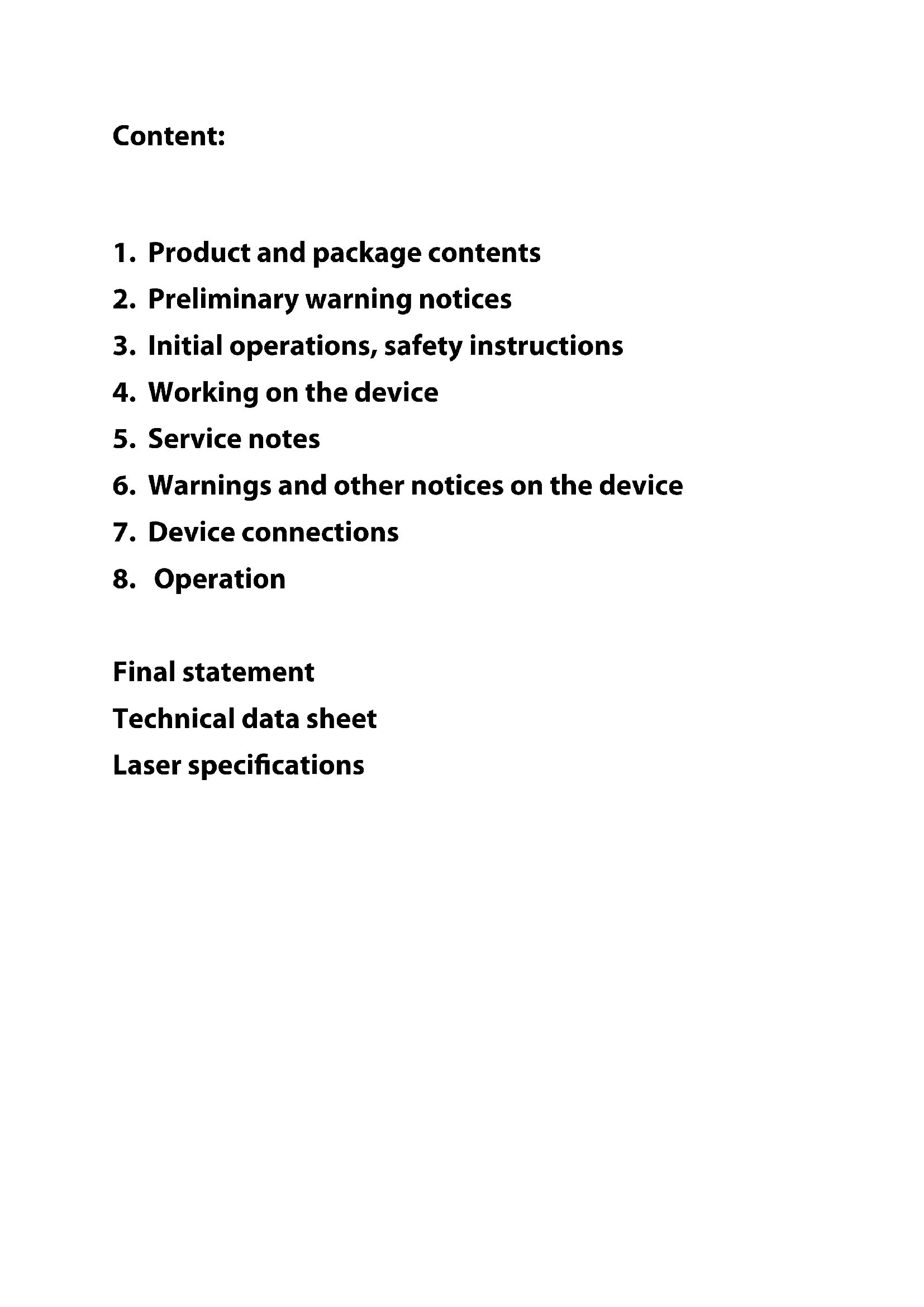

1. Product and package contents
2. Preliminary warning notices
3. Initial operations, safety instructions
4. Working on the device
5. Service notes
6. Warnings and other notices on the device
7. Device connections
8. Operation

Final statement

Technical data sheet

Laser specifications

1. Product and package contents

Please check if all listed parts are included and undamaged. Included in delivery:

1 x laser projector 1 x manual 1 x key

1 x power cable 1 x Interlock Connector

2. Preliminary warning notices

1. Please use this device only according to these operating instructions.
2. Do not use the device if there are any visible damages on housing, connector panels, power supplies or power cords.
3. This device must not be permanently connected to mains. Disconnect it from mains or use the power button to switch if off if not in use.
4. Never look directly into the light source of a laser projector. Danger of damage to the eyes or even blindness in extreme circumstances!
5. Do not operate the device at high humidity, rain or in dusty surroundings.
6. Protect device against dripping or splashing water. Do not place any liquid filled containers near to this device.

Any warranty claims are void if the warranty label is removed or tampered with in any way.

3. Initial operations, safety instructions

1. Make sure to use correct voltage; see information on device & in this manual.

2. Make sure that the device is not connected to mains during installation.

3. Installation has to be done by technical experienced and qualified persons according to safety regulations of the respective country.

4. Always ensure that maximum permissible exposure (MPE) is not exceeded in areas accessible to the public or members of staff.

5. In some countries an additional inspection by technical control in-

stitutes could be necessary.

1. Connect an easily accessible inter-lock connector or circuit breaker to the projector.

2. The power supply should be easily accessible.

3. When installing the laser keep mount it with a minimum distance of 15 cm from walls and objects.

4. For safe setup e.g. on walls or ceilings please use a safety cord. The safety cord should be able to withstand tenfold the weight of the device. Please follow the accident prevention regulations of professional associations and/or comparable regulations for acci-

dent prevention.

1. If the device has been exposed to great temperature changes, do not switch it on immediately. Condensation (or any moisture/water formed) may damage device.
2. Never use dimmer, RC or other electronically switched sockets. Whenever possible, do not use the laser projector together with large appliances (especially fog machines) on the same mains!
3. Ensure sufficient ventilation and

do not place the device on any warm or heat radiating surface. Especially the ventilation openings must not be covered!

1. Ensure that device does not gets overheated. Make sure that the device is not exposed to spotlights (especially moving heads). Heat of spotlights could overheat laser in a little while and leads to a degradation of performance.
2. This unit is intended for indoor use only.

4. Working on the device

1. This product has no user serviceable parts inside should only be maintained and serviced by a qualified engineer.
2. Be sure that the mains plug is not connected to the power supply while installing or opening the device (e.g. for cleaning).
3. Take off all reflecting things like rings, watches etc. before start working with or at the projector.
4. Use only non-reflecting tools to work on device.
5. Wear protective clothing (like goggles, gloves etc.) according to laser power and wavelength of the laser.

Yellow triangular warning sign with black radiating lines and a sunburst symbol (no text)

5. Service notes

• Moisture and heat can reduce lifetime of the laser system dramatically and expires any warranty claim.
• Quick on/off switching of this device will reduce durability of the laser diode dramatically.
• Avoid sharp knocks and shocks to this device and ensure sufficient protection during transportation. Look after your Laserworld product.
• To increase durability of your laser, protect device against overheating: -Always ensure sufficient ventilation.

- Do not face spotlights (especially moving heads) to the device.

- Check temperature after approx. 30 minutes with each new installation. If necessary install the projector at a place with different temperature.

- Switch off device when it is not needed. Diodes are switched on and can wear out even if there is no visible laser output.

-Keep the device dry. Protect it from moisture, rain and damp.

• The devices of Ecoline, Club and Proline Series are not meant for professional applications. After approx. one hour of operation, the

device should cool down for about 15 minutes.

- Please ensure the fans and heatsinks are clear from dust and debris otherwise the risk of overheating may occur. If the unit and airways appear to be blocked then please contact a qualified service engineer to maintain and service the product.

- Removal of the warranty label as well as damages to the device caused by improper handling, neglect of the safety instructions and service notes will void the warranty.

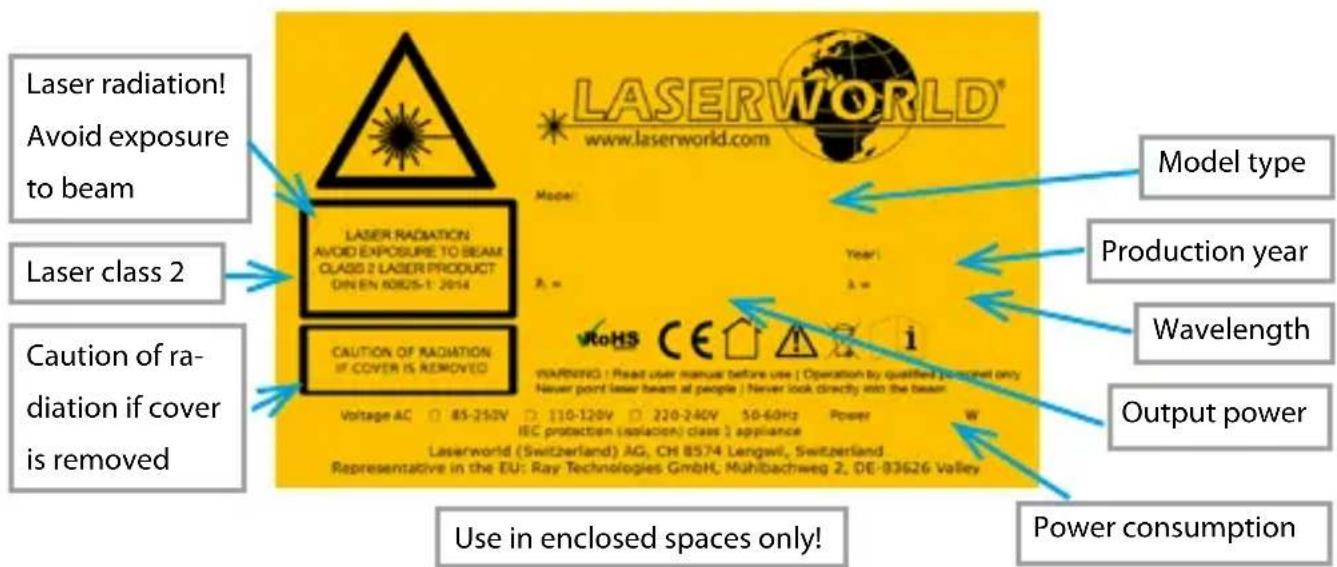

6. Warnings and other notices on the device

Laser radiation! Avoid exposure to beam Laser class 2 Caution of ra- diation if cover is removed Laser radiation AVOID EXPOSURE TO BEAM CLASS 2 LASER PRODUCT DIN EN 80825-1: 2014 CAUTION OF RADIATION IF COVER IS REMOVED Use in enclosed spaces only! Laserworld (Switzerland) AG, CH 8574 Lengwl, Switzerland Representative in the EU: Ray Technologies GmbH, Mühbachweg 2, DE-83626 Valley Laserworld.com www.laserworld.com Model type Production year Wavelength Output power Power consumption

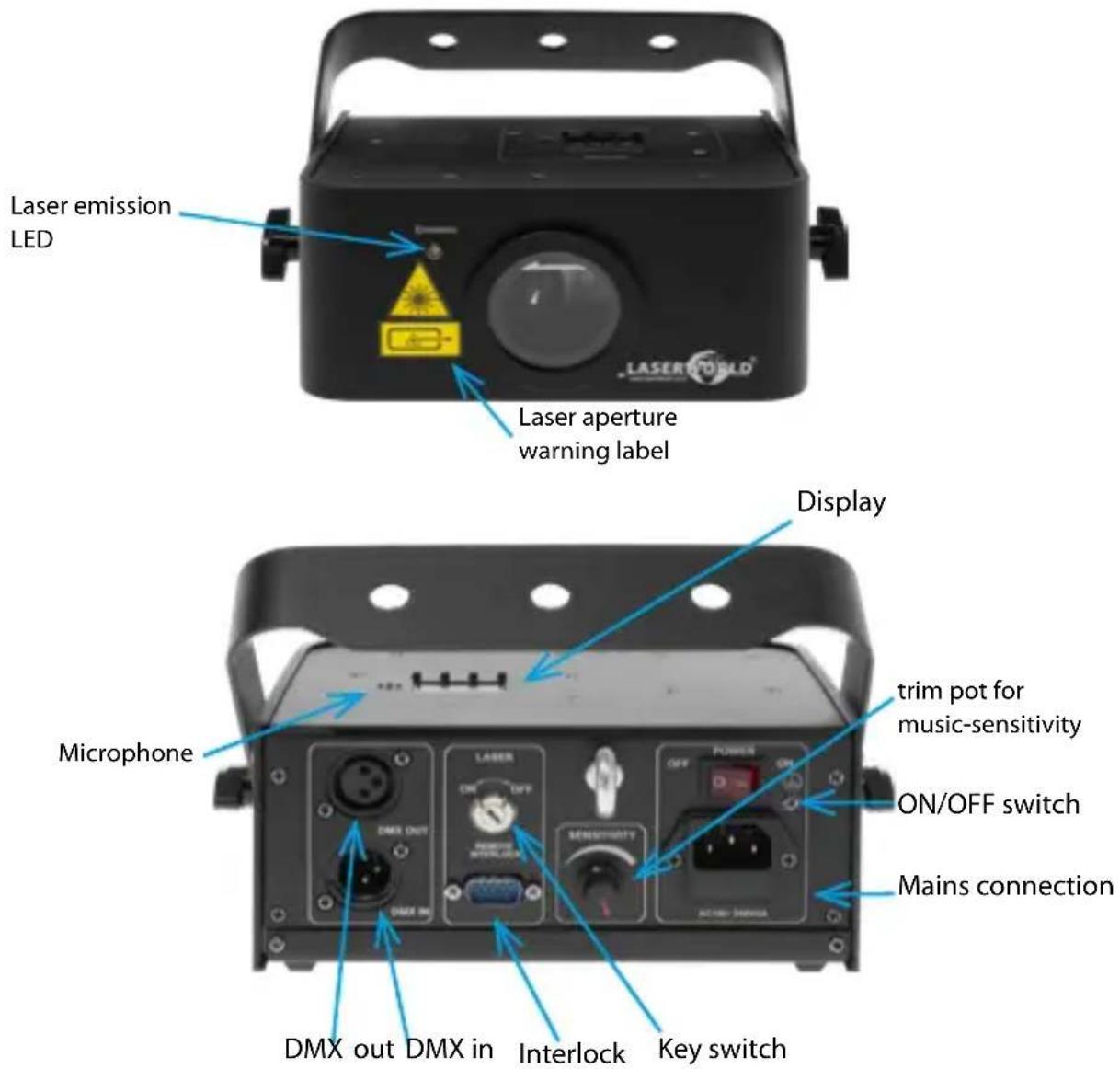

7. Device connections

Laser emission LED LASER TOLLO Laser aperture warning label Display Microphone trim pot for music-sensitivity ON/OFF switch Mains connection DMX out DMX in Interlock Key switch

8. Operation

a. Connect the power cable to the device and then to the mains
b. Insert the key into the key switch and turn it „ON“
c. Connect the Interlock Connector with the Interlock interface
d. Press „ON“ to switch the device on

8.1. Menu operation Instructions

To save your current selection as default value (active after restart) press the enter button for 5 seconds. Your selection will be your default setting.

Channel Function
	R1 Red Auto mode	(Number 1-9 shows strobo speed)
	G1 Green Auto mode	(Number 1-9 shows strobo speed)
	B1 Blue Auto mode	(Number 1-9 shows strobo speed)
	Y1 Yellow Auto mode	(Number 1-9 shows strobo speed)
	C1 Cyan Auto mode	(Number 1-9 shows strobo speed)
	P1 Purple Auto mode	(Number 1-9 shows strobo speed)
	H1 White Auto mode	(Number 1-9 shows strobo speed)
	AUTF Auto Mode with fast run speed
	AUTS Auto mode with slow run speed
	AUTH Auto mode with white color
	SO1 Sound-to-light mode active
	A001 DMX mode, DMX address from 1-511
	SLAV Slave mode

8.2. Automatic, Stand-alone operation

Set the device to auto mode:

Auto cycles the built-in programs without being controlled externally.

8.3. Music mode, Sound-to-light operation

Your device runs in music mode:

The laser effects are triggered by sound. Turn the sensitivity pot in the clockwise direction to increase sound sensitivity, turn the pot in the counter-clockwise direction to decrease sensitivity. The laser effect will automatically turn off after 5 seconds without music input.

8.4. Master-Slave-Mode (Slav)

To use the daisy chain / Master-Slave-Mode connect two (or more) laser projectors of the same series via DMX cables:

Master projector (DMX out) -> DMX cable -> slave projector 1 (DMX in); slave projector 1 (DMX out) -> DMX cable -> slave projector 2 ...etc.

Master projector

Select auto or music mode at the master projector (see above)

DMX cable Slave projector

To use this mode, please press the MODE button until the display shows SLAV and confirm by pressing Enter.

8.5. DMX-512 mode

Connect a DMX controller to operate the laser. The laser uses 7 DMX channels, so make sure that the next device uses an address that doesn't overlap with this range.

Channel Value Function

10-49 Laser off

50 - 99 Automatic mode

100 - 199 Automatic mode - slow

200 - 249 Sound-to-light

250-255 DMX active

20 - 255 Red intensity

Channel Value Function
3 0 - 255 Green intensity
4 0 - 255 Blue intensity
5 0 - 255 Strobo effect
6 0 - 255 Rotation speed
7 000 - 099 - Clockwise rotation100 - 199 - No rotation200 - 255 - Counter clockwise	Rotation direction

8.6. Turn laser off

To turn off the device switch it off („OFF“), switch the key to „OFF“ and disconnect the power cable from the mains.

Final statement

Laserworld products are tested and product packaging is inspected before leaving our warehouse. Users must to follow the local safety regulations and warnings within this manual and adhere to any regulations within its place of use. Damages through inappropriate use will void any liability or warranty of our products. Due to continual product developments, please check for the latest update of this product manual at www.laserworld.com. If you do have any further questions, then please contact your dealer/place of purchase or use our contact section on our website. For service issues, please contact your dealer/place of purchase and ensure only genuine Laserworld spare parts are used in any service repairs.

Errors and omissions excepted and products are subject to change.

Laserworld (Switzerland) AG

Kreuzlingerstrasse 5

8574 Lengwil

SWITZERLAND

Registered office:

8574 Lengwil / Switzerland

Company number: CH-440.3.020.548-6

Commercial Registry Kanton Thurgau

CEO: Martin Werner

VAT no. (Switzerland): 683 180

UID (Switzerland): CHE-113.954.889

VAT no. (Germany): DE258030001

WEEE-Reg.-No. (Germany): DE 90759352

C€

www.laserworld.com

[e-mail]

representative according to EMVG:

Managing Director: Martin Werner

Mühlbachweg 2

83626 Valley / Germany
