Product type	Laser projector
Brand	Laserworld
Model	CS2000RGB FX
Laser sources	Diode: Red 650 nm, Green 520 nm, Blue 445 nm
Laser class	4
Scanner	Galvo System, 28 kpps @ 8° ILDA
Max. scanning angle	40°
Beam	Approx. 3 mm / 1.1 mrad
Operating modes	Automatic, Music, DMX (14 channels), ILDA
Total guaranteed optical power	1600 - 2000 mW (Red 250 mW, Green 250 mW, Blue 1100 mW)
Power supply	85 V - 250 V AC (universal)
Power consumption	120 W
Operating temperature	+10°C to +35°C
Dimensions (H x W x D)	190 x 274 x 160 mm
Weight	4.75 kg
Package contents	Laser projector, power cable, keys, Interlock connector, user manual
Connectivity	DMX in/out (XLR 3-pin), ILDA (Sub-D 25), Interlock (RJ45)
Master-slave function	Yes, via DMX cabling
Diffraction effects	Integrated, selectable (L001 to L005)
Scanning safety (beam block)	Yes, adjustable in settings
Key switch	Yes
Ventilation	Ensure good ventilation, do not block
Maintenance	Clean fans, avoid rapid on/off cycles, protect from moisture
Repairability	Repairs by qualified authorized personnel only, Laserworld spare parts
Warranty	Conditional upon compliance with instructions; removal of sticker voids warranty

Frequently Asked Questions - CS2000RGB FX Laserworld

How to turn on the CS2000RGB FX laser projector?

Connect the power cable to the projector and then to the mains. Insert the key into the key switch and turn to ON. Toggle the switch to ON to power on the device. An Interlock connector must be plugged in to activate laser emission.

What operating modes are available?

Modes are: Music (patterns synchronized to rhythm via internal microphone), Auto (autonomous pattern playback), DMX512 (control via DMX console, 14 channels), and ILDA (control via PC software with ILDA interface). You can also set Master-Slave mode.

How to configure master-slave mode?

Connect lasers via DMX cables (DMX output of master to DMX input of slaves). Enable master mode on the master laser: menu SEt > uAST > on. On slaves, set master mode to off, then select DMX mode with address 001. Finally, set the master to Music or Auto mode.

How to use DMX512 control?

Connect a DMX controller or a master laser. In the menu, select d512 then set the desired DMX address. This projector uses 14 DMX channels. Refer to the DMX chart in the manual for each function (mode, pattern, rotations, colors, etc.).

What to do if the laser does not turn on?

Check the power cable connection and mains voltage (85-250 V AC). Ensure the key is in the ON position. Verify that the Interlock connector is properly plugged in. If nothing works, unplug and contact an authorized technician.

What safety precautions must be observed?

Never look directly into the laser beam (class 4). For professional entertainment use only. Install the device at a sufficient distance from the audience. Use an emergency stop switch. Wear suitable wavelength-specific goggles. Comply with local regulations on maximum permissible exposure (MPE).

How to clean and maintain the device?

Keep fans and heatsinks free of dust. Avoid rapid on/off cycles. Allow the device to cool down for about 15 minutes per hour of use. Protect from moisture and water splashes. Use only non-reflective tools for maintenance.

Can I use the device outdoors?

No, the device is not designed for outdoor use. Avoid humidity, rain, and splashes. Use only in a dry, temperate environment (temperature between +10°C and +35°C).

How to adjust the microphone sensitivity in music mode?

In the main menu, navigate to SEt > SEnS. Use Up/Down buttons to adjust sensitivity from 1 to 100. Default is 50. Confirm with Enter.

What to do in case of overheating?

Immediately turn off the device and unplug it. Check that ventilation openings are not blocked. Move away any fixtures (moving heads) that may heat the device. Place it in a cooler location. If the problem persists, contact an authorized technician.

USER MANUAL CS2000RGB FX Laserworld

Please spend a few minutes to read this manual fully before operating this laser!

Thank you for purchasing this Laserworld product.

Due to continual product developments and technical improvements,

Laserworld (Switzerland) AG reserves the right to make modifications to its products.

This manual and its content have been made with due care but Laserworld (Switzerland) AG cannot however, take any responsibility for any errors, omissions or any resulting damages forthwith.

The brands and product names mentioned in this manual are trade marks or registered trade marks of their respective owners.

Attention: This device is a show laser device for commercial use. This device is not a laser pointer, not suitable for pointing purposes and must not be used as a laser pointer.

1. Product and package contents 4
2. Preliminary warning notices 4
3. Initial operations, safety instructions 4
4. Working on the device 5
5. Service notes 5
   6.Warnings and other notices on the device 6
6. Device connections 7
7. Operation 8

8.1. Turn on the Laser system 8
8.2. Set Operation Modes: 8

8.2.1. SOUND-TO-LIGHT 8
8.2.2. STAND-ALONE / AUTO 8
8.2.3.MASTER-SLAVE 9
8.2.4.DMX512 10
8.2.5. SETTINGS 12
8.2.6. ILDA / COMPUTER CONTROL 14

1. Product and package contents

Please check if all listed parts are included and undamaged. Included in delivery:

Laser system, power cable, keys, interlock bridge plug, manual

2. Preliminary warning notices

• Please use this device only according to these operating instructions.
• Do not use the device if there are any visible damages on housing, connector panels, power supplies or power cords.
• Never look directly into the light source of a laser projector. Danger of damage to the eyes or even blindness in extreme circumstances!
  This device must not be permanently connected to mains. Disconnect it from mains or use the power button to switch if off if not in use.
• Do not operate the device at high humidity, in the rain or in dusty environments.
• Protect device against dripping or splashing water. Do not place any liquid filled containers near to this device.
  Any warranty claims are void if the warranty label is removed or tampered with in any way.

3. Initial operations, safety instructions

• Make sure to use correct voltage; see information on device & in this manual.
• Make sure that the device is not connected to mains during installation.
• Installation has to be done by technical experienced and qualified persons according to safety regulations of the respective country.
  Always ensure that maximum permissible exposure (MPE) is not exceeded in areas accessible to the public or members of staff.
• In some countries an additional inspection by technical control institutes could be necessary.
• Connect an easily accessible interlock connector or circuit breaker to the projector.
  The power supply should be easily accessible.
• When installing the laser mount it with a minimum distance of 15 cm from walls and objects.
• For safe setup e.g. on walls or ceilings please use a safety cord. The safety cord should be able to withstand tenfold the weight of the device. Please follow the accident prevention regulations of professional associations and/or comparable regulations for accident prevention.
  If the device has been exposed to great temperature changes, do not switch it on immediately. Condensation (or any moisture / water formed) may damage device.
• Never use dimmer, RC or other electronically switched sockets. Whenever possible, do not use the laser projector together with large appliances (especially fog machines) on the same mains!
• Ensure sufficient ventilation and do not place the device on any warm or heat radiating sur

face. Especially the ventilation openings must not be covered!

• Ensure that device does not get overheated. Make sure that the device is not exposed to spotlights (especially moving heads). Heat of spotlights could overheat laser in a little while and leads to a degradation of performance.
• This unit is intended for indoor use only.

4. Working on the device

• This product has no user serviceable parts inside and should only be maintained and serviced by a qualified engineer.
• Be sure that the mains plug is not connected to the power supply while installing.
• Take off all reflecting things like rings, watches etc. before starting to work with or at the projector.
• Only use non-reflecting tools to work on device.
• Wear protective clothing (like glasses, gloves etc.) according to laser power and wavelength of the laser.

5. Service notes

• Moisture and heat can reduce lifetime of the laser system dramatically and expires any warranty claim.
• Quick on/off switching of this device will reduce durability of the laser diode dramatically.
• Avoid sharp knocks and shocks to this device and ensure sufficient protection during transportation. Look after your Laserworld product.
• To increase durability of your laser, protect device against overheating:
• Always ensure sufficient ventilation.
• Do not face spotlights (especially moving heads) to the device.
• Check temperature after approx. 30 minutes with each new installation. If necessary install the projector at a place with different temperature.
• Keep the device dry. Protect it from moisture, rain and damp.
• Switch off device when it is not needed. Diodes are switched on and can wear out even if there is no visible laser output.
• Please ensure the fans and heatsinks are clear from dust and debris otherwise the risk of overheating may occur. If the unit and airways appear to be blocked then please contact a qualified service engineer to maintain and service the product.
  The devices of the Club Series are not meant for professional applications. They are not suitable for 24/7 operation.
• Removal of the warranty label as well as damages to the device caused by improper handling, neglect of the safety instructions and service notes will void the warranty

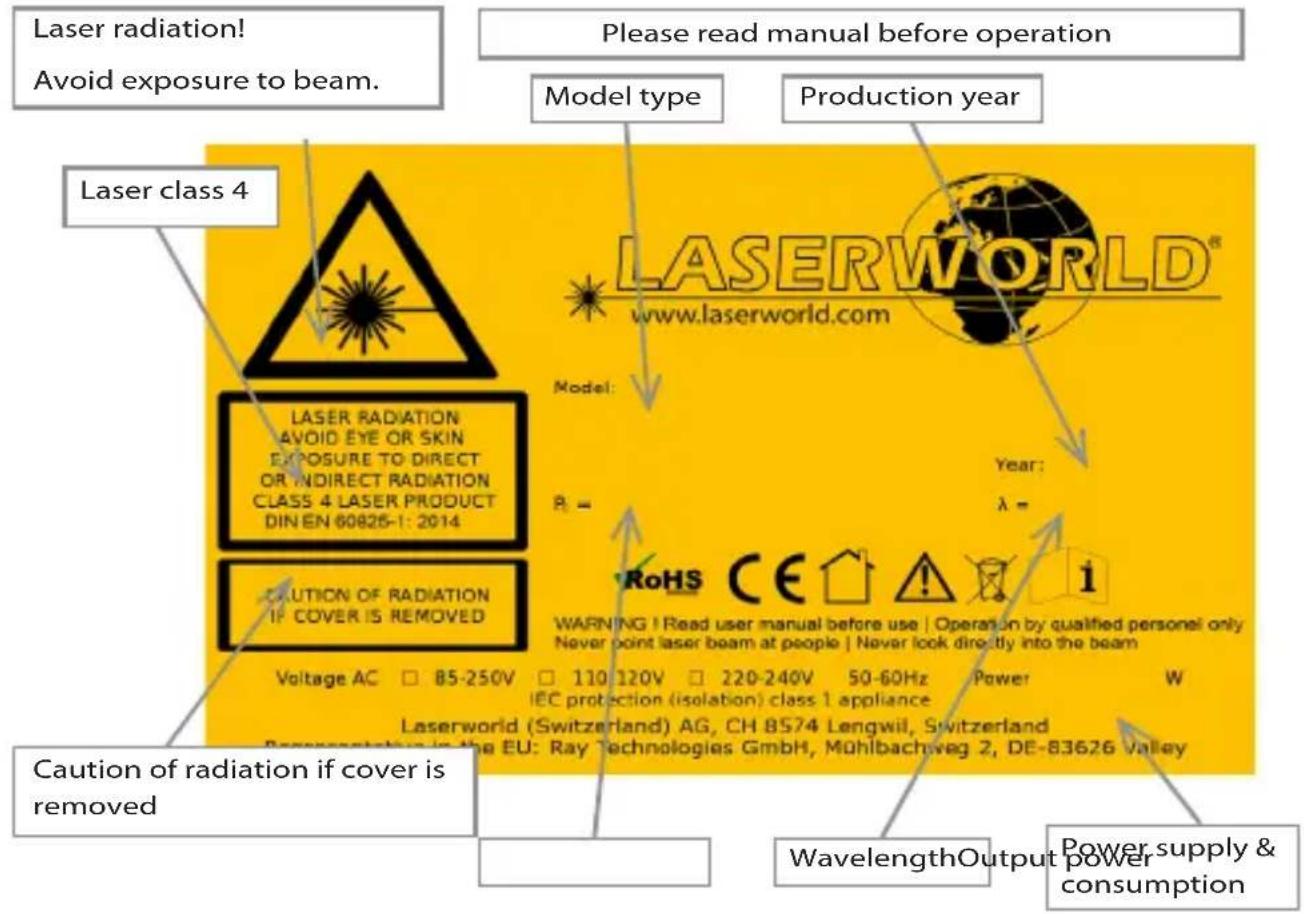

6.Warnings and other notices on the device

Use in enclosed spaces only!

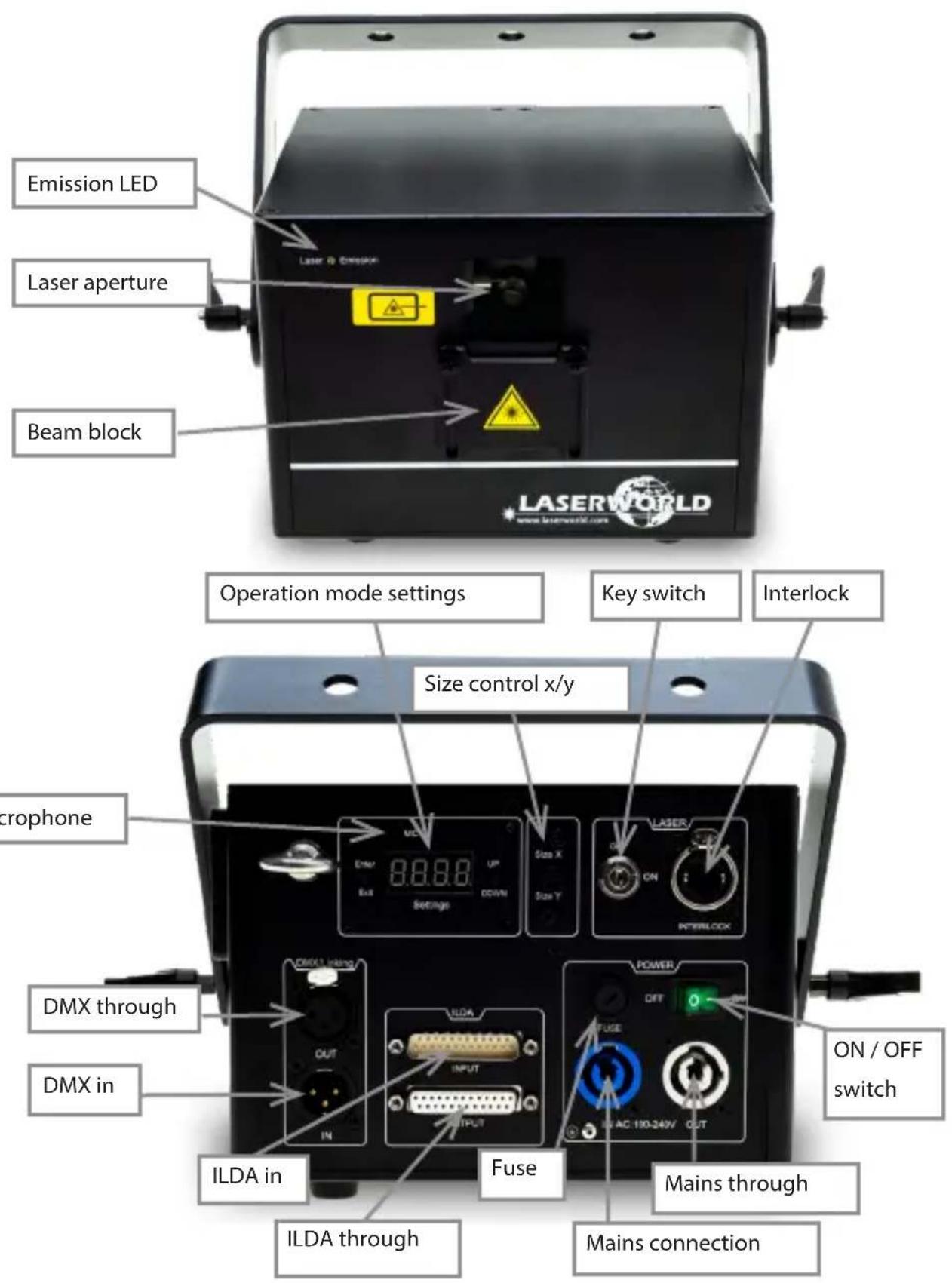

7. Device connections

8. Operation

8.1. Turn on the Laser system

• Connect the power cable to the device and then to the mains
• Insert key and turn it to "ON"
• Press the "ON" switch to turn on the device
• An Interlock bridge adapter is included in delivery (small network plug). Attach an E-Stop to the interlock interface or use the bridge connector to enable laser output
• Safety Presets

This device has an integrated Scan Safety. Is the Scan Safety active (on), single beams are prevented. Only disable the Scan Safety for testing purposes. Do not switch off the Scan Safety for productive use of the laser! Read more: 8.2.5. Settings

8.2. Set Operation Modes:

The different operation modes can be selected via the four buttons next to the „Settings" display.

"Enter" confirms a selection or navigates to the selected menu item

"Up" / "Down" allows for stepping through the current menu or to make a selection

"Exit" exits the current menu item and moves one level higher.

8.2.1. SOUND-TO-LIGHT

Sound-to-light operation allows to playback the integrated patterns to the beat of music or any noises.

Select „SoUd“ by navigating with the „Up“ / „Down“ buttons and confirm with „Enter“:

Standard selection is "ALL", which means that all patterns saved on the main board are played back. You can decide to use only a certain part of the pattern set with a certain grating by selecting L001, L002, L003, or no grating with L004:

To set the sensitivity of the internal microphone, refer to chapter 8.2.5. Settings

8.2.2. STAND-ALONE / AUTO

Stand-alone or Auto operation allows to random playback the internal patterns.

They are played back according to the internal system settings.

Select "AUto" by navigating with the "Up" / "Down" buttons and confirm with "Enter":

Standard selection is "All", which means that all patterns saved on the main board are played back. You can decide to use only a certain part of the pattern set with a certain grating by selecting L001, L002, L003, or no grating with L004:

8.2.3. MASTER-SLAVE

The CS-2000RGB FX is Master-Slave capable. This means that the Master laser system can hand on a control signal to one or more Slave lasers, so all do the same.

Master-Slave only works with lasers of the same product series of the same product generation.

A: Link lasers with DMX cable

To use Master-Slave operation, link the Master with the Slave lasers with DMX cables. Make sure to use the „DMX out“ port on the Master and the „DMX in“ on the Slave lasers. If several Slave lasers are used, link the first one to the Master laser and daisy-chain the control signal from the first Slave laser to the second etc..

B: Activate Master Laser

The Master laser needs to be set as control source.

Select "SEt" by navigating with the "Up" / "Down" buttons and confirm with "Enter":

Use the „Up“ / „Down“ buttons to navigate to „uAST“

Press „Enter“, use the „Up“ / „Down“ buttons to switch the option to „on“ and confirm with „Enter“

C: Deactivate Master setting on Slave lasers

As soon as the Master option is set to "on", the laser sends out the control signal for the Slave units. Make sure that all Slave units have the Master setting set to "off":

D: Set Sound-to-Light or Auto mode on Master laser

To use the Master-Slave operation: set the Master to either Sound-to-Light mode (8.2.1) or Auto mode (8.2.2.).

E: Establish link to Slave lasers

The Slave units must be set to DMX (,d512^ ) mode and must be assigned address 001 (see 8.2.4. DMX 512)

8.2.4.DMX512

The DMX mode requires a DMX controller or a Master laser (see 8.2.3. Master-Slave operation) to be connected to the laser.

To switch to DMX mode, select „d512" by navigating with the „Up“ / „Down“ buttons and confirm with „Enter“:

The submenu for setting the DMX address loads:

Press „Enter" and the „Up" / „Down" buttons to set the desired DMX address.

Confirm with „Enter“ and press „Exit“ to return to the main menu.

DMX Chart

The laser uses 14 DMX channels, so make sure that the next device uses an address that doesn't overlap with this range.

Channel Value Function
1 Operation mode 0 - 49 Laser
		50 - 99 Sound-to-Light mode
		100 - 149 Stand-alone mode
		150 - 255 DMX mode
2	Pattern select	0 - 255	Pattern selection (refer pages 44 - 46 for full pattern overview)
3 Rotation (Z-axis) 0 - 127 Rotation angle selection
				128 - 191 Rotation counter-clockwise speed
				192 - 255 Rotation clockwise speed
4 X-axis Rotation 0 - 127 Rotation X position steps
				128 - 255 Rotation X speed
5	Y-axis Rotation	0 - 127	Rotation Y position steps
		128 - 255 Rotation Y speed
6 X-axis Movement 0 - 127 X-axis movement position
				128 - 255 X-axis movement speed
7	Y-axis Movement	0 - 127	Y-axis movement position
		128 - 255 Y-axis movement speed
8 Size X 0 - 255 Size X from big to small
9 Size Y 0 - 255 Size Y from big to small
10 Pattern gradient 0 - 255 Gradient speed
11	Scan speed / Points	0 - 127	Scan speed
		128 - 255 Point speed
12 Color change 0 - 24 Original		al color
		25 - 199 Color selection
		200 - 224 Automatic color change effect
		225 - 255 Rainbow color change effect
13 Color speed 0 - 255 Speed		adjustment for automatic color change effect and multi color step through
14 Grating effect 0 - 255 cycle		through grating effects per 50 value

8.2.5. SETTINGS

To access the settings, select "SEt" by navigating with the "Up" / "Down" buttons and confirm with "Enter":

The settings menu holds several configuration options for the laser system.

Master Setting

The "uAST" menu allows for the activation and deactivation of the Master mode for the laser. If the laser is set to Master > On, then it can be used as Master device in a Master-Slave setup. See more in 8.2.3. Master-Slave".

Press „Enter“ to change the settings. Use the „Up“/ „Down“ button to change the selection.

The „bEAu“ menu can switch the beam block safety on and off. The beam block safety prevents that very intense, single beams can be displayed. It is highly recommended to not switch this feature off. Switching off the beam block safety is at your own risk! Lasers with switched off beam block safety may only be used in safe areas.

Always respect the local laws!

Press „Enter“ to change the settings. Use the „Up“ / „Down“ button to change the selection.

The "InuE" menu controls the orientation of the projection. You can invert the projection and flip it to match the orientation of the laser with the content.

Press „Enter“ to change the settings. A test picture is shown to represent the currently set orientation. Use the „Up“ / „Down“ button to change the selection, and confirm the selection with „Enter“ to change the test picture projection

Press ,Exit" to return to the settings menu.

Microphone Sensitivity Settings

The sensitivity of the built-in microphone for the control of the sound-to-light operation can be adjusted in the „SEnS“ menu. Press „Enter“ to change the settings. Use the „Up“ / „Down“ button to change the selection.

The sensitivity can be adjusted between 1 and 100. Standard value is 50.

8.2.6. ILDA / COMPUTER CONTROL

The laser can be used with any laser control software that supports the ILDA control signal via sub-d connector. Use an ILDA cable to connect the Digital Analog Converter (DAC / ILDA interface) of the laser software to the ILDA in port at the laser.

Grating Effects Settings in ILDA mode

To operate the grating effects in ILDA mode the „ILdA“ menu must be selected. Press „Enter“ to change the settings.

The standard selection is "L001", which means that the laser will automatically switch through the grating effects. A certain grating effect can be selected with L002, L003, L004. If L005 is selected there is no grating effect.

Use the „Up“/„Down“ button to change the selection:

Recommended computer control software for your laser:

Showeditor Set with ShowNET www.showeditor.com

Showcontroller Set with ShowNET www.showcontroller.com

Final statement

Laserworld products are tested and product packaging is inspected before leaving our warehouse.

Users must to follow the local safety regulations and warnings within this manual and adhereto any regulations within its place of use. Damages through inappropriate use will void any liability or warranty of our products.

Due to continual product developments, please check for the latest update of this product manual at www.laserworld.com. If you do have any further questions, then please contact your dealer/place of purchase or use our contact section on our website.

For service issues, please contact your dealer/place of purchase and ensure only genuine Laserworld spare parts are used in any service repairs.

Errors and omissions excepted and products are subject to change.

Laserworld (Switzerland) AG

Kreuzlingerstrasse 5

8574 Lengwil / SWITZERLAND

Registered office:

8574 Lengwil/Switzerland

Company number: CH-440.3.020.548-6

Commercial Registry Kanton Thurgau

CEO: Martin Werner

VAT no. (Switzerland): 683 180

UID (Switzerland): CHE-113.954.889

VAT no. (Germany): DE 258030001

WEEE-Reg.-No. (Germany): DE 90759352

www.laserworld.com

[e-mail]

representative according to EMVG:

Managing Director: Martin Werner

Mühlbachweg 2

83626 Valley / Germany

Inhalt

Showeditor Set with ShowNET www.showeditor.com

Showcontroller Set with ShowNET www.showcontroller.com

representative according to EMVG:

Managing Director: Martin Werner

Muhlbachweg 2

Managing Director: Martin Werner

Muhlbachweg 2

The following patterns are pre-set in the CS-2000RGB FX. Some may be pre-animated, others are static and can be custom animated. Colors may vary.

1

2

3

4

5

6

7

8

9

10

17

12

13

14

15

16

17

18

19

2D

21

22

23

24

25

26

27

26

29

30

31

32

33

34

35

36

37

36

39

40

41

42

43

4

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

65

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

85

87

86

89

90

91

92

93

94

95

96

97

98

99

100

107

102

103

104

105

105

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128
